USER MANUAL BQ2804 TRISTAR

Instruction manual Gebruiksaanwijzing Mode d'emploi Bedienungsanleitung Manual de usuario Manual de utilizador Instrukcja obsługi Manuale utente Användare23 Dear customer, Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance. SaFeTy INSTRucTIoNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certicate, the sales receipt and, if possible, the carton with the inner packaging.

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.

• To protect children against the dangers of an electrical appliance, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.

• This appliance is only to be used for household purposes and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Do not touch hot surfaces. Use handles or knobs.

• Never use the device unsupervised.

• All repairs should be made by a competent qualied electrician(*).

• Make sure that the appliance is stored in a dry environment.

• Only cook consumable food.

• It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.

• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.

• This appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today.

• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.

• Never move the appliance by pulling the cord and make sure the cord can not become entangled.

• Do not wind the cord around the appliance and do not bend it.

• Allow the appliance to cool down before you clean or store it.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

• Unplug the appliance from the socket when changing the spare parts or for maintenance.

• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*). Do not repair this appliance yourself. Barbecue-grill eN9

• Do not use this appliance near direct heat sources.

• Unplug the appliance from the socket when you are not using it.

• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or o.

• Using an extension cord or something similar is not allowed.

• Allow the device to cool down before you are going to remove or replace spare parts.

• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.

• Make sure the cord does not touch the hot parts of the appliance.

• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).

• Be careful with oil and fat preparations, because they might catch re by overheating. Provide proper ventilation when using the appliance.

• Caution: do not, under any circumstances, cover the grill rack with aluminum foil, barbecue dishes or other items, as the resulting build- up of heat could destroy the grill.

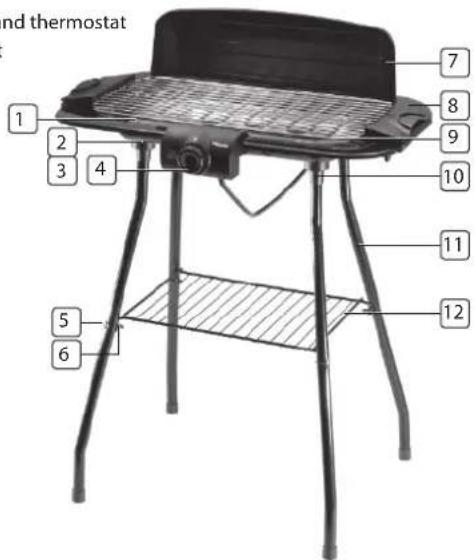

• Do not, under any circumstances, use charcoal or any other solid or liquid fuel to operate the grill. (*) Competent qualied electrician: after sales department of the producer or importer or any person who is qualied, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. PaRTS DeScRIPTIoN

4. Element with connection and thermostat

5. 4 bolts for rack attachment

• Take the appliance and the accessories out the box. Remove the stickers, protective foil or plastic from the device.

• Before use, clean the appliance and all the spare parts with a damp cloth. Instruction manual5 aSSeMBly All you need is a magnetic screwdriver. First check whether you have all the components and lay them out on the oor. Place the enamelled tray upside down on the oor.

1. Place the rubber rings (2) on the screw holes.

2. Place the caps (10) on the rubber rings and screw these on tight with

the screws (3) using the screwdriver with the magnetic head.

3. Place the legs (11) in these caps (10).

4. First insert the 4 bolts (5) from outside to inside in the screw holes. Then

place and attach the storage rack (12) with the 4 wing nuts (6).

5. Place the equipment upright and place the dripping plate (1) in the

7. Press the element (4) well into place. The element has a safety switch, so

make sure that the element is mounted well, otherwise the device will not operate.

8. Push the support brackets of the element (4) on both sides well into the

designated holes of the tray (8).

9. Mount the windscreen (7) by pushing the tabs into the slits. Position the

tabs on the rear in the slot and place the windscreen fully upright on the barbecue. uSe

• This equipment has been designed for use inside and outside.

• Pour ± 1 litre water in the enamelled grill tray. Add water when this dries out during use. You can adjust the grill plate (9) to various heights.

• Connect the power cable to the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz).

• Thermostat: Set the temperature to the desired position by turning anti-clockwise for a low temperature and clockwise for the maximum temperature.

• Place the food on the grill plate. Never place cooking utensils or food wrapped in aluminium on the grill plate. The electrical grill is suitable for all sorts of juicy meat, such as steak, pork, chops, chicken or sausages. Also suitable for sh and vegetables.

• Grill the meat according to taste. The grilling time depends on the nature, the start temperature and the thickness of the food. The meat should not be too thick unless you like your meat rare. Turn your meat over now and again during grilling. It is advisable to add salt and sauce afterwards, not while the food is cooking on the grill.

• Switch o the equipment using the on/o switch. Pull the plug out of the socket after use. cleaNINg

• Before cleaning the grill, please pull out the cord rst and allow the appliance to cool down completely, then dissemble all the loose parts and clean one by one.

• Clean the outside of the appliance with a soft and slightly moistened cloth.

• Do not use any toxic or abrasive cleaning supplies like petrol, scrubbing powder or solvent. Regular kitchen cleaner or dishwashing liquid with water is enough.

• Do never immerse the appliance in water or any other liquid. Never use the dishwasher for cleaning the appliance. Barbecue-grill eN6 guaRaNTee

• Tristar is not liable for damages occurred through: o In case the appliance has fallen. o In case the appliance has been technically changed by the owner or another third party. o In case of improper use of the appliance. o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.

• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.

• When the appliance should be repaired, make sure that this will be performed by an authorized company.

• This appliance may not be amended or changed.

• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.

• For questions or compliances please contact your retailer “point of purchase.”

• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).

• Only material or manufacturing defects are included in this warranty.

• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.

• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!

• The guarantee lapses in case of unauthorized tampering.

• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Instruction manual7
