USER MANUAL BL4426 TRISTAR

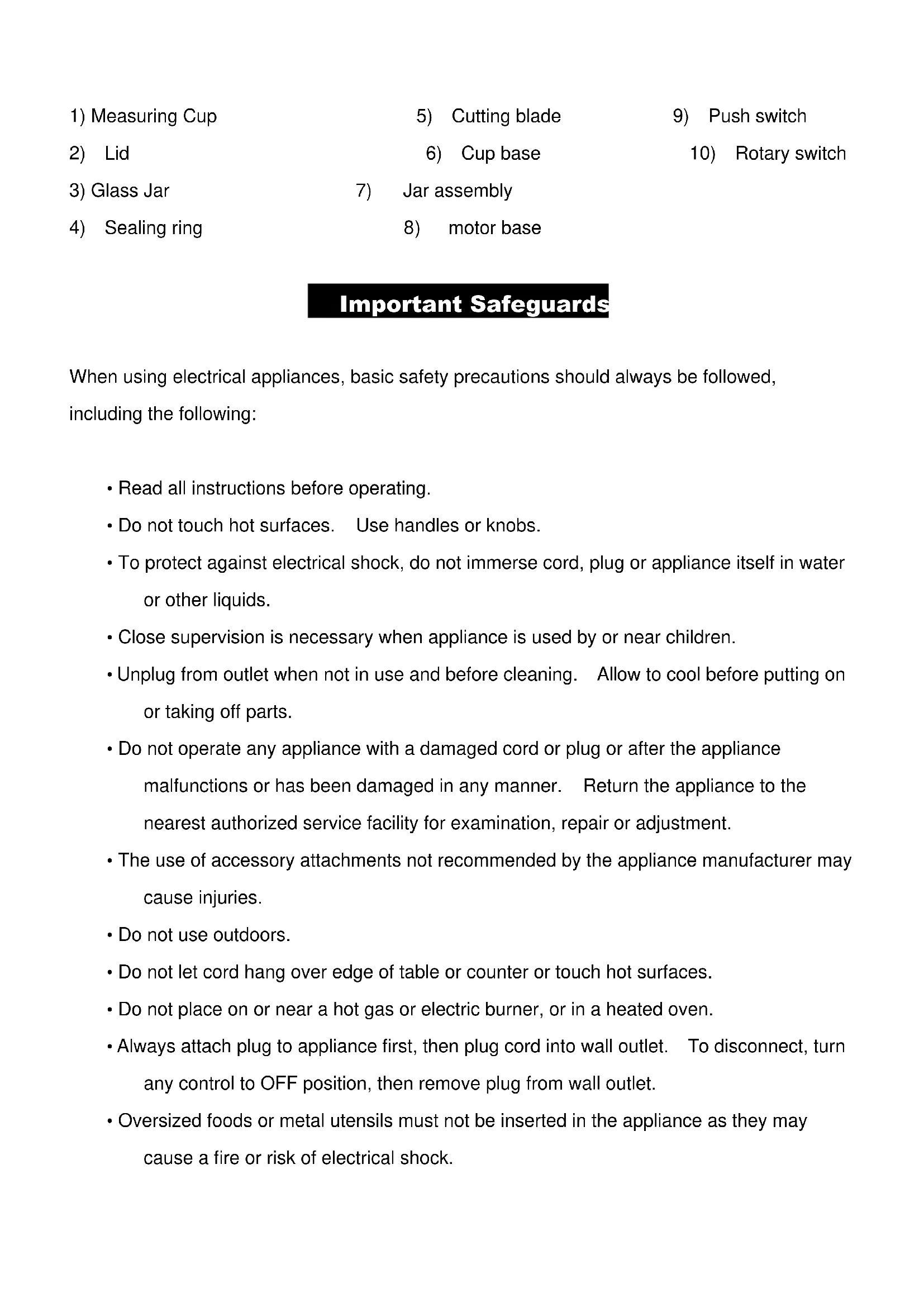

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.

• Close supervision is necessary when appliance is used by or near children.

• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to OFF position, then remove plug from wall outlet.

• Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.• A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like when in operation.

• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electrical shock.

• Extreme caution should be exercised when using containers constructed of other material other than metal or glass.

• Do not store any materials other than manufacturers recommended accessories in this unit when not in use.

• Do not place any of the following materials inside the unit: Paper, cardboard, plastic and the like.

SAVE THESE INTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY! Before first use… All parts of the blender are to be thoroughly cleaned before being used for the first time. (see Section: Cleaning). Take out the required length of cable from the cable tidy on the base of the blender and connect the device to the mains supply. Assembling the Glass Jar: Put the rubber sealing ring (4) on the inner edge of the blade unit (5). Put the blade unit with sealing ring into the cup base (6). Insert the assembled Cup Base onto the bottom of the glass jar and secure tightly. Mount the glass cup (3) onto the cup base unit and tune the cup base unit, and turn clockwise until glass jar locks into place. Mount the Measure Cup (1) onto the Lid (2). Secure the Lid onto Glass Jar and press down.Inserting the Glass Jar:

Make sure that the blender is switched off (Switch in the ‘0’ setting). Place the jar assembly (7) on to the motor base (8) and press down until securely engaged. How to Use o Place the foodstuff you wish to process into the glass jar. o Put the lid on the glass jar and close securely. Place the measuring cap into the hole in the lid and turn clockwise to lock. o Switch on the motor base: Speed setting Use 1 (Low) for light usage with liquids 2 (High) for more solid consistency – for mixing liquids and solid foodstuffs 0 stop operation P (Pulse setting) short, powerful impulse movements Push switch for ice crushing and cleaning of the glass jar,but the rotary switch in the ‘0’ setting (The switch does not permanently engage in the” P ” or “Push switch” setting. You have to hold the switch in the “P” or “Push switch” setting or push it repeatedly. o NB: Operate the motor for a maximum of 2 minute or alternating 2 minute on, then 2 minute off to prevent overheating or consequent damage. After using the blender, always move the switch into the ‘0’ setting and pull out the mains plug.To remove the glass jar simply lift it off the motor base. You do not have to rotate the glass jar to remove it. Useful tips: To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by one instead of placing a large quantity all at once. If you are processing solid ingredients, cut them into small pieces (2-3cm) first. When mixing solid ingredients start off first with a small amount of liquid. Gradually add more and more liquid through the opening in the lid. Always place your hand on top of the blender when you are operating the device. Be careful when processing hot liquids. For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck. Motor Base: Never immerse the motor base in water. Wipe it only with a moist cloth. Simple cleaning/ ri nsing out the assembled glass jar: Empty the glass jar and fill it with water. Place the glass jar on the motor base and push the ‘ Auto-clean ’ setting several times. Empty the glass jar and rinse until clean. Thorough cleaning of the dismantled glass jar: Ensure that the glass jar is completely empty before you unscrew the retaining ring. Be careful when handling the cutting blade. All removable parts are suitable for the dishwasher. *We reserve the right to make amendments.
