USER MANUAL 182613 PRINCESS

Instructions for use

Mode d'emploi

Anleitung

25 gram boter, 25 gram suiker, 400 gram water (of room).

First read the entire manual and retain it for future reference. Make sure that the mains voltage in your household corresponds with that of the appliance (220-240 volts). Only connect this appliance to an earth-hed socket.

Remove any stickers and clean all parts before use (except the electrical part) in soapy water and rinse them well.

SAFETY

Please read the following advice:

• This appliance is only intended for domestic use.
• Never turn on the appliance before lling it with oil or fat.
• Never immerse the appliance in water.
• Always remove the plug from the electrical socket before cleaning.
• Never move the appliance during use. The oil or fat becomes hot and you could burn yourself. Wait to move the appliance until it has cooled off.
• Never leave the appliance unattended. Pay attention when it is in use near children. The appliance and the various parts become very hot; always pick up the pan by the handles.
• Always place the appliance on a sturdy surface and keep flammable materials away from it.

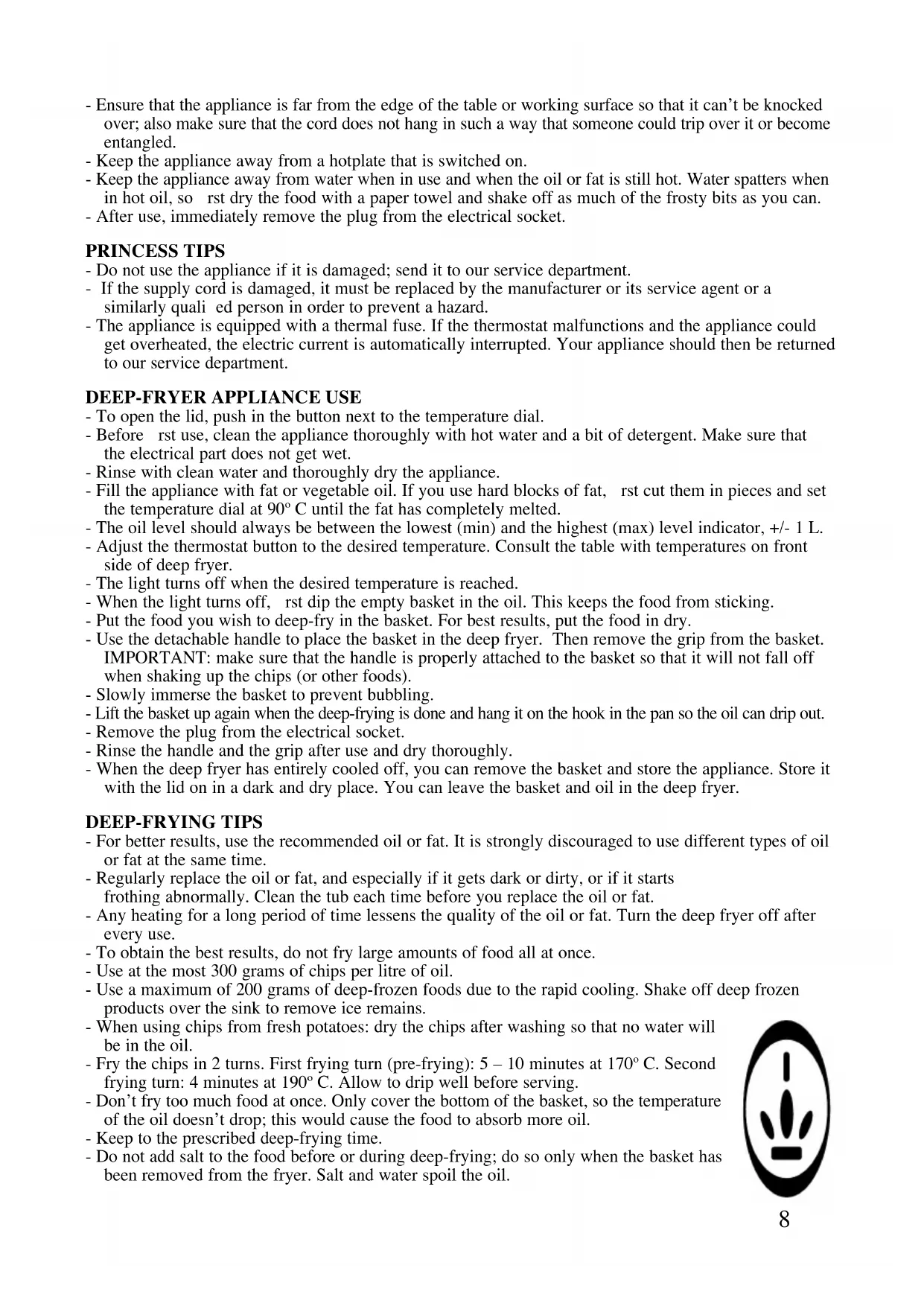

• Ensure that the appliance is far from the edge of the table or working surface so that it can't be knocked over; also make sure that the cord does not hang in such a way that someone could trip over it or become entangled.
• Keep the appliance away from a hotplate that is switched on.
• Keep the appliance away from water when in use and when the oil or fat is still hot. Water spatters when in hot oil, so rst dry the food with a paper towel and shake off as much of the frosty bits as you can.
• After use, immediately remove the plug from the electrical socket.

PRINCESS TIPS

• Do not use the appliance if it is damaged; send it to our service department.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to prevent a hazard.
• The appliance is equipped with a thermal fuse. If the thermostat malfunctions and the appliance could get overheated, the electric current is automatically interrupted. Your appliance should then be returned to our service department.

DEEP-FRYER APPLIANCE USE

• To open the lid, push in the button next to the temperature dial.
• Before rst use, clean the appliance thoroughly with hot water and a bit of detergent. Make sure that the electrical part does not get wet.
• Rinse with clean water and thoroughly dry the appliance.
• Fill the appliance with fat or vegetable oil. If you use hard blocks of fat, rst cut them in pieces and set the temperature dial at 90^ until the fat has completely melted.
• The oil level should always be between the lowest (min) and the highest (max) level indicator, +/- 1 L.
• Adjust the thermostat button to the desired temperature. Consult the table with temperatures on front side of deep fryer.
• The light turns off when the desired temperature is reached.
• When the light turns off, rst dip the empty basket in the oil. This keeps the food from sticking.
• Put the food you wish to deep-fry in the basket. For best results, put the food in dry.
• Use the detachable handle to place the basket in the deep fryer. Then remove the grip from the basket.
  IMPORTANT: make sure that the handle is properly attached to the basket so that it will not fall off when shaking up the chips (or other foods).
• Slowly immerse the basket to prevent bubbling.
• Lift the basket up again when the deep-frying is done and hang it on the hook in the pan so the oil can drip out.
• Remove the plug from the electrical socket.
• Rinse the handle and the grip after use and dry thoroughly.
• When the deep fryer has entirely cooled off, you can remove the basket and store the appliance. Store it with the lid on in a dark and dry place. You can leave the basket and oil in the deep fryer.

DEEP-FRYING TIPS

• For better results, use the recommended oil or fat. It is strongly discouraged to use different types of oil or fat at the same time.
• Regularly replace the oil or fat, and especially if it gets dark or dirty, or if it starts frothing abnormally. Clean the tub each time before you replace the oil or fat.
• Any heating for a long period of time lessens the quality of the oil or fat. Turn the deep fryer off after every use.
• To obtain the best results, do not fry large amounts of food all at once.
• Use at the most 300 grams of chips per litre of oil.
• Use a maximum of 200 grams of deep-frozen foods due to the rapid cooling. Shake off deep frozen products over the sink to remove ice remains.
• When using chips from fresh potatoes: dry the chips after washing so that no water will be in the oil.
• Fry the chips in 2 turns. First frying turn (pre-frying): 5 - 10 minutes at 170^ C. Second frying turn: 4 minutes at 190^ C. Allow to drip well before serving.
• Don't fry too much food at once. Only cover the bottom of the basket, so the temperature of the oil doesn't drop; this would cause the food to absorb more oil.
• Keep to the prescribed deep-frying time.
• Do not add salt to the food before or during deep-frying; do so only when the basket has been removed from the fryer. Salt and water spoil the oil.

• Let the food drip well and pat it with paper towels so that excess fat is removed.
• Eat the food immediately after deep-frying. Food that should be kept warm should not be placed in a covered dish. After a while it will lose its crispiness due to the condensation. It is better to keep it in the oven.

FONDUE APPLIANCE USE

This electric fondue pan has an adjustable temperature setting and is therefore extremely suitable for various types of fondues, such as the classic meet fondue, but also for a cheese, Chinese or a chocolate fondue.

• Clean the appliance thoroughly before rst use with hot water and a bit of dishwashing liquid. Make sure that the electric part does not come into contact with water.
• Rinse with clean water and dry the appliance carefully.
• Always use oil that is suitable for high temperatures and replace it after each preparation.
• The oil level must always be between the lowest (min) and highest (max) level indication, +/- 1L.
• The above also applies when cheese or chocolate is used instead of oil.
• Remove the lid from a vertical 90^ position.
• Place the fondue ring on the fondue pan in order to prevent oil spatters.
• Place the fondue pan in the middle of the table.
• For the sake of safety, attach the lead to the table. Do not forget to loosen the lead before moving the fondue pan.
• For the classic meat fondue, thermostat is set at 170^ . set the temperature in such a way that the mixture will not begin to boil. For a cheese, Chinese and chocolate fondue, it is best to set the thermostat lower, at 90^
• Cheese and chocolate must especially be heated up slowly, or it will cake (on to the sides). Stir now and then to keep the mixture smooth.
• The lamp goes off when the desired temperature has been reached.
• Do not use any sharp objects in the pan. Use the forks to prick only the ingredients, not in the pan.
• After use, remove the plug from the outlet and allow the fondue pan to cool off.
• Store your fondue and, with the lid closed, on a dry and dark place

CLEANING AND MAINTENANCE

Remove the plug from the outlet.

Never immerse the appliance in water!

Cleaning the outside

Regularly clean the outside of the appliance with a moist cloth and dry with a soft clean cloth.

Cleaning the inside

When replacing the oil, bouillon, cheese or chocolate, you can also clean the inside of the appliance. Empty the pan and rst clean the inside with paper towel and then with a wet cloth dipped in soap. Now rinse the inside well with clean water so that all soap remains are gone and allow to dry well.

Cleaning tip: put a cup of water and dishwashing liquid in the pan. Switch on the appliance on the lowest setting and allow it to stand for about 10 minutes. Then switch off and rinse well.

REPLACING OIL

For fondue, we recommend that you replace the oil each time. Frying oil can be used several times.

For good frying and fondue oil, the amount of time you can use the oil depends on:

• How often the pan is used.
• How long the pan is used.
• The temperature during use.
• The amount of the food (with too large quantities, the oil cools off too quickly).
• The characteristics of the food (e.g. herbs used).

• The cleaning of the oil during and after deep-frying and fondueing. While deep-frying and fondueing, remove bits of food and remaining dough or breading that has fallen into the oil. After deep-frying, we recommend that you liter the oil. Do so as follows:

a. Allow the oil to cool off.
b. Allow the basket to drip, and remove it from the pan.
c. Place some paper towels in the basket.
d. Filter the oil through the basket into a container of the same size.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or and is coloured GREEN or GREEN/YELLOW

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the Distribution Board.

WARNING: THIS APPLIANCE MUST BE EARTHED

FONDUE RECIPES

Fondue is not only tasty, I can also be very healthy and even good for your figure. In order to give you an idea, we have a few handy tips are recipes. We wish you hours of pleasure with it!

MEAT FONDUE IN OIL

For 4 persons:

Pure vegetable oil, corn, peanut or soy. Olive oil is also an option, but it smells and tastes stronger. 300 grams tenderloin, 300g chicken llet, pre-boiled potatoes, pre-boiled sliced corn on the cob, pieces of bell pepper and hot fresh bread, with delicious sauces.

250g meet is sufficient per person. Cut the meet into cubes of 1× 1 centimetre.

CHINESE FONDUE IN BOULLON

This is pure flavour, and can be very low-calorie and healthy. There are all sorts of combinations possible with sh, vegetable, poultry and meat.

For 4 persons:

4 large shrimp, to chicken fillet is, 12 mussels, 4 fillets of sole, 100g salmon fillet, 8 mushrooms, numeral for tomatoes, 4 shallots (parboiled) this is.

This is just the beginning; in this fondue everything is possible, such as fresh oysters or thin slices of tenderloin. Important: do not cut the pieces too thick, and also not in cubes.

Finally, drink a small cup with the rich bouillon in which everything was cooked. Have fun experimenting.

CHEESE FONDUE (WHITE WINE AND CHEESE)

According to a famous Swiss recipe.

For 4 persons:

300 g Emmenthaler, 400 gram Gruyere, 4 glasses dry white wine, 1 liqueur glass Kirsch, 1 clove garlic, a bit of pepper and salt, a pinch of nutmeg, 25g cornstarch, 1 cup water. choice of wine: Riesling or original Swiss Fendait.

Rub the pan generously with the garlic; now pour the wine into the pan and wait until it boils. then you add the very nally sliced for ground cheese. With a wooden spoon, keep stirring until the mixture boils again and is very smooth. Add pepper, salt and nutmeg and keep stirring. Prepare the cornstarch with cold water and add this to the boiling mixture, stirring vigorously. Set the temperature lower. When you pull out the spatula, the mass must be supple and "pull threads". Then you can add the Kirsch and put the fondue pan on the lowest setting.

CHOCOLATE FONDUE

This fondue is a great success for children's party. As a desert with the few drops of Armagnac with it, it will be very successful after a chic diner.

For 6 persons:

200 grams chocolate (pure, milk, white and also many flavours, such as coffee and knots), 25g butter, 25g sugar, 400g water (or cream).

Trimmings to prick with a fork: pitted cherries, strawberries, pieces of banana, peach, cubes of cake, macaroons.

PRINCESS MINI FRYER & FONDUE ART. 182613

AVANT L'EMPLOI

TIPS FOR FRITYRSTEKING

• Bruk anbefalt olje eller fett for a oppnå optimalt resultat. Du fär det Beste resultatet när du ikke blander forskjellige oljesorter med hverandre.
• Skift ut oljen eller fettet regelmessig og særlig nár den blir mørk eller grumsete,ller den begynner Å skumme på en abnormal mæte. Rengjør karet hvr gang du skifter olje/fet).
• Hver langvarig oppvarming minsker oljens ell fer fettets kvalitet. Sla av frityrgryten etter hver bruk.
• For Å oppnå et godt resultat, er det best at du ikke steker for store mengder om gangen.
• Bruk maksimalt 300 gram pommes frites pr. liter olje.
• Bruk maksimalt 200 gram nár du bruker dypfrysteprodukter på grunn av den sterke avkjølingen. Rist dypfrysteprodukter over vasken forst forå fjerne eventuell løs is.
• Hvis du bruker pommes frites fra ferske poteter: tork dem etter at du har vasket dem, sik at det ikke kommen vann i oljen.
• Stek pommes fritesen i to omganger. Første steketid (forstekingen) tar 5-10 minutter ved 170 grader. Andre steketid (ferdigstekingen) tar kun 2-4 minutter ved 190 grader. La de stekte potetene dryppe godt av for du serverer dem.
• Ikke frityrstek for mange ingredienser på en gang. Dekk kun bunnen av kurven, slick at oljens temperatur ikke minsker. Ellers vil maten nemlig ta opp mer olje.
• Overhold foreskrevet steketid.
• Ikke strø salt på maten forer eller under frityrstekingen, men gjør det forst nr de stekte potetene er tatt ut av kurven. Salt og vann ødelegger oljen.
• La maten renne av godt og legg den deretter pa kjokkenpapir for a fjerne over odig fett.
• Spis maten omgaende etter tilberedningen. Mat som skal holdes varm en stund, bør ici legges i en tildekket skal. Pa grunn av kondensen mister den sin sprhet. Det er bedre a sette den i ovenen.

FONDUE BRUKE APPARATET

RENGJØRING OG VEDLIKEHOLD
