USER MANUAL AVENT SCD470 PHILIPS

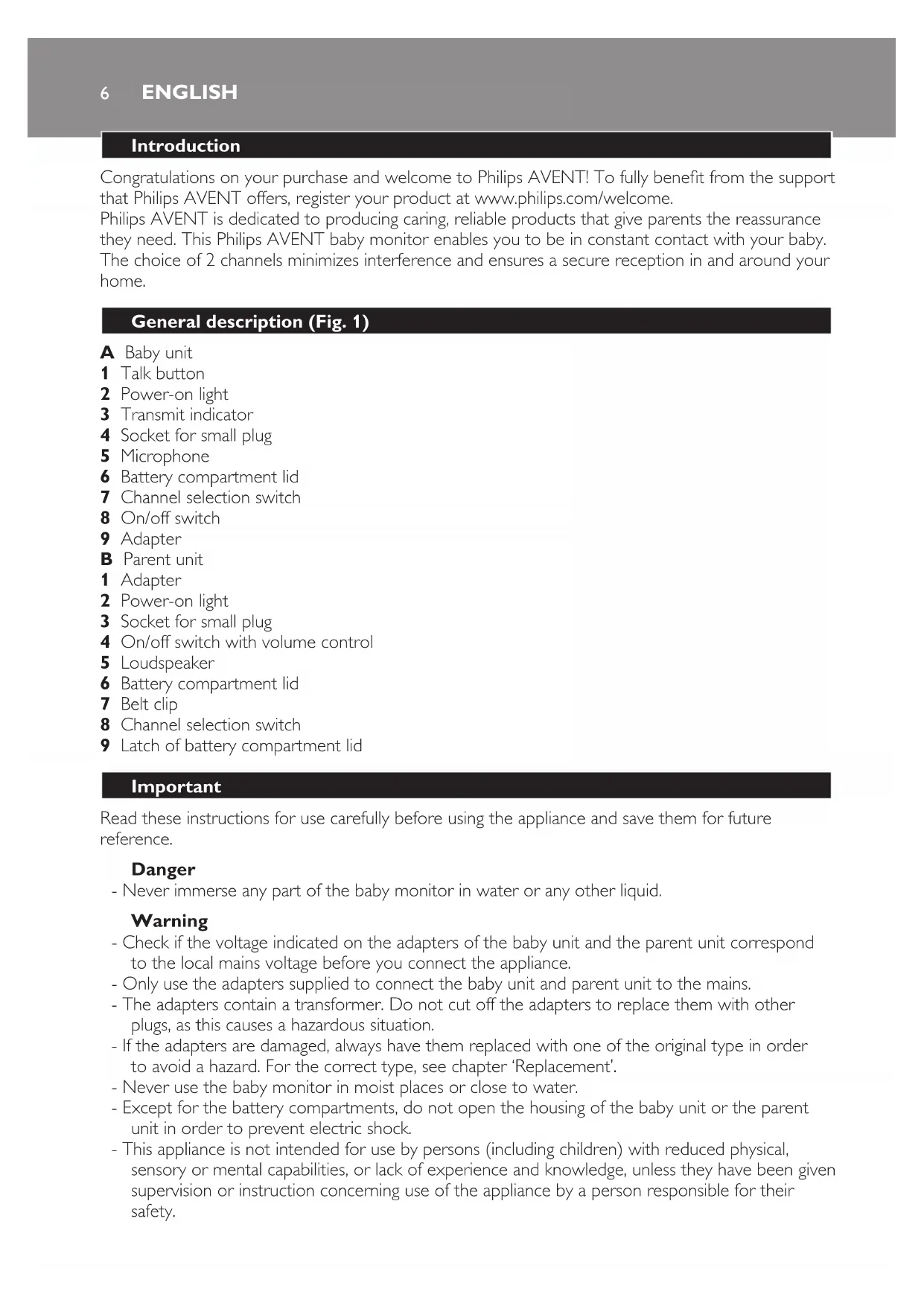

Congratulations on your purchase and welcome to Philips AVENT! To fully benefit from the support that Philips AVENT offers, register your product at www.philips.com/welcome.
Philips AVENT is dedicated to producing caring, reliable products that give parents the reassurance they need. This Philips AVENT baby monitor enables you to be in constant contact with your baby.
The choice of 2 channels minimizes interference and ensures a secure reception in and around your home.
General description (Fig. 1)
A Baby unit
1 Talk button
2 Power-on light
3 Transmit indicator
4 Socket for small plug
5 Microphone
6 Battery compartment lid
7 Channel selection switch
8 On/off switch
9 Adapter
B Parent unit
1 Adapter
2 Power-on light
3 Socket for small plug
4 On/off switch with volume control
5 Loudspeaker
6 Battery compartment lid
7 Belt clip
8 Channel selection switch
9 Latch of battery compartment lid
Important
Read these instructions for use carefully before using the appliance and save them for future reference.
Danger
- Never immerse any part of the baby monitor in water or any other liquid.
Warning
- Check if the voltage indicated on the adapters of the baby unit and the parent unit correspond to the local mains voltage before you connect the appliance.
- Only use the adapters supplied to connect the baby unit and parent unit to the mains.
- The adapters contain a transformer. Do not cut off the adapters to replace them with other plugs, as this causes a hazardous situation.
- If the adapters are damaged, always have them replaced with one of the original type in order to avoid a hazard. For the correct type, see chapter 'Replacement'.
- Never use the baby monitor in moist places or close to water.
- Except for the battery compartments, do not open the housing of the baby unit or the parent unit in order to prevent electric shock.
-
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Children should be supervised to ensure that they do not play with the appliance.
- The baby monitor has an operating range of 150 meters/450 feet in open air. Depending on the surroundings and other disturbing factors, the operating range may be smaller (see section 'Operating range', in chapter 'Using the appliance').
Caution
- Use and store the appliance at a temperature between 10^ and 40^ .
- Do not expose the baby unit and parent unit to extreme cold, heat or direct sunlight.
- Make sure the baby unit and its cord are always out of reach of the baby (at least 1 metre/3 feet away).
- Never place the baby unit inside the baby's bed or playpen.
- Never cover the parent unit and the baby unit with anything (e.g. a towel or blanket).
- Always place non-rechargeable batteries of the correct type in the baby unit and the parent unit.
General
- This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.
Electromagnetic fields (EMF)
This Philips AVENT appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
Preparing for use
Baby unit
You can use the baby unit from the mains or on non-rechargeable batteries. Even if you are going to use the unit from the mains, we advise you to insert the non-rechargeable batteries. This guarantees automatic back-up in case of mains failure.
Mains operation
1 Put the appliance plug in the baby unit and put the adapter into a wall socket.
The power-on light goes on.
Operation on non-rechargeable batteries
The baby unit runs on four 1.5V R6 AA batteries (not included). We strongly advise you to use Philips LR6 PowerLife batteries.
Do not use rechargeable batteries, as the baby unit does not have a charging function.
Unplug the baby unit and make sure your hands and the unit are dry when you insert the non-rechargeable batteries.
1 Remove the lid of the battery compartment with a screw driver (Fig. 2).
2 Insert four non-rechargeable batteries (Fig. 3).
Note: Make sure the + and - poles point in the right direction.
3 Reattach the lid and tighten the screw.
Parent unit
You can use the parent unit from the mains or on non-rechargeable batteries. Even if you are going to use the unit from the mains, we advise you to insert the non-rechargeable batteries. This guarantees automatic back-up in case of mains failure.
Mains operation
1 Put the appliance plug in the parent unit and put the adapter into a wall socket.
The power-on light goes on.
Operation on non-rechargeable batteries
The parent unit runs on four 1.5V R6 AA batteries (not included). We strongly advise you to use Philips LR6 PowerLife batteries.
Do not use rechargeable batteries, as the parent unit does not have a charging function.
Unplug the parent unit and make sure your hands and the unit are dry when you insert the non-rechargeable batteries.
1 Press down the latch of the battery compartment lid and remove it (Fig. 4).
2 Insert four non-rechargeable batteries.
Note: Make sure the + and - poles point in the right direction.
3 Replace the lid on the battery compartment (Fig. 5).
Note: If the batteries are completely empty, the parent unit automatically switches off and loses contact with the baby unit.
Using the appliance
1 Set the on/off switch of both the baby unit and the parent unit to 'on' (Fig. 6).
2 Turn the volume control to switch on the parent unit and to set the volume to the level you prefer. (Fig. 7)
3 Place the baby unit at least 1 metre/3 feet away from your baby.
4 Place the parent unit within the operating range of the baby unit. Make sure it is at least 1 metre/3 feet away from the baby unit. For more information on the operating range, see section 'Operating range' below.
5 Set the baby unit and the parent unit to the same channel.
It takes 10 to 30 seconds before a connection is established.
The transmission frequency of channel A is 40.695 MHz.
The transmission frequency of channel B is 40.675 MHz.
6 The baby unit and parent unit are now connected.
Operating range
The operating range of the baby monitor is 150 metres/450 feet in open air. Depending on the surroundings and other disturbing factors, this range may be smaller.
Dry materials Material thickness Loss of range
Wood, plaster, cardboard, glass < 30cm/12in 0-10% (without metal, wires or lead)
Brick, plywood < 30 cm/12 in 5-35%
Reinforced concrete < 30 cm/12 in 30-100%
Metal grids, bars < 1 cm/0.4 in 90 - 100%
Metal or aluminium sheets < 1 cm/0.4 in 90 - 100%
For wet and moist materials, the range loss may be up to 100% .
Features
Adjustable loudspeaker volume
You can change the volume on the parent unit, so you can adjust to suit your surroundings.
1 Turn the volume dial on the right side of the parent unit until the desired loudspeaker volume for the parent unit has been reached (Fig. 8).
Note: Whilst operating on batteries, if the volume is set to a high level, the parent unit will consume more power.
Talk function
The baby unit has a talk function that enables older children to talk through the baby unit to the parent unit.
1 Set the on/off switch of the baby unit to 'off'.
2 Switch the parent unit on. Select a volume level of 4-5.
3 When your child wants to talk to you, he or she only has to press the talk button on the baby unit and speak clearly into the microphone.
Cleaning and maintenance
Do not immerse the parent unit or the baby unit in water and do not clean them under the tap.
Do not use cleaning spray or liquid cleaners.
Unplug the baby unit or the parent unit if they are connected to the mains.
2 Clean the parent unit and the baby unit with a damp cloth.
Make sure the units are dry before you connect them to the mains.
3 Clean the adapters with a damp cloth.
Storage
When you are not going to use the baby monitor for some time, remove the non-rechargeable batteries from the baby unit and parent unit. Store the baby unit, the parent unit and the adapters in a cool and dry place.
Replacement
Baby unit
Batteries
Only replace the non-rechargeable batteries of the baby unit with four 1.5V R6 AA batteries.
Note: We strongly advise you to use Philips non-rechargeable batteries.
Adapter
Only replace the adapter of the baby unit with an adapter of the original type. You can order a new adapter from your dealer or a Philips service centre:
- TAD1-0900200E01 / SVH-005-090-020-A1 (EU/SGP only)
- 9VD200 (AU/NZ only)
Parent unit
Batteries
Only replace the non-rechargeable batteries of the parent unit with four 1.5V R6 AA batteries.
Note: We strongly advise you to use Philips non-rechargeable batteries.
Adapter
Only replace the adapter of the parent unit with an adapter of the original type. You can order a new adapter from your dealer or a Philips service centre:
- TAD1-0900200E01 / SVH-005-090-020-A1 (EU/SGP only)
- 9VD200 (AU/NZ only)
Environment
- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 9).
- Batteries contain substances that may pollute the environment. Always remove the batteries before discarding the appliance or handing it in at an official collection point. Dispose of the batteries at an official collection point for batteries (Fig. 10).
Guarantee and service
If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/AVENT or contact the Philips Consumer Care Centre in your country (you can find the phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.
Frequently Asked Questions
This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, contact the Consumer Care Centre in your country.
Question Answer
Why can't I establish a connection?
The units may be set to different channels. Set both units to the same channel and wait 10-30 seconds for the connection to be established.
The baby unit may be out of range of the parent unit or there may be too many walls and/or ceilings between the two units. Try a different location or reduce the distance between the two units.
Why is the connection lost every now and then?
The baby unit may be out of range of the parent unit or there may be too many walls and/or ceilings between the two units. Try a different location or reduce the distance between the two units.
Why do I hear noise or a scratching sound?
There may be interference from another appliance or baby monitor. Switch both units to another channel. Make sure both units are set to the same channel.
The parent unit may be too close to a window, causing it to pick up signals from other appliances or baby monitors. Move the unit away from the window.
| Question Answer | |
| The baby unit may be out of range of the parent unit or there may be too many walls and/or ceilings between the two units. Try a different location or reduce the distance between the two units. | |
| The batteries may be running low. Check the batteries and replace them, if necessary. | |
| Why doesn't the baby monitor manage the specified range of 150 metres? | The specified range of 150 metres is only valid in open air. Inside the house the range is limited by the number and type of walls and/or ceilings between the two units. Change the position of one or both units to optimise the range. |
| What happens when there is a mains failure? | If you are using the units from the mains without having put batteries in them, the connection will be lost when there is a mains failure. If there are batteries in both units, they will automatically switch to battery power in case of a mains failure and the connection will not be lost. |
12 DANSK
Introduktion
EC DECLARATION OF CONFORMITY
(DECLARATION DE CONFORMITE CE)
We / Nous, PHILIPS CONSUMER LIFESTYLE B.V.
Declare under our responsibility that the electrical product(s):
SCD470, SCD480, SCD481
To which this declaration relates is in conformity with the following harmonized standards:
Following the provisions of :
1999/5/EC (R&TTE Directive) (Directive R&TTE 1999/5/CE)
And are produced under a quality scheme at least in conformity with ISO 9001 or CENELEC Permanent Documents
Identification Number 0682 performed
(description of intervention)
description de l'intervention)
And issued the certificate, E815569V-EO, E815585V-EO, E815586V-EO
R&TTE Directive 1999/5 EC
| AT | ✓ | DK | ✓ | DE | ✓ | IT | ✓ | MT | ✓ | SK | ✓ | GB | ✓ | CH |
| BE | ✓ | EE | ✓ | GR | ✓ | LV | ✓ | NL | ✓ | SI | ✓ | IS | ✓ | BG |
| CY | ✓ | FI | ✓ | HU | ✓ | LT | ✓ | PL | ✓ | ES | ✓ | LI | ✓ | RO |
| CZ | ✓ | FR | ✓ | IE | ✓ | LU | ✓ | PT | ✓ | SE | ✓ | NO | ✓ | TR |
