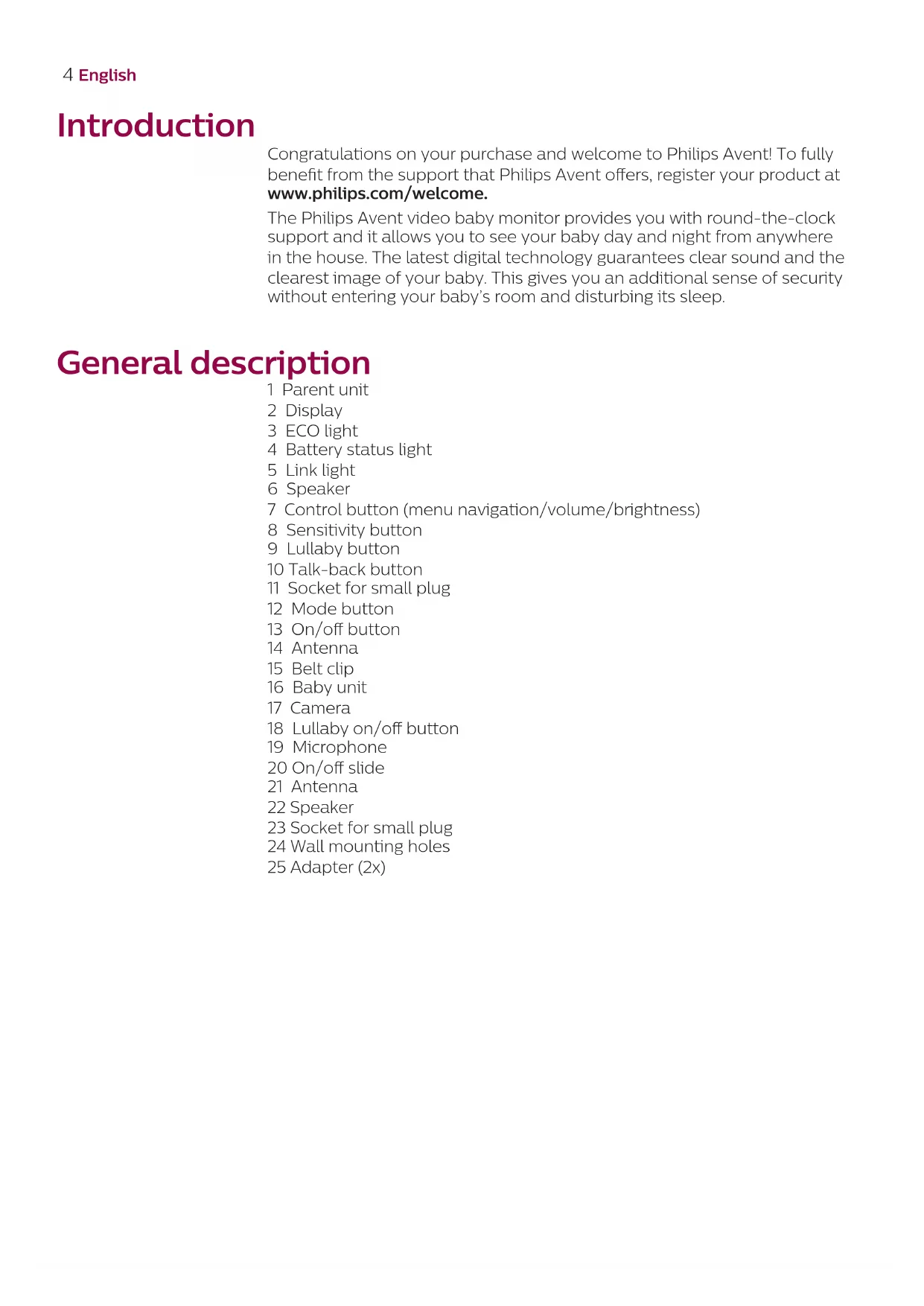

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome.

The Philips Avent video baby monitor provides you with round-the-clock support and it allows you to see your baby day and night from anywhere in the house. The latest digital technology guarantees clear sound and the clearest image of your baby. This gives you an additional sense of security without entering your baby's room and disturbing its sleep.

General description

1 Parent unit
2 Display
3 ECO light
4 Battery status light
5 Link light
6 Speaker
7 Control button (menu navigation/volume/brightness)
8 Sensitivity button
9 Lullaby button
10 Talk-back button
11 Socket for small plug
12 Mode button
13 On/off button
14 Antenna
15 Belt clip
16 Baby unit
17 Camera
18 Lullaby on/off button
19 Microphone
20 On/off slide
21 Antenna
22 Speaker
23 Socket for small plug
24 Wall mounting holes
25 Adapter (2x)

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

IMPORTANT

This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Never leave your baby alone in your home. Always make sure there is someone present to look after the baby and take care of its needs.

Disclaimer

Please note that you use this baby monitor at your own risk. Koninklijke Philips N.V. and its subsidiary companies are not responsible for the operation of this baby monitor or your use of it and therefore do not accept any liability in connection with your use of this baby monitor.

Danger

• Never immerse any part of the baby monitor in water or any other liquid. Do not place the appliance where water or any other liquid can drip or splash onto it. Never use the baby monitor in moist places or close to water.

• Never put any object on top of the baby monitor and do not cover it. Do not block any ventilation openings. Install according to the manufacturer's instructions.

Warning: Strangulation Hazard—Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft (0.9m) away). Do not remove this tag.

Warning

• Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.
• Do not modify or cut off any part of the adapter and its cord, as this causes a hazardous situation.

-Only use the adapter supplied.

-If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Protect the mains cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the appliance.

• Make sure that you place the baby monitor in such a way that its cord does not obstruct a doorway or passage. If you place the baby monitor on a table or low cabinet, do not let the mains cord hang over the edge of the table or cabinet. Make sure the cord does not lie on the floor where it presents a tripping hazard.

• Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of the reach of children, as they are not a toy.
• To prevent electric shock, do not open the housing of the baby unit or parent unit.

Battery safety instructions

• Only use this product for its intended purpose and follow the general and battery safety instructions as described in this user manual. Any misuse can cause electric shock, burns, fire and other hazards or injuries.
• To charge the battery, only use the detachable supply unit* provided with the product. Do not use an extension cord.
• Charge, use and store the product at a temperature between 0^ and 40^ .

-Always unplug the product when it is fully charged.

-Do not burn products and their batteries and do not expose them to direct sunlight or to high temperatures (e.g. in hot cars or near hot stoves). Batteries may explode if overheated.

-If the product becomes abnormally hot, gives off an abnormal smell, changes color or if charging takes much longer than usual, stop using and charging the product and contact your local Philips dealer.

-Do not place products and their batteries in microwave ovens or on induction cookers.

• This product contains a rechargeable battery that is non-replaceable. Do not open the product to replace the rechargeable battery.
• When you handle batteries, make sure that your hands, the product and the batteries are dry.
• To prevent batteries from heating up or releasing toxic or hazardous substances, do not modify, pierce or damage products and batteries and do not disassemble, short-circuit, overcharge or reverse charge batteries.
• To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal object (e.g. coins, hairpins, rings). Do not wrap batteries in aluminium foil. Tape battery terminals or put batteries in a plastic bag before you discard them.
• If batteries are damaged or leaking, avoid contact with the skin or eye. If this occurs, immediately rinse well with water and seek medical care.

Caution

• Use the appliance at a temperature between 0^ (32^) and 40^ (104^) .
• Do not install the appliance near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
• Make sure that your hands are dry when you handle adapters, plugs and the mains cord.
• All required markings on the baby unit, parent unit and power adapter are located on the bottom of the baby unit, parent unit and power adapter.

Declaration of conformity

Hereby, Philips Electronics Hong Kong Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the EC Declaration of Conformity (DoC) is available online at www.philips.com/support.

Compliance with EMF

This product complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Preparing for use

Baby unit

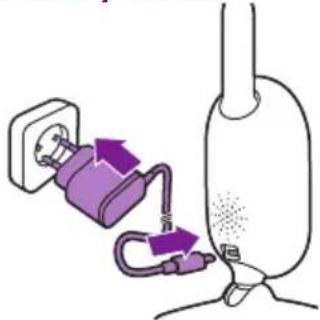

Put the power adapter in the baby unit and the adapter in the wall socket.

Parent unit

The parent unit runs on a built-in rechargeable Li-ion battery.

Follow the below steps to charge the parent unit:

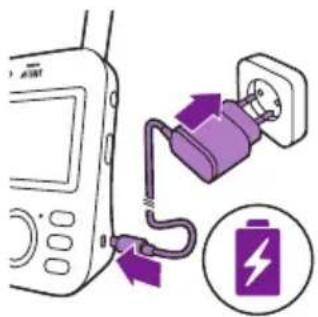

1 Put the power adapter in the parent unit and put the adapter in the wall socket.

• The battery status light turns orange to indicate that the appliance is charging.

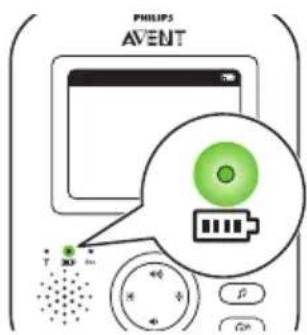

• When the battery is fully charged, the battery status indicator lights up green continuously.

8 English

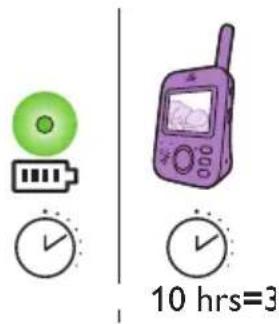

• When you charge the parent unit for 3 hours, it can be used cordlessly for approx. 10 hours in ECO mode.

-If the parent unit is switched on during charging, charging takes approximately twice as long.

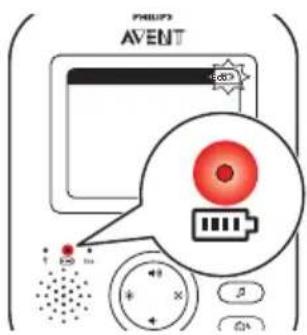

• When the rechargeable battery of the parent unit is almost empty, the battery status light turns red and the parent unit beeps.
• If the battery is completely empty and the parent unit it not connected to the mains, the parent unit automatically switches off and loses contact with the baby unit.

Note: The built in rechargeable battery cannot be removed from the product.

Note: The battery gradually and very slowly discharges, even when the parent unit is switched off.

Tip: To save battery, switch off the parent unit when you do not use it.

Note: We advise you to keep the parent unit connected to the mains during the whole night. If the battery of the parent unit runs low during the night, the parent unit beeps and this may wake you up.

Using the baby monitor

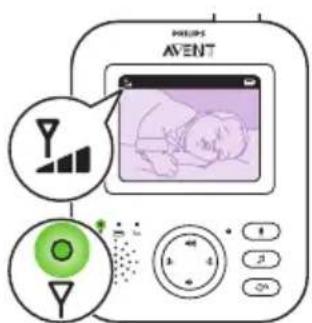

Linking parent unit and baby unit

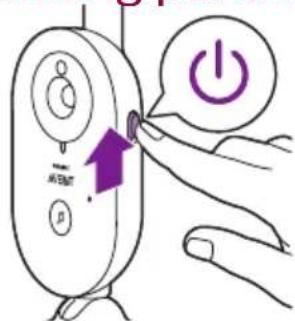

1 Push the on/off slide on the baby unit upwards to the ON position.

2 When the baby unit is on, the power-on light on the baby unit lights up green.

Note: The power-on light on the baby unit always lights up green, even when there is no connection with the parent unit.

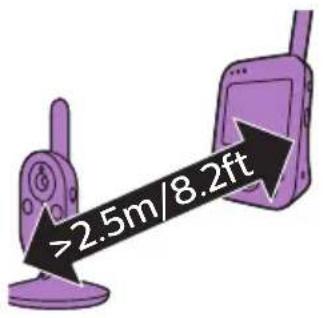

3 Make sure that the parent unit and the baby unit are at least 2.5 meters/8.2 feet away from each other to avoid acoustic feedback.

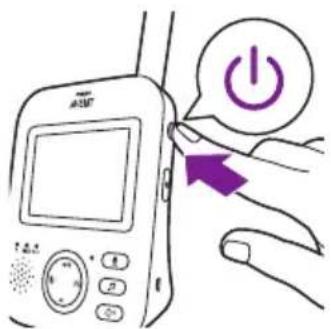

4 Press the on/off button on the parent unit for 1 second to switch on the parent unit.

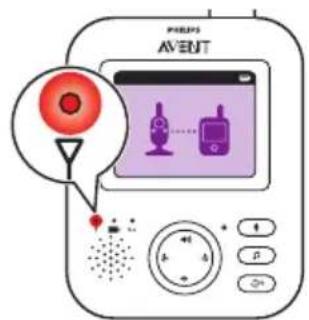

• The display goes on, the linking image appears on the display and the link light lights up red. The parent unit starts to search for the baby unit.

• When the parent unit and baby unit are linked, the link light lights up green on the parent unit and one or more bars appear on the display.

Note: It takes less than 10 seconds to establish the link between the parent unit and the baby unit.

When the baby unit is turned off, the parent unit will show the out of range image. Make sure that the baby unit is switched on.

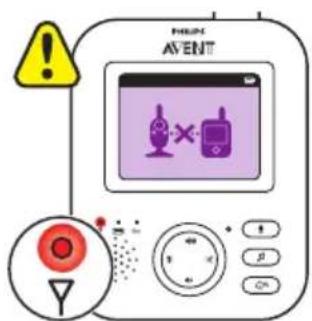

• If no connection has been established, the link light turns red, the parent unit beeps three short beeps every 20 seconds and the out-of-range image appears on the display.

Positioning the baby monitor

Warning: The cord of the baby unit presents a potential strangulation hazard. Make sure that the baby unit and its cord are at least 1 meter / 3.5 feet away from your baby. Never place the baby monitor inside the baby's bed or playpen.

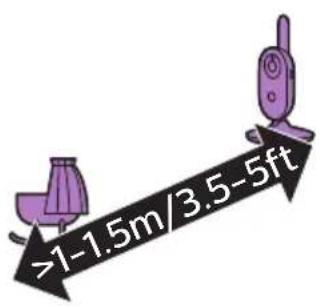

1 For optimal sound detection, make sure that the baby unit is no further than 1.5 meter/ 5 feet away from the baby. Make sure that the baby unit is at least 1 meter/ 3.5 feet away from the baby because of potential strangulation hazard.

2 Place the parent unit within the operating range of the baby unit. Make sure it is at least 2.5 meters / 8.2 feet away from the baby unit to avoid acoustic feedback.

Note: If you use a cordless phone, wireless video, Wi-Fi network, microwave oven or Bluetooth on 2.4 GHz and you experience interference on either the parent unit or baby unit, move the parent unit until there is no more interference.

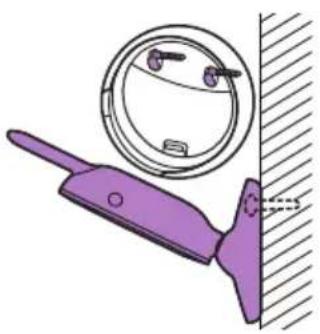

3 There are two ways to position the baby unit a Place the baby unit on a stable, level and horizontal surface. b Mount the baby unit to the wall with screws.

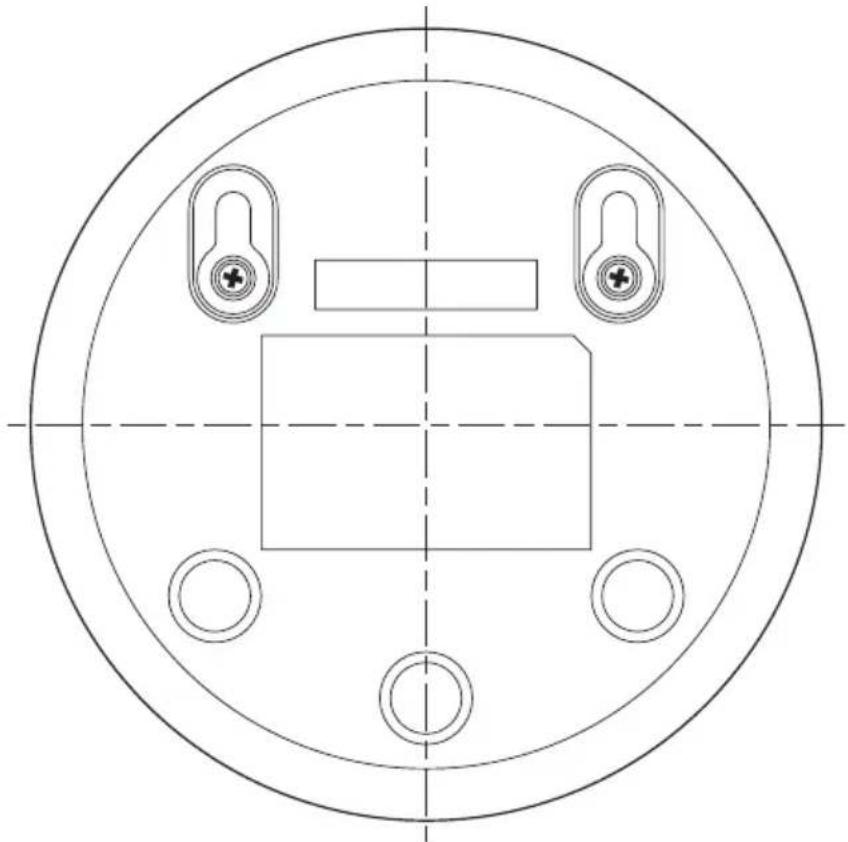

Tip: The wall mount template (see 'Wall mount') to mount the baby unit to the wall can be found at the end of this user manual.

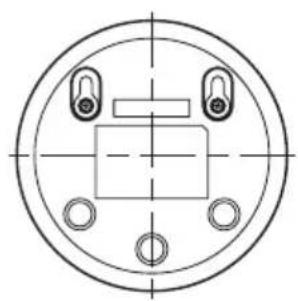

Tip: Use the provided template to mark the exact location of the screw holes on the wall.

Tip: Position the baby unit at a higher level to get a good overview of the baby's bed or playpen.

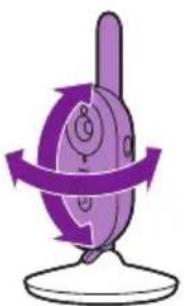

4 Adjust the baby unit in a way that ensures the best visibility of your baby. The baby unit can be rotated to position it in the desired way.

Dry materials Material thickness Loss of range

Wood, plaster, cardboard, glass (without metal, wires or lead)	< 30 cm (12 in) 0-10 %
Brick, plywood < 30 cm (12 in) 5-35 %
Reinforced concrete < 30 cm (12 in) 30-100 %
Metal grilles or bars < 1 cm (0.4 in) 90-100 %
Metal or aluminium sheets < 1 cm (0.4 in) 100 %

Operating range

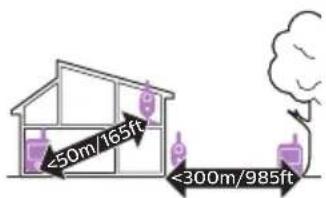

The operating range is up to 50 meters / 165 feet indoors and 300 meters / 985 feet outdoors. The operating range of the baby monitor varies depending on the surroundings and factors that cause interference. Wet and moist materials cause so much interference that the range loss is up to 100% .

12 English

Features and settings

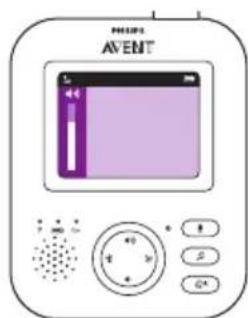

Volume

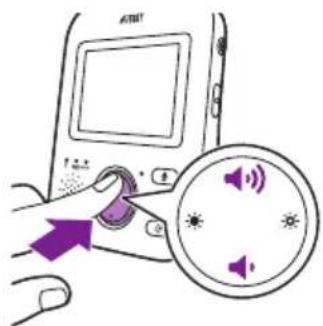

You can adjust the speaker volume of the parent unit to the level you prefer. Press the top or bottom part of the control button to adjust the volume.

Tip: Make sure that the volume is adapted to the current conditions. Under noisy conditions, the vibration alert can be turned on as well.

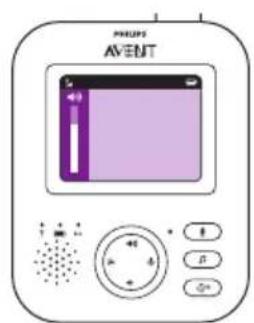

The volume bar appears on the display to show the selected volume.

Note: If the volume is set to a high level, the parent unit consumes more power.

Note: When the volume bar is at its minimum, the volume is muted. The parent unit shows a mute icon in the status bar and you will only receive alerts and video from the parent unit.

Brightness

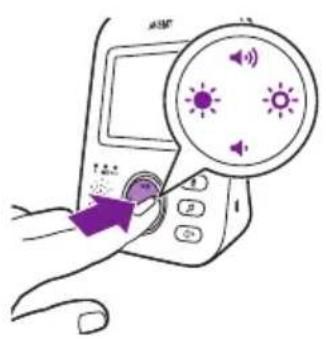

You can adjust the display brightness of the parent unit to the level you prefer.

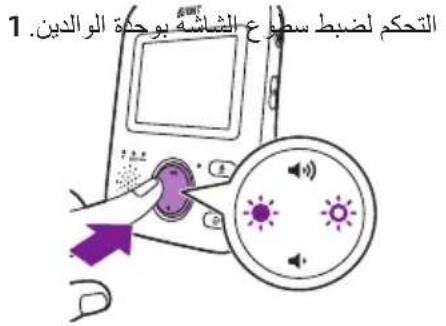

1 Press the left or right part of the control button to adjust the brightness of the display of the parent unit.

The brightness bar appears on the display to show the selected display brightness.

Note: If the brightness is set to a high level, the parent unit consumes more power.

Modes

This baby monitor has four different modes that allows you to choose how you want to look after your baby: VIDEO, AUDIO, VOX and ECO.

With the baby monitor on, you can switch between these 4 different modes by pressing the mode button on the side of the parent unit.

The display shows the selected mode. The selected mode is also indicated in the status bar. When turning on the device, the mode that was last used will be active.

VIDEO mode

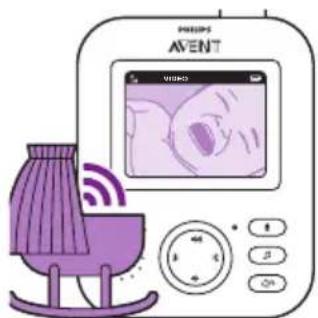

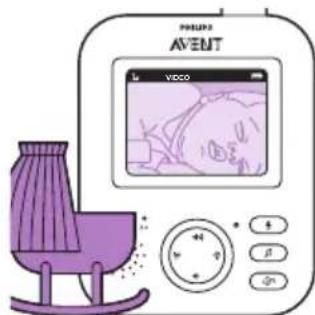

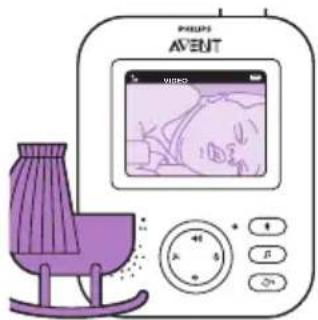

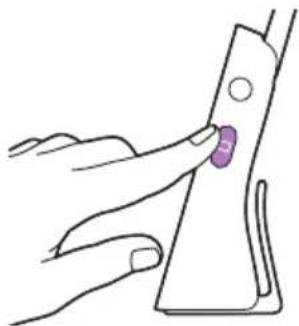

Press the mode button on the side of the parent unit to select the VIDEO mode.

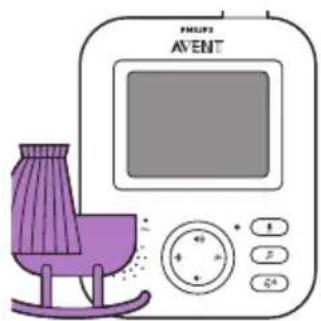

When the VIDEO mode is activated, the screen is always on, so you can see your baby. All sounds are directly transmitted to the parent unit.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

14 English

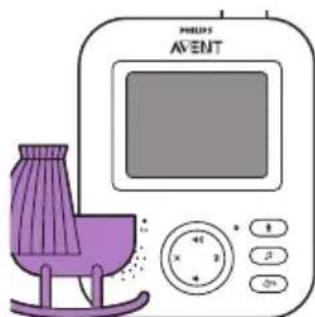

AUDIO mode

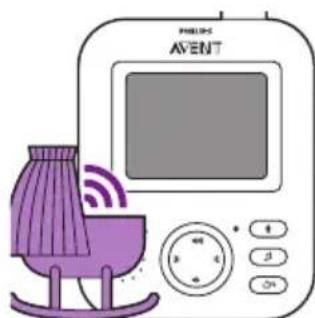

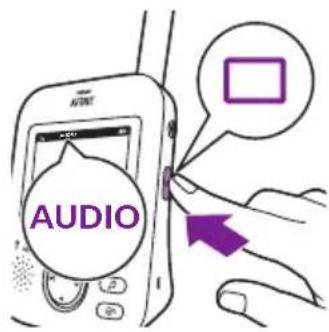

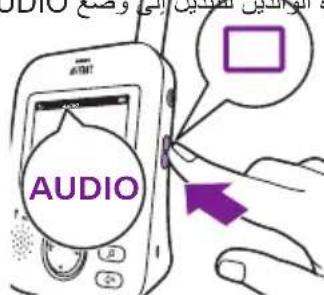

1 Press the mode button on the side of the parent unit to switch to AUDIO mode.

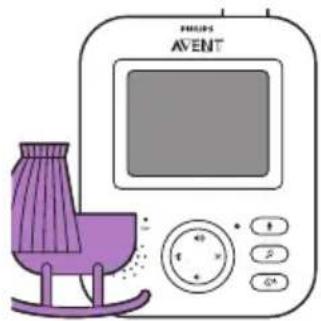

When the AUDIO mode is activated, the display of the parent unit switches off. After 3 seconds the display will completely turn off and the status bar will disappear.

Note: The status bar is not visible when the display is off.

Note: The link light shows that the parent unit is still on and connected to the baby unit.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

All sounds are constantly transmitted to the parent unit. If your baby cries, the display of the parent unit is still off, but the sounds detected by the baby unit are transmitted to the parent unit.

VOXmode

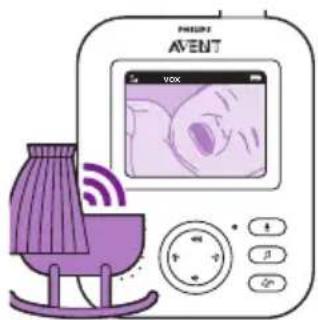

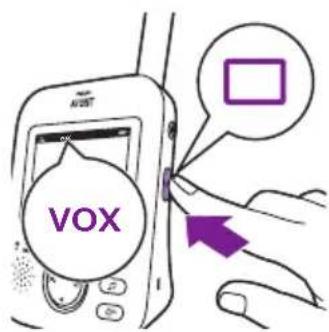

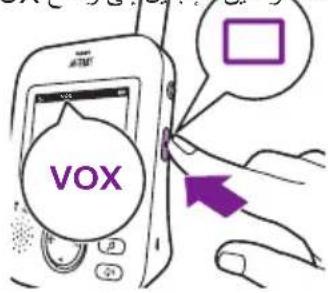

1 Press the mode button on the side of the parent unit to switch to VOX mode.

Note: When the display is on, the selected mode is shown in the status bar. The status bar is not visible when the display is off.

When the VOX mode is activated, the display and sound of the parent unit switch off, if there is no sound detected for 20 seconds.

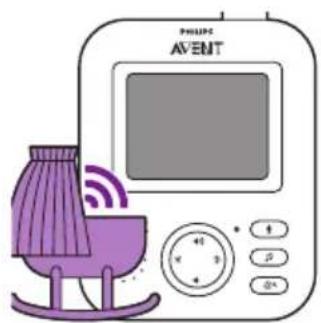

When sound is picked up by the baby unit, the display and sound of the parent unit switch on immediately. The sounds are transmitted to the parent unit.

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

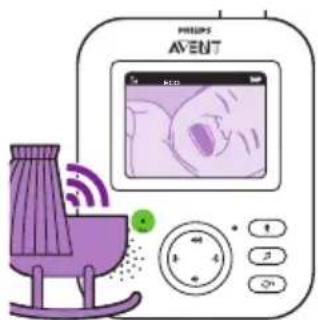

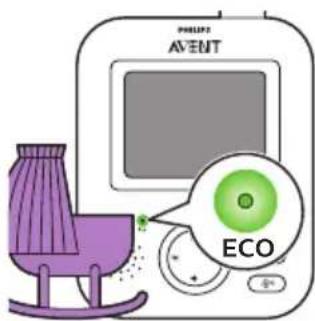

ECO mode

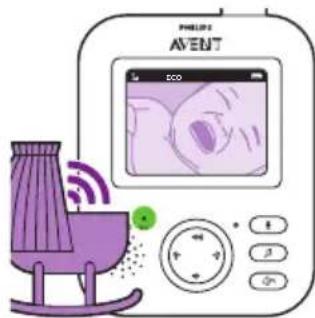

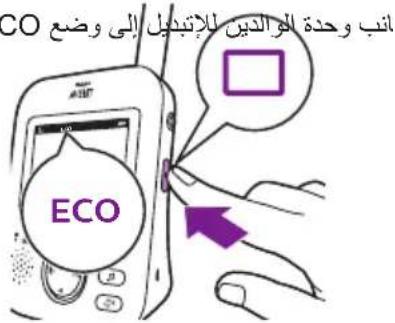

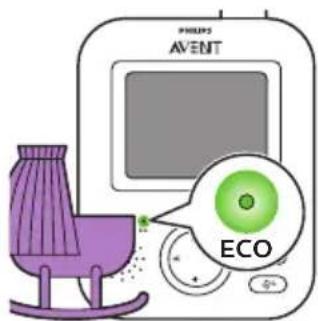

1 Press the mode button on the side of the parent unit to switch to ECO mode.

Note: When the display is on, the selected mode will be visible in the status bar. The status bar is not visible when the display is off.

When the ECO mode is activated the display and sound of the parent unit switch off when no sound is detected for 20 seconds. The ECO light lights up green to indicate that the ECO mode is activated. During ECO mode the display and sound transmissions are turned off.

When sound is picked up by the baby unit, the display and sound of the parent unit switch on immediately. The sounds are transmitted to the parent unit.

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

16 English

Lullabies

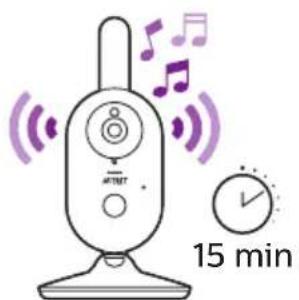

You can activate the lullaby feature either from the parent unit or from the baby unit.

To activate the lullaby feature from the parent unit, follow the instructions below:

Lullaby selection

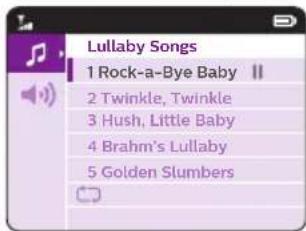

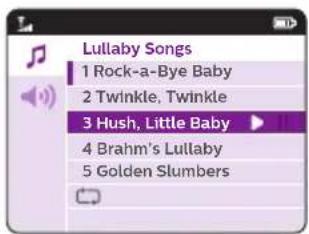

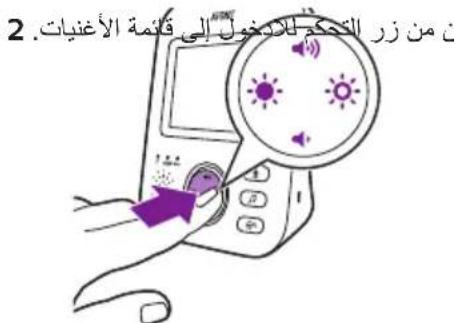

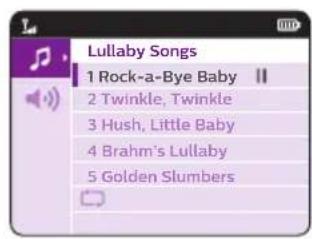

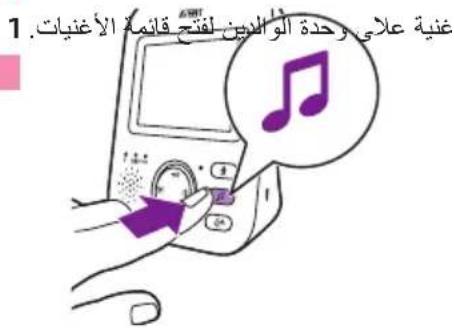

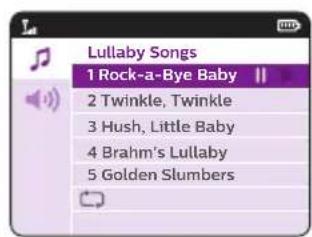

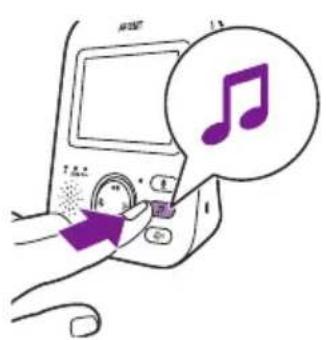

1 Press the lullaby button on the parent unit to open the menu for lullabies. Note: Pressing the lullaby button while the lullaby menu is already open, will close the menu.
2 Press the right part of the control button to enter the list of lullabies.
3 Press the top or bottom part of the control button to scroll through the list of lullabies.
4 Press the right part of the control button to play a specific lullaby. If you want to pause the lullaby, press the right side of the control button again.
5 The status bar of the parent unit shows the number of lullabies that are being played and repeated.

The lullaby starts to play on the baby unit and it is repeated continuously for approximately 15 minutes.

Tip: To repeat all songs that are available, select the last option in the list.

6 To select another lullaby, scroll up or down with the control button to select another song from the list. Press the right part of the control button to start the selected song.
7 To stop the lullaby, press the lullaby button on the parent unit and pause the song that is currently playing by pressing the right part of the control button one more time.

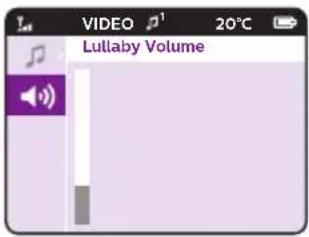

Lullaby volume

1 Press the lullaby button and then press the bottom of the control button to select the volume options of the lullaby menu. Press the right part of the control button to access the lullaby volume levels.

2 Press the top or bottom part of the control button to adjust the volume.

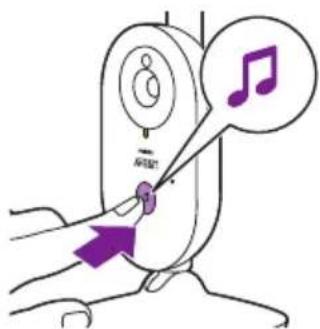

To activate the lullaby feature from the baby unit, press the lullaby on/off button on the baby unit.

18 English

The latest lullaby selected on the parent unit starts to play on the baby unit and is repeated continuously for approximately 15 minutes.

To stop the lullaby on the baby unit, press the lullaby on/off button on the baby unit.

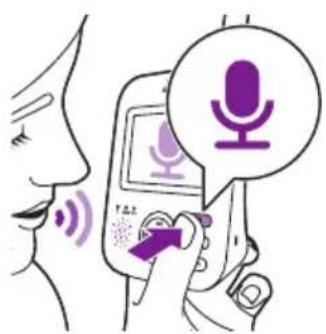

Talk-back

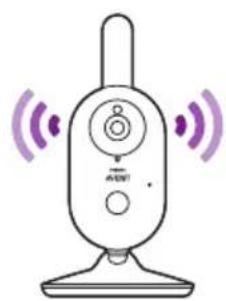

You can use the talk-back button on the parent unit to talk to your baby.

1 Press and hold the talk-back button on the parent unit.
2 Talk clearly into the microphone at the front of the parent unit from a distance between 15-30cm /0.5-1ft.

As long as the talk-back button is pressed, there is an open sound connection to the baby unit. The display of the parent unit shows the talk-back icon, indicating the active connection.

3 Release the talk-back button when you have finished talking.

Note: As long as the talk-back button is pressed, the parent unit cannot process sounds coming from the baby unit.

Sensitivity

The sensitivity level of the baby unit defines what you hear through the parent unit. When the level is set high, you will hear many sounds, including soft background sounds. When the sensitivity level is set low, you will hear only the louder sounds.

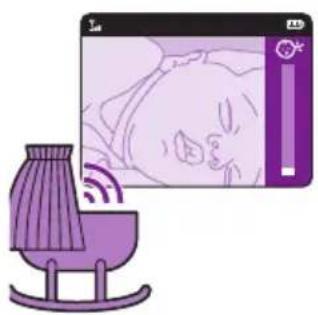

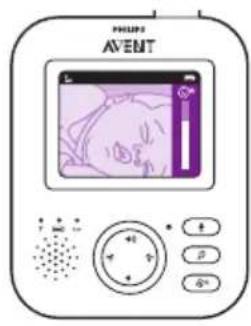

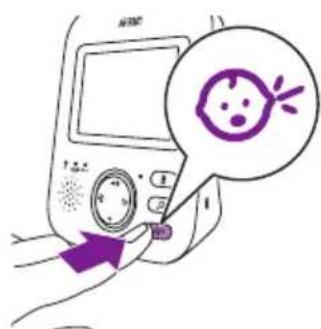

1 Press the sensitivity button to access the sensitivity levels.

Note: When pressing the sensitivity button again, you will leave the menu

2 Press the top or bottom part of the control button to select the desired sensitivity level.

If your baby only makes soft sounds, the sensitivity of the baby unit needs to be set to a high sensitivity level on the parent unit.

The louder your baby sounds, the lower the sensitivity can be set on the parent unit.

Note: In AUDIO and VIDEO mode, you will have continuous sound when the sensitivity level is on 'very high'. Otherwise, low sounds will be muted.

Tip: The sensitivity level can be adjusted so you will always hear your baby without the disruption of other sounds. When there is a lot of background noise, turn the sensitivity lower so you will not hear these sounds through the parent unit.

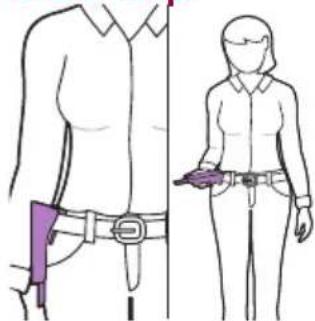

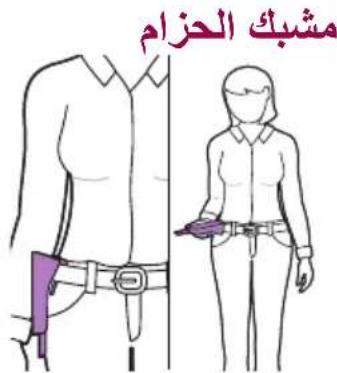

Belt clip

You can take the parent unit with you inside and outside the house by attaching the parent unit to your belt or waistband with the belt clip. This allows you to monitor your baby while you are moving around.

Note: The display is now turned upside down, which allows you to see your baby on the screen by simply lifting up the parent unit.

Cleaning and maintenance

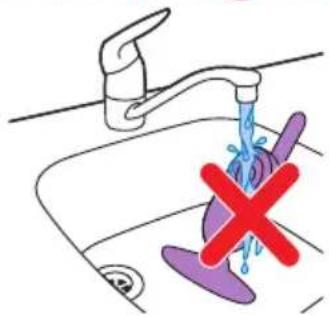

Warning: Do not immerse the parent unit, baby unit and power adapters in water and do not clean them under the tap.

Warning: Do not use cleaning sprays or liquid cleaners.

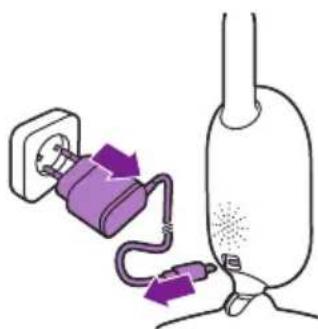

1 Switch off the baby unit, remove the power adapter from the baby unit and remove the power adapter from the wall socket.

2 Clean the baby unit with a dry cloth.

Note: Fingerprints or dirt on the lens of the baby unit may affect the camera's performance. Avoid touching the lens with your fingers.

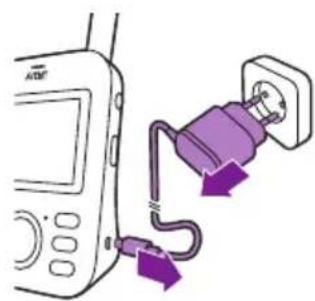

3 Switch off the parent unit, remove the power adapter from the parent unit and remove the power adapter from the wall socket.

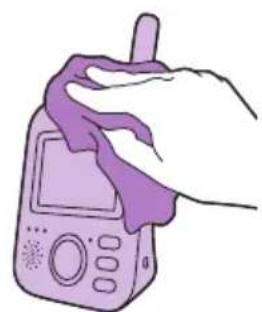

4 Clean the parent unit with a dry cloth.

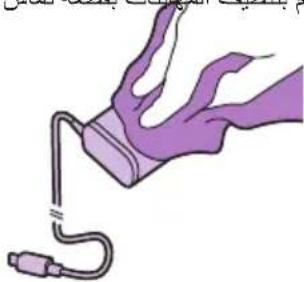

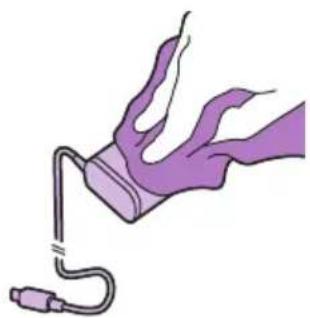

5 Clean the adapters with a dry cloth.

Storage

When you are not going to use the baby monitor for a long time, store the parent unit, the baby unit and the adapters in a cool and dry place.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

• This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

• This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

• Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. We strongly advise you to take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste.

Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health. If there is no collection/recycling system for electronic products in your country, you can protect the environment by removing and recycling the battery before disposing the headphones.

Make sure the headset is disconnected from the charging case before removing the battery.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into two materials: cardboard (box and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Remove the integrated battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it. Only the parent unit includes a battery.

Procedure:

1 Remove the 2 rubber feet at the bottom of the parent unit.
2 Remove the 2 screws that are now visible at the bottom of the parent unit.
3 Put the antenna in upward position and remove the screw in the back housing that is now visible.
4 Remove the back housing from the front housing by forcing a screwdriver in between them. For newer versions manufactured after August 2020*, there are 2 more screws underneath the rating label. Tear out the rating label, remove the screws, release the belt clip and slide open the battery compartment door.
5 Disconnect the battery connector cable (black-white-red cable).
6 Remove the 4 screws from the battery holder. No screws for new versions manufactured after August 2020.
7 Remove the battery.

*The production date code DDMMYY is located underneath the belt clip, above the 2 rubber feet.

If there is no collection/recycling system for electronic products in your country, you can protect the environment by removing and recycling the battery before disposing the product.

Make sure the product is disconnected from the charging case before removing the battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Frequently asked questions

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

HOW TO USE / CONNECTING THE UNITS

Question Answer
Why does the power-on light of the baby unit not go on when I switch on the unit?	Perhaps the baby unit is not connected to the mains. Connect the baby unit to the mains. Then set the on/off switch of the baby unit upwards to the ON position to establish connection with the parent unit.
Why doesn't the parent unit charge when I plug it in?	Perhaps the adapter is not plugged in properly. Make sure the adapter is plugged into the wall socket properly.
	The parent unit may already be fully charged. The battery status light will be green when the battery is fully charged and the device is connected to the mains power.
Why doesn't the baby unit charge when I plug it in?	The baby unit does not have a charging function. The baby unit only works when it is connected to the mains.
Why can't I establish a connection? Why is the connection lost every now and then? Why are there sound interruptions?	The baby unit and the parent unit are probably close to the outer limits of the operating range or there is interference from other 2.4 GHz wireless devices. Try a different location, decrease the distance between the units or switch off other 2.4 GHz wireless devices (laptops, mobile phones, microwaves, etc). It can take up to 10 seconds before the connection between the units is reestablished.
	If the signal is lost, then the parent unit will make a beeping sound (3 quick beeps every 20 seconds).
	The baby and parent unit might be too close to each other, keep them at least 1.5 meters/5 feet away from each other to prevent interference.

HOW TO USE / CONNECTING THE UNITS

What happens during a power failure?	As the parent unit works on a rechargeable battery, the parent unit continues to work if the battery is sufficiently charged. However, the baby unit stops working because it has no rechargeable battery and only works on a mains power. The parent unit will give a beeping sound to indicate that the link with the baby unit is lost. When mains power is restored, the connection between the parent unit and the baby unit will automatically be established.
Why can the charging time of the parent unit exceed 3 hours?	The parent unit may be switched on during charging. Switch off the parent unit during charging to reduce the charging time. When the display of the parent unit is constantly on, charging of the parent unit will take more time.
	Perhaps temperature has exceeded the charging tolerance that could potentially cut off the charging circuit as a safety protection mechanism. To resume charging, move the charging station away from any heat sources such as radiators, heat registers, stove or other appliances (including amplifiers) that produce heat.
Why do I need to keep the baby unit and its cord at least 1 meter/3.5 feet away from my baby?	To avoid strangulation with the cord and for optimal sound detection, always place the baby unit and its cord at least 1 meter / 3.5 feet away from the baby.
What is the difference between the various user modes on the parent unit: Video, Audio, VOX and ECO?	See below list for an explanation on the available modes on your baby monitor.
	* Video mode: the screen and sound of the parent unit are always on.
	* Audio mode: only audio will be activated. The display of the parent unit switches off when AUDIO mode is activated. The link light shows that the parent unit is still on and connected to the baby unit. All normal correspondence with the baby unit is possible via the talk back, lullaby and sensitivity buttons.
	* VOX mode: The display and sound of the parent unit switch off if there is no sound detected for 20 seconds (or not enough sound above the sensitivity setting). Both display and sound will be activated immediately when your baby cries and the sensitivity threshold is passed. When the sound drops below the sound threshold, the video will remain active for 20 seconds. When one of the control buttons is pressed (brightness or volume), the device shall display video for roughly 5 seconds. Also the lullaby menu is accessible.
	* ECO mode: The display and sound of the parent unit switch off when no sound is detected for 20 seconds. Eco Mode reduces power consumption during quiet times while keeping you connected to your baby. In ECO mode the ECO LED light is green and the device will operate on a different connection modus. In ECO mode the parent unit uses the 2 seconds ping mechanism to check the connection with the baby unit instead of a continuous radio frequency connection. Therefore the Baby Unit will also consume less energy in ECO mode.

HOW TO USE / CONNECTING THE UNITS

How can I reset the parent unit?

You can reset the parent unit by simultaneously press the "power on/ off button" and the round "navigation down button" at the front of the parent unit for about 1 second. The parent unit will switch off. In order to turn the parent unit back on, press the "power on/off button". Specific user information stored in the memory of the parent unit such as user mode, brightness settings, volume, lullaby selection, zoom selection and vibration settings will not be lost.

INDICATIONS ON THE PARENT UNIT

Question Answer
The battery LED on the parent unit turns red. What should I do?	The battery power is low. If you do not connect the parent unit to the mains power when the battery LED has turned red and starts to make a beeping sound, the unit will stop working after approximately 60 minutes.
	Switch to lower brightness and/or volume to save battery consumption and connect the parent unit to the mains with the power adapter. (see chapter ‘Preparing for use').
Why does the parent unit beep?	Your baby monitor beeps in a certain way to tell you what the problem is.
	1 beep: parent unit is switched off.
	1 beep, every 20 seconds for the first 3 minutes, after that, every minute: parent unit is low in battery.
	3 quick beeps every 20 seconds: connection between parent and baby unit is lost, link icon is shown on the parent unit's screen and the link connection button is red.
What does the battery LED colour (green, orange, red) or no burning LED mean for the status of my battery?	When the parent unit is connected to the mains power the color of the battery light will show: * Green: battery is full. * Orange: battery is charging.
	When the parent unit is not connected to the mains power the color of the battery light will show: * Red: battery is almost empty (<10%). * No burning LED: parent unit is not connected to the mains.

NOISE/SOUND

Question Answer
Why does the parent unit and/or baby unit produce a high-pitched noise?	The parent unit and baby unit may be too close to each other. Make sure the parent unit and the baby unit are at least 2.5 meters / 8.2 feet away from each other.
	The volume of the parent unit may be set too high. Decrease the volume of the parent unit.
	For causes of a beeping sound from the parent unit, see the FAQ "Why does the parent unit beep?"
How can I mute the sound?	Mute the device by pressing the bottom part of the control button. When the volume bar on the screen is completely empty, the volume is muted.
Why don't I hear a sound? Why can't I hear my baby cry?	The volume of the parent unit may be set too low or may be switched off. Press the top part on the control button to increase the volume level.
	Perhaps the parent unit is muted, unmute the device by pressing the top part of the control button and adjust the volume.
	The sensitivity is set too low, adjust the sensitivity in the parent unit's menu to a higher level.
	The baby unit may be too far away from your baby. Make sure the baby unit is not further than 1.5 meters/ 5 feet away from your baby for optimal sound detection. Closer than 1 meter /3.5 feet increases strangulation hazard.
Why does the parent unit react too quickly to other sounds than my baby makes?	The baby unit also picks up other sounds than those of your baby. Move the baby unit closer to the baby (but observe the minimum distance of 1 meter/ 3.5 feet).
	The sensitivity level may be set too high. When your baby makes soft sounds, the sensitivity has to be higher. However, the louder your baby sounds, the lower the sensitivity level can be set. You can change the sensitivity of your baby monitor on the parent unit's menu.
Why does the parent unit make a buzzing sound?	Interference may occur when the parent unit is out of range of the baby unit. Interference may also occur if there are too many walls or ceilings between the parent unit and the baby unit or when other 2.4 GHz wireless devices are switched on (e.g. microwave, Wi-Fi router).
	Put the parent unit in a different place, closer to the baby unit, or switch off other wireless devices.
	If this answer does not help you, check the other FAQ on "Why does the parent unit and/or baby unit produce a high-pitched noise?"

NOISE/SOUND

How long will the lullaby song be played by the baby unit?	Once you select a lullaby, it will be continuously repeated for approximately 15 minutes. In case you want to play all songs that are available, select the last option in the lullaby list.
How can I increase the volume of the lullaby?	You can adjust the volume of the lullaby on the parent unit, not on the baby unit. Press the lullaby button on the parent unit to open the lullaby menu and adjust the volume.

Question Answer
Why does my baby monitor manage a much smaller distance than specified in this user manual?	The specified operating range of 300 meters /985 feet is only valid outdoors in open air and in the line of sight. Depending on the surroundings and other disturbing factors, the operating range may be smaller (see also table in chapter on positioning of parent and baby unit).
	Inside your house, the operating range is up to 50 meters/165 feet, which is also limited by the number and type of walls and/or ceilings between the parent unit and the baby unit.
The operating time of the parent unit is supposed to be up to 10 hours. Why is the operating time of my parent unit shorter?	The video brightness of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the brightness of the parent unit.
	The parent unit consumes a lot of energy when the video display is switched on continuously. Activate the AUDIO, VOX or ECO mode in the parent unit's menu to increase the operating time (see chapter ‘Features’, sections ‘AUDIO mode’, ‘VOX mode’ or ‘ECO mode').
	The volume of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the volume of the parent unit.
	As any other rechargeable electronic device, the battery capacity decreases after a long period of usage.

VIDEO DISPLAY

Question Answer
Why do I get interference on the parent unit? Why does the video display on the parent unit flicker?	Interference may occur when the parent unit is out of range of the baby unit. Interference may also occur if there are too many walls or ceilings between the parent unit and the baby unit or when other 2.4 GHz wireless devices are switched on (e.g. microwave, Wi-Fi router).
	Perhaps you have more than 2 sets of baby monitors and interference may occur. Keep these 2 baby units away from each other, ideally in separate rooms.
	Put the parent unit in a different place, closer to the baby unit, or switch off other wireless devices.
	The rechargeable battery of the parent unit may need to be charged.
Why isn't there any image on the video display while the link light is green?	The parent unit may be in the AUDIO, VOX or ECO mode. Press the mode button on the right side of the parent unit to switch modes (see 'Modes').
Why isn't the image on the video display clear?	The display brightness may be set too low. Increase the display brightness on the parent unit using the control button in the centre.
	Perhaps the lens of the baby unit is dirty. Clean the lens with a dry cloth.
	The baby unit may be too far away from your baby. Make sure the baby unit is not further than 1.5 meters / 5 feet away from your baby for optimal video quality. Closer than 1 meter / 3.5 feet increases strangulation hazard.

Wall mount

Printing instructions:
Print this page in scale 100% and use the template to accurately mark the position of the holes for the screws on the wall.

General information

Rechargeable Li-ion battery (2600mAh)

FHSS frequency band 2.4GHz.

Maximum radio-frequency power: < = 20dBm

Supply unit:

Model: ASSA105E-050100 (EU plug) or

ASSA105B-050100 (UK plug)

Input: 100-240V 50/60Hz ~0.35A

Output: 5.0V = 10A,5.0W

Average active efficiency: > = 73.62%

No-load power consumption (W): 0.1W

Introduktion

Udgang: 5,0 V = 1,0 A, 5,0 W

INDICATIONS SUR L'UNITE PARENT

Batterie Li-ion rechargeable (2 600 mAh)

Entree:100-240V,50/60Hz,0,35A

Sortie：5,0V 1A，5,0W

Encomendar acessórios

Sáda: 5,0 V 1,0A,5,0W

Lähtö: 5,0 V 1,0A, 5,0 W

Uteffekt: 5,0 V = 1,0 A, 5,0 W

Genomsnittlig aktiv effektivitet: >73,62%

a a a a a a a a a a a a a a a a a a a

aill 1 jill ay gill cai 8 y. gbi y jalil aaiy aaii baa

15

Jgliae jie Jnll Ia glal y Jnll Jabi glis Jlaol glis Jbs:

ailll 0i aii j p 11 (jai 0,9) pai 3 (bai kaiu) Jabi

#

jglal jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg jglg

. 0jbs alls
a_j all

aall gall aerailg cagall by

aill jy jall yll gll sddg all iuie, Jle g uuae ie gauaii aaii: abia

aaii iiaaa aiee

E

aaii iis iis aiee

aal aal 1

ailll jao jall joll gddg dllg iuee Jie ginae ggbal biai i i:abla

Eua

g 1

.ECO,VOX,AUDIO,VIDEO

jie biai jie jie aieiiaaiy iagai y

在 Rt ABD 中:

jglal jie g aall bglge laoa glllg all gllg ll

Aolalai

VIDEO

VIDEO

VIOEO 1

y j 1111111111111111111111111111111111

AUDIO

1.AUDIO

i 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

aiee eae

Jalalbdo y alao g Jaiill jy nall l sio j bll ciaa

y j 111111111111111111111111111111111111

J 1

VOX

1.VOX

ie yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

20

Jai pij. jy 1000000000000000000000000000000000000000000000000000000

Aulal 1d! Jdx no aull, ciall bailll ciall gnill dlal bia pia: abdo

ECO

1.ECO

y 1111111111111111111111111111111111

e 20

J 1

aalalal 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Jalll 10000000000000000000000000000000000000000000000000000

2.1.1

aaii jie! ai jaiy gie 1 aia i ci iie j j xie biai y: alxio

1. 1

1. 1

Lullaby.Songs 1 Rock-a-Bye Baby 2 Twinkle, Twinkle 3 Hush, Little Baby 4 Brahms Lullaby 5 Golden Slumbers

a a a a a a a a a a a a a a a a a a a a a a a a a a a

J 120000000000000000000000000000000000000000000000

auiu

iiil 1i

a a a a a a a a a a a a a a a a a a a a a a

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 15.

a a a a a a a a a a a a a a a a a a a a a a a a

3

1. 4a10

1. aiLj 1iLdaiabai Cuiyall ayiy

y 1

aallll llllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll

y j 1j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

Jww.philips.com/support 8

gaiy

pkiydi klll jckj 1. jkll gagglg lccg jsslll llll jssly
aikiyai iis www.philips.com/support gall a jy jy jy cai y jy gl
al

1 1

الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION الإستUTION ال,en. (عَلْمُّة 20 مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) (عَلْمُّة 20 مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَنَّه 3) مسَ�َرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�َرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�َرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�َرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�َرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرِبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَbَبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَbَبَة (عَلْمُّة 20 مسَنَّه 3) مسَ�ِيرَbَبَة (عَلْمُّة 20 مسَنَّه 3) مسِيرَبَة (عَلْمُّة 20 مسَنَّه 3) مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَbَبَة (عَلْمُّة 20 مسَيرَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَ (عَلْمُّة 20 مسَيرَbَبَة (عَلْمُّة 20 مسَيرَbَbَbَbَbَbَbَbَbَbَbَbَbَbَbَb· (عَلْمُّة 20 مسَيرَbَbَbَbَbَb· (عَلْمُّة 20 مسَيرَb· (عَلْمُّة 20 مسَيرَb· (عَلْمُّة 20 m\b\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\$\)\n

الإستعمال الإستUTION ال,en. (عَلْمُّة 20 مسَيرَبَة (عَلْمُّة 20 مسَيرَb· (عَلْmُّة 20 m\b\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\)\n

ال,en. (عَلْمُّة 20 مسَيرَبَة (عَلْmُّة 20 m\b\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\$\)\n

الله Y علُّة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5. الله Y علُّة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة الحَسْعَة EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1. الله Y علُّة الحَسْعَة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.15 الله Y علُّة الحَسْعَة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.20 الله Y علُّة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.15 الله Y علُّة الحَمَزَة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1. الله Y علُّة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5. الله Y علُّة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.15 الله Y علُّة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.1. الله Y علُّة الحَسْعَation EXHIBIT 1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.1.5.20 الله Y علُّة الحَسْعَation EXHIBIT 1.5.20 * ECO, VOX, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. ECO * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. ** ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * FJ, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF, JF * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى; * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. \* ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. ' ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. * ECO, مصحيى. *

LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LED	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED
LE	LED

1g21/61g2

الإستعمال الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الحرفية الح註冊 (الإستعمال 3.5/ jpg 1.jpg 2.jpg 3.jpg)	الإستعمال الحرفية الح註冊 (الإستعمال 3.5/ jpg 1.jpg 2.jpg 3.jpg)
الإستعمال الح註冊 (الإستعمال 3.5/ jpg 1.jpg 2.jpg 3.jpg)
2.4 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22	2.4 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 2
2.4 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22	2.4 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 2
2.4 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24	2.4 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 2
15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15

S_ ACD = 12 · CD · AB

(assaiisxu) ASSA105B-050100

0,35\~ 50/60100-240

1,5,0 1,0=5,0

73.62%=<:ab#y1o#y1b#

10,0,1:(10)Joo
