IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" inside the enclosure of this appliance, which may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equi-lateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this appliance

• For safety reasons, this class II appliance is provided with double or reinforced insulation as indicated by this symbol.

Before connecting the appliance to a socket outlet, make sure the voltage indicated on the appliance corresponds to your local mains.

• The MAINS plug is used as the disconnect device; the disconnect device shall remain readily operable.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid hazard.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• Regularly check if the supply cord, appliance or extension cable are defective. If

found defective, do not put appliance into operation. Immediately pull the plug.

• Place the supply cord and, if necessary, an extension cable in such a way that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.

• Do not jam, bend or pull the supply cord over sharp edges.

• Protect the supply cord from being walked on or pinched particularly at the plug, convenience receptacles and the point where it exits from the appliance.

• Never pull the plug by the supply cord or with wet hands.

• Disconnect the mains plug in case of faults during use, during lightening storms, before cleaning and when not using the appliance for a longer period of time.

• The appliance may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the appliance; reconnect after a few seconds.

Refer all servicing to qualified service personnel. Do not attempt to repair the appliance yourself. Servicing is required when the appliance has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the appliance, the enclosure is damaged, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

• Do not use attachments or accessories other than recommended by the manufacturer or sold with this appliance. Install in accordance with this user manual.

• When installing the appliance, leave sufficient space for ventilation. Do not install in bookcases, built-in cabinets or the like.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Do not place any electronic equipment or toys on the appliance. Such items could fall from the top and cause product damage and/or personal injury.
• Do not install near any heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat
• Do not apply excessive force to the front or top, as this could ultimately overturn the appliance.
• Do not shift or move the appliance when powered on.
• Do not touch, push or rub the surface of the appliance with any sharp or hard objects.
• Do not move the appliance from cold into warm places and vice versa. Condensation can cause damage to the appliance and electrical parts.
• For appliances with earphone jack: DANGER! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to moderate volume.
• For appliances with USB function: Reset appliance by disconnecting USB device from appliance in case of malfunction.

• For appliances with USB function: If an USB data storage medium malfunctions as a result of electrostatic discharge and momentary electrical surges, disconnect the device from the appliance.

• For appliances / accessories intended for use of batteries:

• CAUTION! Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type. Observe correct polarity.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
• Do not open, dismantle, shred or short-circuit batteries. Do not mix old and new batteries.
• Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
• Refer to safety and other instructions on the battery or its packaging.

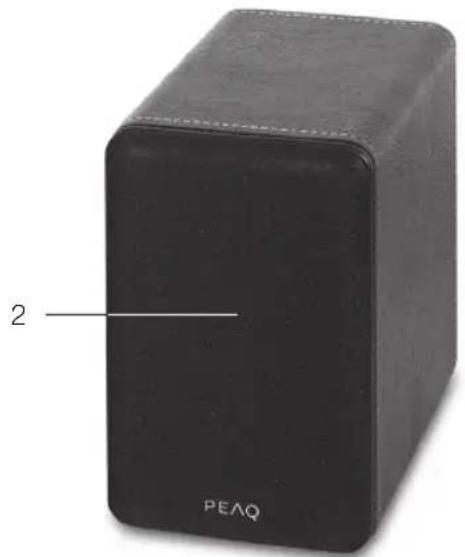

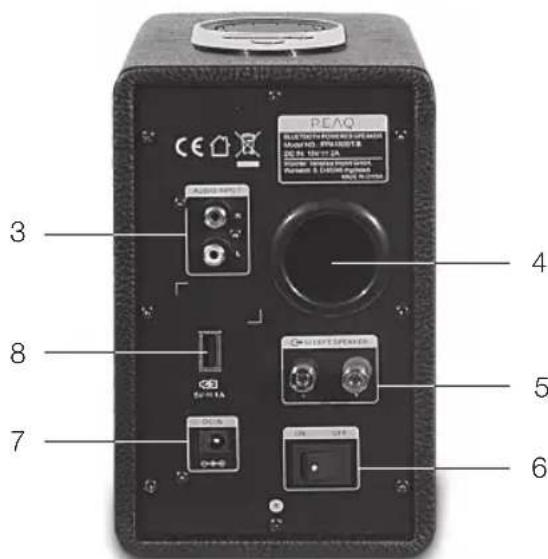

Main unit

Left Speaker

Right Speaker

1 Top panel
2 Speaker grille
3 Audio input

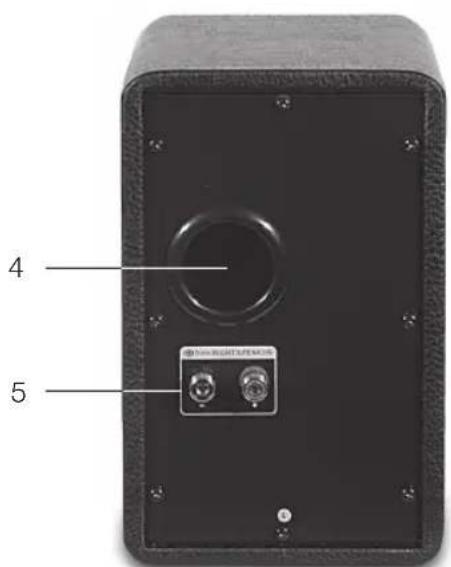

4 Bass reflex tunnel

5 Terminal binding post
6 Power switch
7 DC power socket
8 USB charging port

Accessories

1x 3.5 mm stereo - 2 RCA cable

1x Interconnect speaker cable

1x Power adapter

1x User Manual

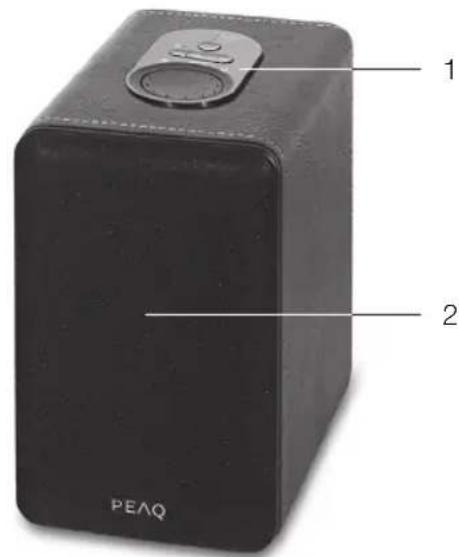

Top panel

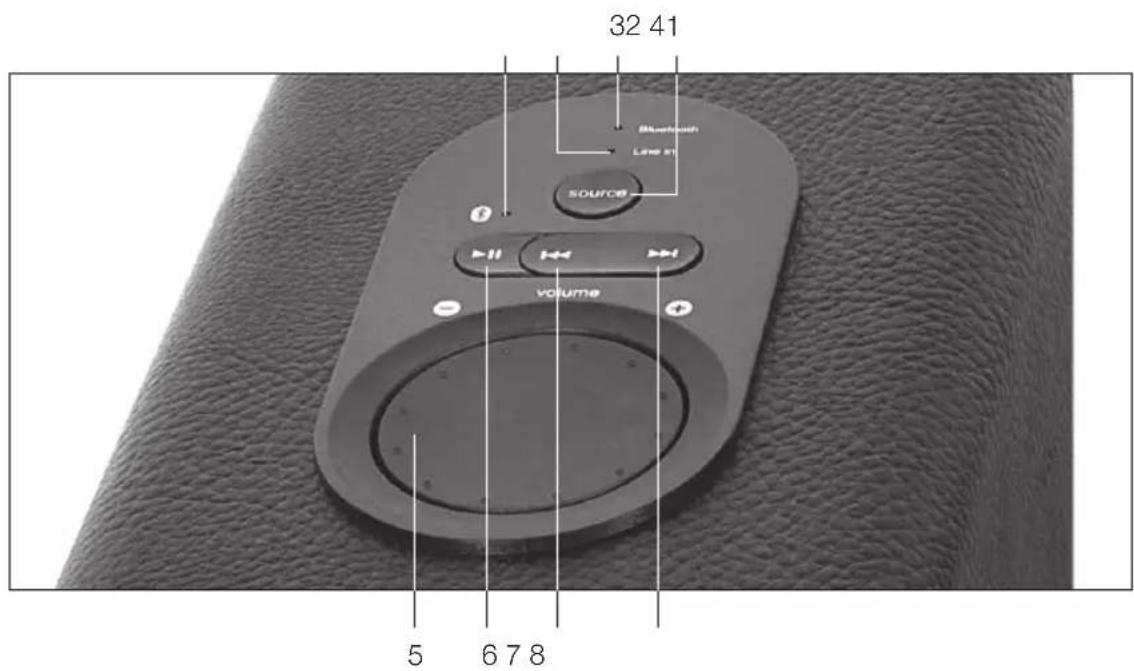

1 Bluetooth Sync LED
2 Line IN LED
3 Bluetooth LED
4 Source selector

5 Master volume
6 Play/Pause
7 Fast backward
8 Fast forward

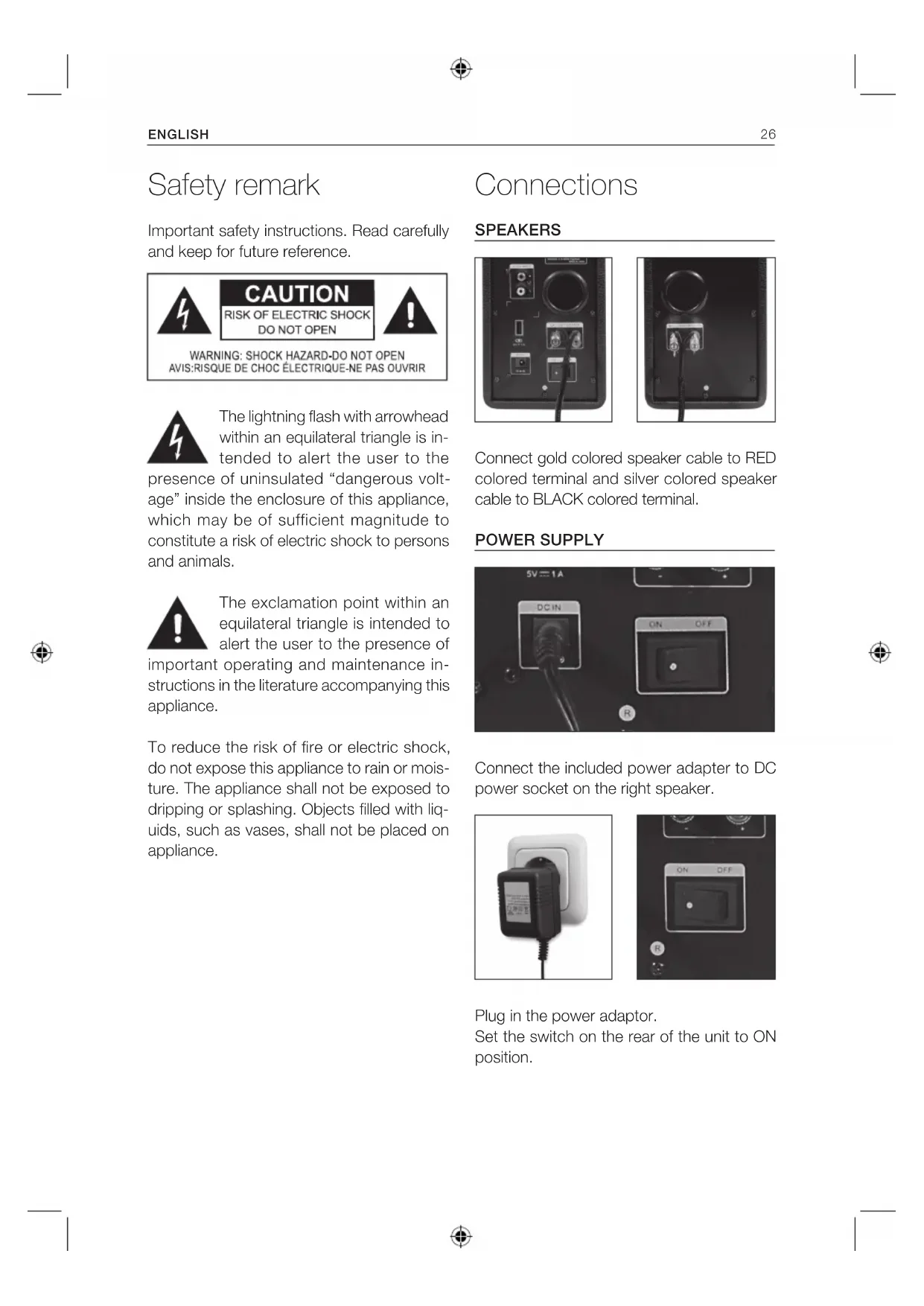

Safety remark

Important safety instructions. Read carefully and keep for future reference.

The lightning flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" inside the enclosure of this appliance, which may be of sufficient magnitude to constitute a risk of electric shock to persons and animals.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this appliance.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. The appliance shall not be exposed to dripping or splashing. Objects filled with liquids, such as vases, shall not be placed on appliance.

Connections

SPEAKERS

Connect gold colored speaker cable to RED colored terminal and silver colored speaker cable to BLACK colored terminal.

POWER SUPPLY

Connect the included power adapter to DC power socket on the right speaker.

Plug in the power adaptor. Set the switch on the rear of the unit to ON position.

Sources

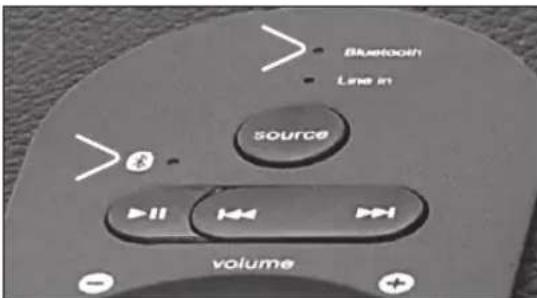

BLUETOOTH SOURCES

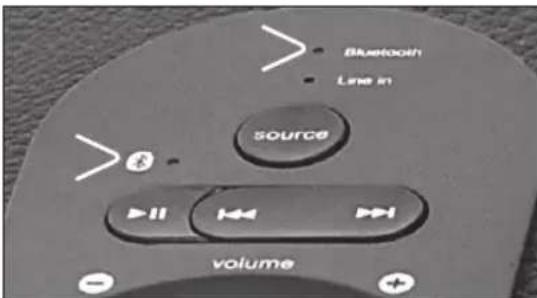

1. The Bluetooth LED lit up in blue, and the pairing sequence initiates after 10 seconds with Bluetooth Sync LED blink between red and blue colours rapidly. The Bluetooth mode is the default source selection. Pairing sequence begins after 10 seconds. The system will detect previous paired device within the first 10 seconds.

2. Pair with Bluetooth music devices (skip this step if appliance remembered your music device)

IPHONE, IPAD OR IPOD

Go to setting page from your advice (SET-TINGS) > select GENERAL > enable BLUE-TOOTH > select PPA100BT.

ANDROID PHONE

Go to setting page from your Android Phone (SETTINGS) > select WIREFLESS & NETWORKS > enable BLUETOOTH > select PPA100BT.

OTHERS

Read the instruction manual came from your device (enter the pairing code "0000" if prompted).

NOTE: Paired successfully the Bluetooth LED will blink once every 5 to 6 seconds.

WIRED SOURCES

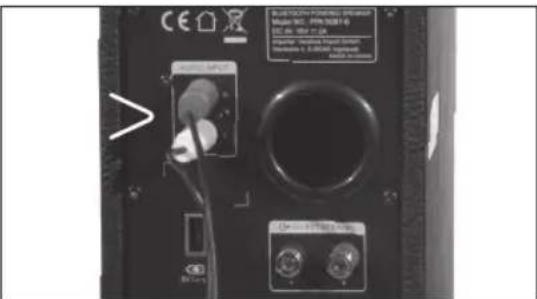

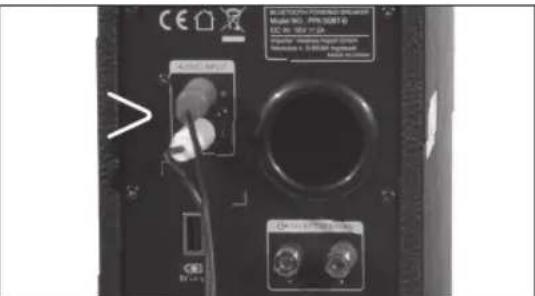

Connect the playback device with the included cable set (red, white) to the RCA input interfaces. These are located at the rear panel of the right speaker.

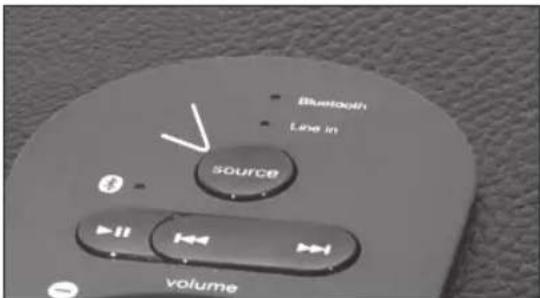

Press the SOURCE button and the Line IN LED lit up. The system is now ready to receive audio via wired connection from your media player.

Operations

CHANGE THE BLUETOOTH PLAYBACK DEVICE

Simply turn off the Bluetooth signal in the first playback device. Depress the playback button at the top panel for several seconds to disconnect the previous Bluetooth device. The system will restart the pairing sequence again. Press and hold the PLAY/PAUSE button for 3 seconds. Bluetooth Sync LED blink between red and blue colours rapidly.

VOLUME DIAL

Can be rotated to increase or decrease the volume level with the blueLED blinking as you turn. Once the level hit either range limits, the blue LED will pause.

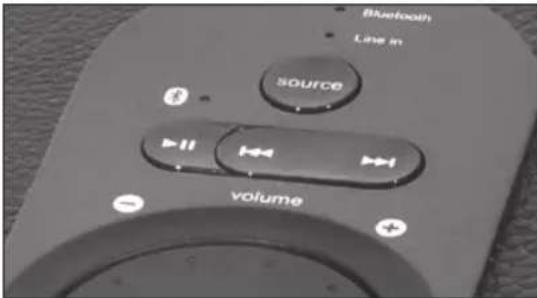

CONTROL BUTTONS

On the top panel you can control the music playback on the Bluetooth device. PLAY/ PAUSE button can initiate playback or stop on the playback device. Fast Forward button will skip to the next track, and Fast Backward for skipping to previous track.

There remote control functions work on Bluetooth devices supporting AVRCP profile only. Compatible with iOS 4.1 or later, Android 1.5 or later, and Windows Mobile 5.0 or later systems.

USB CHARGER PORT

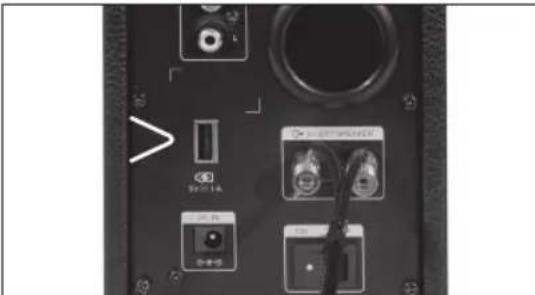

Lets you charge your media player/phones via an USB type A interface.For charging method, please refer to your media player instruction manual.

Specifications

Amplifier
Output Power 36 Watt RMS
Power distribution: 18 Watt x2
Harmonic distortion: < 0.5 % 1 W	1 kHz
Frequency response: 30Hz - 20 kHz
Signal/ Noise ratio: > 75 dB
Separation: > 45 dB
Speakers
Tweeter driver type: 1" x 2
Tweeter rated power: 10 Watt x2
Bass driver type: 3.5"
Bass rated type 20 Watt x2
Interfaces
Output: Terminal binding posts
Input: 10 Watt x2
Bass driver type: 2RCA
Bass rated type 20 Watt x2
Bluetooth®Wireless Technology 2.1+EDR (Enhanced Data Rate), A2DP and AVRCP profiles
Power
Power supply: System: DC 18 V	2A ---Power adapter: AC 100 V - 240 V ~ 47/63 Hz 1A
USB rating:	5V, 1A
USB extension cables are not supported
Not suitable for charging IPads.
Operating/ambient temperature:	less than 45°C

Frequently Asked Questions (FAQ)

	Solutions
No Sound	-Check if the audio source is working well-Check if the audio and speaker cables well connected-Check if the Bluetooth profile is supported, and is connected successfully
One or more speaker has no sound	-Check if the speaker cable is connected correctly, and ensure the source is connected successfully.
Static sound heard when volume knob is turned	-Turn off the playback source first, then turn the speaker volume knob several times. Playback again and monitor.The static noise is due to dust, so simply turning the volume will remove it easily.
What are the products supported?	-Any playback devices that support Bluetooth audio profiles,and analog connection to PC, notebook, CD/DVD player,media players with 3.5mm stereo output socket.
Sound is distorted	-Check if the source file is not corrupted and the bit rate is above 192 for better song performance, try playing adifferent song track and test.
Where to place this speaker system?	-It is magnetically shielded so can be placed near any LCD TV monitor without any distortion. It should preferably place left and right position of the listener,equally spaced to achieve stereo effect. It should also be placed near an AC power source for its operation

If the problem still exists, please contact the distributor or seek professional advice.

INTENDED USE

This appliance is intended for recieving and playing audio and video signals. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions. Do not use outdoors.

BLUETOOTH

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PEAQ is under license. Other trademarks and trade names are those of their respective owners.

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equip

ment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
