KNMICW620 - Microphone KONIG - Free user manual and instructions

Product type	Wireless microphone
Brand	König Electronic
Model	KN-MICW620
Frequency range	UHF 840 MHz – 868 MHz
Pre-programmed frequency	UHF 863 MHz – 865 MHz
Transmission power	10 mW
Dynamic range	> 90 dB
Total harmonic distortion	< 0.5 %
Frequency response	40 Hz – 15 kHz, ±3 dB
Modulation	FM
Audio output level	0 – ±400 mV
Power supply (receiver)	230–240 VAC, 17 VDC
Power consumption	±4 W
Signal-to-noise ratio	> 90 dB
Batteries (microphone)	2 x AA 1.5 V
Battery life	±4 to 6 hours
Compressor-limiter	Built-in to avoid distortion
True diversity	Yes, two receivers A and B
LCD display	RF strength, AF level, channel, frequency
Audio outputs	Unbalanced 6.35 mm, balanced XLR
Maintenance and cleaning	Clean only with a dry cloth
Safety	Do not open, unplug in case of problems
Warranty	Not valid in case of modification or incorrect use

Frequently Asked Questions - KNMICW620 KONIG

How to install the batteries in the microphone?

Open the battery compartment located under the microphone, insert two AA batteries respecting polarity (+/-), close the cover and turn on the microphone using the On/Off switch.

How to connect the receiver to a mixing console?

Use the unbalanced (6.35 mm jack) or balanced (XLR) outputs located at the back of the receiver. Connect the cable to the console or amplifier. For the unbalanced output, you can choose the mixed (A+B) or separate signal depending on the selector position.

How to select a channel on the microphone?

The microphone is pre-programmed on a channel in the 863‑865 MHz band. To change the frequency, use the receiver's selection keys (SELECT, UP, DOWN) to tune a new channel. Make sure the microphone and receiver are on the same frequency.

What to do if the microphone produces no sound?

Check that the microphone is on (LED indicator), that the batteries are installed and charged, that the receiver is powered on and the antennas are properly unfolded. Also ensure that the receiver volume is not at minimum and that the audio output is connected.

How to position the antennas for optimal reception?

Unfold the receiver's antennas and place them vertically. Avoid metal obstacles and maintain a distance of at least 1 meter between the antennas and other electronic devices to minimize interference.

Can I use multiple Konig KNMICW620 microphones simultaneously?

Yes, the system allows using multiple microphones as long as they are set to different frequencies within the authorized band (840‑868 MHz). Use the manual search function to find free channels.

How to clean the microphone and receiver?

Use a dry, soft cloth. Never use solvents, abrasive products or liquids. Avoid moisture and never immerse the devices in water.

What does the 'MUTE' display on the receiver mean?

The 'MUTE' display indicates that the microphone is off or there is no signal reception. In this case, no audio output is sent to the console or amplifier. Turn on the microphone or check the connection.

What is the battery life and how to extend it?

AA batteries last approximately 4 to 6 hours. To extend the life, turn off the microphone when not in use and remove the batteries if the device remains inactive for a long time.

Where to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Deposit it at a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL KNMICW620 KONIG

Exterior view of a KNOI wireless audio recording device with two microphones and external antennas (no readable text or symbols)

MANUAL (p. 2)

MANUAL DE USO (p. 32)

SISTEMA DE MICRÓFONO

INALÁMBRICO

KÄYTTÖOHJE (s. 44)

LANGATON

MIKROFONIJÄRJESTELMÄ

Wireless microphone system with two microphones and a information display. True diversity for a optimal reception. The system is equipped with a special voice limiter compressor to avoid distortion caused by high sound peaks.

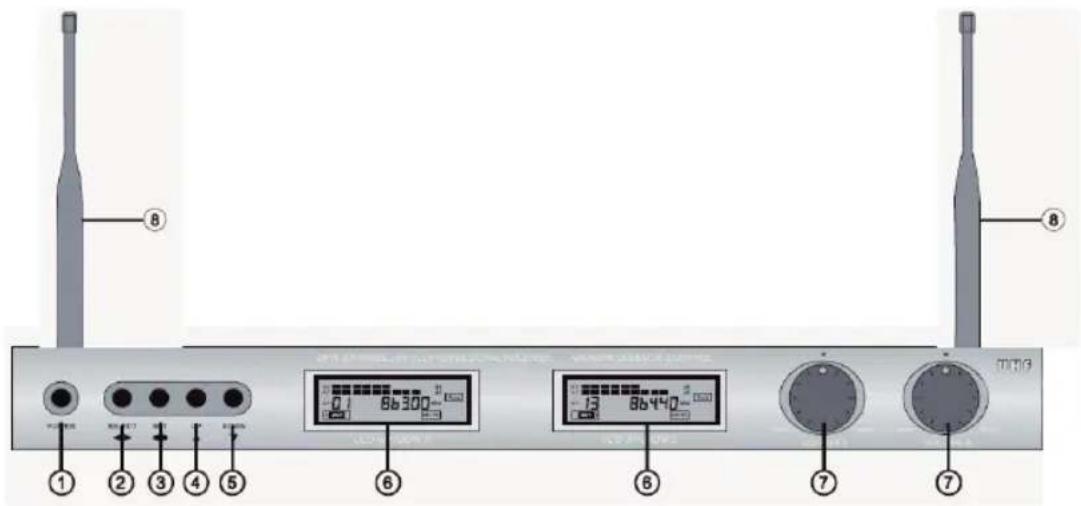

Description receiver:

1. POWER: On/off button
2. SELECT: switch between receiver A and B for the use of buttons 3, 4 or 5
3. SET: button for function set, tune or pre-programmed channels
4. UP: button for tuning up or channel selection up of pre-programmed channels
5. DOWN: button for tuning down or channel selection down of pre-programmed channels
6. DISPLAY: separate for receiver A and B
7. VOLUME CONTROL: separate for receiver A and B
8. ANTENNA: separate antenna for receiver A and B

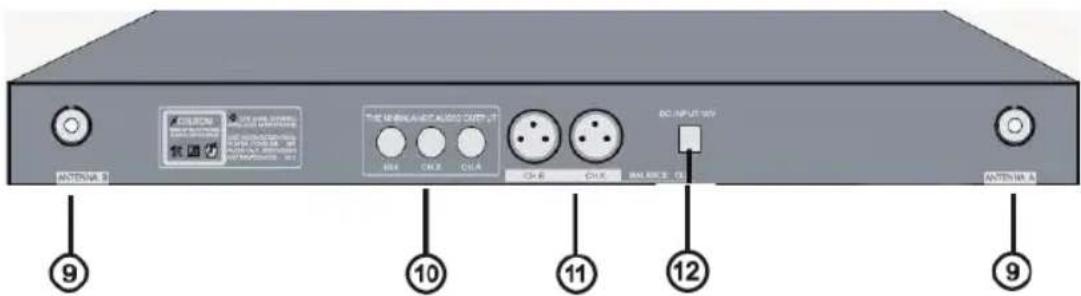

1. ANTENNA CONNECTOR: for connection of antenna A and B
2. UNBALANCED AUDIO OUTPUT: 6,35mm output for mixed signal (A+B) or separate signal of receiver A and B
3. BALANCED AUDIO OUTPUT: separate XLR separate XLR outputs for channel A & B

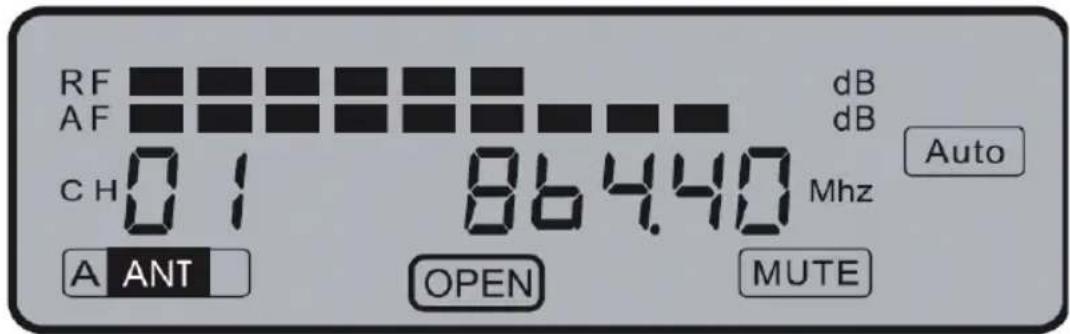

Description LCD display receiver:

• RF: Shows the strength of the received microphone signal
• AF: Shows the microphone's audio signal level
• CH01: Selected pre-programmed channel
• A ANT: The antenna which receives the signal of the microphone (A for receiver A and B for receiver B)
• 864.40: Frequency of the selected pre-programmed channel
- OPEN: Shows which receiver (display) is selected for the use of function buttons 2\~5
- AUTO: Shows that the microphone is powered off. Appears also when there is no connection with the microphone on the showed frequency in the display.
- MUTE: There is no audio output from the receiver to mixer or amplifier because the microphone is powered off or there is no reception

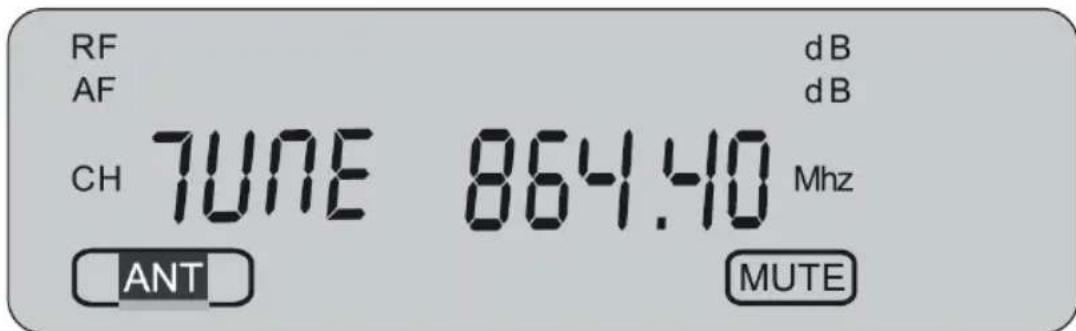

- TUNE: Push the SELECT button (2) to switch between manual tuning or pre-programmed channels. With manual tuning it's possible to select the frequency by steps of 0,05MHz. The range is 840.00MHz till 868.00MHz. This feature offers the use of other wireless microphones operating in the frequency band from 840.00MHz till 868.00MHz. Note: the supplied microphones are pre-programmed from 863.00MHz till 865.00MHz

IMPORTANT NOTICE:

It's the responsibility of the user to ensure that the use of frequencies comply with the local regulations and does not cause interference with other users.

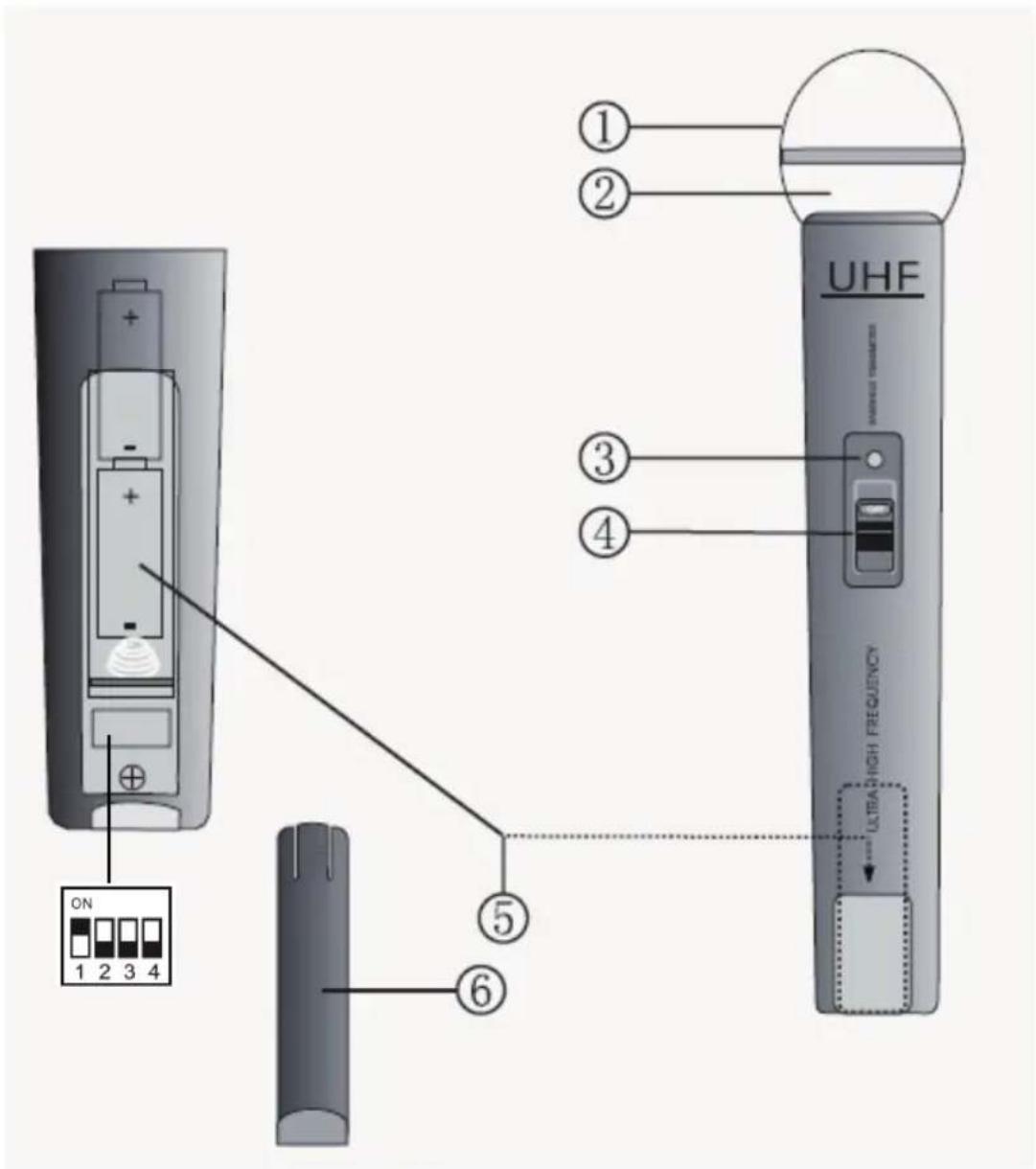

Description microphone:

1. GRILL: Covers and protects the inner microphone element
2. MICROPHONE ELEMENT (inside): Picks up the audio signal
3. POWER / BATTERY INDICATOR: Flashes once when the power is on and lights up constantly when the battery is running out of power.
4. ON/OFF SWITCH: 3 Positions for ON, MUTE (middle position) or OFF
5. BATTERY COMPARTMENT: For 2x AA batteries
6. BATTERY COVER: Provides access to the battery compartment

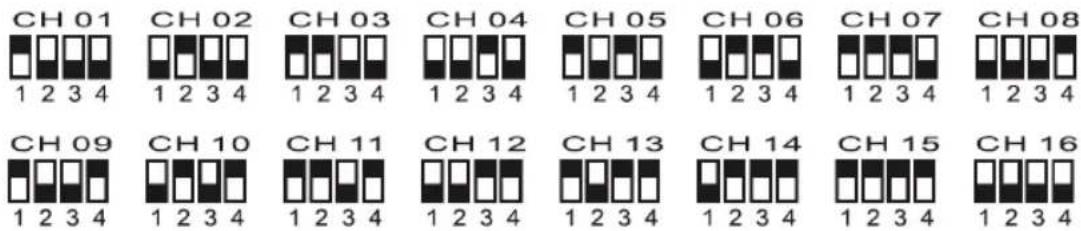

Channel selection microphone:

Operation:

1. Put the antennas straight up for optimal reception.
2. Connect the connection cable with the 6,35mm plugs to the output of the receiver and input of the mixer or amplifier. Or connect the receiver with the XLR cable (not included) per channel (A/B) to a mixer or amplifier.
3. Connect the DC plug of the AC/DC adapter to the DC input on the rear side of the receiver. Connect the power plug to a wall outlet and switch on the receiver.
4. Open the battery compartment of the microphone and place 2x AA batteries according to the polarity markers and select a channel.
5. After closing the battery compartment, switch on the microphone using the ON/OFF switch.
6. The system is ready to use.

Specifications:

• Frequency band: UHF 840\~868 MHz
• Pre-programmed frequency: UHF 863\~865 MHz
• Transmit power: 10 mW
• Dynamic range: >90 dB
• Total harmonic distortion: <0.5%
• Frequency response: 40 Hz-15 KHz, ±3 dB
• Modulation: FM
• Audio output level: 0-±400 mV
• Power supply: 230\~240 V AC, 17 V DC
• Power consumption: ±4 W
• S/N ratio: >90 dB
- Battery: 4x AA 1.5 V
- Battery life: ± 4\~6 hours

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

Declare that product:

Brand: König Electronic

Model: KN-MICW620

Description: Wireless microphone system

Is in conformity with the following standards

EN 50371

EN 60065

EN 301 489-1/-9

EN 301 422-1/-2

And complies with the requirements of the European Union Directives 1999/5/EC

's-Hertogenbosch, 19 ^th January 2009

Mrs. J. Gilad

Purchase Director

Safety precautions:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains

and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
