Product Type	Wireless Microphone Set
Brand	König Electronic
Model	KN-MICW610 (KNMICW610UK)
Number of Microphones	2 semi-professional microphones
Channel A Frequency	UHF 863,20 MHz
Channel B Frequency	UHF 865,00 MHz
Transmission Power	10 mW
Dynamic Range	>90 dB
Total Harmonic Distortion	<0,5%
Frequency Response	40 Hz - 15 kHz (±3 dB)
Modulation	FM
Audio Output Level	0 - ±400 mV
Power Supply (Receiver)	230-240 VAC / 17 VDC (power adapter)
Power Consumption	±4 W
Batteries (Microphone)	2 × AA 1,5 V
Battery Life	±4 to 6 hours
Audio Outputs (Receiver)	1 unbalanced 6.35 mm output, 1 balanced XLR output
Antenna	Dedicated antenna on receiver
Maintenance	Clean with a dry cloth; do not use solvents
Safety	Do not open, unplug if a problem occurs, avoid water
Warranty	Warranty not accepted in case of modification or incorrect use
Compliance	EU Directives 1999/5/EC (R&TTE)

Frequently Asked Questions - KNMICW610UK KONIG

How to set up the wireless microphone?

Connect the receiver to the power supply and to the mixing console or amplifier via the 6.35 mm or XLR outputs. Insert 2 AA batteries into the microphone, then turn on the microphone and the receiver. The antennas must be raised for optimal reception.

What is the range of the microphone?

The typical range is about 30 meters in open field, but it may vary depending on obstacles and interference. Use the antennas in a vertical position to improve reception.

Can both microphones be used simultaneously?

Yes, both microphones operate on different UHF frequencies (863.20 MHz and 865.00 MHz) without interference. You can use them together for duets or presentations.

What type of batteries to use and what is their battery life?

Use 2 AA 1.5 V batteries per microphone. Battery life is about 4 to 6 hours depending on use. The status indicator lights up continuously when batteries are low.

How to connect the receiver to an amplifier or mixer?

Use a 6.35 mm jack cable (unbalanced) or an XLR cable (balanced) to connect the receiver's audio output to the input of your amplifier or mixing console.

What to do if the sound is distorted?

Reduce the volume of the microphone or receiver. The peak indicator (flashing orange) indicates a signal that is too strong. Adjust the sensitivity or move the microphone away from the sound source.

How to clean the microphone?

Clean the exterior with a dry cloth. Do not use solvents or abrasive products. Avoid moisture entering the grille or battery compartment.

Is the microphone compatible with all amplifiers?

Yes, thanks to the 6.35 mm and XLR outputs, it is compatible with most amplifiers, mixers, and sound systems. Make sure your device's input accepts the output level (0-±400 mV).

What safety precautions should be followed?

Never open the receiver or microphone. Unplug the device if a problem occurs. Avoid any exposure to water or moisture. Have repairs carried out by a qualified technician.

Does the microphone cause interference with other devices?

The microphones use dedicated UHF frequencies (863-865 MHz) and have a power of 10 mW, which minimizes interference. However, avoid using other wireless devices on the same frequency band.

USER MANUAL KNMICW610UK KONIG

MANUAL DE USO (p. 27)

SENZA FILI

SISTEMA DE MICROFONO

INALAMBRICO

HASZNÁLATI UTMUTATO (o. 32.)

VEZETEK NELKÜLİ

KAYTTOOHJE (s. 37)

MIKROFONRENDSZER

LANGATON

Wireless microphone system with two microphones suitable for semi-professional use. Whether you use it for a speech, singing debut or karaoke performance: this microphone system is up to the task. You can use both microphones at the same time without interference.

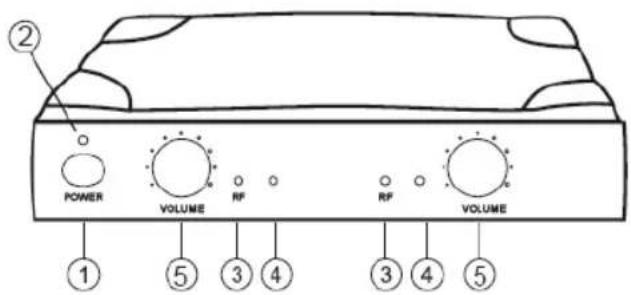

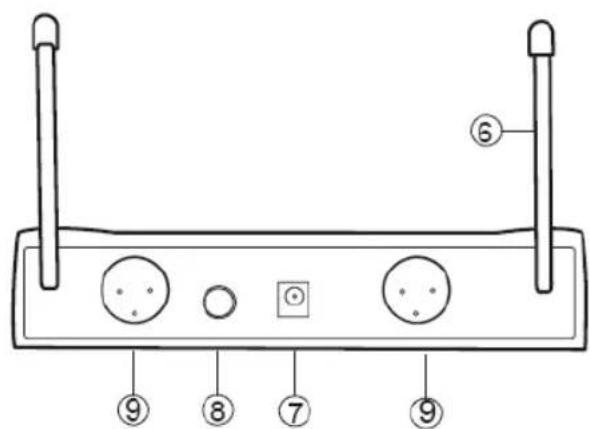

Description receiver:

1. POWER: On/Off button
2. POWER INDICATOR: Lights up red when the receiver is powered on
3. RF SIGNAL INDICATOR: Lights up green constantly when microphone signal is received
4. PEAK INDICATOR: Flashes orange when the audio signal is to loud and will be distorted
5. VOLUME CONTROL: Adjusts the output volume of the receiver to the mixer or amplifier
6. ANTENNA: For the reception of the signals from the microphone
7. POWER INPUT: Connection for the DC plug of the AC/DC adapter
8. AUDIO OUT: 6,35mm output of the audio signals for mixer or amplifier (unbalanced)
9. AUDIO OUT: XLR output of the audio signals for mixer or amplifier (balanced)

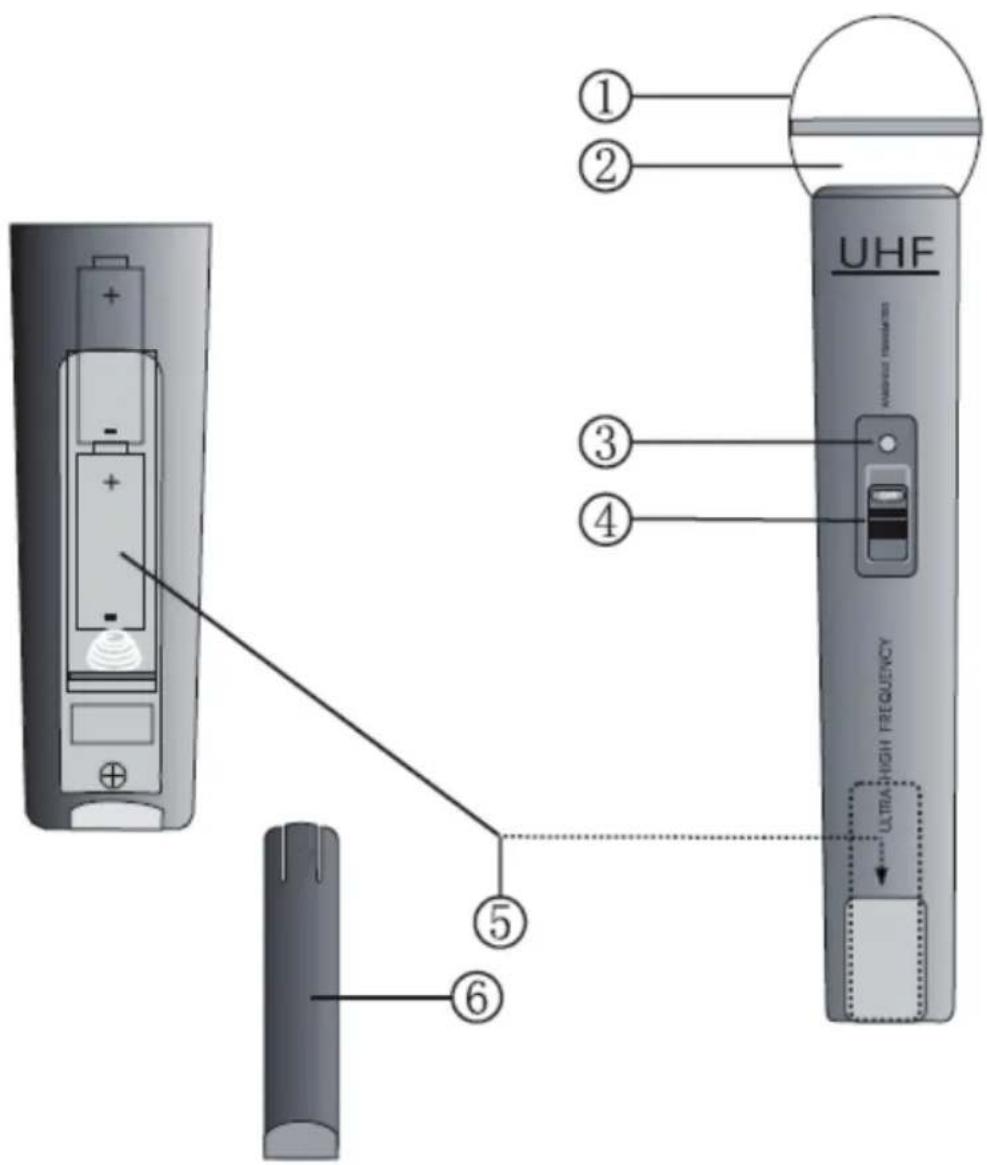

Description microphone:

1. GRILL: Covers and protects the inside microphone element
2. MICROPHONE ELEMENT (inside):Picks up the audio signal
3. POWER / BATTERY INDICATOR: Flashes once when the power is on and lights up constantly when the battery is running out of power.
4. ON/OFF SWITCH: 3 positions for ON, MUTE (middle position) or OFF
5. BATTERY COMPARTMENT: For 2x AA batteries
6. BATTERY COVER: Provides access to the battery compartment

Operation:

1. Put the antennas straight up for optimal reception.
2. Connect the connection cable with the 6,35mm plugs to the output of the receiver and mixer or amplifier. Or connect the receiver with the XLR cable (not included) per channel (A/B) to a mixer or amplifier.
3. Connect the DC plug of the AC/DC adapter to the DC input on the rear side of the receiver. Connect the power plug to a wall outlet and switch on the receiver with the power button.
4. Open the battery compartment of the microphone and place 2x AA batteries according to the indicated polarity markers.
5. Switch on, after closing the battery compartment, the microphone with the ON/OFF switch.
6. The system is ready to use.

Specifications:

Frequency channel A: UHF 863,20 MHz
Frequency channel B: UHF 865,00 MHz
Transmit power: 10mW
Dynamic range: >90 dB
Total harmonic distortion: < 0.5%
Frequency response: 40 Hz - 15KHz, ± 3 dB
Modulation: FM
Audio output level: 0 - ± 400mV
Power supply: 230~240 V AC, 17 V DC
Power consumption: ±4 W
S/N ratio: >90 dB
- Battery: 2x AA 1.5 V
Battery life: ± 4 6 hours

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

Declare that product:

Brand: König Electronic

Model: KN-MICW610

Description: Wireless microphone system

Is in conformity with the following standards

EN 50371

EN 60065

EN301489-1/-9

EN 300 422-1/-2

And complies with the requirements of the European Union Directives 1999/5/EC

s-Hertogenbosch, 19^th January 2009

Mrs. J. Gilad

Purchase Director

Safety precautions:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains

and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

Copyright ©
