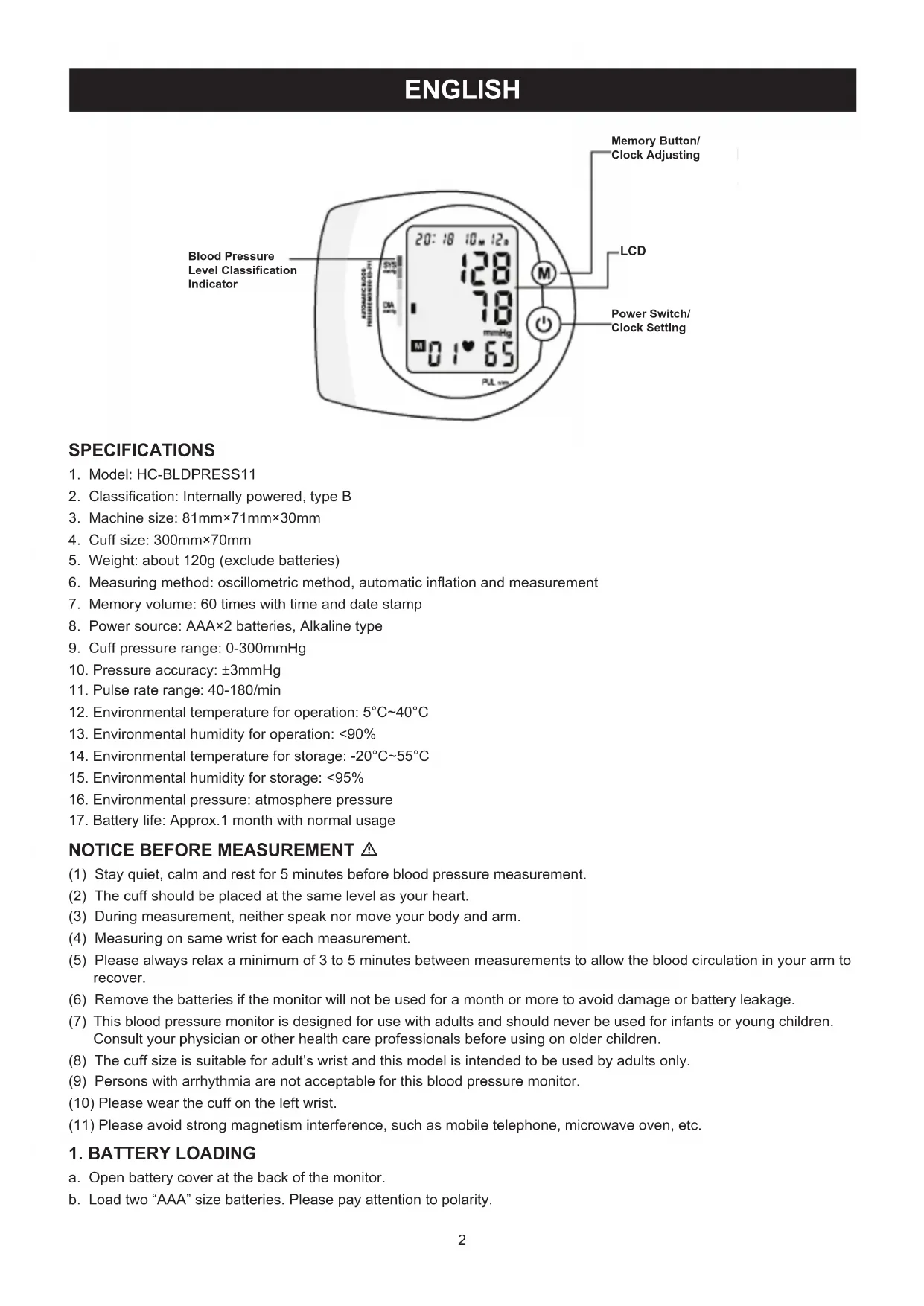

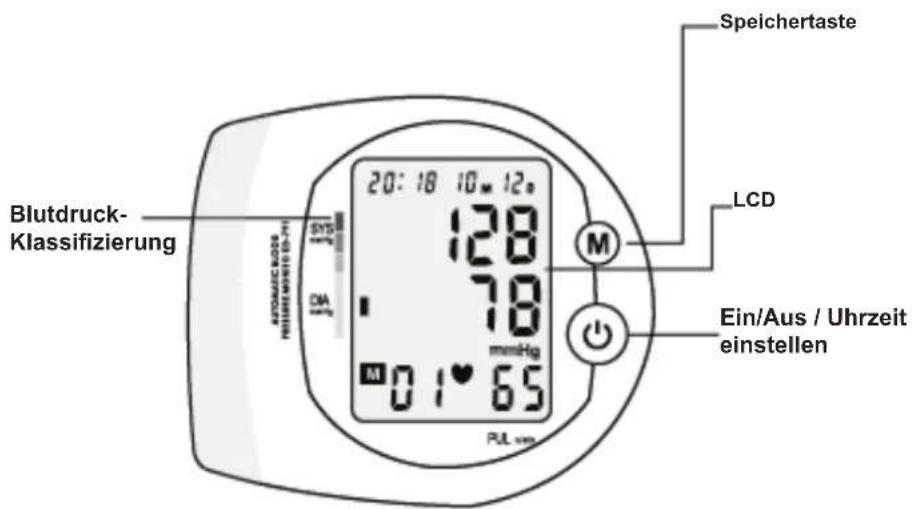

1. Model: HC-BLDPRESS11
2. Classification: Internally powered, type B
3. Machine size: 81mm × 71mm × 30mm
4. Cuff size: 300mm × 70mm
5. Weight: about 120g (exclude batteries)
6. Measuring method: oscillometric method, automatic inflation and measurement
7. Memory volume: 60 times with time and date stamp
8. Power source: AAA×2 batteries, Alkaline type
9. Cuff pressure range: 0-300mmHg
10. Pressure accuracy: ± 3mmHg
11. Pulse rate range: 40-180/min
12. Environmental temperature for operation: 5^ 40^
13. Environmental humidity for operation: <90%
14. Environmental temperature for storage: -20^ 55^
15. Environmental humidity for storage: <95%
16. Environmental pressure: atmosphere pressure
17. Battery life: Approx. 1 month with normal usage

NOTICE BEFORE MEASUREMENT

(1) Stay quiet, calm and rest for 5 minutes before blood pressure measurement.
(2) The cuff should be placed at the same level as your heart.
(3) During measurement, neither speak nor move your body and arm.
(4) Measuring on same wrist for each measurement.
(5) Please always relax a minimum of 3 to 5 minutes between measurements to allow the blood circulation in your arm to recover.
(6) Remove the batteries if the monitor will not be used for a month or more to avoid damage or battery leakage.
(7) This blood pressure monitor is designed for use with adults and should never be used for infants or young children. Consult your physician or other health care professionals before using on older children.
(8) The cuff size is suitable for adult's wrist and this model is intended to be used by adults only.
(9) Persons with arrhythmia are not acceptable for this blood pressure monitor.
(10) Please wear the cuff on the left wrist.
(11) Please avoid strong magnetism interference, such as mobile telephone, microwave oven, etc.

1. BATTERY LOADING

a. Open battery cover at the back of the monitor.
b. Load two "AAA" size batteries. Please pay attention to polarity.

c. Close the battery cover.

When LCD shows battery symbol, replace all batteries with new ones.
Rechargeable batteries with a voltage of 1.2V are not suitable for this monitor.
Remove the batteries if the monitor will not be used for a month or more to avoid damage or battery leakage.

2. CLOCK AND DATE ADJUSTMENT

a. Once you install the battery or turn off the monitor, it will enter Clock Mode, and LCD will display time and date.

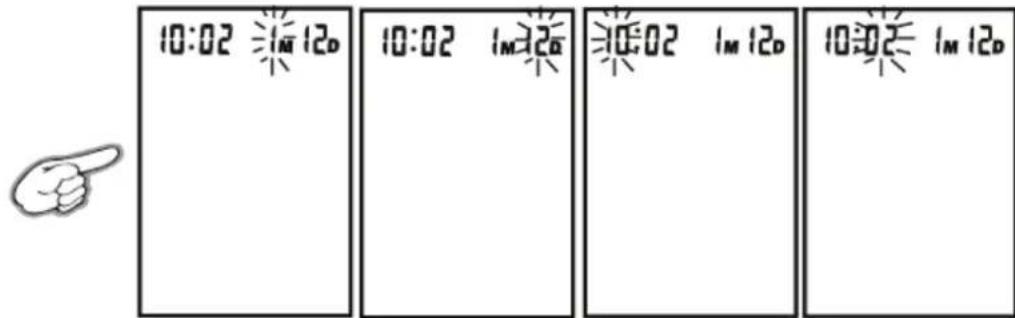

b. While the monitor is in Clock Mode, press the "U" and "M" buttons simultaneously for two seconds, the month flashes at first. Press the button "U" repeatedly, day, hour and minute will flash in turn. While the number is flashing, press the button "M" to increase the number. Keep on pressing the button "M", the number will increase fast.

c. You can turn off the monitor by pressing " button when the minute is flashing, then time and date are confirmed.
d. The monitor will turn off automatically after 1 minute of no operation with the time and date unchanged.
e. Once you change the batteries, you should readjust time and date.

3. APPLYING THE CUFF

a. Place the cuff around a bare wrist 1-2cm above the wrist joint on the palm side of the wrist.
b. While seated, place the arm with the cuffed wrist in front of your body on a desk or table with the palm up. If the cuff is correctly placed, you can read the LCD display.
c. The cuff must be neither too tight nor too loose.

Note:

Measure on same wrist each time.
- Do not move your arm, body, or the monitor and do not move the rubber tube during measurement.
- Stay quiet, calm for 5 minutes before blood pressure measurement.
If the cuff becomes dirty, remove it from the monitor and clean it by hand in a mild detergent, then rinse it thoroughly in cold water. Never dry the cuff in clothes dryer or iron it.

4. BODY POSTURE DURING MEASUREMENT

Sitting Measurement - Recommended Position

a. Sit upright.
b. Place palm upside in front of you on a flat surface such as a desk or table, with your elbow resting on a chair or table
c. The cuff should be at the same level as your heart.
d. Place your arm on the monitor's plastic case as shown in the picture to aid in maintaining a correct and still arm position.

5. TAKING YOUR BLOOD PRESSURE READING

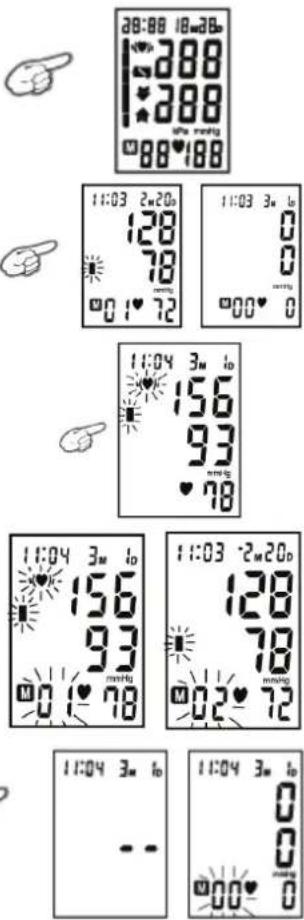

a. After applying the cuff and your body is in a comfortable position, press the "O" button. A beep is heard and all display characters are shown for self-test.
b. If the monitor has stored results, the LCD will momentarily display the most recent one.

c. Then the monitor inflates the cuff until sufficient pressure has built up for a measurement. Then the monitor slowly

releases the air from the cuff and carries out the measurement. Finally the blood pressure and pulse rate will be calculated and displayed on the LCD screen. The blood pressure classification indicator and irregular heartbeat symbol (if any) will flash on the screen. The result will be automatically stored in the monitor.

d. After measurement, the monitor will turn off automatically after 1 minute of idling. Alternatively, press the "O" button to turn off the monitor manually.
e. During measurement, press the " " button to turn off the monitor manually.

6. DISPLAYING STORED RESULTS

a. In Clock Mode, press "M" button to display the stored results. The last result will be displayed with date and time. Irregular heartbeat symbol (if any) and the indicator of blood pressure classification will flash at the same time. Press "M" button repeatedly to review the results measured previously.
b. When displaying the stored results, the monitor will turn off automatically after 10 seconds of idling. You can also press the button "O" to turn off the monitor manually.

7. DELETING MEASUREMENTS FROM THE MEMORY

When result are displayed, keep on pressing button "M" for three seconds, all results will be deleted after three "beeps". Press the button "M" or "O" the monitor will turn off.

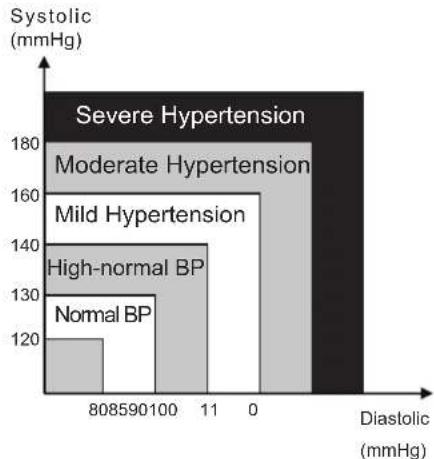

8. ASSESSING HIGH BLOOD PRESSURE FOR ADULTS

The following guidelines for assessing high blood pressure (without regard to age or gender) have been established by the World Health Organization (WHO). Please note that other factors (e.g. diabetes, obesity, smoking, etc.) need to be taken into consideration. Consult your physician for accurate assessment.

Classification of blood pressure for adults

BLOOD PRESSURE CLASSIFICATION	SBP mmHg	DBP mmHg	COLOR INDICATOR
Optimal	<120<80		GREEN
Normal	120-129	8 0	GREEN
High-Normal	130-139	8 5	GREEN
Stage 1 Hypertension	140-159	9 0	YELLOW
Stage 2 Hypertension	160-179	100-109	ORANGE
Stage 3 Hypertension	≥180	≥110	RED

WHO/ISH Definitions and Classification of Blood Pressure Levels

Note: It is not intended to provide a basis of any type of rush toward emergency conditions/diagnosis based on the color scheme and that the color scheme is meant only to differentiate between the different levels of blood pressure.

9. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
LCD Display shows battery symbol	Low Battery Change all batteries
LCD Display shows "EE"	Arm or blood pressure monitor was moved during testing	Re-test taking care to not move your arm or the blood pressure monitor
	The cuff does not inflate properly or pressure falls quickly during testing	Ensure that the rubber tube is fully inserted into the blood pressure monitor
	Irregular heartbeat (arrhythmia)	People with light arrhythmia may re-test.It is inappropriate for people with serious arrhythmia to use this blood pressure monitor.
	The blood pressure monitor did not inflate sufficiently.The cuff was not properly wrapped or the rubber tube was bent or pressed.	Review the cuff wrapping and testing sections of the instructions and re-test.
LCD Display shows abnormal result	The cuff position was not correct or it was not properly tightened	Apply the cuff correctly and try again
	Body posture was not correct during testing	Review the body posture and testing sections of the instructions and re-test.
	Speaking, arm or body movement, angry, excited or nervous during testing	Re-test when calm and without speaking or moving during the test
No response when you press button or load battery	Incorrect operation, or strong electromagnetic interference	Take out batteries for five minutes, and then reinstall all batteries.

MAINTENANCE

1. Do not drop this monitor or subject it to strong impact.
2. Avoid high temperature and polarization. Do not immerse the monitor in water as this will result in damage to the monitor.
3. If this monitor is stored near freezing, allow it to acclimate to room temperature before use.
4. Do not attempt to disassemble this monitor.
5. If you do not use the monitor for a long time, please remove the batteries.
   When the cuff is dirty, detach it from the equipment, wash the cuff by hand with proper detergent and rinse in cold water. Dry in air. Never iron it.

EXPLANATION OF SYMBOLS ON UNIT

Symbol for "Caution Consult Accompanying Documents"

Symbol for "Type B Applied Parts"

CE is a kind of marking of EU safe attestation. This product matches MDD93/42/EEC

Safety precautions:

CAUTION

RISK OF ELECTRICALS

DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
