Product type	Induction hob
Brand	Whirlpool
Model	ACM 801 NE / ACM 801/NE
Power supply	230 V ~ / 400 V 3N ~ (depending on connection)
Number of cooking zones	4 zones (estimated)
Surface material	Glass ceramic
Available power levels	1 to 9 + Boost (P)
Booster function	Yes (ultra-fast temperature increase, 10 minutes max)
Eco Booster function	Yes (maintains low simmer)
Timer	Up to 99 minutes, automatic zone shut-off
Control panel lock	Yes (press key for 3 seconds)
Pan detection	Yes (automatic shut-off if no pan for 60 seconds)
Residual heat indicator	Yes (displays “H”)
Demo mode	Yes (activated by key combination)
Child safety	Yes (control panel lock)
Automatic shut-off	Yes (if no selection after 10 seconds)
Maintenance	Soft cloth, specific products; avoid steam, abrasive sponges, steel wool
Spare parts	Available for 10 years
Repairability	Contact an approved after-sales service
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - ACM 801 NE & ACM 801/NE WHIRLPOOL

How to turn on the hob?

Press and hold the on/off key (①) for 2 seconds until the zone displays light up.

How to lock the control panel?

Turn on the hob, then press and hold the lock key (padlock symbol) or the Automatic function/Eco Booster key for 3 seconds depending on the model. A beep and indicator light confirm activation.

What does the display 'H' on a zone mean?

The 'H' indicator signals that the zone is still hot (residual heat). It stays on as long as the temperature is high.

How to use the Booster function?

Select the zone, then press the '+' key until 'P' appears. Maximum power is activated for 10 minutes, then automatically returns to 9.

What to do if an error code appears (e.g., F42, C81)?

Refer to the code table in the manual. For example, C81 indicates internal temperature too high: wait for the hob to cool down. F42 indicates incorrect voltage: unplug and check the connection.

How to clean the hob?

Use a soft cloth or paper towel with a specific glass ceramic cleaner. Never use a steam cleaner, abrasive sponge, or steel wool. Immediately remove sugar and sugary foods.

Why does the hob make noises?

Induction hobs can produce normal whistling or crackling sounds related to the pan base. The internal fan may also make noise to cool components. This is not a fault.

How to set the timer?

Select the zone, press the clock key, then set the time (max 99 min) with the '+' and '-' keys. The countdown starts automatically. At the end, the zone turns off.

Can I use copper or aluminum pans?

No, only induction-compatible pans (with ferromagnetic base) work. Check with a magnet. Rough bases may scratch the surface.

How to contact after-sales service?

Before calling, check error codes and restart the hob. Prepare: description of the fault, exact model, service code (on the rating plate), address and phone number. Use an approved after-sales service for original parts.

USER MANUAL ACM 801 NE & ACM 801/NE WHIRLPOOL

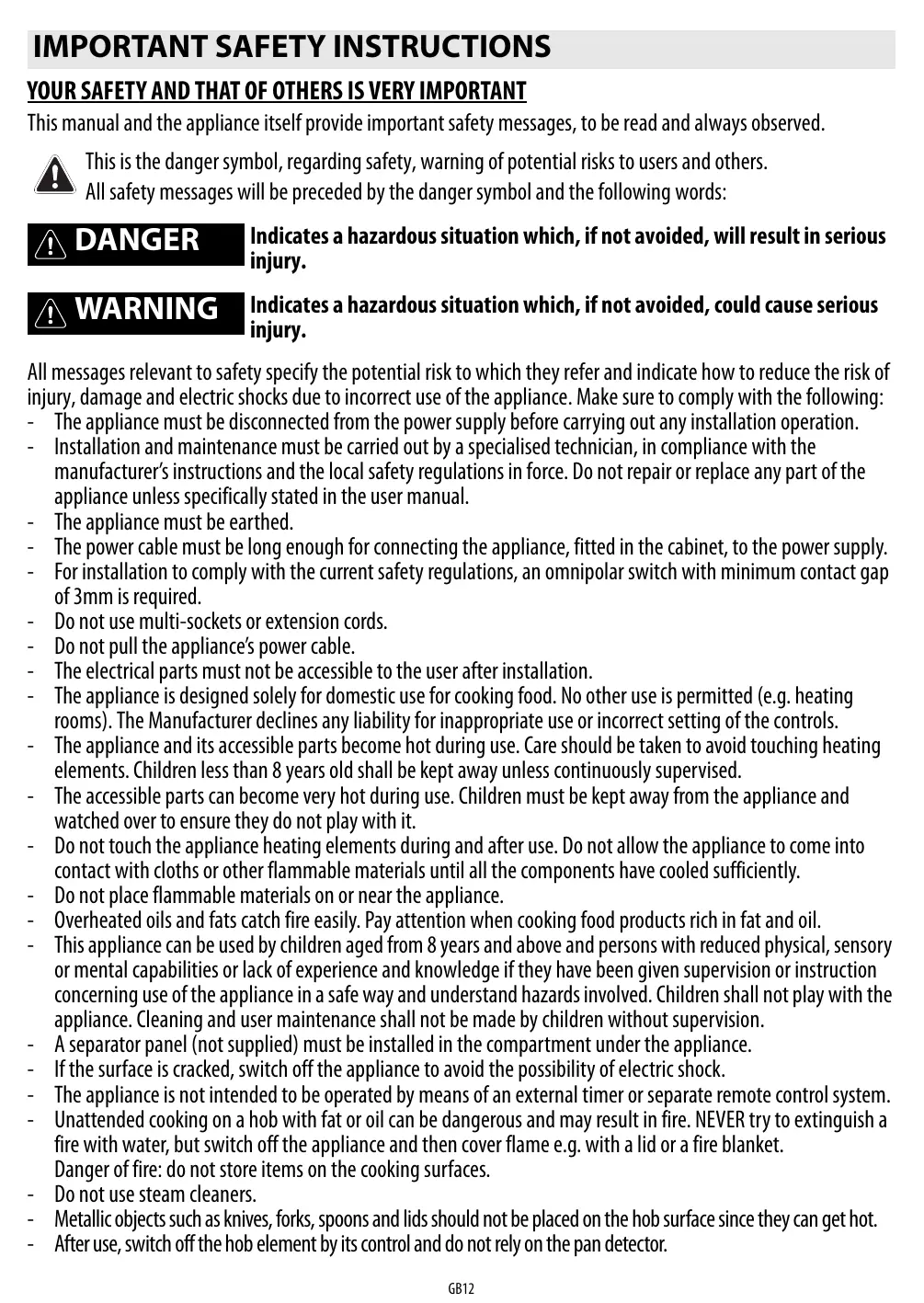

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT

This manual and the appliance itself provide important safety messages, to be read and always observed.

This is the danger symbol, regarding safety, warning of potential risks to users and others.

All safety messages will be preceded by the danger symbol and the following words:

DANGER

Indicates a hazardous situation which, if not avoided, will result in serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All messages relevant to safety specify the potential risk to which they refer and indicate how to reduce the risk of injury, damage and electric shocks due to incorrect use of the appliance. Make sure to comply with the following:

• The appliance must be disconnected from the power supply before carrying out any installation operation.
• Installation and maintenance must be carried out by a specialised technician, in compliance with the manufacturer's instructions and the local safety regulations in force. Do not repair or replace any part of the appliance unless specifically stated in the user manual. The appliance must be earthed.
• The power cable must be long enough for connecting the appliance, fitted in the cabinet, to the power supply.
• For installation to comply with the current safety regulations, an omnipolar switch with minimum contact gap of 3mm is required.
• Do not use multi-sockets or extension cords.
• Do not pull the appliance's power cable.
• The electrical parts must not be accessible to the user after installation. The appliance is designed solely for domestic use for cooking food. No other use is permitted (e.g. heating rooms). The Manufacturer declines any liability for inappropriate use or incorrect setting of the controls. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years old shall be kept away unless continuously supervised. The accessible parts can become very hot during use. Children must be kept away from the appliance and watched over to ensure they do not play with it.
• Do not touch the appliance heating elements during and after use. Do not allow the appliance to come into contact with cloths or other flammable materials until all the components have cooled sufficiently.
• Do not place flammable materials on or near the appliance. Overheated oils and fats catch fire easily. Pay attention when cooking food products rich in fat and oil.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• A separator panel (not supplied) must be installed in the compartment under the appliance.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. The appliance is not intended to be operated by means of an external timer or separate remote control system.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Danger of fire: do not store items on the cooking surfaces.

• Do not use steam cleaners. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• After use, switch off the hob element by its control and do not rely on the pan detector.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

The packing material is 100% recyclable and marked with the recycling symbol (circle). The various parts of the packing must not be dispersed in the environment, but disposed of in compliance with local regulations.

Disposal

This appliance is marked in conformity with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is correctly disposed of, the user can help prevent potentially negative consequences for the environment and the health of people.

The symbol on the appliance or the accompanying documentation indicates that this product should not be treated as domestic waste but must be taken to an appropriate collection point for recycling WEEE.

Energy saving

For optimum results, it is advisable to:

Use pots and pans with bottom width equal to that of the cooking zone. Only use flat-bottomed pots and pans. - When possible, keep pot lids on during cooking. Use a pressure cooker to save even more energy and time. - Place the pot in the middle of the cooking zone marked on the hob.

DECLARATION OF CONFORMITY (C)

This appliance, intended to come into contact with food products, complies with Regulation (C €) no. 1935/2004, and has been designed, manufactured and marketed in conformity with the safety requirements of "Low Voltage" Directive 2006/95/EC (replacing 73/23/EEC as amended) and protection requirements of "EMC" Directive 2004/108/EC.

BEFORE USE

IMPORTANT: The cooking zones will not switch on if pots are not the right size. Only use pots bearing the symbol "INDUCTION SYSTEM" (Figure opposite). Place the pot on the required cooking zone before switching the hob on.

EXISTING POTS AND PANS

Use a magnet to check if the pot is suitable for the induction hob: pots and pans are unsuitable if not magnetically detectable.

• Make sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes.
• Never place hot pots or pans on the surface of the hob's control panel. This could result in damage.

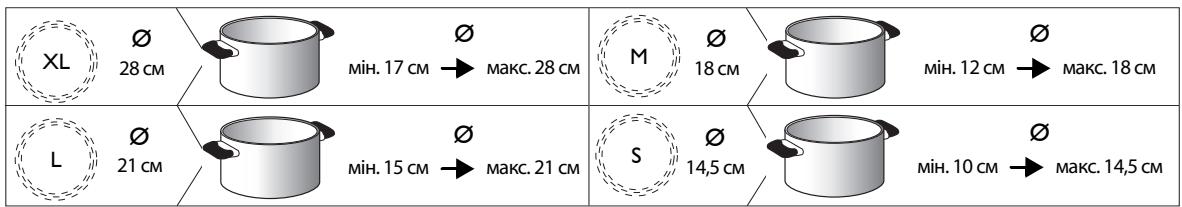

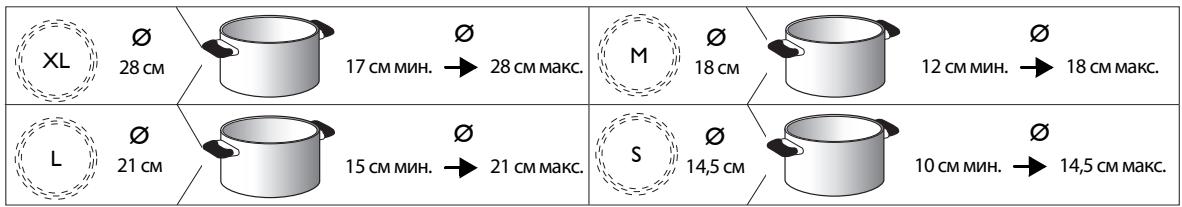

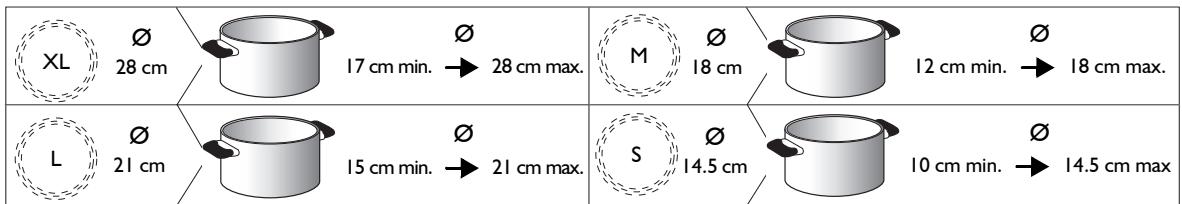

RECOMMENDED POT BOTTOM WIDTHS

INSTALLATION

After unpacking the product, check for any damage during transport. In case of problems, contact the dealer or the After-Sales Service.

For built-in dimensions and installation instructions, see the pictures on page 2.

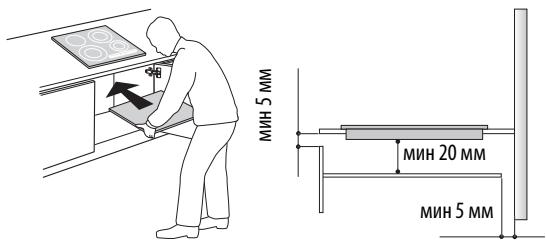

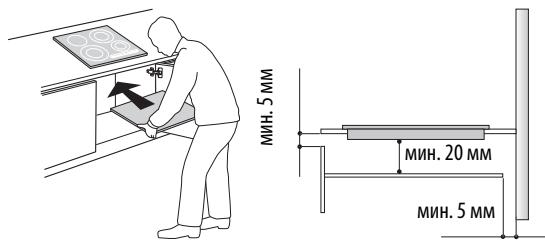

PREPARING THE CABINET FOR FITTING

WARNING

Install a separator panel under the hob. - The lower part of the product must not be accessible after installation. - Do not fit the separator panel if an undercut oven is installed.

The distance between the underside of the appliance and the separator panel must respect the dimensions given in the figure. To ensure the correct operation of the product, do not obstruct the minimum required clearance between the hob and the top of the unit (min. 5 mm). If an undertop oven is installed, make sure the oven is equipped with a cooling system. Do not install the hob above a dishwasher or washing machine, so that the electronic circuits do not come into contact with steam or moisture which could damage them. In the case of flush-mounted installation, call the After-Sales Service to request assembly of screws kit 4801 211 00112. To remove the hob, use a screwdriver (not provided) to prise off the perimeter clips on the underside of the appliance.

ELECTRICAL CONNECTION

WARNING

• Disconnect the appliance from the power supply.
• Installation must be carried out by qualified personnel who know the current safety and installation regulations.

The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the regulations provided in this chapter. The power cable must be long enough to allow the hob to be removed from the worktop. - Make sure the voltage specified on the dataplate located on the bottom of the appliance is the same as that of the home.

Connection to the terminal block

For the electrical connection, use an H0SRR-F cable as specified in the table below.

Wires	Number x size
230 V ~ + ½	3 x 4 mm²
230-240 V ~ + ½	3 X 4 mm² (Australia only)
230 V 3 ~ + ½	4 x 1.5 mm²
400 V 3N ~ + ½	5 x 1.5 mm²
400 V 2N ~ + ½	4 x 1.5 mm²

400V3N~

400V 2N~

230V~

230 V 3~ (Belgium only)

230-240 V~ (Australia only) 230V~ UK only 400 V 2N~ (Holland only)

Important:

• Based on the wiring diagram (see figure) either keep or remove the metal jumpers between the screws on the terminal block L1-L2 and N1-N2.
• If the cable is provided, see the connection instructions attached to the cable.
• Make sure all six screws on the terminal block are tightened after connecting the cables.

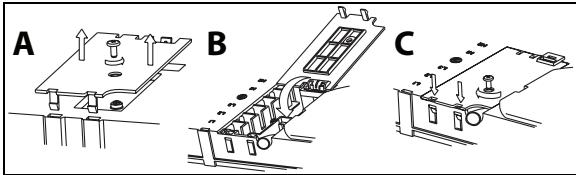

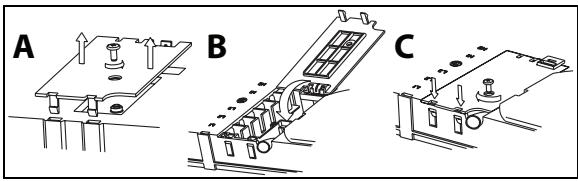

Example of jumper present (left) or removed (right). See the wiring diagram for details (the jumpers can be between L1-L2 and between N1-N2).

INSTRUCTIONS FOR USE

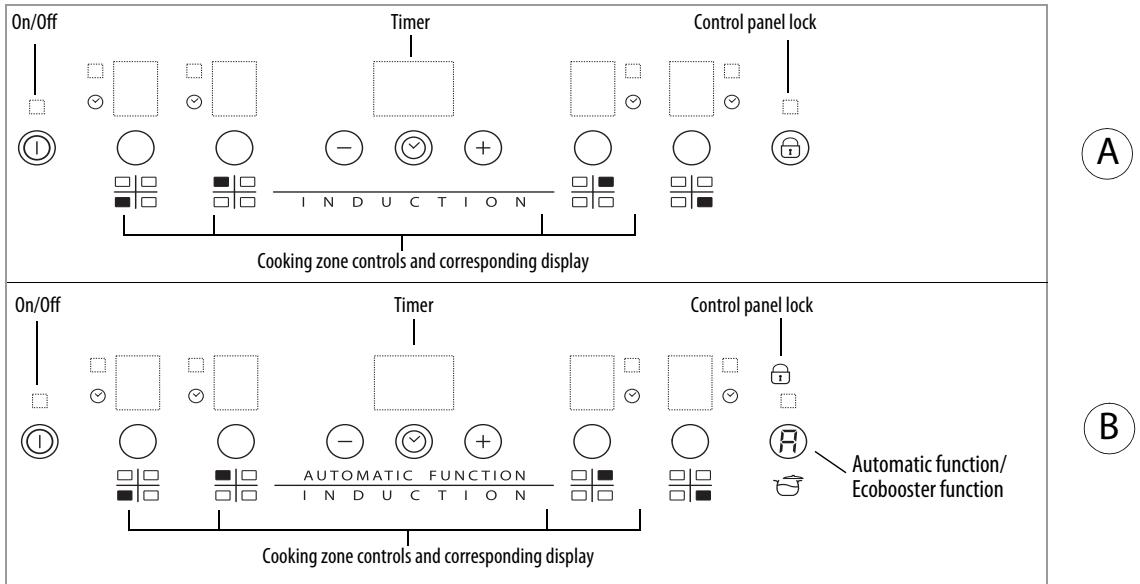

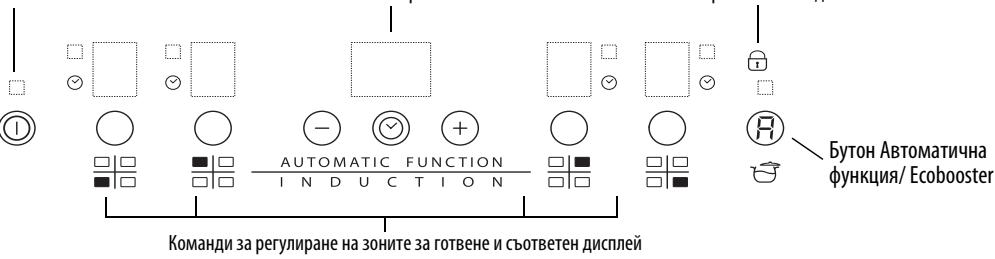

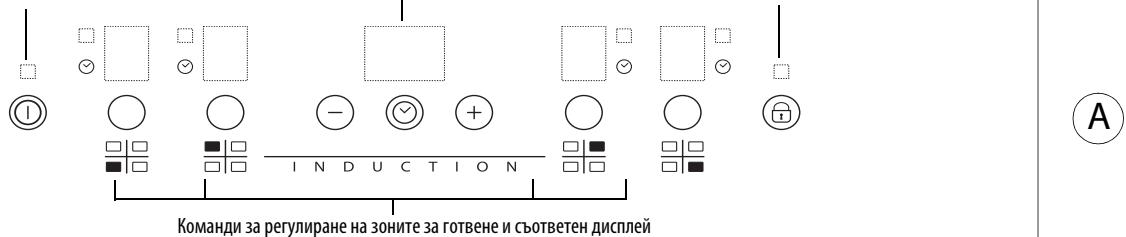

Control Panel Description

Control panel

Switching the hob ON/OFF

To switch the hob on, press the ① button for approx. 2 seconds until the cooking zone displays light up. To switch off, press the same button until the displays switch off. All the cooking zones are deactivated.

If the hob has been in use, the residual heat indicator "H" remains lit until the cooking zones have cooled down.

If within 10 seconds of switching on, no function is selected, the hob switches off automatically.

Switching on and adjusting cooking zones

Once the hob is switched on and the pan is positioned on the chosen cooking zone, select the zone using the corresponding button: the display shows level 5.

Each cooking zone has various power levels, adjustable with the + / - buttons, going from "1": min. power, to "9": max. power. Some cooking zones have a fast boil function (Booster), shown on the display with the letter "P".

Deactivation of cooking zones

Select the cooking zone you wish to switch off. Press the corresponding button (a dot lights up at the bottom right of the power level indicator).

Press the key " - " to set the level to "0".

To switch off instantly, hold the zone selection button for 3 seconds. The cooking zone switches off and the residual heat indicator "H" lights up.

Control panel lock

This function locks the controls to prevent accidental switching on of the hob. To activate the control panel lock function, switch on the hob and hold button (or the Automatic function/Eco Booster button, where present) for three seconds; an acoustic signal and a luminous indicator next to the padlock signal activation. The control panel is locked except for the deactivation function. To deactivate the control panel lock, repeat the activation procedure. The luminous dot goes off and the hob is active again.

The presence of water, liquid spilled from pots or any objects resting on the button below the symbol can accidentally activate or deactivate the control panel lock function.

Timer

The timer can be used to set cooking time for a maximum of 99 minutes (1 hour and 39 minutes) for all cooking zones.

Select the cooking zone to be used with the timer (an illuminated dot appears to the bottom right hand side of the heat setting indicator on the display), press the button with the clock symbol then set the desired cooking time using the buttons "+" and "-" of the timer function (see figure). After a few seconds, the timer begins the countdown (an illuminated dot is visible next to the zone for which the timer has been activated). Once the set time has elapsed, an acoustic signal sounds and the cooking zone switches off automatically.

To deactivate the timer, press the "..." button until the display shows "0:0" or hold the button with the clock symbol for at least 3 seconds.

To set the timer for another zone, repeat the points above. The timer display always shows the timer for the selected zone or the shortest timer.

To change or switch off the timer, press the zone selection button for the timer in question.

Control panel warnings.

Residual heat indicator.

The hob is fitted with a residual heat indicator for each cooking zone. These indicators alert the user when cooking zones are still hot.

If the display shows the cooking zone is still hot. If the residual heat indicator of a given cooking zone is lit, that zone can be used, for example, to keep a dish warm or to melt butter.

When the cooking zone cools down, the display goes off.

Incorrect or missing pot indicator.

If you are using a pot that is not suitable, not correctly positioned or not of the correct dimensions for your induction hob, the message "no pot" will appear in the display (see figure at side). If no pot is detected within 60 seconds, the hob switches off.

Special functions

Some models have special functions:

Fast boil function (Booster)

This function, only present on some cooking zones, makes it possible to exploit the hob's maximum power (for example to bring water to the boil very quickly). To activate the function, press the "+" button until "P" appears on the display. After 10 minutes' use of the booster function, the appliance automatically sets the zone to level 9.

Automatic function

The function automatically sets the power level to maintain a light boil. Activate this function after bringing to the boil, pressing first of all the cooking zone button followed by button.

Eco Booster

With the hob on and the cooking zone selected, press button E to activate the function. The hob automatically activates a cycle that allows you to bring water to the boil and then keep it simmering, with reduced energy consumption compared to the normal booster function. The function is only provided for the two cooking zones identified by the symbol P.

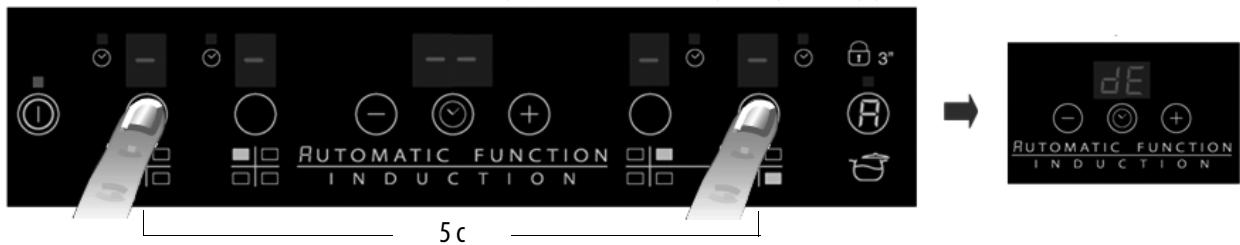

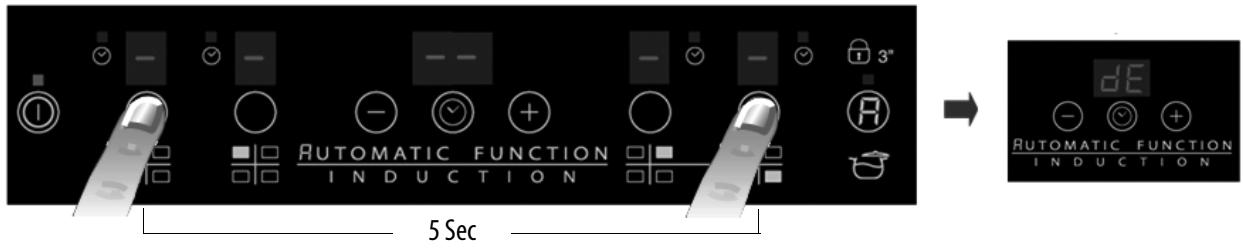

Demo Mode

This hob is equipped with a demo mode which allows you to interact with the control panel without activating the corresponding cooking zones. The activation and deactivation procedure must be carried out within 60 seconds of the appliance being connected to the power supply in the home.

To activate the demo mode, hold the two external cooking zone selection buttons at the same time for at least 5 seconds: "dE" appears on the central display. You can now explore the control panel functions. The Lock and Unlock function is active also in Demo Mode.

To deactivate Demo mode, repeat the procedure, remembering first of all to disconnect the hob from the mains and then reconnect it, carrying out the procedure within 60 seconds of connection.

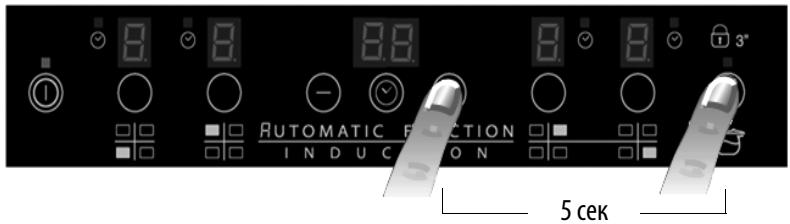

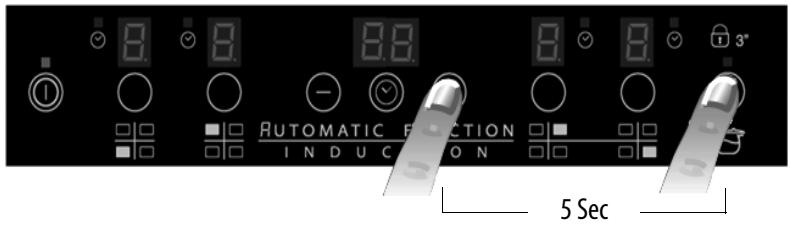

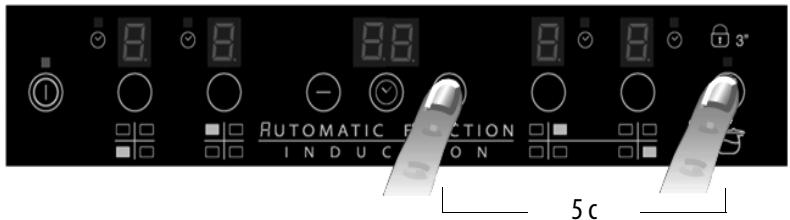

Activation/deactivation of the acoustic signal

After switching the hob on, press and hold the "+" button and the outermost selector button on the right simultaneously for at least three seconds ("control panel lock").

CLEANING

WARNING

• Do not use steam cleaners. Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator ("H") is not displayed.

IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass.

After each use, clean the hob (when it is cool) to remove any deposits and stains due to food residuals. Sugar or foods with a high sugar content damage the hob and must be immediately removed. Salt, sugar and sand could scratch the glass surface. Use a soft cloth, absorbent kitchen paper or a specific hob cleaner (follow the Manufacturer's instructions).

TROUBLESHOOTING GUIDE

• Read and follow the instructions given in the section "Instructions for use".
• Check that the electricity supply has not been shut off. Dry the hob thoroughly after cleaning it. If, when the hob is switched on, alphanumeric codes appear on the display, consult the following table for instructions. If the hob cannot be switched off after using it, disconnect it from the power supply.

ERROR CODE	DESCRIPTION	POSSIBLE CAUSES	ERROR ELIMINATION
C81, C82	The control panel switches off because of excessively high temperatures	The internal temperature of electronic parts is too high	Wait for the hob to cool down before using it again.
F42 or F43	The connection voltage is wrong	The sensor detects a discrepancy between the appliance voltage and that of the mains supply	Disconnect the hob from the mains and check the electrical connection
F12, F21, F25, F36, F37, F40, F47, F56, F58, F60	Call the After-Sales Service and specify the error code

NOISES MADE BY THE HOB

Induction hobs can make whistling or crackling sounds during normal operation, these actually come from the pots and pans as a result of the characteristics of the bottoms (for example, bottoms made of several layers of material, or uneven bottoms). These noises vary depending on the pots and pans used and the amount of food they contain, and are not indicative of a defect of any kind.

In addition, the induction hob is equipped with an internal cooling system to control the temperature of electronic parts; as a result, during operation and for several minutes after the hob has been switched off, the noise of the cooling fan will be audible. This is perfectly normal and indeed essential for proper functioning of the appliance.

AFTER-SALES SERVICE

Before contacting the After-sales Service:

1. See if you can solve the problem yourself with the help of the "Troubleshooting guide".
2. Switch the appliance off and then on again it to see if the problem has been eliminated.

If the problem persists after the above checks, contact the nearest After-Sales Service.

Always specify:

a brief description of the fault; the product type and exact model; the Service number (the number after the word Service on the rating plate), located under the appliance (on the metal plate). your full address; - your telephone number.

SERVICE

0000 000 0000

If any repairs are required, contact an authorised After-Sales Service Centre (to ensure the use of original spare parts and correct repairs). Spare parts are available for 10 years.

POWER LEVEL TABLE NOTE:

Power level		Type of cooking	Level use (indicating cooking experience and habits)
Max. power	Boost	Fast heating	Ideal for rapidly increasing the temperature of food to fast boiling in the case of water or rapidly heating cooking liquids
	8-9	Frying - boiling	Ideal for browning, starting to cook, frying deep frozen products, fast boiling
High power	7-8	Browning - sautéing - boiling - grilling	Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time, 5-10 minutes)
	6-7	Browning - cooking - stewing - sautéing - grilling	Ideal for sautéing, maintaining a light boil, cooking and grilling (for a medium period of time, 10-20 minutes), preheating accessories
Medium power	4-5	Cooking - stewing - sautéing - grilling	Ideal for stewing, maintaining a gentle boil, cooking (for a long period of time). Creaming pasta
	3-4	Cooking - simmering - thickening - creaming	Ideal for long-cooking recipes (rice, sauces, roasts, fish) with liquids (e.g. water, wines, broth, milk), creaming pasta
	2-3		Ideal for long-cooking recipes (less than a litre in volume: rice, sauces, roasts, fish) with liquids (e.g. water, wines, broth, milk)
Low power	1-2	Melting - defrosting - keeping food warm - creaming	Ideal for softening butter, gently melting chocolate, thawing small products and keeping just-cooked food warm (e.g. sauces, soups, minestrone)
	1		Ideal for keeping just-cooked food warm, for creaming risottos and for keeping serving dishes warm (with induction-suitable accessory)
OFF	Zero power	Support surface	Hob in stand-by or off mode (possible end-of-cooking residual heat, indicated by an “H”)

When making quick-cook foods that require perfect heat distribution (e.g. pancakes) on the 28 cm double cooking zone (where present), use pans no greater than 24 cm in diameter. For delicate cooking (for example, melting chocolate or butter) use the smaller diameter single zones.

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT

DECLARATION OF CONFORMITY (€

TROUBLESHOOTING GUIDE

Switching on/off the cooking zones

To switch on a zone, press the corresponding knob for about 2 seconds until the indicators on the display light up. To switch it off, press the same knob until the indicators go out. The zones are switched off.

If the zones have been switched off, the indicator will show the residual heat symbol (H).

If within 10 seconds of switching on the cooking zones no function is activated, the zone switches off automatically.

Switching on and adjusting the cooking zones

After switching on the cooking zone and placing the pan on the selected zone, select the zone with the corresponding knob: the display shows the selected level.

The zone has different power levels, which can be set with the +/- knobs, starting from level 1, minimum power, while level 9 is maximum power. Some zones also have a booster function, which is indicated on the display with the letter P.

Switching off the cooking zones

Select the zone you want to switch off with the corresponding knob (the display shows the selected zone).

Press the knob until the display shows 0.

To activate the appliance, press and hold the button for 3 seconds. The appliance activates and the indicator of residual heat appears as "H".

Control panel buttons

With this function, the buttons are locked so that accidental activation of the appliance is avoided. To activate the function and lock the buttons, press and hold the button for 3 seconds (or the button for automatic operation/Eco Booster, if available): the button light and the indicator near the lock symbol show that the function is active. The control panel buttons are locked, except for the activation button. To deactivate the function and unlock the buttons, repeat the activation procedure. First press the button and then the button. The function and the buttons are now unlocked. The function and the control panel buttons can be activated at any time, even when the appliance is off, by pressing the button.

Timer

The timer is a function that allows you to set the duration of operation for a maximum time of 99 minutes (1 hour and 39 minutes) for all zones.

Select the zone for which you want to set the timer (the indicator appears as a flashing button located below the power indicator). Press the button with the clock symbol and, subsequently, set the desired time with the buttons "+" and "-" of the timer function (see figure). A few seconds after the setting, the timer starts

to count down (the flashing button lights up on the zone for which the timer was activated). When the time has elapsed, an acoustic signal is emitted and the zone deactivates automatically.

To deactivate the timer, press the button "-" until the indicator shows 0 on the display or press for 3 seconds the button with the clock symbol. To set the timer for another zone, repeat the above steps. On the display of the timer, the remaining time is always shown for the zone for which it is set or for the same time interval.

To modify or deactivate the timer, you must press the input button for the zone for which it was set.

Preliminary indicators of the control panel

Residual heat indicator.

The appliance has a residual heat indicator for each zone. This indicator warns that the zones are still hot.

If the indicator appears on the display, the zone is still hot. For example, if this indicator appears on the zone, you can keep a dish warm or melt butter.

When the zone cools down, the indicator goes out.

Indicator of the child safety lock.

If the appliance is intended to be connected to the mains supply, it must be installed according to the instructions, and the symbol «appliance with plug» (Class I) must be displayed. If within 60 seconds no appliance is detected, the appliance will switch off automatically.

Special functions

Some models have special functions:

Booster function

This function is available only on some models and allows you to increase the power to the maximum for a short time (e.g., for rapid boiling of water). To activate this function, press the key ( + ) until the symbol P appears. After 10 minutes of booster operation, the appliance automatically returns to the previous power level for the zone.

Automatic function

This function is set automatically according to the selected power level to maintain a constant boil. Activate this function by first pressing the key of the relevant zone and then the key .

Eco Booster

After activating the heating unit and setting the power level, press the key to activate the function. The unit automatically activates a cycle for rapid boiling and maintains the boil while reducing electrical energy consumption compared to the normal booster function. This function is available only on models with the symbol p.

Demo function

TO PREPARE THE BUILT-IN COMPARTMENT

WARNING

DECLARATION OF CONFORMITY (€

SOUND OF THE HOB ON

Induction hobs may hum or crackle during normal operation. These noises are caused by the characteristics of the cookware (for example, different layers of materials, uneven bottom). The noise level depends on the cookware used and the amount of food being cooked, and these sounds do not indicate any malfunction.

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THE SAFETY OF OTHERS IS VERY IMPORTANT

This manual and the appliance itself contain important safety messages that must be read and followed at all times.

CONTAINERS YOU HAVE AT HOME

Dimensions for built-in installation are shown in the illustrations on page 2.

REQUIREMENTS FOR KITCHEN FURNITURE USED FOR BUILT-IN INSTALLATION OF THE APPLIANCE

WARNING

• Install a separating panel under the hob. After installation, access to the lower part of the appliance must be impossible. If the hob is installed above an oven, the separating panel does not need to be installed.

The distance between the lower surface of the appliance and the separating panel must comply with the dimensions shown in the figure. To ensure proper operation of the appliance, the minimum gap between the hob and the front and rear panels of the kitchen furniture (5 mm) must always remain free. If the hob is installed above an oven, make sure that it is equipped with a cooling system. Do not install the hob next to a dishwasher or washing machine, so as not to expose the electrical components to steam or moisture. In case of installation, request the kit of screws 4801 211 00112 from the service center. - The separating panels (if required) must be positioned on the lower side, around the perimeter.

ELECTRICAL CONNECTION

WARNING

• Disconnect the appliance from the electrical supply.

Installation must be carried out by a qualified technician in compliance with current safety regulations for the installation of equipment.

The manufacturer declines all responsibility for material damage or injury to persons or animals caused by failure to comply with the rules set out in this chapter. - The length of the power cable must be sufficient to allow the hob to be removed from the worktop. Check that the voltage indicated on the rating plate, located on the lower side of the appliance, corresponds to the voltage in the room where the appliance will be installed.

Connection to the terminal block

To turn off the timer, press the "-" button until "0:00" appears on the display, or press and hold the clock button for 3 seconds.

To set the timer for another heating zone, repeat the procedure described above. The timer display always shows the time set for the selected heating zone, or the shortest time.

To change the setting or turn off the timer, press the button for selecting the heating zone for which it is set.

Control panel warnings

Residual heat indicator.

The hob is equipped with a residual heat indicator for each heating zone. This indicator shows which heating zones still have a high temperature. If the display shows a heating zone that has not yet cooled down. When the residual heat indicator is on, the corresponding heating zone can be used, for example, to keep food warm or to melt butter

After the heating zone has cooled down, the display turns off.

Indicator for incorrect pan size or absence of cookware

If the cookware turns out to be unsuitable for use on this induction hob for any reason, for example, due to incorrect placement or inappropriate size, the display shows an indication meaning "no cookware" (see figure on the right). If within 60 seconds the hob does not detect the presence of any cookware, the hob turns off automatically.

Special functions

Some models are equipped with special functions:

Booster function

This function is provided for the high-power heating zones; it allows maximum use of the hob's power (for example, to quickly boil water). To activate this function, press the "+" button until "P" appears on the display. After 10 minutes of the Booster function (fast heating) being active, the corresponding heating zone automatically switches to power level 9.

Automatic power setting function

This function automatically sets the minimum power level required to maintain boiling. This function should be activated after bringing the contents to a boil; to do this, first press the button for the corresponding heating zone, then press the

Eco Booster

The boiling function with the Eco Booster function (E) is used to select the heating zone. In this mode, the heating elements are automatically activated, ensuring that the water is brought to a boil and maintained at a boil; the energy consumption is lower than when using the conventional rapid boiling function (Booster). This function is only available for heating zones that have the symbol P.

Demo mode

The hotplate is equipped with a demo mode that allows you to demonstrate the operation of the hob without connecting the corresponding heating zones. The procedure for turning it on/off must be performed within 60 seconds of connecting the hob to the mains power supply of your apartment. To activate demo mode, you must simultaneously press and hold the ON/OFF key and the heating zone selection key for 5 seconds: the central display will show the message "De". You can now familiarize yourself with the various functions on the control panel; the key lock/unlock function of the control panel is also available in demo mode.

To deactivate demo mode, repeat the above procedure; in this case, remember that first you must disconnect the hob from the electrical power supply, then reconnect it to the mains and within 60 seconds after that, perform the indicated procedure.

Turning on/off the audible signal

After turning on the hob, simultaneously press the "+" and "-" keys and the far right selection key and hold them pressed for at least three seconds (the hob control panel will beep).

WARNING! Do not use abrasive sponges or metal scrapers. Using such accessories may over time damage the glass.

After each use, the hob must be allowed to cool down, and then it should be cleaned to remove any food residues. Spilled sugar or products with a high sugar content can damage the hob; these residues must be removed immediately. Salt, sugar, and sand may remain on the glass surface. Use a soft cloth, a sponge, or special cleaning products for hobs (follow the manufacturer's instructions).

TROUBLESHOOTING

• Follow the instructions given in the "Operating Instructions" section.
• Make sure the power supply is uninterrupted. After cleaning the hob, dry its surface thoroughly. If after turning on the hob the display shows an error code, follow the instructions given in the following table.
• If after using the hob it is impossible to turn it off, immediately unplug the power cord from the socket.

POWER LEVEL TABLE

Уровень мошности

Способ приrostовлия

Назначение у探测ая мошности (данные указашия постамулот дочинения К ольчы темпега typу对于我们 bбгтою дочения вды do зашиань сима});приrostовлия, лары вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вды do зашиань вдыdo Корочи - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - лары на случам огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнec - ларity огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнc огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнс огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнс огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огнз огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. огн. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - . - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - # - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - # - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - . - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - * . - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . # . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

NOTE:

For short-term heating, when precise heat distribution is required (e.g., for welding), on a double heating zone with a diameter of 28 cm (where the coil is located), it is recommended to use a coil with a diameter of no more than 24 cm. In cases where a gentle heating mode is required (e.g., for melting butter or vegetable oil), it is recommended to use single heating zones smaller than the diameter.

Zubarev Lane, 15/1

Moscow, Russia, 129164

Hotline phone in the Russian Federation:

8-800-100-57-31

ME10

020

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

This user manual contains important safety information that must be read and followed.

This is a safety alert symbol that alerts you to potential risks to the user and others.

Before using the appliance, read all safety instructions and the following terms:

DANGER

Indicates a hazardous situation that, if not avoided, will result in serious injury or death.

WARNING

Indicates a potentially dangerous situation which, if not avoided, could lead to serious injury.

Safety instructions describe the potential danger, for which they are intended, and indicate how to avoid the risks of injury, electric shock, or damage due to improper use of the device. Pay close attention to the following instructions:

• The device must be disconnected from the electrical supply before any installation work. Installation must be carried out by qualified technicians in accordance with the manufacturer's instructions and in compliance with local safety regulations. Do not repair or replace parts of the device unless explicitly stated in the user manual.
• Grounding of the device is mandatory.
• The power cable must be supplied with a plug to allow connection of the device, installed in a cabinet, to the electrical supply.
• To ensure that the installation complies with safety standards, a multi-pole circuit breaker with a minimum contact gap of 3 mm must be installed.
• Do not use extension cords or adapters.
• Do not pull the power cable of the device.
• Before installation, electrical components must not be accessible to the consumer.
• The device is intended solely for use as a kitchen appliance for cooking food. No other use (e.g., for heating) is permitted. The manufacturer is not responsible for damage caused by improper use or incorrect control commands.
• The device and its accessible parts may become hot during use. Care must be taken to avoid touching the heating elements. Children under 8 years of age must be kept away from the device unless continuously supervised. Accessible parts may become hot during use. Children should be kept at a distance of at least 3 meters to avoid touching the device.
• Never touch the device with wet hands. Do not touch the hot surfaces of the device. Ensure that all components are sufficiently cooled before cleaning. Do not place flammable materials on or near the device.
• Fats and oils may ignite easily. Do not leave cooking with fats and oils unattended. This device can be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance must not be performed by children unless they are supervised.
• Do not place metal objects on the cooking zone, such as kitchen utensils (knives, forks, spoons, lids, etc.), as you risk burning yourself.
• It is recommended that a separate circuit be installed for the appliance (not included in the appliance's supply).
• If the surface is cracked, switch off the appliance to avoid the risk of electric shock.
• The appliance is intended for use with a higher temperature or a remote control system. Leaving the hob unattended while using fats or oils can be dangerous and could lead to a fire. NEVER extinguish a fire with water; switch off the appliance and then cover the flames, for example with a lid or a fire blanket. Fire hazard: Do not store items on the cooking surfaces.
• Do not use steam cleaners. Do not place metal objects such as knives, forks, spoons, or lids on the cooking surface, as they may get hot.
• After use, switch off the cooking zones using the control knob and do not rely on the pan detector.

Disposal of packaging materials

The packaging is recyclable, as indicated by the recycling symbol (). The various packaging materials must not be disposed of in the environment, but must be handed over in accordance with the local regulations.

Disposal of the appliance

This appliance is marked in accordance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent potentially negative consequences for the environment and human health.

The symbol on the appliance or on the accompanying documents indicates that this appliance must not be treated as household waste, but must be handed over to an appropriate collection point for the recycling of electrical and electronic equipment.

Energy saving

3a da noctnhrte hai-do6pnpre3yntatn, ce npenopbYBa n cneHto:

• ɪЗползаьтete tenдхери, чійто диаметър на дьhoeю o paБЕн Ha диаметър на зоHATA за ротбеон.
• N3noJI3BaIte cAmo TeHJxepu IN TURAHn C IIOCKO DbHO. Ako e Bb3MOxH0, no BpeMe Ha rotBeHeTo IOCTaBraIte KaNAK Bbpyx Cbda 3a rotBeHe. -ИЗползавенetoHaTeHДжераюнlaяанeВипОЗьлЯВаошеповец da nectITe eHeprIa И Вreme. IocTabraTe Cbda BcHbpa Ha 30HaTa 3a roTBeHe, O3HaueHa Bbpxy IIOUaTa.

ДЕКЛAPAUЦЯ 3A СьOTBETCTBVE (€

To3n ypeD, npedna3aHueh 3a KOHTAKC xpaHntenHn npOyKTH, Cb0TBcTcBA Ha HOpMaTnBTa hye6ba (C E) N° 1935/2004 n e pOeKtpan, KOHCTpypan n PycHaT 3a npOdaJb6a B c0bTBcTcBne C n3NCKBaHnra 3a 6e3oNaChOCT ha dIpuKeTbA tA "Hncko HanpexHe" 2006/95/E0 (koTto 3aMeCTBa 73/23/EIO nocJeBaunTe I3MeHHeNn I doTbJIHeHn), KaKTo n I3NCKBaHnA T3 aauIta Ha dIpuKeTbA "EMC" 2004/108/E0.

PPEIYNOTPEBA

BAXHO: Ako cbdoBeHe ne ca cn noDxOaIu pa3Mepn, 30Hne 3a roTBHe He ce BkLIOuBaT. N3no3BaIte cmo cbdoBe, KOTo HocT CmBONA "NIDyKUIOHHA CNTEMA" (fniypata BCTpAH). IpeNi da BkLIOuTe pIoUaTa 3a roTBHe, nOCTaBe TcDa Bbpxj XeJauHaTa 30Ha 3a roTBHe.

CbIOBE B HAJINHOCCT

3a da ce ybepnte, ye cblte e ndxoian 3a INdykunHna 30ha 3a rotBeHe, nIIOINBaiTe MaHNT: cbdoBeTe He ca IooXOanu, aKO He MOraT da Ce npBnuaTc MaHNT.

YBepete ce,Ye dIbHaTa Ha cbIOBeTe He ca rpaNaBn, 3aIoTO MoRrTa Ha nApckat NOBbPxHcTtHa 3OHa Ta 3rOBeHe. IpOBeRaBte ACTnTA. Hikora He noctabay Te ropeu Ni TnraHb bpyx KOMaHNoTo TaNo Ha nOuata. Moke da HacTbIaT nobpei.

ПЕПОРьЧАНДИМЕТРИHAДьHOTO HA TEHДЖЕРATA

INHCTAJINPAHE

CnEi KaTo pa3oNaKoBaTe ypeA, npOBepTe DaIIN HMa NaCTbPiNl NOBpeDn PO BpeMe Ha TpaHcnpTupaHeto N B CnyaH Na np6bneMn Ce OsbpHete KbM TbprOBeca nn CepBz3a 3n oNDpbJka.

Othocno pa3mepTe 3a Brgpaxdane n nHctpykunnte 3a nHctanipana, Bxxte fynypnte Ha cTpaHnca 2.

IIOIIGOTOBKA HA UKAΦA 3A BΓPAKДАНЕ

• Mounting the hob to the worktop. Follow the instructions to ensure the appliance is installed correctly. If the hob is to be installed next to a gas hob, do not place the hob between the gas hob and the wall.

The distance between the upper surface of the hob and the hob's underside must be in accordance with the dimensions, given the gas hob. For proper operation of the hob, it must have a minimum free space between the working surface of the hob and the wall (min. 5 mm). When installing the hob under the hood, check that the hood is equipped with a cooling system. Do not install the hob for grilling close to the hob or the washing machine, so that the electronic components do not come into contact with the steam or water, which could damage them. In case of problems with the installation (instability), contact the service for maintenance, to find the complete mounting kit 4801 211 00112. For cleaning the hob for grilling, use a screwdriver (not included in the supply) and remove the perimeter springs, which are located at the bottom of the product.

CONNECTION TO THE ELECTRICAL MAINS

• Disconnect the appliance from the electrical mains.
• The appliance must be installed by a qualified technician, who is fully familiar with the safety regulations and installation procedures.

The manufacturer does not accept any liability for any damage to persons or animals or for damage to property resulting from non-compliance with the instructions given in this chapter. The power cable must be long enough to allow the hob for grilling to be pulled out of the working surface. Check that the voltage, shown on the rating plate, placed on the bottom of the appliance, matches the voltage in your home.

Connection to the mains

For connection to the electrical mains, use a cable type H05RR-F, as shown in the table below.

П探测ници	Бpoи x pa3мер
230 V ~ + ±	3 x 4 mm²
230-240 V ~ + ±	3 x 4 mm² (само за Астразлия)
230 V 3 ~ + ±	4 x 1,5 mm²
400 V 3N ~ + ±	5 x 1,5 mm²
400 V 2N ~ + ±	4 x 1,5 mm²

400V3N~

400V2N~

230V~

230V3~ (see for three-phase)

Switching on/off

On/Off A B

On/Off the hotplate

To switch on the hotplate, press and hold button ① for about 2 seconds until the hotplate indicator lights up. To switch off, press the button briefly until the indicator goes out. Each hotplate switches off.

If the plate has already been used, the residual heat indicator "H" remains on until the hotplates cool down.

If no function is selected within 10 seconds after switching on the hotplate, it switches off automatically.

Activating a regulated hotplate zone

IMPORTANT SAFETY INSTRUCTIONS

Check the bottom of the cookware for cleanliness and flatness. Use a magnet: if the pan does not react to a magnetic field, it is not suitable.

The bottom of the pan must not be warped, so as not to damage the cooking surface. Check the cookware regularly. Do not place pans or skillets on the control panel. This may cause malfunctions.

RECOMMENDED PAN DIAMETERS

INSTALLATION

After unpacking, check the appliance for transport damage and, if any, contact the dealer or customer service. The dimensions of the built-in appliance and installation instructions are shown on page 2.

PREPARATION FOR INSTALLATION

ATTENTION

Install the protective panel under the cooking surface. After installation, the lower part of the appliance must be inaccessible. If the cooking surface is installed above an oven, the protective panel is not required.

The manufacturer shall not be liable for any damage caused by improper installation or use of the appliance. - For correct operation, maintain a minimum gap of 5 mm between the work surface and the top surface of the furniture. - If installing a hob above an oven, make sure the oven is equipped with a cooling system. Avoid installing the hob above dishwashers or washing machines to prevent contact of electrical parts with moisture, which could lead to damage. - For installation, contact the Service Center to obtain the complete set of accessories 4801 211 00112. Using a screwdriver (not supplied), tighten the perimeter springs in their lower parts.

CONNECTION TO THE ELECTRICAL POWER SUPPLY

WARNING

Disconnect from the electrical power supply before installation. Installation must be carried out by qualified personnel familiar with standard installation and safety regulations.

The manufacturer disclaims any liability for damage to persons or property caused by failure to follow the instructions provided in this manual. - The power cord must be long enough to allow the hob to be removed from the work surface. It is recommended that the cord, as specified in the technical data table, be connected to the household electrical supply only after installation.

Connection to the terminal block

For electrical connections, use cable type H05RR-F as specified in the table.

Residual heat indicator

The hob is equipped with a residual heat indicator for each cooking zone. This indicator shows which zones are still hot.

The indicator lights up to show a high temperature in the zone. You can place dishes on these zones to keep them warm or to reheat.

When the zone cools down, the indicator turns off.

Indicator for missing or unsuitable pan

If the pan is not placed on the cooking zone, is poorly positioned, or has unsuitable dimensions, the "missing pan" indicator appears on the display. If the pan is not detected within 60 seconds, the hob turns off.

Special functions

Deaki moDi oOchaueni CneiaIbHmI φ yHKcuaM:

YbIMKHeHHa I BmKHeHHa 3ByKBoPOrO cHany

Iicra yBIMKHeHH BapInbHOIO NOBepxHIO ODNouchHO HATnCHyTN i npNTPmAtn Ha 3 cekHyDN KhoNky Bn6Opy - kpaHIO npabOpuy ("6noKyBaHnaHeni ynpaBnHH").

He BnKopncToByTe napoBi ouNcyBaui. Iepu hix po3noatn ouhieneHH, nepeBipTe, 0 KOHphiopKn BmKHei i BiDcyTHn IHnkaun octatoohoro tenla ("H").

BAXIMBO: He BUKOpncTObuYte 6pa3nBHI r6Kn, MetaJIeBy Bix0t. Ix BVKOpncTAnHHa 3 yacOM MoKe npIz3BeCTNo do uYkoJKeHHa cKla.

Picra Koxhoro BnKopntaHna 3aekai He a OxolodxeHH noBepxhi i oucti b, BvBdoany HalaanHn i pIyMi Bi dixi. Lukop a6o npodykTN 3 BeINKMM BmICTOM ukypr yuKdoJyTOb BapnIbHy noBepxHIO i MaOTb HeraHNO BvBODITNCA. Cilb, ukyop i nicoK moKytb noDprnatn cnKnyu nobepxHIO npilaNy. -Дя ouишенив Варьно nobepхи сд ворспостовати m'яу raunipky, napepo Bi kxohni pyushnki (dToPmYteb BkazibK bD vBnPo6hka).

ПОШК I YCUHEHнЯ HECРРABHOCTEY

• Ybaxno BnBvItb IvctpyKu3i 3 po3diny "IhctpyKu3i 3 BnKOpNCTaHH" i DoTpMnyTeCb ix.
• Ipebeipte, 10 He Nidetbca npo nepe6oB V ehepronoctaaHnI. BunpiB doCyxa nobepxHIO nICnO npaui 3 OUnuHnA. KIO nICy yBIMKHeHH BApINbHOI NOBExHn HA dNcPiE BIVBOATbCJlTePHi-CHCNObI KoN, nepeiDITb DO HABeDoH NHXe Ta6NIu. KIO nICnBnKOpNCTAHn HE BdaetbCBAIMKHyT BApInlbHy NOebpXHIO, Heo6xIDHO BIKJIQUHTn II Bid MEpeXi EJKeTpuHOrO XKnBHeHH.
