DR 681 - Radio CLATRONIC - Free user manual and instructions

Product type	Portable radio with integrated siren
Brand	Clatronic
Model	DR 681
Frequency bands	FM (VHF) and AM (medium wave)
Power supply	3 AA 1.5 V batteries (not included)
Power	Not specified (low power, personal use)
Dimensions	Approx. 15 x 10 x 5 cm (estimated)
Weight	Approx. 200 g (without batteries)
Speaker	Built-in, monophonic
Splash protection	Yes, can be used in the shower (do not submerge)
Mounting	Suction cups (8) on smooth surface or hanging ring (7) with screw (not included)
Siren	SIREN ON/OFF button (6) for emergency call
Controls	POWER (1), TUNING (2), VOL (3), frequency selector (4)
Battery compartment	On the back, closed with screw (9)
Care and cleaning	Clean with a damp cloth, do not use detergent
Safety	Do not expose to water (except splashes), do not open the motor unit
Spare parts and repairability	24-month warranty, repairs by manufacturer or specialist
Included accessories	None (batteries not included)
Warranty	24 months from date of purchase
Laser class	Not applicable (no CD player)

Frequently Asked Questions - DR 681 CLATRONIC

How to install the batteries in the Clatronic DR 681 radio?

Loosen the screw (9) on the back of the device, open the battery compartment by lifting the plastic cover. Insert 3 AA 1.5 V batteries respecting the indicated polarity. Close the cover and tighten the screw moderately.

How to turn on and adjust the radio?

Press the POWER button (1) to turn on. Use the frequency selector (4) to choose FM or AM. Turn the TUNING knob (2) to find a station. Adjust the volume with VOL (3). To turn off, press POWER again.

Can I use the radio in the shower?

Yes, it is splash-proof. Never immerse it in water. Secure it with the suction cups or the hanging ring to prevent falls.

How to activate the alarm siren?

Press the SIREN ON/OFF button (6) to activate the integrated siren. This can be used to call for help in an emergency. Press again to stop.

What to do if the radio does not turn on?

Check that the batteries are installed correctly and in good condition. If using rechargeable batteries, make sure they are charged. Replace all batteries if necessary.

How to clean the DR 681 radio?

Use a damp cloth to wipe the device, then dry it with a soft cloth. Never use detergents or abrasive products. Avoid moisture entering the device.

How to attach the radio to a wall or smooth surface?

Use the two suction cups (8) to adhere to a smooth surface like tiles. Alternatively, the hanging ring (7) allows mounting with a screw (not included).

What is the warranty period for the Clatronic DR 681?

The warranty is 24 months from the date of purchase. It covers material and manufacturing defects. Keep the receipt for any claim.

Can I repair the radio myself?

No, never open the motor unit. Repairs must be carried out by the manufacturer, its after-sales service, or a qualified specialist. Any unauthorized intervention voids the warranty.

How to dispose of the radio at the end of its life?

Do not throw it in household waste. Take it to a recycling center or collection point for electrical appliances. Used batteries must be recycled separately.

USER MANUAL DR 681 CLATRONIC

Cartoon soccer ball character with a peace sign, sitting next to a goal net (no text or symbols visible)

DR 681

CE

Inhalt

Inhoud • Sommaire • Indice • Indice • Contents • Spis treści • Tartalom

GB Overview of the Components ...... Page 3

Instruction Manual Page 24

Guarantee Page 26

UKW = FM, onda media = AM.

I

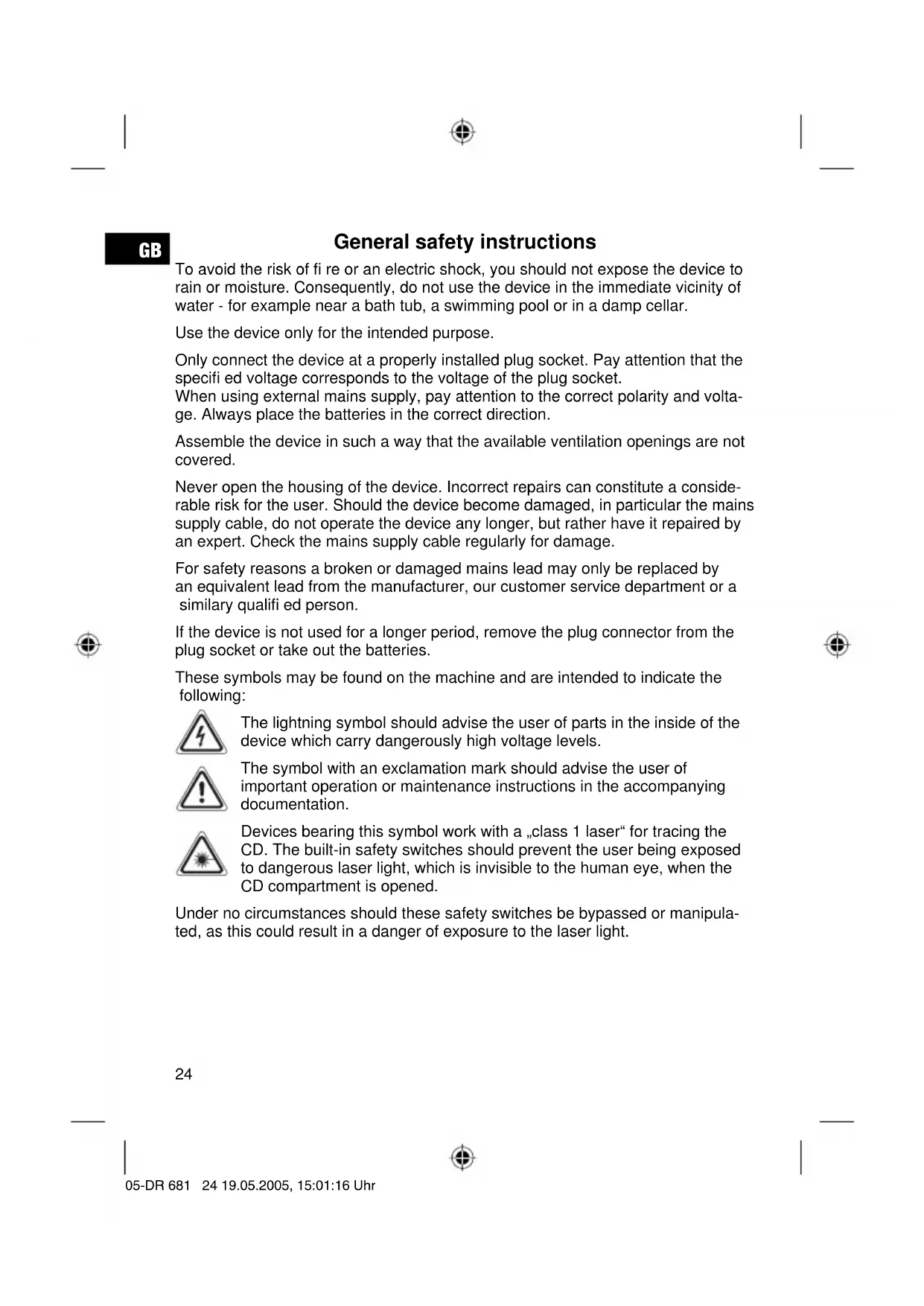

General safety instructions

To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

Use the device only for the intended purpose.

Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.

When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

Assemble the device in such a way that the available ventilation openings are not covered.

Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Special Safety Instructions

Note: This machine is not suitable for children under the age of 3 as it contains small parts which can be broken off and swallowed.

GB

Overview of the Components

1 POWER On/Off switch
2	Regulator	TUNING
3 VOL. Volume regulator
4 AM/FM band selector
5	Loudspeaker
6 SIREN ON/OFF (switch for the siren)
7	Hanger
8	Suckers
9 Seal screw for the battery compartment
10	Battery	compartment

Inserting the Batteries

(not supplied)

• To open the battery compartment, remove the screw (9) on the back of the device.
• Remove the plastic cover by pulling upwards and open the battery compartment.
• Insert 3 1.5V AA type batteries. Match the polarities correctly (see the inside of the battery compartment).
• Close the device by proceeding in the opposite order.

Note: Please do not overtighten the locking screw.

• If the device is not used for a long period of time, remove the batteries to avoid the „spilling“ of battery acid.
  • Always change the battery set completely, do not change just one battery.

Warning: batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

Never throw batteries into the fire.

Start-up the device

• Switch the device on using the POWER switch (1) by pressing the middle of the „Nose“.
• The desired frequency band can be set with the band selector switch (4).

UKW = FM, medium wave = AM.

GB

• Turn the TUNING regulator (2) to the desired station.
• By turning the VOL. regulator (3) you can set the desired volume.
• Switch the device off again after use by means of the POWER switch (1).

There are 2 ways for mounting:

1. Use the suckers (8) to stick to a smooth surface, e.g. tiles.
2. Use a hook (7) if you prefer to block it with screws (Screws not supplied).

Splash-proof

The appliance is splash-proof. It can be used also inside the shower box. Do not dip it in water (e.g. in the bathtub), as the electronic parts of the appliance may be damaged.

Siren

With the switch (6) you can activate an integrated siren to call for help if necessary, e.g. in the case of a bathing accident.

Cleaning and storage

• Clean the device with a moist cloth and dry it well.
• Do not use abrasive detergents!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.
