Bistro 11462 - Coffee machine BODUM - Free user manual and instructions

USER MANUAL Bistro 11462 BODUM

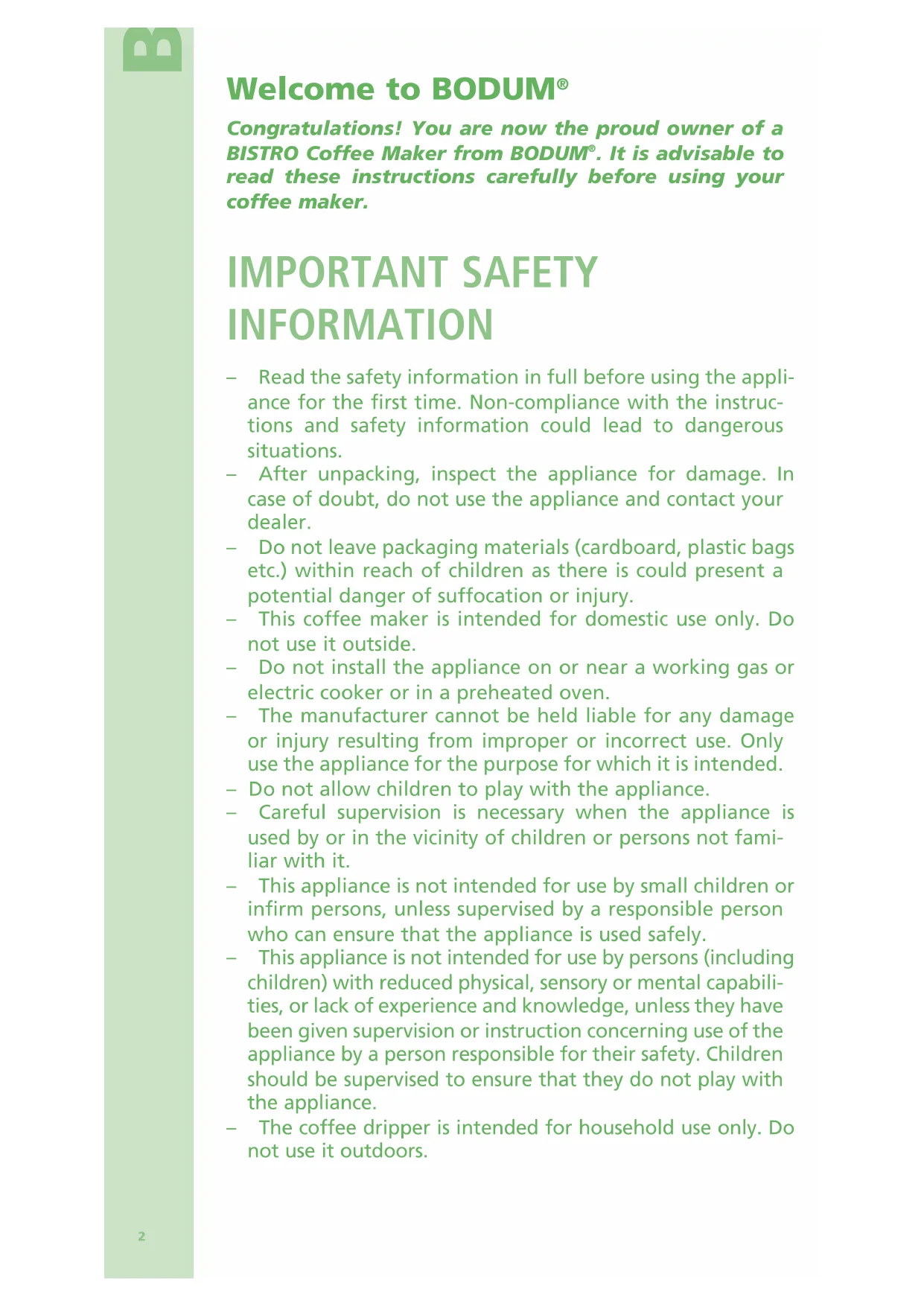

Congratulations! You are now the proud owner of a BISTRO Coffee Maker from BODUM

. It is advisable to read these instructions carefully before using your coffee maker. IMPORTANT SAFETY INFORMATION – Read the safety information in full before using the appli- ance for the first time. Non-compliance with the instruc- tions and safety information could lead to dangerous situations. – After unpacking, inspect the appliance for damage. In case of doubt, do not use the appliance and contact your dealer. – Do not leave packaging materials (cardboard, plastic bags etc.) within reach of children as there is could present a potential danger of suffocation or injury. – This coffee maker is intended for domestic use only. Do not use it outside. – Do not install the appliance on or near a working gas or electric cooker or in a preheated oven. – The manufacturer cannot be held liable for any damage or injury resulting from improper or incorrect use. Only use the appliance for the purpose for which it is intended. – Do not allow children to play with the appliance. – Careful supervision is necessary when the appliance is used by or in the vicinity of children or persons not fami- liar with it. – This appliance is not intended for use by small children or infirm persons, unless supervised by a responsible person who can ensure that the appliance is used safely. – This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabili- ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. – The coffee dripper is intended for household use only. Do not use it outdoors.INSTRUCTION FOR USE

– Do not use any accessories not recommended by the appliance manufacturer as this could result in fire, electric shocks or injury. – Do not operate the appliance without water. – Remove the water tank from the base station to fill and do not exceed the MAX level. – Only use the appliance together with the base station supplied. – Do not come into contact with steam produced during infusion otherwise you could scald yourself. – Boiling water can cause burns and scalding. – Ensure that the ON button is accessible at all times. – Never immerse the appliance in water. Always remember that this is an electrical appliance. – Only clean the base station with a damp cloth. – Press the ON/OFF button and disconnect the plug from the socket to switch off the appliance. – Always pull the plug and not the cable itself to disconnect the appliance from the power supply. – Do not allow the power cable to hang over the edge of tables or countertops or touch hot surfaces. – Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. – Pull the plug out of the socket when you are no longer using the coffee maker or before cleaning it. Allow the appliance to cool down before cleaning. – Do not operate electrical appliances if the power cable or plug are damaged, after faults have been identified or if the appliance is damaged in any way. If this is the case, take the appliance immediately to your nearest author- ised service centre for inspection, repair or adjustment. – Do no attempt to replace the power cable of the appli- ance as this requires special tools. Only repair or replace the power cable in a service workshop authorised by the manufacturer to guarantee the safety of the appliance. – Do not immerse the cable and plug in water or other liq- uids, as this could cause fire, electric shocks or injury. Caution: To avoid the risk of the safety switch being switched on, do not connect the appliance to an external switching device, such as a timer, or to a power circuit that is regularly switched on and off by power supply companies. – When cleaning, disconnect the appliance from the power supply. – Ensure that the base section is dry before using the appliance.4 BISTRO INSTALLATION – Place the appliance on a stable, level surface that is nei- ther hot nor in the vicinity of a heat source. The surface must be dry. Keep the appliance and power cable out of the reach of children. – When in use, do not place the base of the coffee maker on a sheet of metal or other metal surface. – Check whether the voltage given on the rating plate of the appliance conforms to the mains voltage in your region. Only connect the appliance to a properly earthed plug with a minimum output rating of 6 A. (Use a resid- ual current device [RCD]:ask your electrician for advice.) When in use, the appliance plug must be accessible in the event of an emergency. The manufacturer cannot be held liable for accidents resulting from defective earthing or non-earthing of the appliance. – If the socket plug is not suitable for use with the plug on the appliance, the socket must be replaced by a qualified electrician.

RETAIN THESE INSTRUCTIONS

FOR USE 1 Water tank 2 Hinged lid for water tank 3 ON/OFF button 4 Warming plate 5 Coffee jug 6 Infusion lid 7 Filter press unit IMPORTANT INFORMATION POWER CABLE – A short power cable is supplied to minimise risks from persons becoming entangled in or tripping over a longer cable. – An extension cable can be used if care is exercised. – If an extension cable is used, the electrical rating of the extension cable should be at least the equivalent of the rating of the appliance; if the appliance is earthed, the extension cable must be a 3-wire earthed cable. Arrange the longer cable so that it does not hang over the edge of a table or countertop, so that children cannot pull it or trip over it.INSTRUCTION FOR USE

For USA – Canada: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

MANUALLY SWITCHING OFF THE COFFEE MAKER

The appliance can be switched off at any time using the ON/OFF button (3).

BEFORE USING THE COFFEE MAKER

Clean the appliance before using for the first time. Fully fill with water (up to the MAX level), allow it to perform a cycle (without coffee) and pour away the water. BREWING COFFEE – Open the hinged lid (2) of the water tank (1) and pour in the volume of water you need. Do not exceed the MAX level. Close the hinged lid (2). Note: You can also remove the water tank (1) to pour in more water or clean the appliance. CAUTION: Never use the appliance with an empty water tank or with warm water to speed up the preparation time. CAUTION: Only use coarsely-ground coffee. Finely-ground coffee can block the filter and create high pressure. – Place the infusion lid (6) onto the jug (5) (Fig. 1) and place it onto the warming plate (4) next to the water tank (1). – Press the ON button (3). – After a few minutes, water will begin to flow through the infusion lid (6) into the jug (5). – The cycle ends as soon as the water tank (1) is empty. Switch off the appliance and remove the jug (5) from the warming plate (4). Important note: Do not operate the appliance without water. – Lift up the infusion lid (6) and stir the coffee with a plastic spoon. CAUTION: Metal spoons can scratch or damage the glass pot and could break it. – Place the filter press unit (7) onto the pot (5). Do not press down on the filter yet. Allow the coffee to infuse for at least 4 minutes. (Fig. 2) – Hold the handle of the pot firmly and turn the pouring spout away from you. Only use the weight of your hand to exert gentle pressure onto the knob to push the filter straight down into the pot (5). (Fig. 3)6 BISTRO You will obtain the best results if you press down on the fil- ter rod slowly with minimal pressure. If the filter is blocked or if the filter rod cannot be pressed down easily, remove the rod from the pot (5), stir the coffee and then press it down again. CAUTION: You could break a damaged pot by applying excess pressure, allowing hot water to gush out of the pot. – Take the filter unit (7) apart and clean after every use. All parts are dishwasher-proof.

Important: The appliance can become seriously damaged if you do not descale it! Remove deposits with a conventional product for use with kitchen appliances (follow the instructions carefully) or with citric acid dissolved in half a litre of lukewarm water. Fill the water tank (1) with the solution and place the jug (5) with the infusion lid (6) at the correct position under the valve. Allow the contents of the tank to flow fully through the appliance. Thoroughly rinse all parts with cold water and allow a further tankful of water to flow through the appliance.

CLEANING THE COFFEE MAKER

– The following parts are dishwasher-proof: Water tank (1); Coffee pot (5); Infusion lid (6) and the Filter press unit (7). – Do not use chemicals, steel wool or abrasive agents to clean the outside of the coffee maker. – Only clean the base station with a damp cloth. – Never immerse the appliance in water. Always remember that this is an electrical appliance. Important note: Always disconnect the coffee maker from the power supply when cleaning the appliance. Any other servicing should be performed by an authorized service representative. STORAGE Always disconnect the coffee maker from the power supply when not in use.INSTRUCTION FOR USE

TECHNICAL DATA Voltage minimal EURO 220-240V~ 50/60Hz Nominal voltage USA 120V~ 60Hz Nominal power EURO 450-550W Nominal power USA 500W Cable length 80 cm Holding capacity 0.5 litre / 17 fl. oz Test certificates GS, CE, ETL, CETL Correct disposal for this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. (WEEE explanation)

SERVICE AND WARRANTY CONDITIONS

products are made of high-quality, dura- ble materials. Should parts nevertheless need replacing, please contact your BODUM

general agency in your country or visit www.bodum.com. Warranty: BODUM

offers a 2-year guarantee from the date of purchase on the «BISTRO» Coffee Maker for material defects or operational malfunctions resulting from manu- facturing or design faults. The repair of your appliance will be free of charge if all warranty conditions are met. Refunds are not possible. Warranty conditions: The warranty certificate should be completed in full by the purchaser at the time of purchase. The BODUM

warranty does not cover damage caused by improper use, incorrect operation, normal wear and tear, defective or incorrect care or maintenance, wrong opera- tion or tampering by unauthorised persons.8 BISTRO Willkommen bei BODUM

Yonge Street, Toronto, ON, M5C 2L7 THE BAY (MONTREAL), 585 Rue Catherine Ouest, Montreal, QC, H3B 3Y5

THE BAY (YORKDALE), 3401

Dufferin St., Toronto, ON, M6A 2T9

THE BAY (BAYSHORE), 100

Bayshore Dr., Nepean, ON, K2B 8CI

THE BAY (SOUTHCENTER), 100

Anderson Rd. Southeast, Calgary, AB, T2J 3VI THE BAY (SOUTHGATE), 111 St. & 51 Ave., Edmonton, AB, T6H 4M7

www.bodum.com GREECE SHOP-IN-SHOP Notos Galleries 105 51, Athinas 48, Kotzia Square HONG KONG SHOP-IN-SHOP Allure Living Central, 109B Caine Road, Mid-Level Citysuper Harbour City Store, Level 3, Harbour City, Tsim Sha Tsui Franc Franc, Shop S01-03 & S08- 12, 2/F., Hang Lung Center, 2-20 Paterson St., Causeway Bay GOD Causeway Bay, Leighton Centre, Sharp Street East Entrance, Causeway Bay GOD Central, 48 Hollywood Road, Central GOD Tsimshatsui, Shop B02, Basement, Silvercord, 30 Canton Road, Tsim Sha Tsui Gourmet, Basement, Lee Gardens, Causeway Bay Great Food Hall, Basement, Two Pacific Place, Queensway Lane Crawford (Pacific Place), 88 Queensway, Admiralty Lane Crawford (Times Square), 1 Matheson Street, Times Square, Causeway Bay Lane Crawford (Tsim Sha Tsui), 3 Canton Road, Tsim Sha Tsui Marc James Design, 16/F Horizon Plaza, Ap Lei Chau Sogo Hong Kong Co., Ltd., 555 Hennessy Road, Causeway Bay82 BISTRO BODUM

Olympic Blvd., Los Angeles, CA

is a registered trademark of Pi-Design AG, Switzerland.

WARRANTY SERVICE FOR USA – CANADA

For more information or questions, warranty claim and return authorization

FREE CALL – 1.800.23.BODUM/[e-mail]

WARRANTY CLAIM CAN NOT BE DONE WITHOUT PROOF OF PURCHASE. BODUM

warrants the original purchaser from defects in materials and workmanship (parts & labor) for the period of two years from the date of original consumer purchase. To be eligible for warranty coverage the product must be purchased from an authorized BODUM
