USER MANUAL Bistro 11001 BODUM

Congratulations! You are the proud owner of a BISTRO pour over coffee machine from BODUM

. Read through these instructions carefully before you use the pour over coffee machine.

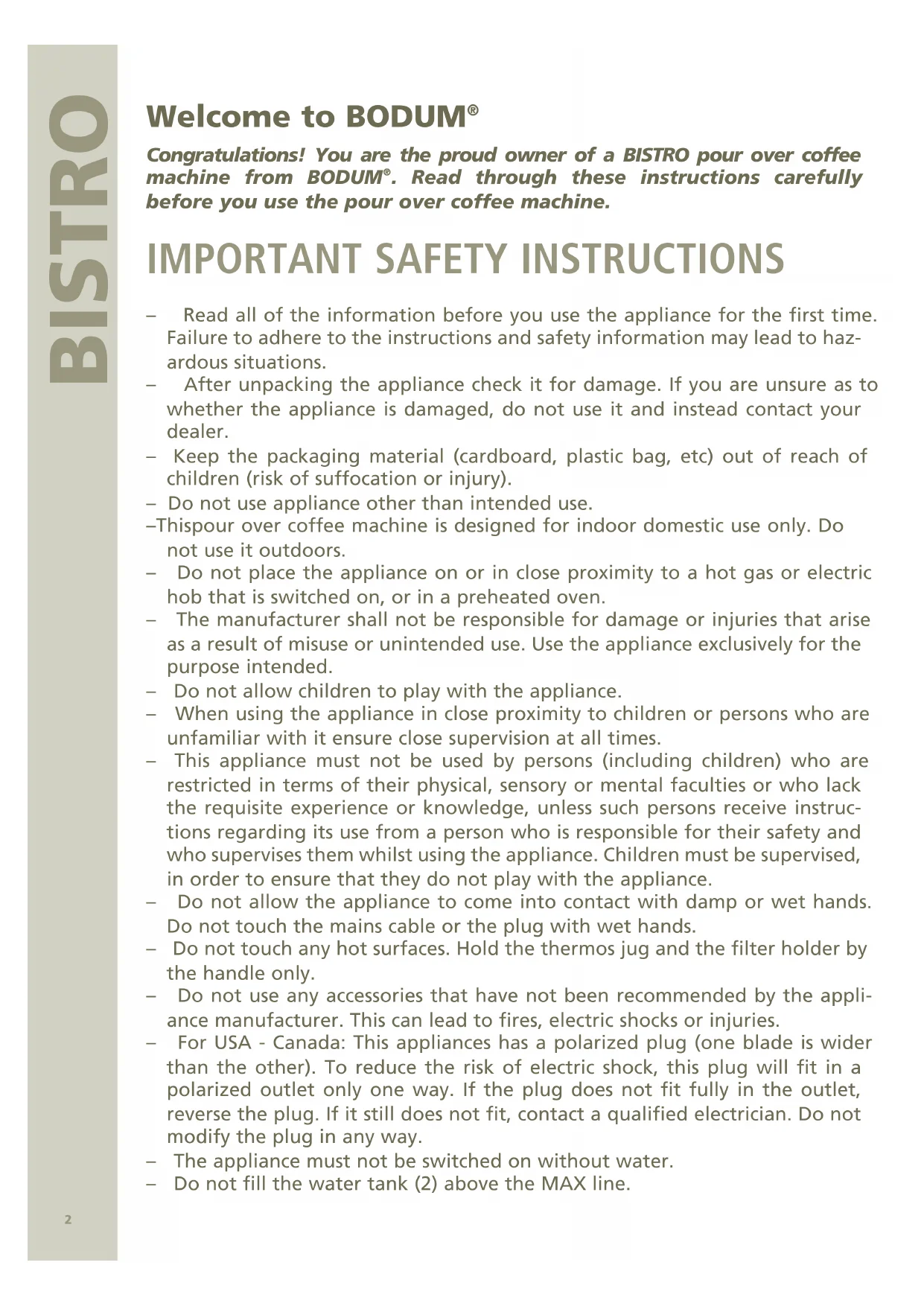

IMPORTANT SAFETY INSTRUCTIONS

– Read all of the information before you use the appliance for the first time. Failure to adhere to the instructions and safety information may lead to haz- ardous situations. – After unpacking the appliance check it for damage. If you are unsure as to whether the appliance is damaged, do not use it and instead contact your dealer. – Keep the packaging material (cardboard, plastic bag, etc) out of reach of children (risk of suffocation or injury). – Do not use appliance other than intended use. – This pour over coffee machine is designed for indoor domestic use only. Do not use it outdoors. – Do not place the appliance on or in close proximity to a hot gas or electric hob that is switched on, or in a preheated oven. – The manufacturer shall not be responsible for damage or injuries that arise as a result of misuse or unintended use. Use the appliance exclusively for the purpose intended. – Do not allow children to play with the appliance. – When using the appliance in close proximity to children or persons who are unfamiliar with it ensure close supervision at all times. – This appliance must not be used by persons (including children) who are restricted in terms of their physical, sensory or mental faculties or who lack the requisite experience or knowledge, unless such persons receive instruc- tions regarding its use from a person who is responsible for their safety and who supervises them whilst using the appliance. Children must be supervised, in order to ensure that they do not play with the appliance. – Do not allow the appliance to come into contact with damp or wet hands. Do not touch the mains cable or the plug with wet hands. – Do not touch any hot surfaces. Hold the thermos jug and the filter holder by the handle only. – Do not use any accessories that have not been recommended by the appli- ance manufacturer. This can lead to fires, electric shocks or injuries. – For USA - Canada: This appliances has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. – The appliance must not be switched on without water. – Do not fill the water tank (2) above the MAX line.InstructIon for use

– The appliance must never be switched on without the coffee shower (11) and filter holder (6). – Avoid contact with the steam that is generated during the brewing process. Otherwise there is a risk of scalding. – Scalding may occur if the lid is removed during the brewing cycles. – Boiling water can cause burns. – Ensure that the ON/OFF button (15) remains easily accessible at all times. – CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents when cleaning use a soft cloth and a mild detergent. – Never immerse the appliance in water. Remember that this is an electrical appliance. – Only clean the housing (1) with a damp cloth. – Push the ON/OFF button (15) and pull the plug out of the socket in order to switch the appliance off. – Always apply pressure to the plug rather than the cable when unplugging the appliance from the mains. – Do not allow the power cable to hang over the edges of tables or worktops or permit it to come into contact with hot surfaces. – Unplug the plug from the socket if the coffee machine is not in use or prior to cleaning it. Allow the appliance to cool prior to cleaning it before putting on or taking off parts. – Never put an electrical appliance into operation if the power cable or plug is damaged, after malfunctions have occurred or if the appliance itself has been damaged in any way. In such instances take the appliance to the near- est authorized service center for inspection, repairs or adjustment. – Never attempt to replace the power cable on the appliance. Special tools are required for this purpose. Only have the appliance repaired or the power cable exchanged by a service center approved by the manufacturer, in order to ensure that the appliance remains safe. – Do not immerse the cable, plug or appliance in water or other liquids because this may cause a fire, electric shock or injuries. – Ensure that the surface upon which the appliance is placed is dry prior to use. – Always put the housing lid (5), filter holder (6) and coffee filter (7) on the appliance during operation. InstALLAtIon – Place the appliance on a stable, level surface that is neither hot nor in close proximity to a source of heat. The surface must be dry. Keep the appliance and the power cable out of the reach of children. – When using the pour over coffee machine never place the housing (1) on a metal tray or any other metal surface. – Check that the type plate on the appliance indicates a voltage in keeping with the mains voltage in your region. Only connect the appliance to a professionally grounded socket with an output current of at least 6 A. (Use a residual current circuit breaker [RCD]. If necessary ask an electrician for advice). Whilst using the appliance it is ne-cessary that the socket remain easily accessible in case of emergencies. The manufacturer shall not be liable4 BIstro for any accidents that arise due to deficient or defective grounding of the appliance. – If the socket is not suitable for the plug on your appliance, you will need to have the socket replaced by an approved electrician.

STORE THESE OPERATING

INSTRUCTIONS SOMEWHERE SAFE 1 Housing 2 Water tank 3 Water tank handle 4 Lid for water tank 5 Housing lid 6 Filter holder 7 Coffee filter 8 Thermos jug 9 Dosage lid 10 Lid cap 11 Coffee shower 12 Large stopper 13 Small stopper 14 Safety switch 15 ON/OFF switch & scale indication 16 BODUM measuring spoon IMPortAnt InforMAtIon POWER CABLE – The appliance is supplied with a short power cable in order to reduce the risk of persons becoming entangled or tripping over a long cable. – Whilst exercising the requisite caution it is possible to use an extension cable. – In the event that an extension cable is used the nominal values quoted for the extension cable must comply with those of the appliance as a minimum. If the appliance is grounded then the extension cable must be a three-con- ductor, earthed cable. The longer cable must be laid such that it does not hang over the edges of tables or the corners of worktops, so that children cannot pull on it and such that it is not possible for persons to trip over it. SWITCHING OFF THE POUR OVER COFFEE MACHINE MANUALLY Using the ON/OFF switch (15) it is possible to switch the automatic browser coffee brewer off at any time.InstructIon for use

SAFETY SHUT-OFF The pour over coffee machine is protected against damage caused by insuf- ficient water. A safety shut-off switches the appliance off automatically if it is empty of water or if the heating element becomes too hot. The automatic pour over coffee machine is protected against damage caused by scaling. A safety shut-off switches the appliance off automatically if it is scaled. If the ON/OFF switch (15) illuminates red you have to de-scale the auto- matic pour over coffee machine because the machine will not operate again until rectified. PRIOR TO USING THE POUR OVER COFFEE MACHINE Clean the appliance prior to first use. In order to do so fill the water tank (2) with water to the MAX line and allow the appliance to run with the filter hold- er (6), coffee filter (7) and thermos jug (8) in place but without ground coffee. Afterwards simply tip the water away. HoW to use tHe Pour over coffee MAcHIne – Open the lid (4) of the water tank and fill it with the desired volume of cold water. However, do not fill beyond the MAX line. Close the lid (4). – You can also take the water tank (2) out in order to top it up with water or when cleaning the appliance. In order to do so remove the lid (4) of the water tank and lift the water tank (2) carefully up vertically and out of the pour over coffee machine by the handle (3). Note: If the water tank (2) is empty or is not in place then the appliance will not switch on for safety reasons, in order to prevent the heating element from running whilst dry.

Warning: Only top up the water tank (2) with cold, clear water. Do not add any

milk or other liquids to the water tank. – Remove the thermos jug (8) from the pour over coffee machine. Now take the filter holder (6) with inserted coffee filter (7) carefully out of the hous- ing (1) of the pour over coffee machine. In order to make a jug of coffee fill the coffee filter (7) with approx. 8 BODUM

measuring spoons (16) of medium fine ground coffee. For a smaller quantity of coffee you will require an appropriately reduced measure of medium fine ground coffee. (Observe the table providing the „Recommended dosage“ information.) Now slide the filter holder (6) with inserted coffee filter (7) carefully back into the housing of the pour over coffee machine. CAUTION: Only use the coffee filter (7) supplied with the appliance. Never use paper filters.6 BIstro – Guide the thermos jug (8) into the pour over coffee machine with the dosage lid (9) and lid cap (10) in place. Ensure that the thermos jug (8) is positioned precisely beneath the filter holder (6). Note: The safety switch (14) detects the thermos jug (8) when it is in place in the appliance. If the thermos jug is not positioned correctly in the pour over coffee machine then the pour over coffee machine will not switch on. – Press the ON/OFF switch (15). The ON/OFF switch illuminates green through- out the brewing process. – After a few seconds the water starts to flow through the coffee shower (11) into the filter holder (6) and subsequently into the thermos jug (8). This pro- cess requires approx. 6 minutes for a jug of coffee (1.2l/40oz). – The pour over coffee machine switches off automatically as soon as the water tank (2) has been emptied of water. Note: The pour over coffee machine will also switch off automatically as soon as the thermos jug (8) is removed from the appliance during the brewing process. – In order to resume the brewing process simply press the ON/OFF switch (15) again once the thermos jug (8) has been put back in the correct position in the pour over coffee machine. cLeAnInG tHe Pour over coffee MAcHIne – When cleaning the pour over coffee machine never use any chemicals, steel wool or abrasive cleaners. – Only clean the housing (1) with a damp cloth. – Never immerse the housing in water. Remember that this is an electrical appliance. Note: Always disconnect the pour over coffee machine from the mains prior to cleaning the appliance. – Whenever possible clean the pour over coffee machine after every use. The following parts are dishwasher safe (only in the top compartment of the dishwasher): 2 Water tank 3 Water tank handle 4 Lid for water tank 6 Filter holder 7 Coffee filter 9 Dosage lid 10 Lid cap 11 Coffee shower 12 Large stopper 13 Small stopper 16 Measuring spoonInstructIon for use

– For simple cleaning unscrew the dosage lid (9) from the thermos jug (8). Rinse the thermos jug (8) thoroughly with warm water after use.

Warning: The thermos jug (8) is not suitable for washing in the dishwasher. Do

not immerse the thermos jug in water. – The lid cap (10) can be removed trough pull from the dosage lid (9) for ease of cleaning. Both the dosage lid and lid cap are dishwasher safe. MAIntenAnce AnD cAre

DE-SCALING THE POUR OVER COFFEE MACHINE

– To guarantee that the pour over coffee machine works correctly, you have to ensure that the machine is kept free of lime-scale. The optimum cycle is dependent on the hardness of the water which is different from country to country. We would advise de-scaling the machine after every 100 uses. Important: If you do not de-scale the pour over coffee machine then this can lead to damage! – If over scaling switches the appliance off automatically the ON/OFF switch (15) will illuminate red. You then must de-scale the pour over coffee machine immediately because the machine will no longer operate. – Regular de-scaling can increase the service life of the product and guarantees its faultless functionality. Furthermore, regular de-scaling will result in less steam forming, faster brewing times and energy savings. – Deposits should be removed with a commercially available de-scaling solu- tion for coffee machines or with a solution of vinegar and water (20% vine- gar and 80% water). When using commercially available de-scaling solutions ensure that these are suitable for use with heating elements made of copper as well as silicone materials. (Carefully check the specifications and dosage instructions of the manufacturer). – Fill the water tank (2) with de-scaling solution or a vinegar and water solu- tion (do not fill above the MAX line) and place the coffee shower (11), filter holder (6), coffee filter (7) (without ground coffee) and the thermos jug (8) with the dosage lid (9/10) into their intended positions in the appliance. – Then rinse the separate parts thoroughly with cold water and rinse the appli- ance by running through with cold, clear water at least twice. Prior to doing so ensure that all of the separate parts have been correctly reassembled in the pour over coffee machine. – Any other servicing should be performed by an authorized service facility.8 BIstro cLeAnInG tHe coffee sHoWer The coffee shower (11) can be cleaned and de-scaled separately. In order to do so remove the housing lid (5) from the housing (1) of the pour over coffee machine. Then lift the coffee shower (11) carefully vertically, up and out of the pour over coffee machine. Now remove the large stopper (12) and small stopper (13) by pulling these slowly out of the coffee shower. Clean all parts thoroughly with de-scaling solution. Subsequently rinse all parts thoroughly with clear water before putting the coffee shower carefully back together. Ensure that the large stopper and small stopper are correctly seated and firmly in place. Now place the coffee shower back in the pour over coffee machine and carefully replace the housing lid. CAUTION: When cleaning the coffee shower do not use hard brushes or point- ed or sharp objects because these may scratch or damage the silicone surface. IMPORTANT: The warranty is voided if no de-scaling is carried out or this is not carried out in accordance with the operating instructions. storAGe Always disconnect the pour over coffee machine from the mains when it is not in use. tecHnIcAL DAtA EURO mains voltage 220 - 240 V~ 50/60 Hz USA mains voltage 120 V~ 60 Hz EURO nominal power 1450 W USA nominal power 1450 W Cable length 80 cm Volumetric capacity 1.2 liter/40 fl. oz Test marks GS, CE, ETL, CETLInstructIon for use

products are produced from high quality, durable materials. However, if it should be necessary to replace parts please contact your BODUM

shop, the general BODUM

representative in your country or visit www.bodum.com. Warranty: BODUM

provides a 2-year warranty with the „BISTRO“ pour over coffee machine, valid from the date of purchase. This covers material defects and malfunctions that are attributable to manufacturing or design faults. If all of the warranty conditions have been fulfilled then repairs are free of charge. Refunds are not possible. Warranty conditions: The warranty certificate must be completed by the ven- dor in full at the time of purchase. BODUM

does not provide warranty cover for damage that is attributable to incorrect use, incorrect operation, normal wear and tear, deficient or incorrect care and maintenance, incorrect operation or handling by unauthorized persons. envIronMentALLY-frIenDLY DIsPosAL It is impermissible to dispose of any electrical appliances together with general household refuse; these must be collected separately. It is free for private indi- viduals to dispose of these at refuse collection centers. The owner of used appli- ances is obligated to take electrical appliances to collection centers or to submit these for appropriate collection. With this minor personal inconvenience you are making a contribution to ensuring that valuable raw materials are recycled and harmful substances are appropriately treated. Correct disposal for this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.10 BISTRO Willkommen bei BODUM

For more information or questions, warranty claim and return authorization

FREE CALL – 1.800.23.BODUM/[e-mail]

WARRANTY CLAIM CAN NOT BE DONE WITHOUT PROOF OF PURCHASE. BODUM

warrants the original purchaser from defects in materials and workmanship (parts & labor) for the period of two years from the date of original consumer purchase. To be eligible for warranty coverage the product must be purchased from an authorized BODUM

dealer and proof of purchase must be provided. 2 YEARS LIMITED WARRANTY CERTIFICATE.
