Explanation of symbols

General hazard safety alert.

Never direct the water jet

at people, animals, the unit

or electric components.

Warning: High pressure jets can be dan-

gerous if subject to misuse.

According to the applicable

regulations, the appliance

must never be used on the

drinking water network without a

system separator. Use a separator as

per IEC 61770 Type BA.

Water flowing though a system sepa-

rator is considered not drinkable.

For self priming use special suction

kit 3 m long (F 016 800 335).

Safety Notes for pressure washer

Read all safety warnings

and all instructions. Failure

to follow the warnings and in-

structions may result in electric shock,

fire and/or serious injury.

The warning and information signs

attached to the unit provide impor-

tant information for safe operation.

Apart from the information in the op-

erating instructions comply with the

general safety regulations and regu-

lations for the prevention of acci-

Connecting to the mains

The voltage indicated on the rating

plate must correspond to the voltage

of the power source.

We recommend that this equipment

is only connected into a socket which

is protected by a circuit-breaker that

would be actuated by a 30 mA residu-

This is a class I unit and may only be

connected to properly earthed power

Remove the plug from socket when-

ever the machine is left unattended

The electric supply installation

should comply with IEC 60364-1.

If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard. OBJ_BUCH-1762-003.book Page 11 Wednesday, July 12, 2017 2:29 PM12 | English

1 609 92A 3ER | (12.7.17) Bosch Power Tools

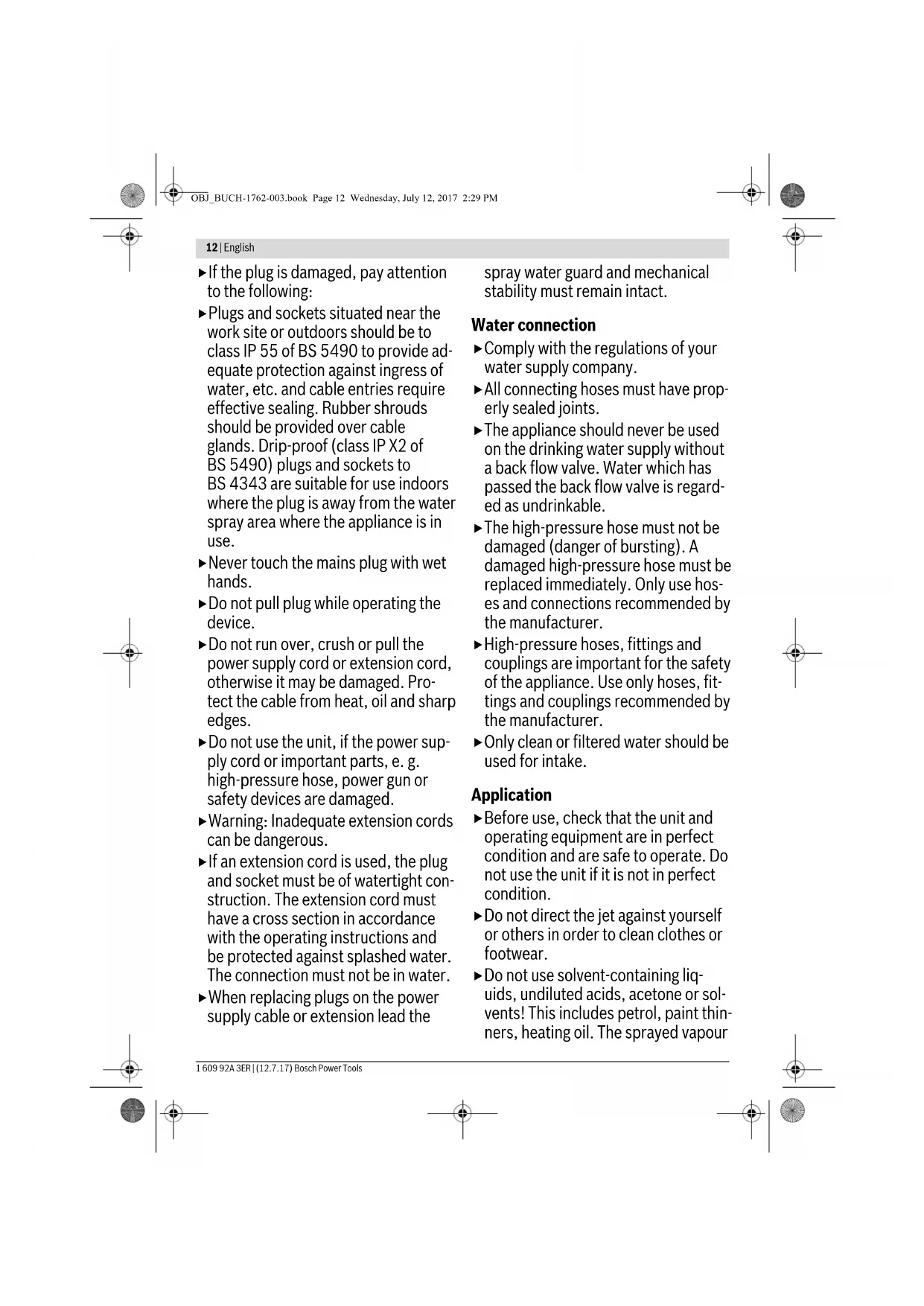

If the plug is damaged, pay attention

Plugs and sockets situated near the

work site or outdoors should be to

class IP 55 of BS 5490 to provide ad-

equate protection against ingress of

water, etc. and cable entries require

effective sealing. Rubber shrouds

should be provided over cable

glands. Drip-proof (class IP X2 of

BS 5490) plugs and sockets to

BS 4343 are suitable for use indoors

where the plug is away from the water

spray area where the appliance is in

Never touch the mains plug with wet

Do not pull plug while operating the

Do not run over, crush or pull the

power supply cord or extension cord,

otherwise it may be damaged. Pro-

tect the cable from heat, oil and sharp

Do not use the unit, if the power sup-

ply cord or important parts, e. g.

high-pressure hose, power gun or

safety devices are damaged.

Warning: Inadequate extension cords

If an extension cord is used, the plug

and socket must be of watertight con-

struction. The extension cord must

have a cross section in accordance

with the operating instructions and

be protected against splashed water.

The connection must not be in water.

When replacing plugs on the power

supply cable or extension lead the

spray water guard and mechanical

stability must remain intact.

Comply with the regulations of your

water supply company.

All connecting hoses must have prop-

The appliance should never be used

on the drinking water supply without

a back flow valve. Water which has

passed the back flow valve is regard-

The high-pressure hose must not be

damaged (danger of bursting). A

damaged high-pressure hose must be

replaced immediately. Only use hos-

es and connections recommended by

High-pressure hoses, fittings and

couplings are important for the safety

of the appliance. Use only hoses, fit-

tings and couplings recommended by

Only clean or filtered water should be

Before use, check that the unit and

operating equipment are in perfect

condition and are safe to operate. Do

not use the unit if it is not in perfect

Do not direct the jet against yourself

or others in order to clean clothes or

Do not use solvent-containing liq-

uids, undiluted acids, acetone or sol-

vents! This includes petrol, paint thin-

ners, heating oil. The sprayed vapour

OBJ_BUCH-1762-003.book Page 12 Wednesday, July 12, 2017 2:29 PMEnglish | 13

Bosch Power Tools 1 609 92A 3ER | (12.7.17)

is highly flammable, explosive and

The appropriate safety regulations

must be observed when using the unit

in dangerous areas (e. g. petrol sta-

tions). It is forbidden to operate the

unit in potentially explosive locations.

The unit must be placed on a solid

Take care if using the machine in a

confined space ensuring that there is

adequate ventilation. Ensure that all

vehicles are switched off at all times

Operation of this machine requires

both hands to be used at all times. Do

not operate from a ladder. Take care

when using the machine on balconies

or other raised areas ensuring that

you can see any edges at all times.

Only use detergents recommended

by the manufacturer. Comply with

the application, disposal and warning

instructions of the detergent manu-

All current-conducting components

in the working area must be protect-

ed against splashed water.

The gun trigger must not be jammed

in position “ON” during operation.

Wear suitable protective clothing to

protect against splash water. Do not

use the machine in reach of persons,

unless these are also wearing protec-

If necessary wear personal protective

equipment (PPE) e. g. safety goggles,

breathing protection etc to protect

against water, particles and/or aero-

sols sprayed back from parts.

During use of high pressure clean-

ers, aerosols may be formed. Inha-

lation of aerosols can be hazardous to

High pressure may cause objects to

rebound. If necessary wear suitable

personnel protective equipment such

Vehicle tyres/tyre valves may only be

cleaned from a minimum distance of

30 cm in order to avoid damages by

the high-pressure jet. The first indica-

tion of damage is the discolouration

of the tyre. Damaged vehicle

tyres/tyre valves are dangerous to

Materials containing asbestos and

other materials which contain sub-

stances which are hazardous to your

health must not be sprayed.

Detergents must not be used undilut-

ed. The products are safe to use as

they contain no acids, alkalis or sub-

stances which are detrimental to the

environment. We recommend that

the detergents are kept out of the

reach of children. If detergent comes

into contact with the eyes, wash im-

mediately with plenty of water and if

swallowed contact a doctor immedi-

Never use the power washer with-

out water filter, or with a contami-

nated or damaged water filter. Us-

ing the power washer without water

filter or with a contaminated or dam-

aged water filter shall void the war-

OBJ_BUCH-1762-003.book Page 13 Wednesday, July 12, 2017 2:29 PM14 | English

1 609 92A 3ER | (12.7.17) Bosch Power Tools

Metal parts may become hot after

prolonged usage, if necessary wear

Avoid high pressure washing in bad

weather conditions especially when

there is a risk of lightning.

The operator must use the unit in ac-

cordance with the regulations.

He/she must take local conditions in-

to account and be aware of other peo-

ple, especially children, when operat-

The unit may only be used by author-

ised persons who have received

training or have demonstrated their

ability to operate the unit. The unit

must not be operated by children or

juveniles (danger of accidents due to

incorrect use of the unit).

Never allow children, persons with

physical, sensory or mental limita-

tions or a lack of experience and/or

knowledge and/or people unfamiliar

with these instructions to use the ma-

chine. Local regulations may restrict

the age of the operator.

Children should be supervised to en-

sure that they do not play with the

The unit must never be left unsuper-

vised while the unit is switched on.

The water jet from the high-pressure

nozzle produces a recoil on the gun.

You should therefore hold the gun

and spray lance firmly with both

Switch off the motor and secure the

unit before transporting.

Switch off the unit prior to all cleaning

and maintenance work and before re-

placing components. Pull out the

mains plug if the unit is mains-operat-

Repairs may only be carried out by

authorised Bosch Service Centres.

Accessories and spare parts

Accessories and spare parts which

have been approved by Bosch must

be used. Original accessories and

spare parts guarantee that the unit

can be operated safety and without

The following symbols are important for reading and under-

standing the operating instructions. Please take note of the

symbols and their meaning. The correct interpretation of the

symbols will help you to use the machine in a better and safer

The product is intended for cleaning areas and objects out-

side the house, tools, vehicles and boats, if the appropriate

accessories such as cleaning agents approved by Bosch are

Intended use is related to operation within 0°C and 40°C am-

OBJ_BUCH-1762-003.book Page 14 Wednesday, July 12, 2017 2:29 PMEnglish | 15 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Technical Data

Noise/Vibration Information

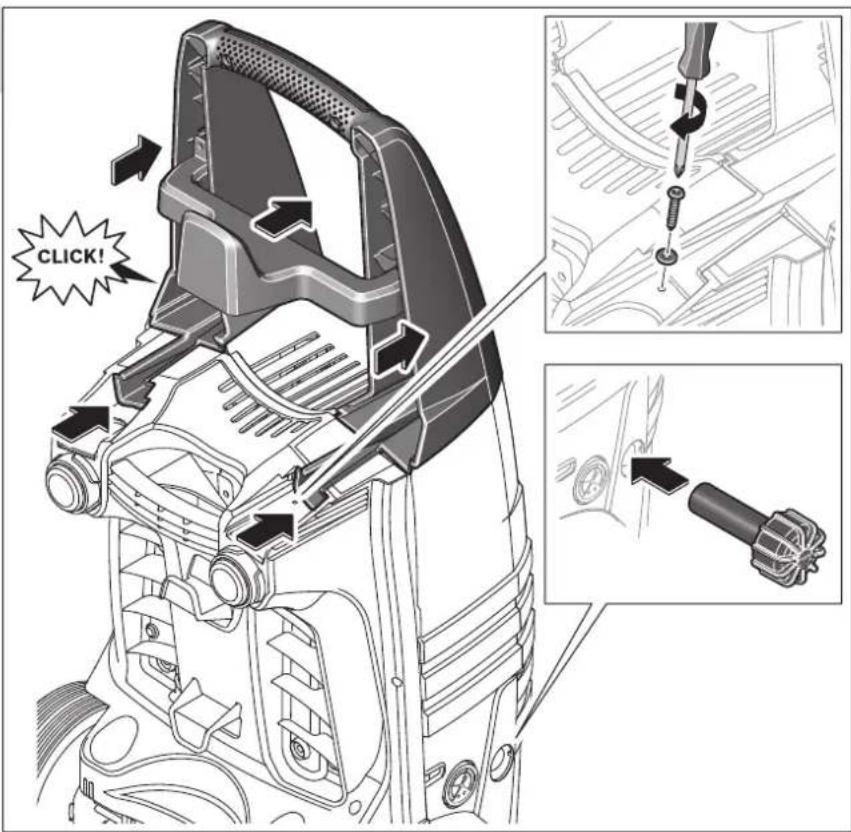

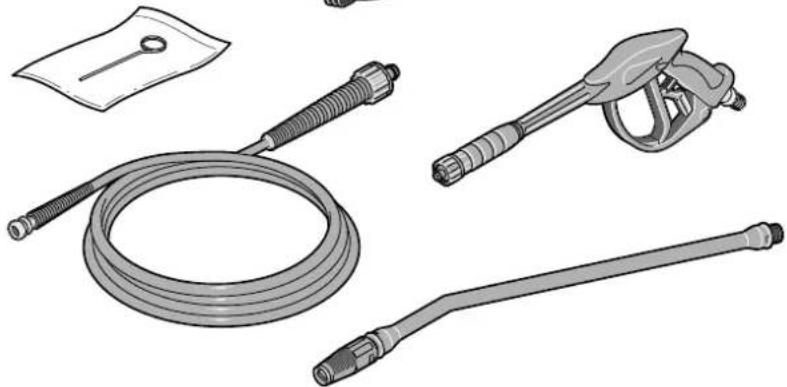

Mounting and Operation Starting

Warning! Switch off, remove plug from mains

before adjusting, cleaning or if cable is cut,

damaged or entangled.

Your machine is double insulated for safety and requires no

earth connection. The operating voltage is 230 V AC, 50 Hz

(for non-EU countries 220 V, 240 V as applicable).

For increased electrical safety use a Residual Current Device

(RCD) with a tripping current of not more than 30 mA. Always

check your RCD every time you use it.

The supply cables must be inspected for signs of damage at

regular intervals and may only be used if in perfect condition.

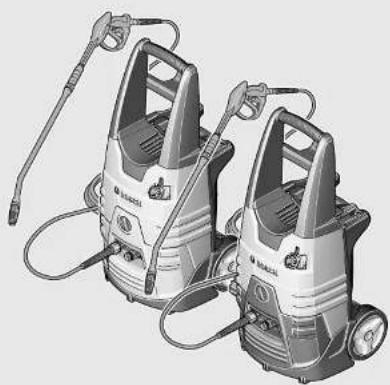

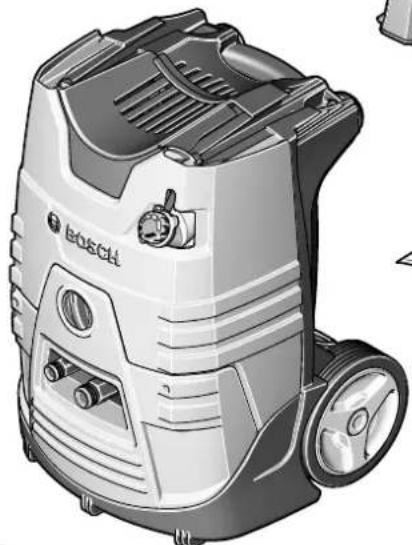

Pressure washer GHP 5-14 GHP 6-14

Supply temperature max.

Max. operating pressure

Kickback force at the gun to the maximum pressure

Class F Class F Motor protection

Weight according to EPTA-Procedure 01:2014

See serial number (rating plate) on pressure washer.

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.32 ohm. Sound emission values determined according to EN 60335-2-79. 3 600 ... J 10 1.. J10 2..

Typically the A-weighted noise levels of the product are:

Sound pressure level

(triax vector sum) and uncertainty K determined according to

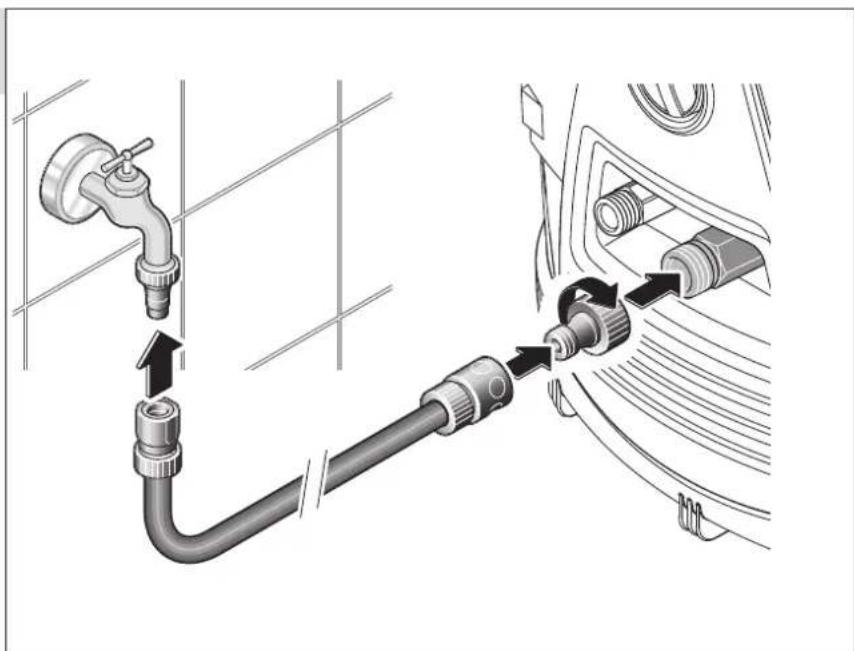

Connecting to the water supply

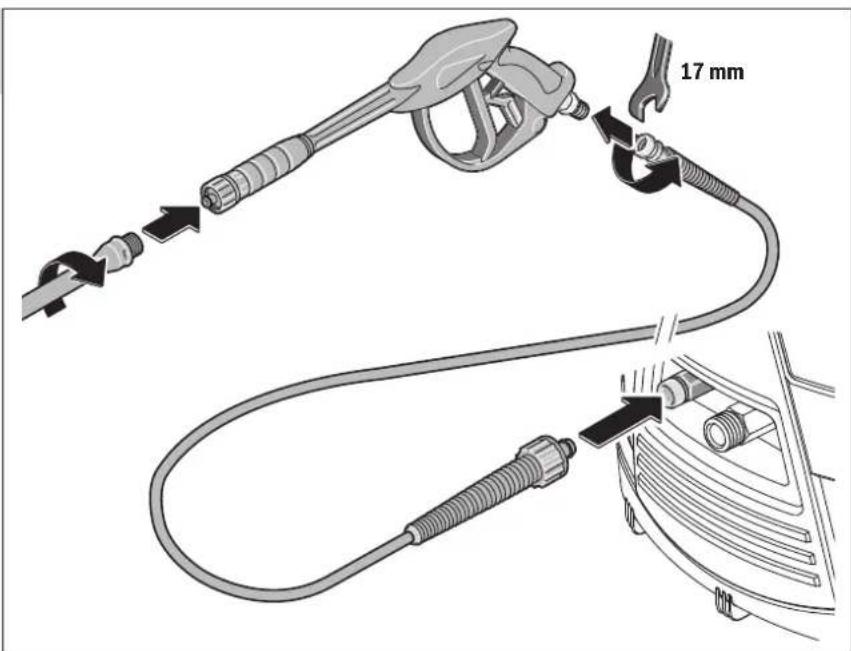

Connecting high pressure water supply

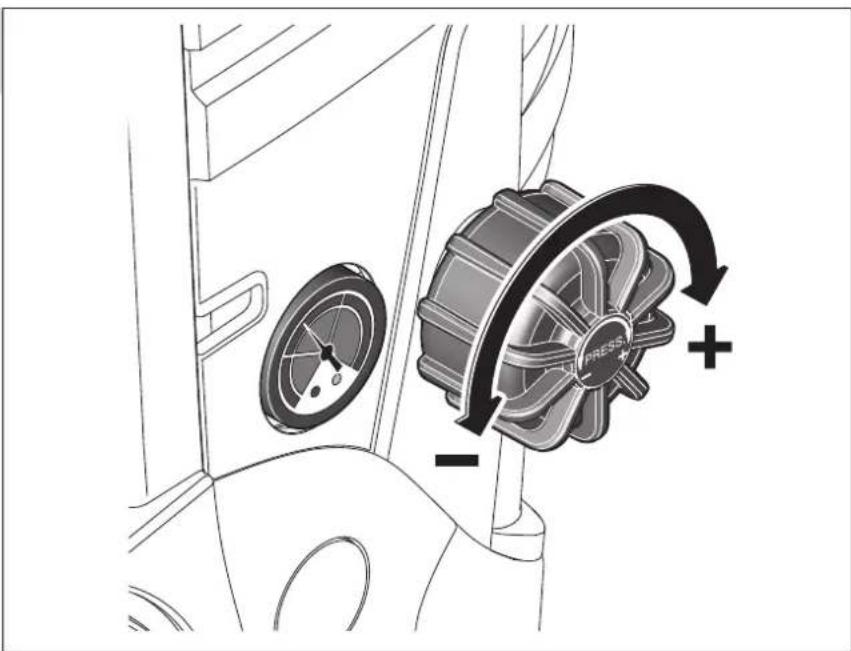

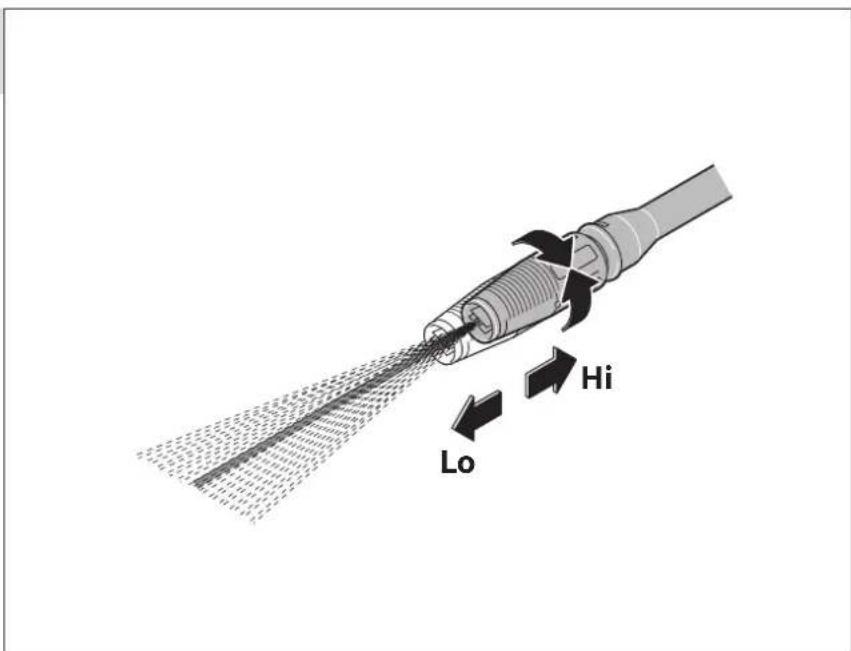

Adjust water pressure

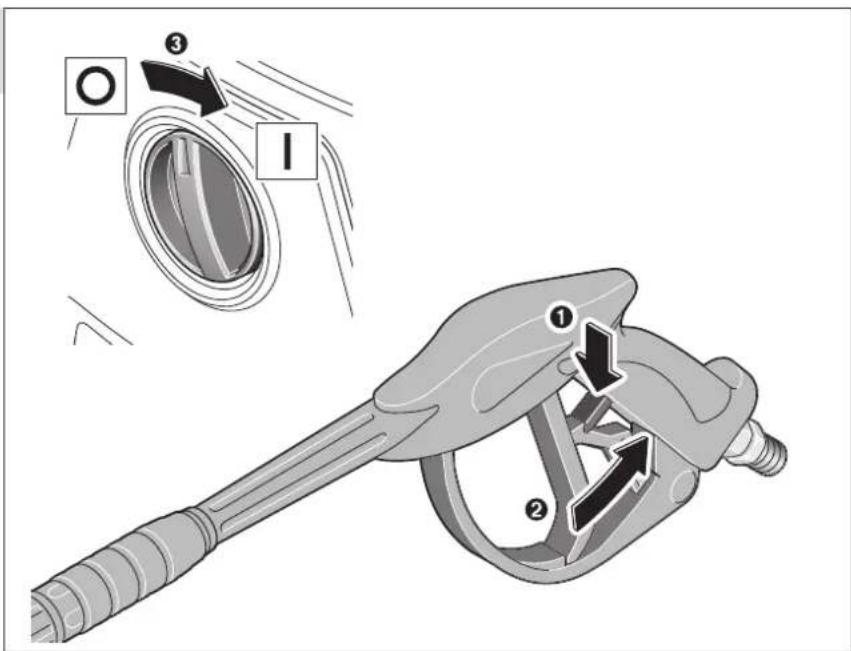

Switching On and Off

OBJ_BUCH-1762-003.book Page 15 Wednesday, July 12, 2017 2:29 PM

Ω 0.32 0.3216 | English

1 609 92A 3ER | (12.7.17) Bosch Power Tools

If the replacement of the supply cord is necessary, this has to

be done by Bosch or an authorized Bosch service agent in or-

der to avoid a safety hazard.

Only use approved extension cables.

WARNING! Inadequate extension cables can

be dangerous. Extension cable, plug and sock-

et must be of watertight construction and in-

tended for outdoor use.

Extension cords, cables, leads, reels should only be used if

they comply with EN 61242/IEC 61242 or

If you want to use an extension cable when operating your

product, only the following cable dimensions should be used:

– Nominal Conductor Area of 1.5mm

to a max. cable length

of 20m for a Cord Extension Set

The connections (plugs and sockets) should be kept dry and

It is recommended that this is accomplished by means of a

cord reel which keeps the socket at least 60 mm above the

Note: If an extension cable is used it must be earthed and con-

nected through the plug to the earth cable of your supply net-

work in accordance with prescribed safety regulations.

Refer to the instruction manual of the extension cord, lead,

reel manufacturer and your local wiring regulations.

If in doubt contact a qualified electrician or the nearest Bosch

For products not sold in GB:

WARNING: For your safety, it is required that the plug at-

tached to the product is connected with the extension cord.

The coupling of the extension cord must be protected against

splash water, be made of rubber or coated with rubber. The

extension cord must be used with a cable strain relief.

Products sold in GB only: Your product is fitted with a

BS 1363/A approved electric plug with internal fuse (ASTA

approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be

cut off and an appropriate plug fitted in its place by an author-

ised customer service agent. The replacement plug should

have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible

shock hazard and should never be inserted into a mains sock-

Products sold in AUS and NZ only: Use a residual current de-

vice (RCD) with a rated residual current of 30 mA or less.

Drawing in water from open reservoirs

– Screw the suction hose with filter (special suction kit part

no. F 016 800 335) to the water connection.

– Switch on the appliance in low pressure mode.

– Let the appliance run for appx. 10 seconds, then switch

off. Repeat the procedure a couple of times until water ex-

iting is smooth and bubble free.

To prevent damage to the appliance, do not allow it to operate

Attach water supply hose (not supplied) to the mains water

Connect the product to the mains supply ensuring that the

mains switch is in the off position.

Press the safety lock to release the trigger . Fully press the

trigger until there is a constant flow of water to clear the air

from the machine and water supply hose. Release trigger .

Point the power gun downwards. Press the trigger safety lock

to release the trigger . Fully press the trigger .

Operate on/off switch.

The machine is designed to switch off the motor when the trig-

ger is released on the gun.

Ensure that the pressure washer is on level ground.

Do not overreach with the high pressure hose or move the

pressure washer by pulling the hose, this could cause the ma-

chine to become unstable and fall over.

Do not kink or drive a motor vehicle over the high pressure

hose. Do not expose the high pressure hose to sharp edges or

Never use a roto nozzle to clean motor vehicles.

Do not tamper with or adjust the safety valve setting.

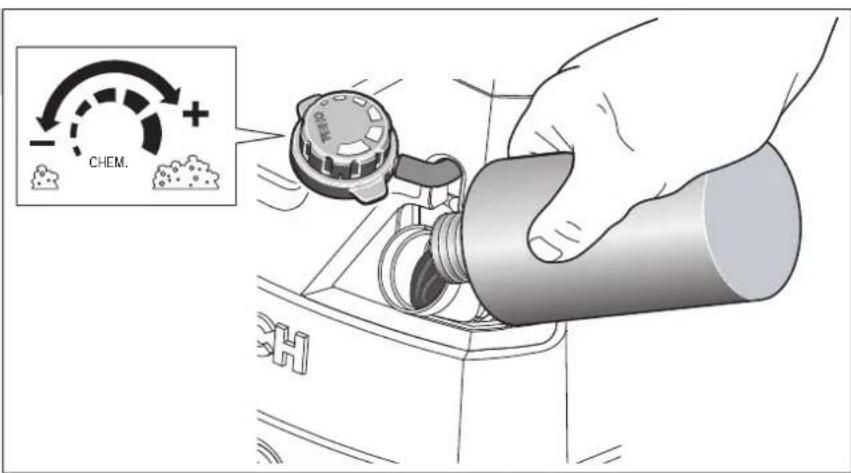

Working advice for cleaning with detergents

 Only use cleaning agents suitable specifically for high

We recommend that you use detergent sparingly for the sake

of the environment. Observe the recommended dilution on

the detergent label.

By offering you an individualised range of cleaning and pre-

serving agents, Bosch guarantees troublefree operation of

Recommended cleaning method

Step 1: Loosening dirt

Spray on detergent sparingly and allow to react for a short

Step 2: Removing dirt

Spray off the loosened dirt with the high-pressure spray.

Note: When cleaning vertical surfaces, apply the detergent

from bottom to top. When rinsing off, work from top to bot-

OBJ_BUCH-1762-003.book Page 16 Wednesday, July 12, 2017 2:29 PMEnglish | 17

Motor refuses to start Plug not connected Connect plug

Mains socket faulty Use another socket

Fuse faulty/blown Replace fuse

Extension cable damaged Try without extension cable

Motor protector has activated Allow to cool for 15 minutes

Frozen Wait for pump/water supply hose/acces-

Motor stops Fuse faulty/blown Replace fuse

Wrong mains voltage Check that mains voltage corresponds to

specifications on the model tag

Motor protector has activated Allow to cool for 15 minutes

Fuses blow Fuses incorrectly rated Change to a mains supply higher than the

pressure washer amp consumption

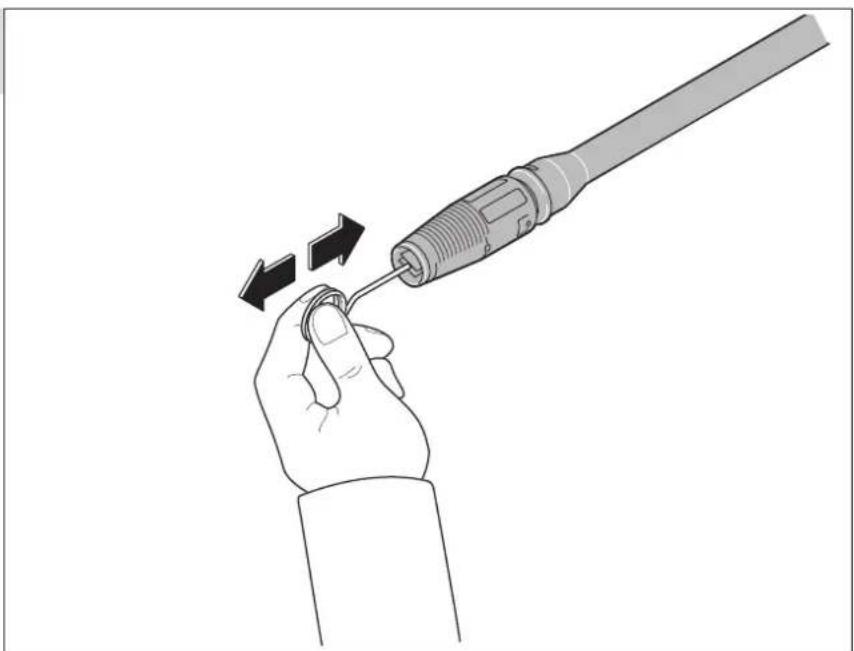

Motor starts but no pressure Nozzle partly blocked Clean nozzle

Motor “sounds” but fails to start Insufficient power supply Check that the voltage of the mains pow-

er supply line is the same as that on the

Voltage loss due to use of extension cable Check characteristics of extension cable

Appliance not used for a long period of

Contact your Bosch Service Centre

Problems with TSS (Total Stop System)

Contact your Bosch Service Centre

Pressure pulsating Air in the inlet water supply hose/pump Allow pressure washer to run with open

spray handle and nozzle at low pressure

until regular working pressure is obtained

Inadequate water supply Check that the water supply corresponds

to specifications. The minimum specifica-

tion for the water supply hose is 1/2" or

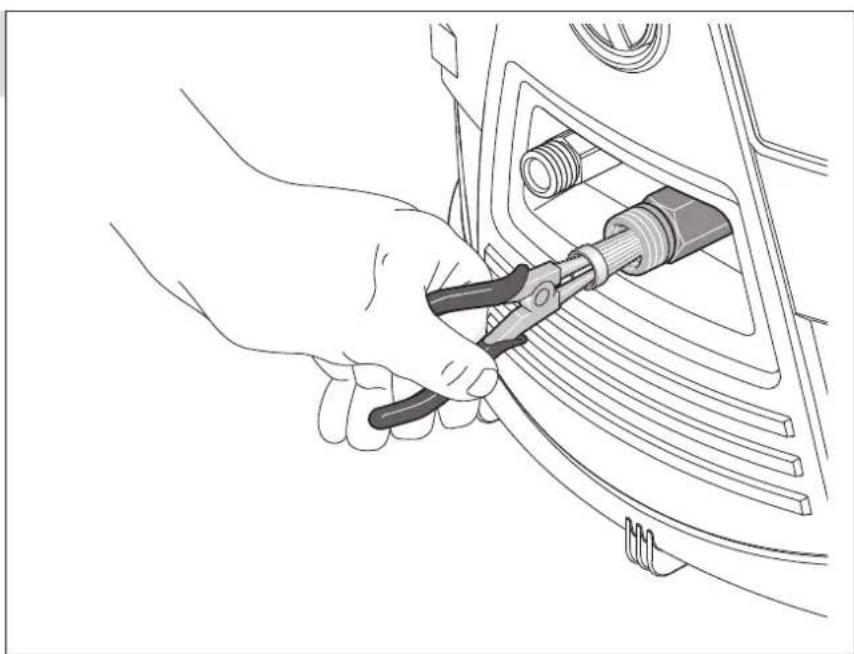

Water filter blocked Clean water filter

Water supply hoses squeezed Straighten out kinked water supply hoses

High pressure hose too long Remove high pressure extension hose.

Retry (extension hose max. 7m)

Pressure too low, but steady

Note: Several types of accessory will nor-

mally deliver a lower pressure

Nozzle worn Change the nozzle

Start/stop valve worn Activate trigger five times in quick suc-

Motor starts up but with restricted or no

No water supply Connect water supply

Water filter clogged up Clean the water filter

Nozzle clogged up Clean nozzle

The pressure washer starts irregularly by

Pump/spray gun leaky Contact your Bosch Service Centre

Water leaks from machine Leaking pump A slight water leak is permissible; in case

of excessive leak, contact Bosch Service

OBJ_BUCH-1762-003.book Page 17 Wednesday, July 12, 2017 2:29 PM18 | English

1 609 92A 3ER | (12.7.17) Bosch Power Tools

Maintenance and Service

 Stop, remove plug from the power supply and discon-

nect from water supply.

Note: To ensure long and reliable service, carry out the follow-

ing maintenance regularly.

Regularly check for obvious defects such as loose fixings, and

worn or damaged components.

Check that covers and guards are undamaged and correctly

fitted. Carry out necessary maintenance or repairs before us-

To move the pressure washer use the top handle and roll the

pressure washer on the wheels.

To transport the pressure washer up or down steps or over

obstacles, it must be lifted by the top handle.

Clean the exterior of the machine thoroughly using a soft

brush or cloth. Do not use water, solvents or polishes. Re-

move all debris, especially from the ventilation slots.

End of season storage: Drain water out of pump running mo-

tor for a few seconds. Pull trigger to release all water.

Do not place other objects on top of the machine.

Ensure cables are not trapped when storing. Do not kink high

After-sales Service and Application Service

In all correspondence and spare parts orders, please always

include the 10-digit article number given on the type plate of

Robert Bosch Ltd. (B.S.C.)

UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: (0344) 7360109

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: (011) 6519600

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

No detergent taken in Adjustable nozzle on high pressure set-

Set nozzle on “Lo” setting

Detergent too dense Dilute with water

High pressure hose extension being used Fit original hose

Deposits or restriction in detergent cir-

Flush with clean water and eliminate any

restrictions. If the problem persists, con-

tact your Bosch Service Centre.

Problem Possible Cause Corrective Action

OBJ_BUCH-1762-003.book Page 18 Wednesday, July 12, 2017 2:29 PMFrançais | 19 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Bosch Headquarters

E-Mail: rbsa-hq.pts@za.bosch.com

Environmental Protection

Chemicals dangerous to the environment must not be allowed

to enter the ground, ground water or ponds, streams, etc.

For the use of cleaning agents, observe the instructions on the

package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should

be observed: Do not allow oil sprayed off to enter into the

ground water. Recycle raw materials instead of waste dispos-

The pressure washer, accessories and packaging should be

sorted for environmental-friendly recycling.

Do not dispose of pressure washers into household

Only for EC countries:

According to the European directive 2012/19/EU for Waste

Electrical and Electronic Equipment and its implementation

into national law, electrical and electronic equipment that are

no longer usable must be collected separately and disposed

of in an environmentally correct manner. Subject to change without notice. Français

Avertissements de sécurité

tuyaux et raccordements recomman-

OBJ_BUCH-1762-003.book Page 20 Wednesday, July 12, 2017 2:29 PMFrançais | 21

de protection, masque anti-pous-

OBJ_BUCH-1762-003.book Page 21 Wednesday, July 12, 2017 2:29 PM22 | Français

OBJ_BUCH-1762-003.book Page 24 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 25 Wednesday, July 12, 2017 2:29 PM26 | Français

OBJ_BUCH-1762-003.book Page 26 Wednesday, July 12, 2017 2:29 PMFrançais | 27

OBJ_BUCH-1762-003.book Page 29 Wednesday, July 12, 2017 2:29 PM30 | Español

OBJ_BUCH-1762-003.book Page 30 Wednesday, July 12, 2017 2:29 PMEspañol | 31

OBJ_BUCH-1762-003.book Page 33 Wednesday, July 12, 2017 2:29 PM34 | Español

OBJ_BUCH-1762-003.book Page 34 Wednesday, July 12, 2017 2:29 PMEspañol | 35

OBJ_BUCH-1762-003.book Page 35 Wednesday, July 12, 2017 2:29 PM36 | Español

De acordo com as directrivas

OBJ_BUCH-1762-003.book Page 38 Wednesday, July 12, 2017 2:29 PMPortuguês | 39

OBJ_BUCH-1762-003.book Page 39 Wednesday, July 12, 2017 2:29 PM40 | Português

OBJ_BUCH-1762-003.book Page 40 Wednesday, July 12, 2017 2:29 PMPortuguês | 41

OBJ_BUCH-1762-003.book Page 41 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 42 Wednesday, July 12, 2017 2:29 PMPortuguês | 43

OBJ_BUCH-1762-003.book Page 43 Wednesday, July 12, 2017 2:29 PM44 | Português

OBJ_BUCH-1762-003.book Page 46 Wednesday, July 12, 2017 2:29 PMItaliano | 47

OBJ_BUCH-1762-003.book Page 47 Wednesday, July 12, 2017 2:29 PM48 | Italiano

OBJ_BUCH-1762-003.book Page 48 Wednesday, July 12, 2017 2:29 PMItaliano | 49

OBJ_BUCH-1762-003.book Page 50 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 51 Wednesday, July 12, 2017 2:29 PM52 | Italiano

den. OBJ_BUCH-1762-003.book Page 54 Wednesday, July 12, 2017 2:29 PMNederlands | 55

OBJ_BUCH-1762-003.book Page 55 Wednesday, July 12, 2017 2:29 PM56 | Nederlands

OBJ_BUCH-1762-003.book Page 56 Wednesday, July 12, 2017 2:29 PMNederlands | 57

OBJ_BUCH-1762-003.book Page 58 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 59 Wednesday, July 12, 2017 2:29 PM60 | Nederlands

OBJ_BUCH-1762-003.book Page 61 Wednesday, July 12, 2017 2:29 PM62 | Dansk 1 609 92A 3ER | (12.7.17) Bosch Power Tools Dansk

OBJ_BUCH-1762-003.book Page 63 Wednesday, July 12, 2017 2:29 PM64 | Dansk

OBJ_BUCH-1762-003.book Page 64 Wednesday, July 12, 2017 2:29 PMDansk | 65 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Transport

OBJ_BUCH-1762-003.book Page 65 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 66 Wednesday, July 12, 2017 2:29 PMDansk | 67

OBJ_BUCH-1762-003.book Page 67 Wednesday, July 12, 2017 2:29 PM68 | Dansk

Symptom Mulig årsag Afhjælpning

OBJ_BUCH-1762-003.book Page 68 Wednesday, July 12, 2017 2:29 PMSvenska | 69 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Dansk

Bosch Service Center

OBJ_BUCH-1762-003.book Page 70 Wednesday, July 12, 2017 2:29 PMSvenska | 71

OBJ_BUCH-1762-003.book Page 71 Wednesday, July 12, 2017 2:29 PM72 | Svenska

OBJ_BUCH-1762-003.book Page 73 Wednesday, July 12, 2017 2:29 PM

Bosch servicestation.

OBJ_BUCH-1762-003.book Page 74 Wednesday, July 12, 2017 2:29 PMSvenska | 75

Bosch Service Center

OBJ_BUCH-1762-003.book Page 77 Wednesday, July 12, 2017 2:29 PM78 | Norsk

OBJ_BUCH-1762-003.book Page 78 Wednesday, July 12, 2017 2:29 PMNorsk | 79

OBJ_BUCH-1762-003.book Page 79 Wednesday, July 12, 2017 2:29 PM80 | Norsk

OBJ_BUCH-1762-003.book Page 80 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 81 Wednesday, July 12, 2017 2:29 PM82 | Norsk

OBJ_BUCH-1762-003.book Page 82 Wednesday, July 12, 2017 2:29 PMNorsk | 83

OBJ_BUCH-1762-003.book Page 83 Wednesday, July 12, 2017 2:29 PM84 | Suomi 1 609 92A 3ER | (12.7.17) Bosch Power Tools Miljøvern

OBJ_BUCH-1762-003.book Page 85 Wednesday, July 12, 2017 2:29 PM86 | Suomi

OBJ_BUCH-1762-003.book Page 86 Wednesday, July 12, 2017 2:29 PMSuomi | 87

OBJ_BUCH-1762-003.book Page 88 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 89 Wednesday, July 12, 2017 2:29 PM90 | Suomi

OBJ_BUCH-1762-003.book Page 91 Wednesday, July 12, 2017 2:29 PM92 | Eλληνικά

OBJ_BUCH-1762-003.book Page 92 Wednesday, July 12, 2017 2:29 PMEλληνικά | 93

OBJ_BUCH-1762-003.book Page 93 Wednesday, July 12, 2017 2:29 PM94 | Eλληνικά

OBJ_BUCH-1762-003.book Page 94 Wednesday, July 12, 2017 2:29 PMEλληνικά | 95

OBJ_BUCH-1762-003.book Page 96 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 97 Wednesday, July 12, 2017 2:29 PM98 | Eλληνικά

OBJ_BUCH-1762-003.book Page 98 Wednesday, July 12, 2017 2:29 PMEλληνικά | 99

OBJ_BUCH-1762-003.book Page 101 Wednesday, July 12, 2017 2:29 PM102 | Türkçe

OBJ_BUCH-1762-003.book Page 102 Wednesday, July 12, 2017 2:29 PMTürkçe | 103

OBJ_BUCH-1762-003.book Page 104 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 105 Wednesday, July 12, 2017 2:29 PM106 | Türkçe

OBJ_BUCH-1762-003.book Page 106 Wednesday, July 12, 2017 2:29 PMTürkçe | 107

OBJ_BUCH-1762-003.book Page 109 Wednesday, July 12, 2017 2:29 PM110 | Polski

OBJ_BUCH-1762-003.book Page 110 Wednesday, July 12, 2017 2:29 PMPolski | 111

OBJ_BUCH-1762-003.book Page 111 Wednesday, July 12, 2017 2:29 PM112 | Polski

OBJ_BUCH-1762-003.book Page 112 Wednesday, July 12, 2017 2:29 PMPolski | 113

OBJ_BUCH-1762-003.book Page 113 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 114 Wednesday, July 12, 2017 2:29 PMPolski | 115

OBJ_BUCH-1762-003.book Page 115 Wednesday, July 12, 2017 2:29 PM116 | Polski

Robert Bosch Sp. z o.o.

OBJ_BUCH-1762-003.book Page 118 Wednesday, July 12, 2017 2:29 PMČesky | 119

OBJ_BUCH-1762-003.book Page 119 Wednesday, July 12, 2017 2:29 PM120 | Česky

OBJ_BUCH-1762-003.book Page 122 Wednesday, July 12, 2017 2:29 PMČesky | 123

OBJ_BUCH-1762-003.book Page 123 Wednesday, July 12, 2017 2:29 PM124 | Česky

OBJ_BUCH-1762-003.book Page 124 Wednesday, July 12, 2017 2:29 PMSlovensky | 125 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Czech Republic

OBJ_BUCH-1762-003.book Page 126 Wednesday, July 12, 2017 2:29 PMSlovensky | 127

OBJ_BUCH-1762-003.book Page 127 Wednesday, July 12, 2017 2:29 PM128 | Slovensky

OBJ_BUCH-1762-003.book Page 128 Wednesday, July 12, 2017 2:29 PMSlovensky | 129 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Transport

OBJ_BUCH-1762-003.book Page 130 Wednesday, July 12, 2017 2:29 PMSlovensky | 131

OBJ_BUCH-1762-003.book Page 131 Wednesday, July 12, 2017 2:29 PM132 | Slovensky

OBJ_BUCH-1762-003.book Page 133 Wednesday, July 12, 2017 2:29 PM134 | Magyar 1 609 92A 3ER | (12.7.17) Bosch Power Tools Magyar

OBJ_BUCH-1762-003.book Page 135 Wednesday, July 12, 2017 2:29 PM136 | Magyar

OBJ_BUCH-1762-003.book Page 136 Wednesday, July 12, 2017 2:29 PMMagyar | 137

OBJ_BUCH-1762-003.book Page 137 Wednesday, July 12, 2017 2:29 PM138 | Magyar

OBJ_BUCH-1762-003.book Page 138 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 139 Wednesday, July 12, 2017 2:29 PM140 | Magyar

OBJ_BUCH-1762-003.book Page 140 Wednesday, July 12, 2017 2:29 PMMagyar | 141

OBJ_BUCH-1762-003.book Page 144 Wednesday, July 12, 2017 2:29 PMРусский | 145

OBJ_BUCH-1762-003.book Page 145 Wednesday, July 12, 2017 2:29 PM146 | Русский

OBJ_BUCH-1762-003.book Page 146 Wednesday, July 12, 2017 2:29 PMРусский | 147

OBJ_BUCH-1762-003.book Page 147 Wednesday, July 12, 2017 2:29 PM148 | Русский

OBJ_BUCH-1762-003.book Page 148 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 149 Wednesday, July 12, 2017 2:29 PM150 | Русский

OBJ_BUCH-1762-003.book Page 150 Wednesday, July 12, 2017 2:29 PMРусский | 151

OBJ_BUCH-1762-003.book Page 157 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 162 Wednesday, July 12, 2017 2:29 PMRomână | 163

OBJ_BUCH-1762-003.book Page 163 Wednesday, July 12, 2017 2:29 PM164 | Română

OBJ_BUCH-1762-003.book Page 164 Wednesday, July 12, 2017 2:29 PMRomână | 165

OBJ_BUCH-1762-003.book Page 166 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 167 Wednesday, July 12, 2017 2:29 PM168 | Română

OBJ_BUCH-1762-003.book Page 171 Wednesday, July 12, 2017 2:29 PM172 | Български

OBJ_BUCH-1762-003.book Page 172 Wednesday, July 12, 2017 2:29 PMБългарски | 173

OBJ_BUCH-1762-003.book Page 173 Wednesday, July 12, 2017 2:29 PM174 | Български

OBJ_BUCH-1762-003.book Page 175 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 176 Wednesday, July 12, 2017 2:29 PMБългарски | 177

OBJ_BUCH-1762-003.book Page 177 Wednesday, July 12, 2017 2:29 PM178 | Български

Robert Bosch SRL Service scule electrice

www.bosch-pt.com/bg/bg/

golim rukama. OBJ_BUCH-1762-003.book Page 179 Wednesday, July 12, 2017 2:29 PM180 | Srpski

OBJ_BUCH-1762-003.book Page 180 Wednesday, July 12, 2017 2:29 PMSrpski | 181

OBJ_BUCH-1762-003.book Page 181 Wednesday, July 12, 2017 2:29 PM182 | Srpski

OBJ_BUCH-1762-003.book Page 182 Wednesday, July 12, 2017 2:29 PMSrpski | 183 Bosch Power Tools 1 609 92A 3ER | (12.7.17) Tehnički podaci

OBJ_BUCH-1762-003.book Page 183 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 184 Wednesday, July 12, 2017 2:29 PMSrpski | 185

morata biti vtič in priključek OBJ_BUCH-1762-003.book Page 187 Wednesday, July 12, 2017 2:29 PM188 | Slovensko

OBJ_BUCH-1762-003.book Page 188 Wednesday, July 12, 2017 2:29 PMSlovensko | 189

OBJ_BUCH-1762-003.book Page 189 Wednesday, July 12, 2017 2:29 PM190 | Slovensko

OBJ_BUCH-1762-003.book Page 191 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 192 Wednesday, July 12, 2017 2:29 PMSlovensko | 193

OBJ_BUCH-1762-003.book Page 193 Wednesday, July 12, 2017 2:29 PM194 | Hrvatski 1 609 92A 3ER | (12.7.17) Bosch Power Tools Transport

OBJ_BUCH-1762-003.book Page 195 Wednesday, July 12, 2017 2:29 PM196 | Hrvatski

OBJ_BUCH-1762-003.book Page 196 Wednesday, July 12, 2017 2:29 PMHrvatski | 197

OBJ_BUCH-1762-003.book Page 197 Wednesday, July 12, 2017 2:29 PM198 | Hrvatski

OBJ_BUCH-1762-003.book Page 198 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 199 Wednesday, July 12, 2017 2:29 PM200 | Hrvatski

OBJ_BUCH-1762-003.book Page 200 Wednesday, July 12, 2017 2:29 PMHrvatski | 201

OBJ_BUCH-1762-003.book Page 203 Wednesday, July 12, 2017 2:29 PM204 | Eesti

OBJ_BUCH-1762-003.book Page 204 Wednesday, July 12, 2017 2:29 PMEesti | 205

OBJ_BUCH-1762-003.book Page 205 Wednesday, July 12, 2017 2:29 PM206 | Eesti

OBJ_BUCH-1762-003.book Page 206 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 207 Wednesday, July 12, 2017 2:29 PM208 | Eesti

OBJ_BUCH-1762-003.book Page 208 Wednesday, July 12, 2017 2:29 PMEesti | 209

OBJ_BUCH-1762-003.book Page 211 Wednesday, July 12, 2017 2:29 PM212 | Latviešu

OBJ_BUCH-1762-003.book Page 212 Wednesday, July 12, 2017 2:29 PMLatviešu | 213

OBJ_BUCH-1762-003.book Page 213 Wednesday, July 12, 2017 2:29 PM214 | Latviešu

OBJ_BUCH-1762-003.book Page 214 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 215 Wednesday, July 12, 2017 2:29 PM216 | Latviešu

OBJ_BUCH-1762-003.book Page 216 Wednesday, July 12, 2017 2:29 PMLatviešu | 217

OBJ_BUCH-1762-003.book Page 219 Wednesday, July 12, 2017 2:29 PM220 | Lietuviškai

OBJ_BUCH-1762-003.book Page 220 Wednesday, July 12, 2017 2:29 PMLietuviškai | 221

OBJ_BUCH-1762-003.book Page 222 Wednesday, July 12, 2017 2:29 PM

OBJ_BUCH-1762-003.book Page 223 Wednesday, July 12, 2017 2:29 PM224 | Lietuviškai

OBJ_BUCH-1762-003.book Page 224 Wednesday, July 12, 2017 2:29 PMLietuviškai | 225

OBJ_BUCH-1762-003.book Page 226 Wednesday, July 12, 2017 2:29 PM | 227

Malatan Trading & Contracting LLC

International Construction Solutions W L L

Central Motors & Equipment LLC









OBJ_BUCH-1762-003.book Page 245 Wednesday, July 12, 2017 2:29 PM1 609 92A 3ER | (12.7.17) Bosch Power Tools

OBJ_BUCH-1762-003.book Page 246 Wednesday, July 12, 2017 2:29 PM| 247

OBJ_BUCH-1762-003.book Page 247 Wednesday, July 12, 2017 2:29 PM1 609 92A 3ER | (12.7.17) Bosch Power Tools

OBJ_BUCH-1762-003.book Page 248 Wednesday, July 12, 2017 2:29 PM| 249

OBJ_BUCH-1762-003.book Page 249 Wednesday, July 12, 2017 2:29 PM1 609 92A 3ER | (12.7.17) Bosch Power Tools

OBJ_BUCH-1762-003.book Page 250 Wednesday, July 12, 2017 2:29 PMI Bosch Power Tools 1 609 92A 3ER | (12.7.17)

Hochdruckreiniger Sachnummer

en EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all

applicable provisions of the directives and regulations listed below and are in

conformity with the following standards.

Pressure washer Article number

fr Déclaration de conformité UE Nous déclarons sous notre propre responsabilité que les produits décrits sont en

OBJ_BUCH-1762-003.book Page I Wednesday, July 12, 2017 2:29 PMII

OBJ_BUCH-1762-003.book Page II Wednesday, July 12, 2017 2:29 PMIII Bosch Power Tools 1 609 92A 3ER | (12.7.17)

2000/14/EC: Measured sound power level 92 dB(A), uncertainty K =3 dB, guaranteed sound power level 95 dB(A); Con-

formity assessment procedure in accordance with annex V. Product category: 27

2000/14/EC: Measured sound power level 90 dB(A), uncertainty K =3 dB, guaranteed sound power level 93 dB(A); Con-

formity assessment procedure in accordance with annex V. Product category: 27

OBJ_BUCH-1762-003.book Page III Wednesday, July 12, 2017 2:29 PMIV

OBJ_BUCH-1762-003.book Page IV Wednesday, July 12, 2017 2:29 PMV Bosch Power Tools 1 609 92A 3ER | (12.7.17)

OBJ_BUCH-1762-003.book Page V Wednesday, July 12, 2017 2:29 PMVI

OBJ_BUCH-1762-003.book Page VI Wednesday, July 12, 2017 2:29 PMVII Bosch Power Tools 1 609 92A 3ER | (13.7.17)

Head of Product Certification

bert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 07.05.2019

OBJ_BUCH-1762-003.book Page VII Thursday, July 13, 2017 10:45 AM

* Robert Bosch Power Tools GmbH, PT/ECS, 70538 Stuttgart, GERMANY Henk Becker

Chairman of Executive
