Product type	High-pressure cleaner
Brand	Bosch
Model	GHP 5-65 Professional
Category	Professional
Maximum pressure	140 bar
Maximum water flow	500 L/h
Motor type	Electric motor
Power consumption	2100 W
Power supply	230 V ~ 50 Hz
Net weight	20 kg
Dimensions (L × W × H)	380 × 330 × 890 mm
High-pressure hose length	10 m
Garden hose length	5 m
Sound pressure level (LpA)	76 dB(A)
Sound uncertainty (K)	3 dB(A)
Vibrations (a_h)	3.5 m/s²
Automatic shut-off function	Yes (triggered in standby mode)
Safety system	Thermal circuit breaker, safety valve
Water connection	Quick connect 3/4"
Adjustable nozzle	Yes, from flat jet to rotating jet
Detergent tank	Integrated, 1 L
Carrying handle	Yes, foldable
Protection rating	IPX5
Maintenance	Check engine oil regularly
Spare parts	Available via Bosch customer service
Repairability	Repairability index: 8.2/10

Frequently Asked Questions - GHP 5-65 Professional BOSCH

How to start the Bosch GHP 5-65 high-pressure cleaner?

Make sure the garden hose is connected and the water supply is open. Plug the appliance into a 230 V socket. Press the on/off switch. Unlock the trigger of the lance by turning the safety. Then press the trigger to start the jet.

How to use detergent with this appliance?

Fill the integrated detergent tank (1 L capacity) with a suitable product. Select the low-pressure nozzle (if available) or use the special detergent attachment. Apply the product to the surface and let it sit for a few minutes, then rinse with the high-pressure nozzle.

What to do in case of pressure drop?

Check the following points: clogged water inlet filter, blocked nozzle, kinked or leaking hose, insufficient water pressure at the tap (must be > 0.1 MPa). Clean or replace defective parts.

How to winterize the cleaner?

Drain residual water from the appliance and hose. Rinse with a special antifreeze for high-pressure cleaners or store in a frost-free room. Disconnect the hose and lance. Store the appliance upright.

What type of oil to use for the motor?

Use SAE 15W-40 engine oil or a specific oil for high-pressure cleaners. The level must be between the MIN and MAX marks. Change the oil every 100 hours of operation.

How to change the nozzle of the GHP 5-65?

Unscrew the clamping ring at the end of the lance. Replace the nozzle with a new one (available as a Bosch accessory). Tighten firmly. Caution: never disassemble under pressure.

The appliance does not start, why?

First check the power supply: plug, cable, switch. Then, the thermal circuit breaker may have tripped if the appliance overheated. Let it cool for 10 minutes, then reset. If the problem persists, contact customer service.

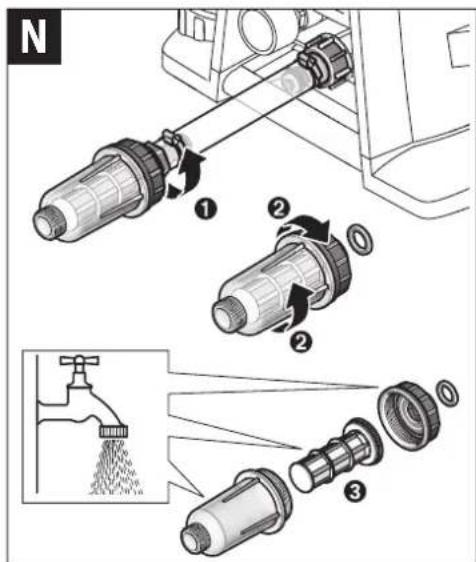

How to clean the water inlet filter?

Unscrew the water inlet connection at the back of the appliance. Remove the brass filter and rinse it with clean water. Put it back and screw it on. Do this regularly to avoid blockages.

What is the maximum pressure at the nozzle outlet?

The nominal pressure is 140 bar. However, with the rotating nozzle (Turbo), the pressure can reach 160 bar depending on conditions. Use the appropriate nozzle to avoid damaging delicate surfaces.

Where to find spare parts for this model?

Spare parts are available from Bosch customer service (after-sales service) or on the Bosch Professional website. You can also order through authorized dealers. Have the model number ready (GHP 5-65).

USER MANUAL GHP 5-65 Professional BOSCH

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-professional.com

1609 92A 3EV (2019.05) O / 284

1 609 92A 3EV

GHP

5-55|5-65|5-65X|5-75|5-75X|500X

BOSCH

R Original instruction

Symbols on the machine

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

General hazard safety alert.

Never direct the water jet at people, animals, the unit or electric components.

Warning: High pressure jets can be dangerous if subject to misuse.

According to the applicable regulations, the appliance must never be used on the drinking water network without a system separator. Use a separator as per IEC 61770 Type BA.

Water flowing through a system separator is considered not drinkable. For self-priming use special suction kit 3 m long (F 016 800 335).

User qualification and personal protection

This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.

The unit must not be operated by children or juveniles. Children should be supervised to ensure that they do not play with the unit. The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit.

Wear personal protective equipment (PPE) e.g. safety goggles, dust mask etc. to protect against water, particles and/or aerosols sprayed back from parts. Do not inhale aerosols if self-priming from external sources. Such water can contain disease-causing agents.

Do not use the appliance within the range of persons unless they also wear protective clothing.

Connecting to the mains

The voltage indicated on the rating plate must correspond to the voltage of the power source. The operating voltage is 230 V AC, (for non-European countries 220 V or 240 V, as applicable). This is a class I unit and may only be connected to properly earthed power sources. The electric supply installation shall be made by a qualified electrician and comply with IEC 60364-1. We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.

Requirements for extension cords and plugs

Warning: Inadequate extension cords can be dangerous. The extension cord must have an earth wire. Extension cord, plug and socket must be of waterproof construction, protected against splashed water and intended for outdoor use. If in doubt, contact a qualified electrician or the nearest Bosch Service Centre.

The following wire dimensions are recommended: Up to 20 m length, 2.5 mm² wire diameter, up to 50 m length 4.0 mm² wire diameter.

If your plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorized customer service agent. In case of electric plug with internal fuse, the replacement plug should have the same fuse ratings as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

Remove the plug from the socket whenever the machine is left unattended for any period.

Do not touch the plug or socket with wet hands.

Do not pull the plug while operating the device.

The connection between the supply cord and extension cord must be kept dry and off the ground, at least 60 cm above. Do not use the unit if the power supply cord or important parts, e.g., high-pressure hose, power gun, or safety devices, are damaged. Do not run over, crush, or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil, and sharp edges.

Water connection

Observe the regulations of your water supply company. The appliance should never be used on the drinking water supply without a backflow valve. Water that has passed the backflow valve is regarded as undrinkable.

High-pressure hose

High-pressure hoses, fittings, and couplings are important for the safety of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer. A damaged high-pressure hose can burst and must be replaced immediately. Never pull the hose over sharp edges. Don't pull if the hose is entangled.

Use of detergents

Only use detergents recommended by the manufacturer. Comply with the application, disposal, and warning instructions of the detergent manufacturers.

We recommend that the detergents are not used undiluted. The products are safe to use as they contain no acids, alkalis, or substances that are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash immediately with plenty of water, and if swallowed, contact a doctor immediately. Do not use solvent-containing liquids, undiluted acids, acetone, or solvents! This includes petrol, paint thinners, and heating oil. The sprayed vapour is highly flammable, explosive, and toxic.

Observe before use

The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit. Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition. The unit must be positioned on its supports, vertical or horizontal, on solid ground. All current-conducting components in the working area must be protected against splashed water.

The water jet from the high-pressure nozzle produces a significant recoil at the gun. Therefore hold the gun and spray lance firmly with both hands.

Do not direct the water jet at the machine itself.

Do not direct the jet against yourself or others in order to clean clothes or footwear.

The gun trigger must not be temporarily or permanently fixed in the open position during operation. Metal parts may become hot after prolonged usage, if necessary wear protective gloves. High pressure washing during storm, excessive rain etc. must be avoided, especially when there is a risk of lightning. The appropriate safety regulations must be observed when using the unit in dangerous areas (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations. Materials containing substances which are hazardous to your health (e.g. asbestos) must not be sprayed.

Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm in order to avoid damages by the high-pressure jet. The first indication of damage is the discolouration of the tyre. Damaged vehicle tyres/tyre valves are dangerous to life.

Observe before maintenance

Switch off the unit and pull out the mains plug prior to all maintenance and care. Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safety and without any breakdowns.

Symbols in manual

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

	Movement direction
	Reaction direction
	Weight
	On
	Off
Lo Low pressure
Hi High pressure
	Accessories

Intended Use

This product is intended for professional use of cleaning areas around houses and objects, cleaning of tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch for this product are used. Intended use is related to operation within 0°C and 50°C ambient temperature.

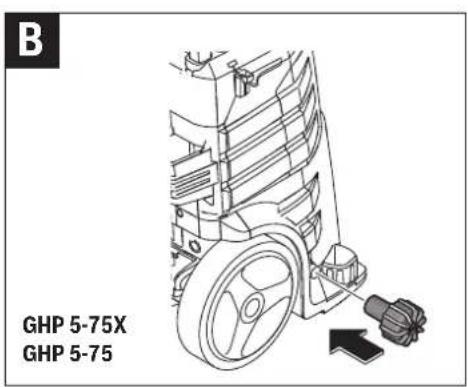

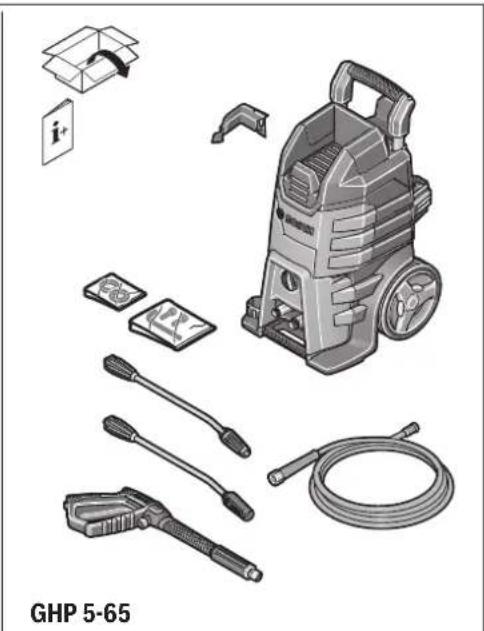

Product Features

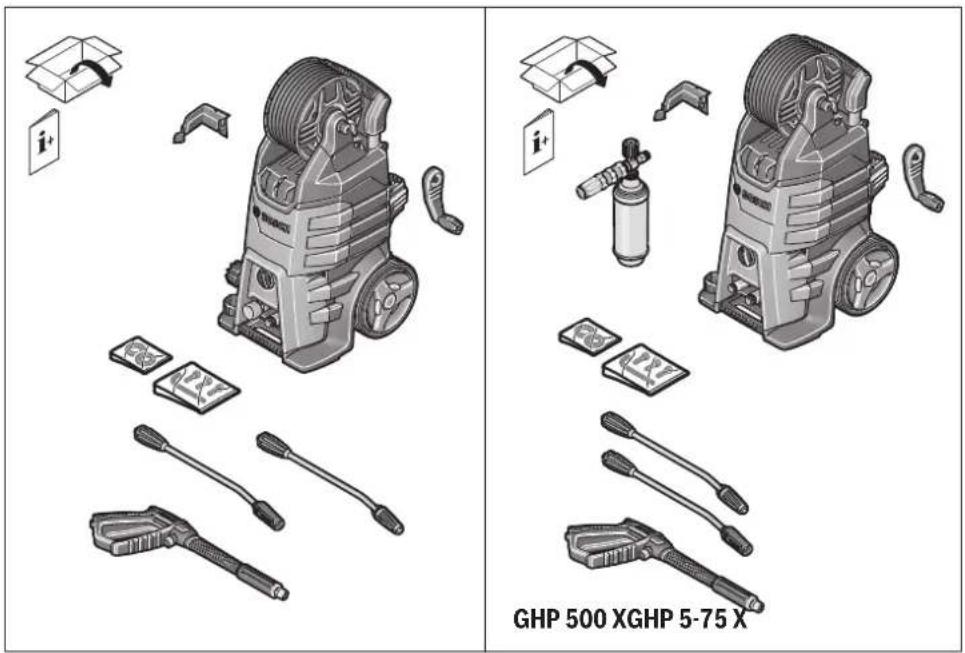

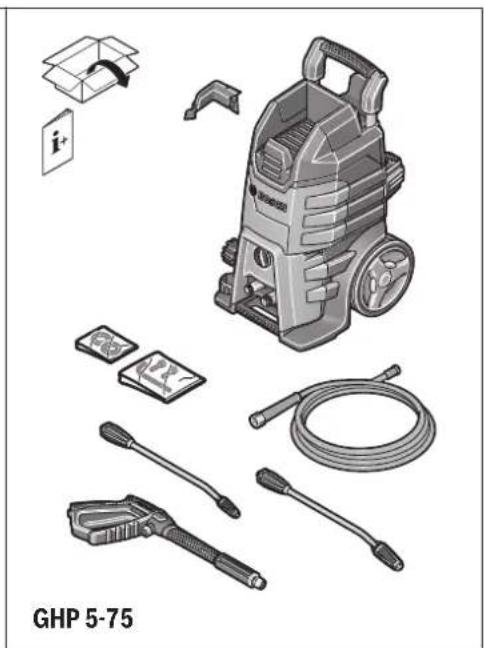

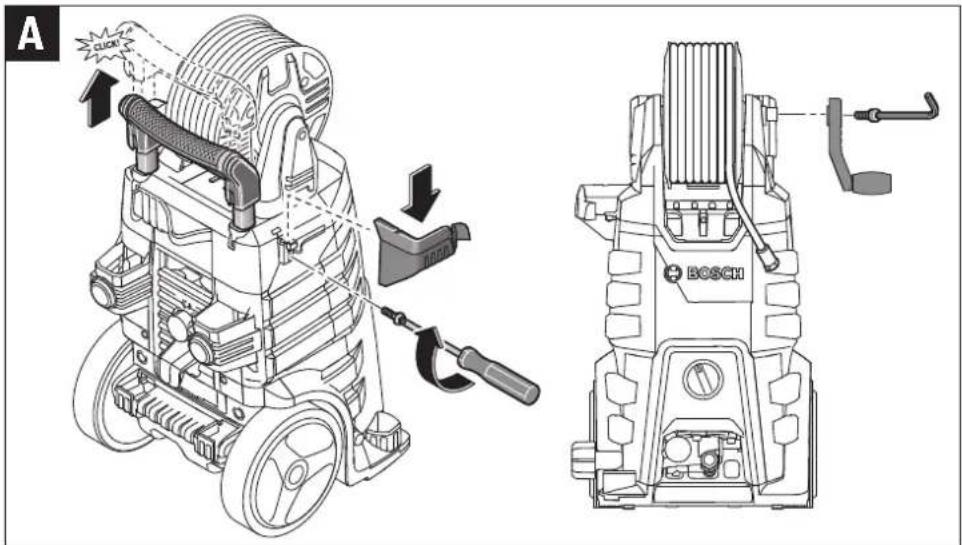

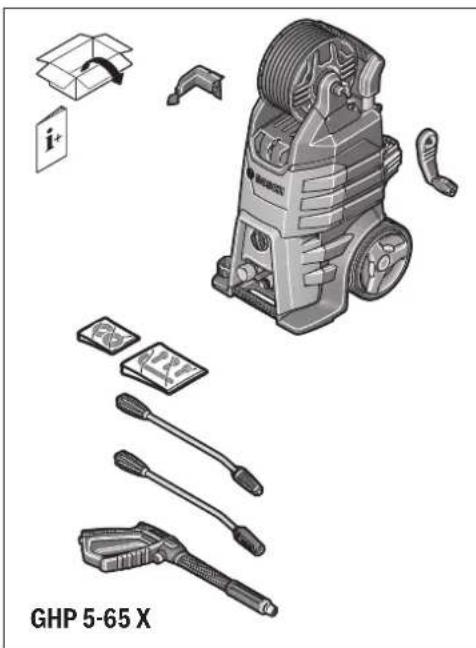

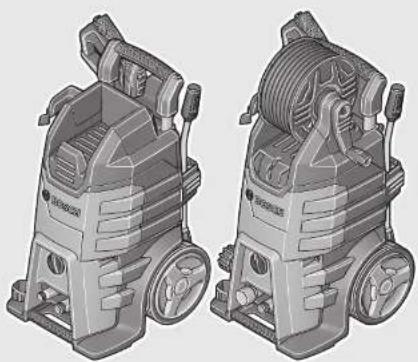

The numbering of the product features refers to the illustrations on the graphics pages.

1 Trigger 2 Trigger safety lock 3 Power gun 4 Lance screw connector coupling 5 Stainless steel spray lance 6 Nozzle 7 Pressure hose fitting (power gun) 8 Handle

English | 15

9 Additional storage space(GHP 5-55/GHP 5-65/GHP 5-75)	22 Rear lifting handle
	23 Cable holder

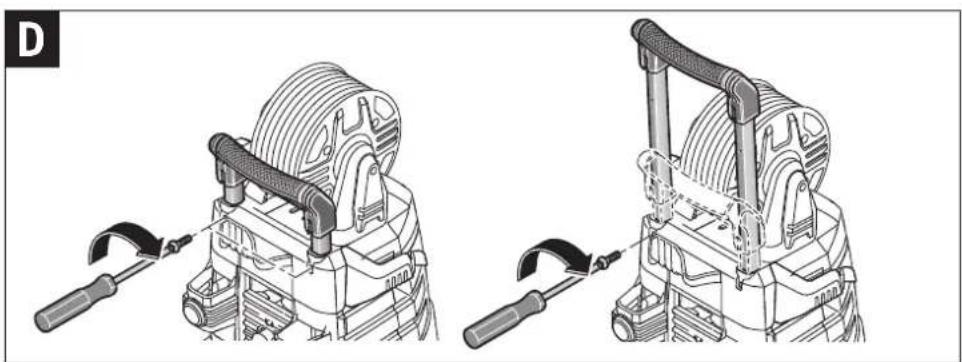

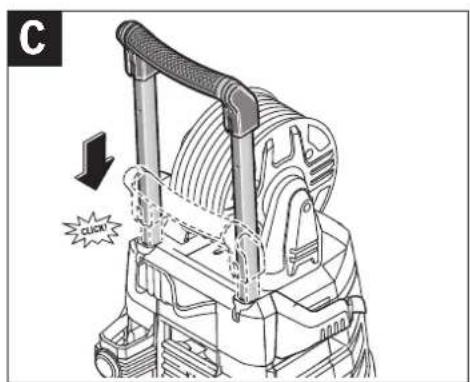

10 Top lance holder	24 Hose reel handle(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
11 Main switch
12 Bottom lance holder	25 Hose reel(GHP 500 X/GHP 5-65 X/GHP 5-75 X)
13 Connection for high pressure hose(GHP 5-55/GHP 5-65/GHP 5-75)	26 Pressure adjustment knob(GHP 5-75/GHP 5-75 X)
14 Water inlet connection

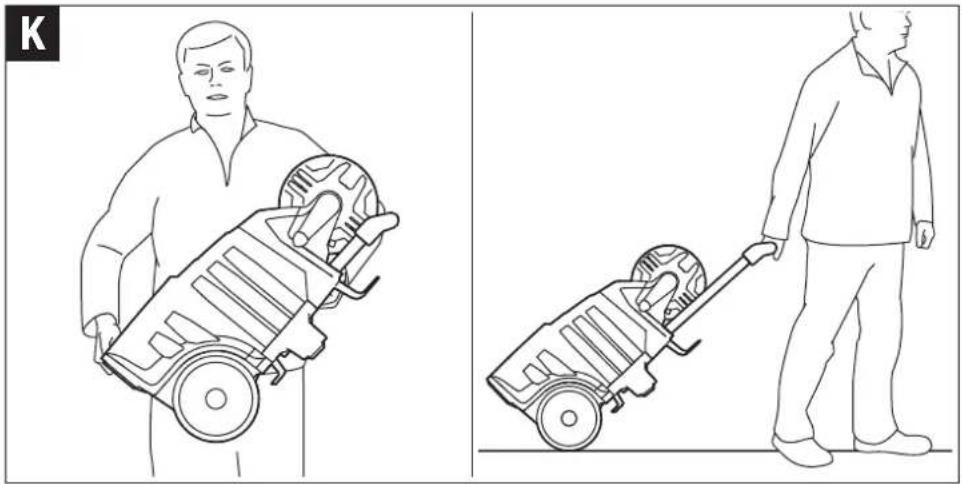

15 Auxiliary lifting handle	27 Pressure gauge(GHP 5-75 X)
16 Transport wheels
17 Foot pedal	28 High pressure hose(GHP 5-55/GHP 5-65/GHP 5-75)
18 Detergent gauge
19 Detergent hose	Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
20 Rubber foot
21 Storage

Technical Data

Pressure washer		GHP 5-55	GHP 500X	GHP 5-65	GHP 5-65X	GHP 5-75	GHP 5-75X
Article number	3 600... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8..
Rated power	kW 2.2 2.2 2.4 2.4 2.6 2.6
Supply temperature max.	°C 50 50 50 50 50 50
Rated flow rate	I/h 500 500 485 485 560 560
Rated pressure	MPa 11.5 11.5 13.0 13.0 14.0 14.0
Max. operating pressure	MPa 13.0 13.0 16.0 16.0 18.5 18.5
Rated Flow	I/h 520 520 520 520 570 570
Maximum inlet pressure	MPa	1	1	1	1	1	1
Kickback force at the gun to the maximum pressure	N	19.71	19.71	20.46	20.46	24.37	24.37
Motor insulation		Class F	Class F	Class F	Class F	Class F	Class F
Motor protection		IPX5	IPX5	IPX5	IPX5	IPX5	IPX5
Autostop function		●	●	●	●	●	●
Pressure gauge		-	-	-	-	-	●
Pressure adjusting knob		-	-	-	-	●	●
Hose reel		-	●	-	●	-	●
Net impedance	Ω	-	-	0.32	0.32	0.32	0.32
Weight according to EPTA-Procedure 01:2014	kg 22.0 24.8 23.5 25.0 26.7 28.2
Protection class		±/I	±/I	±/I	±/I	±/I	±/I

Serial number See serial number (rating plate) on pressure washer. Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.32 ohm.

16 | English

Noise/Vibration Information

Sound emission values determined according to 7.. J10 8.. EN 60335-2-79.
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	78	78	78	78	77	77
Sound power level	dB(A)	92	92	92	92	91	91
Uncertainty K	dB	=2.5	=2.5	=2.5	=2.5	=2.3	=2.3
Wear hearing protection!
Vibration total values an (triax vector sum) and uncertainty K determined according to EN 60335-2-79:
Vibration emission value ah	m/s 2	=1.841	=1.841	=1.841	=1.841	=1.841	=1.841
Uncertainty K	m/s 2	=1.5	=1.5	=1.5	=1.5	=1.5	=1.5

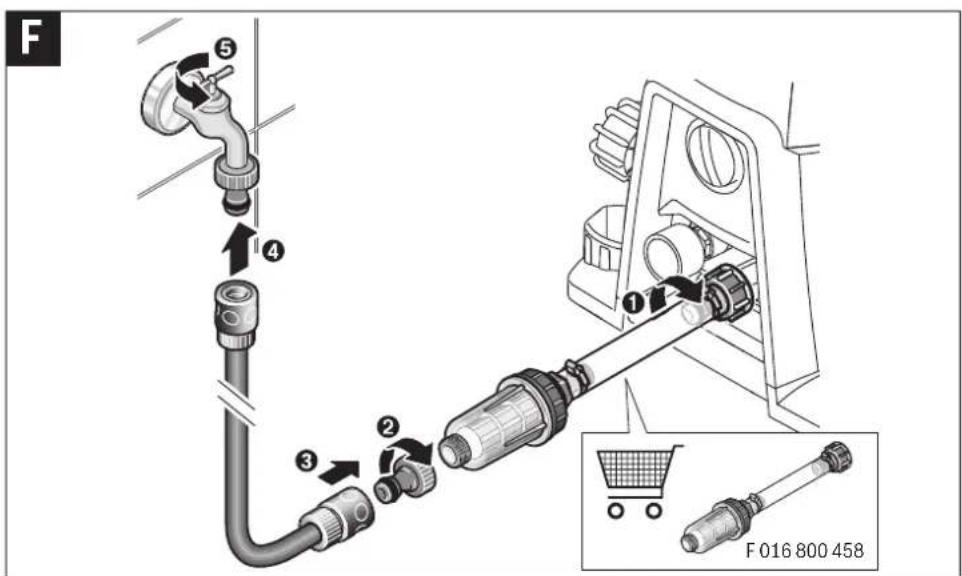

Connecting to the water supply (see figure F)

Note: Rated output pressure can only be achieved, if the flow rate at the water input is sufficient. The flow rate is sufficient if a 10 litre bucket can be filled in less than 1 minute.

CAUTION: Permanent operation with lack of water at the water input can damage the pump.

NOTE: For a sufficient water supply use a short hose with a diameter not thinner than 1/2" (13 mm). Hoses longer than 10 m should have a diameter of 3/4" (19 mm). Open the water tap completely. All connections must be tight. Clean the water filters periodically (see chapter Maintenance).

• It is recommended to use always an external water filter (accessory). Check water filter for tight assembly.
• If necessary, screw on an hose adapter (not supplied with the machine).
• Connect a suitable water hose, best with 1/2" (13 mm) or 3/4" (19 mm) diameter.
• Open the water tap completely and check all connections for tightness.

Connecting to the mains (see figure G)

NOTE: Rated output pressure is only available if the machine is connected to a stable mains voltage. Using a long connection cable with a thin wire cross section, an uncoiled cable drum, operating other machines concurrently on the same circuit, or voltage fluctuations outside accessible tolerances impede motor starting or result in low output pressure.

Bleeding high-pressure washer and hoses (see figure G)

NOTE: Bleed the unit each time the water hose is connected to the water tap according to the following procedure:

Leave the main switch at OFF (0) position.

Disconnect the lance from the gun.

• As soon as the trigger of the gun is operated, air and water exit noisily. Hold the trigger until water exits steadily from the gun. Release the trigger.
• Reconnect the lance.

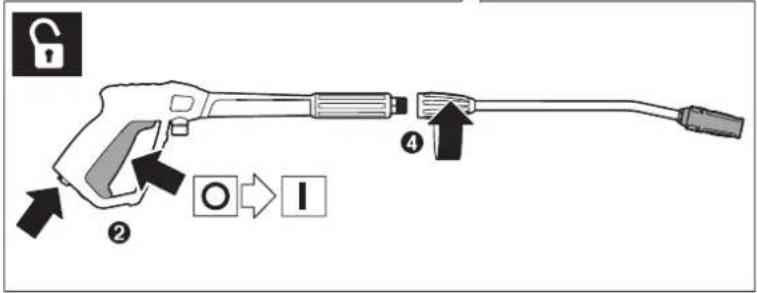

• Switch on the machine for operation.
• Press the safety release and operate the trigger of the gun.

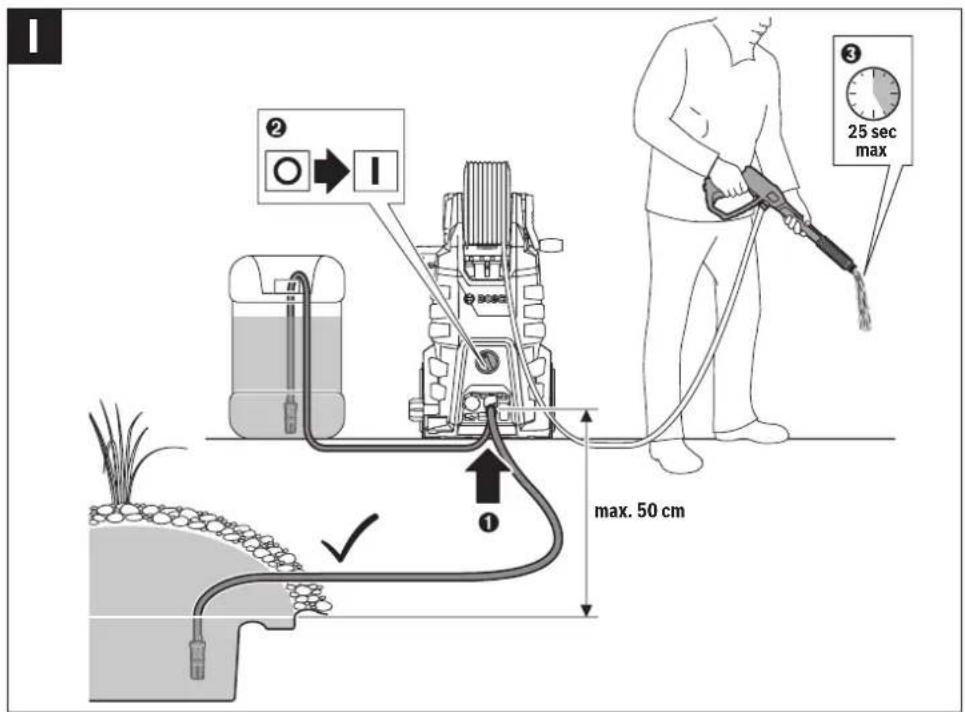

Use with alternative water sources (see figure I)

This high-pressure washer will self-prime and can draw water from water tanks and natural water sources. It's IMPORTANT that the water is clean and both BOSCH inlet filter and external filter are clear and fitted to the machine (see chapter Maintenance).

Open tanks/containers and natural water sources (see figure I)

Use the Self Priming accessory kit comprising:

• Inlet strainer with non-return valve
• 3 m reinforced supply hose – Universal coupling to the pressure washer

This enables the pressure washer to draw water up to 0.5 m above the water level in the source in approximately 25 – 50 seconds.

Fully immerse the 3 m hose into the water to displace the air in the hose. Connect the 3 m hose to the power washer and make sure that the inlet strainer remains under water.

Run the pressure washer with the lance disconnected until a steady flow of water appears from the high pressure hose. Stop if this has not been achieved within 25–50 seconds and check all the connections. Switch off and connect the lance and nozzle to operate.

It is important that hose and couplings are of good quality and are tightly connected, and that the seals are undamaged and properly inserted. Loose connections can impede the priming (drawing in).

Water Tanks with outlet connections (see figure I)

When connecting the pressure washer to a water tank with a suitable tap outlet, first connect the supply hose (not provided) to the tank outlet, open the tap to allow the water to displace all the air in the hose and then connect to the pressure washer.

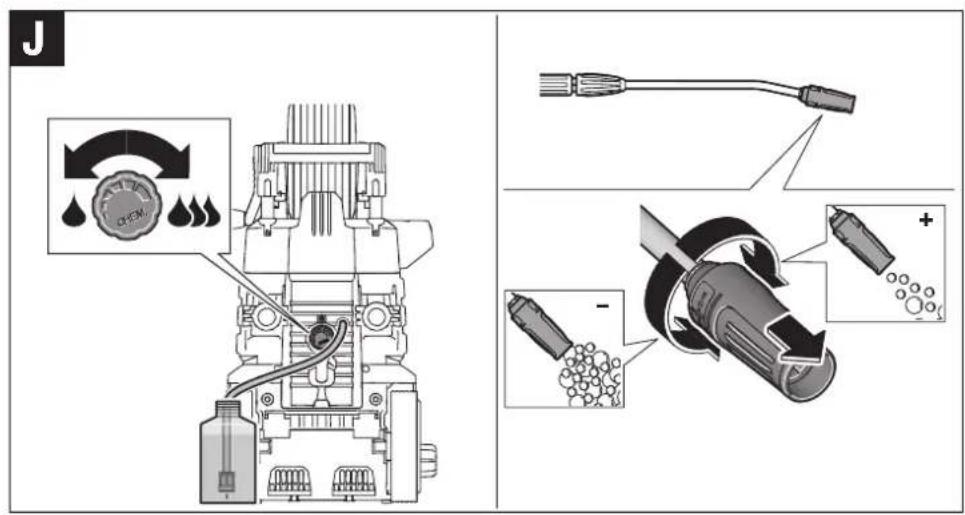

Use of detergents (see figure J)

Only use detergents recommended by the manufacturer. Comply with the application, disposal and warning instructions of the detergent manufacturers. Pull out the suction hose at the rear and put it into a bottle with detergent (not supplied with). Pull the nozzle of the lance into low pressure position. Switch on the gun. After a few seconds foam exits at the nozzle. Adjust the knob at the rear to dose the quantity. Turn the nozzle left/right to adjust the water jet.

Troubleshooting

Problem Possible Cause Corrective Action
Motor refuses to start Plug not connected Connect plug
	Mains socket faulty Use another socket
	Fuse faulty/blown Replace fuse
	Extension cable damaged Try without extension cable
	Motor protector has activated Allow to cool for 15 minutes
	Frozen Wait for pump/water supply hose/accessory to thaw
Motor stops Fuse faulty/blown Replace fuse
	Wrong mains voltage Check that mains voltage corresponds to specifications on the model tag
	Motor protector has activated Allow to cool for 15 minutes
Fuses blow Fuses incorrectly rated Change to a mains supply higher than the pressure washer amp consumption
Motor starts but no pressure	Nozzle partly blocked Clean nozzle
Motor “sounds” but fails to start	Insufficient power supply	Check that the voltage of the mains power supply line is the same as that on the plate
	Voltage loss due to use of extension cable	Check characteristics of extension cable
	Appliance not used for a long period of time	Contact your Bosch Service Centre
	Problems with TSS (Total Stop System) device	Contact your Bosch Service Centre
Pressure pulsating	Air in the inlet water supply hose/pump	Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained
	Inadequate water supply	Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter
	Water filter blocked	Clean water filter
	Water supply hoses squeezed	Straighten out kinked water supply hoses
	High pressure hose too long	Remove high pressure extension hose. Retry (extension hose max. 7 m)
Pressure too low, but steady	Nozzle worn	Change the nozzle
Note: Several types of accessory will normally deliver a lower pressure	Start/stop valve worn Activate trigger five times in quick succession

Problem Possible Cause Corrective Action
Motor starts up but with restricted or no working pressure	No water supply Connect water supply
	Water filter clogged up Clean the water filter
	Nozzle clogged up Clean nozzle
The pressure washer starts irregularly by itself	Pump/spray gun leaky Contact your Bosch Service Centre
Water leaks from machine Leaking pump A slight water leak is permissible; in case		of excessive leak, contact Bosch Service Centre
No detergent taken in Adjustable nozzle on high pressure setting		Set nozzle on low pressure setting

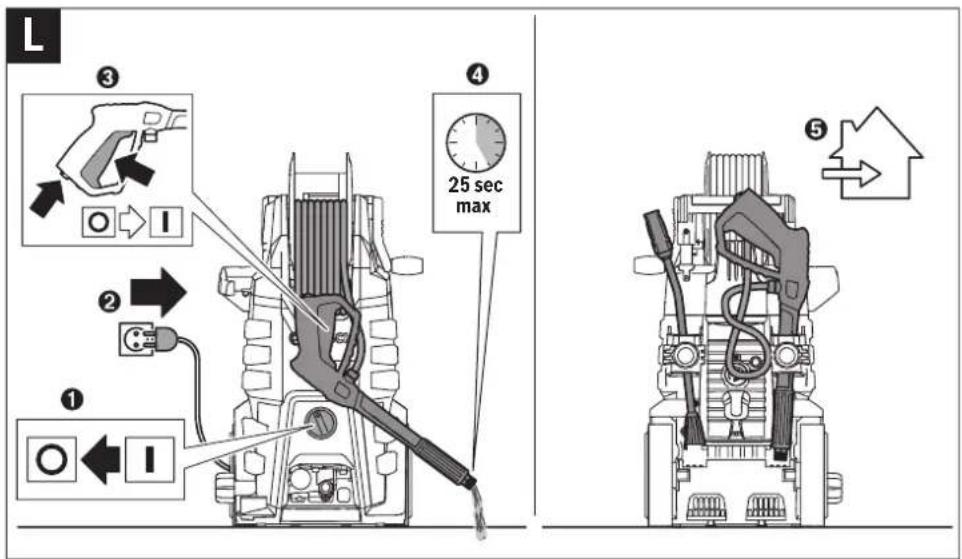

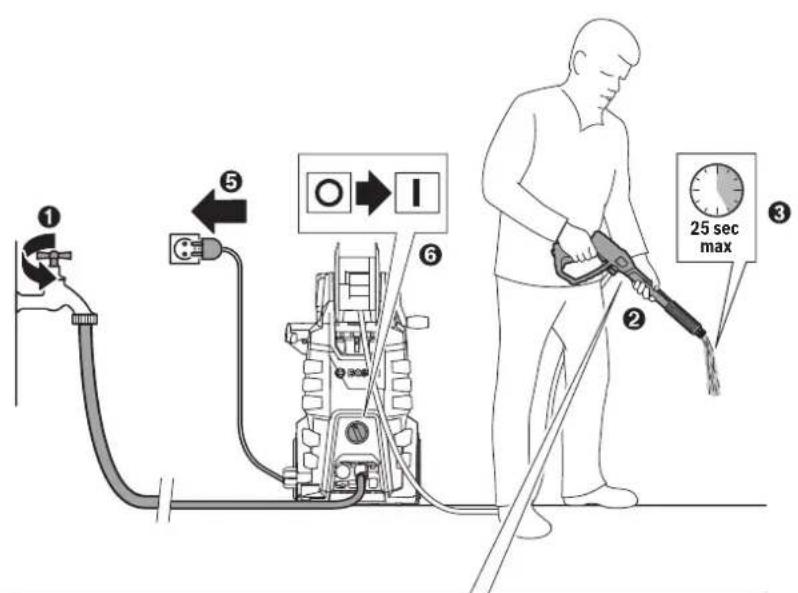

Draining Machine after use (see figure L)

Disconnect the water hose from the water tap.

Disconnect the lance from the gun.

Direct the gun to the ground and switch on the machine for operation.

Operate the trigger of the gun and drain all water from the system.

CAUTION: Do not run the machine longer than 25 seconds. Store the high-pressure washer in a dry place.

CAUTION: Scaling and frost damages are not covered under warranty. Remaining water in the machine will freeze at temperatures below 0 °C and destroy the pump. Within climate zones where temperature can reach 4 °C or below, the machine must be drained after last use if being stored prior to the cold season.

Maintenance and Service

Maintenance

▶ Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

We recommend to service the product every 200 (GHP 5-55, GHP 5-65, GHP 5-65 X, GHP 500 X)/300 (GHP 5-75, GHP 5-75 X) hours of running time with the authorised Bosch Service Centre.

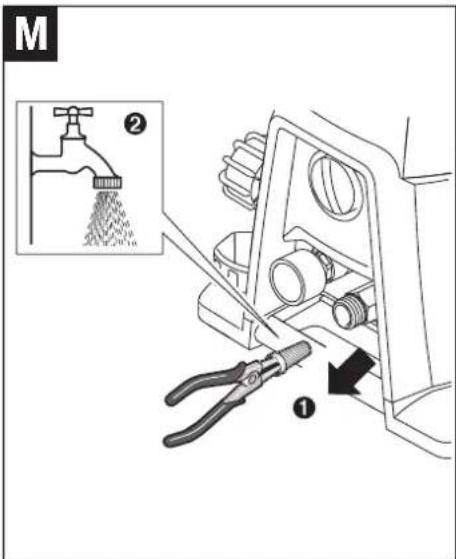

Clean the filters periodically once a week. Mention cleaning with vinegar can remove scales faster. Keep it immersed in vinegar for 30 mins. (see figures M – N)

Clean the nozzle.

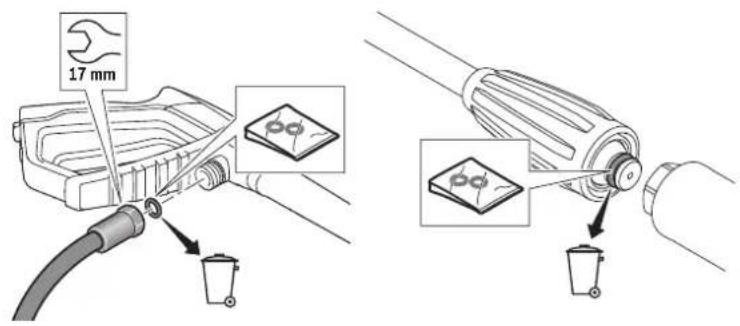

Grease the O rings. (see figure O)

After-sales Service and Application Service www.bosch-professional.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Français | 19

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Environmental Protection

Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc.

For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.

Disposal

The pressure washer, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of pressure washers into household waste!

Only for EC countries:

According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

French

Robert Bosch (France) S.A.S.

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

Never direct the water jet at people, animals, the machine itself, or electrical parts.

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

At www.bosch-pt.dk you can order spare parts online or create a repair order.

Service Center phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

Environmental protection

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (within Sweden)

Fax: [phone]

Environmental protection

Never direct the water jet at people, animals, the machine itself, or electrical parts.

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

26 Pressure setting (GHP 5-75/GHP 5-75 X)

27 Pressure gauge (GHP 5-75 X)

28 Pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

27 Pressure gauge (GHP 5-75 X)

Robert Bosch Sp. z o.o.

BSC

Ul. Szyszkowa 35/37

02-285 Warszawa

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

(GHP 500 X/GHP 5-65 X/GHP 5-75 X)

25 Hose reel

(GHP 500 X/GHP 5-65 X/GHP 5-75 X)

(GHP 5-75/GHP 5-75 X)

27 Pressure gauge

(GHP 5-75 X)

Power tool service

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucharest

Power tools service

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucharest, Romania

www.bosch-pt.com/bg/bg/

Never direct the water jet at people, animals, the device, or electrical parts.

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

Accessories shown or described are not part of the standard delivery. A complete range of accessories can be found in our accessories program.

Technical data

Uredjaj za čišćenje visokim pritiskom		GHP 5-55	GHP 500X	GHP 5-65	GHP 5-65X	GHP 5-75	GHP 5-75X
Broj predmeta	3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8..
Nominalna potrošnja	kW 2,2 2,2 2,4 2,4 2,6 2,6
Temperatura ulaza maks.	°C 50 50 50 50 50 50
Nominalan protok	I/h 500 500 485 485 560 560
Nominalni pritisak	MPa 11,5 11,5 13,0 13,0 14,0 14,0
Maksimalni radni pritisak	MPa 13,0 13,0 16,0 16,0 18,5 18,5
Protok	I/h 520 520 520 520 570 570
Maksimalni ulazni pritisak	MPa	1	1	1	1	1	1
Sila povratnog udarca štapa pri maksimalnom pritisku	N	19,71	19,71	20,46	20,46	24,37	24,37
Izolacija motora		Klasa F	Klasa F	Klasa F	Klasa F	Klasa F	Klasa F
Vrsta zaštite motora		IPX5	IPX5	IPX5	IPX5	IPX5	IPX5
Funkcija Autostop		●	●	●	●	●	●
Manometar		-	-	-	-	-	●
Podešavanje pritiska		-	-	-	-	●	●
Bubanj za crevo		-	●	-	●	-	●
Mrežna impedanca	Ω	-	-	0,32	0,32	0,32	0,32
Težina prema EPTA-Procedure 01:2014	kg 22,0 24,8 23,5 25,0 26,7 28,2
Klasa zaštite		± /I	± /I	± /I	± /I	± /I	± /I
Serijski broj		Pogledaje serijski broj (Tablica sa tipom) na čistaču visokog pritiska

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

Accessories shown or described are not part of the standard delivery. A complete range of accessories can be found in our accessories program.

208 | Slovenian

Technical data

Visokotlačni čistilec		GHP 5-55	GHP 500X	GHP 5-65	GHP 5-65X	GHP 5-75	GHP 5-75X
Številka artikla	3 600 ... J10 4.. J10 9.. J10 5.. J10 6.. J10 7.. J10 8..
Nazivno vsrkavanje	kW 2,2 2,2 2,4 2,4 2,6 2,6
Temperatura dotoka maks.	°C 50 50 50 50 50 50
Nazivni premer	I/h 500 500 485 485 560 560
Nazivni tlak	MPa	11,5	11,5	13,0	13,0	14,0	14,0
Maksimalni delovni tlak	MPa	13,0	13,0	16,0	16,0	18,5	18,5
Pretok	I/h 520 520 520 520 570 570
Maksimalni vhodni tlak	MPa	1	1	1	1	1	1
Povratna sila pršilne palice pri maksimalnem tlaku	N	19,71	19,71	20,46	20,46	24,37	24,37
Izolacija motorja		Razred F	Razred F	Razred F	Razred F	Razred F	Razred F
Vrsta zaščite motorja		IPX5	IPX5	IPX5	IPX5	IPX5	IPX5
Funkcija avtomatskega izklopa		●	●	●	●	●	●
Manometer		-	-	-	-	-	●
Nastavitev tlaka		-	-	-	-	●	●
Boben za gibko cev		-	●	-	●	-	●
Impendanca omrežja	Ω	-	-	0,32	0,32	0,32	0,32
Teža po EPTA-Procedure 01:2014	kg	22,0	24,8	23,5	25,0	26,7	28,2
Zaščitni razred		± /I	± /I	± /I	± /I	± /I	± /I

(GHP 500 X/GHP 5-65 X/GHP 5-75 X)

26 Surge regulator (GHP 5-75/GHP 5-75 X)

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

27 Pressure gauge (GHP 5-75 X)

28 High-pressure hose (GHP 5-55/GHP 5-65/GHP 5-75)

Malatan Trading & Contracting LLC

131: Email

Sultanate of Oman

[phone]: Mobile

International Construction Solutions W L L

Email: 51 Doha

Qatar

[phone]: Phone

Fax: [phone]

Fax: [phone]

Fax: [phone]

Central Motors & Equipment LLC

Email: 1984

(GRAPH 5-75, GHP 5-75X) 300

Maintenance.

(GHP 500 X/GHP 5-65 X/GHP 5-75 X)

(GHP 500 X/GHP 5-65 X/GHP 5-75 X)

26 Pressure regulator

(GHP 5-75/GHP 5-75 X)

27 Pressure gauge

(GHP 5-75 X)

28 High-pressure hose

(GHP 5-55/GHP 5-65/GHP 5-75)

1 609 92A 3EV | (16.5.17) Bosch Power Tools

Bosch Power Tools 1 609 92A 3EV | (16.5.17)

G

GHP 5-75

GHP 5-75 X

GHP 5-75 X

P

0

F016800457

GHP 5-55, GHP 500 X F 016 800 443

GHP 5-65, GHP 5-65 X F 016 800 444

GHP 5-75, GHP 5-75 X F 016 800 445

GHP 500 X, GHP 5-55 F 016 800 446

GHP 5-65, GHP 5-65 X F 016 800 447

GHP 5-75, GHP 5-75 X F 016 800 448

F016800454

8 m F 016 800 441

16 m F 016 800 442

I			CE
de	EU-KonformitätserklärungHochdruckreiniger Sachnummer		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.
en	EU Declaration of ConformityPressure washer Article number		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.
fr	Déclaration de conformité UENettoyeur haute pression	N° d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.
es	Declaración de conformidad UELimpiadora de alta presión	N° de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.
pt	Declaração de Conformidade UELimpador de alta pressão	N.° do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.
it	Dichiarazione di conformità UEIdropulitrice	Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.
nl	EU-conformiteitsverklaringHogedrukreiniger	Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.
da	EU-overensstemmelseserklæringHøjtryksrenser	Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestammelser i følgende direktiver og forordninger og opfylder følgende standarder.
sv	EU-konformitetsförklaringHögtryckstvätt	Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.
no	EU-samsvarserklæringHøytrykkspyler Produktnummer		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestammelser i direktivene og forordningene nedenfor og med følgende standarder.
fi	EU-vaatimustenmukaisuusvakuutusPainepesuri	Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.
el	Δήλωση πιστότητας ΕΕΠλυντικό υψηλής πίεσης	Αριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.
tr	AB Uygunluk beyaniYüksek basınçli te-mizleyici	Ürün kodu	Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.
pl	Deklaracja zgodności UEMyjka wysokociśnieniowa	Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.
cs	EU prohlásení o shoděVysokotlaký čistič	Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami:
sk	EÚ vyhlásenie o zhodeVysokotlakový čistič	Vecné číslo	Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami:
hu	EU konformitási nyilatkozatNagynyomású tisztító	Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.

CE ||

ru	Заявление о соответствии ЕСОчиститель Товарный Noвысокого давления	Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниям нижеуказанныхдиректив и распоряжений, а также нижеуказанных норм.
uk	Заява про відповідність ЄСОчищувач Товарний номервисокого тиску	Мизаявляємо під нашу одноособову відповідальність, що названі виробивідповідають усім чинним положенням нищеозначених директив ірозпоряджень, а також нижчеозначеним нормам.
kk	ЕО сәйкестік мағлүмдамасыЖоғары қысым Өнім нөмірітазалағыш	Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалармен жарлықтардың тиісті қағидаларына сәйкестігін және төмендегінормаларға сай екенін білдіреміз.
ro	Declarație de conformitate UEMaşină de curățat cu Număr deînaltă presiune identificare	Declarăm pe proprie răspundere că produsele menționate corespund tuturordispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ceurmează și sunt în conformitate cu următoarele standarde.
bg	ЕС декларация за съответствиеВодоструйнаМашина Каталоженомер	С пълна отговорностние декларираме, че посочените продукти отговарят навсички валидни изисквания на директивите и разпоредбите по-долу исъответства на следните стандарти.
mk	EU-Изjava за сообразностВисокопритиснапералка Број на дел/артикл	Со целосна одговорност изјавуваме, дека опишаните производи се всогласност со сите релевантни одредби на следните регулативи и прописи иссе во согласност со следните норми.
sr	EU-izjava o usaglašenostiUredjaj za čišćenje Broj predmetavisokim pritiskom	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svimdotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sasledećim standardima.
sl	Izjava o skladnosti EUVisokotlačni čistilec Številka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemirelevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.
hr	EU izjava o sukladnostiVisokotlačni uredaj Kataloški br.za čišćenje	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svimelevantnim odredbama direktiva i propisima navedenima u nastavku i da su su-kladni sa sljedećim normama.
et	EL-vastavusdeklaratsioonKõrgsurvepesur Tootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletuddirektiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas järgmis-te normidega.
lv	Deklarăcija par atbilstibu ESstandartiemAugstspiedienatirităjs Izstrădăjumanumurs	Mês ar pilnu atbildibu paziņojam, ka šeit aplūkotie izstrădăjumi atbilst visiemtălăk minėtajās direktivās un rikojumos ietvertajām saistošajām nostădnēm, kăari sekojošiem standartiem.
lt	ES atitikties deklaracijaAukšto slėgio plovi-mo jrenginys Gaminio numerism	Atsakingai pareiškiye, kad išvardyti gaminiai atitinka visus privalomus žemiaunurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.

III			CE
GHP 5-55	3 600 J10 4..	2011/65/EU
		2014/30/EU
GHP 500X	3 600 J10 9..	2006/42/EC
		2000/14/EC
		EN 60335-1:2012+A11:2014
		EN 60335-2-79:2012
		EN 55014-1:2006 + A1:2009 + A2:2011
		EN 55014-2:2015
		EN 61000-3-2:2014
		EN 61000-3-3:2013
		EN 50581:2012
GHP 5-65	3 600 J10 5..	2011/65/EU
		2014/30/EU
GHP 5-65X	3 600 J10 6..	2006/42/EC
		2000/14/EC
GHP 5-75	3 600 J10 7..	EN 60335-1:2012+A11:2014
		EN 60335-2-79:2012
GHP 5-75X	3 600 J10 8..	EN 55014-1:2006 + A1:2009 + A2:2011
		EN 55014-2:2015
		EN 61000-3-2:2014
		EN 61000-3-11:2000
		EN 50581:2012

CE

IV

de 3 600 J10 4../3 600 J10 5../3 600 J10 6../3 600 J10 9..

2000/14/EC: Measured sound power level 92 dB(A), uncertainty K = 2.5 dB, guaranteed sound power level 95 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27

3 600 J10 7../3 600 J10 8..

2000/14/EC: Measured sound power level 91 dB(A), uncertainty K = 2.3 dB, guaranteed sound power level 94 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27 Technical file at: *

fr 3 600 J10 4../3 600 J10 5../3 600 J10 6../3 600 J10 9..

Chairman of Executive

Management

Helmut Heinzelmann

Head of Product Certification

i.v. h=mc

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 14.05.2019
