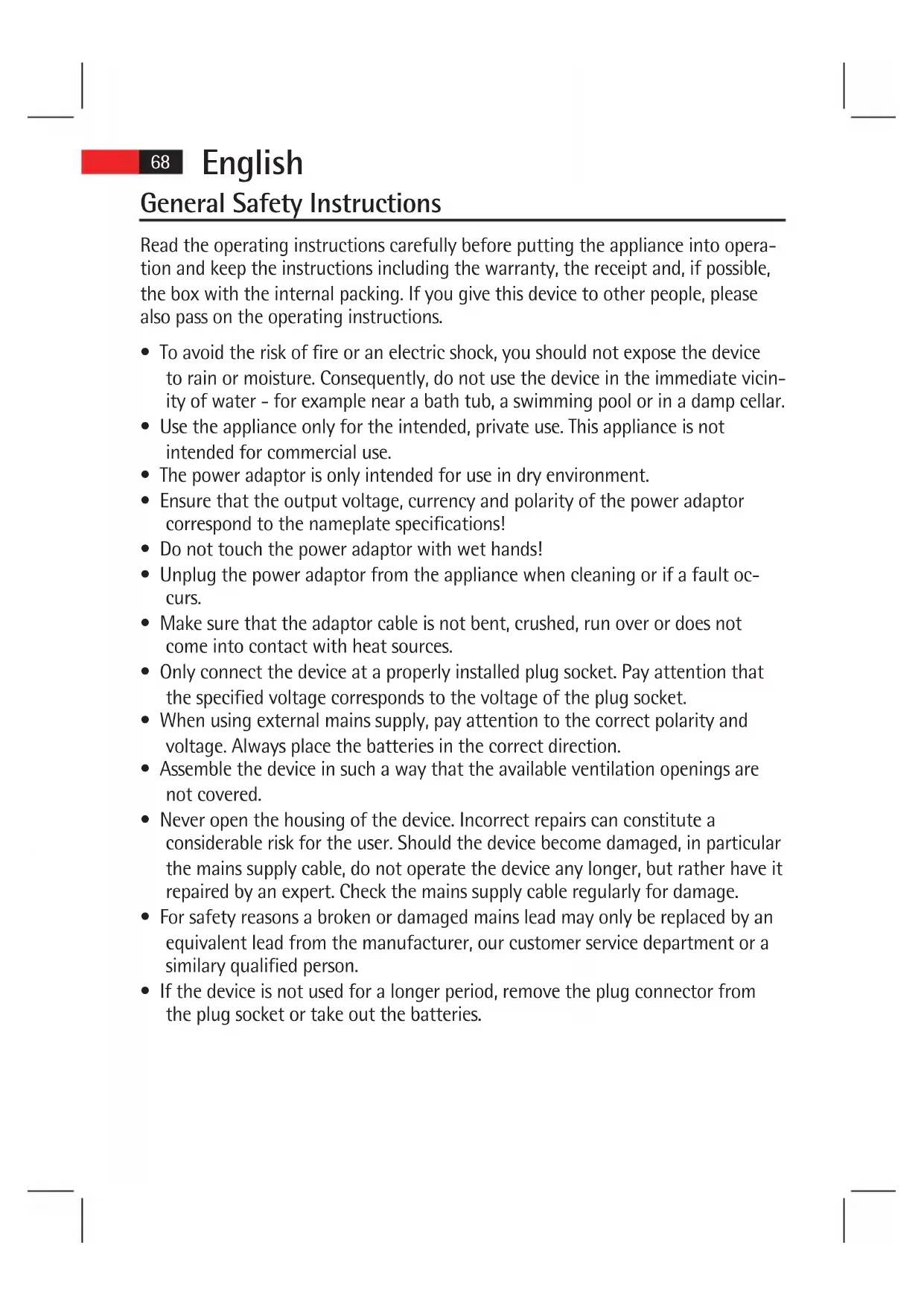

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

- To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

- Use the appliance only for the intended, private use. This appliance is not intended for commercial use.

- The power adaptor is only intended for use in dry environment.

- Ensure that the output voltage, currency and polarity of the power adaptor correspond to the nameplate specifications!

- Do not touch the power adaptor with wet hands!

- Unplug the power adaptor from the appliance when cleaning or if a fault occurs.

- Make sure that the adaptor cable is not bent, crushed, run over or does not come into contact with heat sources.

- Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.

- When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

- Assemble the device in such a way that the available ventilation openings are not covered.

- Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

- For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

- If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

English

Special Safety Instructions

• Do not use the device in locations that are extremely hot, cold, dusty or moist.
• Select a suitable location for the radio recorder, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
• Ensure that the radio recorder is sufficiently ventilated!
• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.
• Never touch the mains plug or lead with wet hands.
• Keep the mains lead away from heaters.
• Never put a heavy object on the electric lead.
• Keep the device away from vases, baths, wash basins etc. If liquid enters the device this may cause serious damage.

Overview of the Components

Fig. 1

1 SOUND button
2 LCD Display
3 UP button
4 DOWN button
5 CHNEL button (channel)
6 CH+ button
7 Battery compartment
8 Reset button
9 RADIO button
10 CH-button
11 MODE button
12 SET button
13 TIMER button
14 Back of unit (not shown) DC 4.5 V jack
FM aerial
Speaker

Fig. 2

Normal Display mode

First Use of the Device/Introduction

• Select a proper place for the device such as a dry, and even non slip area where you can easily operate the device.
• Make sure the device is vented sufficiently!
• If still in place, remove the protection foil from the display.

Inserting the batteries (Backup)

(Batteries are not included with the device)

In case of a power cut or if the device is unplugged, with batteries inserted, the settings will be kept.

1. Open the battery compartment (7) at the bottom.
2. Insert 2 AG13 batteries 1.5 V. Mind the correct polarity (indicated on the bottom of the battery case)!
3. Close the battery case.
4. If the device is not used for an extended period of time, remove the batteries from the device to avoid any leaking of battery acid.

CAUTION:

• Never use different battery types or new and used batteries together.
• Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer.

WARNING:

Never expose batteries to high temperatures or direct sunlight or throw batteries into fire for danger of explosion!

Power supply (Adaptor)

• Insert the grid plug into a properly installed three prong socket with 230 V, 50 Hz. Connect the device with the plug connector by inserting its plug into the DC 4.5 V jack of the device.
• Make sure the grid voltage corresponds to the figures on the rating plate.
• If no backup battery is inserted, time and station settings will be deleted during a power failure or when disconnecting from mains power supply.

English

CAUTION:

• Only use the supplied power adaptor for this device. Do not use for other devices.
• Only use power adaptor with 4.5 V (⊖-⊖-⊕), other adaptors may cause damage to the device.

i NOTE:

Disconnect from mains power supply during longer periods of non-use.

Battery Operation

You also have the option of operating the unit with 3 Type R6 "AA" batteries.

1. Open the battery compartment (7) at the bottom.
2. Insert 3 R6 "AA" batteries 1.5 V. Mind the correct polarity (indicated on the bottom of the battery case)!
3. Close the battery case.
4. If the device is not used for an extended period of time, remove the batteries from the device to avoid any leaking of battery acid.

CAUTION:

• Never use different battery types or new and used batteries together.
• Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer.

WARNING:

Never expose batteries to high temperatures or direct sunlight or throw batteries into fire for danger of explosion!

Setting and storing stations

1. Press the RADIO button (9), to switch the unit to radio mode. The radio symbol and the current frequency appear in the display (2).
2. If you want to store a station, select a memory location by pressing the CHNEL button (5).
3. Press the CH+ button (6) or CH- button (10), to set a station. The corresponding frequency is shown in the display.

4. To store the station you have found, hold the CHNEL button down, until you hear a signal. The station is now stored to the preselected memory location.

5. If reception is too weak, change the position of the dipole antenna in order to improve the reception.

NOTE:

All stored radio stations can be deleted by pressing the buttons CH+ and CHNEL at the same time.

Select stored stations

To select the stored radio station, press the CHNEL button repeatedly (5).

Volume

The volume can be adjusted using the UP/DOWN buttons (3/4).

Temperature display

The unit detects the current ambient temperature and it is shown in the display.

- In normal display mode (Fig. 2) you can alternate the temperature display between °C (degrees Celsius) and °F (degrees Fahrenheit) with the DOWN button.

Switch-off

The unit is switched off when the display shows normal mode (see Fig. 2).

Any malfunctions during operation can be rectified by pressing the Reset button.

- Push the (8) button with the help of a wire or a similar item to reset the electronics.

Set time

• In normal display mode (Fig. 2), press the SET button (12).
• You can set the hours, minutes, year, month, day and weekday in sequence using the UP (3) and DOWN (4) buttons.
• Confirm your entry each time with the SET button. The current item to be set flashes in the display.

i NOTE:

• If no button is pressed within approx. 30 seconds you hear a signal and the entries are stored.
• Press the UP button in normal mode to switch between 12 hour and 24 hour display.
  • In the 12 hour display appears the following:
• When setting the weekday (DAY), you can select between English, French, German, Spanish, Italian, Portuguese and Russian.

$$ A M = \text { m o r n i n g }, P M = \text { a f t e r n o o n } $$

Alarm function

You can choose to be woken by Nature Sounds or Melody or by the radio.

Wake up with Nature Sound/Melody (→)

1. In normal display mode (Fig. 2) press the MODE button (11), until ALARM and the Symbol "→" appear in the display.

2. Select between the 11 tone options with the DOWN button (4). These are: "Farmyard", "Forest", "Flowing Water", "Flowing Water and Birdsong", "Ocean and Seagulls", "Mix of the 5 previous sounds", "Brahms Wiegenlied", "Twinkle Little Star", "The Blue Bells of Scotland", "Alle Vögel sind schon da" and "Plaisir d'amore".

3. Activate the alarm function using the UP button (3). Press the UP button repeatedly to select between the following options:

4. : Alarm function activated. When the set time is reached, the selected Nature Sound or Melody sounds. The alarm is deactivated until the next morning after pressing the SOUND button (1).

5. 1 + SNOOZE: Activates the Alarm function and repeats the alarm. The selected alarm tone sounds when the set time is reached. The alarm is switched off by pressing the SOUND button (1). After the set Snooze time ends, the set alarm tone sounds again.

i NOTE:

Note that the repeated alarm is automatically deactivated after being used twice.

- If none of the two options are shown in the display, the alarm function is deactivated.

1. Press the SET button (12). The hours start to flash. Set the hours with the UP and DOWN buttons.
2. Press the SET button again. The minutes start to flash. Set the minutes using the UP and DOWN buttons.
3. Confirm your entry with the SET button. The Snooze time flashes in the display. Select the desired Snooze time with the UP and DOWN buttons.
4. Finally, press the SET button to apply your settings.

Radio alarm

1. In normal display mode (Fig. 2), press the MODE button (11), until ALARM and the Symbol "☐" appears in the display.
2. To set the alarm time, proceed as above under "Wake up with Nature Sound/ Melody" (Point 3-7). Instead of the alarm tone, the unit switches on when the entered alarm time is reached. The last set radio station plays for approx. 30 min. at the previously set volume.

i NOTE:

• In the display the " 2 " symbol appears when the function is activated.
• If the same time is set for two alarm options ( and ) only the radio will play.

Turning off the Alarm

Press the SOUND button (1) to switch off the alarm until the following day.

Deactivate Wake-Up Time

1. In normal display mode (Fig. 2) press the MODE button (11), until ALARM and the Symbol "→" or "→" appear in the display.
2. Press the UP button repeatedly until the symbol " "on" " and SNOOZE disappears from the display.

Countdown Timer

• In normal display mode (Fig. 2) press the MODE button (11) until the TIMER appears in the display.
• Press the SET button (12). The hours start to flash. You can set the hours, minutes and seconds in sequence using the UP (3) and DOWN (4) buttons. Confirm your entry each time with the SET button. The current display to be set flashes in the display.

76

English

• Activate the function by pressing the UP button. The countdown is shown in the display for approx. 30 sec. Then a short signal sounds and the normal display mode appears. The countdown continues in the background.
• After the countdown timer ends, an alarm tone sounds for approx. 1 minute. Press the SOUND button (1), to cancel the function.

NOTE:

Use the DOWN button to reset the countdown timer to zero.

Delayed Shut-Off

This function can be used optionally with one of the Nature Sounds or Melodies.

• In normal display mode (Fig. 2) press the TIMER button (13), to set the time delay (10-60 Min.).
• Activate the function with the SOUND button (1). The unit automatically switches off after the time has elapsed.
• This function can be cancelled with the SOUND button (1).

Cleaning

• Remove the plug before cleaning.
• Clean the appliance with a slightly humid cloth without any additives.
• Do not dip the appliance in water.

Technical Data

Model: MRC 4117

Backup battery: 2x 1.5 V, AG13

Net weight: 0.31 kg

Power Consumption: 6 W

External power adaptor

Input: AC 100-240 V, 50/60 Hz

Output: DC 4.5 V / 0.4 A

Polarity:____— ⊖ — C —

Protection Class:....II

Radio

Frequency Range: FM 87.5 \~ 108 MHz

Technical modifications reserved!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
