Product Type	Built-in Oven
Brand	Candy
Model	CA6 N3B3YTX1
Dimensions (H x W x D)	595 x 595 x 550 mm
Weight	35 kg (approx.)
Power Supply	220-240 V, 50/60 Hz, 16 A (adjustable 13 A)
Maximum Power	3.5 kW (approx.)
Capacity	70 L (estimated)
Energy Class	A
Heating Type	Natural convection, fan-assisted (multi-level), grill, etc.
Main Functions	ECO, Natural convection, Multi-level, Supergrill, Gratin, Air fry, All-in-one baking, Pizza, Everyday Cooking (Meat, Fish, Vegetables)
Connectivity	Wi-Fi (IEEE 802.11 b/g/n) and Bluetooth (v4.2)
Display	LED with status bar
Door	Glass, soft close/open hinges, removable for cleaning
Safety	Door lock (pyrolysis), child safety (screen lock), automatic heater shut-off when door opens (grill)
Cleaning	Pyrolysis (410°C), Aquactiva (steam), Catalysis (catalytic panels)
Included Accessories	Metal grid, baking tray, deeper tray, drip tray, telescopic guides (depending on model), smart tray, rotisserie spit (depending on model)
Interior Lighting	LED bulb class G, replaceable
Repairability Index	Not specified (spare parts available)

Frequently Asked Questions - CA6 N3B3YTX1 CANDY

How to clean the oven using the pyrolysis function?

Remove all accessories and side racks. Turn the function knob to the pyrolysis position (dedicated symbol). Set the duration (default). The oven heats to 410°C and locks the door automatically. After cooling, wipe the ashes with a damp cloth. Do not use detergents.

How to connect the oven to the hOn app?

Download the hOn app. Turn on the oven and ensure Wi-Fi is enabled (icon blinks). Follow the steps in the app: register, add the device (oven category), and allow location. The oven will be detected; select it and connect.

What cooking functions are available?

The functions include: ECO (energy saving), Natural convection (top+bottom heat), Multi-level (fan-assisted), Supergrill, Gratin, Air fry, All-in-one baking, Pizza, and Everyday Cooking programs (Meat, Fish, Vegetables). Each function has a default temperature and an adjustable range.

How to set the time and initial settings?

On first startup, the display shows 12:00 flashing. Press the Time (clock) button and use the dial to set the hour, then the minutes. Then set the amperage (13 A or 16 A), brightness and sound by turning the dial and confirming with the Time button.

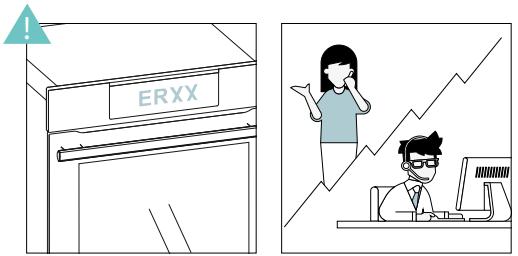

What to do in case of error code ERXX?

Turn off the oven and unplug it for a few minutes. Plug it back in. If the error persists, contact customer service with the code (e.g., ER24). Code 24 indicates a door lock problem during pyrolysis.

How to change the oven bulb?

Unplug the oven. Remove the glass cover of the lamp (top or side). Unscrew the faulty bulb and replace it with a new bulb of the same type (class G). Replace the cover and plug the oven back in.

How to clean the glass door?

Open the door 90°, turn the locking tabs outward. Tilt the door to 45°, press the side buttons and remove the top cover. Carefully remove the inner glass (the outer glass is not removable). Clean with a soft cloth and non-abrasive cleaner. Reassemble in reverse order.

Can I use delayed cooking programs?

Yes, delayed start allows you to program the start time of cooking. To activate it, first set the cooking duration, then access the Time menu (press the Time button several times) until the delayed start symbol appears. Use the dial to set the start time. Available except for grill functions.

What accessories are supplied with the oven?

Depending on the model, you may find: metal grid, baking tray, deeper tray, drip tray, telescopic guides, smart tray (barbecue or steam mode), rotisserie spit, and air fry tray. Refer to the Accessories chapter of the manual.

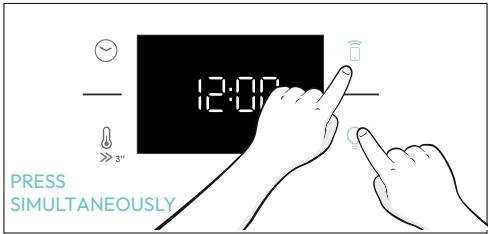

How to activate child lock?

To lock the screen, press the Remote Control and Lamp buttons simultaneously for a few seconds. The screen displays a lock symbol. To deactivate, repeat the same operation.

USER MANUAL CA6 N3B3YTX1 CANDY

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

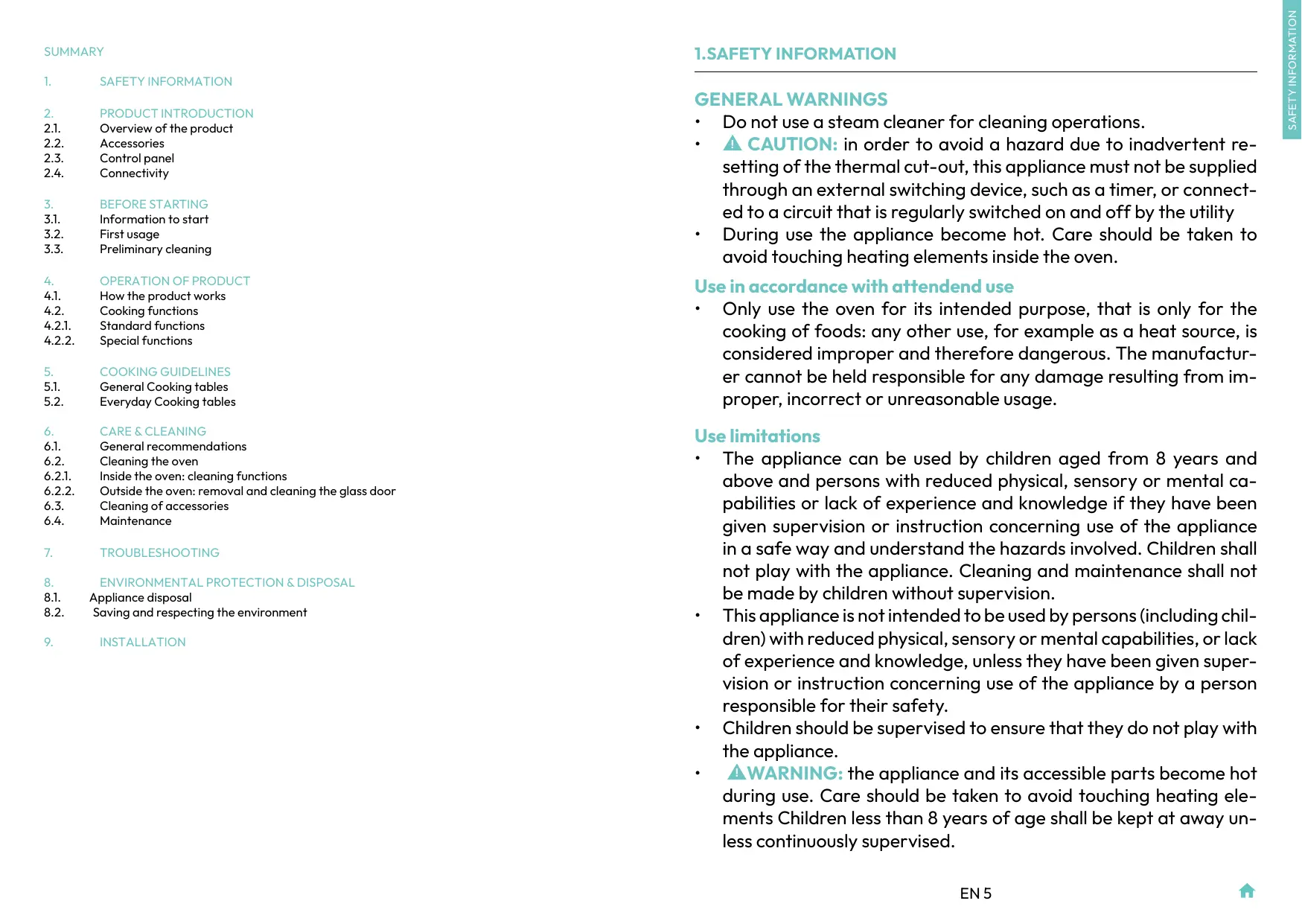

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION
   2.1. Overview of the product
   2.2. Accessories
   2.3. Control panel
   2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start
3.2. First usage
3.3. Preliminary cleaning

1. OPERATION OF PRODUCT

4.1. How the product works
4.2. Cooking functions
4.2.1. Standard functions
4.2.2. Special functions

1. COOKING GUIDELINES

5.1. General Cooking tables
5.2. Everyday Cooking tables

1. CARE & CLEANING

6.1. General recommendations
6.2. Cleaning the oven
6.2.1. Inside the oven: cleaning functions
6.2.2. Outside the oven: removal and cleaning the glass door
6.3. Cleaning of accessories
6.4. Maintenance

1. TROUBLESHOOTING

2. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance disposal
8.2. Saving and respecting the environment

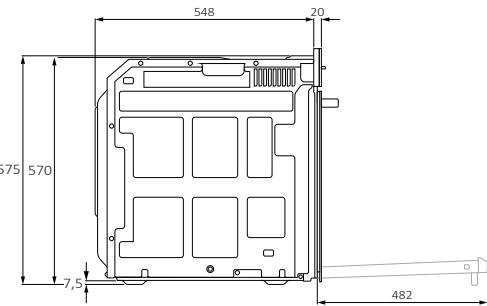

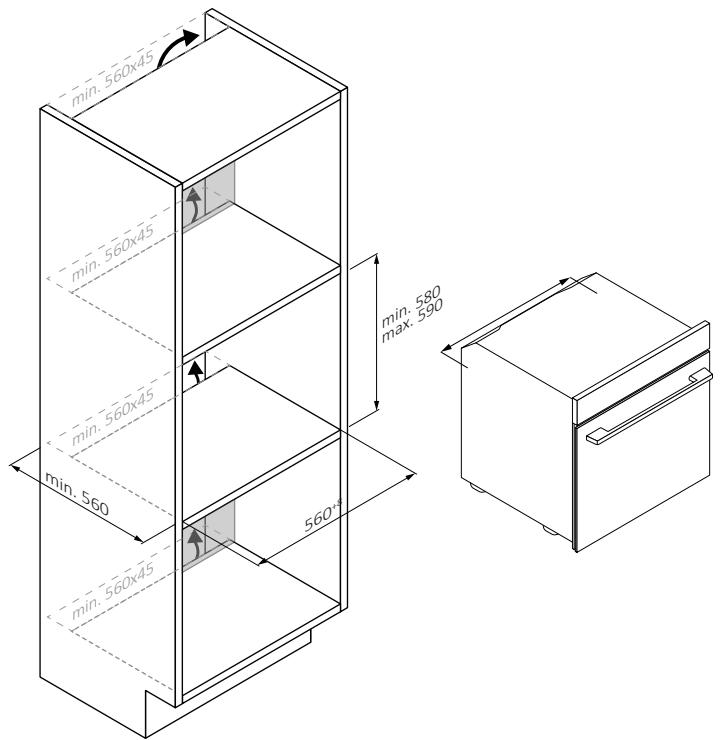

9. INSTALLATION

GENERALWARNINGS

• Do not use a steam cleaner for cleaning operations.
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility
• During use the appliance become hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with attendend use

• Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• AWARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements Children less than 8 years of age shall be kept at away unless continuously supervised.

children should be kept away.

INSTALLATION WARNINGS

• The oven can be located high in a column or under a worktop.
• Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.
• No additional operation/setting is required in order to operate the appliance at the rated frequencies.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• During installation the oven should be disconnected from the mains to avoid overheating.
• If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.
• Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.
• Installation must be carried on by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instruction.
• After unboxing the appliance, always check it is not damaged, in case of issue contact the customer service before installing and do not connect to the power supply.
• Remove the packaging material before operating the appliance.
• During installation do not use the oven door's handle to lift and move the oven.
• The installation furniture and the adjacent ones must with stand temperatures of 95^ C .
• It is recommended to wear protective gloves during installation to avoid cut injuries.
• Do not install the product in open environments exposed to at-

This appliance is designed to be used at altitude lower than 2000m.

ELECTRICALWARNINGS

• The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• A WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

• The use of any electrical appliance implies the observance of some fundamental rules:

• do not pull on the power cable to disconnect the appliance from the power source;

• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension

in case of malfunction and/

appliance and do not tamper with it.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
- Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
- The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
- A CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplier through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
- The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MANTEINANCE

• The dripping pan collects the residues that drip during cooking.
• When you place the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before

pears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• A WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• A WARNING: Never remove the oven door seal.
• A CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNING (*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.

• WARNING: before initiating the automatic cleaning cycle:

• Clean the oven door;

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;
• Remove all accessories and the sliding rack kit (where present);

• Do not place tea towels.

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

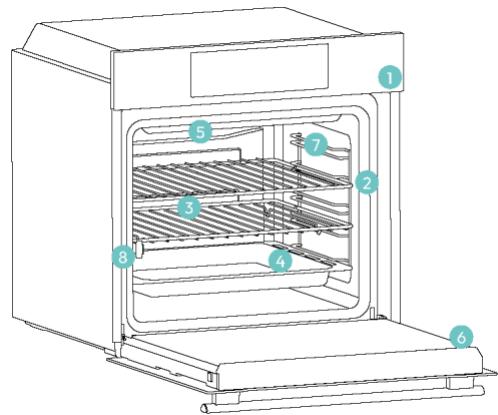

2.1. OVERVIEW OF THE PRODUCT

2.2 ACCESSORIES

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Ovendoor
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QRcode

Write here your serial number for future reference.

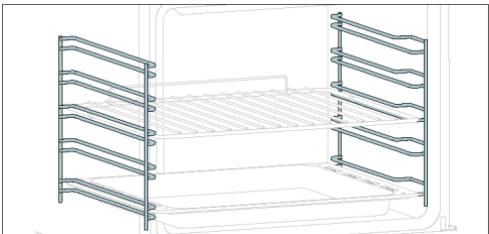

Lateral wire grids (only if present*)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

Baking tray (only if present*)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

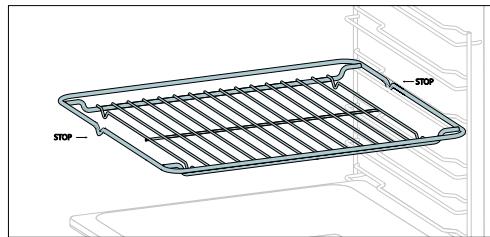

Metal grid

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

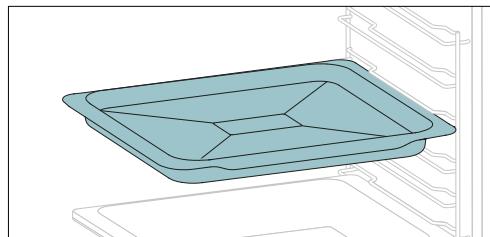

Deeper Tray

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

Telescopic Guides (only if present*)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

Smart Tray - BBQ mode (only if present*)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

Turnspit (only if present*)

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

Softclose/Soft open hinges (only if present*)

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Smart Tray - STEAM mode (only if present*)

The convex shape is suitable for grilling in the oven at high temperature (220^) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

Airfry tray (only if present*)

The air fry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. To collect juices and breading, place it on top of the baking tray.

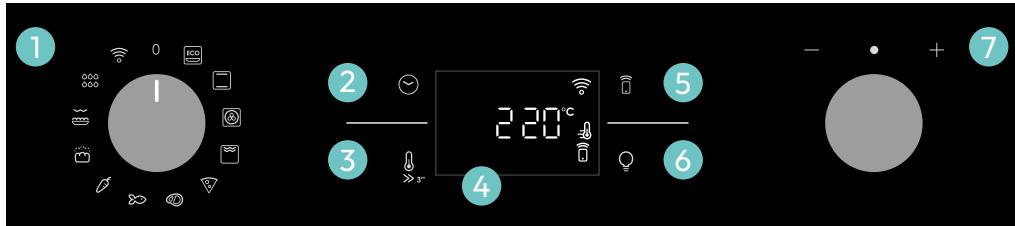

2.3 CONTROL PANEL

Functions and functions

1. Function selector knob
2. Time
3. Temperature
4. LED display
5. Remote control
6. Lamp
7. Dial control

MAIN FUNCTIONS

The display has 4 main functions:

Symbol	Function	Description
Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for the time of day, and four times for delay start. In standby mode, only the kitchen timer is accessible.
Temperature	Press once to check the cavity temperature, press and hold for 3 seconds to activate the fast-Pre-heating option (only available during the oven's preheat phase). When the preheat is active, the releated icon will be shown on the display.

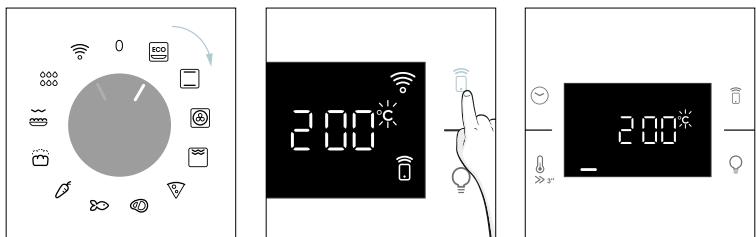

Remote Control on/off	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
Light	Press to turn on/off the oven cavity light.

2.4 CONNECTIVITY

Wireless parameters

Technology	Wi-Fi	Bluetooth
Standard	IEEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401÷2483	2402÷2480
Maximum Power [mW]	100	10

Product information for networked equipment

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2,0 W.

How to activate wireless network port:

WIFI module switches on as soon as the function knob is set to a position different to zero.

How to deactivate wireless network port:

WIFI module is always off when the function knob is set to zero position.

If the knob is set to different position, go to WIFI menu and select off to deactivate the WIFI.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market.

The full text of the declaration of conformity is available at the following internet

address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
  You will be given step by step guidance on both your appliance and mobile device.
  It may take up to 10 minutes to connect your oven.
  For further guidance and troubleshooting, please refer to the app.

Available on the App Store

GET IT ON Google Play

NEW USER REGISTRATION

• Click on "Register"
  You can register through social accounts or sign up with your personal email

Welcome!

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

X

Do you already have a thousand passwords?

Register with your social accounts
and log in in the easiest and fastest way

G SIGN UP WITH GOOGL

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK
No information relating to you will be shared

0

SIGN UP WITH EMAIL

Already registered?

LOGIN

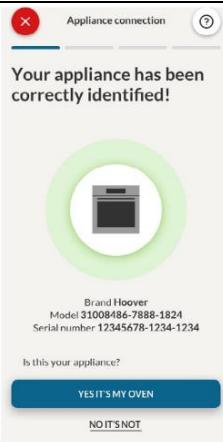

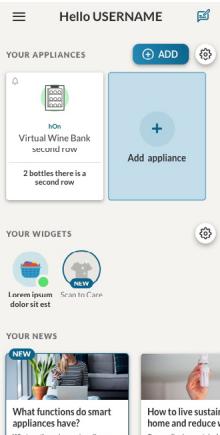

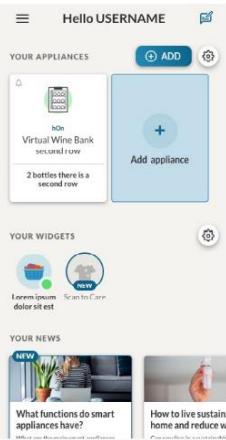

QUICK PAIR ENROLLMENT

Step 1
- Select "Add appliance".

Step 2
- Allow your location permission.

Step 3

• Select oven from the appliance category.

Step 4

• Turn on your appliance; if it is already on, turn it off and on again.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Step 3

• Select oven from the appliance category.

Select your appliance category

Q Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OK IDIDIT

Step 5

After turning on, the hOn app will start searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hON app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

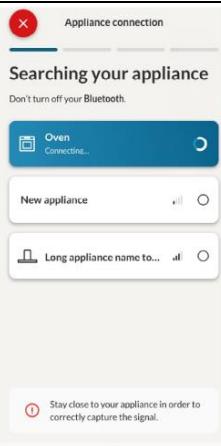

Step 6.1-6.2

• Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Step 7

• Your Oven will be found and you can control it through hOn.

Appliance connection

Your appliance has been correctly identified!

Brande and Hoover Model 39:1985-1988 12436578-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

HOW TO CHANGE WIFI SETTINGS

Once the appliance is enrolled, the user can change the WIFI settings between:

• WIFION: It is only possible to monitor the oven status by App.
  WIFI OFF: The oven is not connected but still enrolled with network credentials saved.

• WIFI RESET: The connection is reset and a new enrollment is possible.

• Turn the function knob on WIFI menu.

• On display appears "On".
• Rotate the dial control until "Off" or the reset setting "rSt" will be showed.

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use.

Furthermore, it is possible to receive notifications once programs or recipes are completed.

The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin and Supergrill programs.

How to activate Remote Control:

1. Turn the function knob on WIFI menu.
2. Press .
3. On display appears "hOn". Both WIFI and Remote Control icons will be shown.
4. Access to the App, select a program and let the cooking starts. During the process is possible to control and change the program parameters from both product and App.

It's also possible to activate Remote Control during cooking process by pressing related button.

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by rotating the function knob to a different position. These actions interrupt the cooking process.

Another way is by pressing the corresponding button of Remote Control that came with your appliance. These actions interrupt the cooking process.

You can also stop the cooking program remotely using the app by clicking the 'STOP' Button on display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

3. BEFORE STARTING

3.1. INFORMATION TO START

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

For functions that use the grill, thanks to the door switch technology the oven will automatically pause the heating elements when you open the door and continue cooking once you close it.

This feature is available only on specific oven configurations. All the pyro models have it.

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm air flow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

How status bar works

The status bar, based on the set programs, simplifies monitoring of temperature and time. Specifically, for functions involving preheating, it displays the temperature increase during this phase. In cooking programs and the pyrolytic cleaning function, it shows the countdown of cooking time and the cleaning cycle, respectively.

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, select brightness and sound level.

• SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, press and use the right knob to adjust the current hour. Press again and follow the same procedure to set the minutes. To confirm, press once more.

• AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 ~kW (16 A). If your home has lower power, you can change this setting to 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Just turn the right knob to pick the one you want, then press to confirm.

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.

BRIGHTNESS: The display shows the symbol “br”. The numbers represent the level of brightness intensity, editable turning the right knob. To confirm press

SOUND: The display shows the symbol "Sn". The numbers represent the level of sound intensity, editable turning the right knob. To confirm press

When oven is in stand-by mode, it is possible to go back to initial settings by pressing simultaneously Temperature and Lamp buttons for 5 sec.

3.2. PRELIMINARY CLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON the oven rotate the function knob (clockwise/counterclockwise) and select a cooking program. To turn it OFF, set the function knob to the 'O' position.

SET COOKING PROGRAM

Turn the function knob and select the desired program. On display will appear a default temperature that can be edit in every moment turning the right knob (clockwise to increase and counterclockwise to decrease the temperature).

TIME MENU

Access the Time menu by pressing . To navigate into tap as many times as is needed to enter in the following settings:

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

COOKING DURATION

Allows to preset the cooking time required for the recipe chosen.

ACTIVATION: press to enter in the Time menu. Tap as many times as you need to select "Cooking duration" function. Then use the dial control to regulate the value.

The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by turning the right knob. When duration is elapsed the cooking stops.

MINUTE MINDER

Allows to use the oven as alarm clock.

ACTIVATION: press to enter in the Time menu. Tap as many times as you need to select "Minute minder" function. Then use the dial control to regulate the value.

When the function is set, the primary information showed on display is always the time. To edit the temperature, press to enter dedicated edit mode. When duration is elapsed, the cooking continues until the left knob is turned in O position.

This function can be set also when the oven is in stand by mode by pressing . When activated, the minute minder operates independently of the oven's cooking functions.

DELAY START

Allows to choose the cooking start time.

ACTIVATION: press to enter in the Time menu. Tap as many times as you need to select "Delay start" function. Then use the dial control to set the start time of cooking.

NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill's functions.

This function allows you to lock the screen to prevent any unwanted use by minors. To activate the screen lock, press and hold down the Remote Control and Lamp buttons simultaneously. Repeat the same action to deactivate the lock.

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3s after having selected cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the cavity fan will be turned OFF until the oven reaches the desired temperature.

4.2.1. STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase.

Symbol	Function	T°C default T°C range	Suggested shelf position	Preheat	Suggestions
ECO	*ECO	190 °C 150-220 °C	L3/L4	NO	IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender.Cavity lamp is switched off
	*Conventional	30-250°C	L2/L3	Yes/Fast preheat	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Heat Feel Sensor.
	Multi-Level	160°C 50-250°C	L4 (one tray) L2+L5 (two trays) L2+L4+L6 (three trays)	Yes/Fast preheat	IDEAL FOR: cakes, biscuits and pizzas on one or more levels.ideal to cook different foods.Can be used with Heat Feel Sensor.
	**Supergrill	05 01-05	L6	NO	IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot.Use with the door closed.Turn food two thirds of the way through cooking (If necessary).
	**Gratin(***)	200°C 150-250°C	L4/L5	Yes/Fast preheat	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over half-way through cooking if needed.
	Air fry(***)	200°C 150-250°C	L3/L4	NO	IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray, the hot air can flow evenly over the foods.
	Bakery all-in	200°C	L2	NO	IDEAL FOR: foods that require automatic leaven-ing and baking.

• Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class.
  Use with the door closed.
  * Depending on the oven model.

4.2.2. SPECIAL FUNCTIONS

Symbol	Function	T°C default T°C range	Suggested shelf position	Preheat	Suggestions
Pizza	300°C 200-300°C	2/3	NO	IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Category	Recipe	N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes/Muffins	1	Static Multilevel	175°C 160°C		Baking tray Baking tray	L3 L4	20-30 30-40
		2	Multilevel	150°C	Y	Baking + Deeper trays	L2+L5	30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	40-50
	Sponge cakes(26 cm Ø)	1	Static	170°C		Metal grid + Cake tin	L2	30-40
			Multilevel	150°C	Y	Metal grid + Cake tin	L4	40-50
		2	Multilevel	150°C		Metal grids + Cake tin	L1+L4	50-60
	Biscuits/Shortbreads	1	Static Multilevel	150°C 150°C		Baking tray Baking tray	L3 L4	25-30 30-40
		2	Multilevel	140°C	Y	Baking + Deeper trays	L2+L5	30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	35-40
	Choquettes	1	Static	190°C		Baking tray	L4	25-35
		2	Multilevel	170°C		Baking tray	L3	25-35
	Yorkshire pudding	1	Static	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray		90-160
	Macaron	1	Static	150°C	Y	Baking tray	L3	15-20
	Apple pie	1	Static	185°C	Y	Metal grid + Cake tin	L2	60-70
		1	Multilevel	170°C	Y	Metal grid + Cake tin	L4	65-75
	Tarte tatin	1	Static	170°C	Y	Metal grid + Cake tin	L2	40-60
	Chocolate souffle	1	Static	200°C	Y	Baking tray + molds	L3	10-15
	Cheesecake	1	Static	150°C	Y	Metal grid + Cake tin	L2	50-65
	Frozen croissants	1	Static	180°C	Y	Baking tray	L3	20-25
		2	Static	180°C		Baking trays	L2+L5	25-35
		3	Multilevel	160°C		Baking trays	L2+L4+L6	30-40
	Strudel, frozen	1	Static	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	5	N	Metal grid	L6	4-6
	Focaccia	1	Static	200°C	Y	Baking tray	L2 or L3	25-35
	Bread, whole	1	Static	200°C	Y	Baking tray	L3	35-50
Savory pies and casseroles	Salty cakes / Quiches (26 cm Ø)	1	Static	200°C	Y	Metal grid + Quiche tin	L1 or L2	30-50
		2	Multilevel	180°C	Y	Metal grid + Quiche tin	L1+L4	50-70
	Cheese souffle	1	Static	200°C	Y	Baking tray + molds	L3	20-35
	Lasagna, fresh	1	Static	200°C	Y	Metal grid + ovenproof dish	L3	40-60
	Lasagna, frozen	1	Static	180°C	Y	Metal grid + ovenproof dish	L3	50-60
	Cannelloni, frozen	1	Static	180°C	Y	Metal grid + ovenproof dish	L3	45-55
	Baked pasta	1	Gratin	200°C	Y	Metal grid + ovenproof dish	L4	20-30
Pizza	Pizza, fresh (Tray)	1	Static	250°C	Y	Baking tray	L2 or L3	15-20
	Pizza, fresh (Tray)	1	Pizza	250°C	N	Baking tray	L2 or L3	18-25
		2	Multilevel	180°C	Y	Baking + Deeper trays	L2+L5	25-35
	Pizza, fresh (Round)	1	Static	250°C	Y	Baking tray	L2 or L3	8-10
	Pizza, fresh (Round)	1	Pizza	300°C	N	Baking tray	L2 or L3	15-20
		2	Multilevel	180°C	Y	Baking + Deeper trays	L2+L5	30-40
	Pizza, frozen (thin crust)	1	Static	220°C	Y	Metal grid	L3	10-15
		2	Multilevel	200°C		Metal grid	L2+L5	15-25
		3	Multilevel	180°C		Metal grid	L2+L4+L6
	Pizza, frozen (thin crust)	1	Pizza	200°C	N	Metal grid	L2	10-15
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1	Gratin	220°C	Y	Metal grid/L4 Place Backing tray at L1 with 150ml of water	L4	40-60
	Chicken thighs	1	AitFry**	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3	50-60

Category	Recipe	N°of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Rooster	1	Gratin	220°C	Y	Metal grid Place baking tray at L1	L4	20-40
	Roasted Turkey	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3	50-60
	Pork ribs (1000-1200g)	1	Static	200°C	Y	Metal grid + Ovenproof dish	L3	80-100
	Sausages	1	Supergrill	4	Y	Metal grid	L5	40-50
	Beef fillet (1000-1500g)	1	Gentle cooking**	60°C	N	Metal grid + Ovenproof dish	L3	60-80
	Roast beef (500g)	1	Gratin	220°C	Y	Baking tray	L3	20-40
	Meatloaf (1000-1500g)	1	Static	180°C	Y	Baking tray	L3	40-50
	Roasted chicken with potatoes	1	Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1	Supergrill	4	N	Metal grid	L5	15-30
	Frozen fish sticks	1	AirFry**	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3	40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3	80-90
	Frozen french fries (300-500g)	1	AirFry**	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L4	15-25
	Roasted potatoes	1	Static	200°C	Y	Baking tray	L4	30-50

Cooking times may vary according to consumer's recipe and ingredients.

if preheating required
* Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Sym-bol	Descrip- tion	Pre- heat	Shelf position	Tempera- ture range (℃)	Time Range (min)	Heat Feel Sensor tem- perature (if available)	Description
	Meat	NO	2-3-4	180-200	20-80	55-85°C	For beef, veal and pork roasts, poultry and cuts of meat.
	Fish	NO	3-4	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	3-4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding th use of everyday cooking programs and instead opting for standard functions.

Recipe	Serving size	Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Meat		Metal grid	L3
Meatloaf	1000-1500g	Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g	Meat	200°C	Metal grid	L3	50-80
Port roast	800-1000g	Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	Meat	190°C	Metal grid	L3	80-100
Salmon fillets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C	Metal grid	L3	10-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bakery	200°C	Metal grid	L3	35-50
Rye bread	1	Bakery	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bakery	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bakery	200°C	Metal grid	L3	15-25
Frozen puff pastry snacks	1	Bakery	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Mixed vegetables	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Cauliflower	1 tray	Vegetables	190°C	Metal grid	L3	40-50
Pumpkins, cubed	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Stuffed peppers	1 tray	Vegetables	180°C	Metal grid	L3	70-80
Stuffed zucchini	1 tray	Vegetables	190°C	Metal grid	L3	35-45
Carrot sticks	1 tray	Vegetables	180°C	Baking tray	L3	35-40
Broccoli	1 tray	Vegetables	190°C	Baking tray	L3	30-40
Ratatouille	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Vegetable flan	6 ramekins	Vegetables	180°C	Baking tray + molds	L3	25-35

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.
- Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides.
In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little.
In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410^ .

At the end of the cleaning cycle, all that remains within the cavity is a minimal deposit of dust, easily wiped away with a damp cloth.

How does it work:

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (^*)
2. Turn function knob on . Turn the dial control to set the Pyrolytic program; Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.
3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
   A WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(^*) only for models with 7 levels.

Aquaactiva

The Aquactiva function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour 100ml of water into the bottom embossment of the oven.
2. Turn the knob on 水水 . If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. A WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing absorbs grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

6.2.2. OUTSIDE THE OVEN:

removal and cleaning the glass door

1. Position the door at 90^ . Rotate the hinge locking tabs outward from the oven.

1. Position the door at 45^ . Simultaneously press the two buttons on both the sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

1. WARNING: The outer glass is not removable.

1. Clean the glass using a soft cloth and suitable cleaning products.

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.

1. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.

1. Then, bring the door back to 90^ and rotate the hinge locking tabs inward towards the inside of the oven.

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.
3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

Changing the lateral bulb:

1. Disconnect the oven from mains supply.
2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turn off the oven and un Plug it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1.APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

8.2. SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

Vista posteriore
Vista laterale

CANDY

KOMPLETTES BENUTZERHANDBUCH

(DE) Kurzanleitung I (FR) Guide rapide (IT) Guida veloc

www.candy-home.com

CANDY HOOVER GROUP Via Comolli 16 Brugherio - Italien

WILLKOMMEN

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

X

Do you already have a thousand passwords?

Register with your social accounts
and log in in the easiest and fastest way

SIGN UP Wl

SIGN UP WITH APPLE

No information relating to you will be shared.

and we will not post anything from you.

。

Already registered?

LOGIN

To enhance your experience, please allow location permission to HON app in the new version.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON

your appliance

In case you can't switch OFF your appliancc,

unplug (for at least 10 seconds) and then

plug its power supply

OK.I DIDIT

Schritt 5

COMMENT INTERAGIR AVEC L'APPLICATION

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords?

Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

IGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

01

SIGN UP WITH EMAIL

Already registered?

LOGIN

APPAIRAGE RAPIDE

Étape 1

Allow your location permission

To enhance your experience, please allow location permission to HON app in the new version.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OK.DIDIT

Étape 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Étape 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

Stay close to your appliance in order to correctly capture the signal.

Étape 7

Appliance connection

Your appliance has been correctly identified!

Brand and Hoovee
Model 3650-2018-14-1982
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

COMMENT MODIFIER LES PARAMÉTRES DU WI-FI

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Passo 5

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Paso 5

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

X

dy have a thousand passwords?

with your social accounts

and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

No information relating to you will be shared.

and we will not post anything from you.

SIGN UP WITH EMAIL

Already registered?

LOGIN

ERTPAΦ'H ΓP'HΓOPH Σ ANTIΣTOIXHΞH

Bnμα 1

Eπiεξτε"PpooθηκnσoʊkeuΩζ".

Bnua 2

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

EL 14

EL 15

Bnua 5

ENEPTI0I1H2H/ANENEPTIOI1H2H TOY O'YPNOY

Tia va avayete ToV foOpvno TepipteTc ToV diakottnn aeitoupyiac (deiiooppa/ apiotepoToPpKa) Kai eTIIeEe eva TPOypaumu mayeipepaTOC. Ia va ToV aHoeTe, thee ToV diakottnn aeitoupyiac oTn teon "0".

PYOMIENIPOPGAMMATO MAREIPEMATO

Iepiotpeyte Tov diakottnn leitoupyiac kai etiieTe to etioumuia. 2tnv obovn ta epaioei ia TPOeTIeYevn thepokpaia iou mtopei va tpoTIOINthe kae otiyu npivcovtac Tov dekiot (deiooppaia va va auhoene kai apoteoopopaa via va meioe Te thepokpia).

MENOY XPONOY

ATOKTnOte TPOaON OTO MEVOU Xpovou TATWtAs. TIA va TEPiynTheE VTOc TATnOte T0eSc ooeC XpeiaCovTAY ia VA EIAAeTE OTs Akokoue PcHmuOie:

1. WERKING VAN HET PRODUCT

4.1. HOE HET PRODUCT WERKT
4.2. KOOKFUNCTIES
4.2.1. STANDAARDFUNCTIES
4.2.2. SPECIALE FUNCTIONS

ALGEMENE WAARSCHUWINGEN

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Stap 3

• Selecteer 'Oven' in de apparaat categorie.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

□Dishwasher

Air conditionair

Air purifier

Air scanner

Stap 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OK. I DID IT

Stap 5

4.1. HOE HET PRODUCT WERKT

DE OVEN AAN/-UITZETTEN

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next version.

CONTINUE

Passo 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

□Dishwasher

Air conditionair

Air purifier

Air scanner

Passo 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Passo 5

adrese: www.candy-group.com

AKO KOMUNIKOVAT'S APLIKÁCIOU

JAK KORZYSTAC Z APLIKACJI

Welcome! Sign in to enter in your home page

Are you new to hOn?lick below to learn about ourproducts

TRY DEMO

×

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGL

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

SZYBKA REJESTRACJA PAROWANIA

Krok 1

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next version.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Krok 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Krok 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Stay close to your appliance in order to correctly capture the signal.

Krok 7

www.candy-group.com.

JAK KOMUNIKOVAT S APLIKACI

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Kroky 6.1-6.2

Appliance connection

Searching your appliance Don't turn off your Bluetooth.

Appliance connection

Searching your appliance Don't turn off your Bluetooth.

Stay close to your appliance in order to correctly capture the signal.

Krok 7

• Trouba bude nalezena a muzete ji ovladat pomoci aplikace hOn.

JAK ZMENIT NASTAVENI WIFI

1. INAINTE DE A INCPEPE

3.1. INFORMATII PENTRU A NCEPE
3.2. PRIMA UTILIZARE
3.3. CURÄTAREA PRELIMINARÄ

1. UTILIZAREA PRODUSULUI

4.1. CUM FUNCTIONEAZA PRODUSUL
4.2. FUNCII DE GATIT
4.2.1. FUNCITII STANDARD
4.2.2. FUNCII SPECIALE

1. RECOMANDÄRI PENTRU GÄTIT

5.1. TABEL GENERAL DE GÄTIT
5.2. TABELUL EVERYDAY COOKING

1. INGRIJIRE SI CURATARE

6.1. RECOMANDÄRIGENERALE
6.2. CURATAREA C UPTORULUI
6.2.1. CURATAREA INTERIORULUI CUCTORULUI: functii de curatare
6.2.2. CURATAREA EXTERIORULUI CUCTORULUI: indepartarea 山 curataea usi di sticla
6.3. CURATAREAACCESORIILOR
6.4. INTRETINEREA

1. DEPANARE

2. PROTECTIA MEDIULUI SI ELIMINAREA
   8.1. ELIMINAREAAPARATULUI
   8.2. PROTECTIA SI RESPECTAREA MEDIULUI

3. INSTALLARE

AVERTISMENTEGENERALE

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Pasul 3

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Pasul 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Pasul 5

2.3. NADZORNA PLOŠCA

Available on the App Store

GET IT ON Google Play

REGISTRACIJA NOVEGA UPORABNIKA

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

1. korak

2. Izberite pečico v kategorijah aparatov.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

1. korak

Vklopite aparat; Če je Že vklopljen, ga izklopite in ponovno vklopite.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

5. korak

Welcome! Sign in to enter in your home page

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

KIIRUHENDAMINE

1. samm
   Valige, Lisa seade.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

6.1-6.2. samm

Valige omakodumasin,puudutage nuppu "uhenda"ja oodake moni sekund.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

Stay close to your appliance in order to correctly capture the signal.

7. samm

Appliance connection

Your appliance has been correctly identified!

Brad Hoove
Model 3678-1000-248-1824
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

KUIDAS WIFI-SEADEID MUUTA

1. DROŠIBAS INFORMÁCIJA

2. PRODUKTA IEVADS

2.1. PRODUKTA PÄRSKATS
2.2. PIEDERUMI
2.3. VADIBAS PANELIS
2.4. SAVIENOJAMIBA

1. PIRMS SAK'SANAS

3.1. INFORMÁCIJA, LAI SAKTU
3.2. PIRMA LIETOŠANA
3.3. IEPRIEKSEJA TIRISANA

1. PRODUKTA DARBIBA

4.1. KÄ PRODUKTS DARBOJAS
4.2. EDIENA GATAVOSANAS FUNKCIJAS
4.2.1. STANDARTA FUNKCIJAS
4.2.2. IPASAS FUNKCIJAS

1. EDIENA GATAVOSANAS VADLINIJAS

5.1. VISPAREJA GATAVOSANAS TABULA
5.2. EVERYDAY COOKING TABULA

1. APKOPE UN TIRISANA

6.1. VISPÄRIGI IETEKUMI
6.2. CEPEŠKRASNS TIRISTANA
6.2.1. CEPEŠKRÁSNS IEKŠPUSE: tīršanas funkcijas
6.2.2. CEPEŠKRÁSNS ARPUSE: stikla durvju nonemšana un tīršana
6.3. PIEDERUMU TIRISHANA
6.4. APKOPE

1. PROBLEMU NOVER'SANA

2. VIDES AIZSARDZIBA UN UTILIZACija
   8.1. IERICES UTILIZACija
   8.2. VIDES GLÁBSANA UN SAUDZÉSANA

3. UZSTÄDISHANA

VISPÄRIGI BRIDINÄJUMI

2.1. PRODUKTA PÄRSKATS

1. Vadibas panelis
2. Plauktu pozificju numuri
3. Restites
4. Paplates
5. Ventilatoraparsegs
6. Cepeškrāns durvis
7. Sânu stieplu restités (ja ir: tikar lidzennam cepeskrans tselpam)
8. Sērijas numurs un kvadrātkods

lerakstietseit savu sierjas numuru turpmakai atsauei.

2.2.PIEDERUMI

Sign in to enter in your home page

REGISTER

Are you new to hOn?

Click below to learn about our

TRY DEMO

Do you already have a thousand passwords?

Register with your social accounts

and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

io information relating to you will be shared.

and we will not post anything from you.

SIGN UP WITH EMAIL

Already registered?

LOGIN

ATRA PARA REGISTRACIJA

1. darbiba
   Atlasiet "Pievienot ierici".

Allow your location permission

To enhance your experience, please allow location permission to HON app in the new version.

CONTINUE

1. darbiba

Atlasiet cepeskrasni no ierices kategorijas.

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
□Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKLDIDIT

5. darbiba

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

6.1.-6.2.daribiba

• Atlasiet savu sadzīves tehniku, pieskarieties pie "Savienot" un uzgaidiet daß zas sekundes.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

Stay close to your appliance in order to correctly capture the signal.

7. darbiba

Appliance connection

Your appliance has been correctly identified!

Brad Hoove
Model 3658-1000-2000-1824
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

WI-FI IESTATJUMU MAINA

Kadiericeirégistéta,lietotājsvarmainitWIFI iestatijumusstarp:

5.1. OBJLA TABJIULA 3A IOTBEHE
5.2. TABJIULA ,EVERYDAY COOKING

1. PUNIXI IN ONUCTBAHE

6.1. OБцИ ПЕПОВьКИ
6.2. IOUHCTBAHE HA FyPHATA
6.2.1. BbTPE BbB ΦYPHATA: nouchTBaun ΦyHKun
6.2.2. N3BbH FyPHATA: npemaxBaHe nNoCTBaHe Ha CtbkJleHaTa Bpata
6.3. IOUHCTBAHE HA IPIHADJIEXKHOCTN
6.4. ΠΟДПВБЖКА

1. OTCTPAHBAHE HA IPOBJIEMI

2. OIIA3BAHE HA OKOJIHATA CPEDA I N3XBbPJIaHE
   8.1. ɪЗXBbvРЯнЕ HA YPEДА
   8.2. ONA3BAHE I 3AUYTAHE HA OKOLHATA CPEDA

3. MOHTIPAHE

OBUIN PEPDUNPEKDEHNA

He n3noJ3BaIte npoUncTaUKN 3a noUncTbaHe.
BHNMAHNE: 3a Da n36erHeTe onachocT nopadn HeBOJHO HynipaHe Ha TOnJIHHNJa PpeDna3HTeJ, He Tp8Ba Da 3axpaHBaTe UpeDa Ype3 BbHsHo NpeBkIIOUcBAuO yCTpoiCtBO, KaTo TaIMep, INI Da rO CBbp3BaTe KbM Bepira, KOrTO peIDOBHO Ce BKJIIOUcBA uN3KJIIOUcBA OT eJIeKTPnueckaTa MpeXa
- По врeme на унотpeba урдьт ce harpaBa. Трава за ce вимаBa Да He се дOKOCBaT HarpeBaTeJHn eIemEnTи BbTpe BbB ФунaТа.

I3noJ3BaIte B cBJTBeCTBnE C npeDnHeHaTa ynotpe6a

• Изполизваи Te Фурнata само по педнаЗнayенe, t.e._edинстево 3a пи�отьг He Na XpaHa: BсякakbB ДpyrВИdУПOTpe6a, habример КATO 3TOUHnK Ha TOnJIIna, ce cHTa 3a Heправилeн И поради TOBa onaceH. ПюИЗВODиTeЯT He HOCN OTROBOPHOCT 3a USeTn, Bb3HNKHaJINпоради HeNPrabuINHa Или Н�аумha уNotpe6a.

OrpanuHneHa ynoTpe6aTa

• YpeIbT MoKe Da Ce I3NoJ3Ba OTe Dea Ha Bb3pact NaI 8 roDHH N OT IInCa C OrpaHnueHn Fn3nueckn, CetNBn IIn yMCTBeHN cNoCoBHOCTn IIn C HeIOCTaTBueH ONIT n PO3HaHnA, Ako Ca NoI HaI3Op, IIn aKo PpeIBaPHTeHNO Ca IOnyUHn Yka3aHnA OTHOCHO Be3OpanachTa UnoTpe6a Ha yPeDa n pa3bnpat KaKBn Ca NotEHnAJIHnTe onaCHOt. DeaTa He bBa Da I3NoJ3BaT ypeDa 3a Irpa. IOnuCTBaHeto n IODpbXkKaTa Ha ypeDa He bBa Da ce I3BbPbBAT ot Deca 6e3 HAD3Op.
  To3n ypei He e npedHa3NaueH da ce 3noJ3Ba OT Jnca (BkIouHTeJHO dea) c HamaJIeHN fN3NuYeCKn, CeTbHN JnYmCTBeHN CnOc6HoCTn JnJn Jnnc Ha ONIT NIO3HaHnJ, OCBEN aKO He ca NOd Ha6JIoJeHne JnCa 6nJn INHCTpyKtupAHn OTHOcHO 3NoJ3BaHeTO Ha ypeDa OT JnCe, OTROBOPHO 3a T8XHATA 6e3OnaCHOCT.
• Deuata Tp8bBa da 6bDat noi HabnOHeHne, 3a Da ce rapaHTnpa, ye He cn nIgpaT c ypeDa.

• I NPEdUnPExKDeHHe: I O BpeMe Ha pa6oTa ypeBt I DoCTbHnTe My qactn Ce HaroPeUeBaT. Tp6Ba Da ce BnImaBa Da He Ce DOKocBaT HarpeBaTeJHnTe eJeMeHTN. Deua Ha Bb3pAcT nOd 8 rOdnu Tp6Ba Da ce DbpxKaT HacTpaHa, OcBeH aKO He ca nOd HenpeKbChat NaD3Op.

• ПЕДУПЕЖDEHNE: Р Врeme на уноТpe6а ДocТьнITEч actи може дa ce haropeшт. Малкдeца Трябвдa ce дbpxkATHa pa3ctOЯнe.

ПРЕДУПЕЖДECHИ ПРИ MOHTAX

• Φурнata може да бъдe pa3положина Habисоко в Колона Или под pa6отен плот.
• Преши Фнксраие Трябва Да осигурпe Добpa BeHTиlaць В постранстВOTO на Фурнata, 3a Да пОЗВОЛNTe праВИнha сИрКУлAZи На CBexь Вьздух, HeOБхODIM 3a OXПЯЖДАн e N 3aUNTa Ha BbTpeшнITE чаки. HanpaBete OTBOPnTe, РOCоЧENH Na IПЮСТРациTe, B 3aВИСИМоCT OT TИпа Ha MONTажа. Виаги 3akpenBaIte Фурнata Кым MeбелNTe С ВИНTOВeTe, Пре dioctaВeHи C урда.
  He ce n3nckBa dOnbJIHnTeJIHa Oepaun/HaCTpOJa 3a ekCnIooaTcJNa Ha ypeDa pni HOMnHaJIHnTe YecToTn.
• YpeIbT He 6nBa Da ce MoHTnpa 3aI DeKopaTINBHa BpTa, 3a Da ce n36erHe nperpRABe.
• По врeme на монтaxedа Фурната Трябва дa Бдe Изклочера OT eльктучесkaраз Мрека, за дa се Избергперграве.
• Ako ce n3nCKBa cBdeIcTBnETo Ha npOn3BOIDnteJra 3a KopnInpaHe Ha HEn3PpABHOCTN, Bb3HNKHaJI NopaIN HeNpaBnJIeH MOHTaK, TOBa cBDeIcTBnE He Ce NOKpINAoT rapaHcIyTA. Tp6Ba Da ce cIeDbat INCTpyKUInTE 3a MOHTaX 3a npOpeCnOHaJIe KBAJIOpuPAn nepcoHaJI.
• HenpaBnHnT MoTax MoKe Da npuHnI ΜeTn nHapHaHbAHnHa Xopa, XIBOTn nHn Beu. PpOn3BOJnteJIaT He Hocn OTROBOPHOCT 3a TAKBa ΜeTn nHapHaHbAHn.
• MoNTaXbT Tp86Ba Da ce N3BbPbBA OT KBaJIInΦnIupaH TexHnK, KOItO Tp86Ba Da IIO3HaBa N Cpa3Ba 3aKOHnTe, DeIcTBaU B DbPkaBaTa Ha MOHTaJa, INHCTpyKUnTe Ha IPOUN3BOIDITeJ.
  Clek KaTo pa3oNakOBaTe ypeDa, BnHaRn npOBepraBaiTe daJIH He e NOBpeDeH, B cLyuAa H a np6IeM ce CBbPKeTe C OTdeJa 3a o6cLyXBAHe Ha KIneHTN, PpeDN da rO MOHTnpaTe, IN He rO CBbp3BaIte KbM eJekTpnuCeKaTa MpeKa.
• OtrctpaHeTe onaKOBbUHnMaTePnaI, npei Da 3aNoUHeTe pa6Ota c ypeHa.
• ПО Врeme На моNTажа He ИзползВайт e ДрьЖКаТа Hа ВраТаТа
• На ФурнaТа, 3a Ддя повдигаTe и пpeMeCTBaTe.
• MebeJInte 3a MoNTaJN I npUJIeXaIuTe KbM TЯx MebeJIIn TpIbBa Da n3dIbPjKAT Ha TeMpepaTpyn ot 95^
• Пренинтугелно сда Нocитэн рькавици по Времпу моHTажа, за сддинбг themselves hapaHRBaHn.
  He mONTpaIte npOdykTa B OTKpNTn IpocTpaHCTBa, n3JIOXeHN Ha aTMocΦepHn areHTN.

To3n ypeI e npoeKtnpaH da ce n3POn3Ba Ha haDMOpcka BnCOuHa no-HnCKa ot 2000 m.

ПЕДУПЕЖДECHИ OTHOCHO EJEKTPNUECTBOTO

• Георустору Трябва да с похаяцу за указань на ETикета Товар и Трябва дa Има Свьрзан И равOTeш 3аэмптелен Контакт. 3аэмьашл.TpoBoDнКЕсжБЛТИЗеленцВТ.Таи операцу Трябва дa с ИЗВьршИОТ KBалифицпари прфесноhalNT.
  Bpb3kaTaN3TOUHnKa Ha 3aXpaHbAHe MoKe Da Ce OcbIeCTBN Upe3 IeNCEJI NIIu Ype3 fIKCupaHO OKa6eJIbaHe, KaTO Ce NoCTaBN OMHNIOJApEn IpEKBcBaY C OTDeJIaHE Ha KOHTaKTITe, OTROBapIoo Ha N3NCKBaHnTa 3a CBpBXHaNPeKHe O T KaterOpNl III, MeJy ypeJa N3TOUHnKa Ha 3aXpaHbAHe, KOITo MOKe Da N3DbPjN MaKcMmaJIHnBA CBbp3aH TOBap IN KOITO OTROBapr HA TeKyuIOTo 3aKOHOdaTeJICTBO.
  BcnyaHa HecbBMeCTHMOCMeJy KOHTaKaTa nIeNceJa Ha ypeJa nonckaIte OT KBaJIHΦnIupaH eJeKTPoTEXHnK Da 3aMeHN KOHTaKaTa cDpyr NODXODaTtN. IeNceJIbT n IHe3dOTo Tp8Ba Da otROBaPrt Ha TEkyuIte CTAHdApTn B CTpaHaTaNMOHTaK.
• JbIto-3eHnT 3a3eMnteHn Ka6n He 6nBa Da ce npeKbcBa OT npeKbcBau. IHe3dOTo INMHOrOIOJIOCHnT npeKbcBau, IN3NoJ3BaH 3a Bp3kata, Tp8Ba Da 6bJe JecHo DoCTbNeH, CJeD KaTO ypeDbTe MOHTnpaH.
  Ako 3axpaHbauT Ka6eI ce NOBpei, ToI Tp6Ba Da 6bJe 3aMeHe OT IPOIN3BOJNTeJIa, HeIOB O6cnykBaU PpeIDCTaBnTeI INI JInCe C NODbHa KBaINΦNkaIaIa, 3a Da Ce I36eHne IOTeHuaIHa ONaHcOCT. 3a peMOHTI CE O6pbIaIte eDINHCTBeHO KbM OTDeIa 3a O6cnykBaHe Ha KJIeHTI IN I3NCKBaIte I3IOn3BaHETO Ha OPINHaIIH Pe3epBHN YacTI.
• Izhknoyete ypeda ot rnaBHOTo eNeKtpuyecko 3axpaHbAHe npedn 3BbPbBaHe Ha KaKBnTo n da e pa60Tu No NpDpBxka No Hero.
• I PPEdYPPEXJEHNE: yBepTe ce, ye ypeIbT e n3KJIuOeH npei Da cMeHЯTe KpyShkaTa, 3a da n36erHeTe eJekTpueeKn ydap.
• Φурнanta Трава Да се Изклочи п dedи Извajdahe Ha pa3rно6яваци te ce уacr. Спед поисваце crno6eTe OTHOBO sbglaacHO INHCTpykuzinte.

• YnOtpe6aTa Ha BCEKn eNeKTpNueckn ypei npeIOnaRa cna3BaHeTo Ha HЯΚΟ OCHOBΗ πραΒιΝΑ:

• He nbpnaite Ka6eJa, Korato n3KlIOuBaTe ypea ot eJekTpO3axpaHbAHeTo;

• He DoKocBaIte UpeJa c MOKpn IInn BJIaJHn PbIe IInn KpaKa;
• По пинци He ce npenopbчBa n3no3BaHeTo Ha aanTepn, pa3KnOHnTeJI nJIn yIbJxHnTeJI;
• B cnlyaŋ Ha Heɪn3npaBHoCT n/ɪn BNoʊeHa pa6Ota nɪkʌHoyete ypeədɪ N He nɪ3BbPbSbAŋTe HɪkɑkBm Maɪnɪylaɪzɪn No Hero.

3ABeJIeKKA: TbI KaTo MoXe Da ce HaIoXn N3BbPbBaHeTo Ha NoIdpbXka NO cyphata, e npenopbUHTeHNo Da ce OCTaBn I dpyr CBO6OJeH CTeHEn KOHTaKT, KbM KOITo Da MOxE Da ce CBpXe cyphata, aKO 6bIe N3BaIeHa OT IpocTpaHCTBOTo, B KOEt o MOnTpapaHa.
- Bcekn peMOHT, MOHTaK I NOIDpbXka, KOINTo He ca N3BbPseHn npaBnIHO, MORaT cepNo3HO da 3acTpawat Notpe6nteJ.
- Kompanheta npOn3BODiTel 3a8yBa, Ye He NoeMa HnKaKBa OTROBOPHOCT 3a npEKN IIN KOCBeHN UeTNI, pPunHeH NT HeNpaBnJIeH MOHTAX, POnIpbXka NII peMOHT. OCBEN TOBA TRe H OncN OTROBOPHOCT 3a UeTI, npUChHeH NT JInCATA NII npEKBcBAHeTO Ha 3a3EMNTJIHaTa CnCTema (HaNP. TOKOB yDap).
BHIMAHHE: 3a Da n36erHeTe onacHocT nopadn HeBOJIHO Hynipane Ha TOnPiHHNpypeDnA3nTeJ, He Tp8Ba Da 3axpaHBaTe UpeDa Ype3 BbHsHo npeBkIIOuBaUO yCTpoiCTBO, KaTo TaIMeP, IIN Da rCByp3BaTe KbM BepURA, KOYTO peoBHO ce BKIOUyBA N 3KIOUyBA OT eJeKtpnueckaTa MpeXa.
- YpeIbT He e InpEHa3HaueH Da ce 3aJeIcTBA OT BbHSeH TaMep IJIH OTdIeJIHa CnCTema 3a DnCTaHcNHOy npaBJIeHHe.

YNOTPEBAI NODPbXKA

• Tabata 3a OTUeKdAHe Cb6npa COKOBTe, KOnTO KaIrT NO BpeMe Ha rotBeHe.
  Korato noctabraye peweTkata Bbpxy ctpaHnHnte ckapn, ce yBepete, ye nO-Kbcata yact Ha cTpaHaTa (MeJdy orpaHnHTeIy KpaHata qact) e HacoueHa KbM BbTpewHocCTta Ha cyphata. Ako peWeTkata IMa DeKopatNBHa MeTaNHa JeHTa, ObpHeTe BHNMaHne DaJI N TRe pa3noJoxeHa OT BbHsHata cTpaHa Ha cyphata, Taka Ye INorOTO Ha MapKaTa da Ce BVxda uyeTe. 3a npaBnHOTo PO3uOnHnpaHe BVXTe CbIo N I3O6paKeHneTO B pa3deJ ,PpHaadJeXHocTNa Ha HACTOJIOTo pbKOBOdCTBO 3a IOTpe6nteI.
  He n3noJ3BaIte rpy6n abpa3nBHN nouchTbAu npenapatn uIN oCTpM MeTaJIHc CTbprAJIKN 3a NOUcTBAHe Ha CTbKNaTa Ha BpaTaTa HaΦypHaTa, TbN KaTo Te MoRat Da NaDpaCKaT NOBbpxHocTTa, KOETO MOKe da DoBeDe Do CUYBaHe Ha CTbKNoTO.
• Използваши само Temператугда сонда, КаяTO ce пpenopьчва за тази Фурна.

• По врeme Ha rotBeHe може за ce образуВа кондeнзaция по NOBbpx-HocCTTа Ha KaMepaTa Ha ФурHаТиИNo CTbKnotO Ha BpaTaTa. Toba e HopMaJIHc CBSTOrHnE. 3a HamaJIЯBaHe Ha To3n eФeKT n3uKaJaTe 10 - 15 MINHTCJIeD BKJIIOUBAHe Ha 3axpaHbaHeto,пpeДи DA NOCTaBnTe xpaHaTa BbTpE bB ФурHaТa. Пр ИСИЧКСЛУСАй KOндeн3bT n3Ye3Ba, KORATO ФурHаТДОCTURHe TemNepaTpya 3a rotBeHe.

• ПиноТяп Te 3eJIeHcUTe B CbД C KaПаК BMeCTo B OТКрИТa Taba.

• ɪəsərbaɪte Σa ocTæbTe xpaHa BbB φуpHaTa 3a nOBeue ot 15/20 mɪnHTu cneɪ ᶅπɪrOToBraHéTo ð.
• Дылги пекьсваня на 3axpaHbaцаТа Мржа, ВьзнКнали ВьВ Фа3aТа
• на ГOTBEHe, мога Тд рпчИнг HeN3правнон.Tа eЛeКТРOMOTopa.
• B ТakьВ с顺序а准入 с CBpЖeteс отделя за обс顺序БаHe на КПЕNTN.
• PPEdUnpeJxDEHHe: He nokpnbAte cTeHnTe Ha yypHaTa C aIyMnHneBO fOJIIO IIN C 3aunTHn MaTePnAIn 3a eDnHOKpaTHa yNoTpe6a, KaBnTo ce npednarat B mara3HNHe. Ppi npK KOtAKT Ha aIyMnHneBO fOJIIO IIN dpyr BnD 3aunTeH MaTePnAIn C ropeuJa EmaJl Ce cb3daBa pNCK OT pa3ToPnBAHe H hapuBaHe Ha emaJNa PO BbTpeHnTE NOBbPxHOCTN.
• I PPEdUYPExJEHHe: HnKora He oTcTaHЯBaIte yNtBTHeHneTo Ha BpaTaTa.
  BHIMAHNE: He nbJIHeTe nbHOTo Ha KaMepaTa C BODa NO BpeMe Ha rotBeHe nII KOraTo cyPHaTa e ropeu.
  3a npabnHa ynoTpe6a Ha fypHaTa ce npenopbUba Da He ce nocTaBxaHa B npK KOHTaKT C peWeTKIte N TaBtE, a Da ce N3POn3Ba XapTna 3a neueHe N/INN CneuHaHn CbdoBe.

ПРЕДУПЕЖDEHЯ (*3A ПИРОЛNTИЧН ΦΥРΗN)

• ɪnʌnɪnɪŋt paɪənɪb TpərəbBa Da ce Oɪctpaɪnɪ npeɪn NɔʊnCTbaHe.
• ПЕДУПЕЖDEHNE: ПpeДи ИнцИраHe Na aВТOMaTчeH сИКьЛ На поИСТВаHe:

-Почисте ВраТаТа На Фурнata;
- OtctpaHete BcKaKBN TJIeMN NII NTBbPDeHN OCTaTbCNI OT XpHa OT BbTpEshHaTa CTPaHa Ha yPhaTa C NOMOHTa Ha BJaXHa Tb6a. He n3no3BaIte npenapatn;
- OtcpaHete BCnUKN npHaJNeJXHOCTN, KaKTO N KOMnJIeKTa nIb3raUnc ce peWeTKN (aKO e BKNIOUcH TaKbB);
He nocTabraIte KxHHeNcKn KbPnn.

BbB cyprHn cbc coHda 3a Meco e Heo6xOJMo npeDn da n3nbHnTe CIKbI 3a NouchTbaHe, Da 3aTBOpHTe OTBopa c npedocTaBeHaTa raikka. BnHarn 3aTBapRyTe OTBopa c raikkata, KOraTO coHdaTa 3a Meco He ce n3noJ3Ba.
- По врeme на проча на пиролитунно поисванe (ako Има ТакьВ) NOBbpxHOCHTITE MORAT Да се нагорецп поеве OT obunayHOTO IN DecaTa TpЯБа Да се дьржat HabТраHA.
- Ako haç φуphata mma MOHTupaH pIOT, HNKORA He ro n3PON3BaITe, DOKaTo pIPOJIN3aTOpbT pa6OTn. Taka ige ce npedotBpaTn nperepRBAHe Ha pIOTA.

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

X

Do you already have a thousand passwords? Register with your social accounts

G SIGN UP W

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

0

SIGN UP

Already registered?

LOGIN

3AПИСBAHE 3A ББРЗО СДВОВАBE

CTbNka1

I36epeTe ,IO6aBHe Ha ypeD

CTbNka 2

• Pa3peWeTe DoCTbna Do MeCTOnONoJKeHHeTo cN.

CTbNka 3

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE
Select your appliance category
Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

?

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

CTbInka 5

Cne KaTo Ce BkIIOU, npInIOxKeHnETo hOn 7e 3anoHe da Tbpcn Baunia DomaWeH ype.

CTbIka 6.1-6.2

I36peTe cB0r DomaWeH ypei, HATINCHETe "CBp3BaHe" N I3yakaTHe HAKOJIKO CEKYHN.

CTbnka7

BaShaTaФунaиьдe habepeHa mOxkeTeДЯУnpabIbArteЧрЗ hOn.

KAKДА ПОМЕнHACTPOИКITE HA WIFI

CneI kaTo ypeBbT 6bIe peRncTpnpaH, nOtepe6nteTMT MoKe Ia IpOmeH aHcTpoKnTe Ha WiFi MeJky:

WiFi ON: Bb3MOxHo e da Na ha6IIOdaBaTe cBCTOaHHeTo Ha φypHaTa eDINHCTBeHO ype3 pNlNOXeHMeTo.
WiFi OFF:Фурнanta He e Cbvp3aHa, Ho BCE Oиe e peRnCTpnpaHa c6c 3aIa3eHmpeXOBN nDeHTnФИKaUHn DaHn.
HJNIPAHE HA WIFI:Bpb3kaTa ce Hynipa n e Bb3MOxHO HOBO 3aINCBAhe.

1. 3aBbptTe KOHcTo 3a cyHKUIM Do MeHIO TO WIFl.
2. Ha dincpnner ce noRbRa, BKn."
3. 3aBbPTeTe KOHtpONHnI DaNCK, DOKaTO ce NOKaKe ,N3Kn.I " IJIN HAcTPOHkaTa 3a HynipaHe ,rSt".

ДИСТАНЦИОНно УПВАЛЕнUE

IuctaHIOHHOTy npabHeHne npednara MHoKecTBO npedmCTBa 3a noTpe6nteHTe,poO6pBAIKyDobCTBOTO,epeKTNBHOCTTa n cyIocTHOTO n3XKNBBAHe pnp roTBHe, KaTO daBa Bb3MOxHOCT3a ynpabHeHne Ha npodukTa dIpeKTHo KaKTo OT ypeDa, Taka n OT npinloKeHneTo hOn

Ta3nФyHKIpy IO3BOJYBa Upe3 BaUeTo yCTpoIcTBo Da ce HacnaIITe Ha pa3JIuHnФyHKIpy, KaTO HApnpMep: He3a6abNHO IIN PIIaHnpaHO cTAPtnpAne Ha peueNTn IIN pIpOpaMn 3a rotBeHe, KOINTo BeYe ca NaIiUHb IN pIINIOKeHNeTo; Ha6JIIODeHne B peAnHO BpeMe Ha HappeBka Ha BaUnTe peueNTn; peryIInpAne Ha n3IOn3BaHInTe napMeTpN 3a rotBeHe.

OcbEN TOBa e B3MOxH0 Da nOlyuHaBte N3BeCTnI, KOraTO npOrpaMITe NJIpeCenTITe ca 3aBbPseHN. DcTaHcIOHHOTo ynpabLeHne MoKe da ce akTINbPa caMo KOraTo npOdyKtBt e peRncTpnpaH.

3A6EJIEXKKA:Претае 3a BCNUKINФункIM 3a roTBeHe Na npOduyKTa, c n3KJIuOyeHne Ha npOrpamnte OrpeTeHи CyneprpIn.

Kak da akTbBnPaTe dNCTaHcUOnHOTo ynpaBHeHne:

1. 3aBbptTe KOHcTo 3a cyHKcIM Do MeHIOTo WIFl.
2. HatncheTe
3. Ha dincnpe Ce noRyBa "hOn". Ue ce nokkaT IKOHnTe KaKTo 3a WiFi, Taka n 3a dinCTaHNoHNO ynpabIeHne.
4. BJIe3Te B npINIOxHHeTo, n36peTe npOrpMa u HeKa roTBeHTo Da 3aNoUHe. ITO BpeMe Ha npOceca e Bb3MOxHo Da ce KOHTpoJnPaT u npOMEHr NapaMeTpnte Ha npOrpaMaTa KaKTo OT npOdyKTa, Taka u OT npINIOxHHeTo.

Bb3MOxH0 e cbIoo TaKa da aKTINBupate DnCTaHcUHOHOTo ynpabNeHne no BpeMe Ha npOceCa Ha rotBeHe Ype3 HATNCKaHe Ha cBoTBeTHn8 ByToH.

Kak da cnpete ductanuOHnTo ynpaBHeHne:

Дokато nporpamata 3a rotBeHe e B xOД, ТЯ мож鉴定бьдспян DipeKTHO OTcamnnpodyKTчe3 3aBbptaHHeФункшонHOTOKonHeHa pa3nHnNo3n. Te3n DeiCTBnIpeKbCBaT pOuceHa rotBeHe.

Дуг haunн eчрз haTnCKaHe Ha cBtBeTHnI 6byToH Ha nCTaHcNHOHOT ynpaBHeHne,doCTaBeHo C Baunr ypeI. Te3n DeiCtBnI pKeBcBAT npOceHa rOtBeHe.

Moxete cIto taka da cnpe Te nporpaMaTa 3a roTBeHe nCTaHcUHO, KaTo n3nO3BaTe npIIoKeHHeTo, KaTo upaKHe ToBpy 6yToHa ,CTO' Ha dncnne Ha yctpoiCTBOTo. FypHaTa ABTomAtuH Oe cnpe roTBeHeTo.

3A6EJIEXK4: Ako nTopeBnteIaT cIpe TekyIoTO rotBeHe OT cyphHaTa, cnprHTo rotBeHe 1e Ce BnD N CbIooT O BpeMe B npInIOxJHeNTo.

3. ПЕДи ДА 3АПОЧЕТЕ

3.1. INHOPMALIJI 3A HAHAJOTO

Korato 3a nbpBn nBt BkHOnHTe fypHaT, MoKe Da 3a6BeJExKeMaNko Dm. He ce npNTecHraBte, npocTo n3yakaTe DmBbT da ce pa3cee, npede Da n3noJ3BaTe fypHaT.

Kak pa60Tu BpaTaTa

3aФyHKUIN, KOnTO nI3NoI3BaT rPnI, 6IarOdapeHne HaTexHONOrnTa 3a npEeKJIouYBaHe Ha BpaTaTa, cyphHaTa aBtOMaTmUH O Oe NoCTaBn Ha NaY3a HArpeBaTeHNHTe EJEMeHTN, KOrATo OTBOpNTe Bpata Ta I OIObJLnx Da rotBn, CNeI KaTO r 3aTbOpNTe.

Ta3nФyHKiueHa haHnUHa cAmo npn onpeJeHn KOHfNrgpaun Ha fypHaT. BcUnn nipOnmTuHn MoDeJIY IMaT.

IIO BpeMe Ha Ipoceca Ha IInpoJIInTnHNo NocHCTBaHe BpaTaTa Ha 0yphHaTa OcTaba 3akJIOueHa Ipe3 cIJIto BpeMe. Ako He e 3akJIIOueHa, 0yphHaTa 1e NOKaKe KOD 3a rpeUka 24 nIe NocTabu Ha nay3a 0yHKUraTa 3a NoCHCTBaHe.

Kak pa60tn oCBetJneHneTo

Kamepata Ha Φуна ta ce ocBETaBa OT eHa nnn nobehe eNeKtpnueckn KpyuKn, KOnto ObHKOBHeO ce aKTHBnpat BCEkn Pt, KOraTo 3anOHe yHKnur 3a rotBeHe.

3aФурни,оборуданиспpeвключытелнаВраТаТ(BИЖTe ПО-ДОЛY),СБЕТЛINHaTа ce BKNIOUBA abTomatnHOr, KORATo BpaTaTate OTBOpN.

3aФурн,обор央ванисбуTOH3aJAMna,ToIMMOKeДаceИЗПОЛЗВИЗaakTINBIPAHeHaOCBETJIeHNeTO. Ako BpataTaHaФурнATAocTaHecTBOpEHa nobeue ot 10 mHyTN,OCBETJIeHNeToIe ce n3KlnOuH aBTOMaTNUHO.

IIO Bpeme Ha Ipoceca Ha IIPOJNTNUHO NOpHCTBaHe CBETNIHaTa OCTaBa N3KJIOneHa.

Kak pa60tn oxlaqdaunr TBeHTnlaTOp

OxnaJaunr BeHTnIaTOp cnJyn 3a pa3ceBHaTe Ho TOnnHata, npdNaa3Ba yphata N OKoJIHOCTnTe OT npeKaIeHo HAropeuBaHe, KaKTo N 3aIITaBA KyXHeHcKeTte ypeNi OT Bb3DeiCTBnETo Ha BnCOKnTe TemnepaTpy. Iopadn Ta3n npuHna OxlaKDaunr BeHTnIaTOp npOdbJlkaba Da ce cyBa N3BeCTHO BpeMe DOpn CneD kATO yphata e n3KnUoyea.

ToI pa60tN IO BpeMe I CneI ZnKbJI Ha roTBeHe B 3aBncmOcT OT BbTpEshHaTa TemnPepa TpyHa. KaTO oxnaXdaUHT BeHTnIaTOP pa60tN, ToI o6nKHObeHo rHeHepura Jek UyM INI b6pbMueHe.

Mожсьшо да завелжente толь ВьздушенnotOK,ИЗинзац ot polnyka tma Meжdu BpaTaTа нафурнати и КОНтpoлня панел. Пп Врeme на пиролntично поисвае И korato BpaTaTа e 3akluуeha,oxlaackdauиг.TBEHTIJaTOp e Bklnoueh. *

IIO Bpeme Ha cyHKuYra, EK0" CBeTInHaTa 1ue ocTaHe N3KnUoyeHa.

(*cama 3a nipoIHTuHnФyPnH)

Kak pa60tn IeHTata Ha c6bctoHHneTo

JIeHTaHa cBcToHHeTO, Bb3 OCHOBa Ha 3aJaDeHnTe npOrpAMn, yIeChraBa HabIoJeHMeTo HA TempepaTypaHa n BpeMeTo. IIO-KoHKpeTHO, 3a fynKlun, BkIouBaun npEdbapntEnHO 3arpaBaHe, Tn oka3Ba NOBVJABaHeTo Ha TempepaTypaTn BOpeMe Ha ta3n fao3a. B npOrpamITE 3a rotBeHe n fynKUra 3a IIpoJNTuH NoOuCTBaHe NOKa3Ba O6paTHOTo 6poE He BApeMeTo 3a rotBeHe n CbOTBETHO LKbJa Ha NoOuCTBaHe.

5.2. TABJIHULA ,EVERYDAY COOKING

MeHIOTo nO kateropnXpaHn p03B0JIbRA roTBeHe nO pa3IuHn peIeNTn 6e3 nOIDrpBaHe Ha fypHaTa, 6IarOdapeHne Ha cIeuaJHn Iporpamn 3a roTBeHe, CbO6pa3eHn C HxJNITe Ha BCyKa kateropn. CTeJ Kato n36epete npOrpamata 3a roTBeHe, BpeMeTO nO npOpa36bpAne He e Ce nokae N MoKe Da ce PedaKtnpa Upe3 3aBbPTaHe Na DЯCHOTo KONue; TEMpePaTypaTa Ha roTBeHe Moke Da ce IpomEHn Upe3 HATUckaHe Ha cIeuaJHnHa T KOHa. NDbTa npaMeTbpa Morat Da 6bDaT 3aJaDeHn B OrganuHc DnaIapAnOH, KaKTo e NOKa3aHo B Ta6JIuCaT aNo-DoNy.

KataHITuHHe TnAneHIn POKPbAT KaMepaTa Ha fypHaTn Bn OcNpypBaT JyKca HNKora Da He Ce HAnara Da ce CnpaBTe C Mpbcha Fypha.

PanaHInTe ca nokpntn cbc cneuaneH emaII, KOTo ce OTJNUaBa C MmKpOnopeTa CTpykTpa, cnoc6Ha da abco6bupa Ma3HNHInTe ot npcknte.

Upe3 KaTaNITNuHa XIMNUecka peakLna Te efeKTHBn IpeBpBaAT abcopbupaHaTa Ma3HnHa B rA3OObpa3Hn EJIeMeHTn, KOraTo ca n3IIOKeHN Ha BvCOKn TEMpePaTyPn.

Ipenopbka: PomscneTe 3a CmHa Ha KataJIInTuHIne NaHeJn CneJ npI6bn3ntEnHO Tpr roDHNynoTpe6a, ocObeHo aKo n3non3BaTe PhpHaTa cN 3a Dba Do Tpr UnkblHa Ha rotBeHe Ha ceDMnUca. ToBa rapaHTnpa ONtMaJNa IpnO3BODnTeHnOCT N uCCTota.

6.2.2. 13BbH ΦyPHATA:

IpeMaxBaHe I IOUcTbaHe

Ha CTbKJneHaTa BpaTa

1. NocTabeTe BpataTa Ha 90^ 3aBbpteTe 3akIIOUBaUNTe PnactHnHa NaHTnte B NoCOKa HABh OT cyphHaTa.

1. IocTabeTe BpTaTa Ha 45^ .HaTnchete eHOBpeMeHHO DaBata 6yToHa OT DBeTe CtpaHn Ha CtpaHnHHTe pameHa Ha BpTaTa N DpbHHeTe KbM c6e cn, 3a Da IpemaxHeTe KaNaka Ha rOpHOTo CTbKIO Ha BpTaTa.

1. Mhoro BnHMaTeJIHO OTcTpaHete CTbKlOTO Ha yPhaTa, KaTO 3aNoUHeTe OT BbTpEulHO. IIO BpeMe Ha npOeIpyaTa XbaHete 3dpaBO CTbKlOTO C DBe pBue I Go NocTaBeTe BbpxMyeka IIIOCKa NOBbpxHOCT (HaNP. BbpxIIpTa).

4. I P E D Y N P E X D E H N E:

BbHnHOTo CbKIO He ce cBaJr.

Welcome! Sign in to enter in your home page

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

BRZA REGISTRACIJA ZA UPARIVANJE

1. korak
   Odaberite „Dodaj uredaj".

1. korak
2. Dopustite dozvolu za pristup lokaciji.

3.korak

• Odaberite pećnicu iz kategorije ureðaja.

• korak

Ukljucite uredj; ak je već uključen, iskljucite ga i ponomvno uključite.

OKIDIDIT

5. korak

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

3veiksmas

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

4veiksmas

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIT

5veiksmas

• Jungus programéle „hOn" pradés iěskoti jusu buitinio prietaiso.

6.1-6.2 veiksmai

• Pasirinkite savo buitinji prietaisa, bakstelèkite „Prijungti“ ir palaukite kelias sekundes.

7veiksmas

Jusu orkaite bus rasta ir ja galésite valdyti, nOn"programéle.

KAIP PAKEISTI, WI-FI NUSTATYMUS

4.1. KAIP GAMINYS VEIKIA

ORKAITEJUNGIMAS / ISJUNGIMAS

Noredami jungti orkaite, pasukite funkine rankenèle (pagal / pries laikrodzio rodykle) ir pasirinkite maisto ruosos programa. Noredami ja ISJUNGTI, nustatyke funkine rankenèle i padeti ^0^

KAIP NUSTATYTI MAISTO RUOSOS PROGRAMA

Pasukite funkcine rankenèle ir pasirinkite norim programa. Ekrane bus rodoma numatyoji temperatura, kuria galima redaguoti akimirka sukant desinija rankenèle (pagal laikrodzio rdykle, jei norite padidinti, ir pries laikrodzio rdykle -sumažinti).

LAIKO MENIU

Available on the App Store

GET IT ON Google Play

REGISTRERING AF NY BRUGER

Klik på "Register"
Du kan registriere dig via dine SoMe-konti aller tilmelde dig med din personlige e-mailadresse

Welcome! Sign in to enter in your home page

REGISTER

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts

and log in in the easiest and fastest way.

SIGN UP WITH GOOGL

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

SIGN UP WITH EMAIL

Already registered?

LOGIN

TILMELDING TIL HURTIG PARRING

Trin 1

Allow your location permission

To enhance your experience, please allow location permission to HON app in the new version.

Trin 4

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OK. I DID IT

Trin 5

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OK. I DID IT

Vaihe 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Vaihe 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

Stay close to your appliance in order to correctly capture the signal.

Vaihe 7

Appliance connection

Your appliance has been correctly identified!

Brad Hoove
Model 3658-1000-248-1824
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

NAIN MUUTAT WIFI-ASETUKSIA

4.2. RUOANVALMISTUDOIMINNOT

NOPEA ESILÄMMITYSVAIHTOEHTO

4.2.2. ERIKOISTOIMINNOT

5.2. EVERYDAY COOKING -TAULUKKO

Available on the App Store

GET IT ON Google Play

NY BRUKER-REGISTERING

Klikpaa"Registrar
Du kan registre deg via sosiale kontoer aller registre deg med din personlige e-post

Welcome!

Sign in to enter in your home page

ENTER

REGISTER

Are you new to hOn?

Click below to learn about our

TRY DEMO

Do you already have a thousand passwords?

Register with your social accounts
and log in in the easiest and fastest way.

SIGN UP WITH GOOGLF
SIGN UP WITH APPLE
SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

LOGIN

HURTIGPARING-REGISTRERING

Trinn 1
Velg "Legg til enchet".

Allow your location permission

To enhance your experience, please allow location permission to HON app in the new version.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKLDIDIT

Trinn 5

webbadress: www.candy-group.com

HUR DU INTERAGERAR MED APPEN

Welcome! Sign in to enter in your home page

Are you new to hOn?

Click below to learn about our products

TRY DEMO

Do you already have a thousand passwords? Register with your social accounts and log in in the easiest and fastest way.

SIGN UP WITH GOOGLE

SIGN UP WITH APPLE

SIGN UP WITH FACEBOOK

No information relating to you will be shared and we will not post anything from you.

or

SIGN UP WITH EMAIL

Already registered?

SNABBREGISTRERING

Steg 1

Välj "Lagg till enchet".

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Steg 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Stay close to your appliance in order to correctly capture the signal.

Steg 7

Appliance connection

Your appliance has been correctly identified!

Brande Hoover
Modeling and Simulation 1824
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

HUR MANÄNDRAR WIFI-INSTÄLLNINGAR

3AΓΑJIbHI 3ACTEPEXEHH

He BnKOpncToBvIe IJIa YIISeHnB NIpO6y NapooUcHnK.
OBEPEXHO!Дя ункення He6e3neKn BHaC1IDOK HeHaBMnCHOrO cKndaHЯ TepMo3aNo6ixHnka 3a6opOHeHO 3diChIOBaTи XnBJIeHnЯпИау 3a DoNOMoTOO 3OBHIshbOTo PrncTpOu 3 BmNKaUem (3OKpeMa, TaIMepa) abo NiI'EdHyBaTu npIuaD IO MEPexi, kky peRyIpyrPoHO BMnKaTe BA BMnKae KOMyHaJIbHe NiIprnEMCTBO.
- Під час викорисань пилад сильно harpiBaetbся. Слід 6утп обержнми, зоб He TopkaTися harpiBaJIbHnx eIeMeHTiB ycepeDnHi nevi.

BnkopncTaHnHa np3HaueHHaM

BnKOpNCToByIte DuyOBy 7a4y BnKJIIOUHO 3a Iprn3HaueHnM, T6TO TiIbKn DnI npiroToYBaHH iXi: 6yIb-kae IHwe BnKOpNCtAHN, 3OKpeMa Jk DxkepeNa TeIIa, yBaKaetbcn HnPaBnBnM i He6e3neuHm. BInpo6nK He Hece BiINoBIaJIbHoCTi 3a 6yIb-kai NOnKoJKeHHn PrnAyd, CnpuHHei NOro HeHaJIeXHM, HnPaBnBnM a6o HeO6rpyHTObaHm BnKOpNCtAHNAM.

06mexehn BnKOpncTaHn

• Zei npilad Moxe BIKOPNCTOBvBaTnCRAITbMn BIKOM 8 pOKIB i CTapshIMN, a TAKOX OcO6aMn 3 o6mexKeHIMN φi3uHIMN, CEHCOPHIMN N PO3yMOBIMN MOKINBOCTaMn, HeIOCTaTHIM DOCBIIDOM i 3HaHHaMn 3a yMOBn, IIO BOHN Pepe6yBaIOTb IiD HAIeXHM HaJIaDM o6o npoiHCTpykTObAHi IooI nopAiky 6e3neUHO KOpNCTuBaHHN prnilaDM Ta YCBiIDOMIIOHTb NOB'3aHI 3 cIM He6e3neKn. He Do3BOJrTe DiITAM rpaTnC 3 npiladom. DiTAM 3a6bOpHeNo PpOBODITN uHSeHnY n OBcnyROvBAHnR npilady 6e3 HaIydy.
• Zei npilad He npin3haueHn dIy BnKOpncTaHHa Oco6amn (B Tomy YncIi dItbMn) 3 obMeXeHIMN fI3uHIMN, ceHCOPHMn pO3ymOBIMMOxJIINBOCTaMn, HeIOCTaTHIM DOCBIDOM i 3HaHHaMn, kUso BOHN He nepe6yBaHTb NiD HaneJHm Harnlqom OC6b, BiINOBAJbHOi 3a IxHIO63neKy, a6o He npoiHcTpykToBaHi ciEIO OC6oO uOdo BnKOpncTaHHa npnilady.
  He 3aIIuIe Te iTei He 6e3 HaIy, 06 BOH He rpaIncs 3 npIuaIOM.

• PONPEDEXEHH. Bnpi6 i Iyoro Doctyni YactuHn CnIbHo Harpibaotbcra nid yac BnKOpncTahnnr. CnId 6ytu obepexHmN, 0o6 He TopkaTnca HarpibaJIbHnx eJeMeHTiB. DITeBikOMdo8pokIB BKJUcHOn CnID Donyckatn do npnilady Niue pnd noctiHm Harnlqdom dopocnX.

• PONEPEJXEHH.Пд час ВИКОРиСТання пиладу части,якх може TopkaTися користувач, можуть наріВатися. Маленькх дITeн He сдд ДОпУСКАТИ Do пиладу.

PONEPEIXEHHI OIO BCTAHOBJIENH

• Duyxoba ⅢaΦa Moxe 6ytn po3taoBaHa Bropi B KOJIOHi a6o NiD CTinbHnIeIo.
• Pered KpiHnHm CnI3a6e3neuTn XopoWy BeHTnIaIy y BiDciKy,do YKOrO BCTAHOBIOETbCn DuyOBA 7aΦa, 7o6 3a6e3neuTn HaJeXHy CuPKyIaIcIO CBIXOR NOBITpR, Heo6XiHOrO DnA OXoJIoJxHeHH Ta 3axNCTy BHYTpIHx UacTHN. 3po6iTb OTBOPn, 3a3NaueHi Ha iInocTpaIcx, 3iINHO 3 TINOM 3'6nHaHH, Pn PrnkPiHnHny DUYBOI WdHnNo Me6PiB
  Oob'3KOBO BIKOPNCOTByte TBHNTI, KI NOCTaAIOBc3 PnIaOM. -Jpy ekCpNvatauui npnany 3 HOMiHaBbHMu YAcTOTAMHe NOTpiBHi
  IdoataKOBi di afo hanaStyBaHn.
  3a6bOpHeNo BCTaHOBNIbBaTn npiJa 3a DeKopaTINBHNIMn DBePcYTaMn, OckIbKn Ye MoKe npu3BecTu Do nepeperpiBaHH.
• Плд уас BCTaHOBJIeHЯ dYxOBA shaФа Mae 6yTN BiДКЛочЕна BiД eJelKTpOMepeXi Дя зanobirAHня neperpiBy.
  -Якшдя усуненн HecnpaBHOCTe, lo BnHKnBhacIdoK HnpaBnIbHOro BCTaHOBLeHH, noTpi6Ha DoNOMora 3 6oky Bnpo6Hnka, II He npeed6aueHo rapaHTieO. IprofeciHn KBaJIqIKOBaHn nepcoHaMaE DToTPMMyBaTncb IHcTpKci3 YcTaHOBNeHH.
• HenpaBnIbHe BCTaHOBJIeHHa MoKe IprN3BeCTn Do NpUkOJXeHb MaHa a6o TpaBMyBaHHa JIOdeYu TBapHn. BInpo6HnK He Hece BiDIOBJaNbHocTi 3a TaKi NpUkOJXeHHa a6o TpaBMn.
  BCTaHOBJIeHnI NOBInHNO 3diIChIOBaTnC KBaJIiΦiKOBaHm TexHiYHM CneIaJIcTOM, AKN IIOBHeH 3HaTN i DoTPmMyBaTnC 3aKOHiB, YHHnx y KpaIHbCTaHOBJIeHnI, Ta IHCTpyKciB BnO6Hnka.
• Pizjra po3nakyBaHnry npuJaIy 3aBxdi npeBipraIte NOro Ha BiDcyTHicTb noXkoJKeHb. Y pa3i BInHKHeHnry npo6JIeMn 3BepHiTbcr Do cnyK6nPiTpIMKn IpeEd yCTaHOBKOIO Ta He NiDKIIOUaIte npuJaIdo dXkepeNa KINBJIeHHra.
  Budaiitb nakybaJIhI matepiJn neped ekcnlyatauieo npunaay.
  -Плд час BCtaHOBJIeHHЯ He BИКОРиСТоВуЛte рчку Дверцгт Духовошафи дя II пidиOMу Ta nepemiiшeHHЯ.
• Me6JI I y BCTaHOBLeHH Ta npUnerI Do HIX NOBHHI BHTpIMyBaTH TeMnepaTpy 95^

• PekomeHnyeTbcB BdIraTn 3axncHi pyKaBnKn NiJ Yac MoHTaJy, IIO6 yHnKHyTu TpaBM BiD nopizIB.
  He BCTaHOBJIOnIte Bnpi6 Ha BiIDKpNTOMy NOBITpi, De BIH MOKe PiJaBaTnCRA BnJIInBy aTMocdpehnx fakTopiB.

• LcEi npuIad npu3HaueHn Ipn BnKOpncTaHHa HbNCOTi HxKHe 2000 M.

PONEPEDEXEHHI OODO EJEKTPNUHIX CNTTEM

• Po3etka Maé 6bytn npndaTHOДЯ HabaHTaKeHnA, 3a3HaueHOro Ha etnkeTci, a TAKOX OCHaUeHOIO NiD'EdHaHIM pOBouHM KOHTaKTOM 3a3emJIeHHN. IpOBIdNHK 3a3EmJIeHHN MaE XOBTO-3eJIeHn KOnIp. Lio OnpaIIO NOBHeH BVKOHyBaTn faxiBeCb i3 HaNExHOrO KBaJIiΦikaIeIO.
  -ПідкнluуеняdoДжеретаЖИВлениМожна3diIChNTu3aДОПOMOROU штencьhoiВилкnaaboKCOBAHOI npOBODKN，BCTaHOBNBIM 6araTOnOJIIOCHN BUMNKau i3po3diJNeHHaM KOHTaKTiB，Якь BiDNObIaE ВИМOram KaTERopi III zuOdo nepeHaNPyrn，a TAKoX 3daTeH BITPmYBaTN мakcunmaJIbHe，piI'6dHaHe，HabaHTaKeHHa，Ta,3aIOBOJIbHЯ，BIMOrN
  YHHHOrO 3aKoHOJaBCTBa.
  Y pa3i HecymicHOcti po3eTKn Ta 7TeNceJIbHOI BUNKn npuJaNy nonpocITb KBaIiΦIKOBaHOrO eNeKTpNka 3amIHNTu po3eTKy Ha iHsu DeTaJIb npndaTHoro Tnny. BnJka Jpo3eTKa MaOTb BiIDNOBIdaTu YHHIM HopMaM KpaIH, De 3diChIOeTbcra BCTaHOBJIeHHra.
  JXOBTO-3eHn Ka6JIb 3a3eMHeH He Mae nepeepBaTncs 3a DOnOMoTOB BmKaua. Po3eTKa a6o aBTOMaTHN BmKau, kIK BnKOpNCToBHyOTbcra dIy 3'EdHaHHa, MaOt b 6yTu IerKODoCTuHNIMPiCIA BCTaHOBLeHHa npJaDy.
• Y BnnaDky noShKOJxHgKa6eJIIO JxNBIeHHaIy yHnKHeHHaMOxNlBOi He6e3neKn Ioro 3amHy MaE npoBODHTn Bnpo6Hnk, Ioro cepBicHn IpeDcTaBnK a60 oc6b3 nOdi6HO KBaJIiΦikaIeIo. Ila 6yNb-iaKoropemOHTy 3BeptaIteCg IniSe Do BiDiIny o6cnyroByBaHHa KnieHTiB i BmaraTte BnKOpNCtAHH opriHaJIbHNX 3aNaChNX qactuH.
• Peru nix npoBOnTu 6yIb-rai pO6OTn uO6cnyroByBaHHra npuaNy, BiD'edHaTe Ioro BiD MepeXi eNeKTPOxNBUeHHra.
• PONEPEDJXEHH. Neped 3amHOJ lamnoKn nepeKoHaITeC, 10 npnilad BmKHeH, 106 yHKnHyT N MOxJIIBO r OpaXeHHr eJeKTpUHm CTpyMOM.

• Peru Hix demontybatn 3HimHi DeTani, Notpi6HO BUMKHyTN dYXOBy wa?y. IicJra OunueHHB CtaHObitb IX Ha MicIe 3riIDHO 3 iHCTpykcijAmN.
  3actocybaHH6ydb-akoro eIeKtponpnilaNy nepeid6aaye DoTPMaHHn peBHnX OCHOBnX npaBnJ, kKi 3a3HaueHO HIXyE:

• He Taryntb 3a Ka6eB JxNBLeHnЯДЯ BiD'edHaHnЯ npuIaNy BiD JxKepeNa JxNBLeHnЯ;

• He TopkaǐTecs ānpiǎny MOKpɪmɪ pykʌm abo Horamn.
• 3araIOM He peKOMeHdyeTbcB BNIKOpNCTOByBaTI aIaITePn, eIekTpUHi po3raJyJxByaui NIOOBxByaJIbHI ka6JIi.

• Y pa3i HecnpaBHOCTi / a6o HeHaJIeXHoiI pO6OTn BUMKHiTb npINlaI He HAMaRaiTeCra po3i6paTu NiOr.

• I IPNIMITKA. Ockijbkn Mojke BUNHKHyTN NoTpe6a B Texhichomy 06cnyroByBaHHi dYxOBOI Wafn, DozijbHO 3aJINsHTN DocTyHNOU ige Ondhy HactiHny po3eTKy dJa nii'EdHaHHy dYxOBOI Wafn B pa3i iI DEMONTaxy 3 nonepedHbOro Micra.
  -Будь-який peMOHT, BCTaHOBJIeHЯ Ta TextHiye 6cIyROByBaHHЯ, BnKOHaHI HeHaJIeXHM YInHOM, MOxYb CTBOpITN cepNo3Hy He6e3NeKy ДЯ KOpIcTsyBaça.

• Kompania-Binpo6nK cHm 3aBnE, 10 He Hece JODHOi BiDIOBdaNbHocTi 3a npami Hnnpami 3bNTKn, CnpuHHeH He npabNbHM BCTaHOBJeHNrM, o6cnyroBvBaHHam a6o peMOHTom. Kpim TOrO, Kompania He Hece BiDIOBdaJIbHoCTi 3a 3bNTKn, CnpuHHeH BiDCyTHicTIO a6o nepePbAHNM CnCTeMn 3a3emJehn (HaNPknAad, ypaKeHH eNEkTpnuHm CTpyMOM).
  OBEPEXHO!Дя ункенн Hebe3neBhacIIOK HehaBMnCHOro CKndaHnTepMo3anobixHnka 3abOpOHeHO 3diChIOBaTu JKNBLeHHn PpInaDy 3a DOnOMoroTO 3OBHIshNbOTo pncTpoU 3 BmNKaYe (3OKpeMa, Taimepa) a6o Ni'dENHyBaTN pnpaId Do MEPexi, kky peryIpaHOb BMkae Ta BmNKae KOMyHaJIbHe NiIprnEMCTBO.
• Пилад He пиз nauseй Дя Вмкань НО 3OBHIM Таймеромabo OKpeMOIO сnteMOIO дuctaHIO HORO KepyBaHЯ.

EKCJIpyATAUIA TAOBCJNYROBYAHH

• IotoK dIy Kpanelb HakoNHye 3aJIuShKn, kKi CTiKaIoTb NiD Yac npiroToYBaHHJ.
  KoIbN KlaTe peiItky Ha 6iHi CTiIKn, NepeKOHaTecr, 10 KoPOTsha qactNa 6iHoi YactHn (MIX yIopom i KInCeM) CnpMaOBaHa BCEpeDHy dYxOBoi 7aΦn. KaIO peiITka MaE DeKopaTnBHy MeTaJIeBy PIIaHKy, 3BepHt b YBaIy Ha Te, 106 po3TaUyBaTn II Ha 3OBHIshbOMy 6oCi dYxOBoi 7aΦn, 106 IorOtIN 6peHdy 6ylo BnHO, N BiH cHTaBcR. Ipn PaBnIbHOrO po3TaUyBaHHra DnB. TaKoX MaIIOHOK y po3diNi "PpIaNJa" ZbOrO noci6Hnka KopNCtBuAua.
  He BnKOpNCToBvIe JxOpCTki abpa3nBHi 3acO6n dIy uNSeHna a6o roctpi MeTaneBi cKpe6Kn dIy ouNSeHnckla DBePcrt neyi, ockInbKn BOHN MOKyTb NopraNaTn NOBepXHIO, 0o MOKe PpN3BecTn Do pO3bTTaCKna.
• BnKOpncTobyIte IInIe TepMoUyn, peKOMeHDoBaHn dIa ciEi dYXOBoI 1wafn.

• Плд час пи�罗ТУВангя iж BoNOra може кондсуВапся Всередни КамердуховошафиaboHaСКЛДверцЯт.ЦеHopMaJIbHni CTan.Поб 3MeншIntи сeй eфekt,Зачекайte 10-15xbuInn nicЯ уВIMKHeHняЖИВЛЕння,порш hIX KlaCTn CtpaBy Всередиу духовошафи.УБydьяКOMY BИпадкУ кОндeнсаTЗнkae,КOLN duXOBaшафадocяrae TemпepaТури пи�罗ТУВання.

• FotyuTe OBOUi B EMHOCtI 3 KpuuKoIO 3aMicTb BiDkpntoro Deka.
  He 3aIIuIaIte IxU BCEpeDInH I dyXoBOI IuaΦn nicI npriroTuBaHHra 6JIbI HIX Ha 15-20 XBUNH.

• TpmbaIIIM 36iIMXIBJIeHHHa eTani IpiuROTuBaHnI iXi MoKe IpuN3BecTI Do HeCnpaBHOCTI MOHITopa. Y cIbOMy pa3I 3BepHIbCSd OcnyKbPiIDTpIMKn KJIeHTIB.
• NOPEDEXEHH. He BnCTnJaTe cTINK n DuxOBoI uaФn aHOMiHcBOIO fOJbROIO abo OndHopa3OBmN 3axNCHMn eJeMeHTaMn, IIO npOdaTObcR B mAraznHax. AInHomHieBa fOJbRa a6b-yd-b-kynn iHsHm 3axNCnMaTePiaJ, IIO 6e3NocepEdhbo KOHTaKTyE 3 rapAyoEO emaJIIO, MOKe pO3nPaBNTncr Ta 3incyBatn Emalb Ha BHyTpIiHix NOBepxHx.
• PONEPEJXEHH. Y JKOHNMy pa3i He 3HIMaIte yIbHeHHa DBepuT dYxOBoI wa#n.
  OBEPEXHO! He DoJIbAte Body HaДHo KaMepnПд ча nprirotyBaHHя iбо колу dYxOBA shaФa rapaHa.
  -Дяправильно ВИКОПИСТАнгдухоьи Уафи ДОцilьно рoзмішуВаTN npodukTn TAK, lo6 BOHn He KOHTaKtYBaJIb 6e3nocepeDHBо 3 peuitkamN Deekam. HAtOMICt b peKOMeHdyeTbCЯ ВИКОПИСТOBуВaTи пanip ДЯВиNiKaHHЯ Ta (a60) cneuaJIbHi emHOCTi.

PONEPEDEXEHHRA \*IJIPEH3 IPOJITNUHM OUYUENHREM

• Pered noatakom npoceDpyn OunuHn npoTpiYc i Micya, de 6yno po3nTo 6araTo piHNH.
• 1 NONEPEIXEHHJ. Ipeed 3aynckom zukny aBTOMaTHUHORO OuHsEHnBnKoHaIte 3a3NaueHi HxKYe dii:

OuNCTITb DBePcTa DyXoBOi WaΦn.
- Приберіть Велникі abo 3arpy6iJI 3aIIuShkN iXi 3cepeDHH n DuxOBoI 7aФи 3a ДОПOMOrOTO BOrOToI rYbKn. He BnKOpNCToBvIte MInUOi 3acObN.
- 3Himitsyce npnlaTa KOMPNeKT BNCYBHX NOJNcB (3a HaayBHOCTi).
- Pπi6epiTb i3 npuJa y kxyoHHi pyuHnKn.

• Y dyxobnx 7aafax i3 Tepmoynom noTpi6Ho neped zuklom ouhneHHra3akpntn OTbip 3a DOnOMOIO raIKN, IIO BXODNTb Do KOMPNEkTy.ObOB'3KOBO 3akpnaIte OTbip 3a DOnOMOIO raIKN, KOJI N TepMOUH He BVKOPNCTOByETbcra.
• Пд уac поцecу поролитунно очишени (за наявочи можут ha rpiBaTnca 6iNbse, hix 3a3Bnay, TOMy diTei cnid TrpmaTi noanl.
• YKsqo NaD dYXBOO uafoB vCTaHO BApNbHy naHjB, y KODHomy pa3i He BnKOpNCToByTe 10 NaHjB pId qac po6Ot nipoi3atopa, 106 yHnKHyTn II nepepiBaHHJ.

2.1.ОГЛДВИРБУ

1. Panaelb KepyBaHnHa
2. Homepi nozuii nozi
3. PeuitKn
4. Deka
5. Kpnska BenthnIaTopa
6. DBepeTaDyXOBoIwaΦn
7. BiiH iDpOraTHi peuTIKn (3a HApBOCTi: TInbKmI nnPNAKOI NOPXHHN)
8. CepiHn Homep i QR-koD

3aBHHT TUT cEBHINN HOMEP CBOO BFOBy IaNDaBHsO RBOVPCHTAHN.

2.2.IPIJIAIJI

Biyhi npotrahi HanpymHI (JInuhe 3a HaBbHOcti*)

Po3aioBahi no 6nBa 60Kn Kaempi DxyOBoi 7aФni 6iHi HapmHi np3HaueHi dI pyo3MiueHn Deko Ta pewiTOK nD ac npiroToyBaHH.
1 NpMITKA. 6 a6o 7 pIBHb 3aIeXHO bI MoJeJI.

YK B3AEMODIYTN 3 DODATKOM

Bau npnad MoKHa NiKIOHTN Do DomaHbOi 63pOTOBOI Mepexi Ta KepyBaTu Hm DiCTAUHHO 3a DonOMorO IOdaTka. PdIKIQUITb Cbi npCtpi, Oo6 3a6e3neHTN Ioro OHOBJIENHr 3 HaHOBiIMnpOrpAMHM 3a6e3neueHHM i fHyKUJMI.

ПРМITKA

• Пс篮увимкенна духоишади niktorpama Wi-Fi 6ллма epotяrom 30 xВиин.протягом цboro уасу можна з apeectrpybatи вириб.
• IpekoHaiTeCra, lo DomaHIO Mepexy Wi-Fi yBIMKHeHO.
  Bam 6ydyTb hanaHi nokpokobi Bka3iBkn JaHa BaWOMy npnlaDi, TaK i Ha Mo6IbHOMy npncTpoi.
  PiiknoueHHaOBoI MoKe TpNBaTn Do 10 XbNJH.
• Ⅲo6 diHaTnca 6iJIbIe Ta ycHyTu HecnPabHocTi, 3BepHiTbcr Do IdoaTkY.

3aBaHTaxTe Ha cMapTfoH.

HaTnCHiB "3apeecTpByBaTncra
Bn moKeTe 3apeeCTpyBaTncype3 obnikobi 3aIncn B coUiaIbHnx Mepekax abo 3apeeCTpyBaTncs 3a DOnomoroO oocnbctoi eNeKtpoHHOIO nTn

WBnIKA PECCTPAUJ3'6DHAHH

Kpok 1
BübepiTb "DOnaTu npnnaI."

Kpok 2

• 03BOJIbTe IOCTyn Do daHnX npo BaIe Micce3HaXOJKeHHa.

Kpok 3 Bn6epitb duyobv uadpy 3 kateropii npnilaib.

Kpok 4

• yBIMKHiTb npnla;якso Bih BxeyBIMKHeHni, BIMKHiTb NOrO Ta yBIMKHiTb 3HOBy.

Allow your location permission

To enhance your experience, please allow location permission to HON app in the next 12 months.

CONTINUE

Select your appliance category

Search your appliance
Washing machine
Washer dryer
Tumble dryer
Dishwasher
Air conditionair
Air purifier
Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Kpok 5

Ja npaioe BeHTnIaTOp OxIoJoxeHHA

BentnIaTOp oxoJxHn BldnoiHa 3a po3ciobHn TeHnla, 3anobirHHa 3aHaITO BWCOKMy HarpBaHHIO duXBOOI uPhi i HaBKOJIuHbOro cepeOBuIa, a TaKoK 3a 3axNC TkyOHNX npIuaIB BID BnInBy BcOKnx TemnepaTyp. 3 ciEi npUHHn BENTnIaTOp oxoJxHn 3aIIuAeTbcra UyTHM npToRm PEBHO nepioD yacy HabItb nicJa BMKHeHHa DxyBOOI uPhi.

BIn npaioe niz cac ta nicn zukny npirotoybanHH 3anexkHO bID BNYtpiHbO iTemnpaTpyn DxyoBoi uafni. KOnn BeHTnIaTOp oxoJooKeHHNpaQIOE, Bin 3a3Bnuay rehepye leKnn ryn a60 dznKuHaHH. Bn TAKOK MOxkeTe nomITn Tepnn noTik nobITpr, 10 BNXODITb i3 3a3opy mix DbePzTaMn DxyOBKn Ta naHeHH KepyBaHH. Piz cac niponitunHoro OunueHH Ta kOnn DbePzTa 3abokobani, BeHTnIaTOp OXIOJDOxKeHHB MINKAcTbcra.

Iiucfynkui ECOocBtJHnHa3aIIuATmMeTbCBAIMKHeHM.

(^* 且 且 且 且 且 且 且 且 且 且 且 且 且 且 且 I

Ja npaioe pdoK cTahy

Praok cTany Ha ochobi BcTaHOBnEHnx nporpam cnpoUe MOHITOpnHr TemnepaTyra Yacy. 30kpeMa, nIyHKui, nob'zahnx 3 nonepedHim po3irpiBaHHm, BiH BiOobpaXe NiIBuNtEHHa TEmnpaTyPi dac ciiei pa3n. y nporpamax npiroTuBaHH iXi Ta IpnIpyHKii npoiitTuHoro OUYueHHBIObpaKaetbca 3BopOTnHBIdNik Yacy npiroTuBaHH i NIKny OUYueHH BIDNOBIDHO.

3.2.IEPWE BINKOPUCTAHH

KoII npIauB BMnkaeTbcra BnepSe, nepuIM KpOKOM e BCtaHOBJIeHHa cacy do6n, Bn6ip MIX 13 a60 16 ampeamn, Bn6ip JckpaBOcTi ta pIBH 3ByKy.

YCTAHOBITb TAIHEM: HaIcnPiEi 6bnMaTmme nonepeHbO BcTaHOBneHn Yac "12:00". 3mHNTn Ioro, HATNCHTb i cKOpNCTaIteCn npaBOIO pyuKOIO, 1o6 HanaU TyBaTN ITOUHy roDInHy. HATNCHTb 1e pa3 i BvkoHaIe T y J npOeDpy, 1o6 BCtAHOBNTn XBUNHN. 1o6 NiIDTBepdNTn, HATNCHTb 1e pa3.

CINLA CTPYMY: 3a 3amOBuyBaHHm iH uHaIaHToBaHa Ha pOBoTy 3 bIlbwoIO NOtUxHICTH, OIO nIXoHNb InI yOMorOcnoapCTB 3 noTyrKHCtIO NoHaI 3 kBt (16 A). RaIO BaIe NOMEuKaHHa MaE MeHsu NOTyXHICb, Bn MOKeTe 3MIHTN cIe HalaWtBuAHn Ha 13 A. Lc HalaWtBuAHn BnInBaAc H a WbUdKicTB HarpiBaHH dUxOBoi UaФn. Bn6ip BinbBv BucOKOro BapiaHTy (16A) O3NaueA, 0n iHarpBaCTCBa WbUdE (ockInbKn nOrnHaHH eHeprii 3bInbWyETbC). Ha DnCnPe iBIObpaKaTuMBycB Da BapiaHTN: 13A i 16A. PpocTo nobepHITb npaBy puky, 0so Bn6paTn NotPi6Hy, a NotIM HATNCHTB DnI niTBePdxKeHH.

1PIMITKA. OniHaJauaHTyBaHn CnIe CTpyM DoCTynHa IInse Niac NoaTkoBOro BCTaHOBJIeHH. 306 3mHITn HanaTobAHy CnIy CTpyMy, 3BepHiTbcrdo IHCTpyKcij no BVKOpNCtAHIO nicJI BCTaHOBJIeHH.

ACKPABICTb:HaIncnIeBIO6paXaTbcraCmBOBnbrLINpRBIIO6paXaHObpiBeHbIHTehCNBHOCTi AOKpaBOcTi, kKMI MOKHa peDaryBaTN, NOBepTaOuN npaby pyky. IJIa NITBepdxKeHnHaTNCHtB

3BYK:HaIinCnIeBIO6paXaETbCSNMBON"Sn.LINpRnBIIO6paXaHOtpiBeHbIHTeHCNBHOCTi 3ByKy, kmy MoxHa peaLyBaTn, NOBepTaIOUHN pApBy pyKy. IInrNiITBepDxKeHHaHTNCHITb

Koln duyxoba 7aapa nepe6ybae B pexmi OikyBaHH, MoXHa NOBepHyTncsdo NoouatKOBHX HanaIbTuBaHb, OndHocacho HATNCyBUn KOnKn TempepaTpa Ta IAmna npotrarom 5 cekyHd.

3.3.ПОЕPEDHС OYIIENHЯ

OuHCTITb DxyOBky neped nepShm BnKOpncTaHnRy. IpoTpItb 30BHIiH niOBepxHi BOIoroHO M'AKoHO tKaHNHO. BmNITE BCE npnAaJa Ta IpoTpItb BHyTpiHIO uactHy DxyBOoi waΦn i3 aCtOcyBaHHM po3UnHy rapaoyo BVOn MmHOi piHN. YcTAHOBI MaKcImaJIbHy po6Ouy Tempepaty npOxHboI DxyBOOI waΦn np6bn3No ha 1 roHny, Uo6 BnDanHTn BCI CTiKi 3aapanx HOBOr BnPo6y.

4.1. ПИNHцИД II BИPOБY

YBIMKHEHHRAUMKHEHHDyXBOI UAΦN

Ioo b yBimKHyTn DyXoBy 7afo, noBepHItb nepeMnKaU cyHKuJ (3a roDHHNKOBOc TcpiIKoJ/npOTn roDHHNKOBOI cTpiIKN) i Bn6epiTb nporpamy npiroToYBaHH. Ioo b BIMKHyTn II, BCTaHObitb nepeMnKaU cyHKuiy y noLoKeHHra "0".

HAJIASTYBATI NPOPGPAMY NPIHOTYBAHH

5.2. TABJIICRA IPOPTPAM EVERYDAY COOKING

MeHIO kaTERopi II npOdykTIB Do3BONJe roTyBaTI pi3HomaiHTI peceNTn 6e3 nonepedhoro po3irpiBaHHaDyXBOOI 7aФN 3aBdAkn CneUiaJIbHM KJIiHaPmN pOrpamM, aAnTObaHm Do nOTpe6 KoxHOI KaTERopiII.

Picra Bn6py nporpamn npiroToyBaHHB iDobpaKaatmtebCay 3a 3AmOBuBaHHM, kKIM MOXHa peaIByBaTn, nobepTaOnu npaby pykky; TempepaTy piroToyBaHH MoXHa 3MiHtN, HATNcKaOnu cneiaJIbHy nIKtorpamy. Ondba npamaTpni MoXHa BCTaHOBHTN B oMexKeHOMy dianaoHi, kNOKa3Ano B TabIi ci HIXe.

Символ	Опис	Пone- раздень posirpi- ванья	Поло- жени полци	Темпера- тугий дiamazon °C	Дiannazon часу (xВ)	TempepaType термоцуна Heat Feel (а насысти)	Опис
	М'ясо	HI	2-3-4	180-200	20-80	55-85°C	Для сможени Яковский, Телегин, Свинник, рtiци Ташаткib M'яса.
	Риба	HI	3-4	160-180	15-45	55-65°C	Для цioл рибий фine.
	Овочi	HI	3-4	180-200	30-80	70-90°C	Для сможени овочи i kartonni.

1 PNPMITKA.Якло nicявимкингдуховошафи notriбно рpoiodBXNTn roTybaHHpekomeHdyETbCSy yHnKaTN BKNOPICHaHH NOBcAKeHHx nporpam npiroToYBaHHa (everyday cooking),a 3amictb cIbO rBO BbpaTn CTaNdaptHI cyHKuII.

1. IONEPEJXEHHJ. 3OBHIJIHe cKIO He 3HIMHe.

1. OuNCTIb cKlO 3a DonomoroIO M'kaOI TKAHINn Ta BiIDNOBIDHnx 3acobIB dIy HIIeHHJ.

1. BcTaBTe cKJHi nAheni, nepeKoHaBnCb, 10 eTKeTka "Low-E" npabInbHo 1HTaTbcra Ta po3TaIooBaHa B HnXhHi IbiH qactNHi DBePzrT, 6Ia JIBOI nETJI. TaKIM YINOM, dpyKObaHa eTKeTka Ha nepShOMy cKJI 3aIIuHaTmEbCra Ha BHyTpIiHni CTOpOHi DBePzrT.
2. BcTaHOBiTb Ha Micce KpuuKy BepXhBoroCKna DBePzT, HATnCHyBUn II BCEpeDmHy, NOKn He NoyTe KlaaHnA DBOX 6iUHXKHOK.
3. Iotim noBepHtB DBePcTaHa 90° i noBepHtB fikCaTopn peTeIb BCEpeDHy Do BHYtpiUHbOJ YacTmHn DyXOBKn.

6.3. OUYIUEHHN PNIJIAIDJ

Petelbno ouuuyte npnilaandn icnna Koxhoro BnKOpncTahnra Ta BnCyuye Te noro 3a donomoroo pyuHnka. Y pa3i ctiKnx 3aIuXkIB 3amOHTb npnilaandy y cymiui BoDn ta MIna npin6n3Ho Ha 30 xBUNIN nepeid nobTOPnHM MTTTAM.

OuHJENHH BUIHNX CTINOK:

- 6-piBHeBaMojeJIb

Allow your location permission

To enhance your experience, please allow the enrollment permission to HnApp in the next step.

CONTINUE

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

□Dishwasher

Air conditionair

Air purifier

Air scanner

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

OKIDIDIT

Adim 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Adim 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth

Stay close to your appliance in order to correctly capture the signal.

Adim 7

Appliance connection

Your appliance has been correctly identified!

Brad Hoove
Model 3687-1000-2000-1824
Serial number 12345678-1234-1234

Is this your appliance?

YES IT'S MY OVEN

NO IT'S NOT

WIFI AYARLARI NASIL DEGISTIRILIR

NOT:XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

8.1. CIHAZIN BERTARAF EDILMESI
