Product type	Built-in oven
Brand	Candy
Model	PCI27XCH64CCBA
Dimensions (approx.)	595 x 595 x 575 mm (standard estimate)
Power supply	220-240 V, 50/60 Hz
Maximum power	Approximately 2.5 kW (estimate)
Control type	Rotary knobs: functions, temperature, duration
Display	Mechanical timer (dial)
Cooking functions	Fan-assisted, Cook Light, Bottom heat + fan, Natural convection, Grill, Bottom heat, Defrost, Light
Temperature range	50 °C to MAX (depending on function)
Cleaning	Manual: soapy water, non-abrasive sponge; removable side racks
Interior lighting	Bulb, efficiency class G (lamp) / F (LED)
Safety	Child lock (deactivatable), automatic shut-off at end of cooking
Included accessories	Wire rack, drip tray, side racks (depending on model)
Installation	Built-in in column or under counter; ventilation required; electrical connection by professional
Repairability	Spare parts available from after-sales service
Environmental information	Compliant with WEEE; light sources class G/F
Manual available in	FR, DE, EN, ES, IT, NL, SL

Frequently Asked Questions - PCI27XCH64CCBA CANDY

Why is my oven not heating?

First check that the clock is set. If the child lock is activated, disable it. Make sure the function and temperature settings are correct.

How to clean the oven window?

Use paper towels after each use. For stubborn stains, use a sponge soaked in mild detergent, then rinse with water. Avoid abrasive materials or metal scrapers.

How to use the fan-assisted function?

Select the fan-assisted function (default display 180°C). Ideal for poultry, pastries, fish and vegetables. Preheat for 10 minutes if necessary. You can cook on one or two levels without odor mixing.

How to set the timer?

Turn the duration knob to the desired time. A beep sounds at the end of cooking. You must then turn off the oven manually.

What to do in case of condensation inside?

Condensation is normal. To reduce it, wait 10-15 minutes after turning on before loading. Use covered containers for vegetables and do not leave food for more than 15-20 minutes after cooking.

How to replace the oven light bulb?

Unplug the oven. Remove the glass cover, unscrew the bulb and replace it with an identical bulb (efficiency class G or F). Put the cover back.

Is it necessary to preheat the oven?

For certain functions like natural convection or grill, preheating for 5 to 10 minutes is recommended. Avoid unnecessary preheating to save energy.

How to disable the child lock?

If the oven does not heat due to the child lock, consult the manual to disable it. Generally, you need to hold down a button or a combination of buttons (see manual).

Can I use aluminum foil in the oven?

Do not line the oven walls with aluminum foil: it could melt and damage the enamel. Use it only to cover food, without direct contact with the walls.

How to install the oven correctly?

Installation must be carried out by a professional. The oven can be built into a column or under a counter. Ensure good ventilation by making the indicated openings (about 500 mm²). Connect to a grounded outlet or via an all-pole circuit breaker.

USER MANUAL PCI27XCH64CCBA CANDY

Simple calendar icon with two dots above and a blank grid containing two diagonal lines (no text or symbols)

User Instructions	EN	2
OVENS
Mode d'emploi	FR	14
FOURS
Istruzioni per l'uso	IT	26
FORNI
Instrucciones de uso	ES	38
HORNOS
Handleiding	NL	50
OVENS
Navodila za uporabnika		62 L
PEČICE
Bedienungsanleitung		74 E
ÖFEN

3 Safety Indications
7 General Instructions
9 Product description
10 Display description
11 Cooking Modes
12 General notes on cleaning
12 Maintenance
13 Troubleshooting
86 Installation

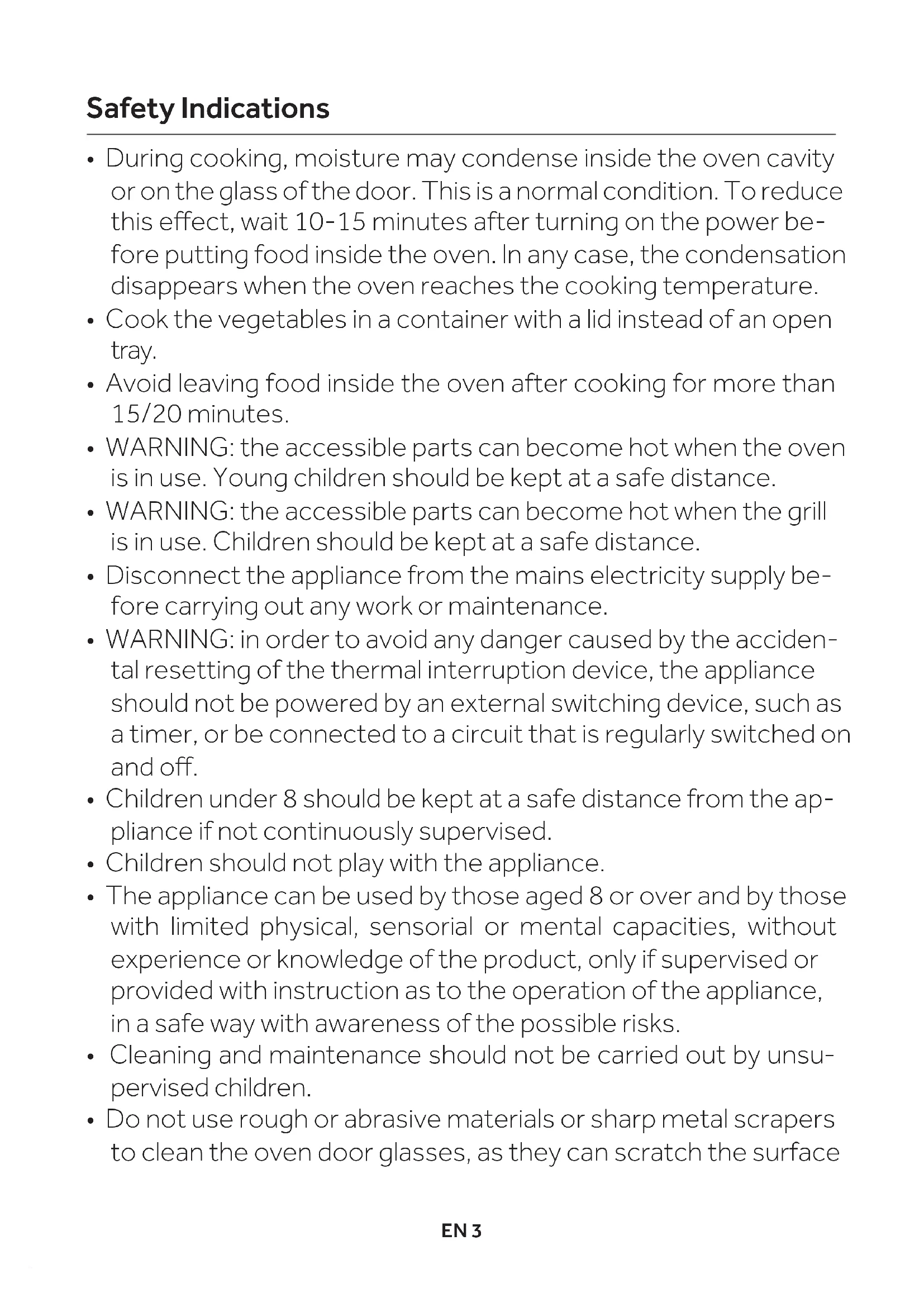

Safety Indications

- During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

- Cook the vegetables in a container with a lid instead of an open tray.

- Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

- WARNING: the accessible parts can become hot when the oven is in use. Young children should be kept at a safe distance.

- WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.

- Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance.

- WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.

- Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

• Children should not play with the appliance.

- The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

- Cleaning and maintenance should not be carried out by unsupervised children.

- Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface

and cause the glass to shatter.

• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.
• Only use the meat probe recommended for this oven.
• Do not use a steam cleaner or high pressure spray for cleaning operations.
• IF THE OVEN IS PROVIDED BY THE MANUFACTURER WITHOUT PLUG:

THE APPLIANCE MUST NOT BE CONNECTED TO THE POWER SOURCE USING PLUG OR SOCKETS, BUT MUST BE DIRECTLY CONNECTED TO THE SUPPLY MAINS. The connection to the power source must be carried out by a suitably qualified professional. In order to have an installation compliant to the current safety legislation the oven must be connected only placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source. The omnipolar breaker must bear the maximum connected load and must be in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The omnipolar breaker used for the connection must be easily accessible when the appliance is installed.

The connection to the power source must be carried out by a suitably qualified professional considering the polarity of the oven and of the power source.

The disconnection must be achieved incorporating a switch in the fixed wiring in accordance with the wiring rules

- IF THE OVEN IS PROVI ED BY THE MANUFACTURER WITH PLUG:

The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case

of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

- Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

- Any excess of spilled material should be removed before cleaning.

- A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.

- The appliance must not be installed behind a decorative door in order to avoid overheating.

- When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be

inserted completely into the cavity.

- When inserting the grid tray pay attention that the anti-slide edge is positioned rearwards and upwards.

- WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

- WARNING: Never remove the oven door seal.

- CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.

- No additional operation/setting is required in order to operate the appliance at the rated frequencies.

- The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

- Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper.

General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed.

NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

The use of any electrical appliance implies the observance of some fundamental rules:

• do not pull on the power cable to disconnect the plug from the socket;
• do not touch the appliance with wet or damp hands or feet;
• in general the use of adaptors, multiple sockets and extension cables is not recommended;
• in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

CONNECTION

The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check:

• power voltage indicated on the gauge;
• the setting of the disconnector.

The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

WARNING

Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

A low light around the central main switch could be present when the oven is off. This is a normal behavior. I can be removed just turning the plug upside down or swapping the supply terminals.

Recommendations

After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

Installation

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury.

The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

Product description

Technical diagram of an oven with numbered components for identification

ACCESSORIES

1. Control panel
2. Shelf positions (lateral wire grid if included)
3. Grids
4. Trays
5. Fan (if present)
6. Oven door

7. Lateral wire grids (if present: only for flat cavity)

8. Serial number

Drip tray

Line drawing of a rectangular container with side slots and a recessed opening (no text or symbols)

Collects residues that drip when cooking food on the grills.

Metal grid

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Holds baking trays and plates.

Lateral wire grids (only if present)

Line drawing of a multi-tiered ladder structure with no text or symbols

Located on both sides of the oven cavity, holds metal grills and drip pans.
NOTE: Oven trays and grids are not suitable for direct contact with food. Please use suitable cookware or baking paper.

First Use

PRELIMINARY CLEANING; Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

Display description

3

Icon set with a central gray circle and surrounding icons including document, lock, folder, and computer

2

2 55 5 50 10 45° 15 40° 20 35° 30 25 30

[NO TEXT]

1. Thermostat selector knob
2. Cooking time
3. Function selector knob

55 5 50 10 45° +15 40° 20 35° 30 25

To set the cooking time, turn dial one complete revolution and then position the index to the required time. When the time has lapsed, the signal will ring for a few seconds.

Symbol	T°C de-fault	T°C range	Function
			LAMP: Turns on the oven light.
			DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered.
	180 50 ÷ MAX		MULTI-LEVEL: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed.Allow about ten minutes extra when cooking foods at the same time.
	190 50 ÷ MAX		* COOK LIGHT: This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result.
	210 50 ÷ MAX		BOTTOM HEATING + FAN: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.
	220 50 ÷ MAX		* CONVENTIONAL: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.
	230 50 ÷ MAX		GRILL: use the grill with the door closed.The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot.Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath.
	220 50 ÷ MAX		PIZZA - With this function hot air circulated in the oven to ensure perfect result for dishes such as pizza or cake.

General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia).

GLASS PARTS

It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

OVEN WINDOW SEAL

If dirty, the seal can be cleaned with a slightly

damp sponge.

ACCESSORIES

Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents.

DRIP PAN

After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid.

If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial oven detergent. Never put a dirty pan back into the oven.

Maintenance

REMOVAL AND CLEANING OF THE SIDE RACKS

1. Remove the wire racks by pulling them in the direction of the arrows (see below)
2. To clean the wire racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the wire racks in reverse order."

Top-down diagram of a square room with circular pattern on the wall and numbered arrows indicating directions (no text or symbols)

CHANGING THE BULB

1. Disconnect the oven from the mains supply.
2. Undo the glass cover, unscrew the bulb and replace it with a new bulb of the same type.
3. Once the defective bulb is replaced, replace the glass cover.

This product contains one or more light sources of energy efficiency class G (Lamp) /F (10 Led).

Waste management and environmental protection

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the “delayed cooking” programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

PACKAGING RECOVERY (only for Cyprus)

Troubleshooting

Problem Possible cause Solution
the oven does not heat up	The clock is not set Set the clock
The oven does not heat up	A cooking function and temperature has not been set	Ensure that the necessary settings are correct
No reaction of the touch user interface	Steam and condensation on the user interface panel	Clean with a microfiber cloth the user interface panel to remove the condensation layer

Technical diagram of an oven with numbered components for identification

ACCESSOIRES

Line drawing of a rectangular plastic container with side holes and a recessed inner space (no text or symbols)

Line drawing of a multi-tiered rack or shelf structure with curved supports (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Icon set with a central gray circle and surrounding icons including document, lock, folder, and computer

2

2 55 5 50 10 45° 15 40° 20 35° 30 25 30

[NO TEXT]

Top-down diagram of a square appliance with internal components and numbered arrows indicating flow or placement (no text or symbols)

REEMPLACEMENT DE L'AMPOULE

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Technical diagram of an oven with numbered components for identification

ACCESSORI

Line drawing of a rectangular container with side flanges and a recessed top (no text or symbols)

Line drawing of a multi-tiered ladder structure with curved bracing (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Icon set for a software notification or alert system with icons for privacy, location, weather, and other functions around a central circle.

2

2 55 5 50 10 45° 15 40° 20 35 30 25

1 50 100 max 200 175 150 125

Top-down diagram of a square appliance with internal fan and side handles, no text or symbols present

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Technical diagram of an oven with numbered components for identification

ACCESORIOS

Bandeja de goteo

Line drawing of a rectangular container with side flanges and a recessed top (no text or symbols)

Line drawing of a multi-tiered ladder structure (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Icon set with a central gray circle and surrounding icons including document, lock, warning symbol, folder, computer, and gear symbols.

2

2 55 5 50 10 45° 15 40° 20 35° 30 25 30

[NO TEXT]

Top-down diagram of a square room with numbered walls and central circular pattern (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Technical diagram of an oven with numbered components for identification

ACCESSOIRES

Line drawing of a rectangular container with mounting holes (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Line drawing of a multi-tiered rack or shelf structure with curved supports (no text or symbols)

Icon set with a central gray circle and surrounding icons including warning symbols, location pins, and document symbols.

2

2 55 5 .5 .10 50 15 45° 40° 20 35° 30 25

1 50 max 100 125 200 175 150

Top-down diagram of a square appliance with internal components and numbered parts (no text or symbols)

HET LAMPJE VERVANGEN

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Technical diagram of an oven with numbered components for identification

Dodatna oprema

Line drawing of a rectangular container with side flanges and a recessed top (no text or symbols)

Line drawing of a multi-tiered ladder structure with curved bracing (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Icon set for a device control panel with labeled buttons and a central indicator

2

2 55 5 50 10 45° 15 40° 20 35° 30 25

1 50 100 125 150 175 200 max

1. Izbirni gumb termostata
2. Čas pečenja
3. Izbirni gumb funkcije

55 5 50 10 45 15 40 20 35 25 30

Top-down diagram of a square appliance with internal fan and ventilation slots, no text or symbols present

ZAMENJAVA ŽARNICE

1. Pečico izključite iz napajanja.
2. Odvijte stekleni pokrov, odvijte žarnico in jo nadomestite z novo žarnico istega tipa.
3. Ko ste pokvarjeno žarnico zamenjali, znova namestite stekleni pokrov.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Technical diagram of an oven with numbered components for identification

ZUBEHÖR

Line drawing of a rectangular plastic container with mounting holes (no text or symbols)

Line drawing of a rectangular metal tray with vertical slats and a handle (no text or symbols)

Line drawing of a multi-tiered ladder structure (no text or symbols)

Icon set for a software status bar with icons for display, navigation, and system status

2

[NO TEXT]

max 50 100 125 150 175 200

1

Top-down diagram of a square room with numbered walls and central circular pattern (no text or symbols)

WECHSELN DER GLÜHBIRNE

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

EN If the furniture is coverage with a bottom at the back part, provide an opening for the power supply cable.

EN If the mounting of the plinth does not allow air circulation, it is necessary to create an opening of 500x10 mm or the same surface in 5000 mm ^2 .

EN If the oven does not have a cooling fan, create an opening 460 mm x 15 mm
