USER MANUAL NORI 2 NATERIAL

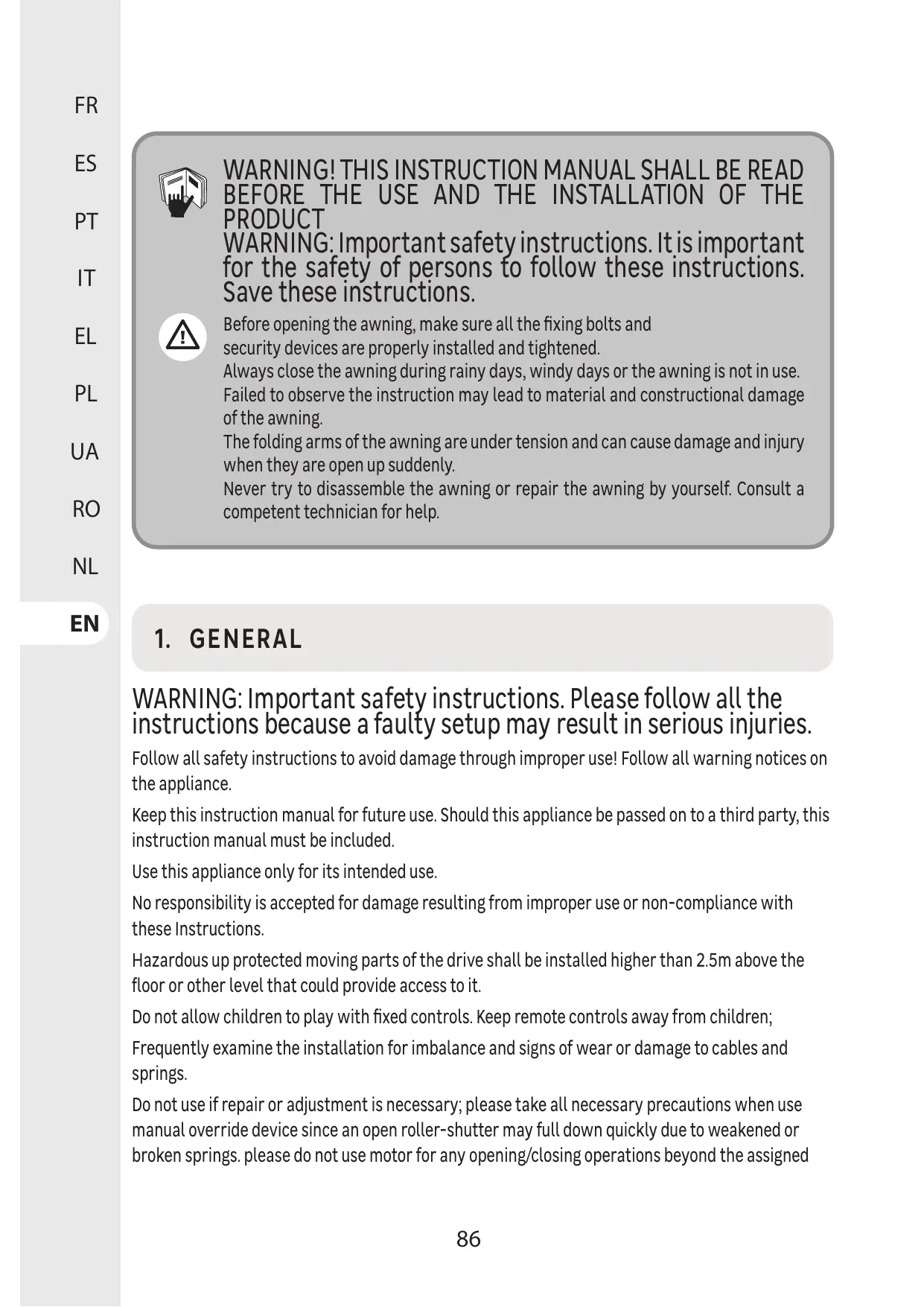

WARNING! THIS INSTRUCTION MANUAL SHALL BE READ PAR es EE USE AND THE INSTALLATION OF THE

WARNING: Important safety instructions. Itis important

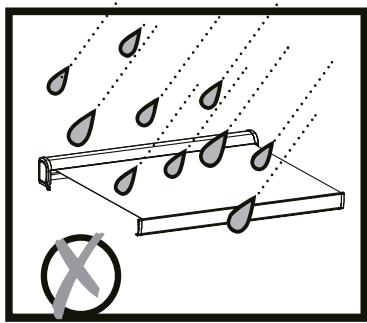

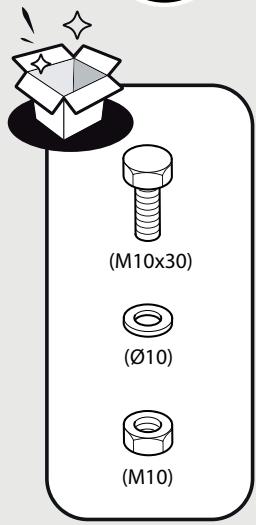

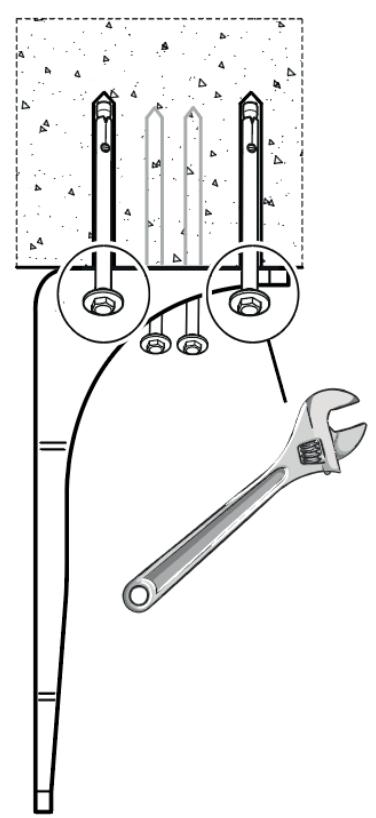

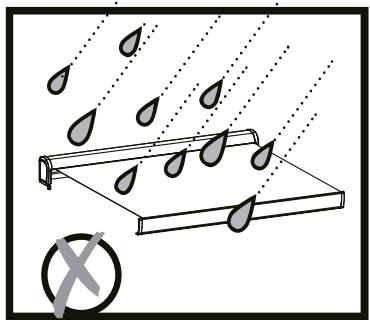

for the safety of persons to follow these instructions. Save these instructions. VAN Before opening the awning, make sure all the fixing bolts and security devices are properly installed and tightened. Always close the awning during rainy days, windy days or the awning is not in use. Failed to observe the instruction may lead to material and constructional damage ofthe awning. The folding arms of the awning are under tension and can cause damage and injury when they are open up suddenly. Never try to disassemble the awning or repair the awning by yourself. Consult a competent technician for help.

WARNING: Important safety instructions. Please follow all the

instructions because à faulty setup may result in serious injuries. Follow all safety instructions to avoid damage through improper use! Follow all warning notices on the appliance. Keep this instruction manual for future use. Should this appliance be passed on to a third party, this instruction manual must be included. Use this appliance only for its intended use. No responsibility is accepted for damage resulting from improper use or non-compliance with these Instructions. Hazardous up protected moving parts of the drive shall be installed higher than 2.5m above the floor or other level that could provide access toit. Do not allow children to play with fixed controls. Keep remote controls away from children; Frequently examine the installation for imbalance and signs of wear or damage to cables and springs. Do not use if repair or adjustment is necessary; please take all necessary precautions when use manual override device since an open roller-shutter may full down quickly due to weakened or broken springs. please do not use motor for any opening/closing operations beyond the assigned

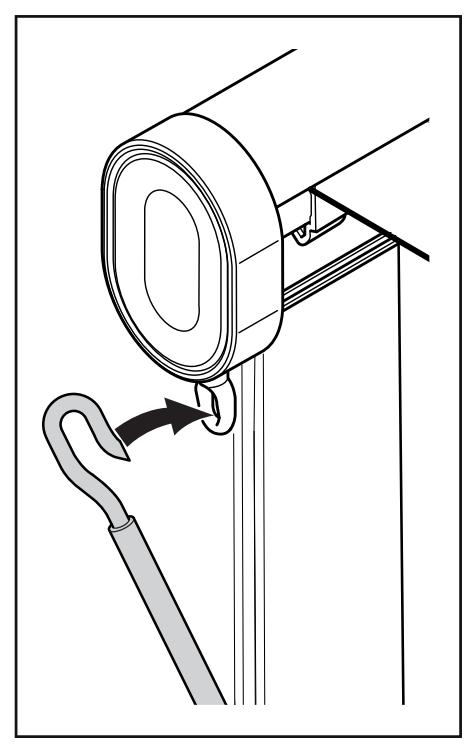

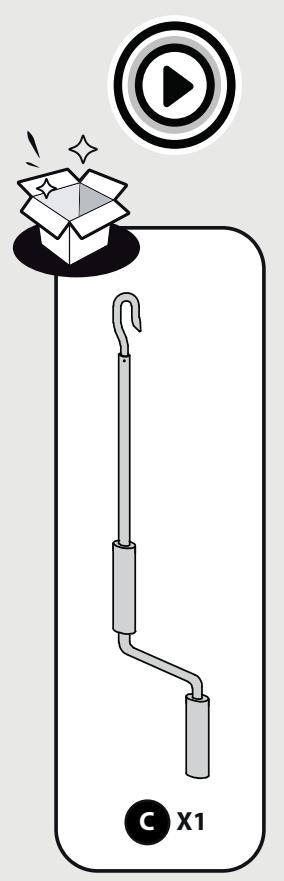

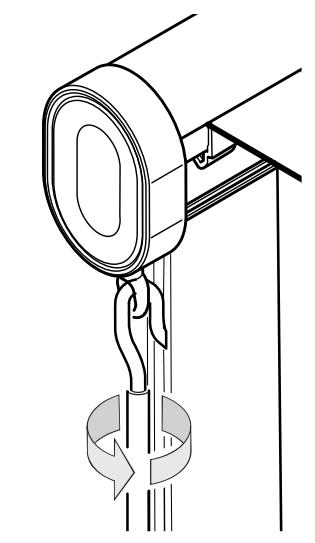

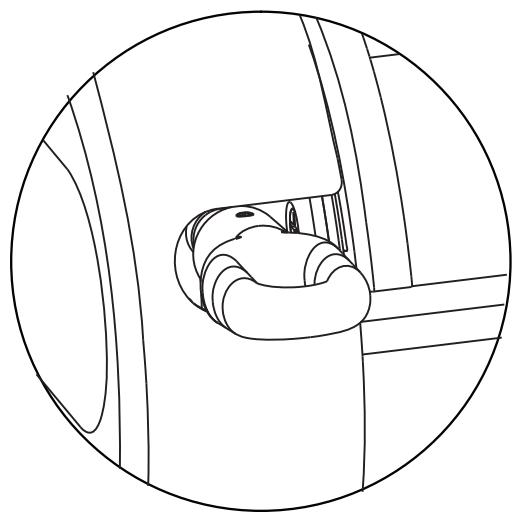

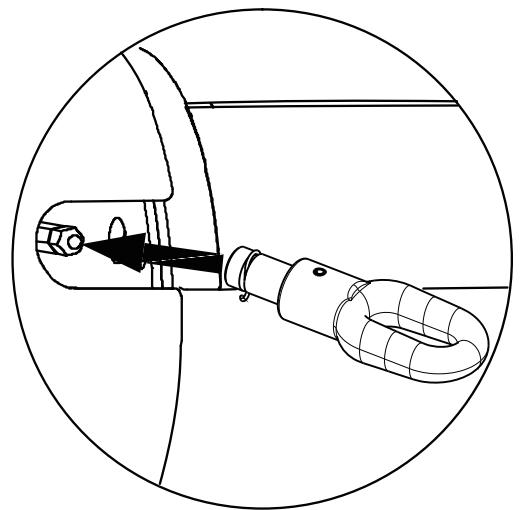

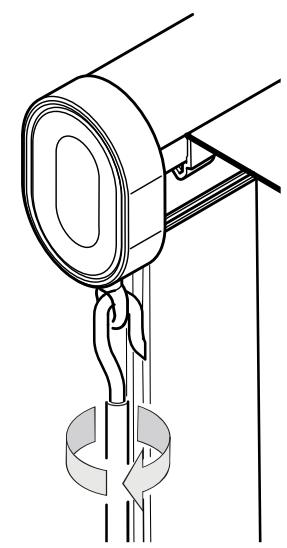

number of cycles (3000 times). If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard. install the actuating member of any manual release at a height Less than 1,8 m.

WARNING: the drive shall be disconnected from its power source during

cleaning, maintenance and when replacing parts. This appliance is not intend for use by person (include children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge. unless they have been given supervision or instruction concerning use of the awning by a person responsible for their safety. children should be supervised to ensure that they do not play with the appliance or the remote control.

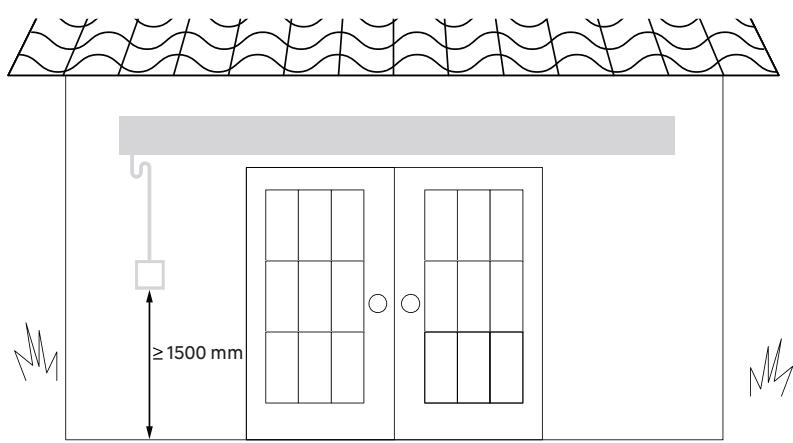

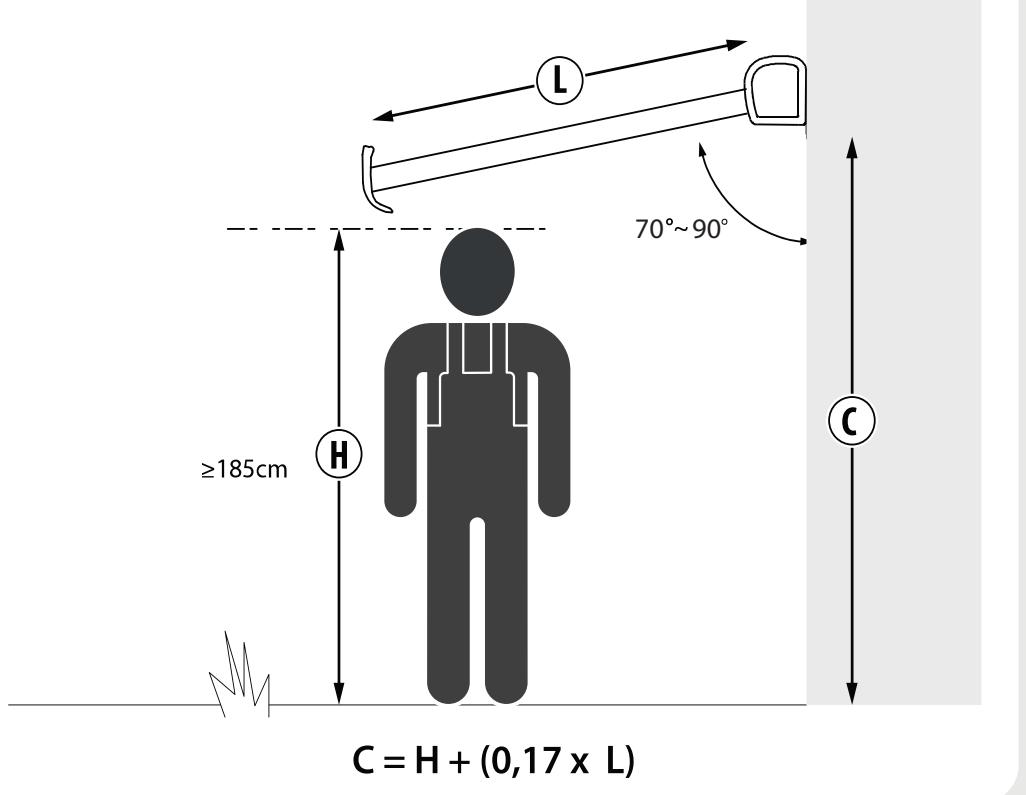

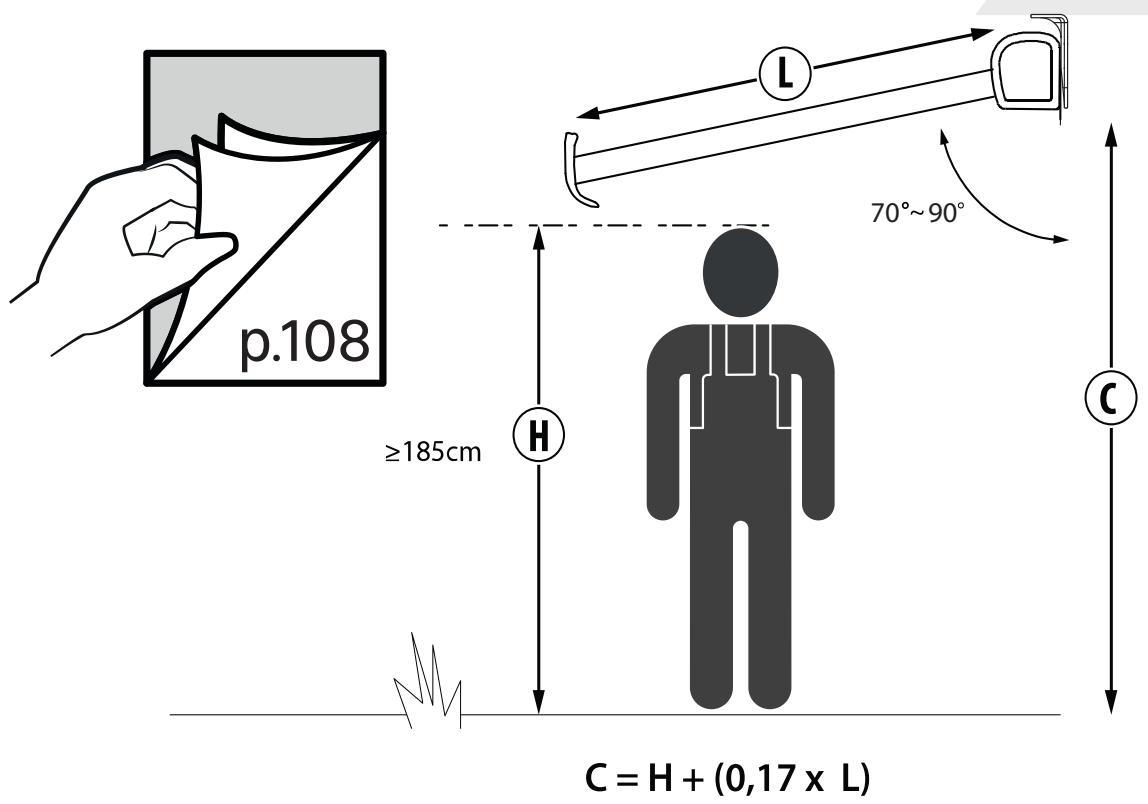

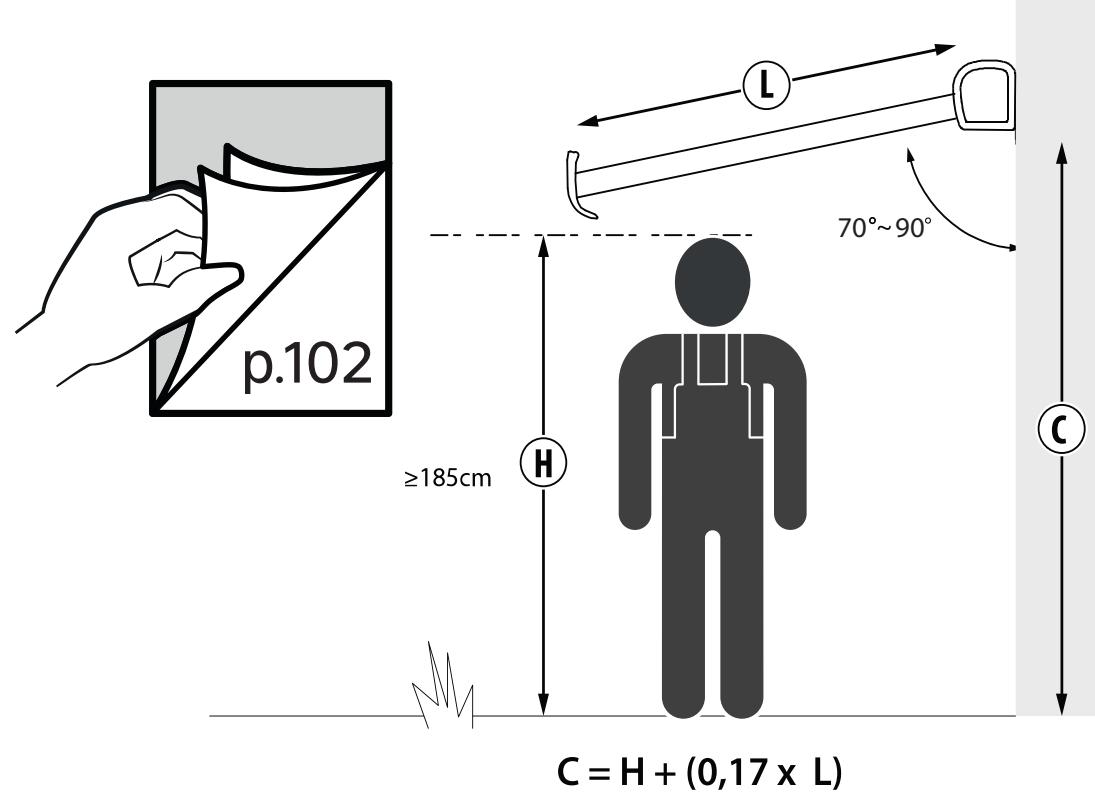

Important safety instructions. please follow all the instructions because a faulty setup may result in serious injuries. Ahorizontal distance of at least 0,4 m is to be maintained between the fully unrolled driven part and any permanent object. Before installing the appliance, remove the unnecessary cord and disable any equipment not needed for power operation. The actuating member of a biased-off switch is to be located within direct sight of the driven part but away from moving parts. It is to be installed at a minimum height of 1,5 m and not accessible to the public.

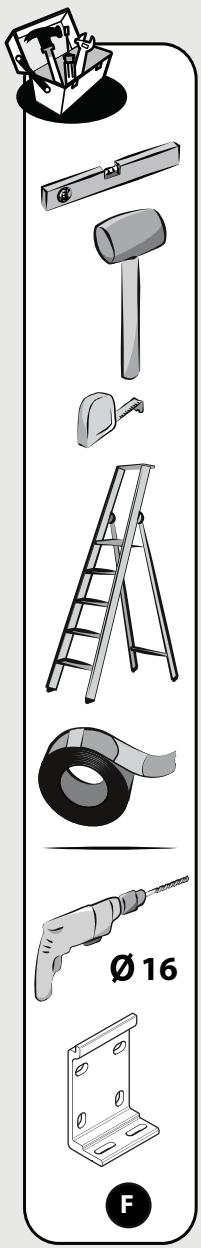

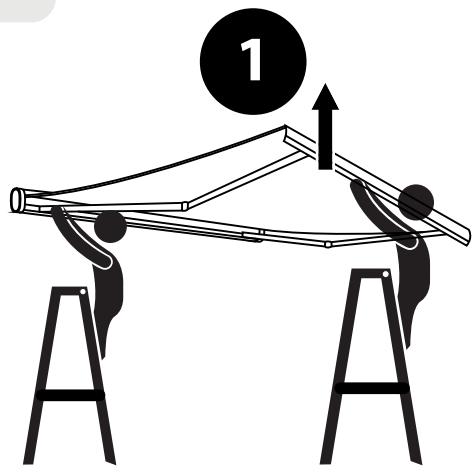

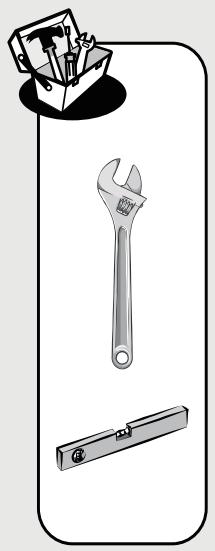

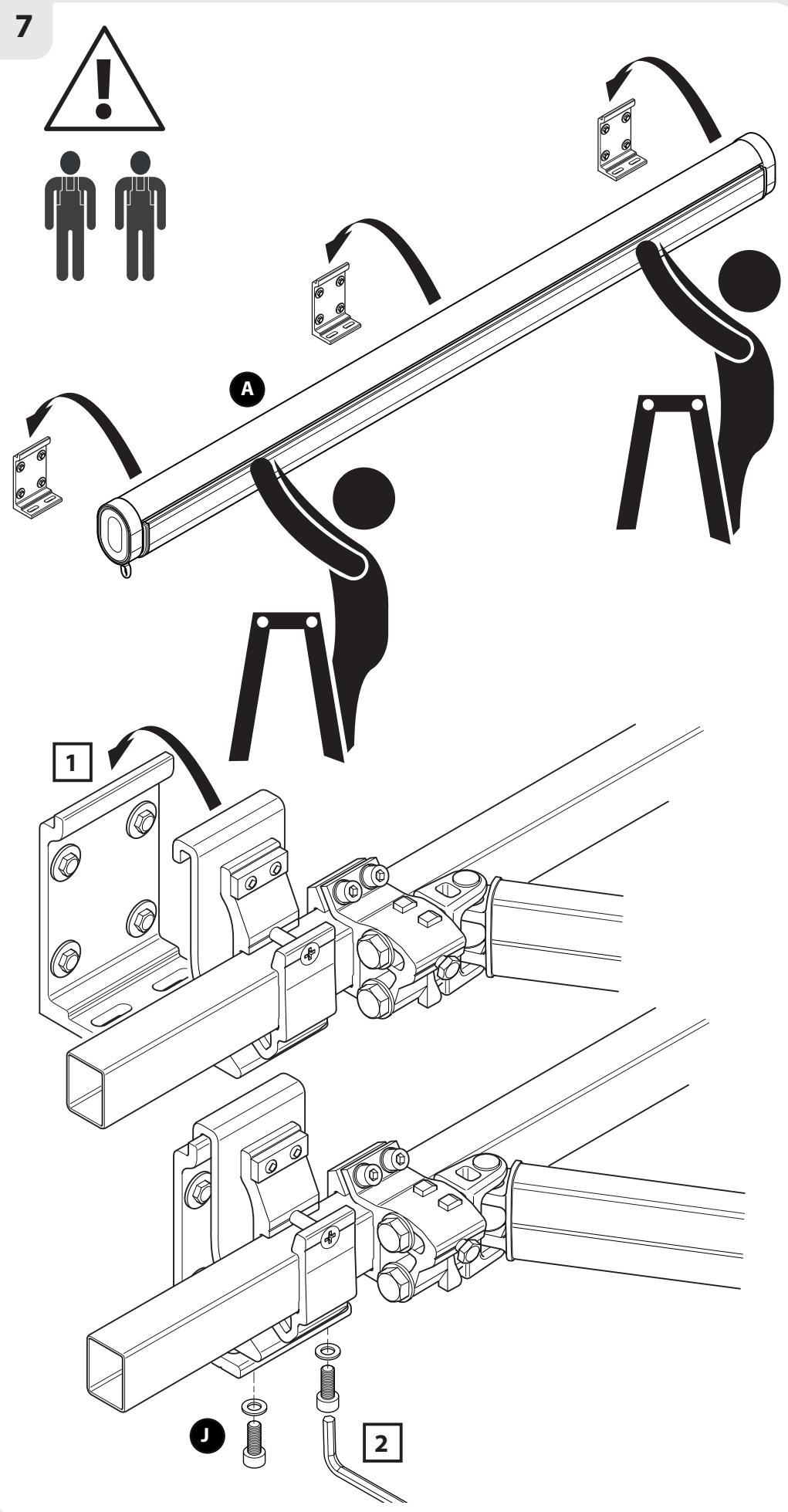

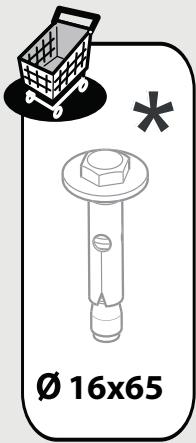

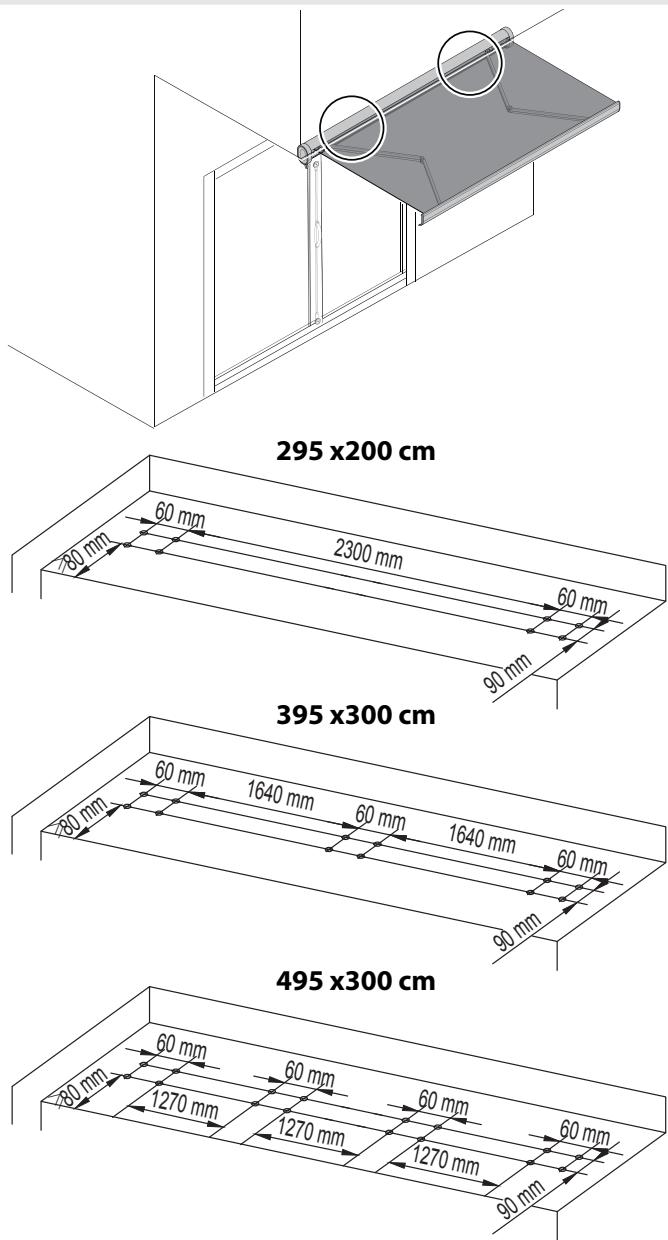

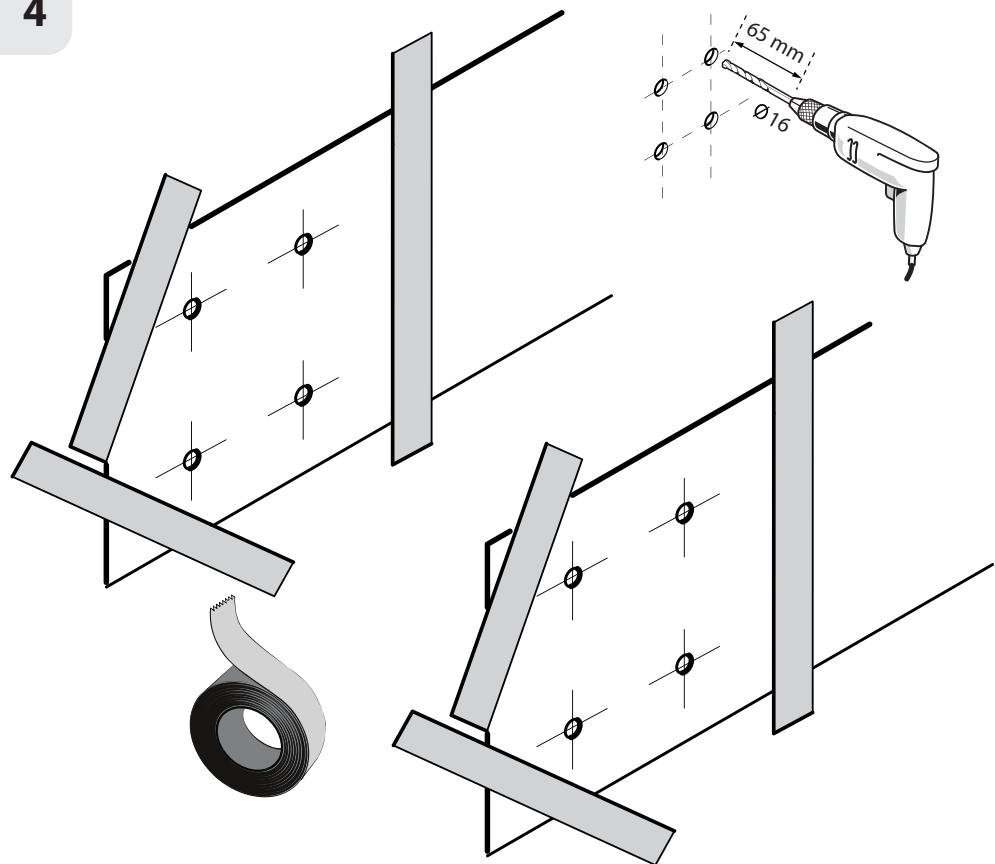

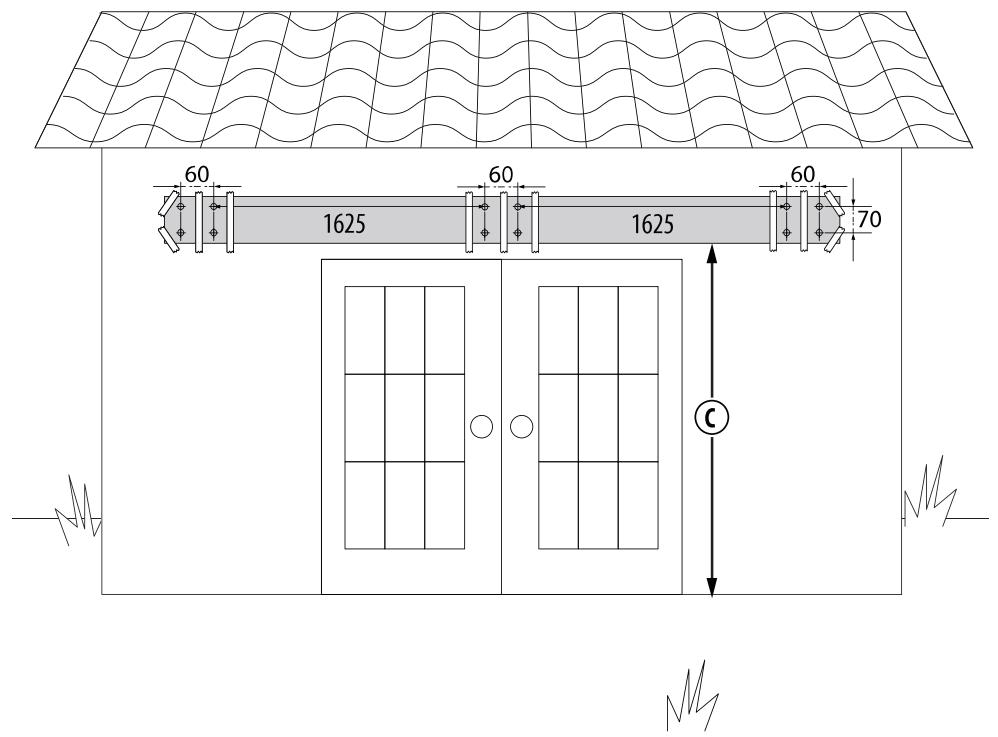

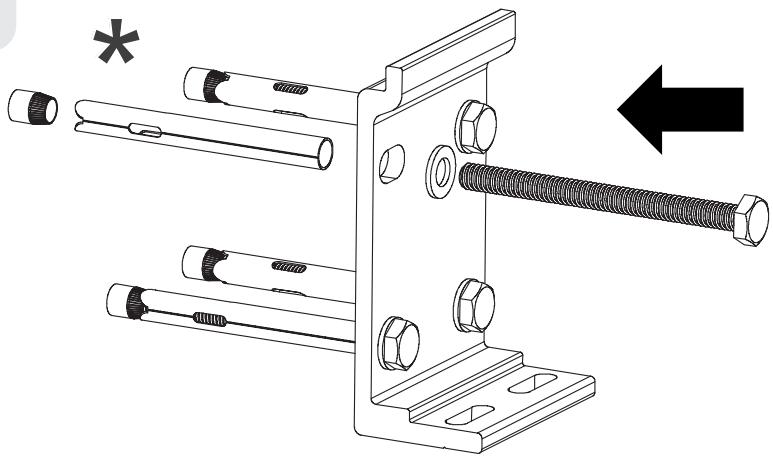

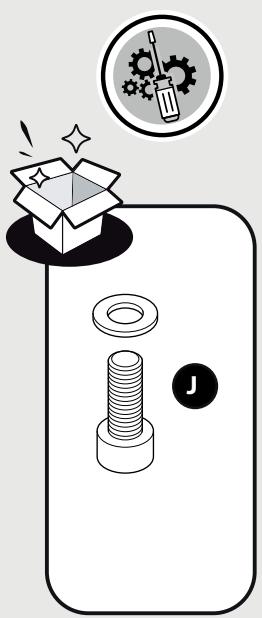

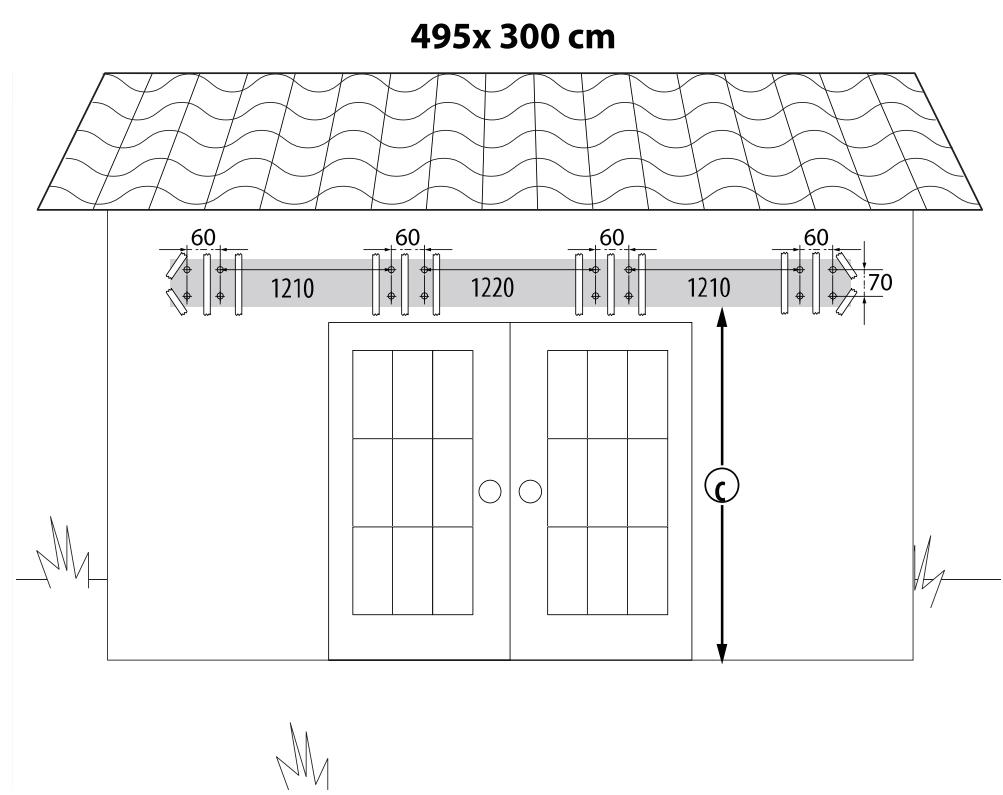

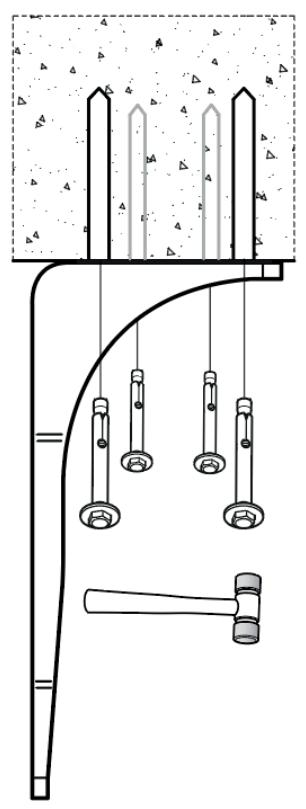

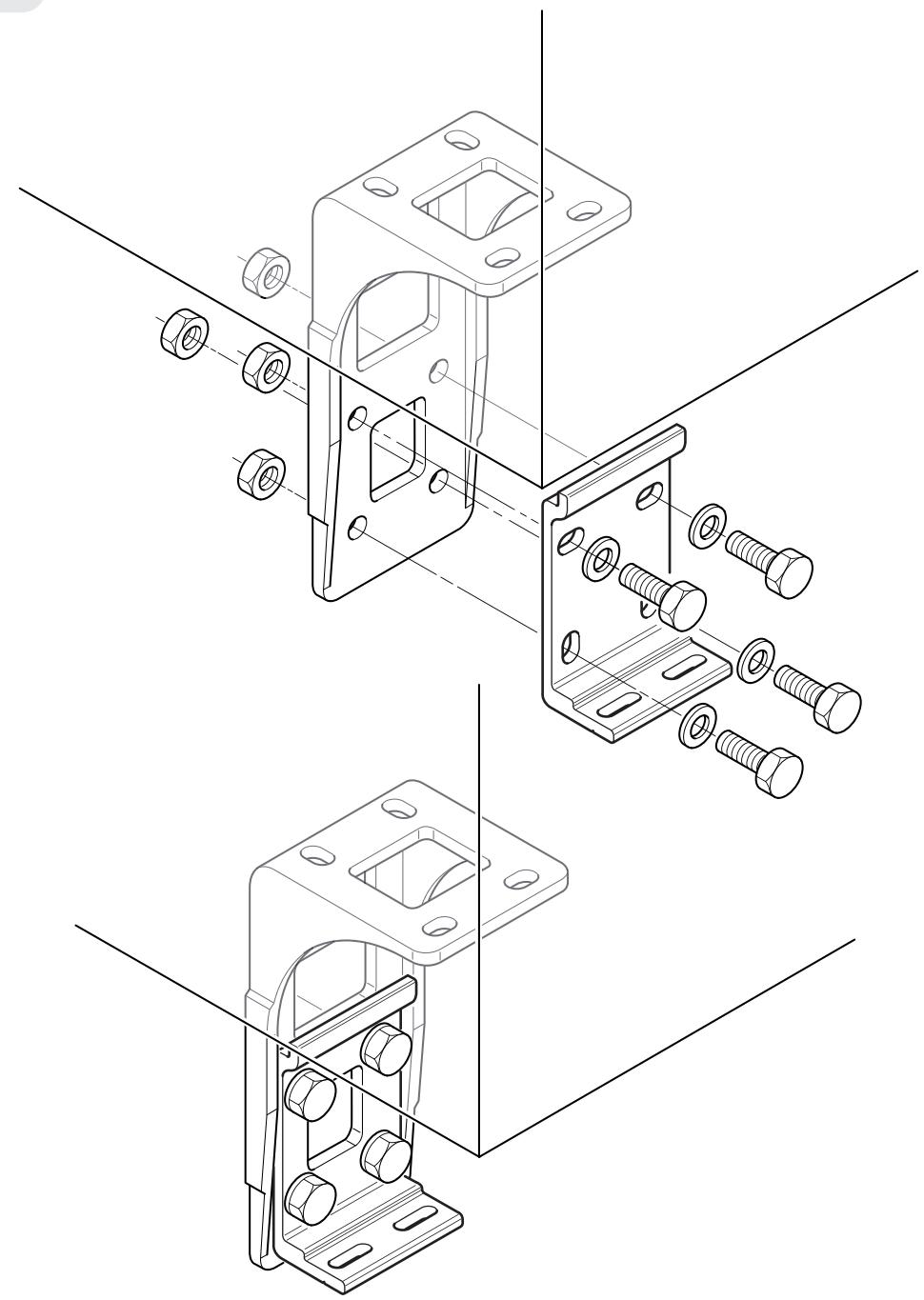

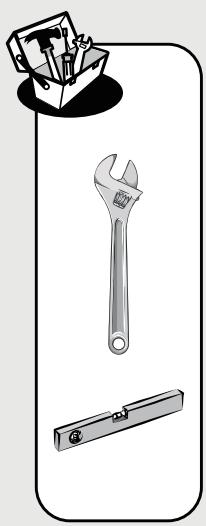

Theinstallation must be conform to the regulation of the country. Ahorizontal distance of at least 0.4 mis to be maintained between fully unrolled driven part and any permanent object. Means for disconnection having a contact separation in all poles must be incorporated in the fixed Wiring in accordance with the wiring rules. When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools, sufficient operators (3 persons are suggested) and space, and a clean and dry area to perform the installation. Switch the power off before cable installation.

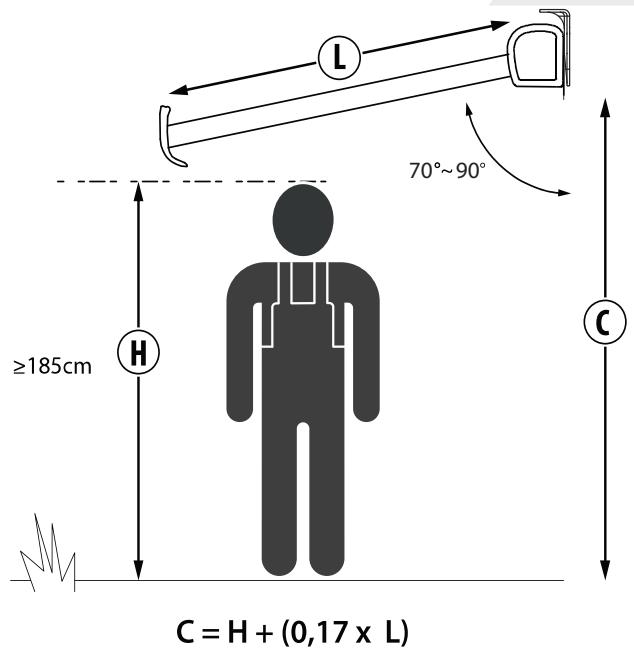

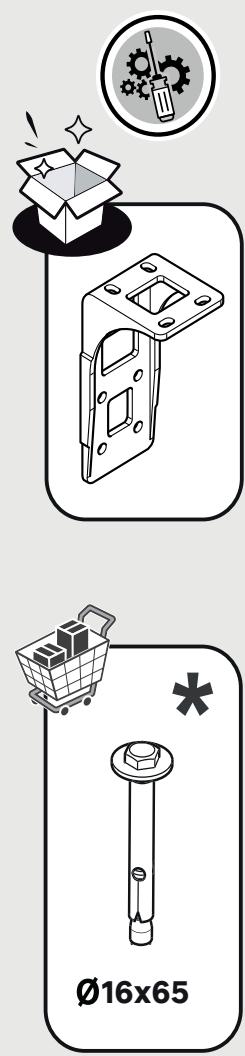

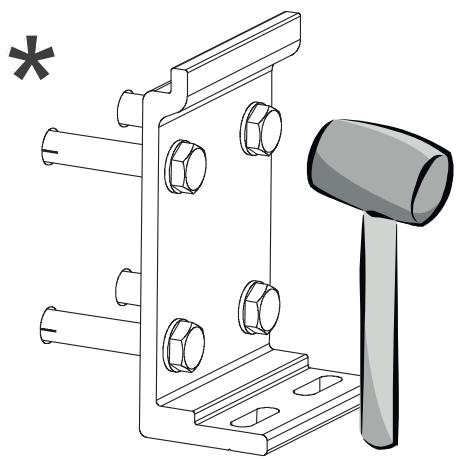

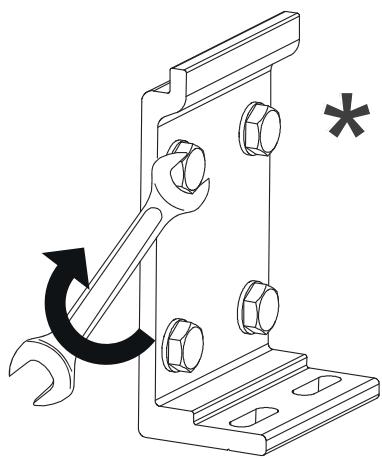

Before installing the product, remove the unnecessary cord and disable any equipment not needed for power operation. Choosing a safe location Never install it in high and windy places, as the sunshade may drop and hurt people. The location for mounting your automation device: this Location must allow for the automation device to pick up the signals easily to ensure maximum sensitivity of the command box. Do not use it in places that have vibrations or impulsions. In case of use of a command box, the electronics board must be set vertically and sheltered from the weather. Theinstallation can be made by non-professionals assuming the instruction is followed correctly. Should you have any trouble during assembly, please consult a qualified person for help. Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it Loose. Be careful with your fingers around moving parts ofthe product during installation.

3. ELECTRICAL SAFETY

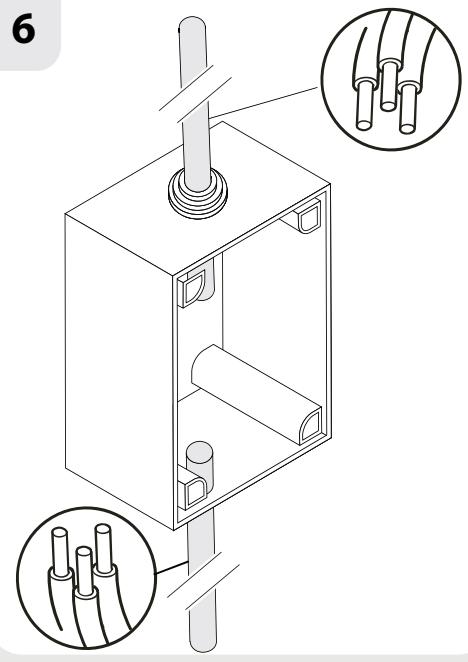

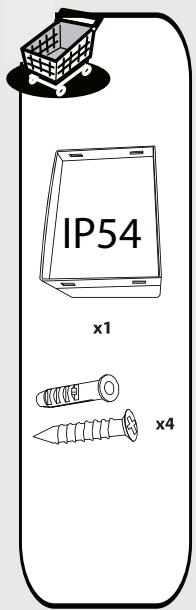

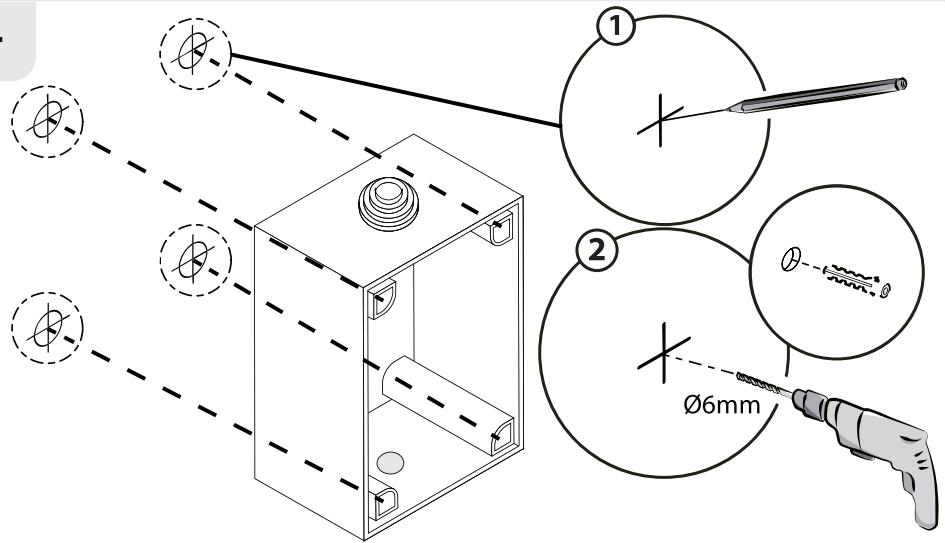

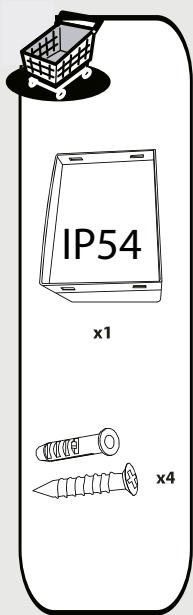

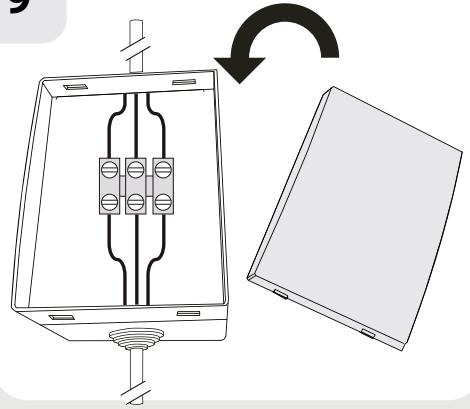

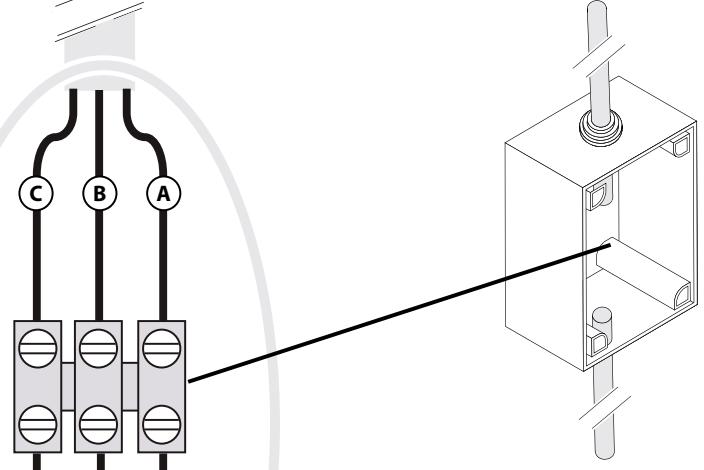

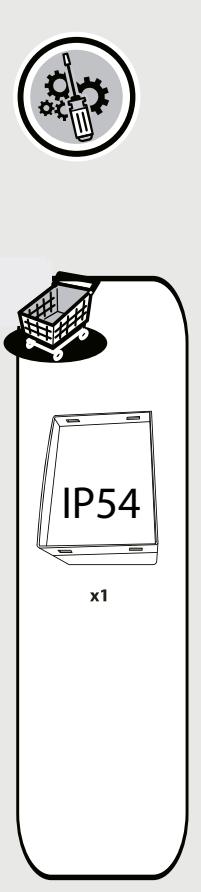

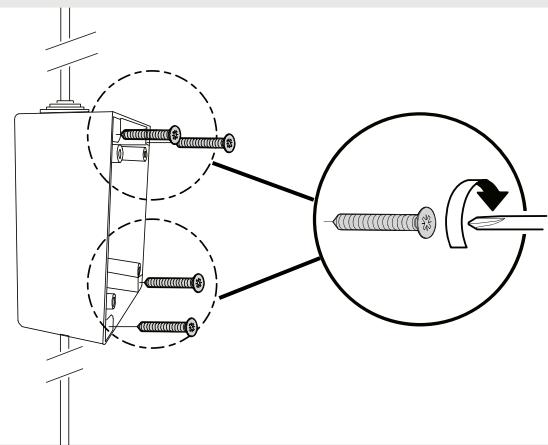

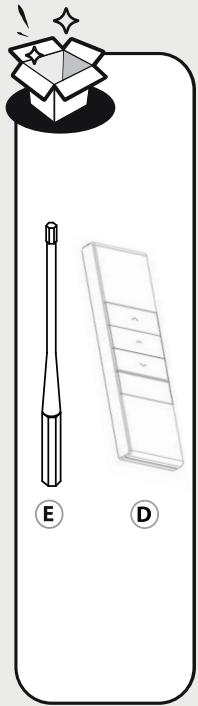

CAUTION: The installation must be conform to the regulation of the country.For your safety, please make sure that the electric current is switched off before carrying out any setup or connection operation. What you will need: hardware not provided: > Waterproof junction box (P54) >Cables > BATTERIES (CR2450 3V)x1 Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label. Areadily accessible disconnect device must be incorporated in the fixed wiring in compliance with setup regulations. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only. If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard. For an inspection or maintenance of the electrical parts, the external blind shall be disconnected from the energy supply in a reliable way.

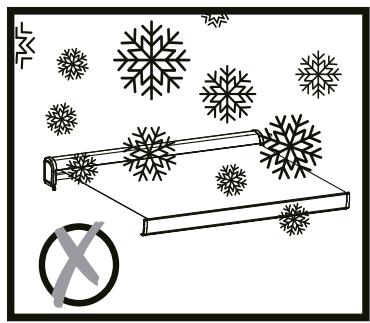

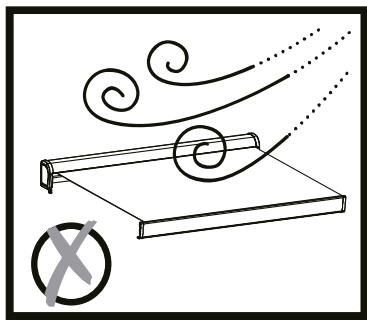

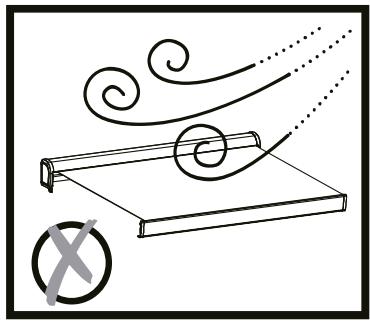

Max. load for non-retractable parts: 800Pa The actuating member of a biased-off switch is to be located within direct sight ofthe driven part but away from moving parts. It is to be installed at a minimum height of 1,5 m and not accessible to the public. Do not modify the appliance in any way! Never open the electronic command box (this will void the warranty). Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories. Do not hang anything on the frame or on the folding arms as the awning may fall down and cause damage or personal injury. Do not use this appliance in adverse weather conditions. If wind speeds are stronger than a class 2 wind(>38km/h), retract the awning. Never use the appliance on rainy days. Do not use it in places of high temperature such as walls near furnaces. The operation in frosty conditions may damage the awning. Save enough free space around the awning while rolling or unrolling. Do not barbecue under the awning or ignite a fire near to the awning. Check the awning every 3 months to ensure all fixing are tightened and no damage on the products. Frequently examine the installation for imbalance and signs of wear or damage to cables and springs. Do not use if repair or adjustment is necessary. Never use a damaged appliance! Disconnect the appliance from the power supply and contact your supplier if it is damaged. Unless advised to the contrary by a technician, do not attempt to use the awning if repair or adjustment is needed. Watch the moving shutter and keep people away until the shutter is completely closed. Please do not use the motor for any opening/dosing operations beyond the assigned number of cycles (3000 times). Do not operate the awning when maintenance, such as window cleaning, is being carried out in the vicinity. Disconnect the awning from the supply when maintenance, such as window cleaning, is being carried out in the vicinity.

Do not allow children to play with fixed controls. Keep remote controls away from children. The awningis not Intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the awning by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

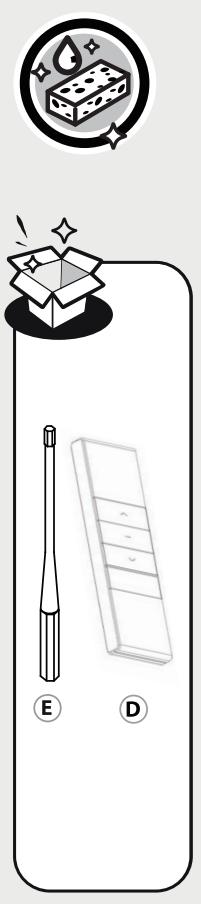

6. BATTERIES IF REMOTE CONTROL

Do not ingest battery, Chemical Burn Hazard The remote control supplied with this product contains a coin / button cell battery. Ifthe coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. Ifthe battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Danger of explosion! The batteries may not be charged or re- activated by other means, disassembled, thrown into fire, or short-circuited. Do not expose batteries to extreme temperatures. Do not place the remote control on heaters. Leaked battery add can cause damages. Replace all used batteries with the same type only. Attention! Danger of explosion! Never insert batteries inversely. If batteries should Leak, remove them with a cloth from the battery compartment. Dispose of batteries according to the regulations. If battery acid has leaked avoid contact to skin, eyes and mucous membranes. Rinse affected areas immediately after contact with the acid and wash with plenty of clean water. Visit a physician. Swallowed batteries are lethal. Keep batteries out of reach of children and pets. Immediately ask for medical assistance if a battery is swallowed.

Remove exhausted batteries from the remote control. Remove the batteries from the remote control, if you will not use it for an extended period of time.

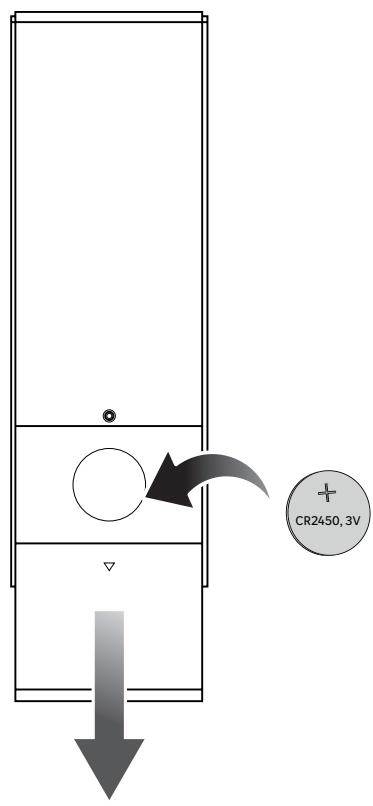

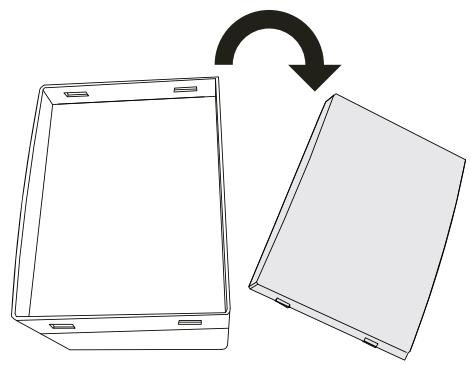

| CR2450, 3V X1 Changing batteries Overheat protection: The motor will automatically go into overheat-protection mode after two consecutive extending (down) and retracting (up) operations Conform to: 2014/53/EU-2014/30/EU-2014/35/EU-2006/42/EC

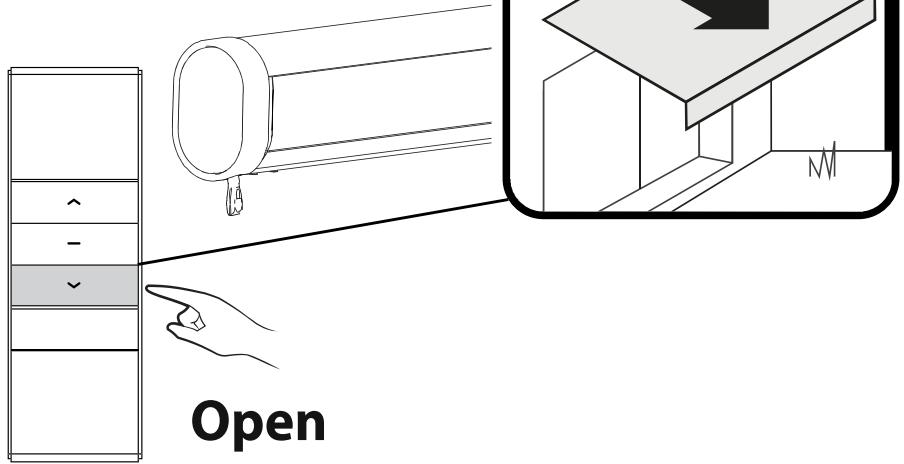

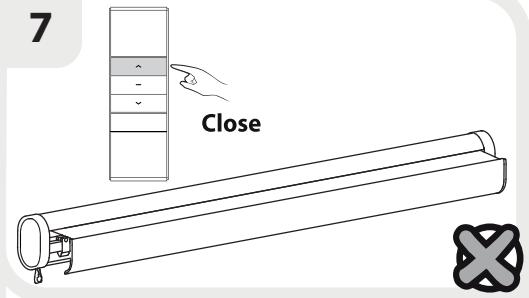

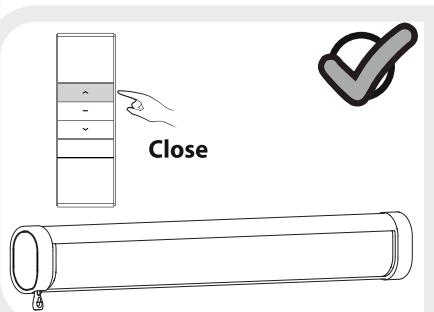

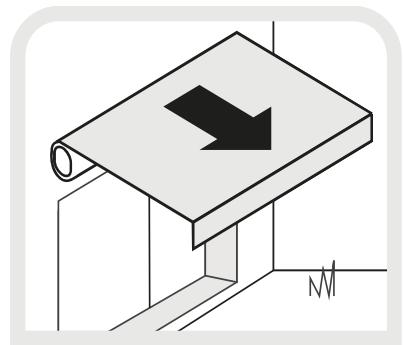

CONTROL Step 1: Prepare a power interface of 230V, turn off the power firstly. Then connect brown and blue electric cords of motor to the power interface (Or with electric cord of motor plugged in a power panel, but firstly need to cut the power off). Step 2: Take out the controller and keep the battery in place, the inductor Light will be on. If not in place, the inductor Light will not be on. No need to cover the battery lid before well-coding. Step 3: Keep ear close to the head of motor and then turn on the power under a quite environment (before turn on the power it must be off more than 10 seconds), Then at the same time, you will hear a clear but small and short sound «Di». This shows it work well. If without that sound, you need to check the cord-connecting or the power. Step 4:1. Find «P2» button in the battery slot firstly 2. Keep ear near to the head of motor under quite environment and then press «P2» button 2 times successively. At the same time you will hear «Di-Di, small and more shorter. Step 5: After the sound of «Di-Di», press «Open» button for 3 seconds and then release, you will hear successive short sound of «Di-Di---» at the same time when you press the «open» button. That means motor-coding works Step 6:1. Check whether motor is working. 2. If motor is on the work, press «close» button for 3

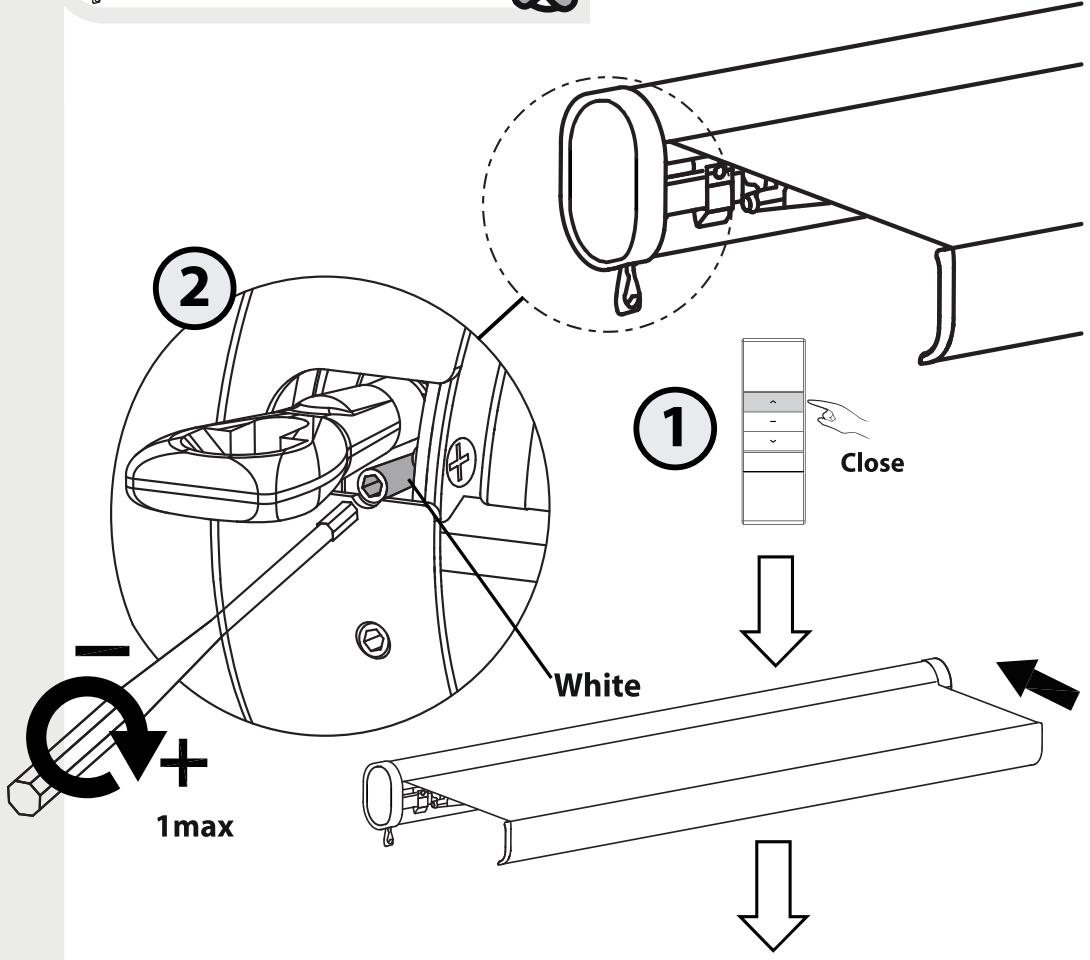

seconds. If motor turns in the contrary direction as when opening «open» button. It means motor can work normally. (If motor refuse to turn, then it needs to adjust its limit. (See Method for adjusting motor limit).

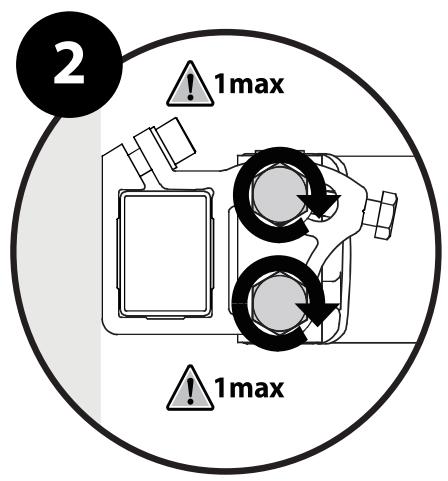

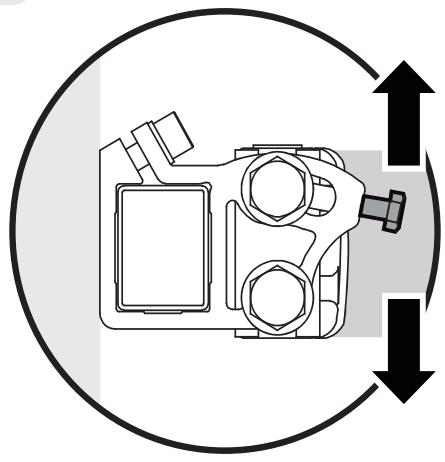

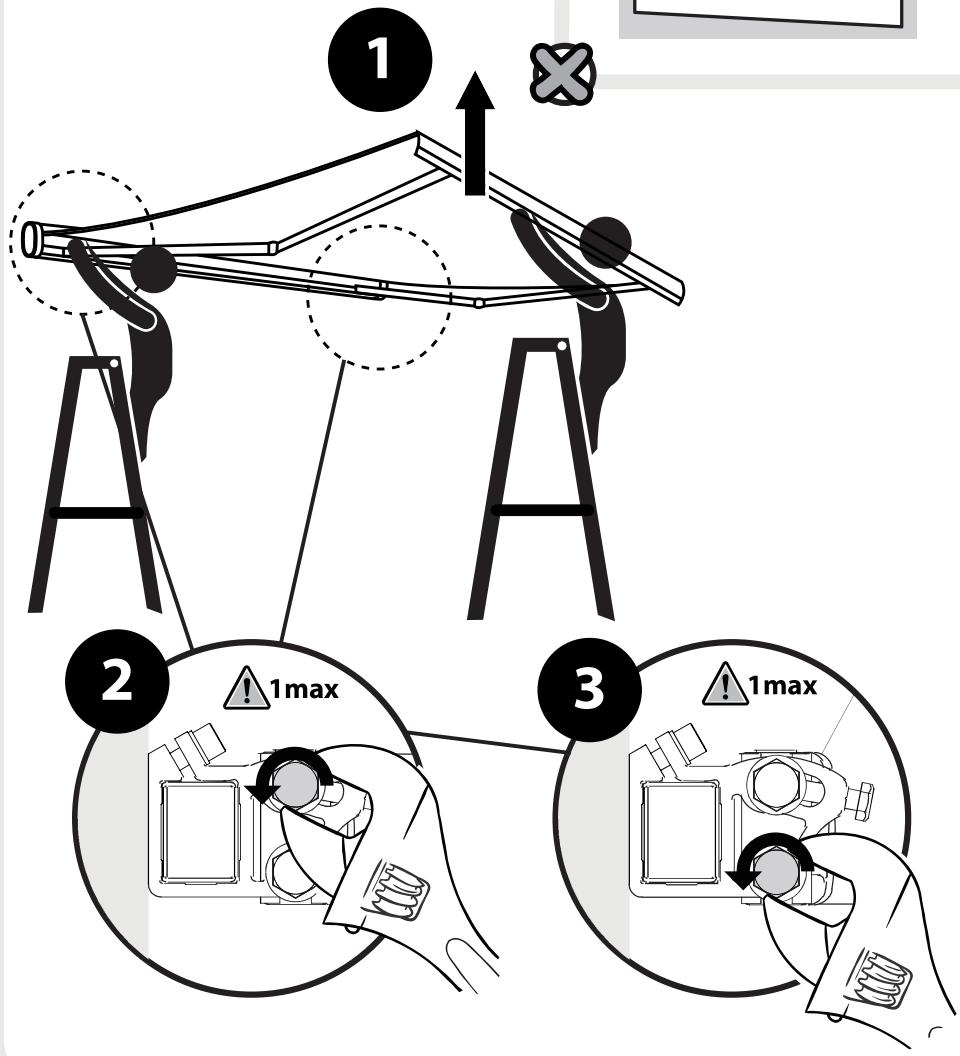

Attention: Well finish the setting program already for all electric items, final client no need adjust the motor again. The user can adjust the Limit of one direction at one time, do not adjust two knobs at the same time. Do not turn knobs fiercely, please check the limit with remote control per revolute about half cycle, and check if the setting you satisfied. WARNING @ The replacement and installation of batteries must be done by an adult. © Remove the worn out batteries of this product. @ Do not expose the batteries to fire, they may Leak or explode. @ Do not short-circuit the battery terminals. @ Do not mix old batteries with new ones. @ Do not use rechargeable batteries in this product. @ Do not recharge batteries that are not rechargeable. @ Use only the recommended type of batteries. © Keep this product away from the reach of children. @ Dispose off the batteries only in a recycling place. e The drive shall be disconnected from its power source during cleaning, maintenance and when replacing parts. © WARNING: the drive shall be disconnected from its power source during cleaning, maintenance and when replacing parts. Maintenance Check to make sure that the awningis fixed tightly and securely before cleaning. @ Clean the metal surfaces of the awning with a slightly damp cloth. @ Clean the remote control and wall mount base with a slightly damp cloth. @ Wipe off debris from the fabric cover using a dry, soft cloth when the awning is not clean or when itis not used for longer period of time. @ Do not use any abrasive cleansers like chemicals, benzene or alcohol. @ Do not roll-in the awning when wet. @ Dry the fabric cover naturally when it is wet.

e Turn off the power when the awning is not used for a longer period of time.

9. TECHNICAL SPECIFICATIONS

Supply Voltage and Current: 230V -50Hz, 0.86A Nominal power: 198W Rotation speed: 15/min Torque: &0Nm Evaluated cycle number: 2 Protection class: IPX4 Model of the engine: Dooya DM45RM-40/15 Model of the remote control: DC1600 Maximum RF Transmit Power: -7.71dBm Transmitting Frequency: 433.88MHz Protection against electric shock: Classe | Emission sound pressure level <70 db(A) AW3 RM 2.95x2 Acrylic fabric 2780mmx2200mm AW3 RM 3.95x3 Acrylic fabric 3780mmx3200mm AW3 RM 4.95x3 Acrylic fabric 4780mmx3200mm

10.DISPOSAL AND RECYCLING

processed and dismantled, it must comply with the requirements of European Directive This product is equipped with the sign for separate collection and sorting of waste electrical and electronic equipment (WEEE). This means that when this type of product is 2012/19/EU, to reduce the negative impact on the environment. For more information, BE contact your local or regional authorities. Electronic products that have not been separately collected and sorted, may be dangerous for the environment and human health due to the presence of harmful substances.
