USER MANUAL WG259E WG259E.5 WG259E.9 WG260E WG260E.5 WG260E.9 WORX

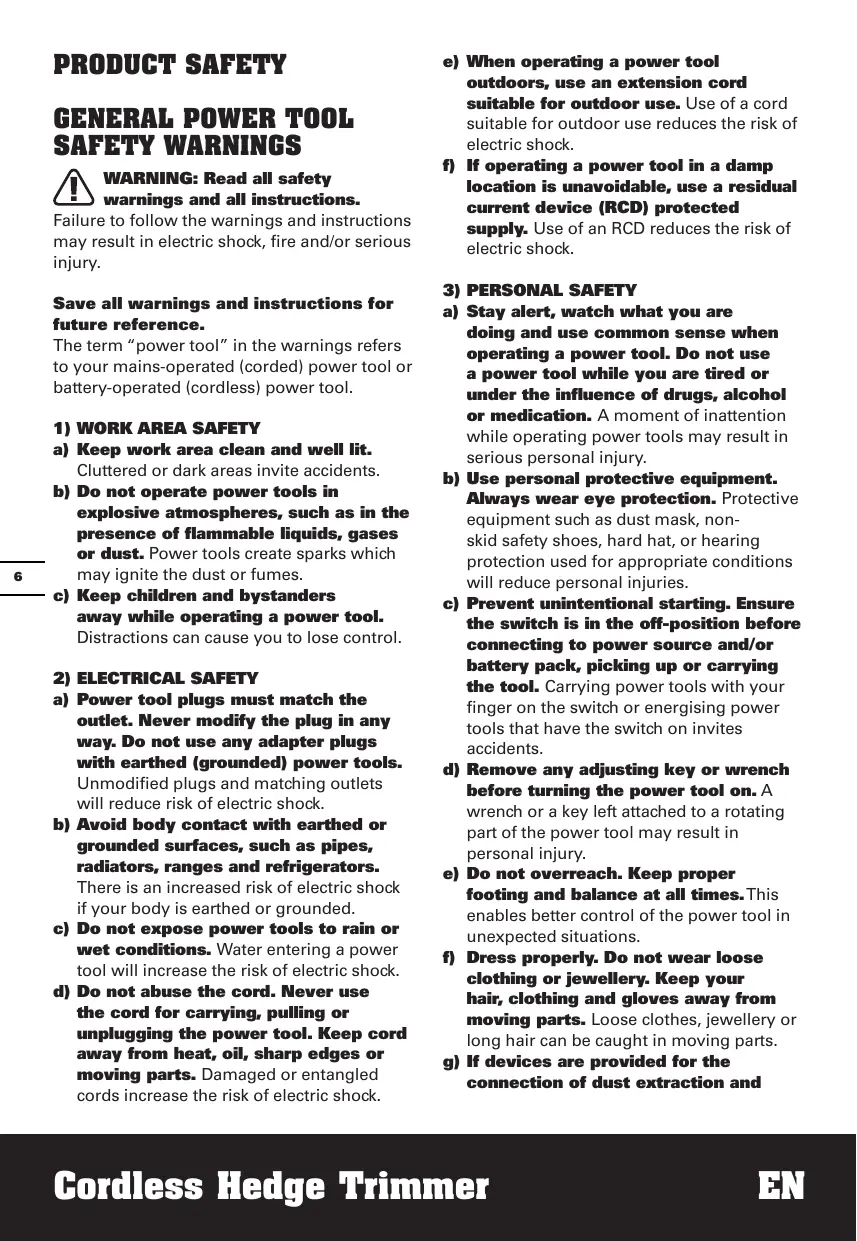

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and wi Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. €) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a} Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoïd body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. €) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

4) Do not abuse the cord. Never use

the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) H operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. À moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. €) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

4) Remove any adjusting key or wrench

before turning the power tool on. À wrench or à key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep propes footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

9) devices are provided for the

connection of dust extraction and Cordless Hedge Trimmer

collection facilities, ensure these are connected and property used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. €) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. le power tools out of the Check for ing of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. #) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

9) Use the power tool, accessories and

tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. À charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. €) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

4) Under abusive conditions, liquid

may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If nally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool sei a qualified repair p. identical replacement parts. This will ensure that the safety of the power tool is maintained.

1. Keep all parts of the body away from

the cutter blade. Do not remove cut material or hold material to be cut when blades are moving Make sure the switch is off when ing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

2. Carry the hedge trimmer by the

handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the Cordless Hedge Trimmer

hedge trimmer will reduce possible personal injury from the cutter blades.

3. Hold the power tool by insulated

gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock

4. Check the hedge for foreign objects,

5. Use both hands when operating the

hedge trimmer. Using one hand could cause loss of control and result in serious personal injury.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardiy in a box or drawer where they may short-cireuit each other or be short- circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. €} Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

4) Do not subject battery pack to

mechanical shock. e) In the event of battery leaking, do not with the skin or eyes. ff contact has been made, wash the affected area with copious amounts of water and seek medical advik f) Seek medical advice immediately if a cell or battery pack has been swallowed.

9) Keep battery pack clean and dry.

h) Wipe the battery pack terminals with a clean dry cloth if they become dirty. Ï Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure. Ï Do not maintain battery pack on charge when not in use. K) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performanc: D Battery pack gives its best performance when it is operated at normal room temperature (20°C + 5°C). m)When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by WORX. Do not use any charger other than that specifically provided for use with the equipment. À charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ©) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of al product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly. Cordless Hedge Trimmer

SYMBOLS Warning To reduce the risk of injury, user must read instruction manual Wear ear protection Wear eye protection Wear dust mask Keep hands away Remove battery from the socket before carrying out any adjustment, servicing or maintenance. OUI

Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.

Do not expose to rain

Do not expose to rain or water

Do not burn Cordless Hedge Trimmer Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

• Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type WG259E WG259E.5 ANG259E.9 WG260E WG260E.5 WG260E.9 1230-269- designation of machinery, representative of cordiess hedge trimmer) WG259E |WG259E.5|WG259E.9| WG260E [w6260E.5lW6260E.0 10 Voltage 220-240V-50/60Hz Power 20V = Max** Lithium No load speed 2200/min Max.cutting length 52cm 61cm Max.cutting diameter 14mm 20mm Charging time Bhr approx.[1hr approx / Bhr approx.[1hr approx / Machine weight 2.5kg 2.5kg 2.1kg 2.5kg 2.5kg 2.1kg **Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. NOISE INFORMATION

A weighted sound pressure 7rdB(A) Koa 3.04B{A) A weighted sound power 20dB(A) Ka 3.04B(A) Wear ear protection. © Cordless Hedge Trimmer

VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a,=2.2m/s? Uncertainty K = 1.5m/s? The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) Ifthe tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days. Blade sheath 1 1 1 1 1 1 Safety guard 1 1 1 1 1 1 Charger 1 (WA3760) | 1 (WA3860) 1 1 (WA3760) | 1 (WA3880) ! Battery pack / 1 (WA3551) | 1 (WA3551) /

{WA3551.1) | (WA3551.1) We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Cordless Hedge Trimmer

OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for cutting and trimming hedges and bushes in domestic use. WARNING! Do not use the product without attaching the guard and front handle. ASSEMBLY & OPERATION ACTION FIGURE ASSEMBLY | See Fig. Assembling the safe guard x Assembling the Front Handle NOTE: Handle screws should be | See Fig. facing the protective shield. Ifthe | B1, B2, handle is assembled incorrectiy, | B3 the tool will not power on. Installing and Removing the See Fig. battery pack c Charging the battery pack Your battery pack is UNCHARGED, you must charge before use. More details can be found in WA3760 (for WG259E/WG260E) or WA3860 (for WG259E.5) or WA3880 (for WG260E.5) manual OPERATION See Fig. Starting and stopping D1D2 Top cutting

WARNING: if any parts

are missing, damaged or broken, do not operate your hedge trimmer until all damaged | See Fig. parts have been replaced or E repaired. Failure to do so could result in serious personal injury.

DO NOT USE WITHOUT FRONT

HANDLE AND SAFETY GUARD. . . See Fig. Side cutting > Lubricating the Cutting Blade NOTE: it is important to use . See Fig. only the recommended standard lubricating oil (WD-40) to avoid damage to the blade.

HOW TO USE YOUR HEDGE

TRIMMER Note that the front switch lever can be activated on three sides, giving you many choices for a comfortable grip. Before cutting an area, inspect it first and remove any foreign objects that could become thrown or entangled in the blades. Always hold the trimmer with both hands and with the blade away from you before turning it on. When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade. (See Fig. E1& E2) Allow the cutting blades to reach full speed before cutting. When operating, keep the cutting blades away from people and objects such as walls, large stones, trees, vehicles, etc. If the blade stalls, immediately stop the trimmer. Release the two Switch Levels (5 & 6] before attempting to clear jammed debris from the cutting blades. Wear gloves when trimming thorny or prickly growth Do not attempt to cut stems that are too thick for the cutting blade TOP CUTTING Use a wide sweeping motion (See Fig. E1). A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. SIDE CUTTING When trimming the sides of the hedge, begin atthe bottom and cut upwards (See Fig. E2), tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth. Cordless Hedge Trimmer

MAINTENANCE Remove battery before ca adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. ENVIRONMENTAL PROTECTION Waste electrical products must not be disposed of with household waste. mm Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. DECLARATION OF CONFORMITY We, Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany Declare that the product, Description WORX Cordless Hedge Trimmer Type WG259E WG259E.5 WG259E.9 WG260E WG260E.5 WG260E.9 (230-269 - designation of machinery, representative of Cordless Hedge Trimmer) Function Trimming hedges and brushes Complies with the following Directives, 2006/42/EC, 2014/30/EU, 2011/65/EU, 2000/14/EC amended by 2005/88/EC 2000/14/EC amended by 2005/88/EC: - Conformity Assessment Procedure as per Annex V - Measured Sound Power Level 87.14B{A) - Declared Guaranteed Sound Power Level S04B(A)

2018/11/07 Allen Ding Deputy Chief Engineer Testing & Certification PositecTechnology (China) Co,, Ltd. 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P R. China Cordless Hedge Trimmer
