USER MANUAL WG286.9 WORX

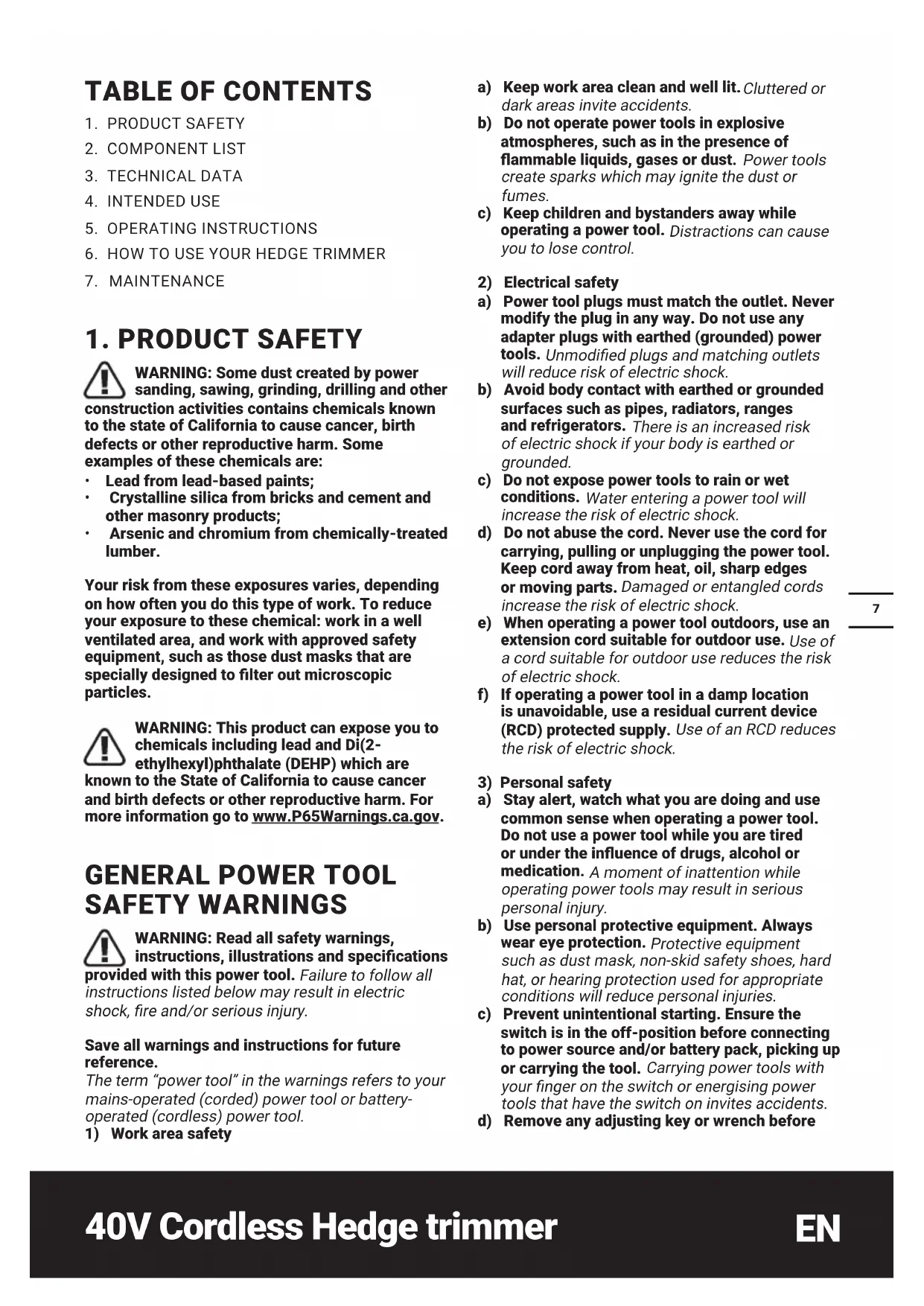

WARNING: Some dust created by power

sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;

• Crystalline silica from bricks and cement and other masonry products;

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles.

WARNING: This product can expose you to

chemicals including lead and Di(2- ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING: Read all safety warnings,

instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before8 40V Cordless Hedge trimmer

turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b) Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury. f) Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 130 °C (265°F) may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

a) Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

HEDGE TRIMMER SAFETY

WARNINGS a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the9 40V Cordless Hedge trimmer

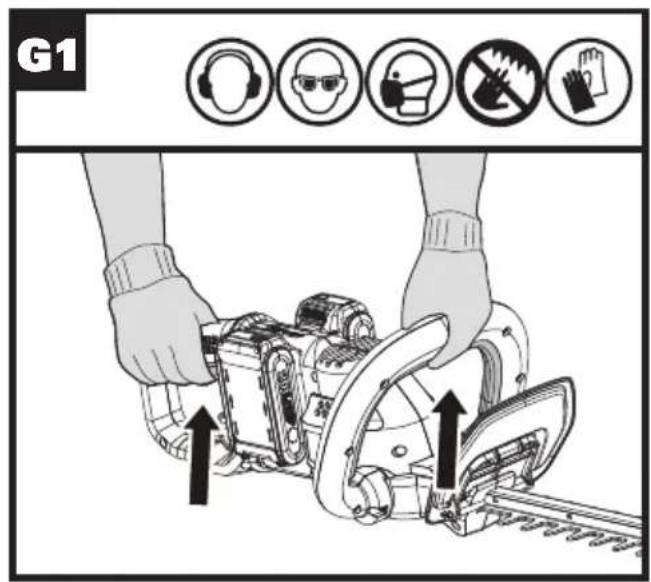

hedge trimmer may result in serious personal injury. b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades. c) When transporting or storing the hedge trimmer, always t the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades. d) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery back is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury. e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock. f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade. g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. h) Check the hedges and bushes for foreign objects, e.g. wire fences and hidden wiring.

i) Hold the hedge trimmer properly, e.g. with both

hands if two handles are provided. j) The hedge trimmer is intended to be used by the operator at ground level and not on ladders or any other unstable support. k) Before operating the hedge trimmer, the user should make sure the locking device(s) of any moving elements (e.g. the extended shaft and pivoting element), if any, are in the locked position. l) Have any adjustable stopping mechanism maintained at regular intervals.

BATTERY PACK a) Do not dismantle, open or shred battery pack. b) Do not expose battery pack to heat or re. Avoid storage in direct sunlight. c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or re. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Do not use any battery pack which is not designed for use with the equipment. g) Keep battery pack out of the reach of children. h) Always purchase the battery pack recommended by the device manufacturer for the equipment.

i) Keep battery pack clean and dry.

j) Wipe the battery pack terminals with a clean dry cloth if they become dirty. k) Battery pack needs to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. l) Do not leave battery pack on prolonged charge when not in use. m) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. n) Recharge only with the charger specied by Worx. Do not use any charger other than that specically provided for use with the equipment. o) Retain the original product literature for future reference. p) Use only the battery pack in the application for which it was intended. q) Remove the battery pack from the equipment when not in use. r) Dispose of properly. s) Do not mix cells of different manufacture, capacity, size or type within a device. t) Keep the battery away from microwaves and high pressure. SYMBOLS To reduce the risk of injury, user must read instruction manual10 40V Cordless Hedge trimmer

Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain Keep hands away from blade Li-Ion battery, battery must be recycled Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Wear protective gloves. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not burn POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’ life cycle is ended, then please call 1-800- 822-8837 for a free service that will properly dispose of the battery.

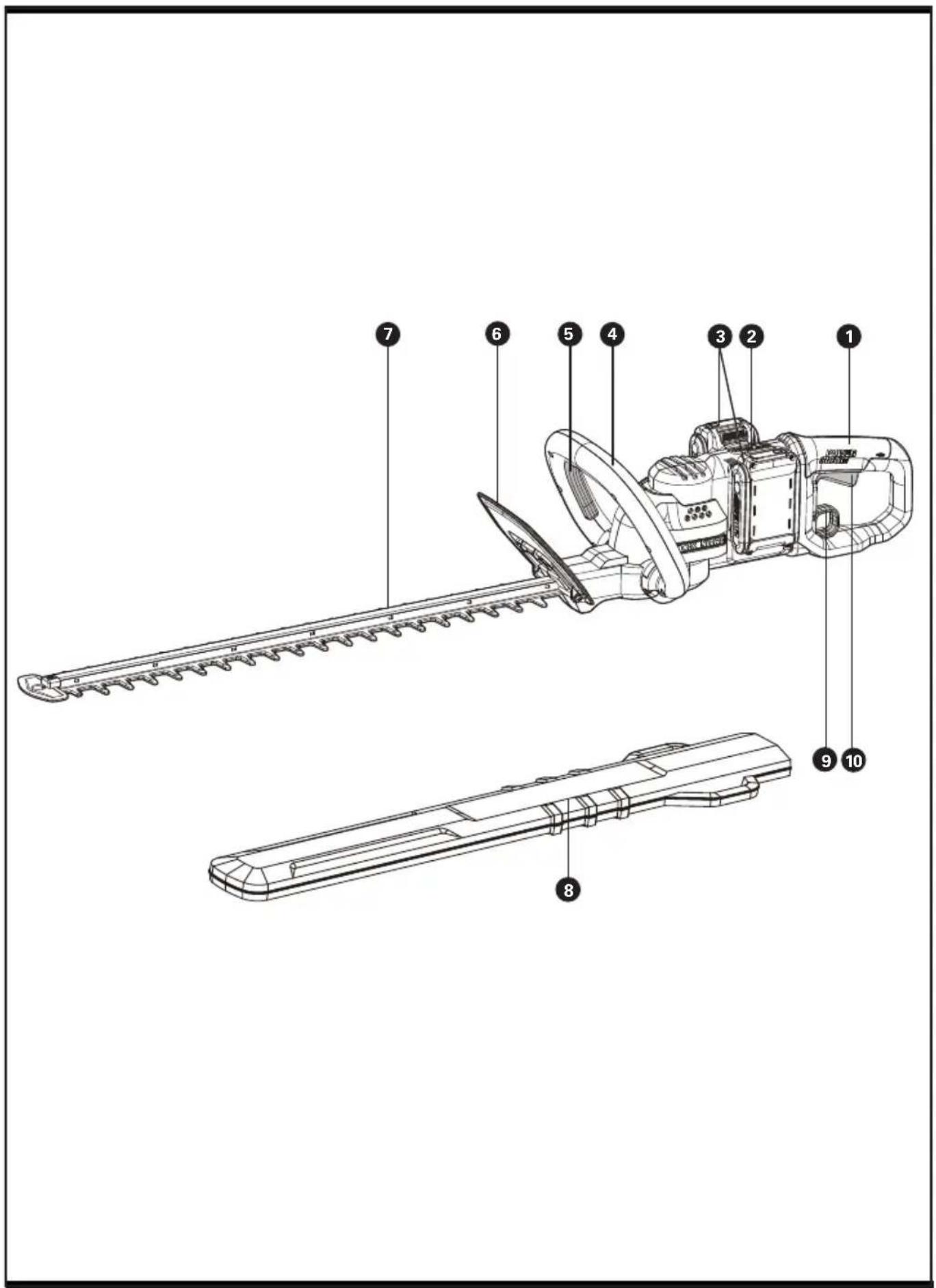

(SEE FIG. E) *Not all the accessories illustrated or described are included in standard delivery.11 40V Cordless Hedge trimmer

** X may be followed by one or two characters. All models are the same except model number and trademark. The sux in models may be number from “1” to “999” or English letter “A” to “Z” or “M1” to” M9” which means different package or the various of accessories packed in the package. *** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. SUGGESTED BATTERIES AND CHARGERS Category Type Capacity 20V Battery WA3575 2.0 Ah WA3669 2.0 Ah 20V Charger WA3770 2.0 A WA3884 4.0 A We recommend that you purchase your accessories from the same store that sold you the tool. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

The machine is intended for cutting and trimming hedges and bushes in domestic use.

INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Warning! Do not use the product without attaching the guard and front handle. ASSEMBLY & OPERATION ACTION FIGURE

BEFORE USING YOUR CORDLESS

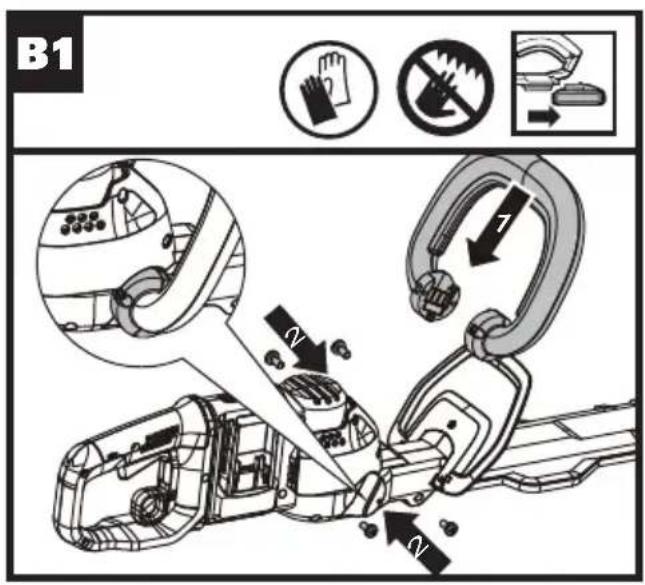

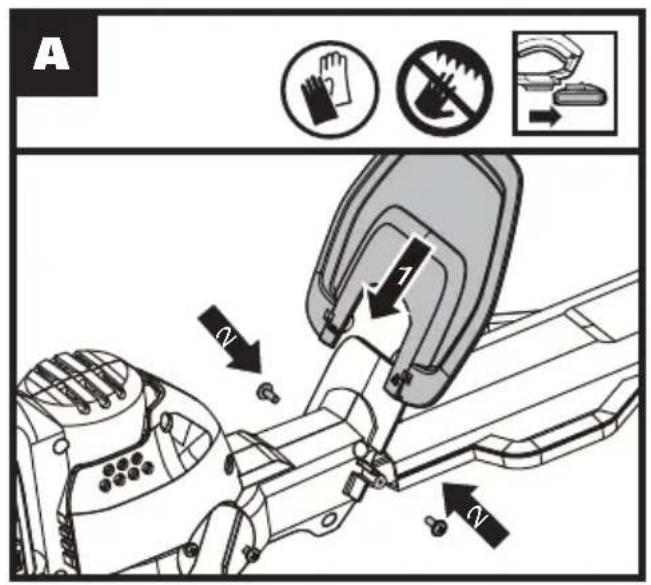

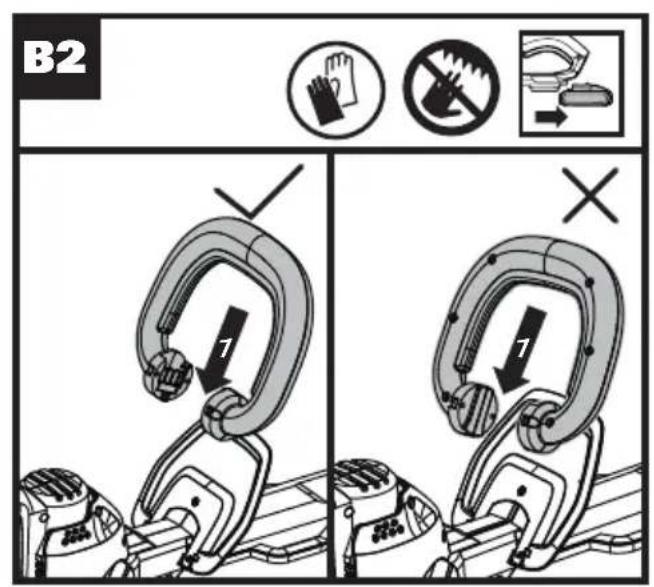

HEDGETRIMMER Assembling the safety guard See Fig. A Assembling the front handle NOTE : The handle is designed to prevent being assembled in wrong direction . If you nd it cannot be installed, please turn it around. See Fig. B1,

Charging the battery pack NOTE :

• The batteries are shipped uncharged. Each battery must be fully charged before the rst use.

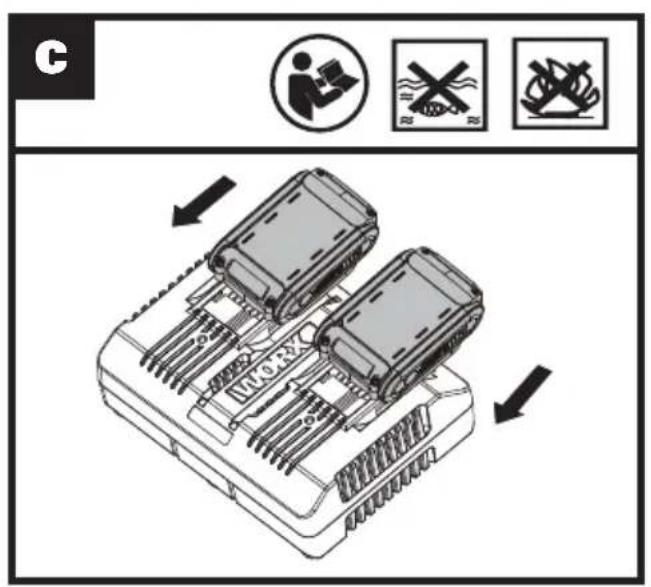

• Always fully charge the two batteries at same time. More details can be found in charger’s manual. See Fig. C Installing and Removing the battery pack NOTE :

• This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.

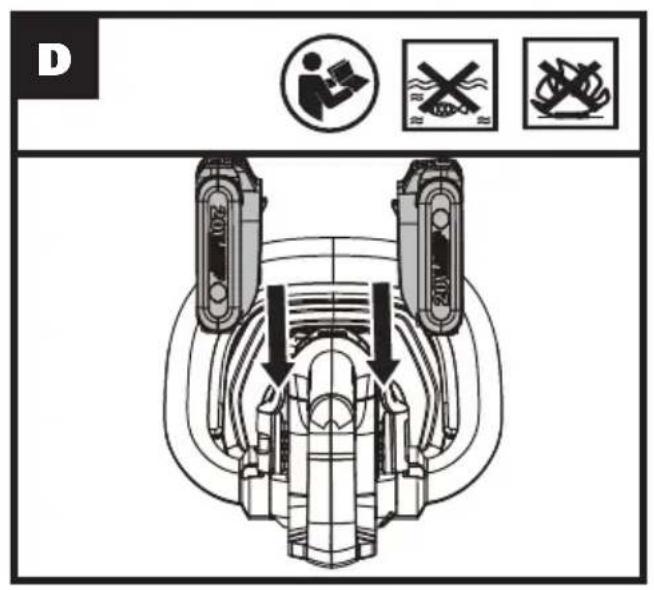

• When you use two batteries with different power, the machine will only run to the lower common denominator. See Fig. D OPERATION12 40V Cordless Hedge trimmer

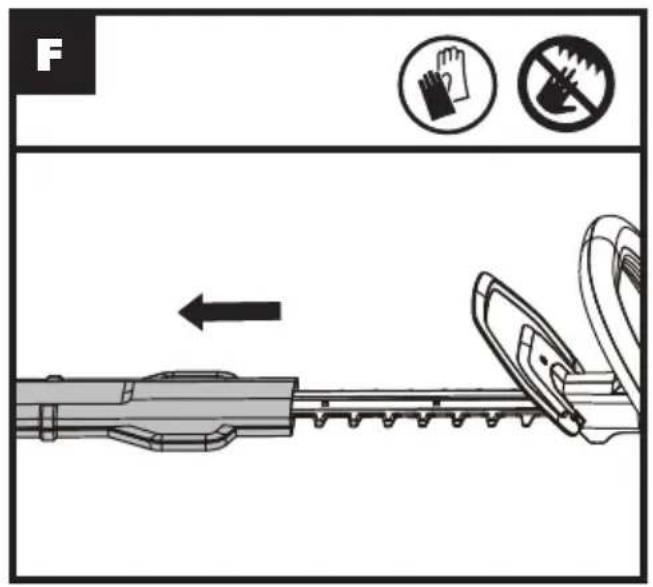

Power indicator light See details in BATTERY STATUS part IMPORTANT: When only one light is illuminated, your battery is overly discharged, even though the trimmer may still be capable of hedge trimming. Continuing to operate your trimmer with the battery in this discharged condition may reduce the life and performance of your battery. When no light is illuminated, at least one battery is not fully installed or battery may be defective, please double check the batteries are fully seated into position. See Fig. E Remove the blade sheath See Fig. F Starting and stopping See Fig. G1,

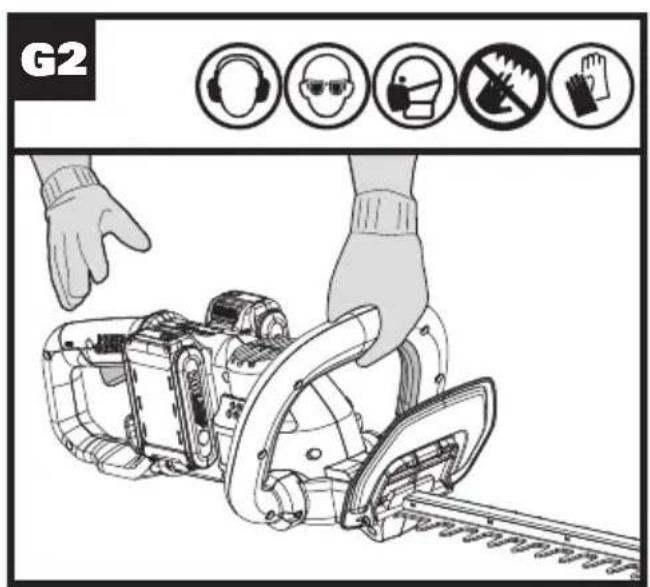

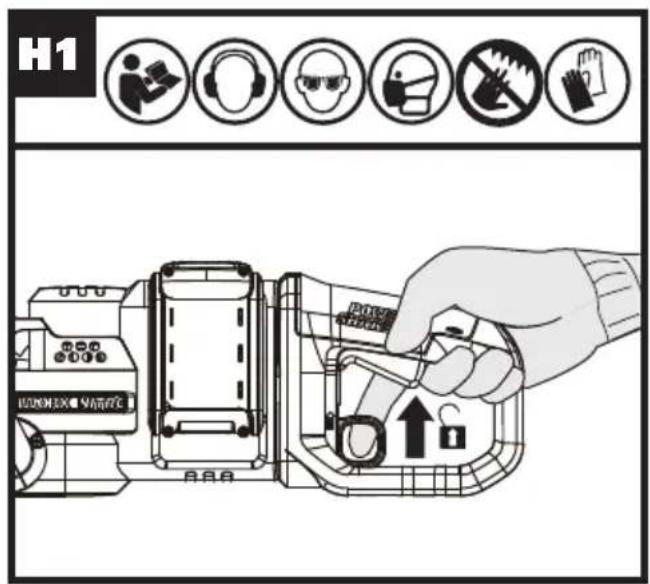

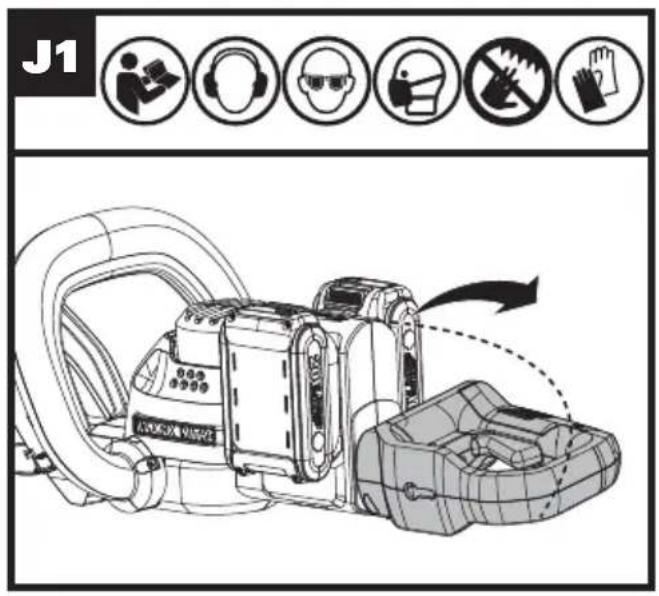

• Unlock the locking switch before rotating.

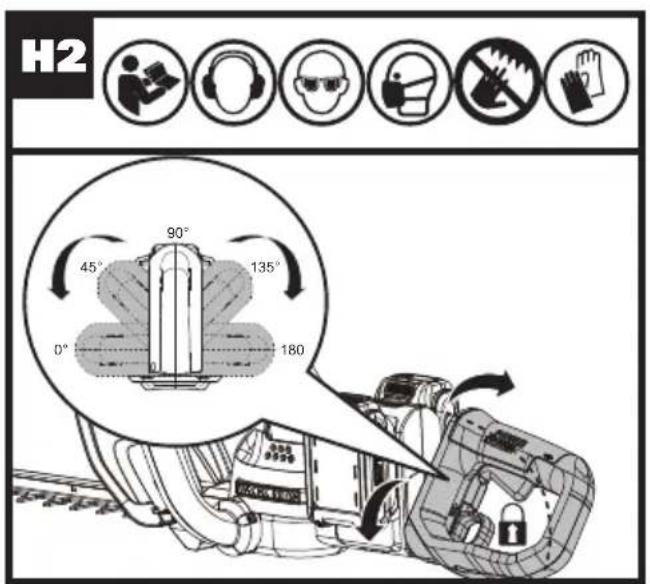

• After rotating the handle to the desired position, adjust it a little until a click can be heard.

• Always make sure that the handle is locked in the desired position before operation.

• Always make sure the locking switch is locked before starting the hedge trimmer.

• Do not rotate the handle when the trimmer is being operated. See Fig. H1,

WARNING: If any parts are

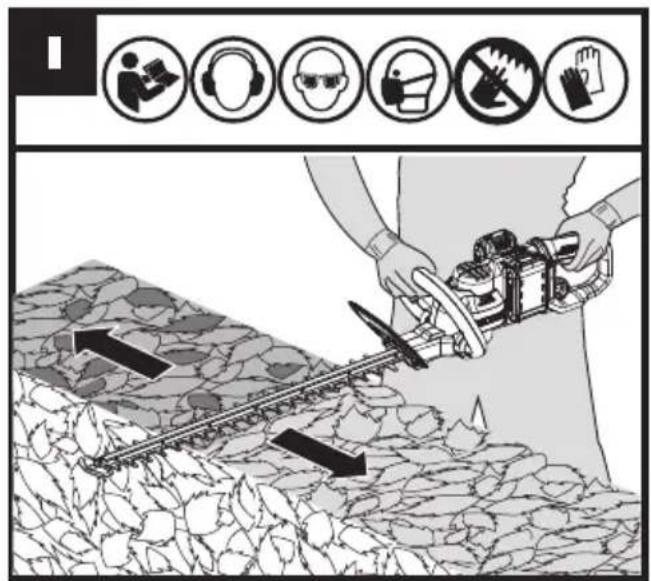

missing, damaged or broken, do not operate your hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. DO NOT USE WITHOUT FRONT HANDLE AND SAFETY GUARD. See Fig. I Side cutting

WARNING: Stop operating the trim-

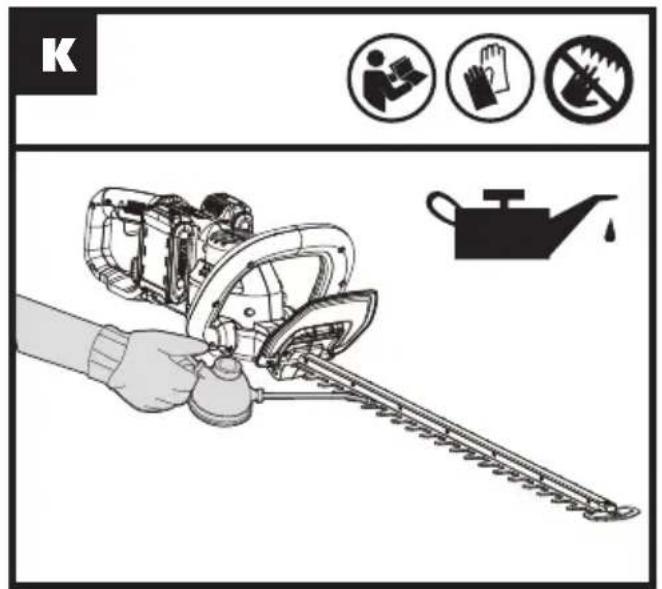

Lubricating the cutting blade NOTE : It is important to use only the recommended standard lubricating oil (WD-40) to avoid damage to the blade. See Fig. K

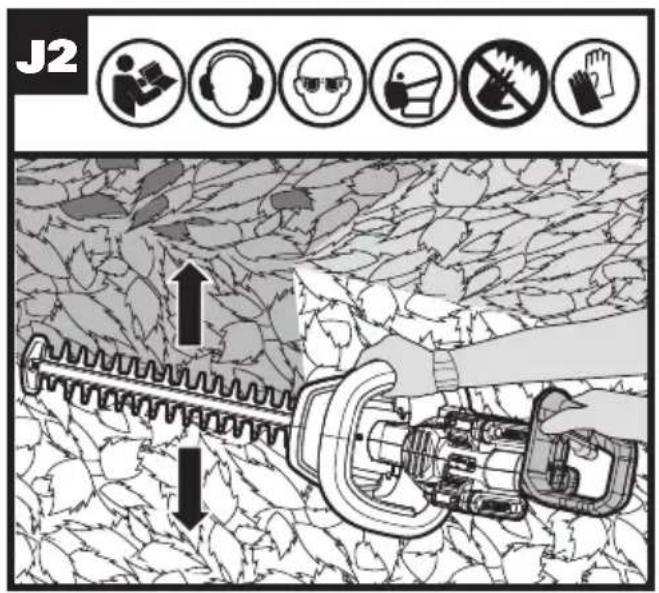

HEDGE TRIMMER Before cutting an area, inspect it rst and remove any foreign objects that could become thrown or entangled in the blades. Always hold the trimmer with both hands and with the blade away from you before turning it on. When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade. Allow the cutting blades to reach full speed before cutting. When operating, keep the cutting blades away from people and objects such as walls, large stones, trees, vehicles, etc. If the blade stalls, immediately stop the trimmer. Release the Operator Presence Switch and Throttle Trigger before attempting to clear jammed debris from the cutting blades. Wear gloves when trimming thorny or prickly growth. Do not attempt to cut stems that are too thick for the cutting blade. Top cutting Use a wide sweeping motion A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. Side cutting When trimming the sides of the hedge, begin at the bottom and cut upwards, tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth BATTERY STATUS (See Fig. E )

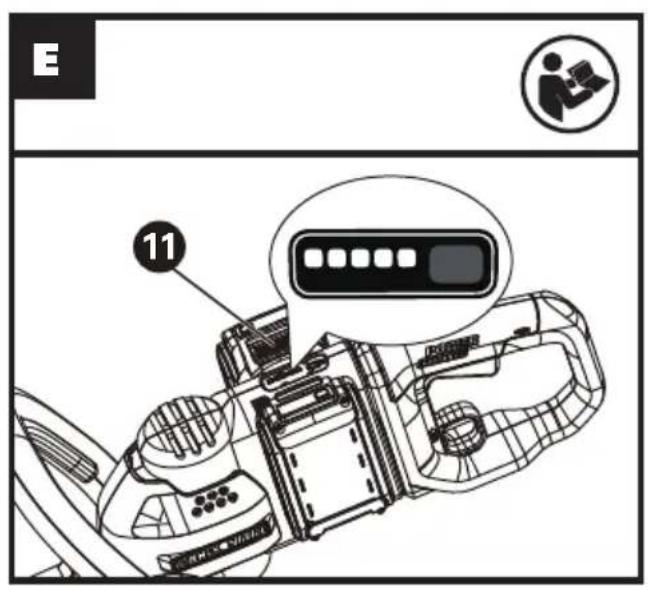

• Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity.

• During operation, the battery capacity will be indicated automatically by the battery power indicator. The indicator constantly senses and displays the battery condition as follows.

• For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries. Battery indicator light status Battery condition Five green lights ( ) are illuminated. The two batteries are in a highly charged condition. Two, three or four green lights are illuminated. The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.13

Taille-Haie Li-Ion Sans Fil 40V Only one green light ( ) is illuminated. At least one battery is almost depleted and needs to be charged. No light is illuminated. At least one battery is not fully installed or battery may be defective. Only one light is ashing twice per cycle. At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage. Only one light is ashing three times per cycle. At least one battery is hot, wait for them cool down before start again. Only one light is ashing four times per cycle. The machine is over load. Remove tool from cutting area and try again.

Remove the battery from Hedge trimmer before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. FOR BATTERY TOOLS: The ambient temperature range for tool and battery use and storage is 0

F). The recommended ambient temperature range for the charging system during charging is 0
