PROGRESS 7.000 ECO R290 PROGRESS 9.000 ECO R290 PROGRESS 12.000 ECO R290 - Portable air conditioner SUNTEC - Free user manual and instructions

Product type	Monoblock portable air conditioner
Brand	SUNTEC (Suntec Wellness GmbH)
Models	PROGRESS 7.000 ECO R290, PROGRESS 9.000 ECO R290, PROGRESS 12.000 ECO R290
Power supply	220-240 V ~ 50 Hz
Cooling capacity	7000 / 9000 / 12000 BTU/h (depending on model)
Heating capacity	Only on model PROGRESS 12.000 ECO R290
Refrigerant	R290 (propane), GWP = 3
Refrigerant quantity	215 g (7k), 205 g (9k), 260 g (12k)
Operating modes	Cooling, Heating (12k), Dehumidification, Fan, Auto
Fan speeds	High, Medium, Low, Auto (depending on mode)
Temperature range	Cooling: 18-32 °C; Heating: 13-27 °C (12k)
Timer	Delayed start/stop from 0 to 24 h
Sleep mode	Yes, adjustable via remote control
Louvers oscillation	Yes, controlled by remote control
Remote control	Yes, with AAA batteries (not included)
Condensate drainage	Automatic evaporation system; manual drain via plug or drainage hose
Air filter	Washable with warm water (40 °C) and mild detergent
Safety	Automatic tank full stop (Ft), anti-freeze protection (L), thermal protection, 3-minute compressor delay
Included accessories	Exhaust hose, adapters, window slider bar, drainage hose, remote control
Installation	Minimum 50 cm clearance from obstacles; exhaust hose not bent
Storage and transport	Always upright; wait 24 h before use after transport
Warranty	24 months
Maintenance	Clean air filter regularly; do not use solvents or water on the unit

Frequently Asked Questions - PROGRESS 7.000 ECO R290 PROGRESS 9.000 ECO R290 PROGRESS 12.000 ECO R290 SUNTEC

What does the symbol Ft on the display mean?

The symbol Ft indicates that the condensation water tank is full. The unit goes into standby mode. You need to drain the water by removing the drain plug or using the supplied drainage hose.

How do I clean the air filter?

Unplug the unit, remove the filter, wash it with warm water (about 40 °C) and mild detergent, rinse and dry with a soft cloth. Never operate the unit without the filter.

Why is the unit not cooling properly?

Check that doors and windows are closed, eliminate heat sources, place the unit in the shade close the curtains, ensure the exhaust hose is connected and not blocked, and that the air intake is clear.

How do I install the exhaust hose?

Attach the adapters to the ends of the hose. Mount the square end on the back of the unit. Place the slider bar in the window and insert the oval adapter into the opening. The hose must not be bent.

Can I use the heating mode on all models?

No, the heating function is only available on the PROGRESS 12.000 ECO R290 model. The 7.000 and 9.000 models only offer cooling, dehumidification, and fan.

What should I do if the unit turns off after a few moments?

Check that the exhaust hose is not bent and is as short as possible. Ensure the air outlet is not blocked. If the problem persists, contact customer service.

How do I use the timer function?

When the unit is off, press the Timer button to set the start time (0-24h). When on, set the stop time. The setting is confirmed after 5 seconds. To cancel, press the Timer button again or the On/Off button.

How do I switch the display between °C and °F?

In cooling mode, press the Up (+) and Down (-) buttons simultaneously for at least 3 seconds to toggle between Celsius and Fahrenheit.

What should I do if the compressor does not start?

The thermal protection may be activated. Turn off the unit and wait 3 minutes before turning it on again. If the problem persists, contact customer service.

How long should I wait after transport before using the unit?

If the unit has been transported or tilted, wait at least 24 hours before starting it to allow the refrigerant to settle.

USER MANUAL PROGRESS 7.000 ECO R290 PROGRESS 9.000 ECO R290 PROGRESS 12.000 ECO R290 SUNTEC

© 2019 KLIMATRONIC® PROGRESS Eco R290

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40221 DUSSELDORF / DEUTSCHLAND

Fig. 1
Fig.2

Fig. 4

Fig. 3

Safety instruction

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

. Do not use the unit outdoor.
- Do not use the unit if the power cord was damaged, if it seems to be defective.
- The unit may not be connected to a defective outlet. Please make sure before using that the unit has been properly installed.
. Do not use the unit near open fire sources.
. Do not expose the unit to direct sunlight.
- Please turn off the power before you unplug the power cord.

• Before cleaning the unit, turn it off and unplug the power cord.
• Before replacing the unit please make sure that the power cord is not plugged in and move it slowly.
• Please clean the unit only on the way as described in this manual.
• Connect the unit to a properly grounded electrical outlet (220-240V, 50 Hz).
  . Do not let your children play with the unit.
• The unit should not be used without supervision. Please turn off the unit even if you leave the room for only a short time.
• Unplug the unit from the socket when you do not use it. Please do not pull on the cord.
  . Do not use the unit on a place where it could be splashed with an oil or water.
• Do not use the unit near bath, shower or swimming pool.
• Never insert fingers, pencils or other objects into the unit if the power cord is plugged, and especially not during operation.
• This local air conditioner must be stored and transported upright, otherwise you may cause irreparable compressor damage. In case of doubt let the unit rest for at least 24 hours before you start it.
• Do not cover the unit and make sure that the air inlet and outlet are not blocked.
  . Please make sure that the unit stands upright.
• Please use only the spare parts and accessories offered by the manufacturer to avoid damage to the device.

• You should never repair your local air conditioner by yourself. Please contact your dealer if the unit needs to be repaired.

• In case of breakdown turn off the unit (only by the Power button located on the control panel) and contact your dealer.

• In case of power cord damage please turn off the unit and unplug it to avoid fire hazard.
  . Do not use multiple sockets or extension cords.

Important. This portable local air conditioner must always be stored and transported in an upright position. In case of doubt, let the unit rest for at least 24 hours before starting it.

Designation of the spare parts/components

Components	Description	Amount
	Main component Portable local air-conditioning unit	1
	Outlet hose adapter for the portable local air-conditioning unit	1
	Outlet hose adapter for the window (taper)	1
	Outlet hose	1
	Window sliding bar with opening	1
	Drainage hose	1
	Remote control	1

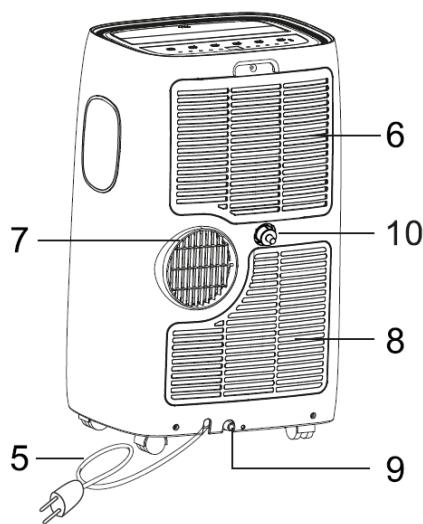

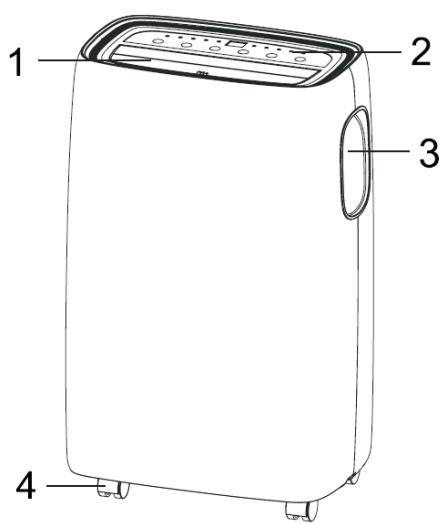

1 Air outlet
2 Control panel
3 Carrying handle
4 Castors
5 Power cable

6 Air inlet / filter grille
7 Outlet hose connection
8 Air inlet of the filter grille
9 Drainage opening
10 Drainage hose connection

Installation

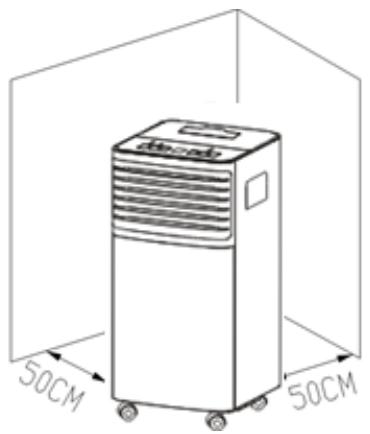

The unit should be positioned on the floor, 50~cm away from other objects, as these can strongly affect the capacity of the unit (Fig. 1).

Warning: Before using this unit, it should be positioned upright for at least 24 hours.

The unit can be moved without difficulty between rooms, however, please observe the following instructions:

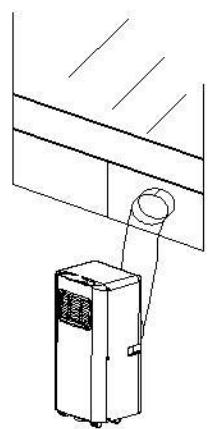

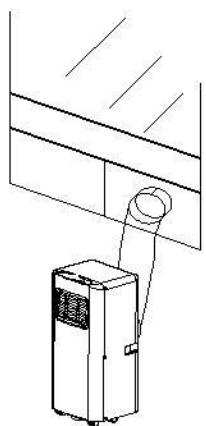

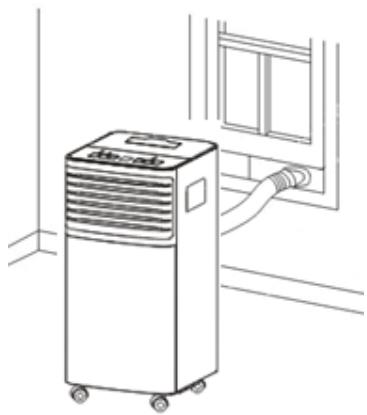

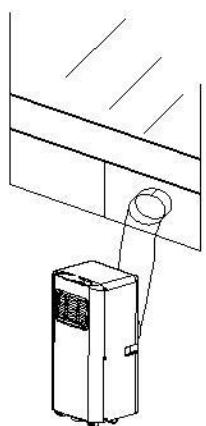

Installation of the outlet hose, Fig. 2, 3 and 4

1) Please set up the unit in the vicinity of a wall socket.
2) Please secure the adapter to the ends of the outlet hose.
3) Please secure the angular end of the outlet hose to the corresponding opening on the back of the unit.
4) Please attach the sliding bar to the window and insert the oval adapter in the opening on the sliding bar.
5) Please connect the power plug to the wall socket (220-240 VAC, 50 Hz).

For casement windows, we recommend the Air-Block Klima-Sail EAN 4250058312099 (see chapter "Obtaining spare parts and accessories")

Possible errors during the installation

• Please pay attention that the air outlet is not blocked in order to avoid damaging the unit.

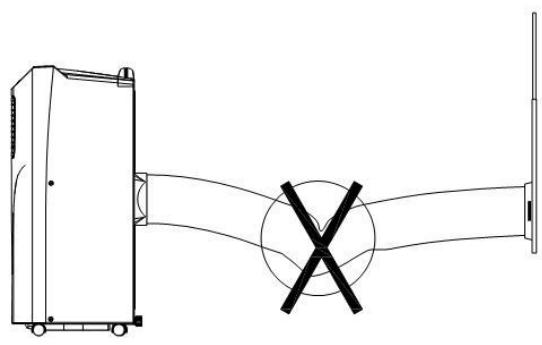

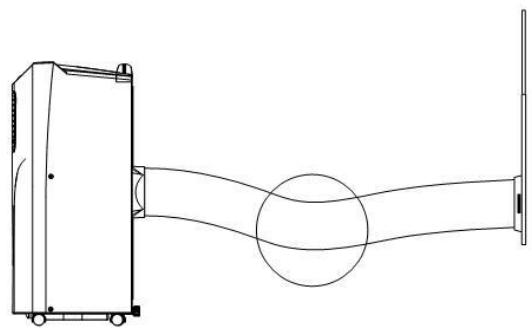

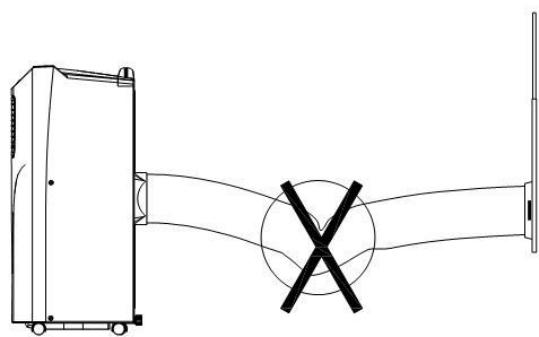

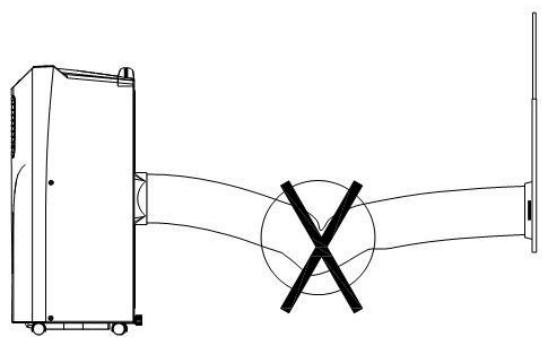

• Do not kink the outlet hose (Fig. 4).

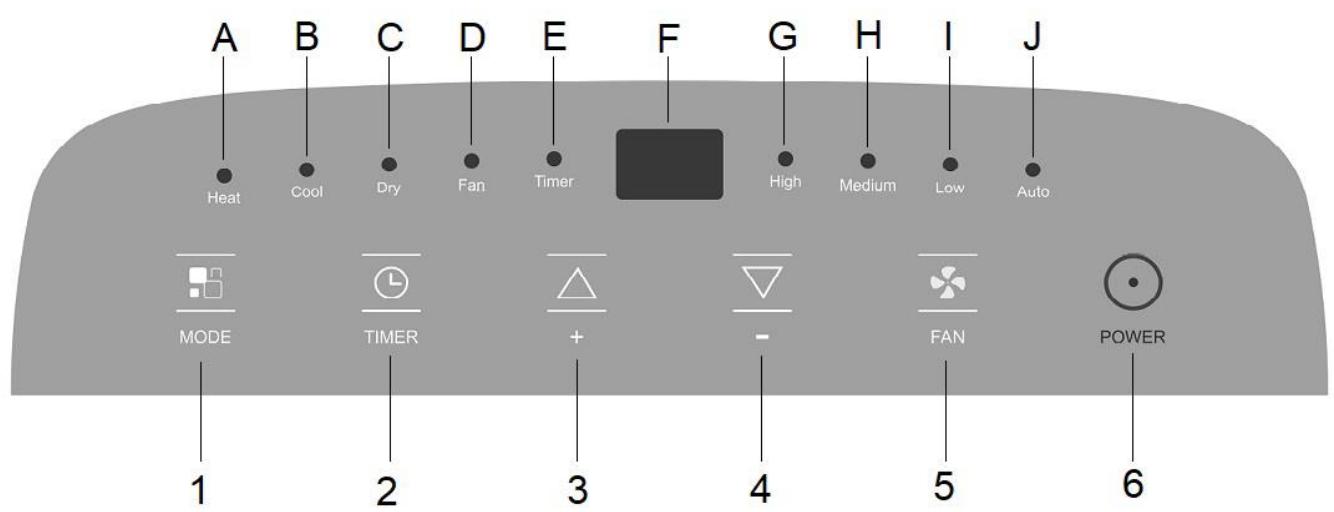

Control panel

1 Mode
2 Timer
3 UP (+)
4 DOWN (-)
5 Fan
6 On/Off

A Heating mode indicator
B Cooling mode indicator
C Dehumidification indicator
D Fan mode indicator
E Timer indicator
F Display
G Indicator for high fan speed
H Indicator for medium fan speed
Indicator for low fan speed
J Indicator for automatic fan speed

1. ON/OFF: Please press the button to switch the unit on or off. When switched on, the unit automatically starts with the previous settings.
2. MODE: After activation, please press the unit's mode button to select between cooling, heating, dehumidification or fan mode. Please note that the heating function is only available on the "14208 PROGRESS 12.000 Eco R290" model.
3. FAN: After activation of the unit, please press this button to set the speed of the fan (high, medium or low).
4. UP/DOWN buttons (+ / -) Please set the unit to the cooling mode and adjust the desired room temperature (18-32 °C or 64-90 °F) with the use of these buttons. Please press both buttons simultaneously for at least 3 seconds to switch the temperature display between Celsius and Fahrenheit.
5. TIMER: Please press this button and set the desired activation/deactivation time.

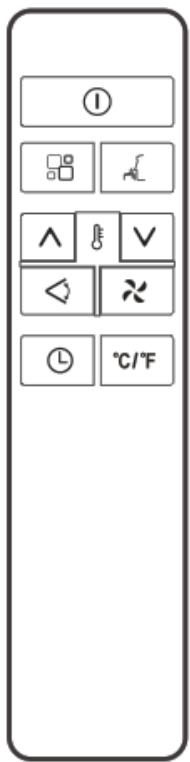

Remote control:

The same settings can be performed using the remote control as with the control panel. Powered by 2 x AAA batteries (not included)

①	On/off button
品	Mode button
	Sleep mode (can only be set via the remote control)
	UP button
V	DOWN button
	Fan speed
L	Timer
°C/°F	Temperature setting Celsius/Fahrenheit
	Swing (can only be set via the remote control)

Please press the swing button in order to activate or deactivate the automatic vertical movements of the louvers.

Description of the functions

Cooling mode

• Please press the mode button until the cooling mode indicator lights up.
• Please press the UP/DOWN buttons to set the desired temperature (18-32 °C or 64-90 °F). The target temperature is shown on the display.
• Please press the fan button to set the speed of the fan (high, medium or low). The corresponding speed indicator lights up.

Heating mode (only available on the "14208 PROGRESS 12.000 Eco R290" model)

• Please press the mode button until the heating mode indicator lights up.
• Please press the UP/DOWN buttons to set the desired temperature (13-27 °C or 55-81 °F). The target temperature is shown on the display.
• Please press the fan button to set the speed of the fan (high, medium, low or automatic). The automatic speed adjusts the speed according to the ambient temperature. The corresponding speed indicator lights up.

Fan mode

• Please press the mode button until the fan mode indicator lights up.

• Please press the fan button to set the speed of the fan (high or low).

• The corresponding speed indicator lights up, additionally, the set speed is indicated on the display using the symbols (for high speed), (for medium speed) and (for low speed).

Dehumidification mode

• Please press the mode button until the dehumidification mode indicator lights up.
  The dH symbol appears on the display
  The fan speed is set automatically by the unit.

Timer

• Please switch the unit on and set the desired room temperature and fan speed. Please switch the unit off now.
• Please press the timer button to activate the function. The display indicates a flashing symbol and an amount of hours.
• Please set the desired activation time (0-24 h) using the up/down buttons.
• Please wait 5 seconds until the timer function is activated, the corresponding indicator light will light up and the unit will be switched to the standby mode.
• Please press the timer button or the On/Off button once again to clear the timer setting. The indicator light will switch off and the timer symbol will disappear from the display.
• Please press the timer button in the activated state of the unit to set the deactivation time as described above.

Sleep mode

• Please set the desired room temperature in the cooling mode.
• Please press the sleep mode button on the remote control.
  The display will be dimmed and the unit will automatically operate with a low fan speed.
• The set temperature increases by 1^ / 1^ per hour in a 2-hour-cycle and will be maintained for 6 hours, then the unit will switch itself off.

Automatic mode

• After activation of this function, depending on the ambient temperature, the unit will automatically determine which mode (cooling, heating or fan mode) is activated.
• Please press the mode button on the remote control several times. While the automatic mode is active, the display will indicate spinning bars:

• Please set the desired fan speed (high, medium or low) with the fan button.
• When your unit is only equipped with the cooling function, it will automatically switch to the fan mode as soon as the ambient temperature is lower than 23^ ( 73^ ) and return to the cooling mode as soon as the ambient temperature is higher than 23^ ( 73^ ).
• When your unit is equipped with both the cooling as well as the heating function, the unit will automatically switch to the heating mode as soon as the ambient temperature drops below 20^ ( 68^ ). When the ambient temperature is between 20^ ( 68^ ) and 23^ ( 73^ ), the unit will switch to the fan mode. From 23^ ( 73^ ), the unit will operate in cooling mode.

Draining the water tank

The unit is equipped with an automatic water evaporation system. Condensate is used for the cooling of the condenser, which not only increases the cooling capacity, but also saves energy.

• As soon as the water tank is full, the indication of FE will appear on the display and the standby mode will activate automatically.
• Please switch off the unit and disconnect the power plug.
• To empty the water tank, remove the water drain plug on the bottom of the unit and allow the water to drain into a suitable container. Alternatively, you can drain the water using the supplied drainage hose.
• As soon as you restart the unit, it will function completely normally.

Maintenance

To avoid any injuries, please switch off the unit and disconnect the power plug before beginning the maintenance or cleaning.

Cleaning

• Please disconnect the power plug.
  Please clean the unit with a moistened cloth and then wipe it off with a dry cloth. Please do not use chemical solvents (such as petrol or alcohol). The surface as well as the entire housing could be damaged.
• Please never clean the appliance with water.

Air filter

• Please clean the air filter regularly. When the air filter has become blocked with dust, its efficiency will be reduced.
• Please wash the air filter by immersing it in warm water (approx. 40^ ) using a neutral cleaning agent, rinse it under running water and subsequently dry it with a soft cloth.
• Please do not operate the unit without an air filter.

Storage

• Please disconnect the power plug and empty the water tank.
• Please allow the appliance to operate in fan mode for approx. 2 hours so the interior assembly can dry.
• Please switch off the unit and disconnect the power plug.
• Please clean and dry the air filter, then reinstall it in the unit.
• Please disconnect the outlet hose from the unit and store it safely.
• Please place the unit in a box and store it in a dry place.
• Remove the batteries from the remote control and store these safely.

Faults

Do not try to install/disassemble/repair the unit yourself. Incorrectly performed work can cause electric shock, water leakage, fire and similar.

Fault	Reason	Solution
1. The unit will not start	No power	Please provide the unit with power and turn it on.
	FE - Display lights up	Please empty the water tank.
	Internal safety function was activated	Please switch the unit off, wait 30 minutes and switch it on again. Should the problem persist, please contact your point of sale.
2. The unit does not cool correctly.	Windows and doors are open, other heat sources are present in the room (causing a fluctuation in temperature)	Please close all windows and doors and remove the heat source.
	Direct sunlight	Please position the unit in the shade or close the curtains.
	Outlet hose not connected or blocked	Please connect the outlet hose or clean it, if necessary.
	Air inlet is blocked	Please clean the blocked point
3. The unit switches off after a short period of time	Outlet hose is kinked	Please position the outlet hose straight and keep it as short as possible to increase the unit's efficiency.
	Air outlet is blocked	Please check the air outlet and clean it, if necessary.
4. Noise	The unit has not been placed on a level surface	Position the unit on a hard, level surface (this reduces the noise)
5. Compressor is not running	Thermal protection has been activated.	Please switch the unit off and restart it after 3 minutes.
6. Unpleasant smell during operation	Air filter is dirty	Please clean the air filter as described in the chapter "Maintenance/cleaning".
7. The LE symbol is shown on the display	The internal frost protection function was activated to prevent the formation of ice in the inside of the unit.	Please wait. The unit will start automatically as soon as the process has been completed.
8. The PF symbol is shown on the display	The internal sensor is damaged	Please contact your point of sale.
9. The FE symbol is shown on the display	Water tank is full	Please empty the water tank.

Spare parts and accessories supply (fast convenient supply)

You can obtain spare parts and accessories for your PROGRESS unit from your local dealer. And at our website

www.suntec-wellness.de

you will find further information on individual accessory products as well as information on obtaining our spare parts quickly and conveniently. You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) about your PROGRESS unit.

Name EAN	Description	Drawing
Air-Block Klima-Sail 4250058312099	Sail which can be used for all types of windows and doors. As for an external fly screen, it is fixed with Velcro and operated via a zip. The window or door can be closed at any time.	Variante 1B Variante 1B
Air-Extension-Kit 4250058312105	A World First with which you can air-condition almost every corner of your house, and it doesn't matter where the local air conditioner is located. You can extend the extract air hose by 5 meters via a special propeller. For PROGRESS this also applies for the air supply and extraction.	Variante 3A Variante 3B

In the case of complaints

Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
A free replacement or repair will be excluded from the prior improper product manipulation.
- Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
No proof of purchase will generally not free repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
The dealer or repair after the warranty service can carry out repairs with costs.

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2019/01 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This local air conditioner contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your Suntec local air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

PROGRESS 7.000 ECO R290: R290, GWP: 3, 215g = 0,000645t CO2e

PROGRESS 9.000 ECO R290: R290, GWP: 3, 205g = 0,000615t CO2e

PROGRESS 12.000 ECO R290: R290, GWP: 3, 260g = 0,00078t CO2e

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

Liability is excluded for all printing errors and omissions.

Dib. 1
Dib.2

Dib. 4

Dib. 3

Atencion!

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLMATRONIC

and the Sun logo are registered trademarks. © 2019/01 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This air conditioner contains the refrigerant R290. The amount of refrigerant is less than 1kg , and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

PROGRESS 7.000 ECO R290: R290, GWP: 3, 215g = 0,000645t CO2e

PROGRESS 9.000 ECO R290: R290, GWP: 3, 205g = 0,000615t CO2e

PROGRESS 12.000 ECO R290: R290, GWP: 3, 260g = 0,00078t CO2e

© 2019 KLIMATRONIC® PROGRESS Eco R290

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DUSSELDORF / DEUTSCHLAND

1.ábra

2.ábra

4. ábra

3. ábra

NAGYON FONTOS!

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2019/01 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Hütöközeg

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany

SUNTEC WELLNESS GMBH

HOLZSTRAße 2

40221 DUSSELDORF

NEMETORSZAG

www.suntec-wellness.de

Garanciajegy

vasarlas helye

vasarlas dátuma

cikkszám/EAN

Kedves Vásárló,
