USER MANUAL ER-CKN2-A301 PANASONIC

Operating Instructions

Betriebsanleitung

Mode d'emploi

Istruzioni d'uso

Gebruiksaanwijzing

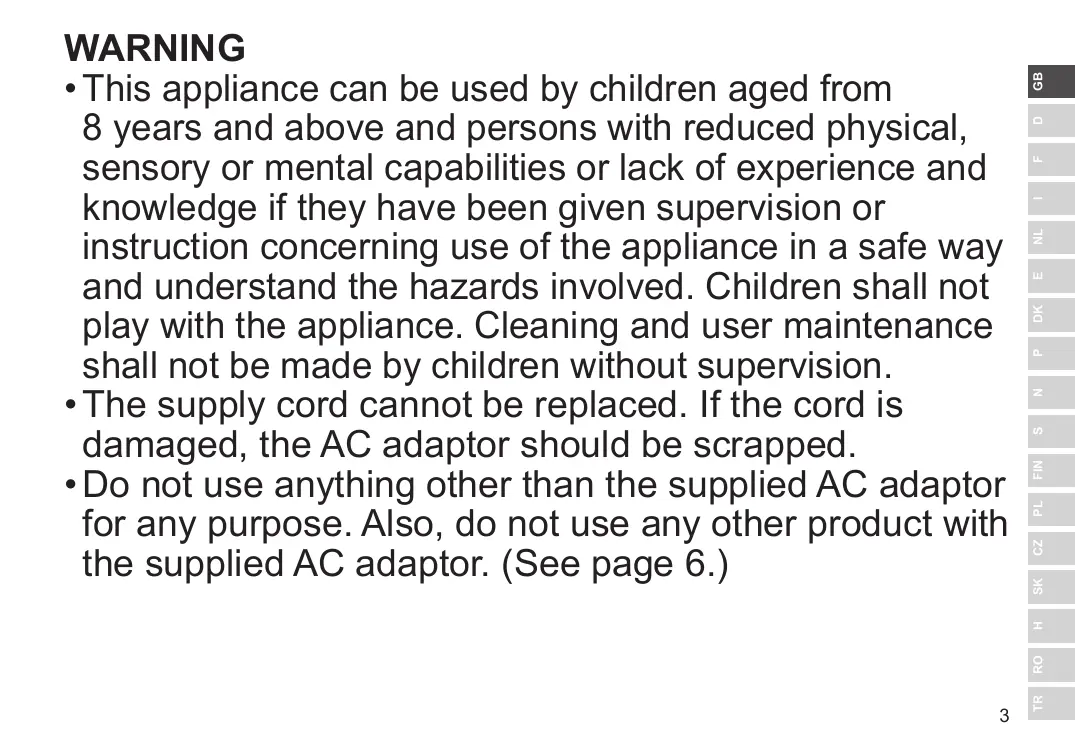

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 6.)

• The symbol on the right indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

• The symbol on the right means suitable for use in a bath or shower.

• Be sure to switch off the appliance and remove the power plug from a household outlet before performing any maintenance.
• Do not wash the AC adaptor.

Head for toothbrush only

• Toothbrushes can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Before operating this unit, please read these instructions completely and save them for future use.

• Please read the code on the cover for the detailed operating instructions.

Safety precautions

Make sure to follow these instructions.

To prevent accidents, injuries or damage to property, please follow the instructions below.

The following chart indicates the degree of damage caused by improper operation.

DANGER

Indicates a potential hazard that will result in serious injury or death.

WARNING

Indicates potential hazard that could result in serious injury or death.

WARNING

This appliance
- This appliance has a built-in rechargeable battery.
Do not throw into fire or apply heat.
- Doing so may cause fluid leak, overheating, or explosion.
Preventing accidents
- Do not place within reach of children or infants. Do not let them use it.
- Putting parts or accessories in the mouth may cause an accident or injury.

In case of an abnormality or malfunction

• Immediately stop using.
• Failure to do so may cause fire, electric shock, or injury.

• The main body, adaptor or cord is deformed or abnormally hot.
• The main body, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main body, adaptor or cord.
• Immediately request inspection or repair to an authorized service centre.

Handling of the removed battery when disposing

DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other appliances.
• Do not charge the battery after it has been removed from the appliance.
• Do not throw into fire or apply heat.
• Do not solder, disassemble, or modify the battery.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Never peel off the tube.

• Doing so may cause fluid leak, overheating, or explosion.

• The battery contains alkaline fluid. If it comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

• Failure to do so may cause loss of vision.

Consult a physician immediately.

Important information

• Charge the appliance correctly according to these Operating Instructions. (See this page "How to charge".)
• This appliance contains battery that is only replaceable by skilled persons.
• Please contact an authorized service centre for the details of repair.

Parts identification (Fig. 1)

A Main body

① Cap
② Power switch
③ Charge status lamp
④ Appliance socket
⑤ Head release button

AC adaptor (RE9-86)

⑥ Adaptor
⑦ Power plug
⑧ Cord
⑨ Appliance plug

Accessories

Cleaning brush

Lubrication oil

• Please use according to the operating instructions of the head to be used.

Pouch

How to charge

Plug the AC adaptor into the main body and the household outlet. (Fig. 2)

• Check the charge status lamp glows. It turns off after charging is completed.
• Charging is completed after approx. 1 hour.
• The use time after a full charge varies depending on the head.

How to use

Note

The appliance will not operate with the AC adaptor connected.

Remove the cap, mount the desired head and press the power switch.

How to clean

• Make sure that the main body is turned off.
• Remove the AC adaptor and head from the main body.

Rinse the main body with running water. (Fig. 3)

• Dry after cleaning and store the main body with the cap attached.

Troubleshooting

Problem

Appliance does not operate even after charging.

Operating time is short even after a full charge.

Action

The appliance will not operate with the AC adaptor connected

Please use the appliance after it has been sufficiently charged and the AC adaptor disconnected.

The battery is nearing the end of its life.

If the problems still cannot be solved, contact your dealer or a service centre authorized by Panasonic for repair.

Disposal of the appliance

Remove the built-in rechargeable battery before disposing of the appliance.

• The battery is to be disposed of safely.
• This figure must only be used when disposing of the appliance and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

How to remove the battery (Fig. 4)

• Remove the appliance from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ③ and lift the battery, and then remove it.
• Use a Phillips-head screwdriver as shown.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials

This appliance contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	1.2 V---
Charging time	Approx. 1 hour

• The airborne acoustical noise is described in the operating instructions of the head.
• This product is intended for household use only.

For more information about the energy efficiency of the product, please visit our website, www.panasonic.com, and enter the model number in the search box.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

WARNING

Navanakorn Industrial Estate Zone 3 No.106 Moo 18 Khlong 1,

Khlong Luang,

Pathum Thani, 12120, Thailand

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.Ş.

Cobançese Meh. Bilge 1 Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7 YILDIR

(EN)

Importer:

Panasonic Marketing Europe GmbH

Authorized Representative in EU:

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germany

Manufactured by:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

(DE)

Importeur:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Deutschland

Hergestellt von:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

(FR)

Importateur :

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Panasonic Testing Centre

Winsberging 15, 22525 Amburgo, Germania

Fabbricato da:

Panasonic Corporation

Panasonic Testing Centre

Panasonic Testing Centre

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Fremstillet af:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

(PT)

Importer:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Produsert av:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

(SV)

Importor:

Panasonic Marketing Europe GmbH

Auktoriserad representative i EU:

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Tyskland

Tillverkad av:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japan

(FI)

Maahantuoja:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hampuri, Saksa

Valmistaja:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma-kaupunki, Osaka, Japan

(PL)

Importer:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburk, Nemeko

Vyrobil:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko

(SK)

Dovozca:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Nemecko

Vyrobca:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko

(HU)

Import:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

1006, Oaza Kadoma, Kadoma City, Osaka, Japan

(RO)

Importer:

Panasonic Marketing Europe GmbH

Representant autorizat in UE:

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Germania

Fabricat de:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma City, Osaka, Japonia

(TR)

lthalatci:

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsberging 15, 22525 Hamburg, Almanya

Taraf Uretilmi:

Panasonic Corporation

1006, Oaza Kadoma, Kadoma, Osaka, Japonya

Panasonic Corporation

https://www.panasonic.com

© Panasonic Corporation 2022
