Product type	Electric kettle
Brand	Haier
Model	HKESA011
Nominal capacity	1.7 L (min 250 ml)
Power supply	220-240 V ~ 50/60 Hz
Rated power	1850-2200 W (EU) / 2520-3000 W (RU)
Weight (approx.)	1 kg
Dimensions (approx.)	22 × 15 × 25 cm
Body material	Stainless steel
Main functions	Heating with temperature selection (40-100°C), keep warm (30 min), mute function, dry boil protection
Control panel	Base with temperature indicator display and -/+ buttons
Descaling filter	Yes, removable
Base type	Power base with cable storage
Safety	Automatic shut-off, overheat protection, dry boil shut-off, double safety wall
Cleaning and maintenance	Exterior cleaning with damp cloth; regular descaling with vinegar or special descaler
Spare parts and repairability	Original Haier parts available from retailer; repairs by authorized technician
Warranty	Manufacturer's warranty according to conditions of the country of sale
General information	Domestic use; compliant with CE standards; max altitude 2000 m

Frequently Asked Questions - HKESA011 HAIER

What is the maximum water capacity of the Haier HKESA011 kettle?

The maximum capacity is 1.7 liters. The minimum level is 250 ml to ensure the operation of the One-Cup-Safe technology.

How to adjust the water temperature?

Use the -/+ buttons on the base to select a temperature between 40°C (baby drink) and 100°C (boiling). Presets are available: 70-90°C for tea, 95°C for coffee.

Is the keep warm function available?

Yes, it keeps the water at the chosen temperature for 30 minutes after heating finishes. Activate it by pressing the Keep Warm button.

How to disable the audio signals?

Press the Keep Warm button for 3 seconds to activate mute mode. Another press for 3 seconds reactivates sounds.

What is the electrical power of this kettle?

The power varies by country: 1850-2200 W for Europe, 2520-3000 W for Russia. The required power supply is 220-240 V ~ 50/60 Hz.

How to clean the descaling filter?

Remove the filter, soak it in white vinegar, then rinse it with clean water. Put it back in place by snapping it in.

Why does my kettle turn off before the end of the cycle?

This is due to limescale buildup. Perform a descaling by boiling water with vinegar, then rinse thoroughly.

What to do if the kettle does not heat and the indicators are off?

The dry boil protection has been activated. Let the kettle cool for about 12 minutes, remove it from the base, fill it with cold water, and try again.

Can I use the kettle to heat milk or other liquids?

No, only water. Milk or instant beverages can burn and damage the appliance.

Where can I find spare parts for my Haier kettle?

Original Haier spare parts are available from your Haier retailer or directly from the manufacturer. Always mention the model number HKESA011.

USER MANUAL HKESA011 HAIER

This appliance is intended for domestic and similar use, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

WARNING: To eliminate suffocation hazard for young children, discard all packaging materials immediately after removing the product.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Only use the appliance indoors and at altitudes not exceeding 2000m above sea level.

If the power cord is damaged, stop using the appliance immediately. To avoid a safety hazard, an authorised Haier service engineer must replace the power cord.

Use only attachments, consumables or spares recommended or supplied by Haier.

Only use the appliance in accordance with the power specification on the rating plate.

This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If the kettle is overfilled, boiling water may be ejected.

The appliance is only to be used with the base provided.

WARNING Avoid spillage on the connector. Never immerse the appliance.

WARNING Risk of injury! A misuse of the appliance can potentially lead to injury. CAUTION The heating element surface is subject to residual heat after use. Pay attention to clean surfaces which are intended to come into contact with food! Please note the information on cleaning in the instructions.

WARNING Do not use this appliance in or near bathtubs, showers, basins or other vessels containing water.

To avoid a fire hazard, do not place the kettle on or near hot surfaces, e.g., gas range, hobs.

Never operate the kettle on the floor to avoid entangled in or tripping over or possible injury to the children.

Do not pull or carry the appliance by the power cord. Always unplug the appliance from the socket by pulling the plug instead of the cord. Do not place the power cord over sharp edges or near hot surfaces. Do not use an extension cord.

Do not operate the kettle on an inclined surface or move it when working.

Ensure that the kettle is used on a firm and flat surface where the children can't touch.

When using the appliance, please keep far away from the children or animal to avoid accidental injury. Do not use the appliance for other than its intended use. The surface will become hot while in use, do not touch hot metal surface. Always use the handle to pick it up. Follow the operation guide to position the lid so that steam is directed away from the handle.

To avoid scalding from steam, do not open the lid or reach across top of spout when the water is boiling.

Unplug from the socket after use and before cleaning the appliance or any maintenance task.

Allow the appliance to cool down before removing any parts and before cleaning. Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.

Be careful when opening the lid for refilling when the kettle is hot.

Do not continue to use your appliance if it appears faulty.

Haier service: To ensure the continued safe and efficient operation of this appliance, we recommend that any servicing or repairs are only carried out by an authorized

Haier service engineer.

Frequency bands	2412 MHz to 2472 MHz
Maximum RF power transmitted in the frequency band	802.11 b: +19.5 dBm 802.11 g: +18 dBm 802.11 n HT20: +18 dBm 802.11 n HT40: +18 dBm

The Environment

The symbol on this appliance indicates that

this appliance may not be treated as household waste. Instead, it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery, and recycling of this appliance, please contact your local city office, your household waste disposal service, or the shop where you purchased the appliance.

This appliance complies with the European

Directives 2014/53/EU and 2011/65/EU. To

CE receive a copy of the declaration of conformity, please contact the manufacturer through the website: www.candy-group.com

CANDY HOOVER GROUP S.r.l.

Via Comolli, 16

20861 Brugherio (MB) Italy

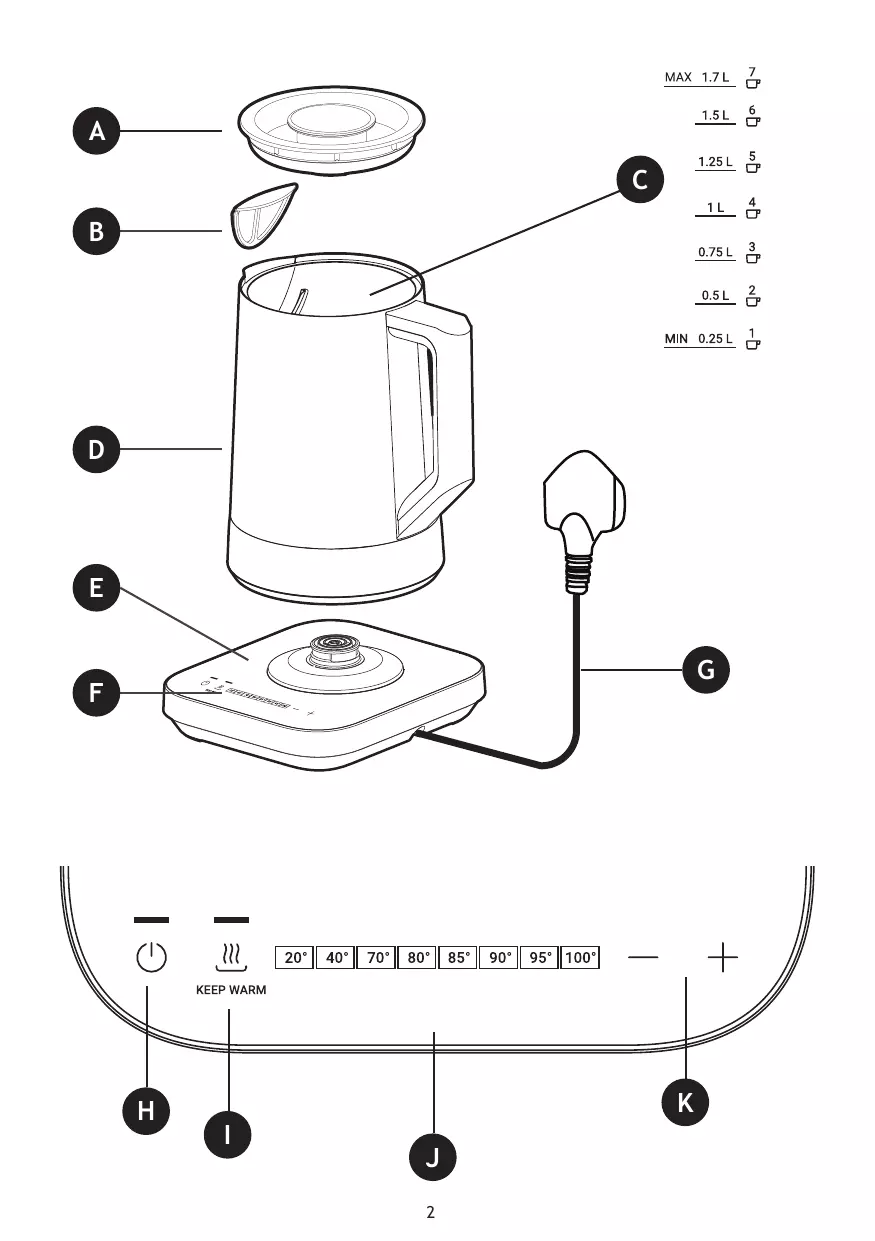

2. Getting to know your Kettle

COMPONENTS & FEATURES:

A. Lid B. Limescale filter C. Water fill gauge (Inside) D. Kettle body E. Base F. Base control panel G. Power cable and plug H. On / Off button I. KEEP WARM button J. Temperature indicator panel K. Temperature select buttons

3. Before first use

• Remove all parts and accessories from the package and read this manual carefully. Pay attention to safety instructions, warnings and important notes to prevent any injury or damage.
• Release the required amount of cable from the cable tidy and plug the appliance into a socket.
• Fill the kettle to Max 1.7L with water. Press the On/Off power button, set the temperature to 100°C.
• On completion of the heating cycle discard the water, your kettle is clean and ready for use.

WARNING:

Use the kettle only with the base provided. - Only fill the kettle with water: milk and instant beverages will burn and damage the appliance. RISK OF SCALDING! Observe the min and max markings, if the kettle is too full, the water will boil over! - Boil dry protection: do not turn on the appliance if the kettle is empty, the overheat control will engage and the appliance will switch off automatically. Use the kettle only while the lid is closed and the limescale filter is in place.

4. Using your Kettle

HEATING WATER

1. Remove the kettle from the base [1] and remove the lid. [2]
2. Fill the kettle with the desired amount of fresh water reading the water gauge inside of kettle body. [3] Always fill between the min 250ml and max 1.7L level (1 Cup=250ml).

NOTE: Featuring with One-Cup-Safe technology, your kettle is reassured that heating up a minimum amount of 250ml water is safe.

1. Refit the lid to the kettle body ensuring it is locked in place. [4]
2. Place the kettle onto the base. [5,6]
3. Press the ON/OFF button on the kettle base. [7]

The temperature indicator panel will illuminate from 20°C through 100°C on the Base control panel, it will then remain illuminated on 20°C when ready to be set. 6. Select the desired temperature on the control panel by pressing the - / + buttons. The selected temperature indicator will illuminate with and you will hear 2 audible beeps, the heating process will automatically start. [8]

40°C - Baby Drink

70°C 80°C 85°C & 90°C - Specialty Tea 95°C - Coffee

100°C - Boil water

WARNING: Please do not fill the kettle with milk or prepare baby milk in the kettle.

NOTE: The individual temperature indicators will flash then remain illuminated as the temperature rises during the heat cycle until the desired temperature is reached.

IMPORTANT: The desired temperature can be changed at any time during the heating process.

If the water is hotter than the new desired temperature, then it must be allowed to cool down to the lower temperature before being used.

The individual temperature indicators will flash then go off as the temperature

reduces in the cooling cycle to the desired temperature.

1. When the water has reached the selected temperature, you will hear 3 audible beeps. [9] After 15 seconds, the temperature indicator lights will turn off automatically and your appliance will go into standby mode.
2. Carefully remove the kettle from the base and pour your water. [10]
3. Return the kettle to the base.

NOTE: If the appliance remains connected to the power source, the previously used temperature setting will be saved for next use.

KEEP WARM FUNCTION

Your product is fitted with a keep warm function, this will maintain the water at the desired temperature for up to 30 minutes after the heating cycle is complete.

The keep warm function can be turned on during heating or within 15 seconds immediately after. - Press the keep warm button, the indicator will illuminate and the function is activated. [11] To turn off this function, press the keep warm button again, the indicator light will turn off and the function is deactivated. [11]

IMPORTANT: The appliance will go into standby mode automatically after keep warm 30 minutes.

STANDBY MODE

After the heating cycle or keep warm cycle, without any operation for 15 seconds, the kettle will turn to standby mode automatically, only the ON/OFF indicator will be illuminated.

The kettle will automatically power off after 10 minutes of further inactivity.

MUTE FUNCTION

Your product is fitted with a mute function, this will turn off all acoustic sounds from the appliance.

The mute function can be turned on by pressing and holding the keep warm button for 3 seconds. To turn off this function, press and hold the keep warm button again for 3 seconds and the function is deactivated.

5. Cleaning & Maintenance

RISK OF ELECTRIC SHOCK!

Always unplug the appliance from the power outlet before performing maintenance tasks.

WARNING:

• Never immerse the device in water or place it in a dishwasher.
• Do not steam-clean the appliance.

Cleaning

1. Clean the outside of the kettle and base with a damp cloth.
2. Do not use strong or abrasive cleaning agents.
3. Remove the limescale filter, soak it in a little vinegar, then rinse clean with clean water.
4. To refit the filter, slide it into place until it snaps into location.

Descaling

Regular descaling makes your kettle last longer, ensures proper functionality, and saves energy. The ideal frequency to descale depends on water hardness.

We recommend using Care Plus Protect Professional Kettle Descaler.

Follow the manufacturer's instructions for use and frequency.

Descaling the kettle with vinegar:

1. Fill the kettle with water up to the 1.7L mark and bring to a boil.
2. Add a small amount of white vinegar and let it sit for several hours.
3. Rinse the kettle and the limescale filter with clear water.

Important: never use hard objects to remove limescale residue as this will damage the seal.

6. Troubleshooting

The kettle does not heat to the desired temperature and the temperature indicators on the base control panel are not illuminated.

• The overheat control has tripped during dry heating (not enough water).
• Let the kettle cool down (approximately 12 mins), remove the kettle from the base and fill with cold water.

The base unit switches off before the heating cycle is complete.

• The kettle contains too much scale.
• Descale the kettle as per the instructions

The kettle 'beeps' and all lights flash for 5 times.

• The kettle temperature sensor is not working.
• Restart the appliance to attempt reset. If problem persists after reset, unplug the appliance from the power outlet and contact Customer Service.

7. Technical data

Electrical connection	220-240V~ 50/60Hz
Power UK	2520-3000W
Power Europe	1850-2200W

8. Important information

Haier Spares and Consumables

Always replace parts with genuine Haier spares. These are available from your local Haier dealer or direct from Haier. When ordering parts always quote your model number.

Quality

Haier's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

100°C - Boiling water

HOT WATER FUNCTION

www.candy-group.com.

CANDY HOOVER GROUP S.r.l.

Via Comolli, 16

20861 Brugherio (MB) Italy

Use the product to clean the appliance Care Plus Protect Professional Bottle.

Follow the usage and maintenance instructions of the manufacturer.

Attach the bracket with 6:

Warning: Do not allow children near the device. Do not immerse the device in water.

Warning: Risk of injury! Improper use of the device may lead to injury.

Caution! The surface of the heating element remains hot after use.

Be sure to clean the surfaces that come into contact with food products! Information about cleaning is provided in the instructions.

Warning: Do not use the device in a bathtub, shower, pool, or near containers with water.

To avoid fire, do not place the device on hot surfaces, for example, on a gas stove or electric surface, or near them. Do not place the device on the floor to prevent the risk of tripping over the cord or injuring children.

Do not pull or carry the device by the power cord. Always unplug the device from the outlet by pulling the plug, not the cord. Do not place the power cord on sharp edges or near hot surfaces. Do not use an extension cord. Do not place the device on an inclined surface, and

also do not move it during operation.

Make sure the device is used on a solid, flat surface that children cannot touch.

When using the device, please keep it away from children and animals to avoid accidental injuries. Do not use the device for purposes other than intended.

The corresponding point for

further processing of electronic and

electrical parts. Disposal should

be carried out in accordance with local regulations.

and waste disposal units. For more detailed

information on recycling this product, please contact

the local authority, your household waste disposal service, or the shop

where you purchased the product.

This product complies with the requirements of European Directives 2014/53/EC and 2011/65/EC. For a copy of the Declaration of Conformity,

please contact the manufacturer

via the website

www.candy-home.com/ru

CANDY HOOVER GROUP S.r.l.

Via Comolli, 16

20861 Brugherio (MB) Italy

2. Device description

COMPONENTS AND FUNCTIONS:

A. Lid B. Filter with descaling agent C. Measuring line for water volume (inside) D. Kettle body E. Base F. Control panel on the base G. Power supply cord H. On/Off button I. Temperature adjustment button J. Temperature indicator K. Temperature selection button

Ideal descaling results depend on water hardness.

We recommend using Care Plus Protect Professional Kettle Descaler.

Follow the manufacturer's instructions for use and safety precautions when cleaning.

Descaling with vinegar:

1. Pour water into the kettle up to the 1.7 L mark and bring it to a boil.
2. Add a small amount of vinegar and let it sit for several hours.
3. Then rinse the kettle and filter with clean water.

Important! Do not use hard objects to remove limescale residues, as this may damage the seal.

6. Troubleshooting

The kettle does not heat up.

The temperature indicator lights on the base do not light up.

• The boil-dry protection has activated (insufficient water). - Let the kettle cool down (approximately 12 minutes), remove it from the base, and fill it with cold water.

The base switches off automatically after the heating cycle is complete.

• The kettle contains a lot of scale.
• Remove the scale according to the instructions.

The kettle emits an audible signal and all indicators flash 5 times.

The temperature sensor in the kettle does not work.

Turn the appliance off and on to reset the data. If the problem persists after the reset, unplug the appliance from the outlet and contact a service center.

7. Technical data

TEMPERATURE KEEPING FUNCTION (KEEP WARM)
