USER MANUAL LGECRAN16MQ70 DARTY

PORTABLE MONITOR For safe and convenient use, please read this owner’s manual carefully before starting to use the product. 16MQ70 Series www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved

Important Safety Precautions ENGLISH Contents Important Safety Precautions Important Safety Precautions 1 Check the following ‘Important Safety Precautions’ to prevent unexpected danger or damage in advance. While using product 1 Checking the Components 2 Product Tour 2 Using Folio Cover 3 Connecting Monitor 3 Setting Screen (Extension Mode) 4 Adjusting Screen Brightness 4 Installing SW 4 ‘Important Safety Precautions’ is divided into ‘Warning’ and ‘Caution.’

WARNING: Noncompliance with the instruction may cause serious

physical damage or fatal injuries. ! CAUTION: Noncompliance with the instruction may cause minor damage to the body or the machine. While using product ! WARNING yy Use the product in a safe place where there is no danger of the product falling. yy Do not use the product in a dusty or humid place. yy Do not use the product in a high or low-temperature environment. yy Do not touch the power cord with your hands wet. yy Keep the power cable port free of foreign substances. yy Clean the product with a proper agent and dry it completely before using it again. ! CAUTION yy Do not press the monitor screen with fingers or put objects on it. yy Do not tap or scratch the screen with a sharp object. yy If the screen is damaged, do not touch it with your hands. yy Keeping a paused image on the screen for an extended period of time may result in screen burn-in. yy Use a screensaver, etc. yy When its temperature is low, turning on the monitor may cause momentary blinking of the screen. yy If this is the case, you may see some red, green, and blue spots on the screen but it is normal. Pre-Tech Support Checklist 5

Product Tour The components shown below are provided when you purchase the product. Check the components before use. The product may differ in shape and color from the product images included in this Owner’s manual. yy Some of its components may look different in shape and color from the pictures in certain models. Front yy To clean the product, use a dedicated cleaning agent for PC and monitor. Using thinners, benzene, alcohol or other similar agents may cause product damage or deformation.

Monitor body Owner’s manual USB-C™ cable Folio cover NOTE yy The figures in the user’s guide are subject to change without prior notice.

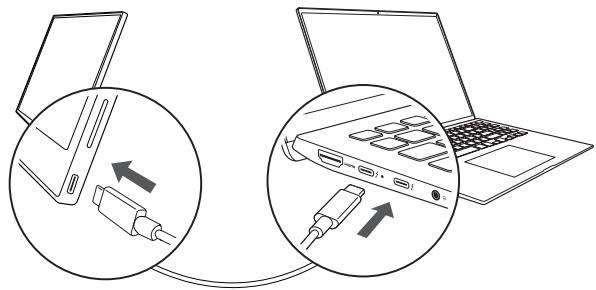

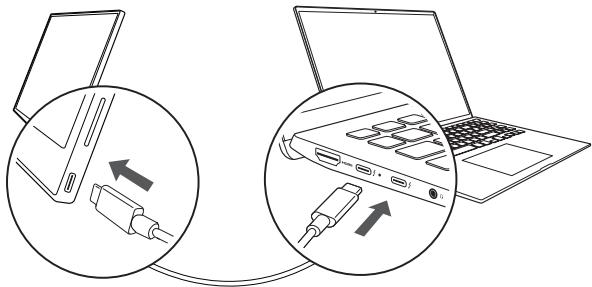

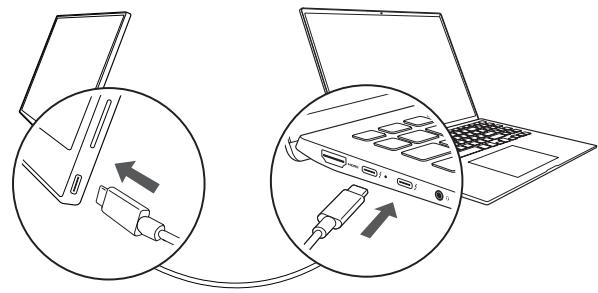

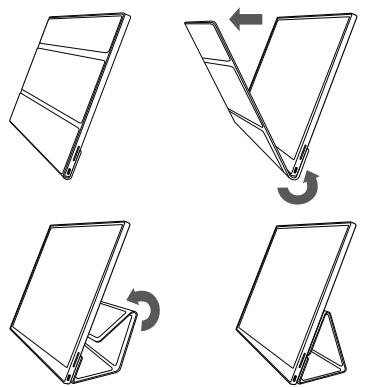

Using Folio Cover Using Folio Cover Connecting Monitor You can fold back the folio cover and use it as a stand. Connect the USB-C™ ports of the monitor and the PC using the USB-C™ cable. ENGLISH ! CAUTION ! CAUTION yy When you are moving the product, make sure to keep the folio cover on it to protect the screen. NOTE yy There are two angles available for using the folio cover. yy The folio cover can be used in the horizontal mode only. yy The folio cover is a consumable item and can be damaged during use. You can purchase folio covers separately from LG Electronics Service Center. yy Do not use any other type of cable than USB-C™ cable for this connection. Doing so can damage the connector. NOTE yy This product is designed to be used only with a laptop. The device to be connected with the monitor must support DisplayPort Alternate Mode (DP Alt Mode) and power output (USB PD) at 7.5 W (5 V / 1.5 A) or higher. yy The USB-C™ port only supports single connection and does not support multiple connections. yy Use the USB-C™ cable enclosed with the monitor for connection. If a cable for a different product is used, it may cause the screen to operate abnormally. yy If the device connected to the monitor has low battery, connection may be lost. yy This monitor supports the plug-and-play function. (Plug-and-play: When a device is connected to a PC, the PC automatically recognizes the connected device without any environment settings by the user.) Setting Screen (Extension Mode)

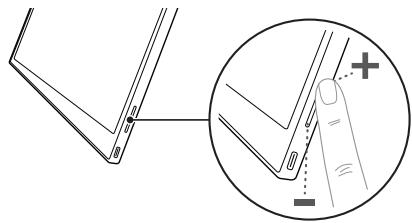

Adjusting Screen Brightness If you set the portable monitor to Extension Mode, you can set the screen ratio and layout. You can use the screen brightness button on the right of the monitor to adjust the screen brightness. 1 Press [

] or [Ctrl] + [ESC] on your keyboard to bring up the Start menu. yy Windows 10: Press the Start button [ ] and then select the Settings [

4 Select monitor 2. Installing SW Install OnScreen Control and use various functions such as screen split, monitor settings, and screen switch easily and conveniently. 1 Visit the LG Electronics website (http://lg.com). 5 Change settings as desired under [Scale & layout]. 2 Select the “SUPPORT” menu option and search for the product model. 3 Select “OnScreen Control” and start installing the software. NOTE yy After OnScreen Control is installed, you can see how to use it from the Help menu provided inside the app. NOTE yy The image is only representative and may vary depending on the Windows version and language of the country. yy OnScreen Control is available for Windows only. yy The Auto Screen Rotation function is available only while OnScreen Control is enabled. ENGLISH Setting Screen (Extension Mode)

Pre-Tech Support Checklist ENGLISH Pre-Tech Support Checklist Appendix If the following symptoms appear while using the product, check again. It may not be a malfunction. Product Specifications Symptom Cause and Solution The screen stays yy Check if the device connected to the monitor supports DisplayPort Alternate Mode blank or connection is (DP Alt Mode) and USB Power Delivery(USB PD). unstable. The power does not turn on. yy Check if you can properly connect the device to the monitor using the USB-C™ cable that comes with the monitor. The monitor’s supported frequency range has been exceeded. yy This phenomenon occurs when the signal sent from the PC exceeds the horizontal or vertical frequency range. Refer to the Factory Mode settings and reset the frequency. The screen looks unclear. yy Setting the screen resolution to any other than the recommended (optimal) resolution may result in blurry text or dimming, cropping, or tilting of the screen. Use the recommended screen resolution setting. Screen burn-in remains even when power is off. yy Note that having a fixed screen on for an extended period of time may cause damage to the display and lead to screen burn-in. yy To use the monitor for a long time, use a screensaver. There are spots on the screen. yy You may see a few pixel spots (red, green, blue, white, black) on the screen while using the monitor. This is a normal phenomenon of an LCD screen. This is unrelated to the monitor performance and is not an abnormality. Display 16 inch (40.6 cm) IPS LCD Color Depth

16.7 million colors (8 bits)

Resolution Display Standard Supported Power Maximum Resolution 2560 x 1600 @ 60 Hz Recommended Resolution 2560 x 1600 @ 60 Hz DisplayPort Alternate Mode (DP Alt Mode) Rated 5V02A Power Consumption Operation mode: 8 W general (factory default)* Operation Environment Storage Dimensions (not including package) Weight (not including package) Temperature +32 °F to +104 °F (0 °C to 40 °C) Humidity Lower than 80 % Temperature -4 °F to +140 °F (-20 °C to 60 °C) Humidity 85 % or lower With a folio cover

14.3 (width) x 9.8 (height) x 0.4 inch

(thickness) / (362 (width) x 249 (height) x 11.3 mm (thickness) ) Without a folio cover

14.2 (width) x 9.7 (height) x 0.3 inch

(thickness) / (360 (width) x 245.5 (height) x 8.3 mm (thickness) ) With a folio cover Approx. 35 oz (990 g) Without a folio cover Approx. 24 oz (670 g) Appendix NOTE Factory Default Mode Registered Trademark and Open Source Software Notice Information USB Type-C™ and USB-C™ are trademarks of USB Implementers forum. LG logo is a registered trademark of LG Electronics Inc. To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com. Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) 640 x 480

Refers to stand-by. 2560 x 1440

Refers to “ON” (power). 2560 x 1600

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product. Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to dangerous voltage. ENGLISH yy * Power consumption in On Mode was measured under LGE’s standard testing conditions (full white pattern, maximum resolution). yy The product specifications are subject to change without notice for product improvement. yy Power consumption level may differ depending on the operating conditions and monitor settings.

PORTABLE MONITOR For safe and convenient use, please read this owner’s manual carefully before starting to use the product. 16MQ70 Series www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved

Important Safety Precautions ENGLISH Contents Important Safety Precautions Important Safety Precautions 1 Check the following ‘Important Safety Precautions’ to prevent unexpected danger or damage in advance. While using product 1 Checking the Components 2 Product Tour 2 Using Folio Cover 3 Connecting Monitor 3 Setting Screen (Extension Mode) 4 Adjusting Screen Brightness 4 Installing SW 4 ‘Important Safety Precautions’ is divided into ‘Warning’ and ‘Caution.’

WARNING: Noncompliance with the instruction may cause serious

physical damage or fatal injuries. ! CAUTION: Noncompliance with the instruction may cause minor damage to the body or the machine. While using product ! WARNING yy Use the product in a safe place where there is no danger of the product falling. yy Do not use the product in a dusty or humid place. yy Do not use the product in a high or low-temperature environment. yy Do not touch the power cord with your hands wet. yy Keep the power cable port free of foreign substances. yy Clean the product with a proper agent and dry it completely before using it again. ! CAUTION yy Do not press the monitor screen with fingers or put objects on it. yy Do not tap or scratch the screen with a sharp object. yy If the screen is damaged, do not touch it with your hands. yy Keeping a paused image on the screen for an extended period of time may result in screen burn-in. yy Use a screensaver, etc. yy When its temperature is low, turning on the monitor may cause momentary blinking of the screen. yy If this is the case, you may see some red, green, and blue spots on the screen but it is normal. Pre-Tech Support Checklist 5

Product Tour The components shown below are provided when you purchase the product. Check the components before use. The product may differ in shape and color from the product images included in this Owner’s manual. yy Some of its components may look different in shape and color from the pictures in certain models. Front yy To clean the product, use a dedicated cleaning agent for PC and monitor. Using thinners, benzene, alcohol or other similar agents may cause product damage or deformation.

Monitor body Owner’s manual USB-C™ cable Folio cover NOTE yy The figures in the user’s guide are subject to change without prior notice.

Using Folio Cover Using Folio Cover Connecting Monitor You can fold back the folio cover and use it as a stand. Connect the USB-C™ ports of the monitor and the PC using the USB-C™ cable. ENGLISH ! CAUTION ! CAUTION yy When you are moving the product, make sure to keep the folio cover on it to protect the screen. NOTE yy There are two angles available for using the folio cover. yy The folio cover can be used in the horizontal mode only. yy The folio cover is a consumable item and can be damaged during use. You can purchase folio covers separately from LG Electronics Service Center. yy Do not use any other type of cable than USB-C™ cable for this connection. Doing so can damage the connector. NOTE yy This product is designed to be used only with a laptop. The device to be connected with the monitor must support DisplayPort Alternate Mode (DP Alt Mode) and power output (USB PD) at 7.5 W (5 V / 1.5 A) or higher. yy The USB-C™ port only supports single connection and does not support multiple connections. yy Use the USB-C™ cable enclosed with the monitor for connection. If a cable for a different product is used, it may cause the screen to operate abnormally. yy If the device connected to the monitor has low battery, connection may be lost. yy This monitor supports the plug-and-play function. (Plug-and-play: When a device is connected to a PC, the PC automatically recognizes the connected device without any environment settings by the user.) Setting Screen (Extension Mode)

Adjusting Screen Brightness If you set the portable monitor to Extension Mode, you can set the screen ratio and layout. You can use the screen brightness button on the right of the monitor to adjust the screen brightness. 1 Press [

] or [Ctrl] + [ESC] on your keyboard to bring up the Start menu. yy Windows 10: Press the Start button [ ] and then select the Settings [

4 Select monitor 2. Installing SW Install OnScreen Control and use various functions such as screen split, monitor settings, and screen switch easily and conveniently. 1 Visit the LG Electronics website (http://lg.com/uk). 5 Change settings as desired under [Scale & layout]. 2 Select the “SUPPORT” menu option and search for the product model. 3 Select “OnScreen Control” and start installing the software. NOTE yy After OnScreen Control is installed, you can see how to use it from the Help menu provided inside the app. NOTE yy The image is only representative and may vary depending on the Windows version and language of the country. yy OnScreen Control is available for Windows only. yy The Auto Screen Rotation function is available only while OnScreen Control is enabled. ENGLISH Setting Screen (Extension Mode)

Pre-Tech Support Checklist ENGLISH Pre-Tech Support Checklist Appendix If the following symptoms appear while using the product, check again. It may not be a malfunction. Product Specifications Symptom Cause and Solution The screen stays yy Check if the device connected to the monitor supports DisplayPort Alternate Mode blank or connection is (DP Alt Mode) and USB Power Delivery(USB PD). unstable. The power does not turn on. yy Check if you can properly connect the device to the monitor using the USB-C™ cable that comes with the monitor. The monitor’s supported frequency range has been exceeded. yy This phenomenon occurs when the signal sent from the PC exceeds the horizontal or vertical frequency range. Refer to the Factory Mode settings and reset the frequency. The screen looks unclear. yy Setting the screen resolution to any other than the recommended (optimal) resolution may result in blurry text or dimming, cropping, or tilting of the screen. Use the recommended screen resolution setting. Screen burn-in remains even when power is off. yy Note that having a fixed screen on for an extended period of time may cause damage to the display and lead to screen burn-in. yy To use the monitor for a long time, use a screensaver. There are spots on the screen. yy You may see a few pixel spots (red, green, blue, white, black) on the screen while using the monitor. This is a normal phenomenon of an LCD screen. This is unrelated to the monitor performance and is not an abnormality. Display

16.7 million colors (8 bits)

Resolution Display Standard Supported Power Maximum Resolution 2560 x 1600 @ 60 Hz Recommended Resolution 2560 x 1600 @ 60 Hz DisplayPort Alternate Mode (DP Alt Mode) Rated 5V02A Power Consumption Operation mode: 8 W general (factory default)* Operation Environment Storage Dimensions (not including package) Weight (not including package) Temperature 0 °C to 40 °C Humidity Lower than 80 % Temperature -20 °C to 60 °C Humidity 85 % or lower With a folio cover 362 (width) x 249 (height) x 11.3 mm (thickness) Without a folio cover 360 (width) x 245.5 (height) x 8.3 mm (thickness) With a folio cover Approx. 990 g Without a folio cover Approx. 670 g Appendix NOTE Factory Default Mode Registered Trademark and Open Source Software Notice Information USB Type-C™ and USB-C™ are trademarks of USB Implementers forum. LG logo is a registered trademark of LG Electronics Inc. To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com. Preset Mode Horizontal frequency (kHz) Vertical frequency (Hz) Polarity (H/V) 640 x 480

Refers to stand-by. 2560 x 1440

Refers to “ON” (power). 2560 x 1600

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product. Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to dangerous voltage. ENGLISH yy * Power consumption in On Mode was measured under LGE’s standard testing conditions (full white pattern, maximum resolution). yy The product specifications are subject to change without notice for product improvement. yy Power consumption level may differ depending on the operating conditions and monitor settings.
