Product type	Food processor (chopper/mixer)
Brand	Haier
Model	HCH5B1
Power supply	220-240 V ~ 50/60 Hz
Power	550 W
Bowl capacity	Glass bowl, capacity not specified
Main functions	Chop, mix, emulsify, pulse
Variable speed	Yes, via variable pressure button
Maximum usage time	10 seconds continuous, then 4 minutes pause
Maximum recommended load	150 g butter + 300 g honey (sticky foods)
Maximum ingredient sizes	2 x 2 x 2 cm
Maximum food temperature	70 °C
Materials	Glass bowl, stainless steel blades, plastic body
Safety	Automatic shut-off in case of overload, sharp blades, do not immerse motor
Cleaning	Removable parts dishwasher safe (lid, gasket, upper blade, blade shaft, bowl, cushion)
Spare parts	Original Haier parts available from the dealer
Warranty	According to country conditions, upon presentation of invoice
Compliance	European Directives 2014/35/EU, 2014/30/EU, 2011/65/EU

Frequently Asked Questions - HCH5B1 HAIER

How to assemble the Haier HCH5B1 food processor?

Assemble the upper blade onto the blade shaft until it locks. Mount the assembly in the glass bowl on the spindle axle. Place the food cut into 1-2 cm pieces, then lock the lid. Finally, place the main body onto the lid.

What safety precautions should be taken?

The blades are very sharp: handle them by the stem. Always unplug the appliance before assembling/disassembling/cleaning. Never immerse the motor head in water. Use on a flat and dry surface. Do not process hot food (>70 °C).

What is the maximum continuous usage time?

Do not use for more than 10 seconds continuously, then let it cool for at least 4 minutes. For sticky foods (butter+honey), max 3 cycles of 3 seconds with 2 minutes pause.

Which parts are dishwasher safe?

The following parts are dishwasher safe: lid, gasket of the lid, upper blade, blade shaft, glass bowl, and anti-slip cushion.

What should I do if the motor doesn't start or the blades don't turn?

Check that the bottom of the motor head is clean and free of blockage. Make sure you do not have too much food in the bowl. Let the motor cool for about 10 minutes if overheating. Also check that the main body is properly engaged on the lid and that the plug is connected.

How to avoid uneven chopping?

Cut the food into equal-sized pieces (2 cm maximum) and process in small successive batches. Do not fill the bowl more than half full.

Can I chop hot ingredients?

No, the maximum food temperature is 70 °C. Hotter food may be ejected from the bowl.

What is the power of the appliance?

The Haier HCH5B1 food processor has a power of 550 W at 220-240 V~ 50/60 Hz.

How to clean the main body (motor)?

Never immerse the main body in water. Clean it with a damp sponge or cloth and dry it thoroughly.

Where can I find Haier spare parts?

Original Haier spare parts are available from your Haier dealer or directly from the manufacturer. Always mention the model number HCH5B1 when ordering.

USER MANUAL HCH5B1 HAIER

User manual (GB) .P1

Οδηγίες χρήσης (GR) . P45

Руководство по эксплуатации (RU)..... P49

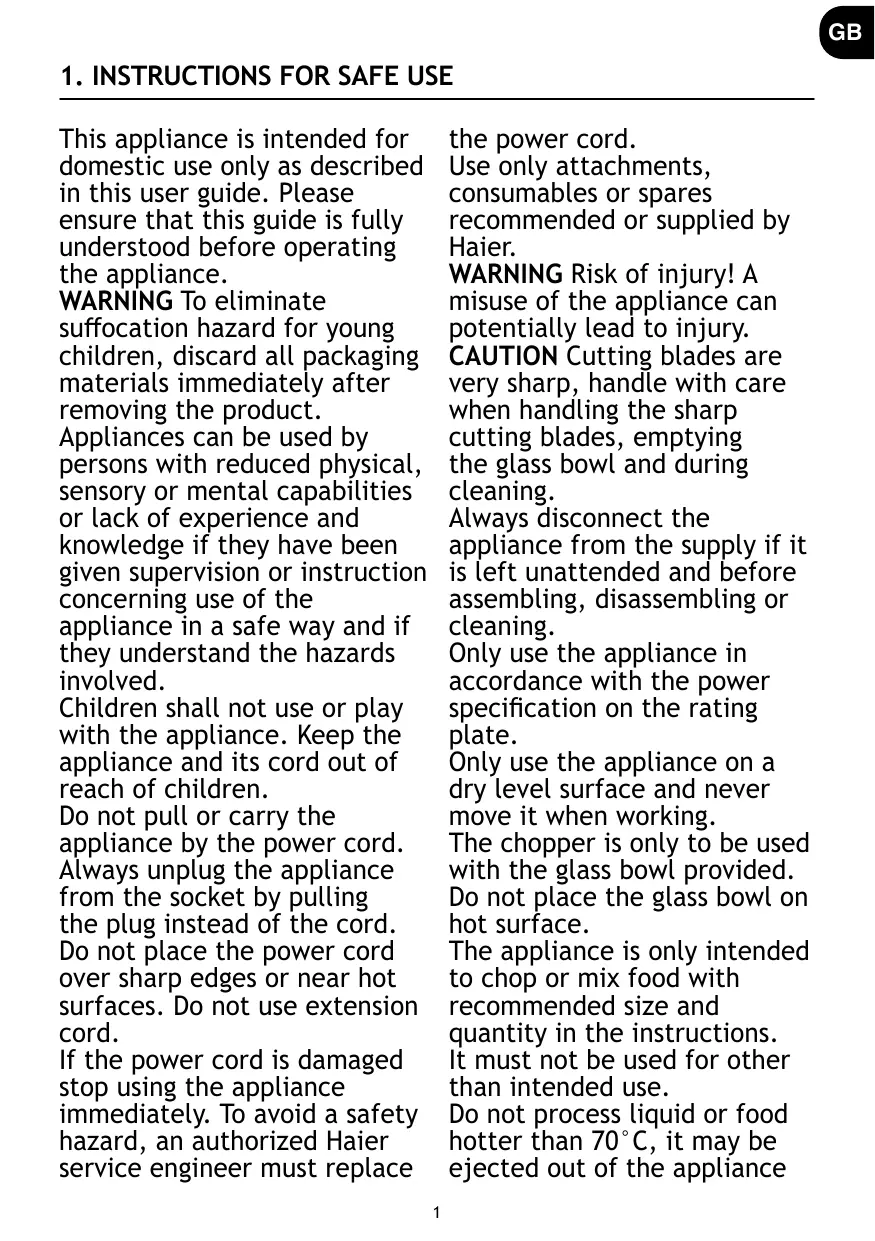

This appliance is intended for domestic use only as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

WARNING To eliminate suffocation hazard for young children, discard all packaging materials immediately after removing the product. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not use or play with the appliance. Keep the appliance and its cord out of reach of children.

Do not pull or carry the appliance by the power cord. Always unplug the appliance from the socket by pulling the plug instead of the cord. Do not place the power cord over sharp edges or near hot surfaces. Do not use extension cord.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorized Haier service engineer must replace

the power cord.

Use only attachments, consumables or spares recommended or supplied by Haier.

WARNING Risk of injury! A misuse of the appliance can potentially lead to injury. CAUTION Cutting blades are very sharp, handle with care when handling the sharp cutting blades, emptying the glass bowl and during cleaning.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Only use the appliance in accordance with the power specification on the rating plate.

Only use the appliance on a dry level surface and never move it when working.

The chopper is only to be used with the glass bowl provided. Do not place the glass bowl on hot surface.

The appliance is only intended to chop or mix food with recommended size and quantity in the instructions. It must not be used for other than intended use.

Do not process liquid or food hotter than 70°C it may be ejected out of the appliance

during processing.

Switch off the appliance and disconnect from power supply before changing accessories or approaching parts that move in use.

Disconnect from power supply and allow the chopping blades to completely stop before removing any parts and before cleaning or any maintenance. Never immerse the motor head in liquid. Do not operate the appliance with wet hands. Pay attention to cleaning surfaces which are intended to come into contact with food! Please note the information on cleaning in the instructions. Do not continue to use your appliance if it appears faulty. Haier service: to ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorized Haier service engineer.

WARNING Do not overload the chopper. If you insert sticky food don't exceed with the quantity (max 150gr butter + 300gr honey) and use max for 3 second with 2 minutes rest for max 3 cycles.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead, it must be handed over to

the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

CEThis appliance complies with the European Directives 2014/35/EU, 2014/30/EU and

2011/65/EU.

CANDY HOOVER GROUP S.r.l.

Via Comolli 16, 20861 Brugherio (MB), ITALY

2. Getting to know your Chopper

A. ON/OFF and variable speed button B. Main body C. Cover D. Cover sealing E. Upper blade F. Blade shaft G. Glass bowl H. Spindle Pin I. Non-slip pad

3. Before first use

Before you use the appliance and accessories for the first time, thoroughly clean the parts that come into contact with food. Before you clean the appliance, unplug it. (For cleaning details refer to Chapter 5)

WARNING

The chopping blades are sharp! Please handle with care. Especially when removing the blades from the glass bowl, emptying the glass bowl and during cleaning. Use extreme caution when handling the blades. Always hold them by the shaft. Do not attempt to sharpen the blades.

CAUTION

• Place the glass bowl on a clean, flat surface. Non-slip pad can be placed under the chopper glass bowl for stability.
• Do not use the glass bowl right after being taken out from dishwasher or refrigerator. Be sure it stays at room temperature for at least 5 min before use. If preparing food for babies or young children, always check that the ingredients are thoroughly blended before feeding. To ensure consistent processing, stop and scrape down any food from the side of the glass bowl with a plastic spatula. The best results are obtained by chopping small quantities at one time.
• Do not fill the chopper glass bowl more than half-bowl for better mixing.
• Do not mix ingredients larger than 2 x 2 x 2 cm. Always allow hot food to cool before processing.
• Do not operate chopper continuously for longer than 10 seconds in any 4 minutes period.
• Do not operate the appliance at no-load. If the chopper overheats, unplug the appliance and let it cool down for approximately 10 minutes before using again.
• Beware of over processing some ingredients, stop and check the consistency frequently.
• Before chopping nuts, herbs, breadcrumbs etc, ensure that blades, glass bowl and the cover are thoroughly dry.
• Remember that chopping hard foods such as coffee beans, spices, chocolate or ice will wear the knife blades faster. If the chopper labours, remove some of the mixture and continue processing in several batches, otherwise you may strain the motor. To avoid overloading the appliance, you can;
• Add more liquid ingredient.
• Process in several small batches. Use a higher speed setting.
• Do not attempt to process very thick recipes such as bread dough or mash potatoes.

4. Using your Chopper

1. Assemble the upper blade on the blade shaft until lock into place.
2. Fit the blade shaft assembly into the glass bowl over the Spindle Pin.
3. Cut the food into suitably sized pieces and place in the glass bowl. Larger pieces of food should be cut into approximately 1 to 2 cm pieces.
4. Fit the cover and press to lock into place.
5. Place the main body onto the cover.
6. Plug in.
7. Press down on the ON/OFF and variable speed button to select the desired speed (Max 10 secs).
8. When operating the main body, hold it and the glass bowl firmly.
9. Press the ON/OFF and variable speed button lightly to obtain low speed.
10. Press the ON/OFF and variable speed button firmly to obtain high speed.
11. Alternatively, the ON/OFF and variable speed button may be pressed down for short periods of time to produce a pulsing action.

This can be used to avoid over processing food. Operate the chopper until the desired result is achieved.

• Release the ON/OFF button to switch off.
• Remove the blades, then pour out the food.

Reverse the above procedure to disassemble the unit.

5. Cleaning & Maintenance

CAUTION: Make sure that the main body is unplugged from the mains power supply and that the blades have stopped turning before attaching or removing any accessory.

Disassemble all of parts before washing.

DO NOT immerse the main body into water or any other liquid, clean with a damp sponge or cloth and wipe dry.

Handle the blades with care - they are extremely sharp.

Please remove the sticker on the glass bowl before washing.

Following parts/tools can be put in the dishwasher to clean. [Fig. 8]

Cover, Cover sealing, Upper blade, Blade shaft, Glass bowl, Non-slip pad

All parts must be completely cleaned and dry before being stored.

Assemble the appliance with the blades, cover and main body in position.

Store the appliance in the box or in a clean, dry place well out of the reach of children.

6. Troubleshooting

1. Motor doesn't start or blades don't rotate.

Check that the bottom of motor head is clean and there is no food blocking connection when placing on the glass bowl.

There is too much food in the glass bowl.

The main body has overheated. Unplug and wait approximately 10 minutes before using again.

Ensure the main body is securely placed on the Cover.

Check the plug is securely inserted into the mains power supply.

1. Food is unevenly chopped.

Either you are chopping too much food at one time, or the pieces are too big. Try cutting the food into smaller pieces of even size (less than 2 cm) and processing smaller amounts per batch.

1. Food is chopped too fine or is too watery.

The food has been over processed. Use brief pulses or process for shorter time. Let blades stop completely between pulses.

7. Technical data

Electrical connection	220-240V~50/60Hz
Power	550W

8. Important information

Haier Spares and Consumables

Always replace parts with genuine Haier spares. These are available from your local Haier dealer or direct from Haier. When ordering parts always quote your model number.

Quality

Haier's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

1. INSTRUCTIONS FOR SAFE USE

Use in accordance with these instructions.

According to these instructions.

Before proceeding to

operation of this household

electrical appliance, make sure

that you understand

this manual.

WARNING To

avoid danger of injury

Please dispose of all

packaging materials immediately

after unpacking the device.

This device can be

used by persons with

limited physical,

sensory, or mental

capabilities, or lack of

experience and knowledge, if they

have been given supervision or

instruction concerning use

of the device in a safe way and

understand the hazards involved.

Children must not play

with the device.

Keep the device and its cord

out of reach of children.

Do not pull or carry the device

by the cord. Do not place the cord

If the power cord is damaged,

immediately disconnect

the device. To avoid the risk of

safety hazards, replace the cord

with spare parts that

are recommended or supplied by Haier.

DANGER

of injury! Incorrect

emptying of the glass cup!

during the cleaning process.

Always disconnect the device from

Electric shock, if it remains

without supervision, as well as before

assembly, disassembly of the

system.

Use the device only in

accordance with the power,

indicated on the nameplate

table.

Use the device only on

a dry surface.

Never move it during

operation.

The chopper can be

included in the delivery set. Do not place

a glass jar on a hot

surface.

The appliance is intended

only for chopping and

mixing products, the size

and quantity of which are specified

in the instructions. It is forbidden

to use the appliance for other

purposes.

Do not handle hot liquids or

products with temperatures above 70°C - during operation splashes may form.

Turn off the appliance and disconnect it from the power supply before replacing accessories or approaching moving parts.

Disconnect the appliance from the power supply and wait until the blades have completely stopped before removing any parts, as well as before cleaning or any technical maintenance. Never immerse the motor head in liquid. Do not work with the appliance with wet hands.

Be sure to wash surfaces that come into contact with food products! Cleaning instructions are given in the manual.

In case of malfunction, do not continue to use the appliance.

Servicing: To ensure trouble-free and reliable operation of this appliance, we recommend inviting certified service engineers to perform technical maintenance and repairs.

Do not overload the grinder. In the case of sticky products, do not load them above the specified volume (maximum 150 g of cooking oil + 300 g of honey) and grind them in 3 cycles of maximum 3 seconds each with a 2-minute interval.

Environment

The symbol on this device indicates that it cannot be disposed of together with household

waste. It must be handed over to the appropriate collection point for further recycling of electrical and electronic parts. Disposal must be carried out in accordance with local rules for environmental protection and waste disposal. For more detailed information on handling this device, its disposal and recycling, contact your local authorities, the waste disposal service, or the store where you purchased this device.

This device complies with the requirements of European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Comolli 16, 20861 Brugherio (MB), ITALY

2. Getting to know the grinder

A. On/off button and speed control B. Main body C. Lid D. Lid seal E. Upper blade F. Shaft G. Glass bowl H. Spindle I. Non-slip base
