USER MANUAL MMBM7G3M--B - MMBM7G3M BOSCH

Register yo new devic ur MyBosch e on no get free b w and enefits: bosch-ho me.com/ welcome

GGG GGG H H G H H G H H G H H H Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else.

If the instructions for correct use of the appliance are not observed, the manufacturer’s liability for any resulting damage will be excluded. This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use. This appliance is suitable for mixing liquid or semi-solid food, for cutting or chopping raw fruit and vegetables, for puréeing food and for chopping deep-frozen food (such as fruit) or crushing ice cubes. The appliance should not be used for processing other substances or objects. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

WW Risk of electric shock and fire! Only use the appliance indoors at room temperature and up to 2000 m above sea level. Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards. The power cord must not come into contact with hot parts or be pulled across sharp edges. Do not place the appliance or its accessories on or near hot surfaces such as hobs. Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands. After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Safety instructions en

Never leave the appliance unattended while it is switched on! Do not operate the appliance at idle speed. Never leave the appliance switched on for longer than is necessary for processing the ingredients. Immediately after using the appliance, wait for it to stop. When the appliance has been switched off, the blade continues running for a short time. Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply. Never place fingers in the attached blender jug. Only use the appliance when it is fully assembled! Use the appliance only with genuine parts and accessories. Never process food that is hotter than 50°C in the plastic blender jug. Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning. WW Risk of scalding! When you process hot ingredients in the glass blender jug, steam will escape through the filling opening in the lid. You should always use one hand to hold the lid firmly in place while you work, but don’t place your hand over the filling opening! Pour no more than 0.3 litres of hot or frothing liquid into the glass blender jug. WW Important! The blender jugs are not suitable for use in the microwave. It is essential to clean the appliance as described after each use and if it has not been used for an extended period. X “Care and daily ­cleaning” see page 14 Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

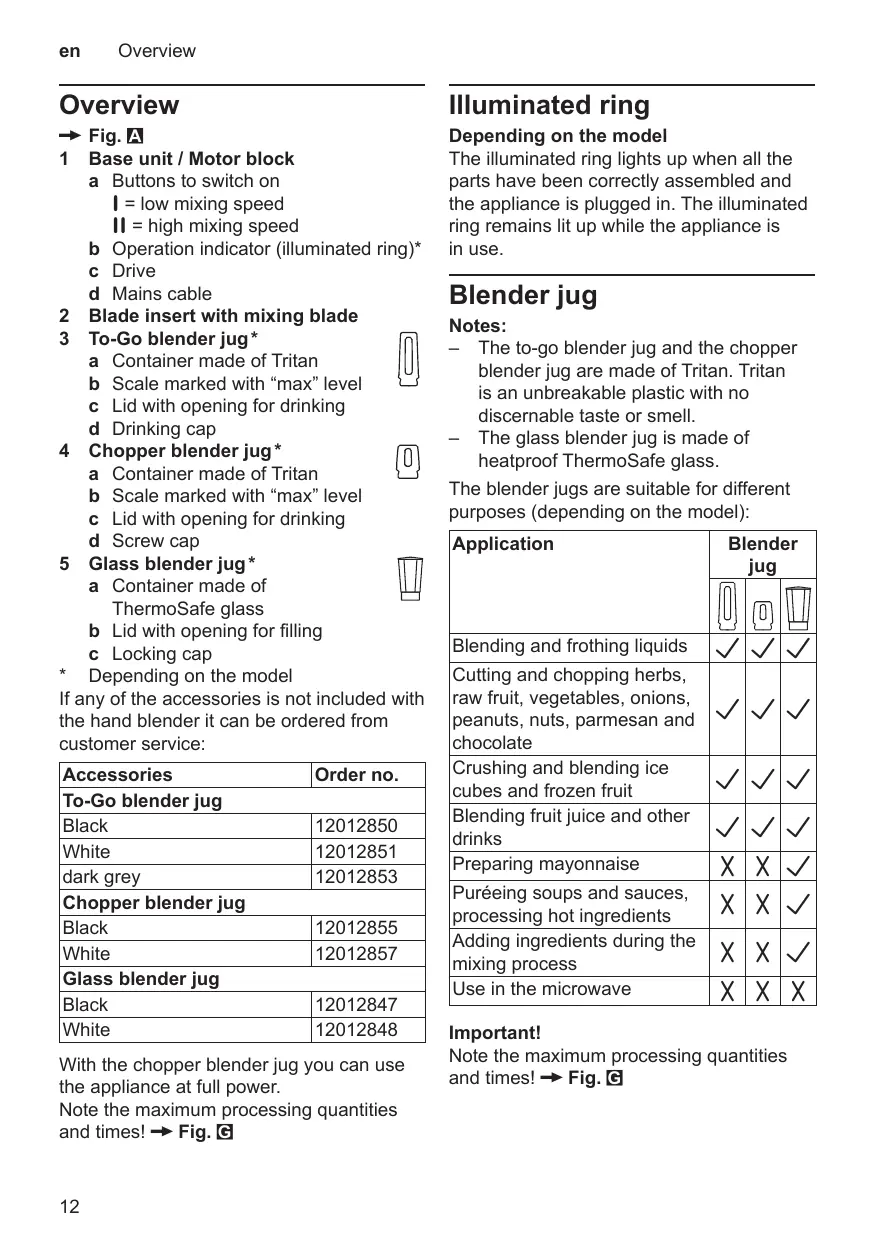

1 Base unit / Motor block a Buttons to switch on t = low mixing speed u = high mixing speed b Operation indicator (illuminated ring)* c Drive d Mains cable 2 Blade insert with mixing blade 3 To-Go blender jug * a Container made of Tritan b Scale marked with “max” level c Lid with opening for drinking d Drinking cap 4 Chopper blender jug * a Container made of Tritan b Scale marked with “max” level c Lid with opening for drinking d Screw cap 5 Glass blender jug * a Container made of ThermoSafe glass b Lid with opening for filling c Locking cap * Depending on the model If any of the accessories is not included with the hand blender it can be ordered from customer service: Accessories To-Go blender jug Black White dark grey Chopper blender jug Black White Glass blender jug Black White

12012850 12012851 12012853 12012855 12012857 12012847 12012848

With the chopper blender jug you can use the appliance at full power.

Note the maximum processing quantities and times! X Fig. G

Depending on the model

The illuminated ring lights up when all the parts have been correctly assembled and the appliance is plugged in. The illuminated ring remains lit up while the appliance is in use.

–– The to-go blender jug and the chopper blender jug are made of Tritan. Tritan is an unbreakable plastic with no discernable taste or smell. –– The glass blender jug is made of heatproof ThermoSafe glass. The blender jugs are suitable for different purposes (depending on the model): Application

Blending and frothing liquids

Cutting and chopping herbs, raw fruit, vegetables, onions, peanuts, nuts, parmesan and chocolate Crushing and blending ice cubes and frozen fruit Blending fruit juice and other drinks Preparing mayonnaise Puréeing soups and sauces, processing hot ingredients Adding ingredients during the mixing process Use in the microwave

GGG GGG GGG GGG H H G H H G H H G H H H Important!

Note the maximum processing quantities

and times! X Fig. G Before using for the first time en

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and checked.

Caution! Never operate a damaged appliance! ■■ Remove the base unit and all accessories from the packaging. ■■ Remove the packaging material that is present. ■■ Check that all the parts are present and examine them for obvious damage. X Fig. A ■■ Thoroughly clean and dry all parts before using for the first time. X “Care and daily ­cleaning” see page 14

WWRisk of injury! –– Do not insert the mains plug until all preparations for working with the appliance are complete and the required attachments are assembled correctly and connected to the base unit. –– Never process food that is hotter than 50°C in the plastic blender jug. –– Handle the blade insert with care, and don’t put your hand between the blades. X Fig. B –– Never put your hand in the blender jug once it is in place, and always put the lid on before using the appliance. WWRisk of scalding! Pour no more than 0.3 litres of hot or frothing liquid into the glass blender jug. ■■ Place the base unit on a stable and level work surface. ■■ Completely unwind the mains cable.

Using the to-go or chopper blender jug

1. Put the desired ingredients into the blender jug. 2. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anticlockwise until it audibly clicks into place. 3. Turn the blender jug over. 4. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place. 5. Plug the mains plug into the mains. 6. Hold the blender jug firmly with one hand. Hold down the t or u button until the mixture has reached the desired consistency. 7. Release the button and wait until the appliance comes to rest. Disconnect the mains plug. 8. Turn the blender jug anti-clockwise and then remove it. 9. Turn the blender jug over. 10. Turn the blade insert clockwise and then remove it. Caution! Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface. X Fig. B 11. Close the jug with the lid. 12. To pour out or drink contents, undo screw cap and remove, or lift up drinking cap. Clean all the parts. X “Care and daily c­ leaning” see page 14

Care and daily ­cleaning

Working with the glass blender jug

1. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anticlockwise until it audibly clicks into place. 2. Turn the blender jug over. 3. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place. 4. Put the desired ingredients into the blender jug. 5. Put the lid and locking cap in place. 6. Plug the mains plug into the mains. 7. Hold the lid firmly with one hand, but don’t place your hand over the filling opening. Hold down the t or u button until the mixture has reached the desired consistency. 8. Release the button and wait until the appliance comes to rest. Disconnect the mains plug. 9. Turn the blender jug anti-clockwise and then remove it. 10. Remove the lid. 11. Pour the blended food into another container. 12. Turn the blade insert clockwise and then remove it. Caution! Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface. X Fig. B Clean all the parts. X “Care and daily ­cleaning” see page 14 Adding more ingredients

1. Release the button and wait until the appliance comes to rest. 2. Remove the locking cap or the entire lid. 3. Add the extra ingredients. 4. Replace the lid and the locking cap, and again hold down the t or u button. Note: you can remove the locking cap by turning it anticlockwise. 14

Care and daily ­cleaning

The appliance and all the attachments and accessories used must be thoroughly cleaned after each use.

WWRisk of electric shock! –– Unplug the appliance before cleaning it. –– Never immerse the base unit in liquids and do not clean in the dishwasher. –– Do not use a steam cleaner. WWRisk of injury! Do not touch the blender blades with your bare hands. Caution! –– Do not use any cleaning agents ­containing alcohol or spirits. –– Do not use any sharp, pointed or metal objects. –– Do not use abrasive cloths or cleaning agents. Notes: –– It is best to clean the parts immediately after use. This will prevent residues from drying on and possibly attacking the plastic (e.g. essential oils in herbs). –– Pour a little water and washing-up liquid into the empty blender jug and hold down button u for a few seconds. –– The plastic parts may become discoloured when you process certain ingredients, such as carrots, but this can be removed with a few drops of cooking oil. In Fig. F you will find a summary of how to clean the individual parts.

Wipe the outside of the base unit with a soft, damp cloth and dry off.

Remove the seal before cleaning. Only clean the blade holder with a brush under running water. Don’t leave it soaking in water!

X Fig. H Safety systems en

Blender jugs and lids

You can clean the blender jugs and other parts with a detergent solution and a soft cloth or sponge, or put them in the dishwasher.

Start lock-out and automatic cut-out

The appliance can be switched on only if the blender jug has been latched firmly into place. The appliance will switch off automatically if the blender jug becomes detached while it is running. X “Troubleshooting” see page 15

WWRisk of injury! Before dealing with any faults, unplug the mains plug. Fault Appliance fails to start up or switches off while in use. The illuminated ring (­depending on the model) does not light up. Possible cause Blender jug is not correctly positioned or has become detached. Remedy ■■ Release the button. Disconnect the mains plug. ■■ Position the blender jug correctly and turn it until it latches audibly into place. ■■ Plug the mains plug into the mains. Press the t or u button again to test the function. Important note If this does not resolve the problem, please contact customer service. X You will find their contact information at the end of these operating instructions

Notes: –– First mix the solid ingredients with half the amount of liquid, then add the remainder of the liquid. –– Use the appropriate blender jug for each recipe.

–– Note the maximum processing quantities and times! X Fig. G Green smoothie

–– –– –– –– –– –– –– –– ■■ ■■

1 green apple (ca. 100 g)

Juice of one lemon (ca. 20 g) 20 g kale 10 g celery 10 g coriander leaves 10 g linseed 1 g ground cinnamon 300 g cooled water Cut apple, celery and kale into pieces. Put a little of the water in the blender jug. ■■ Blend for 1 minute at speed u. ■■ Add all the remaining ingredients to the blender jug. ■■ Blend for 1 minute at speed u.

1 banana (ca. 100 g)

4 g fresh red ginger 100 g yoghurt 30 g honey 100 ml milk Peel the banana and ginger and cut into pieces. ■■ Place all the ingredients in the to-go blender jug. ■■ Blend for 1 minute at speed u.

½ banana (ca. 50 g) 30 g sugar 20 g cocoa powder Cut the banana into pieces and freeze overnight. ■■ Place all the ingredients in the blender jug. ■■ Blend for 1 minute at speed u.

–– –– –– –– ■■ ■■ ■■ ■■

100 g frozen soya beans 1 apple (ca. 100 g) 220 g apple juice Peel and core the apple and cut it into pieces. Rinse the peas and soya beans under running water. Put the apple, peas and soya beans into boiling water and let them stand for 3 minutes. Rinse the cooked ingredients in a sieve under running water and then place them in iced water for a further 3 minutes to cool. Placed the cooked ingredients and the apple juice in the blender jug. Blend the mixture at speed u until it is thick and creamy.

–– –– –– ■■ ■■ ■■ ■■ ■■

1 apple or pear (ca. 100 g)

½ avocado (ca. 70 g) 100 g water Peel and core the apple or pear and cut it into pieces. Gently simmer the pieces in a little water on a low heat until they are soft. Peel the avocado, cut it into pieces and remove the stone. Placed the cooked ingredients and the piece of avocado in the blender jug. Blend the mixture at speed u until it is thick and creamy.

Sportsman’s cocktail

50 g lemon 1 tsp sugar or honey 125 ml apple juice 125 ml mineral water Peel the oranges and lemons, cut into pieces and remove the pips. ■■ Place all the ingredients in the blender jug. ■■ Blend for 1 minute at speed t.

J Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The guarantee conditions for this appliance areasdefinedbyourrepresentativeinthe country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
