USER MANUAL GFH 55 - GFH 73 TEKA

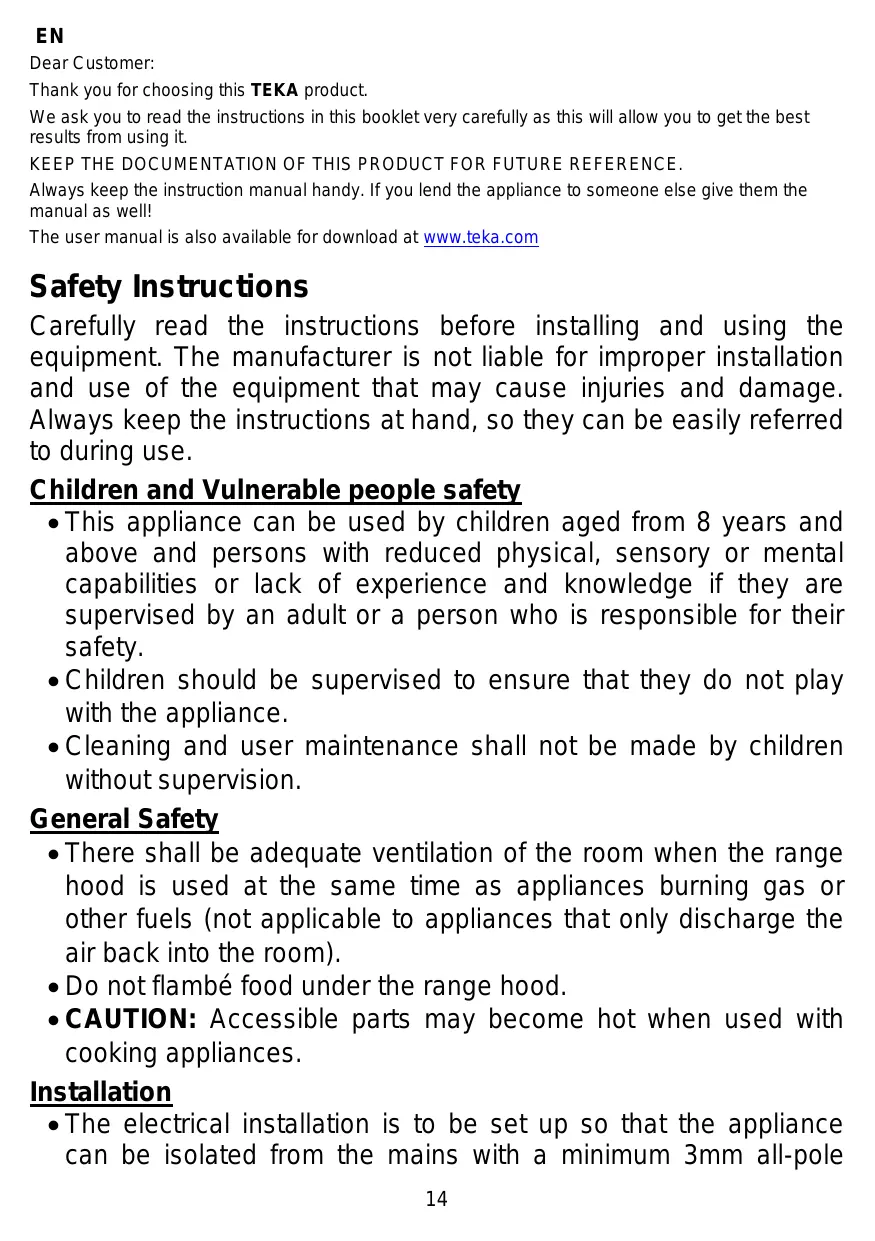

B C D E F G H-I EN Dear Customer:

Thank you for choosing this TEKA product. We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using it. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE. Always keep the instruction manual handy. If you lend the appliance to someone else give them the manual as well! The user manual is also available for download at www.teka.com

Carefully read the instructions before installing and using the equipment. The manufacturer is not liable for improper installation and use of the equipment that may cause injuries and damage. Always keep the instructions at hand, so they can be easily referred to during use. Children and Vulnerable people safety • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Cleaning and user maintenance shall not be made by children without supervision. General Safety • There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). • Do not flambé food under the range hood. • CAUTION: Accessible parts may become hot when used with cooking appliances. Installation • The electrical installation is to be set up so that the appliance can be isolated from the mains with a minimum 3mm all-pole 14

contact separation. Suitable separation devices include e.g. cutouts, RCD’s and contactors. This installation must comply with current regulations.

• If the electrical connection is done through a plug and this remains accessible after installation, then it is not necessary to provide the mentioned separation device. • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room). • The lower part of the extractor must be located at a minimum height of 50 cm above the hob for electric cookers and 65 cm for gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed. • Before installing the extractor consult the local rules and regulations in force with respect to the discharge of air and fumes. • When the extractor is working at the same time as other nonelectrical cooking equipment, the outlet air pressure must not exceed 4 Pa (4x10-5 bar). • Before connecting the extractor to the mains, check that both the voltage and the frequency conform to that shown on the characteristics label located inside the extractor. • To achieve optimum performance the length of the outlet hose should not exceed 4 meters or include more than two 90º angles (elbows). • Although venting to the outside is recommended, activated carbon filter may be used to allow the gas to be returned to the kitchen through the outlet pipe. • NOTE: For more Installation information, refer to the end of this user manual. Cleaning • There is a fire risk if cleaning is not carried out in accordance with the instructions. 15

• Do not allow grease to accumulate in any part of the extractor, especially in the grease filters as this COULD PRODUCE A FIRE RISK!

• The grease filters and the internal part of the extractor must be cleaned at least once a month depending on how often the extractor is used. Note that grease is deposited in the extractor when cooking, whether it is switched on or not. • We recommend the use of gloves and caution when cleaning the inside of the extractor. Repairs • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Do not switch on the extractor if the supply cord is worn or has cuts or if there are signs of deterioration around the control panel. • If the LED module is malfunctioning, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • If the extractor stops working or functions abnormally, unplug it from the mains and contact the technical service. • Please contact the nearest Qualified Technical Assistance Service for any repairs always using original spare parts. Repairs and modifications carried out by others could damage the extractor or cause it to malfunction and cause safety risks. Description of the appliance (Fig. 1-3)

E Filter located over cooking area, easily withdrawn for cleaning

F Frame and filter support

A Motor controls, three speeds:

G Possibility of incorporating activated charcoal filter (fig.2)

Third B Light switch independent from motor commands

H-I Anti return tabs to be located in the outlet mouth, locating their ends in the holes provided

C Indicator light for motor functioning.

D Two lamps for hood lighting

• Never use metallic scouring pads or abrasive products that could damage the surface. • Do not use scrapers with metallic surfaces such as knives, scissors etc.

Instructions for use

By pressing the buttons (“A”, “B”) shown in figure 1, you will be able to control the functions of the extractor. Two achieve better extraction, we recommend switching on the extractor a few minutes before starting to cook (3 - 5 minutes) so that the air flow is continuous and stable when extracting the fumes.

Activated charcoal filter

• To install the charcoal filter, the motor anchorage is made to coincide with the anchor points of the activated charcoal filter and turn it clockwise. • The carbon filter lasts from three to six months depending on the particular conditions of use. • The activated carbon filter can neither be washed nor regenerated. Once it is exhausted, it must be changed. • To replace exhausted filters with new ones, withdraw the old one in the reverse order to that of installation. • A reduction in the extraction flow rate may be observed in the hood with the installation of carbon filters.

Likewise, keep the extractor switched on for a few minutes when cooking is complete to allow all fumes and odours to be expelled.

Cleaning and maintenance

Before carrying out any cleaning or maintenance activities, ensure that the extractor is disconnected from the mains. To carry out cleaning and maintenance, follow the Safety Instructions. There is a fire risk if cleaning is not carried out in accordance with the instructions.

Tecnical Information

To withdraw the filters from their locations release the anchoring points. Clean the filter, either by putting it in the dishwasher (see notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays

(protecting the non metallic parts). Once clean, leave it to dry. To replace the filters, proceed in the reverse way to their removal. Make sure that the filter latch is securely attached to the housing to prevent untimely drops of the filters. Notes: cleaning in the dishwasher with aggressive detergents may blacken the surface of metallic parts, without this affecting its gas retaining properties.

Electrical characteristics:

REFER TO RATING PLATE N.B. The filter must be cleaned at least once a month depending on how often the extractor is used. It must be remembered that grease is deposited in the extractor when cooking, whether it is switched on or not.

In order to fix the cooker hood to the kitchen unit you can choose one of these three possibilities

(fig.3): a) To the upper part of the furniture, using figure 3 where the position of the holes denominated “A” is indicated. This fixation will be made from the inside part of the cooker hood, after disassembling the filters. b) To the lower part of the furniture, using figure 3 where the position of the holes denominated “B” is indicated. It is necessary to dismantle previously the frame, taking out the 4 screws that are fixed to the lateral sides of the body hood.

This appliance has been designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-231, EN/IEC 62233. • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564/IEC 62301. • EMC: EN 55014-1 / CISPR 14-1; EN 550142 / CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

Cleaning of the extractor body

The use of warm (40ºC approx.) soapy water is recommended. A cloth moistened in this water is used for cleaning the extractor, paying special attention to the grids. Afterwards, dry it using a lint-free cloth. Note:

EN This fixation will be made from the inside part of the cooker hood, after disassembling the filters.

In order to assemble the frame again once the hood is installed, you will proceed in the inverse way. c) To the internal laterals of the furniture through floating holes denominated “C”, wich exist in each side of the body hood. This fixation will be made from the inside part of the cooker hood, after disassembling the filters.

instructions of a gas cooker indicate a greater distance these must be observed.

To achieve optimum performance the length of the outlet hose should not exceed 4 meters, or include more than two 90º angles (elbows). Although venting to the outside is recommended, activated carbon filters may be used, which allow the gas to be returned to the kitchen through the outlet pipe.

The lower part of the extractor must be located at a minimum height of 50 cm above the hob for electric cookers and 65 cm for gas cookers. If the

If something does not work

DEFECT The extractor does not work

The extractor does not blow enough or vibrates The lamps do not light

Before seeking technical assistance carry out the following checks first:

POSSIBLE CAUSE SOLUTION The cable is not connected

No current is reaching the plug Filter saturated with grease Outlet obstructed Inadequate air conduit Lamp broken

Connect the mains cable

Revise/repair the electricity circuit Clean or substitute the filter Eliminate obstructions Contact the installer and follow instructions of this manual Contact the Customer Service ILCOS D Code: DBR-1,5-H-67

• The wire which is coloured blur must be connected to the marked N (Neutral) or coloured Black.

• The wire which is coloured brown must be connected to the marked L (Live) or couloured Red • Where avialable (see installation), the wire which is coloured yellow/green must be connected to the market ⊥ or coloured Yellow/Green. If the cooker hood is installed for use above a gas appliance then the provision vor ventilation must be in accordance with the Gas Safety (Installation & Use) Regulations 1984 and the relevant Building Regulations. Detailed recommendations are contained in the following British Standard Codes of Practice BS6172, BS5440 and BS6891 Current Edition.

Special U.K. Requirements

Height above gas hob: 75 mm minimum. NEVER PLACE THE COOKER HOOD OVER AN EYE-LEVEL GRILL. This appliance must be connectec by a competent person, using fixed wiring via a DOUBLE POLE SWITCHED FUSED SPUR OUTLET.

Special Australia Requirements

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

Electrical connection

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. Should the colour of the wires in the mains lead for the appliance not correspond with the coloured markings identifying the terminal in your spur box proceed as follows:

EN Environmental protection

can be sure that the packaging materials will be re-used.

Dismantling the equipment:

This appliance is energy-efficient but there are some tips on how to save even more energy:

• During cooking, ensure that there is a sufficient supply of air to enable the extractor hood to work efficiently and with a low level of operating noise. • Adjust the fan speed to the amount of of steam produced during cooking. Only use intensive mode when required. The lower the fan speed, the less energy is consumed. • If cooking produces large amounts of steam, select the higher fan speed in good time. If the cooking steam has already spread around the kitchen, the extractor hood will need to be operated for longer thus consuming more energy. • Switch off the extractor hood if you no longer require it. • Switch off the lighting if you no longer require it. • Clean and (if required) replace the filter at regular intervals to increase the effectiveness of the ventilation system and to prevent the risk of fire. • Put the lid on pans to reduce cooking steam and condensation.

1. Disconnect the mains power.

2. Remove the duct cover above the hood. 3. Disconnect the duct. 4. Supporting the equipment, remove the srews that fix it to the wall. 5. For waste disposal, proceed according to the appropriate environmental protection guidelines.

Disposal of equipment no longer used

According to European Directive 2012/19/EU on the management of waste electrical and electronic equipment (WEEE), home electrical appliances should not be put into the normal systems for disposal of solid urban waste. Outdated appliances should be collected separately to optimize component material recovery and re-cycling rates and to prevent potential harm to human health and the environment. The symbol of a rubbish container superimposed by a diagonal cross should be put on all such products to remind people of their obligation to have such items collected separately. Consumers should contact their local authorities or point of sale and request information on the appropriate places to leave their old home electrical appliances.

Disposal of the packaging

The packaging bears the Green Point mark.

Before disposing of your appliance, render it nonusable by pulling out the power cable, cutting this and disposing of it.

Dispose of all the packaging materials such as cardboard, expanded polystyrene and plastic wrapping in the appropriate bins. In this way you

Teka Industrial S.A.

Cajo, 17 – 39011 Santander, Spain
