CYLINDRA ISOLA GLOSS W - Kitchen hood FABER - Free user manual and instructions

Product Type	Island Kitchen Hood
Brand	Faber
Model	CYLINDRA ISOLA GLOSS W
Finish	Glossy white lacquered
Width	90 cm (estimate)
Minimum installation height	650 mm above cooking surface
Power supply	220-240 V ~ 50/60 Hz
Total power consumption	Not specified (lamp 4 W)
Lighting	1 LED (or incandescent) 4 W bulb, E14 base
Controls	Manual switches for light, motor and speed (3 speeds)
Suction speeds	3: low (quiet), medium, high
Grease filter	Washable (dishwasher) - Clean every 2 months
Charcoal filter	Not washable, replace every 4 months
Exhaust duct diameter	120 mm minimum
Operating mode	External exhaust or recirculation (with charcoal filter)
Protection class	Class I (grounding required)
Noise level	Not specified (quiet at speed 1)
Material	Glossy white lacquered steel
Weight	Approximately 20 kg (estimate)
Safety	Minimum safety distance, installation by professional, do not flambé under hood

Frequently Asked Questions - CYLINDRA ISOLA GLOSS W FABER

What is the minimum installation height for the CYLINDRA ISOLA GLOSS W hood?

The minimum safety distance between the hob and the hood is 650 mm. If your hob specifies a greater distance, that takes precedence.

How to clean the grease filters?

The grease filters should be cleaned every 2 months. They can be washed in the dishwasher or by hand with a neutral detergent.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and should be replaced approximately every 4 months, or more often with heavy use.

Can the hood operate in recirculation mode?

Yes, if a charcoal filter is installed, the hood can operate in recirculation mode (air returned to the room). In extraction mode, air is expelled outside via a duct.

How to adjust the suction speed?

Use the V button (Speeds) to choose among 3 speeds: 1 (quiet for light cooking vapors), 2 (medium for normal use), and 3 (maximum for heavy emissions).

What to do if the hood light bulb stops working?

The bulb is a 4 W, E14 base, voltage 220-240 V. Replace it with an identical bulb. First unplug the appliance.

Can I use the hood during gas cooking?

Yes, but ensure adequate room ventilation to avoid fumes being drawn back in. Negative pressure must not exceed 0.04 mbar.

Should the hood be installed by a professional?

Yes, the electrical connection and installation must be carried out by a qualified technician to ensure safety and compliance.

Is the hood suitable for use over an induction hob?

Yes, it is suitable for all types of cooking, including induction, provided the minimum distance of 650 mm is respected.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Avoid abrasive products that could scratch the lacquered finish.

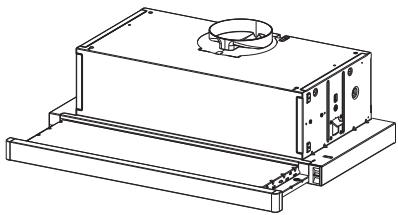

USER MANUAL CYLINDRA ISOLA GLOSS W FABER

EN COOKER HOOD DUNSTABZUGSHAUBE FR HOTTE DE CUISINE NFZUIGKAP ES CAMPANA EXAUSTOR Cappa SV SPISFLAKT NO KJØKKENVIFTE F LIESITUULETIN DA EMHAETTE RU BbITJXKA ET PLUIDIKUMM TVAIKU NOSÜCEJS GARTRAUKIS UK BNTJXKA HU PARAELSZIVO ODSAVAC PAR SK KUCHYNSKY ODSÁVAC RO HOTA PL OKAP KUCHENNY NAPA S1 NAPA GR ANOPPOΦHTHPA OCAK DAVLUMBAZ BG ACINIPATOPA K COPbln MK ACINIPATOPOT AL KAPAK TENXHERE KUXYHbCKOACINIPATOPA AR 120

EN USER MANUAL 3 DE GEBRAUCHSANLEITUNG 7 FR MANUEL D'UTILISATION 11 NL GEBRUKSAANWIJZING 15 ES MANUAL DE USO 19 PT LIVRO DE INSTRUÇOES PARA UTILIZATION 23 LIBRETTO DI USO 27 SV ANVÄNDNINGSHANDBOK 31 NO BRUKSVEILEDNING 35 F KAYTTOOHJEET 39 DA BRUGSVEJLEDNING. 43 RU PYKOBODCTBO IO 3KcPJIYATAUIN 47 ET KASUTUSJUHEND 51 LIETOSANAS PAMACIBA 54 LTAUDOTOJO VADOVAS. 58 UK IHCTPYKJIa 3 EKCPIIYATALJI 62 HU HASZNALATI UTMUTATO 66 70 SK NAVOD NA POUZIVANIE 74 RO MANUAL DE FOLOSIRE 78 PL INSTRUKCJA UZYTKOWANIA 82 HR KNJIZICA S UPUTAMA 86 SI NAVODILO ZA UPORABO 90 GR OaHIEXPHE94 TR KULLANIM KITAPCIIGI 98 BG PbKOBOCTBO HA IOTPEBITEJIa 102 KIIIJIANAHUbI HYCKAYbIFbl 106 MK YIATCTBO 3A KOPINCHIK 110 ALUDHEZUESPERPERDORIMIN 114 SR KOPINCHINCHO YNVTCTBO 118 AR Jaiu 122

EN

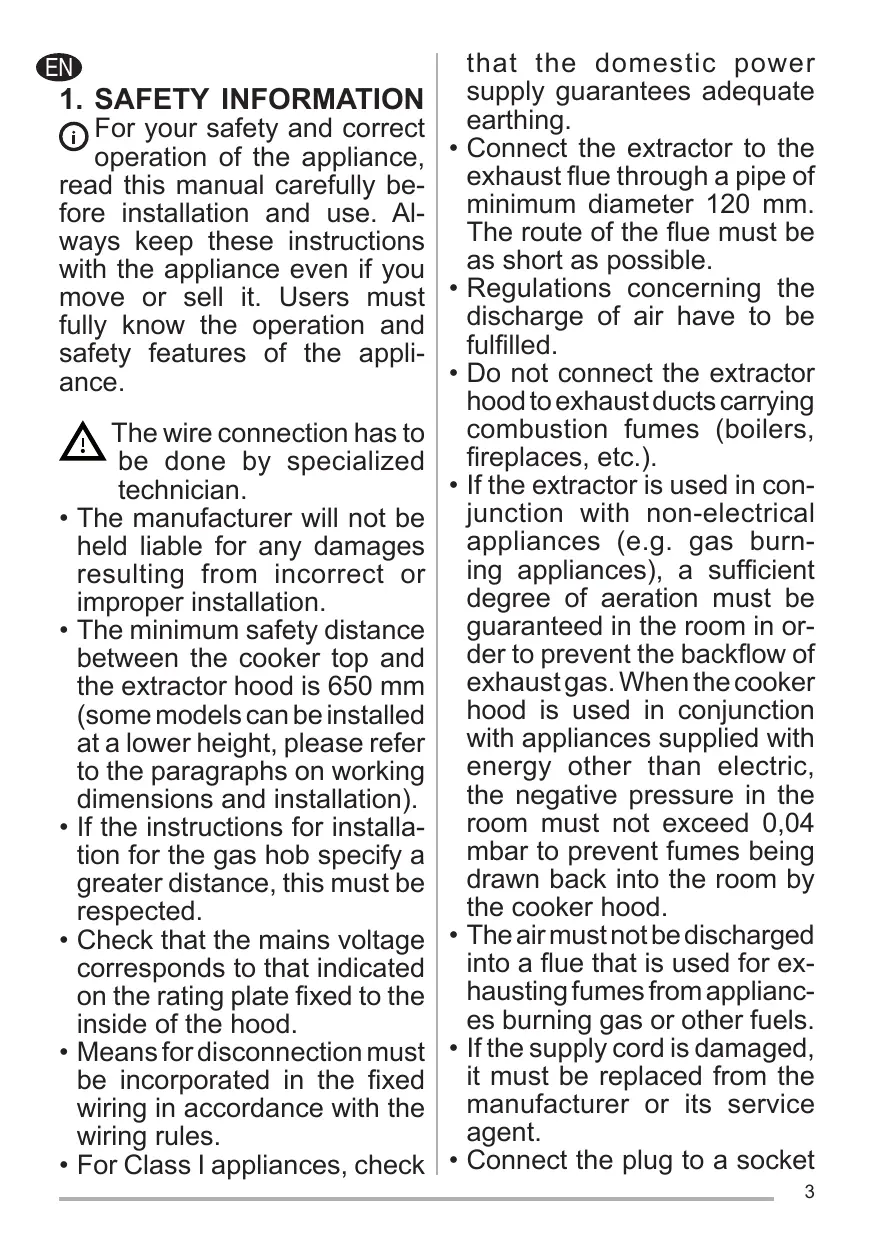

1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check

that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket

complying with current regulations, located in an accessible place.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. WARNING: Before installing the Hood, remove the protective films.
• Use only screws and small parts in support of the hood. WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambé under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the filters after the specified time period (fire hazard). See the Care and Cleaning section.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than those for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

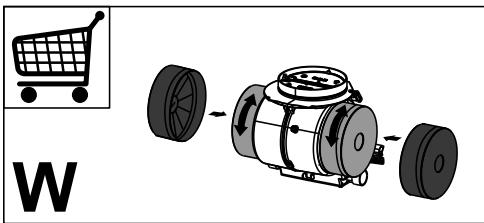

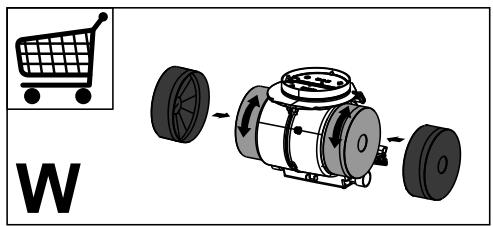

• The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

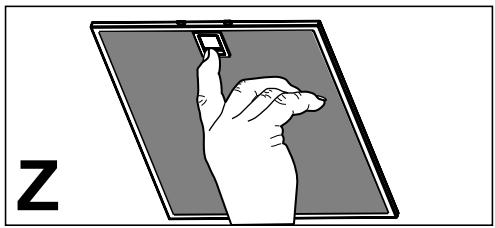

• The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

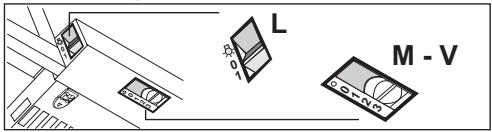

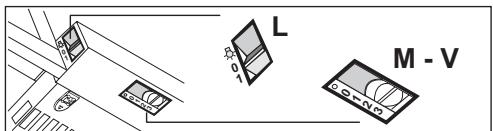

4. CONTROLS

L	Light	Switches the lighting system on and off.
M	Motor	Switches the extractor motor on and off.
V	Speed	Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

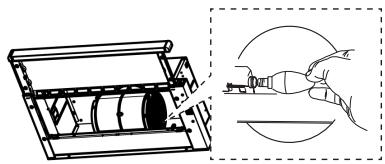

5. LIGHTING

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100

Remove the plug from the socket, using the central button to switch off the device.

4. CONTROL DEVICES

The indicators are technical devices.

• The device is designed for operation in a vertical position. The distance from the bottom of the device to the floor should be at least 650 mm (it is possible to adjust the height, for more details see the instructions).
• If the gas appliance is installed in a room with insufficient ventilation, the ventilation must be improved. The room must have a window or an opening to the outside, in accordance with technical regulations.

It must be installed in accordance with the regulations.

The device must be connected to the electrical supply through a socket with a grounding contact. The first start-up must be carried out by a qualified specialist. The distance from the device to the wall must be at least 120 mm. The device must not be installed in a place where it can be splashed with water. The device must be installed on a stable surface. Do not place the device near flammable materials (such as paper, cloth). The device must not be used together with devices that consume air (such as hoods, gas heaters) in the same room, as this may cause incomplete combustion of gases. If the device is used together with such devices, the room must be ventilated, and the pressure must not drop below 0.04 mbar. Do not use the device in rooms where there is a risk of fire or explosion.

The device must be installed in a place where it is not exposed to direct sunlight.

If the power cord is damaged, it must be replaced by the manufacturer or a qualified specialist. Do not connect the device to a socket that is not grounded. If the device is not working properly, contact a qualified specialist for repair.

WARNING: Before installing the device, remove the protective film.

To install the device, use the brackets and screws provided. WARNING: Do not install the device on a wall made of flammable material. - Do not place the device near open flames. - Do not place the device under a shelf or cabinet; it may overheat. 8 Do not place any objects on top of the device.

Do not allow children to play with the device. Keep the device away from children. If the device is used by children or in the presence of children, it may be dangerous. Children should be supervised to ensure that they do not play with the device.

• Children should be supervised to ensure that they do not play with the device. If the device is physically, mentally, or sensory impaired, or if it is used by children or in the presence of children, it may be dangerous. Children should be supervised to ensure that they do not play with the device.

It is possible to be injured when using the device with wet hands.

After the specified period of use, dispose of the device or have it disposed of (environmentally friendly). Follow the instructions for "Use and Disposal". When using the device with other devices that may be affected by the device, it is necessary to ensure that the device is not damaged.

The device is not intended for use by children (or by persons who are unable to operate it safely).

• The device is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

2. Usage

The device is intended for use only as described in this manual. The device must be used only for its intended purpose. When the device is in use, it must be kept away from heat sources. If the device is dropped, it must be checked for damage. If the device is damaged, it must be repaired by a qualified person. If the device is used for purposes other than those intended, it may be dangerous.

3. USE AND DISPOSAL

• Follow the instructions and warnings. These instructions must be followed to avoid injury or damage. If the instructions are not followed, the device may be damaged or cause injury.

When using the device, follow the instructions and warnings. If the device is used improperly, it may be damaged or cause injury. If the device is damaged, it must be repaired by a qualified person.

The device must be disposed of in accordance with local regulations.

4. CONTROL ELEMENTS
