Product type	Kitchen hood
Brand	Electrolux
Model	KFVB19K
Dimensions (L x D x H)	Not specified in the manual (standard built-in model)
Weight	Not specified
Power supply	220-240 V, 50 Hz
Number of motor speeds	3 speeds + timed high speed
Timed high speed	5-minute cycle (model KFVB19K)
Blowing function	Function at very low speed for less than one hour
Lighting	Dimmable LED by long press
Filter saturation indicator	Light on for cleaning grease filters (40h), flashing for replacing charcoal filter (160h)
Installation type	Extractive (external evacuation) or recirculating (recycling)
Grease filters	Dishwasher safe, clean every 2 months
Activated charcoal filter	Not washable, replace every 4 months
Minimum distance between hob and hood	65 cm (unless otherwise specified in the hob manual)
Energy efficiency class	Not specified
Noise level	Not specified
Child safety	Not mentioned
Automatic shut-off	Yes, for high speed and blowing function
Spare parts	Grease filters, charcoal filter, lighting
Warranty	Not specified

Frequently Asked Questions - KFVB19K ELECTROLUX

How to install the hood in extraction mode?

The hood must be connected to an exhaust duct to the outside. Ensure that the duct diameter is appropriate and that air can circulate freely. Follow the instructions in the installation manual.

How to clean the grease filters?

The grease filters should be cleaned every 2 months. They can be washed by hand with a mild detergent or in the dishwasher. Any discoloration does not affect their efficiency.

When should the charcoal filter be replaced?

The activated charcoal filter is not washable and must be replaced every 4 months, or more often with heavy use. The flashing light on the hood will alert you.

How to reset the filter saturation counter?

When the hood is off, press the filter indicator for 3 seconds to reset the hour counter.

What to do if the hood does not turn on?

Check the power supply and connection. Ensure the hood is properly connected. If the problem persists, contact customer service.

Can I install the hood without an exhaust duct?

Yes, in recirculation mode. In this case, the hood recycles air through activated charcoal filters and returns it to the room.

How to use the blowing function?

Press the corresponding button (M). The hood operates at very low speed for less than one hour, then turns off automatically.

What is the minimum distance between the hob and the hood?

The minimum distance is 65 cm, unless otherwise specified in the hob manual. Always follow the instructions for the hob.

How to dim the lighting?

Press and hold the lighting button (L) to turn on the light in dim mode. A short press turns it on or off normally.

What does the H2H indicator mean?

The H2H indicator lights up when the hood is controlled by a compatible hob. If no connection is established, the indicator remains off.

USER MANUAL KFVB19K ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information, General information and tips, Environmental information. Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance. If not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to

exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambe under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly to prevent the deterioration of the surface material.
• Clean the appliance with a soft cloth regularly.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (回) is not printed on the rating plate, the appliance must be earthed. Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purposes only. Do not use the appliance for other purposes.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

To repair the appliance contact an Authorised Service Centre. - Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

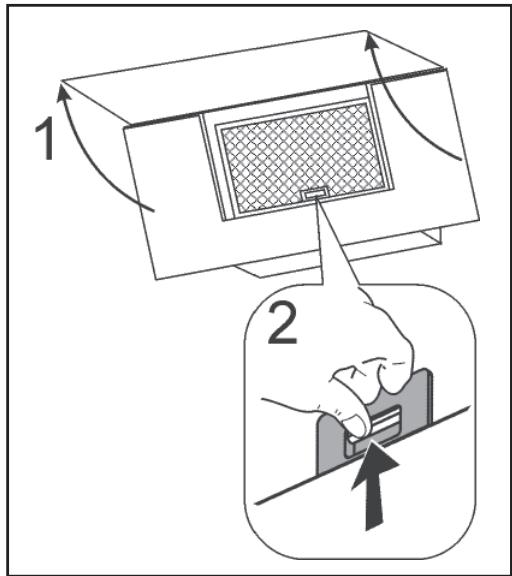

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire. Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

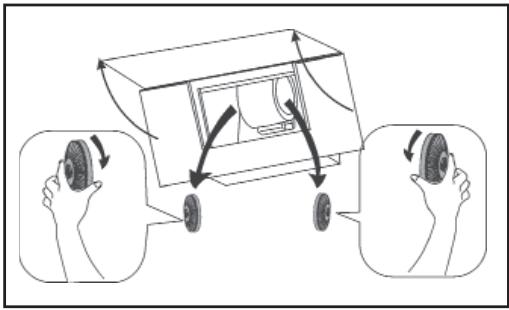

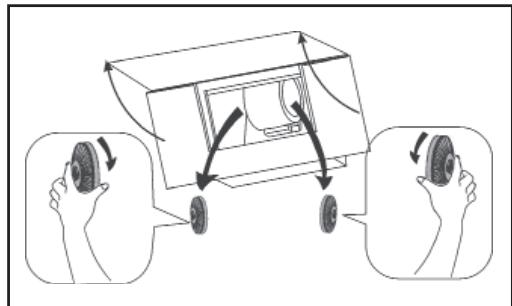

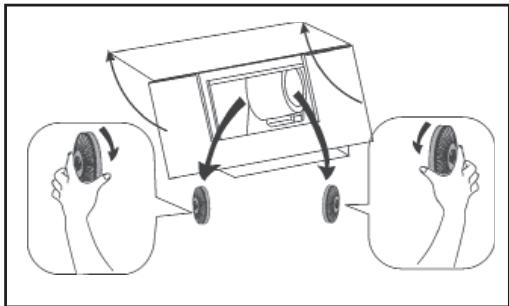

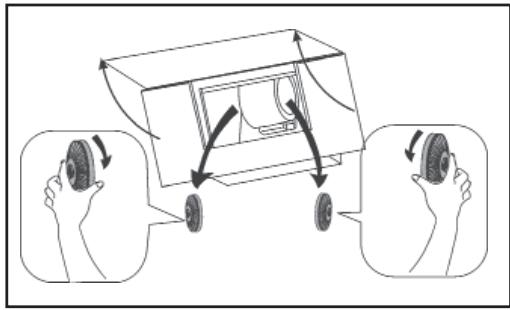

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

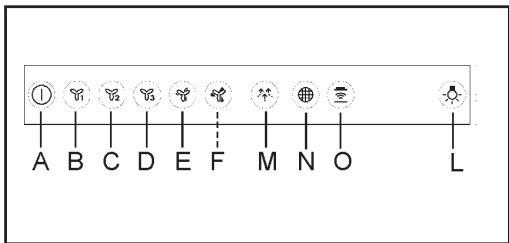

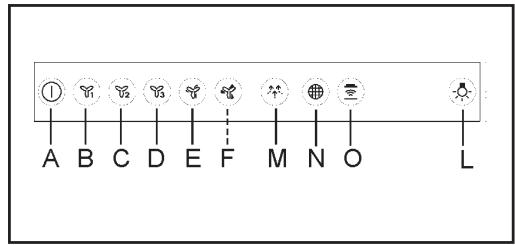

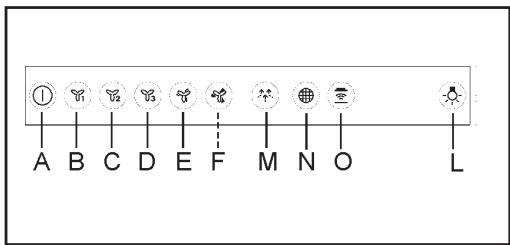

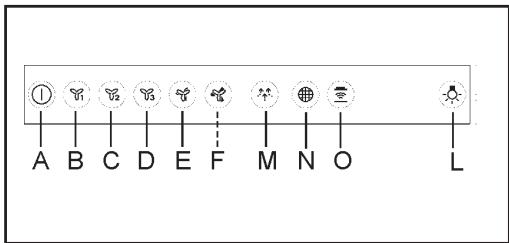

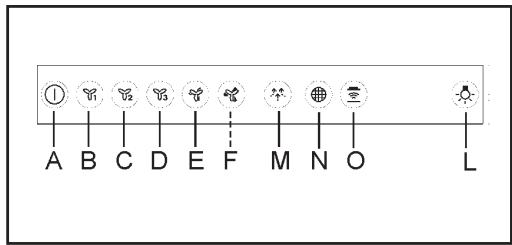

4. CONTROLS

A: Motor ON/OFF

B: first speed motor

C: second speed motor

D: third speed motor

E: Intensive speed. This speed is timed to run for 8 minutes. At the end of this time, the hood turns back automatically to the speed that was set before using this function. To switch off the speed, push key "Motor On/Off" (A).

F: Model KFVB19K. Intensive speed. This speed is timed to run for 5 minutes. At the end of this time, the hood turns back automatically to the speed that was set before using this function. To switch off the speed, push key "Motor On/Off" (A).

M: Breeze function. This function can work for a maximum time of 1 hour. At the end of the time, the motor switches off. To deactivate breeze function, touch key "Motor On/Off" (A) or another speed key.

N: Filters alarm indicator/Reset. When the

indicator is on, the grease filters must be cleaned (40 hours of operation). When the indicator is flashing, the charcoal filters must be replaced (160 hours of operation) and the grease filters must be cleaned. Obviously, if the hood is not a filtering model and does not have charcoal filters, clean only the grease filters. The filter alarm can be seen for about 30 seconds, when the hood is in Stand By. To RESET the hour counter, press for 3 seconds the indicator, when the hood is in off state.

O: H2H indicator. The indicator is on when the hood is working controlled by the hob. In case of no connection between hob & hood, the indicator is not backlighted.

L: Model EFV716K-EFV719K-LFV616K-LFV619K-LFV616Y-LFV619Y-LFV616W-LFV619W. Light ON/OFF.

L: Model KFVB19K. Light. Short press turns the light On/Off, long press dims it.

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION?

The hood may be in filtering or in ducting version. Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifies the air and recycles the clean air back into the room.

6. LIGHTING

If the light spot is damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

LFV619W. Light activation/deactivation.

EXHAUST OR RECIRCULATION?

TABLE OF CONTENTS

1. SAFETY INFORMATION. 51
2. SAFETY INSTRUCTIONS 52 3. MAINTENANCE 53 4. CONTROLS. 54
3. INSTALLATION METHODS 54 6. LIGHTING 54 7. ENVIRONMENTAL CONCERNS 55

DESIGNED FOR YOU

Thank you for purchasing an appliance from Electrolux. You have chosen a product that is the result of decades of professional experience and innovation. It is ingenious and elegant, and designed with you in mind. You can therefore be sure of getting the best results every time you use it.

CUSTOMER SERVICE AND MAINTENANCE

We recommend using only original spare parts.

Make sure to have the following information on hand when you contact the authorized service center: Model, Product Code (PNC), Serial Number.

Register your product and use the company's services:

devices; if they were not supplied, use screws recommended in the installation instructions.

• Do not use glue to fix the device.
• The minimum distance between the hob and the lower part of the extractor hood must be 65 cm, unless otherwise specified in the installation instructions. If the installation instructions specify a greater distance, this must be respected.
• To connect the technical measures and safety conditions for the removal of smoke, strictly follow the rules in force in the populated area of such a residence.
• Make sure that the ventilation openings are not blocked and that the air expelled by the appliance does not enter a pipe used for the removal of smoke and steam from other devices (central heating system, thermosiphon, water heater, etc.).
• Be careful not to damage the power cord. To replace a damaged power cord, contact our authorized service center or an electrician with the necessary and sufficient qualifications.
• If the hood is not equipped with a plug (direct connection to the mains) and the socket is not accessible after installation, use an omnipolar switch that ensures complete disconnection from the mains under overvoltage category III conditions, in accordance with the installation instructions.
• It is strictly forbidden to prepare food over an open flame under the hood.
• Do not use the appliance for exhausting hazardous or explosive substances.
• The appliance should be cleaned regularly with a soft cloth to prevent damage to the surface material. Do not use abrasive cleaners, water sprays, abrasive cleaning agents, or sharp metal scrapers to clean the appliance surface. Use only neutral cleaning agents. Do not leave the hood without properly installed lamps due to the risk of electric shock. We disclaim all liability for damage, loss, or fire of the appliance resulting from failure to follow the instructions given in this

manual.

Oils and fats must not come into contact with flames or hot surfaces.

• Do not use the appliance as a support for storing other objects.
• Do not look directly at the light source of the appliance.

2.4 (i) Service

A: Motor ON / OFF

with the installation instructions.

MAINTENANCE AND TECHNICAL SERVICE

Spare parts are original.

When contacting our after-sales service, please have the following information ready: model, product number (PNC), serial number.

The information on the nameplate is provided.

Warning/Attention - safety information ① All information and advice are for environmental protection.

Subject to change without notice.

1. SAFETY INFORMATION

2. SAFETY INSTRUCTIONS

2.1 Installation 2.2 Electrical

Warning! Risk of

electric shock, burns or injury.

• Installation of the device may only be carried out by qualified personnel.
• Do not install or use a damaged device.
• Follow the installation instructions provided with the device. - Due to the large size of the device, place it in a safe location. Always use protective gloves when handling.
• Before installing the device, remove all packaging, labels and protective film. Do not vent air through a wall opening unless the opening is intended for that purpose.

2.2 Electrical

WARNING! Risk of electric shock.

• The electrical connection must be made by a qualified electrician.
• Make sure that the parameters on the technical data plate correspond to the characteristics of the power supply.
• If the symbol (回) is not printed on the technical data plate, the device must be earthed. Always use a properly installed and earthed socket. Do not leave the power cable hanging freely.
• Do not use multi-

socket adapters.

If the socket is loose, do not connect the device to it. - Do not connect the device with a damaged power cable. Check the cable. The protective earth conductor must be installed in such a way that disconnection is impossible without the use of tools. - Make sure that the device is earthed correctly. A loose or incorrect earth connection can cause overheating of the contacts. - The device must be connected only after earthing is completed. Make sure that the earthing of the power source is intact.

2.3 Use

WARNING! Risk

of personal injury, burns, electric shock.

• The device is intended exclusively for cooking. Do not use the device for purposes other than those specified.
• Do not exceed the device specifications.
• Do not operate the device with wet hands or when it is in contact with water. - Use only the accessories supplied with the device.
• During cooking, do not let oils or fats come into contact with hot objects. Do not use electric covers.
• Do not use the device as a basis for storing other items.
• Do not use magnifying glasses, lenses, or other optical devices to look directly at the light source in the device.

2.4 Service

• To have the device repaired, contact an authorized service center. Use only original spare parts.

2.5 Disposal

Warning! Risk of

injury or damage.

• Information on proper disposal of the device can be obtained by contacting your local authorities.
• Disconnect the device from the power source.
• Cut the power cord near the device housing and dispose of it.

3. MAINTENANCE

Clean the filters for dust depending on the level of use, at least every 2 months, to prevent potential fire.

Clean the filters with a vacuum cleaner or rinse with water. If rinsed with water, let the filters dry completely before reinstalling them, otherwise the device may not function properly.

If the filter is too dirty to be cleaned and cannot be restored, it must be replaced approximately every 4 months of use, or more often in case of particularly intensive use.

4. CONTROL

A: Motor Start/Stop

B: Switch motor to first speed C: Switch motor to second speed D: Switch motor to third speed E: Turbo speed. The turbo speed is set to work for 8 minutes. At the end of this time, the motor automatically switches to the speed that was set before using this function. To switch off the speed, press the "Motor Start/Stop" button (A).

F: Model KFVB19K. Intensive speed. The intensive speed is set to work for 5 minutes. At the end of this time, the appliance automatically switches to the speed that was set before using this function. To switch off the speed, press the "Motor Start/Stop" button (A).

M: Function speed: This function activates a very low speed for maximum

1 hour. At the end of this time, the motor switches off. To deactivate it, press the "Motor Start/Stop" button (A) or any other speed button.

N: Filter indicator / Reset. When the indicator lights up, the grease filters must be cleaned (after 40 hours of operation). When the indicator flashes, the activated carbon filter must be replaced (after 160 hours of operation), and the grease filters must be cleaned. If there is no activated carbon filter, clean only the grease filters. The filter indicator will be visible for about 30 seconds when the appliance is in standby mode. To reset the counter, press the indicator for 3 seconds with the appliance switched off.

O: Automatic switch-on indicator / Remote control. The indicator lights up when the appliance is controlled by the remote control. If there is no connection between the remote control and the appliance, the indicator does not light up.

L: Models EFV716K-EFV719K-LFV616K-LFV619K-LFV616Y-LFV619Y-LFV616W-LFV619W. Lighting On/Off.

L: Model KFVB19K. Lighting. Briefly press to switch the lighting system on/off, dimming.

5. INSTALLATION METHODS

FILTRATION AND DUCTED VERSION? The hood can be with filtration or ducted version. You must decide which version needs to be installed. For better effect, we recommend installation of the hood with ducted version (if possible).

Ducted version

The hood extracts the air from the room and expels it outside through an exhaust duct.

Filtration version.

The hood extracts the air and returns it filtered back into the room.

6. SAFETY INSTRUCTIONS

If the appliance is damaged, it must be replaced only by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

7. ENVIRONMENTAL PROTECTION

Materials marked with the symbol must be recycled. To recycle the materials, place them in the appropriate recycling containers. Electrical and electronic appliances must be recycled to help protect the environment and human health. Do not dispose of appliances marked with the symbol with household waste.

Contact your local recycling facility for proper disposal of the appliance.

CONTENTS

1. SAFETY INFORMATION. 153 2. SAFETY INSTRUCTIONS. 155 3. INSTALLATION. 156 4. CONTROL PANEL. 156 5. PROGRAMS. 157 6. OPTIONS. 157 7. TROUBLESHOOTING. 157

WE ARE THINKING OF YOU

Thank you for choosing an Electrolux appliance. You have chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish,

it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you will get great results every time.

Welcome to Electrolux.

Visit our website to:

Find usage advice, brochures, trouble shooter, service information:

www.electrolux.kz

REGISTER YOUR PRODUCT FOR BETTER SERVICE

Opkaaan TynHcyckalbl Kocalkb6JIweKtepI KOJaHaBHybI3.

AbTopnactbipbnfah cepBnc opTaIbIbHa JkyriHRe H Ke3e, ci3e KeNeci DepeKTeprin 6ap eKeHHirHe K3 KeTkiHiz yIrci, 6yblm Hemipih K0bl (PNC), cepnablk Hemipi.

AknapatbI TeJKNyKaT TaKTaHaaCbHaH Ta6yFa 60naDbI.

EckepTy / caKtbI K IapApaIapbI JxHe Kayinc3dk TypalbI aKnapaT

1.1 BaIIanap MeH MyreKeTepdiN Kayinci3diRi

- This device can be used by children aged 8 and above, as well as persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Keep the appliance and its cord out of reach of children less than 8 years old. - Children should be supervised to ensure that they do not play with the appliance. - Do not allow children to clean or service the appliance without supervision.

1.2 Safety requirements for installation

The appliance is intended for use on a stable surface, away from heat sources and other appliances. Before performing any maintenance, disconnect the appliance from the power supply. - CAUTION: To avoid the risk of electric shock, do not use the appliance near water. Do not immerse the appliance in water or any other liquid. If the appliance falls into water, unplug it immediately and do not reach into the water. Do not use the appliance with wet hands.

• If the installation instructions do not specify a different distance, maintain a minimum distance of 65 cm between the appliance and any wall or surface that may be damaged by steam. If the installation instructions specify a larger distance, follow that.
• The appliance must be placed on a stable, level surface.
• Do not use the appliance if the power cord or plug is damaged, or if the appliance has been dropped or damaged. To avoid the risk of fire, do not place the appliance near flammable materials.
• During installation, ensure that the device is not placed near other devices that emit heat or in places where it would be exposed to direct sunlight (such as near radiators, thermos flasks, water heaters, etc.).

We are not responsible for damage caused by improper use. For proper use, contact our service center or an electrician.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

For safe operation, the device must be properly grounded. The grounding conductor must be connected to the grounding terminals of the device.

• Do not operate the device without proper grounding.

Do not use the device with damaged cords or plugs, or after it has been dropped or damaged in any way.

• To prevent electric shock, do not immerse the device in water or other liquids.

Do not touch the device with wet hands.

For cleaning the device, do not use abrasive cleaners, scouring pads, or sharp metal objects. Only use a soft, damp cloth.

• To remove dust, wipe the device regularly (at least every 2 months) and remove dust from the vents.

Remove the plug.

• Do not use solvents or chemicals for cleaning the device.

2. SAFETY INSTRUCTIONS FOR USERS

2.1 Operation

WARNING! Do not operate, connect, or disconnect the device while it is plugged in.

The device must only be operated with a trained specialist. Do not install or use the device if it is damaged. Keep all accessories that come with the device. Sit upright in a large chair, do not lean back. Keep hands and feet away from moving parts. Do not remove the device, its parts, accessories, or protective covers. Use the built-in ventilation only for its intended purpose.

2.2 Electrical Connection

WARNING! Risk of electric shock and fire.

• The electrical connection must only be made by a trained specialist. Check the device parameters before connecting it to the power supply. If the device is not equipped with a standard plug, it must be connected by a professional.
• Connect the device to a properly installed and grounded power outlet.
• Do not use the device with a damaged power cord. If there are damaged outlets or extension cords,

do not use them.

• If the outlet is loose, do not connect the device to it. Pull the plug out of the outlet. Do not touch the plug with wet hands. Store the device and its accessories in a dry place, protected from moisture. Do not operate the device if it has been dropped or damaged. Do not pull the cord to disconnect the device. Do not use the device near water. If the device is not working properly, contact a qualified technician.

2.3 Use

WARNING! Risk of fire and electric shock.

The device is intended only for cooking food. Do not use it for any other purpose. Do not modify the device's technical specifications. Do not touch the device with wet hands or when standing on a wet floor. Do not use the device near flammable materials. - When using the device, keep it away from curtains or other flammable materials. Do not use the device outdoors. Do not use the device as a heater. Do not place the device on or near a hot surface. Do not leave the device unattended while it is in operation.

2.4 Maintenance

Contact a qualified technician for maintenance. - Only use original spare parts.

DANGER! There is a risk of electric shock.

Before carrying out any work, you must obtain permission from the relevant authorized bodies. You must disconnect the device from the power supply. You must disconnect the device from the power supply and secure it against reconnection.

3. TECHNICAL MAINTENANCE

To prevent electric shock, check the supply lines for damage at least every 2 years.

If damage is found, or if the device has been dropped or struck, it must be checked and repaired. When checking the supply lines, their insulation must not be damaged.

The used supply line must not be repaired and must be replaced with a new one, and it must be checked each time it is used, or if there is any suspicion of damage, it must be replaced.

4. CONTROL ELEMENTS

A: Motor stop/start B: Motor first speed C: Motor second speed D: Motor third speed E: Increased speed. This speed

is compared to 8-minute cycles.

After this time, the automatic device switches to the speed intended for continuous operation.

To set this speed, press the "Motor stop/start" button (A).

F: Model KFVB19K. Increased speed.

This speed is compared to 5-minute cycles.

After this time, the automatic device switches to continuous operation.

Remove the filter.

The filter is dirty. To remove the filter, press the "Filter removal/insertion" (A) button.

Press the button.

M: Remove the filter. This filter should be cleaned at least once a week.

Check the dirty filter.

After cleaning, reinsert it. To insert the filter, press the "Filter removal/insertion" (A) button or press the other button.

N: If the filter is dirty, clean the low-pressure filter (at least every 40 hours of operation). If the filter is heavily contaminated, replace the coarse filter (at least every 160 hours of operation) and clean the low-pressure filter. If the coarse filter is not available, only clean the low-pressure filter. If the filter is dirty and the unit is in "Stand by" mode, wait 30 seconds before operating. Before starting the unit, set the filter switch to the correct position, and if the unit is running, wait 3 seconds.

O: Filter H2H. This filter is used when the unit is controlled by a remote control. If there is a discrepancy between the remote control and the unit, this filter is used. L: Models EFV716K-EFV719K-LFV616KLFV619K-LFV616Y-LFV619Y-LFV616W-LFV619W. Remove/insert the filter.

L: Model KFVB19K. Filter. Press the filter button to remove/insert the filter, and press the filter button again to insert it.

5. OPERATING INSTRUCTIONS

Is the filter dirty or damaged?

The filter may be dirty or damaged. Determine which type of replacement is needed.

For optimal performance, we recommend replacing the filter (if possible).

Damaged filter

Clean the filter with a vacuum cleaner and replace it if necessary.

The holes for the gas are not intended for gas cylinders.

6. REPLACING THE LAMP

If the lamp is damaged, it must be replaced, and its service or repair must be carried out by a qualified specialist.

7. PROTECTING THE ENVIRONMENT

The materials marked with the symbol must be recycled.

To recycle the materials, place them in appropriate containers. To protect the environment and human health, the electrical and electronic cables and their connectors

must be recycled. The marked parts must not be disposed of with household waste. They must be handed over to a collection point for recycling or to the relevant authorities.

This product has been manufactured and the serial number is indicated on it. The first digit of the serial number indicates the year of manufacture, and the second and third digits indicate the month. For example, the serial number 84512345 indicates that the product was manufactured in the first quarter of 2018.

Manufacturer: Electrolux Appliances AB, St. Goransgatan 143, 10545 Stockholm, Sweden

Imported to

Importer, distributor and authorized service: OOO "Electrolux Rus" Kozhevnichesky proezd 1, 115114, Moscow, Russia. Tel.: [phone]

CONTENTS

1. INFORMATION FOR SAFETY. 158 2. SAFETY INSTRUCTIONS. 161 3. OPERATION 162 4. CONTROL 162 5. INSTALLATION METHODS. 163 6. LAMP REPLACEMENT 163 7. PROTECTION OF THE ENVIRONMENT 163

WE THINK OF YOU

Welcome to the world of Electrolux. You have chosen a product that combines professional skill and innovation. Original and stylishly designed,

it is designed in accordance with the needs of consumers. When you use it, you can be sure that it will provide excellent results every time. Welcome to Electrolux.

Visit our website:

For usage advice, brochures, troubleshooting, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy accessories, consumables and original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our authorized service center, make sure you have the following data available: Model, PNC (Product Number), Serial Number. The information can be found on the rating plate.

Warning/Caution-Safety information ① General information and tips Environmental information Subject to change without prior notice.

1. SAFETY INFORMATION

Before installing and using the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that result from incorrect installation or usage. Always keep these instructions in a safe and accessible location for future reference.

1.1 Safety of children and persons with reduced capabilities

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. -Children aged from 3 to 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• Children of less than 3 years should be kept away unless continuously supervised. -Children shall not play with the appliance. -Children must not come into contact with the packaging; remove it before use. -Children and pets must not come near the appliance while it is operating.
• Children must not perform cleaning or maintenance of the appliance without supervision.

1.2 General safety rules

-The appliance is intended for domestic use, not for commercial or industrial use. -Before any maintenance, the appliance must be disconnected from the power supply. WARNING: Accessible parts may become hot during use with the appliance for cooking. -For mounting the appliance, use only the screws supplied with the appliance; if they are not supplied, use the screws recommended in the installation instructions. Do not use the screws to fix the appliance. -The minimum distance between the hob surface and the bottom of the appliance above it must be at least 65 cm, unless otherwise stated in the installation instructions. If a greater distance is specified in the installation instructions for the hob, that must be respected. -The discharge of exhaust air must be in accordance

with local and national regulations.

• In the room where the appliance is installed, adequate ventilation must be ensured to avoid the risk of backflow of gases into the room from appliances that burn gas or other fuels, including open fires.
• Ensure that the ventilation openings are not blocked and that the air inlet of the appliance is not connected to a duct used for ventilation of rooms with other appliances (central heating, thermosiphons, boilers, etc.). -If the appliance operates together with other appliances, the maximum vacuum generated in the room must not exceed 0.04 mbar. Be careful not to damage the power cord. For replacement of a damaged power cord, contact the manufacturer, its service agent or similarly qualified persons.
• The device must be connected directly to the power source, and the electrical installation must be equipped with a disconnecting/switch-off device that will enable the device to be completely disconnected from the power supply. The disconnection must comply with the conditions specified for category II overvoltage. The device used for disconnection must be connected to the fixed wiring, in accordance with the principles for connecting electrical installations. Do not operate the device without it. Do not use the device for suction of materials and objects that are flammable or explosive substances. - The device must be regularly cleaned to prevent damage. Do not use the device on wet material.
• Regularly clean the device with a damp cloth.
• For cleaning the surface of the device, do not use abrasive cleaners, water jets, abrasive cleaning agents, or metal scrapers. Use a neutral detergent.
• Regularly clean the oil filters (at least once a month) and remove oil deposits from the device to prevent the risk of fire. For cleaning the interior of the device, use a cloth or brush.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire, or damage to the device. - Installation of the device may only be performed by qualified personnel. - Do not install or use a damaged device. Follow the installation and operating instructions provided with the device. With due care, always disconnect the device from the power supply before moving it. Always use protective gloves and sturdy shoes. - Before installing the device, completely remove the packaging and protective foil. - Do not exhaust air through an opening unless the opening is designed for that purpose.

Depending on the level of use,

at least every two months, to

prevent the risk of fire.

Clean the filter regularly or in a dishwasher,

using a neutral detergent. In

case of cleaning in a dishwasher,

the color change of the

filters is normal and does not affect their function.

Bp3 HnBHOTo ΦyHKUOHNpaHbE.

AknBupaHnot jarneH fInTep He MoKe da ce YnI Da ce perHepeppa. Mopa da ce 3aMeHN CO HOB -OD npJUNka Ha cekOn YeTnpi MeceN KOpNCTeHbe NIN NOeCTO, BO Clyujaj Ha Ooc6eHO INTeH3NBHO KOpNCTeHbe.

4. KOHTPOJN

A: MoTOp - BkLnyu/NsckLnyu. B: MoToPoTe Bo npBa 6p3nHa. C:MoTOpTe BO BTopa 6p3Ha. D: MoToPoTe e Bo TpeTa 6p3Ha.

E: TOnema 6p3nHa. OBaa 6p3nHa e npOrpaMnpaHa 3a 8-MnHyTHn ZnkLyn. Ito n3mHnYBaHe Ha Toa BpeMe, acnnapotopot aBToMatcKn Ce BpKa Ha 6p3nHaTa, KoJaSto 6nJa n3bpaHa nped BKnyuBaHeto Ha OBaa φ yHKuiJa. 3a da ja ncknyuTe OBaa 6p3nHa, npITncHete ro kOCheto ,Motop -Bknyu/ nckluy" (A).

F: MoTei KFBV19K. TOnema 6p3nHa. Obaa 6p3nHa e npoRpaMnpaHa 3a 5-MnHyTHn ZIKynCn. IIO n3mNHyBaHBe Ha ToA BpeMe, acnnpaTopoT aBtOMaTcKn Ce Bpaka Ha 6p3nHaTa, KoJaTo 6bJa n36paHa nped BKJyUBAHbTo Ha OBaa fynKcIJa. 3a da ja NCKnyuHte OBaa 6p3nHa, pInTncHete ro kOnHeTo ,MoTOp -BkJyUn/INckJyn(A).

M:Функцина НдУваHe. Oваа Функцида ВКлучы Многу спopa 6рзиHa, на Ромалку

Od eDen hac. Ito n3mHyBaHé Ha Toa Bpeme, MOTOPOT Ke ce ncknyu. 3a da ja ncknyuHTe OBaa φyHKUJa, npITnCHTe ro KOnHeTo "MToPOT - BKnyu/ncknyu" (A) iIN dpyro KOnYe 3a 6p3iHa.

N: AnapMeH nHnIkaTOP 3a qHnITpnte/ pceTnpaHe. Kora nHnIkaTOPOT e BknyeH, qHnITpNTe 3a odMaCTyBaHe Mopa da ce nCnCTat (no 40 caca pa60Ta).Kora nHnIkaTOPOT TpeNka, Tpe6a Da ce 3aMeHaT jarJIepoNDHTe qHnITpr (no 160 caca pa60Ta), a qHnITpNTe 3a odMaCTyBaHe Mopa da ce nCnCTat. Ce pa3bnpa, aKO acnIpaTOPOT He e MoDen co qHnITpnpaHe i Hema jarJIepoNDn HqHnITpr, Tpe6a Da ce nCnCTat camo qHnITpNTe 3a odMaCTyBaHe. AApAPMOT 3a qHnITpTe e BnDnVB OKOly 30 cekyni, KORA acnIpaTOPOT e BO peXIM Ha NOdrotBeHOCT 3a pa60Ta (stand by). 3a Da ce PECETNPA 6boJuaHKnOT Ha pa60THnte YacOBu, INHnIkaTOPOT Tpe6a Da ce DPKx nPiTINCHAT TPrc SEkyHdN, KORA acnIpaTOPOT e NCKnyeH. O: ,H2H" nHnIkaTOP. OBoj nHnIkaTOP CBeTN, KORA acnIpaTOPOT e KomAndyBaH on CTpaHa Ha IIIOTHa. Bo cnyaj Ha HeNoctInr Ha noBpz3yBaHe MeFy IIOThata i acnIpaTOP, INHnIkaTOPOT He CBtN.

L: Moen EFV716K-EFV719K-LFV616K-LFV619K-LFV616Y-LFV619Y-LFV616W-LFV619W. CBeTno - Bknyu/ncknyu. L: Moen KFVB19K. CBeTno. KpaTko npNTnCHyBaBe ro BKnyuBa/ncknyuBa cBeTnOTo, a DoJIro npNTnCHyBaBe BKnyuBa npNDyUeHo CBeTno.

5. METODIHA INHCTAJALUNJA

Ladie jgall dcl. H2H 0 jI gI g. nJglal aaglglblal J jglal glalglglll Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jnn Jnn

Jgabllblll 100

5

jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz

6

.4

A

all aB

all 1

aall aill ae yll:D

a a a a a a a a a a a a a a a :E

8 8

p 1

aaiy 1

i /jie

.（A）"

all oia aill ae jll.KFVB19K 2

120 22g. 5 120 1

4.2

• |x - 2| = |x - 4|

Therefore, 2^(n+1) divides x^2 - y^2, that is, x^2 - y^2 divides 2^(n+1).

a 1

1a 1

∴ distate ( f/ x, f/ y) = 0

. 1/2 _ 0 ^ 1 f (t) dt | _ 0 ^ ∞ = 1/2 _ 0 ^ 1 f (t) dt g . | _ Ω, g . | _ Ω, g . | _ Ω, g . | _ Ω, g . | _ Ω, g . | _ Ω, g . | _ , g . | _ , g . | _ , ∴ ageallgirallall

. .. .. .. .. .........................................................._ i ^ j = 0, j = 1, 2, 3, 4, 5, 6, 7, 8, 9, 1 0, 1 1, 1 2, 1 3, 1 4, 1 5, 1 6, 1 7, 1 8, 1 9, 2 0, 2 1, 2 2, 2 3, 2 4, 2 5, 2 6, 2 7, 2 8, 2 9, 3 0, 3 1, 3 2, 3 3, 3 4, 3 5, 3 6, 3 7, 3 8, 3 9, 4 0, 4 1, 4 2, 4 3, 4 4, 4 5, 4 6, 4 7, 4 8, 4 9, 5 0, 5 1, 5 2, 5 3, 5 4, 5 5, 5 6, 5 7, 5 8, 5 9, 6 0, 6 1, 6 2, . .. .. .. .. .. .. ......................................................_ 1 ^ 2 = 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, . ( z ll, ... , distant)

injiskard jg _ j ity j _ j ity j _ j ity j _ j ity j _ j ity j _ j ity j _ j ity j _ j ity j _ a ity j _ a ity j _ a ity j _ a ity j _ a ity j _ a ity j _ a lodic 0. 0 4 ardgfgiodef

j_k = \sum_{i=1}^n y_i^k x_i^k y_i

__SUPPIMER__

Therefore, the area of triangle OBC equals the area of triangle ABC plus the area of triangle BOC.

Therefore, the area of triangle OBC equals the area of triangle COD plus the area of triangle BOC.

Lgian

1. 1
2. 176 3
5. 6 175.

a51 20

Ae 15

Jililil Jilil jie jilu wu

. Electrolux

jia jia jia li ge liagao a jy jgai

Jx 10000000000000000000000000000000000000000000

aaiy aolal lagall jgssl.

www.electrolux.com

jiaol cai is gJusell aie y jll Jy

www.registerelectrolux.com

aee aeaalaae aae eae ae aee

www.electrolux.com/shop
