Product type	Automatic coffee machine with grinder
Brand	KRUPS
Model	EA897B10 EVIDENCE
Dimensions (H x W x D)	365 x 240 x 380 mm
Weight	8.4 kg
Electrical supply	220-240 V ~ 50 Hz, 1450 W
Pump pressure	15 bar
Bean hopper capacity	260 g
Water tank capacity	2.3 L
Grinder	Conical metal burrs, adjustable grind setting
Prepared beverages	Ristretto, Espresso, Long coffee, Americano, Cappuccino, Caffè Latte, Latte Macchiato, Hot water
Customization functions	Coffee strength (3 levels), volume (3 levels), extra shot, double cup
Favorites function	Up to 2 saved recipes (A and B)
Milk system	One Touch Cappuccino, removable unit, automatic rinse
Compatible water filter	KRUPS Claris Aqua Filter System (optional)
Automatic cleaning cycle	Coffee rinse, machine cleaning, descaling, milk rinse
Reparability	10-year warranty (Seb commitment)
Eco-friendly design	62% recycled plastic, 90% recyclable, FSC packaging
Included accessories	2 cleaning tablets, milk tube, cleaning needle, brush, manual

Frequently Asked Questions - EA897B10 EVIDENCE KRUPS

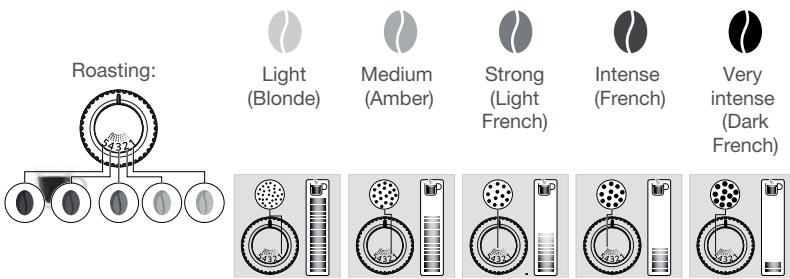

How to adjust grind setting?

Turn the adjustment knob located inside the coffee bean hopper (J) during grinding, notch by notch. A finer grind gives a stronger aroma. Wait for 3 preparations to notice the difference.

What to do if coffee flows too slowly?

Turn the fineness knob to the right for a coarser grind. Perform one or more rinse cycles. Replace the filter cartridge if used.

How to clean the milk system after a milk-based drink?

After each milk-based drink, perform a quick rinse (30 s) by pressing START/STOP when the alert flashes. Manually clean the tube and nozzle with hot water. For a thorough cleaning, disassemble the 'One Touch Cappuccino' unit and use the brush.

What does the red alert on the control panel mean?

A red alert indicates that a maintenance or cleaning action is required (e.g., empty the grounds bin, fill the water tank, start a rinse or descaling cycle). Follow the displayed pictograms.

How to save a beverage as a favorite?

After preparing a beverage with your personalized settings, press the Favorites button within 5 seconds after the flow ends. Select A or B to save. You can also adjust the volume during the flow.

Why is my coffee not hot enough?

Increase the coffee temperature in the settings (settings menu, hold ON/OFF button for 3s). Preheat the cups with hot water. Enable automatic rinse on startup in the settings.

How to install the KRUPS Claris filter cartridge?

Place the cartridge in the water tank, numbered ring facing up. Screw it with the black accessory provided. With the machine on, press the maintenance button for 3s, then follow the instructions to prime the filter (place a container under the spouts).

What to do if the grinder runs empty?

Check that the bean hopper contains coffee. If the coffee is too oily, it may not be drawn in. Help the beans fall or switch coffee. If the problem persists, contact customer service.

When should I descale the machine?

The machine alerts you with a white or red alert. Generally, descaling is needed every 3 months or so (more often if you use many milk-based drinks). Use a KRUPS descaler sachet and follow the program.

How to reset the machine after a power outage?

The machine resets automatically when power is restored. If a maintenance program was in progress, it will restart from the beginning. You may need to use a new cleaning tablet if the cycle was interrupted.

USER MANUAL EA897B10 EVIDENCE KRUPS

5.B. QUICK RINSE AFTER A MILKY DRINK (30s)

FR - RINÇAGE RAPIDE APRÈS UNE RECETTE LACTÉE (30s)
NL - SNELLE REINIGING NA MELKHOUDENDE DRANK
NO - RASK SKYLLING ETTER EN MELKEAKTIG DRIKK
FI - NOPEA HUHTELU MAITOKAHVIN JALKEEN
IT - RISCIACQUO RAPIDO IN SEGuito AL CONSUMO DI UNA BEVANDA A BASE DI LATTE
EL - ΓPHΓΟΡ ΚΕΝΑΥΜΑ META ΑΝΟPOΦΗΜΑ ΜΕΓΑΑ
SK - RYCHLE OPLYCHNUTIE PO MLIECNOM NAPOJI
PL-SZYBKIE PLUKANIE PO NAPOJUMLECZNYM
UK- CIOJIOCHITb PICJIY PIPNFOYBAHHa MOJIOUHO
BG-5bP3O N3IIJAKBAHE CJIEDI IPIIOTBARE HA HANITKA C

DE - NACH EINEM GETRÄNK MIT MILCH KURZ SPÜLEN
DA - MAAK DE LEKBAK REGELMATIG SCHOOL
SV - RENGJOR DRYPPEBRETET REGELMESSAGE
ES - ACLARAR DESPUÉS DE HACER UNA BEBIDA CON LECHE
PT - ENXAGUAMENTO RAPIDO APOS A PREPARACÇÃO UMA BEBIDA DE LEITE
CS - RYCHLY PROPLACH PO MLECNÉM NAPOJI
HU - GYORS ÖBLITÉS EGY TEJES ITAL UTÁN
RU-IPOMOITE POCJIPE PNIROTOBJEHNA HAPNTKA C MOJOKOM
RO - CLÂTIRE RAPIDÄ DUPÄ O BÂUTURA CU LAPTE
HR - BRZOISPERITE NAKON MLIJEÇNOG NAPITKA

6 DEEP CLEANING OF MILK SYSTEM MANUALLY - 5 MINS

FR - NETTOYAGE MANUEL APPROFONDI DU LAIT - 5 MIN
NL - HANDMATIGE DIEPE REINIGING VAN HET MELKSYTEEM - 5 MIN
NO - MANUELL ORDENTLIG RENGJØRING AV MELKESYSTEMET - 5 MIN
FI - MANUALINEN MAITOJARJESTELMANSYVAPUHDISTUS-5MIN
IT - PULIZIA PROFONDA MANUALE DEL CIRCUITO DEL LATTE
EL - XEIPOKINHTOZ BAOTZ KAOTZ TOY YIYMATOZ IAIAKT0Z-5AENTTA
SK - MANUALNE HLBKOVE CISTENIE MLIECNEHO SYSTEMU-5MIN
PL -RECZENE SZCZEGOLOWE CZYSZCZENIE SYSTEMUMILEKA-5MIN
UK - ΓΙΝΙΒΟΚE ΜΥΥΕ ΟΥΙΣΕΗΝΑ ΚΙΝΤΕΜΙ MOJIOKA-5XB
BG-PbUHO DJIJIbOKO IOUHCTBAHE HA CNTTEMATA 3A MJIKO

DE - MANUELLE TIEFENREINIGUNG DES MILCHSYSTEMS - 5 MIN
DA - MANUEL HOVEDRENSING AF MELKESYSTEMET -5 MIN
SV - MANUELL DJUPRENGÖRING AV MJÖLKSYSTEMET - 5 MINUTER
ES - LIMPIEZA PROFUNDA MANUAL DEL SISTEMA DE LECHE - 5 MINUTOS
PT - LIMPEZA MANUAL PROFUNDA DO SISTEMA DO LEITE - 5 MIN
CS - RUCNI HLOUBKOVÉ CISTENI MLECNÉHOSYSTÉMU-5MIN
HU - A TEJRENDSZER MANUAL MÉLYTISZTITÁSA - 5 PERC
RU - 3AПУСКАЕМАВРУСHУО ГЛБOKАОчИСТКAMOЛQUHОСССТЕмbl-5MH
RO - CLÂTIREA MANUALÄ IN PROFUNZIME A SISTEMULUI DE LAPTE - 5 MIN
HR - RUCNO DUBINSKO CISCENJE SUSTAVAMLJEKA-5MIN

7.A.REFILLING THE WATER TANK

FR - REMPLISSAGE DU RÉSERVOIR D'EAU
NL - HET WATERRESERVOIR VULLEN
NO - FYLL PÁ VANNTANKEN
FI - VESISÄllION TÄYTTÄMINEN
IT - RIEMPIMENTO DEL SERBATOIO DELL'ACQUA
EL - TEMIETO DOXEIO NEPOY
SK - PLNENIE NÁDRŽKY NA VODU
PL - NAPEŁNIANIE ZBIORNIKA WODY
UK - HANOBHEHHH PE3EPBYAPA DJIY BOJN
BG-HAHTbJIHETE PE3EPBOAPA 3A BOIDA

DE - WASSERTANK BEFÜLLEN
DA - FYLD VANDTANKEN
SV - FYLL PAVATTENBEHALLEN
ES - LLENAR EL TANQUE DE AGUA
PT - ENCHERO RESERVATORIO DA ÁGUA
CS - NAPLÁNTE VODNÍNÁDRŽ
HU - VIZTARTÁLY FELTÖLTESE
RU - HAIJIHEHIE PE3EPBYAPA JIY BOJbl
RO - UMPLEREA REZERVORULUI DE APA
HR - NAPUNITE SPREMNIK S VODOM

5

7.B. CLEAN THE WATER TANK REGULARLY

FR - NETTOYER LE RÉSERVOIR D'EAU RÉGULIERÉMENT
NL - MAAK HET WATERRESERVOIR REGELMATIG SCHOON
NO - RENGJOR VANNTANKEN REGELMESSAGE
FI - PUHDISTAVESIALIO SANNOLLISESTI
IT - PULIRE REGOLARMENTE IL SERBATOIO DELL'ACQUA
EL - KAΘΑΡΙZΕΤ TAKΤΙΚΑ TO ΣOXΕΙΟ NEPO'Y
SK - NÁDRŽ NA VODU PRAVIDELNE CISTITE
PL - PAMIETAJ O REGULARNYM CZYSZCZENIU POJEMNIKA NA WODE
UK-PEYJIAPHO OUYIATE PE3EPBYAP JIABOIN
BG - IIOUHCTBAIITEPEIOBHOPE3EPBOAPA 3A BOIDA

DE - REINIGENSIEDEN WASSERTANKREGELMÄSSIG
DA - RENGOR VANDBEHOLDEREN REGELMÄSSIGT
SV - RENGÖR VATTENBEHÄLLAREN REGELBUNDET
ES - LIMPIA CON FRECUENCIA EL DEPOSITO DE AGUA
PT - LIMPE O RESERVATORIO DE ÁGUA REGULARMENTE
CS - PRAVIDELNE CISTÉTE NÁDRŽKU NA VODU
HU - RENDSZERESENT TISZTÍTSA MEG A VÍZTARTÁLYT
RU-PEYJIAPHO OCHIaIte PE3EPBYAP IJIABOДbl
RO - CURATATI REZERVORUL DE APA IN MOD REGULAT
HR - REDOVITO CISTITE SPREMNIK ZA VODU

Thank you for purchasing a KRUPS espresso machine with built-in grinder.

KRUPS espresso machines with built-in grinders are designed, developed and manufactured in France, thereby ensuring the strictest guarantees in terms of origin and manufacturing quality.

Your machine is designed to be as easy to use as possible and to create barista-quality drinks. Enjoy an Espresso, a long coffee, or even a Cappuccino, Latte Macchiato or Café Latte, among other types of coffee, all at the touch of a button!

Striving to continually improve sustainability, the KRUPS Evidence ECO-DESIGN was designed from the start to limit its environmental impact and the use of natural resources: 62% of the plastic parts in your machine are made from recycled plastic, and up to 90% of the parts in your machine are fully recyclable. Your machine's screen has been optimised to reduce the number of electronic components without affecting comfort and ease of use. In addition, we have also kept printed, chrome and paint decoration to a minimum, retaining only the essentials and therefore limiting the impact of this machine.

To boost sustainability and because protecting the environment and reducing waste are major concerns for us, SEB is committed to ensuring that the machine is repairable for 10 years throughout Europe.

In addition, in order to minimise packaging while still protecting our products during transport, we no longer use polystyrene blocks. Instead, the packaging for your machine is made from 90% recycled cardboard, which is produced from sustainably managed forests and is FSC certified.

We hope that you enjoy your coffee and that your KRUPS machine is to your complete satisfaction.

The KRUPS team

Visuals	What happens on the screen	Meaning
	Start LED flashing	Press START
	Drink icon glowing (faintly illuminated and flashing slowly)	Drink preparation in progress
	All drinks icons glowing	Cleaning or maintenance in progress
	Icon illuminated and constant	The function has been selected
	Red warning light and maintenance icon illuminated	Maintenance/cleaning is needed
	White warning light and maintenance icon illuminated	Maintenance/cleaning is recommended
	All drinks icons lighting up one after another.	The machine will shut down but is performing a necessary rinsing cycle

Drinks table

RESTRETTO	Ristretto Short espresso with body
ESPRESSO	Espresso Full-bodied espresso with pronouncedaromas, covered with a slightly bitter caramel-coloured Crema
LONG COFFEE	Long coffee Higher in caffeine but lighter on the palate. Very popular in the morning
AMERICANO	Americano Double long espresso combined with hot water

Cappuccino A balance between milk, foam and Coffee
Caffe latte Foam with a subtle coffee flavour
Latte macchiato A large helping of milk, a gourmet espresso with milk foam
HOT WATER	HOT WATER

A B T O M A T U C E C K N E K O F E M A S U H B I K R U P S CO B C T P O E H H B I M N K O F E M O L K A M N p a 3 p a 6 0 T a H b i n p p o n 3 B O J D A T C B O F P a n c u m, YTO r a p a T H I P P E T B B I C O A u W ee K a Y E C T B O N 3 R O T O B I E H N I.

BaIa KaOpeMaIHa cNpOeKTInpoBaHa TAK, YTO6bI 6bIT MaKcImaJIbHO IpOcToB BNCIOJIb3OBaHIM, HO npn 3TOM rOTOBt b Doma HAnITKn KaK B KoPeIHe. 3Cnpecco, YepHbI KoPe, KanyuHIO, JATTE MaKNaTO, NaTte n dpyrIne KoPeIhIe HAnITKn - BCE 3TO OndHM HaxKaTnem KhoNk!

Ctpemnne K nocToHHomU ynyuWeHIO 3KoONrnn Jexnt B oChOBe KRUPS Evidence ECO-DESIGN, KOtopa n3HaayalbHO 6blna pa3pa6OtaHa dnn yMeNbweHn BO3deJCTBn Ha OKpykaOnyU cpeHy n otpe6bHeNn pnpOndhIX pecypcoB: 62% PnactMaccobbIX DetanEe KoFemaunHbI n3rotOBnEnb I3 nepepa6OtaHHoro PnactNa, a 90% DetanEe KoFemaunHbI nproDhbI dnn nepepa6OTKn. 3KpAn BaSei KoFemaunHbI 6bln ONTmN3npOBaH dnn yMeNbweHn KOnlueCTBa 3JeKtpoHHbIX KOMNoHETOB 6e3 yUep6a dnn KOMΦopTa I npocToTbI nCpOJIb3OBAHnra. Kpome TOrO, Mbl CBeIN K MINmMy HaneuTaHHble, XpOMIpOBaHne N OKpaUneHHbe 3LnMeHTbl, COxpaHNB TOlbKO BCE camblie Heo6XoIMMbIE IN CdJIab KofemaunHy eIe BoJee 3KoONrOTHNOH.

Дянс NOВышени 3KONORNUHOCHTN, 3aunTa OKpykaIOUeI CpeDbI N COKpaUeHne KOLINueCTBa OTXODOB YBnIyOTcnpOpNTeTHbIMN 3aDaayAm. SEB CTpeMntcR OBeCNeuHtB BO3MOxHocTb peMOHTa KoFemaUnHb I TeueHne 1O let no BceI Ebpone.

Kpome TOrO, YTo6bI CBeCTN K MINHIMMy KOINueCTBO yNAKOBOUHbIX MaTePnAIOB, HO npri 3TOM oBeCneHTb 3aunTy HaUNx N3DeiN BO BpeM TraHCnOpTnPOBKN, Mbl 60JIbIe He NCNoJIb3yEm neHOpIIaTcOBtBE 6bOKn. BmecTO 3Toro yNAKOBKa DnI BAwei KoPeMaUnHb I3ROTOBNeHa I3 Ha 90% nepepa6oTaHHORO KapToHa, KOTopBI nPOn3BOJNTcR N3 6e3OnacHO JLeCo3aROTOBtEnBHOI dpeBecInbI, INMeet CePTnФNKaT PporpaMMblYTBepXdEHNr CTAHApTOB JleCHOJ cepTnФnKaUH (FSC).

Mbl haeneemcra, yTO Bam IIOHpaBntcra KoPe, n Bbl 6yJeTe IONHOCTbIO DOBOJIbHbI CBOeN KoFemaunHoR KRUPS.

KoMaHda KRUPS

INFORMATIONS IMPORTANTES SUR LE PRODUIT

PRODUITS FOURNIS AVEC VOTRE MACHINE

MISE SOUS TENSION DE LA MACHINE

Thank you for purchasing a KRUPS espresso machine with built-in grinder, we appreciate your confidence in us.

KRUPS espresso machines with built-in grinders are designed, developed and manufactured in France, thereby ensuring the strictest guarantees in terms of origin and manufacturing quality.

Your machine is designed to be as easy to use as possible and to create barista-quality drinks. Enjoy an Espresso, a long coffee, or even a Cappuccino, Latte Macchiato or Café Latte, among other types of coffee, all at the touch of a button!

Striving to continually improve sustainability, the KRUPS Evidence ECO-DESIGN was designed from the start to limit its environmental impact and the use of natural resources: 62% of the plastic parts in your machine are made from recycled plastic, and up to 90% of the parts in your machine are fully recyclable. Your machine's control panel has been optimised to reduce the number of electronic components without affecting comfort and ease of use. In addition, we have also kept printed, chrome and paint decoration to a minimum, retaining only the essentials and therefore limiting the environmental of this machine.

To boost sustainability and because protecting the environment and reducing waste are major concerns for us, SEB is committed to ensuring that the machine is repairable for 10 years throughout Europe.

In order to minimise packaging while still protecting our products during transport, we no longer use polystyrene blocks. Instead, the packaging for your machine is made from 90% recycled cardboard, which is produced from sustainably managed forests and is FSC certified.

Le Petit + Eco: Coffee beans are not highly processed and use minimal packaging. Coffee grounds can be used as a natural fertiliser and are fully biodegradable.

We hope that you enjoy your coffee and that your KRUPS machine is to your complete satisfaction.

The KRUPS team

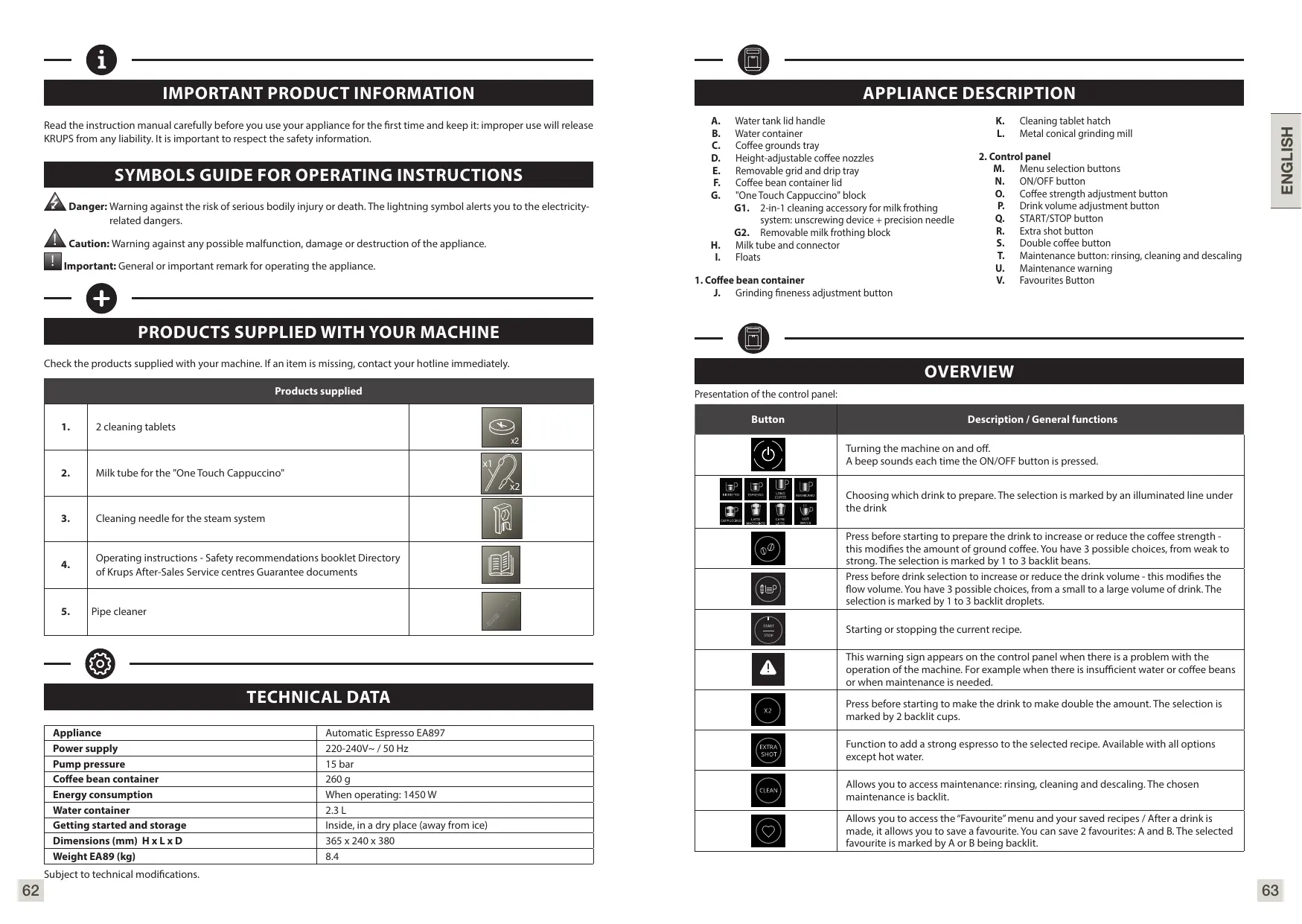

IMPORTANT PRODUCT INFORMATION

Read the instruction manual carefully before you use your appliance for the first time and keep it: improper use will release KRUPS from any liability. It is important to respect the safety information.

SYMBOLS GUIDEFOROPERATINGINSTRUCTIONS

Danger: Warning against the risk of serious bodily injury or death. The lightning symbol alerts you to the electricity-related dangers.

Caution: Warning against any possible malfunction, damage or destruction of the appliance.

Important: General or important remark for operating the appliance.

PRODUCTS SUPPLIED WITH YOUR MACHINE

Check the products supplied with your machine. If an item is missing, contact your hotline immediately.

Products supplied

1.	2 cleaning tablets	x2
2.	Milk tube for the "One Touch Cappuccino"	x1 x2
3.	Cleaning needle for the steam system
4.	Operating instructions - Safety recommendations booklet Directory of Krups After-Sales Service centres Guarantee documents
5.	Pipe cleaner

TECHNICAL DATA

Appliance	Automatic Espresso EA897
Power supply	220-240V~/ 50 Hz
Pump pressure	15 bar
Coffee bean container	260 g
Energy consumption	When operating: 1450 W
Water container	2.3 L
Getting started and storage	Inside, in a dry place (away from ice)
Dimensions (mm) H x L x D	365 x 240 x 380
Weight EA89 (kg)	8.4

Subject to technical modifications.

APPLIANCE DESCRIPTION

A. Water tank lid handle
B. Water container
C. Coffee grounds tray
D. Height-adjustable coffee nozzles
E. Removable grid and drip tray
F. Coffee bean container lid
G. "One Touch Cappuccino" block

G1. 2-in-1 cleaning accessory for milk frothing system: unscrewing device + precision needle

G2. Removable milk frothing block

H. Milk tube and connector

I. Floats

K. Cleaning tablet hatch
L. Metal conical grinding mill

2. Control panel

M. Menu selection buttons
N. ON/OFF button
0. Coffee strength adjustment button
P. Drink volume adjustment button
Q. START/STOP button
R. Extra shot button
S. Double coffee button
T. Maintenance button: rinsing, cleaning and descending
U. Maintenance warning
V. Favourites Button

OVERVIEW

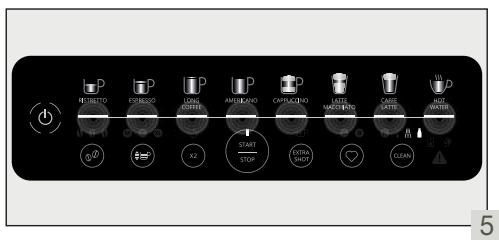

Presentation of the control panel:

Button	Description / General functions
	Turning the machine on and off. A beep sounds each time the ON/OFF button is pressed.
	Choosing which drink to prepare. The selection is marked by an illuminated line under the drink
	Press before starting to prepare the drink to increase or reduce the coffee strength - this modifies the amount of ground coffee. You have 3 possible choices, from weak to strong. The selection is marked by 1 to 3 backlit beans.
	Press before drink selection to increase or reduce the drink volume - this modifies the flow volume. You have 3 possible choices, from a small to a large volume of drink. The selection is marked by 1 to 3 backlit droplets.
	Starting or stopping the current recipe.
	This warning sign appears on the control panel when there is a problem with the operation of the machine. For example when there is insufficient water or coffee beans or when maintenance is needed.
	Press before starting to make the drink to make double the amount. The selection is marked by 2 backlit cups.
	Function to add a strong espresso to the selected recipe. Available with all options except hot water.
	Allows you to access maintenance: rinsing, cleaning and descaling. The chosen maintenance is backlit.
	Allows you to access the "Favourite" menu and your saved recipes / After a drink is made, it allows you to save a favourite. You can save 2 favourites: A and B. The selected favourite is marked by A or B being backlit.

INTERFACE

Our touchscreen interface and its buttons illuminate in an intuitive way to facilitate the use of the machine.

Visual	What happens on the screen	Meaning
	Start LED flashing	Press the START/ STOP button
	Drink icon glowing (faintly illuminated and flashing slowly)	Drink preparation in progress
	All drinks icons glowing	Cleaning or maintenance in progress
	Icon illuminated and constant	The function has been selected
	Red warning light and maintenance icon illuminated	Maintenance/cleaning is needed
	White warning light and maintenance icon illuminated	Maintenance/cleaning is recommended
	All drinks icons lighting up one after another.	The machine will shut down but is performing a necessary rinsing cycle

GETTING STARTED & APPLIANCE INSTALLATION

SWITCHING ON THE MACHINE

Danger: Connect the appliance to a grounded 230 V socket. Otherwise, you expose yourself to fatal injuries due to the presence of electricity! Respect the safety information stated in the leaflet "Safety information".

GETTING STARTED (See 1.1 ^ST use)

Respect the safety information stated in the leaflet "Safety information". Place the appliance on a stable, heat-resistant, clean and dry work surface. Priming the machine allows the water circuits to be filled, so that the machine can operate. Preheating and automatic rinsing will take place. For more information see chapter 1 1^ST USE of the quick start guide. Once you have finished setting it up, the machine automatically chooses a recipe by default. You can make your first coffee!

PUTTING THE MACHINE ON STANDBY

Depending on the preparation, the machine performs automatic rinsing when it is put on standby. The cycle lasts only a few seconds and stops automatically.

Hints and Tips

The quality of the water strongly influences the quality of the aromas. Limescale and chlorine can alter the taste of coffee. To preserve all the aromas of your coffee, we recommend that you use a KRUPS Claris Aqua Filter System cartridge, with dry residue below 800mg/L . See chapter page 8 of the "INSTALLING THE FILTER" leaflet

When preparing drinks we recommend using preheated cups (by passing them under hot water) whose size is adapted to your desired quantity.

The roasted coffee beans can lose their aroma if they are not protected. We advise you to use the amount of beans equivalent to your consumption over the next 2-3 days and to choose 250g bags.

The quality of coffee beans is variable and tastes are subjective. Arabica will give you fine, floral aromas unlike Robusta which is higher in caffeine, more bitter and full-bodied. It is common to mix the two types of coffee to get a more balanced coffee. Please do not hesitate to seek advice from your roaster.

We do not recommend the use of oily and caramelised beans as these can damage the machine.

The fineness of the ground beans influences the strength of the aromas and the quality of the crema. The more finely ground the beans, the smoother the crema. Grinding can also be adapted for the desired drink.

INSTALLING THE FILTER

WHY INSTALL A FILTER CARTRIDGE?

The KRUPS Claris Aqua Filter System cartridge helps to optimise the taste of your coffee, to limit the build-up of limescale and to reduce maintenance operations. To ensure that your machine has a long life, we recommend that you use a filter cartridge. This accessory is available from the KRUPS.fr website.

WHEN SHOULD YOU CHANGE THE CLARIS AQUA FILTER SYSTEM CARTRIDGE?

• 2 months after installation.
• We advise that, when you install your cartridge, you turn the grey ring at the far end of the filter cartridge to show the date of installation + 2 months.

HOW TO INSTALL THE CLARIS AQUA FILTER SYSTEM CARTRIDGE

• Your machine should be plugged in and switched on
• The cartridge is placed in the water tank
• Place the cartridge with the numbered ring at the top
• Use the black screwing accessory supplied with the cartridge to properly position and screw in the cartridge
• On your illuminated screen (CLEAR) press for 3 seconds. A beep will confirm entry into the Installing the filter menu. Place a container under the nozzles.
• The button flashes and the coffee rinsing image is lit up.
• Press to initiate use of the filter.
• The lights under the recipes will fade in and out during installation.
• Installation is complete when the light is steady again.

GRINDER: ADJUSTING THE GRINDING FINENESS

You can adjust the strength of your coffee by adjusting the grinding fineness of the coffee beans.

Varying the grinding fineness makes it possible to adapt to different types of bean:

• A highly roasted and oily bean will require a coarse grinding,
• A more lightly roasted bean will be drier and will require a fine grinding.

Note: the finer the grinding, the more powerful the aroma.

HOW TO ADJUST THE GRINDING FINENESS

Turn the setting button located in the coffee bean container (J) to suit your bean type and the power of aroma desired. This adjustment must be performed during grinding and notch by notch. After 3 preparations you will notice a distinct difference in taste.

Caution: We do not recommend the use of oily and caramelised beans as these are difficult for the grinder to process. These can damage the machine and lead to poor sensor performance.

PREPARING DRINKS

DRINKS AVAILABLE FROM THIS MACHINE AND POSSIBLE SETTINGS:

Drinks	Approximate size	Recommended volume	Coffee strength	X2	Extra Shot
Ristretto Short espresso with body	M = 20 ml L = 25 ml XL = 35 ml	L	✓	✓	✓
Espresso Full-bodied espresso with pronounced aromas, covered with a slightly bitter caramel-coloured crema	M = 40 ml L = 55 ml XL = 70 ml	M	✓	✓	✓
Long coffee Higher in caffeine but lighter on the palate. Very popular in the morning	M = 80 ml L = 120 ml XL = 180 ml	L	✓	✓	✓
Americano Double long espresso combined with hot water	M = 90 ml L = 120 ml XL = 150 ml	L	✓	✓	✓
Cappuccino A balance between milk, foam and coffee	M = 120 ml L = 180 ml XL = 240 ml	L	✓	✓	✓
Caffe Latte Milk foam with a subtle coffee flavour	M = 200 ml L = 280 ml XL = 350 ml	L	✓	✓	✓
Latte Macchiato A large helping of milk, a gourmet Espresso with milk foam	M = 190 ml L = 250 ml XL = 340 ml	L	✓	✓	✓
HOT WATER	M = 100 ml L = 200 ml XL = 300 ml	L		✓

Hints & Tips

Every time you choose a drink, the machine will use the most recent settings.

For each recipe, you can increase the volume of your drink during the recipe.

FOR YOUR INFORMATION, YOUR MACHINE WILL AUTOMATICALLY PERFORM THE FOLLOWING STEPS TO PREPARE YOUR DRINK:

For coffee recipes	For milky recipes not including Caffe Latte:	For Caffe Latte:
1. Grinding the coffee beans 2. Compaction of the grinding 3. Pre-infusion (some drops may fall into your cup at this stage) 4. Percolation	1. Preheating stage 2. Milk frothing 3. Grinding the coffee beans 4. Compaction of the grinding 5. Pre-infusion (some drops may fall into your cup at this stage) 6. Percolation	1. Grinding the coffee beans 2. Compaction of the grinding 3. Pre-infusion (some drops may fall into your cup at this stage) 4. Percolation 5. Preheating stage 6. Milk frothing

AMERICANO

For this recipe, your machine will make two espressos one after the other. There will therefore be two grindings followed by the addition of hot water.

HOW TO ADJUST THE HEIGHT OF THE COFFEE NOZZLES

For all of the drinks proposed you can lower and reassemble the coffee nozzles according to the size of your cup(s).

HOW TO START PREPARING MY DRINK

• Check that the bean container is full.

Caution: To avoid damaging your machine, take care not to pour water into the grinder.

• Check that the water tank is full. If there is not enough water, the machine will issue a warning. See chapter 7.A "FILLING THE WATER TANK" of the quick start guide.

• Place the cup(s) under the coffee outlets.

• Select the chosen drink.
• Change the settings
  Press START/STOP

For more information see chapter 2 "BEVERAGE SETTINGS" of the Quick Start Guide.

HOW TO STOP A DRINK MID-PREPARATION

Caution: You can stop the preparation at any time by pressing the START/STOP button. When a cycle is interrupted, stopping is not immediate. You will not be able to access the machine until the lights become steady again.

MILKY DRINKS

Hints & Tips

To make frothy milk, you should opt for pasteurised UHT milk from the fridge (3 - 5^) . The use of special milks (micro filtered, raw, fermented, enriched) or plant milks (rice, oat or almond) can give results that are less satisfactory in terms of the quality and quantity of froth. Once the bottle opened, milk, either in plastic or glass bottle, should be stored in a refrigerator at 4^ or below at all times. It usually can be stored between 5 and 7 days.

HOW TO START PREPARED A MILKY DRINK

• Connect the milk tube to the right side of the "One Touch Cappuccino" block.
• Immerse the other end of the tube (metallic side) in a container filled with milk or directly in your milk bottle.
• Place the cup(s) under the nozzles.
• Press the "Cappuccino" "Macchiato" or "Caffe Latte" button. If required, personalise your drink (size, coffee strength, x2, extra shot).
  Press START/STOP.
• The preparation will start with milk frothing followed by coffee flow or vice-versa depending on the recipe. These stages will take place automatically, then your drink is ready for drinking.

For more information see the beginning of chapter 5.A "MAKE A MILK RECIPE" of the quick start guide.

Important : At the end of each recipe, the machine suggests a milk rinsing. We recommend that you do this to ensure optimum hygiene and the proper operation of your milk system. See Chapter 5.B "QUICK RINSE AFTER A MILKY DRINK (30s)" of the quick start guide.

FAVOURITES FUNCTION

WHAT IS THE FAVOURITES FUNCTION FOR?

The Favourites function allows you to access your preferred drink with your saved personalised settings. See chapter 2 "PREPARING DRINKS" of the quick start guide.

Quick and perfect for your day-to-day life, simply press START to begin making your drink at the touch of a button, without having to change the settings for your favourite recipes every time. You can save up to 2 personalised recipes by adjusting the volume, the coffee strength, the number of cups and the extra shot function.

HOW TO CREATE A FAVOURITE

You can save a favourite A and a favourite B. See chapter 3 "SAVE YOUR FAVOURITE SETTINGS" of the quick start guide.

• Saving a favourite can only be done after the recipe has finished. You then have 5 seconds to press the Favourites function and save your preferred drink as A or B.
• You can personalise your volume by stopping the recipe as it is being poured. Press during the flow. The volume of that recipe that has been poured can then be saved under favourites.

Important: If you do not press Favourites within 5 seconds, the machine will automatically revert to the last recipe and the most recent settings used. It is therefore no longer possible to save that favourite.

HOW TO START MAKING A DRINK SAVED IN MY FAVOURITES

button

Select your favourite: Favourite A appears. If you press again then favourite B appears.

Press START/STOP

For more information see the beginning of chapter 4 "PREPARING A FAVOURITE DRINK" of the quick start guide.

CAN I CHANGE MY FAVOURITE DRINKS?

It is not possible to amend a favourite that has already been created. To replace a favourite, start making a drink using the desired settings and save it as the favourite that you want to amend. If you save a favourite when a recipe has already been saved, it will be overwritten.

GENERAL MAINTENANCE

Carrying out proper maintenance will prolong the life of your machine and preserve the authentic taste of your coffee.

For hygienic reasons, it is recommended to rinse the coffee system daily or when not used for a longer period (more than 2 days). You have the possibility of setting up an automatic rinsing which guarantees the preservation of best coffee flavor and an optimal hygiene. Please refer at the chapter OTHER FUNCTIONS.

MAINTENANCEWARNINGS

A warning message will appear on the screen when you need to carry out an action:

• The red warning LED means that you need to take action in order to ensure that your machine continues working optimally.
• The white warning LED A means that the machine is recommending that you take action.

A pictogram will specify which action should be undertaken.

Action required		White warning LED	Red warning LED
empty the grinding container	-	Mandatory
Fill the water tank	-	Mandatory
Start a milk rinsing	Recommended by the appliance	Necessary
Carry out descaling	Recommended by the appliance	Necessary
Carry out coffee cleaning	Recommended by the appliance	Necessary
Coffee flushing	-	Necessary

MAINTENANCE OF THE COFFEE GROUNDS CONTAINER AND DRIP TRAY

The drip tray receives used water and the coffee grounds container receives extracted grounds.

Important : The drip tray allows you to collect the water or the coffee that flows from the appliance during and after preparations. It is important to always leave it in place and to empty and clean it everyday. The two orange floats in the drip tray tell you when it is time to empty the water out of the container.

HOW TO EMPTY AND CLEAN THE DRIP TRAY

See Chapter 9.B "EMPTYING THE DRIP TRAY" of the quick start guide.

For hygiene reasons, because this tray is in contact with milk and coffee, we advise that you dismantle and clean each element with a sponge, under hot water and soap everyday. We also recommend you to air dry each element before you put it back in place.

Do not put in a dishwasher.

HOW TO EMPTY AND CLEAN THE COFFEE GROUNDS CONTAINER

See chapters 8.A "EMPTY THE COFFEE GROUND COLLECTOR" and 8.B "CLEAN THE COFFEE GROUND COLLECTOR REGULARLY" of the Quick Start Guide.

When the "warning" LED on the machine's interface lights up.

You can empty it more regularly and before the machine requests it, but when the machine is lit up this is so that it can record that the container has indeed been emptied. For hygienic reasons, we recommend you to clean the ground container with a sponge under hot water and soap everyday. We also recommend you to air dry each element before putting it back in place.

Do not put in a dishwasher.

Important: Failure to regularly empty your coffee grounds container and drip tray as indicated above may damage your appliance.

MAINTENANCE OF THE WATER TANK AND BEAN CONTAINER

WHEN AND HOW TO CLEAN THE WATER TANK

For the preservation of best coffee flavor impacted by the quality of the water and hygienic reasons, we advise you to daily clean the water tank with hot water and a bottle brush. It is also recommended that you let it air dry this element before you put it back in the appliance.

WHEN AND HOW TO CLEAN THE BEAN CONTAINER

Coffee beans can leave greasy residue on the tank that can affect the quality of the coffee. To preserve the coffee flavors and for hygienic reasons we recommend you to wipe it with a dry, soft cloth each time it needs to be refilled.

Caution: Do not clean using water as water in the bean container damages the machine.

MAINTAINING THE MILK SYSTEM

HOW AND WHY TO MAINTAIN THE MILK SYSTEM AFTER MAKING MILKY DRINKS

Important: In order to obtain identical froth each time, we recommend that you carry out the milk rinsing and rinse the tube and connector after each milky drink.

1. After each milky drink

1a. Quick clean of the milk tube and connector (30 s)

For hygiene reasons, cleaning is required after each milky drink made. This involves carefully and manually cleaning the tube and its connector with hot water after each use. See chapter 5.B "QUICK RINSE AFTER A MILKY DRINK" of the Quick Start Guide.

1b. Automatic rinsing of the milk system (10s - 20 ml)

This rinsing should be done after each milky drink, when the machine notifies you and the START/STOP LED is flashing. This lets you clean the whole of your machine's milk system.

then the white warning appears, press START/STOP to start the milk rinsing.

As soon as the warning appears or if the warning is red A

If you do not start rinsing immediately after the end of the recipe:

• A red warning will appear on your control panel and will stay there until you begin a milk rinsing and manually clean the milk system.
  Automatic rinsing will happen when the machine is switched off

Deep clean the milk system

Important: For hygienic reasons, we recommend you daily manual cleaning of the entire milk system in case of regular use or when it is not used for a longer period (more than 2 days).

This involves dismantling and cleaning the removable "One Touch Cappuccino" block regularly, and also having the pipe cleaner for the milk tube. See chapter 6 "DEEP MANUAL CLEANING OF THE MILK SYSTEM - 5 MIN" of the quick start guide.

Important: For reasons of hygiene and in order to obtain identical froth each time, we recommend that you replace the milk hose and its plastic nozzle approximately every three months. These accessories are available from the KRUPS.fr website.

Maintenance	When?	Explanation	Actions required
Coffee flushing 45 s - 30 ml	We recommended you to rinse the coffee system daily or when not used for a longer period (more than 2 days).	Allows you to rinse the machine's coffee circuit. This process only uses hot water. It ensures the authentic taste of your coffee and guarantees that your machine has a long life.	Place a container under the coffee nozzle •Turn on your machine then press •Choose the rinse function •Press to begin rinsing.
Machine Cleaning 13 min - 600 ml	When the machine asks you.	To preserve coffee flavor and for hygienic reasons, we recommend you to clean and degrease the machine. It guarantees you optimal preservation of the aromas of your drinks.	Accessory required: 1 KRUPS cleaning tablet (n°1) and a container with at least 600 ml capacity. When the machine requests it, the white or red white warning LED and the LED on the interface will light up. See chapter 10 "FULL AUTOMATIC CLEANING OF THE MACHINE 3x / YEAR - 13 MIN" of the quick start guide You can also carry out cleaning when you wish by pressing the clear and choosing the cleaning programme, indicated by the LED
Descaling 20 min - 600 ml	The appliance notifies you when a descaling program is necessary.	Descaling your machine ensures its proper functioning and eliminates any deposit of limescale or tartar. This step is very important to ensure the proper functioning and longevity of your appliance.	Accessory required: 1 KRUPS descaling sachet (n°3) and a container with at least 600 ml capacity. When it is necessary to run a descaling programme, the appliance notifies you. When the machine starts up, the white or red white warning LED and the LED on the interface will light up. Next, see chapter 11 "DESCALING PROGRAM - 20 MIN" of the Quick Start guide. Once the function is active, you can also begin descaling the machine on demand by pressing CLEAR and selecting

Important: You do not have to run the maintenance programme as soon as the appliance requests it, but you must do it reasonably soon after. If the cleaning is postponed the alert will remain displayed as long as the operation has not been performed.

Important: If you unplug your machine during maintenance or in the event of electrical failure, the cleaning programme will resume from the start. It will not be possible to postpone this operation: it is mandatory to rinse the water circuit. In this case a new cleaning tablet may be necessary.

OTHER FUNCTIONS

HOW TO ACCESS YOUR MACHINE'S SETTINGS

As this machine does not have a screen, the settings are integrated as a second function of certain buttons.

To access the settings menu:

• The appliance must be plugged in but not switched on
  Press for 3 seconds
• When the LEDs under the first three recipes blink and you hear a beep, you are in the settings. You can then navigate using the ristretto, espresso and long coffee buttons.

List of settings:

Coffee temperature		Press to set the coffee temperature. There are 3 temperature adjustment levels for your coffee drinks.
T1: M L X	Low
T2: L X	Medium
T3: L X	High
Auto OFF		You can choose the length of time after which your selected appliance will automatically turn off in order to optimise your energy consumption: 10 minutes, 20 minutes or 30 minutes. Press to adjust auto off.
	10 min
	20 min
	30 min
Automatic rinsing		You can have your machine automatically carry out rinsing every time it is switched on. The default setting is inactive. Press to set auto rinsing to ON.
	Active
	Inactive

To exit the settings menu:

• Press the button to exit the menu.
• The machine will switch off and save the settings.

ANSWERS TO YOUR QUESTIONS

OPERATION

1) The machine displays a fault, the software is frozen OR the machine is malfunctioning.

Turn off and unplug the machine, remove the filter cartridge, wait 1 minute and restart the machine. Press and hold the ON/OFF button for at least 3 seconds for starting.

2) The appliance does not turn on after pressing the ON/OFF button (for at least 3 seconds).

Check the fuses and the power socket of your electrical installation. Check that the two power plugs are correctly inserted into the socket.

3) A power failure has occurred during a cycle.

The appliance resets automatically when it turns back on.

4) The grinder is running empty.

This is normal if it happens occasionally and if there are no coffee beans or only a small amount.
There are still some coffee beans in the container:

o The coffee may be too oily and is therefore not being correctly captured by the appliance. You could try helping the beans to go down and see if that gets it working again. However, it is advisable to change coffee (cf. type of beans function).

o This is my usual coffee that has worked well until now: contact your after-sales service.

USE

1) The grinder makes an unusual noise. Foreign bodies are surely present in the grinder.

Try to vacuum with a vacuum cleaner, otherwise contact your after-sales hotline.

2) There is water under the appliance.

Before removing the drip tray, wait 15 seconds after the flow of coffee so that the machine finishes its cycle correctly.
Verify that the drip tray is well positioned on the machine. It must always be in place even when the machine is not in use.
Check that the drip tray is not full

3) The adjustment button for the grinding fineness is difficult to turn.
Turn the adjustment button of the grinding fineness only when the grinder is operating.
4) The appliance has not issued any coffee. An incident has been detected during its making.
The device is reset automatically and is ready for a new cycle.
5) You have used ground coffee instead of coffee beans.
Use your vacuum cleaner to collect the ground coffee from the bean container.
6) Water runs from the coffee nozzles when the machine stops.
This is normal. It is an automatic rinsing process to clean the coffee nozzles and ensure that they do not become blocked.

STEAM AND MILK

1) The milk flow of your machine appears to be partially or completely blocked.
2) Clean the "One Touch Cappuccino" block. See chapter 6 «DEEP CLEANING OF MILK SYSTEM MANUALLY – 5 MINS» of the Quick Start Guide.
3) Steam escapes from the grid of the drip tray.
Depending on the type of preparation, steam may escape from the grid of the drip tray.
4) Steam appears under the bean tray lid.
Check that the cleaning tablet hatch located under the lid (K) is properly closed.

MAINTENANCE

1) The machine does not request descending.

The descending cycle is requested from a large number of milky drink preparations or hot water. If you only consume coffee, descending will not be required often.

2) Some grounds are in the drip tray.
A small amount of ground coffee can get into the drip tray. The machine is designed to evacuate any excess ground coffee so that the percolation zone remains clean.

3) The warning light is still on after you have emptied the coffee.

Reinstall the coffee grounds tray.

4) The warning light is still on after you have filled the water tank.

Ensure that the water tank is properly positioned in the appliance. The floats at the bottom of the tank must move freely. Check and release the floats if necessary.

DRINKS

1) The coffee is flowing too slowly.

Turn the "fineness of grinding" button to the right to obtain a coarser ground coffee (this may depend on the type of coffee used).
Perform one or several rinsing cycles.
Change the Claris Aqua Filter System cartridge.

2) The coffee is too light or not full-bodied enough.

Check that the bean container contains coffee and that it is moving down correctly.
Avoid the use of oily, caramelised or flavoured coffees which may not be captured properly.
× Decrease the volume of the preparation and increase the strength of the preparation using the coffee strength function. Turn the "fineness of grinding" button to obtain a finer ground coffee. Make your drink in two cycles using the 2-cup function.

3) The espresso or the coffee is not hot enough.

Increase the temperature of the coffee in the machine's settings. Heat the cup by rinsing with hot water before starting to prepare the drink.
Before making your coffee, carry out a rinsing of the coffee circuit. A coffee rinsing function when switching on the device can be activated in settings / auto rinsing

4) Clear water is running from the coffee nozzles before each coffee.

A pre-infusion takes place when you start a recipe, and this can lead to a small amount of water coming out of the coffee nozzles.

If one of the problems outlined above persists, contact KRUPS Consumer Service.

Important: Manufacturer: SAS GSM - Rue Saint-Léonard F-53104 Mayenne - France

BESCHRIJVING VAN HET APPARAAT

K. Luke for rengjoringstabletter
L. Konisk metallkvern

2. Kontrollpanel

M. Menyvalg-knapper
N. AV/PA-knapp
0. Justeringsknapp for kaffens styrke
P. Knapp for justering av mencden drikke
Q. START/STOPP-knapp
R. Ekstra shot-knapp
S. Knapp for dobbel kaffe
T. Vedlikeholdsknapp: skylling, rengjoring og avkalkning
U. Vedlikeholdsadvarsel
V. Favoritter-knapp

older for kaffebonner

VEDLIKEHOLDSADVVARSLER

VIL DU VITE NAR DU BØR VEDLIKEHOLDE MASKINEN?

Det vises en adversel pa skjermen nár du er nódt til a gjore noe:

Den rode varsellampen betyr at du ma gjore noe for a sikre at maskinen fortsetter a fungere optimalt.
Den hvite varsellampen A bety at maskinen anbefaler at du gjoe.

Et piktogram viser hva du trenger 已 gore.

Nødvendig handling		Hvit varsellampe	Rød varsellampe
	Tøm beholderen i kvernen	-	Obligatorisk
	Fyll vanntanken	-	Obligatorisk
	Start en melkeskylling	Anbefalinger fra produktet	Nødvendig
	Utfør avkalkning	Anbefalinger fra produktet	Nødvendig
	Rengjør kaffebeholderen	Anbefalinger fra produktet	Nødvendig
	Kaffespyling	-	Nødvendig

VEDLIKEHOLDE KAFFEGRUTBEHOLDEREN OG DRYPPBRETTE

VEDLIKEHOLD AV MELKESYSTEMET

HVORDAN OG HVORFOR MAN VEDLIKEHOLDER MELKESYSTEMET ETTER Å HA LAGET DRIKKER MED MELK

maskinens gransnitt tands.

ACCENSIONDELLAMACCHINA

ENAPEH XPHESHE (B.A.1.PPOTXPHESH

TnpieTe Tc npopopoeic aapaleiac nou avapéovtai oTo pfuλadio Pnnpoopoeic aapaleiac. ToOnoTeiTe n oukeun e OtaBepn, BepuaovtekiK, Kaqan kai Otevyn EpiPaviae epaiaC. HpoTeoiuaia Tnc mJxavn EITpeTe to yeuIQA tuv KukawatwvepuO, wote va uOpopeei va leitoupyne i nuXavn. Oa EKTseTe i npoTepauan kai autuMATnEknLAn. Ia nepiopec Pnnpoopoeic, avapTe STO KePAAIO 1 Tn XPHSHTou obnyoV npyopnp EkvivnoNc. Mlc oOkLnpooTe tn puHmion, nmuXavniEulyei autouma iua ouvtayn ano pnoeIoyn. MnopiteVe at ptiaEeTo v npTo oacKafe!

OEEH THE MHXANH\S E KATAE TAH ANAMONH

Avaloya me ntpnapaokeun, nvnxavn ektealei autouatm eklnluon evw bpioketai otnv kataoan avauovnc. O kukloc diapkei mvoepikadeutepolenta kai otaatautojata.

YtOδεiEic kai Σμβouλεc

H noiota ta vepou e nnepezi evtova tyn noiota ta tw apomega. Ta aata kai to xwio pnoe i va alloiowouv ton yeuon ta kape. ia va diatnpie ola ta apomega taou kape, npoteivoume va xnpoiuioite tn quoya tau ouotmuoc qiptou vepou Claris tnc KRUPS e nipauo eiumuata katw ano 800 mg/L AvatpEe TOn aeliba 8 tou kepaiaou oto pfuaaldoo TTOIOOETHsH TOY FIATPOY

Kata nTv npoetoumaia oopnmuatwovioTouve xpnoiunoiee pfltavia nov exouv npoepmuavtei (e piyn kautou vepou) kai exouv katalalno ly a tv neuunnt noootna.

I KaBoupOioEvoi KOKKOi Kape IIOpeia va xaoovu To apwma Touc, evd Ev npoataeovtai. Sa oououleoume va XPOIOnOEtE Tnv nootnta KOKKuw nou 10oobuvae i e autivnou 0a katavalwaote otic enoevec 2-3 napek kai v ENIyEte OAKOULcTwv 250 yp.

H noiota t wov kokwv ka eivia metaBnki n k iyeun eivai uokkeviik. H Arabica oac divei qiva apuata auvehov, evu n Robusta, n ano texi uohotepn tiepekitknto nce kapeivn, eviatio nikpn kai exei miov tvov yeuon. Suynbietai ou dovo turoi ka vouduocvtay ia eva iooppmoxapuavi.

Mny diotaoe va zntnoe oumoula c ano tov roaster ac.

ev ouviotoume t npon anapov kapaepawevv kokkw, eniob ntopeva npokaleouv cnmu ot mnxavn. H aenotnta aleoanc twkkuw eptae i tv evtaon tw apomegaatow k tyn noioteta tou kaiakou. Ooo nio ae oanoi aoevoiv eiva oikko, too nio kpeuoh npf th aexi to kaiaki. H aean ntopei enianc va npoaapoooteia to popnaou neomteie.

TONOETHZH TOY ΦIATPOY

FIATI NA TONOOETHE Ω ΦYΣIΓΑ ΦIATPOY;

H ouitmuatoc oipoup vepou Claris tnc KRUPs ouubetaaale ot n 8eaiotonoin n tc yueo n tou kape, 0tov nepiopioo tnc ouooewpuong aalawkntn meiowon twv epyaiovswuvtnpnoanc. Tia va diaopaiaote tn eyalndiapkeia zwnc tnc mnuxavnc oac, oac ouviotouve xaonoiopoiaote mia ouiyya iipoup.Auto to EApntma eivai diathetaao anotov ioTOTOKRUPs.fr.

TPOINO PYOMIEHSE THE AENTOTHTA AAEH

TupiTe Tou koumiPi uOthuion Tou Bioketai OTo Doxieio KKKW KaPe (J), Wote V a Taipiaei Me ToV TNO Twv KKKW KAI TnV EIMUHTI EVtaon Tou apwatoC. Autn n puThuion Ipenei Va npayatointhei Kata nV alEon KAI oXtadiakavbaOIda. Meta ano 3 npapaKeuec KaPe, 0a npapatnpnoTe oapn diapopao tN yeun.

Npoooy: ev ouviotoue t npon lanapowkai kapaalewewvokkwo, kaoc o uloc touc eEepyacetai μe duokolia. Mnpoe va npokaléouov znua stn yxavn kai va odnyoouv o kak anódoan toua othnpa.

IAPAZKEYH POΦHMATΩN

DIAOEZIMA POΦHMATA ΣE AYTHN TH MHXANH KAI ΠΙΘANE Σ PYΟΜΙΕΙΣ:

PRISTUP K NASTAVENI ZARIZENI

WAZNE INFORMACJE O PRODUKCIE

INNE CZYNNOSKI KONSERWACYJNE

Danger: Warning against the risk of serious bodily injury or death. The lightning symbol alerts you to the electricity-related dangers.

Caution: Warning against any possible malfunction, damage or destruction of the appliance.

Important: General or important remark for operating the appliance.

I3DEJIa,IOCTABJAEMbIE B KOMIIeKTE C IPIPbOpOM

Check the products supplied with your machine. If an item is missing, contact your hotline immediately.

Изdenя иЗ komпл ekт роставки
1.	2 tablen'tkn за очістки	x2
2.	Тубука поачи молoka за sixka "One Touch Cappuccino"	x1 x2
3.	Игla за очістки сістемы поачи пара
4.	Инструкци по з\'ьс\'л\'уатаци - 6\'ь\'л\'et с\'pekom\'ь\'д\'az\'уамп no\ tekne siezonacnoctи Кatableю цent探测ов пос\'р\'od\'ak\'horo\ ob\'c\'ny\'k\'u\'anha Krups Гар\'тney\'ньie д\'ok\'m\'tebl
5.	Б\'etka за очістки Ттубки

TEXHNUECKMEXAPAKTEPUCTUKN

IPEB0D IPIPUBOPA B PEXIM OXINDAHNA

B 3aBcIMocTn OhtacpoKn Pnp6op BbIOnHReT ABTomaTuYeCKyO npombyBky BpeXmE OxuDaHna. LkN dInTCa BCero HEckoBko CekyHd N octaHaBnBaETCra ABtomaTuYeCKn.

Iopcka3Kn COBeTbI

KauecTBo B0dy Oka3bIaeb TcNlbHoe BnIyHne Ha apomat HauNTka. HaKInb NxIpO MOrTy N3MeHnB BKyc KoFe.Дя coXpAHENHApOMATA KoPe peKOMeHNyTeCnONbOBaTb KapTpNIX CnCTEmb IINbTaPAnM BoDy KRUPS Claris nll 6BytIINIOPAHHyBOy C cyXIMN OCTaTKAMN HnKe 800 mR/n.CM. rnaBv YCTAHOBKA FOJIbTPA» Na cTr. 8 daHnoB 6poKnOpby

Pn npiroTOBlen HnHNTKOB peKOMeHdyETcNcNoIb3OBA Tb npeBaHTeIbHO HArPeTbe (noI ropuey BDo) aawkn noDxOJaero pa3Mepa.

EcnI 6OxabHbIe KoFeIbHe 3epHa He 3auiuIeHbI, OHN MOyT yTPaTIb CBOI apOMat. PekOMehyEM IcNoIb3oBAtb KOnJIueCTBOKFeIbHix 3epeH, paHObE KOJIueCTBy, KOtOpoe Bbl MoKeTe yIOTpe6MtB TteHuHne cIeDuIouMx 2-3 dNei, n bIb6paTb naketbl no 250 r

KauecTbO KoFeeHbIX 3epeH MoKeT 6bITb Pa3HbIM, a Bkyc - HnDnBnDaIbHbIM. Apa6nka daet ToKHe ZBeToUHbe apomatbI, a Po6bYcta C 0 Boee Be LckOMKm CoepKHaHnEM KoFeeHa NImeet 6oee TopbKn n HaCbHnEHb KVC. Dnla nOnyEHHc6aAHCnpOBaHnHO KoFe o6bHuO CMeuHbAIO TBA 3tN X BnDA. TTo6bl NOnyHTb peKomeHdaun, 6obpatntcB k PnO3BODHTENIO KoFeeHbIX 3epeH.

He pekomehdyetcN cnoIb3oBaTb 3epHa, coepkaaue Mhoro MaCna u KapamEn3npoBaHbIe, TaK KaK OHMoryt nobpeintb KofoemaunHy.

Ctepeh b nmoa 3epeh bnnreT ha Kpeoctb apomata n KauecTBO neHKn Kpema. Yem TohbeJe nmoJ 3epeH, TEm 60JIe HxHnO 6ydt PeHKa Kpema. PmOJI MoXHO TaKke OTpergynipobatb B COOTBETCTBN C hAnITKOM.

YCTAHOBKA ΦNJbTPA

3AEM YCTAHABJINBATb ΦNJbTPYIOUNI KAPTPNIX?

Kaptpnix CNTembl fnlbtpaun BODbl KRUPS Claris nomoraet ynyuwnBkyc KoFe, ymeNbwnbOpa3oBaHne HAKINn n cokpantb paXoDbHa o6cnykBaHne. YTo6bl npOanTb cPOK cnyx6bl np6opa, peKomeHdyetcNcNoIb3oBaT b fniIbtpyoumki Kaptpnix. 3OT akceccayap DocTyen Ha Be6-caite shop.krups.ru

KOrIa CJIeIyET 3AMEHrTb KAPTPNIXCCTEMbl ΦNJIbTPAciuB BOIbl CLARIS?

HauJIO PnIroTOBJIeHnH HApNTKA

• Y6eDntecb, yTO KOHTeHep dIy KofoeHbIX 3epen 3aNoJIHeN.

BhImaHne! YTo6bI He NoBpeDnTb KoΦemaunHy, He HaNBaIte BODy B KOΦeOMNky.

• Y6eIntecb,чTo pe3epByap dЯ BObl 3aIJIOnHeN. EcIIN BObl HeIOCTaTOHOb, npIbOp bIaIaT eT pIeDyIpyKeJdHne Cm rIaby 7.A «3AIIONJIHEHME PE3EPBYAPA DЯ BObl»B KpaTkom pyKOBoCDte IЯ naHa pa6Otbl.

• NocTaBbTe YauKy(И) nOd coNIO.

• BbI6epnte HUxHbI HAnITOK.
  -Изменен'te hactpoiKN
• HaxMMTe KhoNky START/STOP

1a.БbICTpaOuNCTKa Tpy6Kn Dnna NODaun MoNOKa N CoeDInHtEnra (30c)

Iro nirnneHnueckn m coo6paXeHn m oocJe kaxdo rpoiroToBHeHn HAnNTka C MOnokom Tpe6yETcO uChtKa. 3To noDpa3ymeBaT tUaTeNbHyO pyuHyO ouChTky Tpy6Kn e e CoeHNHTeR ropayE BODo NocLe kaxdo rncNolb3OBHn.

CM. rnaby 5.A "PnIroTOBHeHne HAnITKA C MoJOKOM" KpaTkoRy pkyoBoDCTBa dny Haayala pa60tbl.

1b. ABTomatueckar npombibka MONOCH CNTembl (10c-20m)

3Tu npombyBky Heo6xOIMO BvIOnJIyTb Nocle KaJxDTo pIriOTOBHeHn HAnITKa C MoIOKOM, KOrJa PnIbOp yBeOMIT BaC, nHaHTMgATb INdNkATOp START/STOP. 3TO No3BOJNT OChCTNb BCIO MOJOnHyO CnCTeMy KoFemaunHbl.

noBlenn 6eJoro npedynpejdaouero INHdkaTopa HxKmte KhoNky START/STOP,HTo6bI hauaTb npomblkY.

noBLeHnnpedynpeKdHn, nIe cIIN ppeDpyckdaIOuN INDAkATop KpaChbI

Ecnn He nauTaB npombibkCy cpa3y nocle OKOHuaHn npiroTOBneHn:

Ha nahen ynpablennna npaBtca npedynpexdeHne kpacho 0cbeta, KOTOPoe 6ydt OTO6paXbTa cdoTc npoka He hauhctra npombykma moJOnHou cIcTeMbI u He 6ydt BblONHe ha e pyHna OUnCTka.
- ABTomatuecka npombybKa 6yed TB BInOJIHeHa npn BKInOeHn KofemaunHb

Iy6okayOuICTKaMOOnOHcNTembl

Baxho! B rHmEnHeuecknx cIeIa peKoMeHdyetc exEJHeBHO OOnuTaB BCIO MOnOHyU CInTeMу BypyHyU npi peryIrpHOM nCnObl3OBAHm nn Bclyae,ecn OH e nCnOlb3yETc Donlroe Bpem (60one 2 dHei).

Дялглглглглглглглглглглглглглглглглглgлглgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлgлглgлgлgлgлggl.унчыкп.Tубкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчыкп.Tудчык. 5MHUT»Кратко руховоства дя нада павъ.

Baxho! IIO rHnneHueckm COo6paKeHnM nIaI POlyeHnO OINHaKOBo NHeHbI npK KaJdOM pNirroTOBHeHH peKomeHdyetc3aMeHnTb 7aHr dIy IPOaU HMOkA u PIACTKOByU HacaKy npImepHO KaJdbIe TpN MeCra. 3Tu npHaadJeXHoCTn MoKHO haiTu Ha Be6-caTe shop.krups.ru

ДPyтVEЗАДЧИ ПООБСЛУХУBAHИNO

• Pnp6op dOJKeH 6bIb NOKJIIOUeH K 3JIeKTPoCetn, Ho He BKNIOUeH

Hajkmteu ydepxmbaute Bteuehe 3 ckynd
Korda HndkaTopbI NOI nepBbIMn TpeMaTAMn HaHHT MmraTb, IN pa3dactc3ykoBo CnHal, 6yET BkIoueh peXIM hAcTpoek. Iocne 3tOrO MOxHO nepMeaTaBCa IIO MeHIO c NOMoCbIO KHOJOK pNCTpeTTO, 3cnpecco u CepHbI Kofoe.

Cnucok Hactpoek:

A. Kpnuika KOHTeHepa Iry KaBOBnX 3epeH

E.БLOK«KanyuHNOdHM DOTUKOM

E1. Akeceapn Dny OunuHenn Hc nTeMa 36bMaHHa MOnoka «2B 1»: npncptri nn po36bKnOyBaHHa +rOJKA dny ToUHO rpeYIOBAHHa

E2. 3HIMHH6JOK36NBaHHMOLOQUHOI NIKN

€ Tpy6ka nla MoNOKa Ta 3'EnHyBaIbHn WtUceP

K. NonlaBci

M.Φikcatop Ta6netkI dIy OUYeHH

I. MetaniuHa KOiHa KabOMoJa

1. NaheIb KepyBaHHa

I. KhoNk Bu6Opy MeHIO

M. KHONKa BBIMKHeHHa/BUMKHeHHa

K. Khonka perylIOBaHHaMiHocTi KabN

JI. Khonka perynIOBaHH KjIbKoCTi HanoIO

M. KhoNka nyCKy/3yynHKn

H. KhoNka DoaTkoBoi npCii

1. KhoNka noDbMHO KaBn

I. KhoNkA peKIMy OeCNlyOBvBAHnHa: npOMBaHnHa, OuINCHENB HINADAEHNHAKINY

Our touchscreen interface and its buttons illuminate in an intuitive way to facilitate the use of the machine.

IPNIGOTYBAHHH HANOIB

HANO, IO MOXHA IPIROTYBATN B CbOMy IPINJALI, I MOXJIUBI HAIJAHTYBAHHA

Hanoi	Приблиenza КинькICTь	Рекоменданов�о об'\'м	Miúnichtь Кави	X2	Д形象кова норця
Picrtetro Mizuhi ecnpeso 3 мению поцем у насучим смakOM	M = 20 ml L = 25 ml XL = 35 ml	L	✓	✓	✓
Ecnpeso Класчий ecnpeso 3 воразим apomamOM yжрUM žirkувамою кавою πíнкою karapмелною кальору	M = 40 ml L = 55 ml XL = 70 ml	M	✓	✓	✓
Лонг б leak Плòшешень в міст мосте�у,噼е M'якшеш CMAC. Ду戜е нonyларный ранкову Hanl	M = 80 ml L = 120 ml XL = 180 ml	L	✓	✓	✓
Амерikано Посьшеш велочи ecnpeso 3 dodаванham зарчоі Bodu	M = 90 ml L = 120 ml XL = 150 ml	L	✓	✓	✓
Калунно Збальский поеданны молоча, πíнku мɑ KabU	M = 120 ml L = 180 ml XL = 240 ml	L	✓	✓	✓
Кава late Малоча πíнka 3 монкуm apomamOM KabU	M = 200 ml L = 280 ml XL = 350 ml	L	✓	✓	✓
Лате-makiato Більшеш молоча: ecnpeso 3 мению πíнкою ду урмани�	M = 190 ml L = 250 ml XL = 340 ml	L	✓	✓	✓
Гaramчы ВODA	M = 100 ml L = 200 ml XL = 300 ml	L		✓

Поради Пекомендацil

KoJHoro pa3y, KOni Bn BVb6bpa€Te hani, npinad BVkOpncTObYe nonpeDenH HalaStyBaHHa.

3AΓΑJBHE OBCJNYTOBYAHH

Halexhe 6cIyroBvBaHH Maunn IOnomOxe nOobKHTn Tepmii cIy6b i 36epeTn HneOBtphn CMAk KaBn.

13mpkybAHn ririeHN peKoMeHIOBAHO npOMBAtn KabOBy nCtemy 0doeHNO a6o niCnra toro, RA BOHa IOBRO He BvOKpIcTOBVAyIaON (noHAD 2 dHI). Bi MoKeTe hanaTuBAtn abomATNe pOMBaHn, 06b rapaHTyBatn 36epKeHHa HauKaIpoI cMAky 3a6e3neuHTn HanexhMy ririeHy. DInb. pOzDIN «IHUI ΦHYKLII|.

IONEPEIXEHNAPEXIMYOBCLTYOBYAHHA

XOYETE 3HATN, KOJI NBAUKA KABOMAUHA NOTPEBUETEXHICHHO DOJRAy?

KoIIN HeO6xIDHO npOBeCTn TexHicYe OcCnyroByaHHaHaekpaHI 3'YBIAETbCa nonepdJeHHA.

CbITIOIOHN iHnKaTOp Bka3yE Ha Te, 0 npuaN pOte6y e neBHX dIy aHH.

• Biiin nonepedxbyabnh CbITIOIDHn iDnkaTOp BkA3yE Ha Te, IIO neBHI ii E peKOMEHDOBAHIMM.

He BnKOpNCTOByIe IJI ONUIeHH NocyDomuH MyMaunHy.

YK CNOPOXHHTN TA OUYCTHTN KOHTENHEP JIJI MEJIEHOI KABN

ДиВ.po3dIn 8.B «СПОРЖЕHHЯ KOHTEИЗHAДЯ MEЛЕHOI KABИ» KopoTkoRo noci6nka KopuCTyBaHa.

Lio onepaizio cnid BnKohybaTn A KONi B iInTepeeiCi npnilady 3acBiyetybCra 6bnn nopejkyBaHn CbitIOJIOHN iDnKaTOp.

YuHHe Hn MIOBODHTN YACTIe, He YekaOHy, DOKN MaunHa 3aPnpOnHyE 3pO6bTN, AJe KOni 3CbHyTeBCa BIDNOBIDHN INDKAToP, PnnaIad peeeCTpy OUYUHENH KONTeHepa. I3 MIPKByBaHb rirEHN MNI peKOMeHnyEMO OUYUBAITN KOHTeHepd IaM NEOHO KABN ry6ko 3 rapaoyo BOIOO Ta MINOM KOKHO DR. MN TAKOX peKOMeHdyEMO IpocuyBaTIN KOKEn enement NOBITPAM, nepu HIX BCTAHOBIOBATN Ha MICIe.

He BnKOpncTObyIe Ia OunIeHna nocydomnHy MaunHy.

Baxnbo! HeOpTmHaHH HaBeHnX Bnue Bka3IBOK 0do peryIrpHO CnpOxHeHH KOtheHepa dI Ma MeHeoi

KABN iDOnHy IJRA Kpanelb MOKe npn3BecTNo ONoKWoJKeHnI pInlaNy.

TEXHUIHE OBCLYTOBVAHHAPE3EPBYAPA DJIABOIM KOHTEHEPA DIAKABOBHX 3EPEH

KOLI TA JK CII D OUYIYBATN PE3EPBYAP IJI BODI

Для заебешийн haкрашогу Кави, Ha киь Bвлпьают якість Bodи ёгіся, МИ радимо удени Oчниуbatу pezeерыар ДЯ ВODи 3a ДОпOMOrn uцітkn ДЯ УWIЕSHNY ПЛУŠКИ rapячоВODи. TakoK peKOMeHObaHO BICUshyBaTN uei enement Ha nobITpi, nepiхи HIX BCTAHOBIIbOATN IORO HA MICIБЕВПСТРИ.

KOLI TA JK CJIID ONUIyBATN KOHTEHEP IJRA KABOBNX 3EPEH

KabOBi 3epHa MoKyb 3aIIuAtn Ha CTINKax pe3epByapa MacIaNHcTm HAIIT, IIO BnIMBaE Ha KICTB KabN.ДЯ 3a6e3neueHHaIKKaPauOro CMAky i 3 MIPkyBaHb rirEHN Mn paIIMo BuaJATn ceH aHIT cyXIO M'AKIO raHvipKOIO KOJHOrO pa3y, KOJI N Bu 3aONBIOTe pe3epByap.

JonepeXeHHa! He BnKOpNCToBvIe IJIy OUnIeHHe NKOHTeHepa IJIy KaOBHX 3epeH BOy, OckINbKNe Ie npIn3BeDe

CNOBIZHHe 3aIiHaTmMeTbCn Ha DnCnIe, DOKN Bn He BnKoHaTe CIO npOceDpy.

Baxnbo! kso maunHy bno biKIOeHb iD mepeXj KINBEHNH nIac o6cnyroBuHaHn a6o B pazi nepe6oIB i3 KINBEHNm nporpaMy ouuienHH bye pepezanyeHO. IIO onepauio BiKlaCTn He moKHa: BOHa He06xIDna dI pyomBaHn CInTeMn cIpKyIauIi BoN. y TaKOMy BnPaKnky MoKe BUNHKHTn Notpe6a HOBI tabLeTci dIra OUYIeHH.

IHHIΦYHKLII

OCTU O HANAHTYBAH nPnIaNy

Ockilbkn zmaaHa He oIaHaHa eKpaHOM, nlaocTyNpy nlaHaTaYBaHb BnKOpncTOByTbcr dONomixHi fHKii neBHnx KhONOK.

IooB BiKpnTm MeHIO HanaaTuBaHb:

• Ppnilaad Ma€ 6ytniiknloeHm do MepeXkKMBHeHH, ane He BBimKHeHH.
• Hataytpmuyte KhoNk npotarom 3 ckynd.
  Koln cblnoiDni iHndkaTOpri ni nepuMNI TpbOMa peeNTAM 3a6bMaHOt i npolyaE 3BykOBni CunHan, ce O3NaATmme, zo BV MeHIO HanaSTyBaHb. Ina Habiraoi no HanaSTyBaHHx BIKOPcTObyTe KONKn picTpeto, ecnpco N noHr 6neK.

Cnucok napametpiB:

Tempepatура кави		Натинitsь,а поим - ,шоб установити tempepatура кави.Для кавobих наповдостуни три temператури рекими.
T1: M L X	Hиъka
T2: L X	Середна
T3: L X	Виска
АВТOMATИЧЕ ВIMКHEнHA		Ви мочete встановити п��iod,псileя яково писстрий ввтOMATИЧО ВIMКHEтбая дlya Збероженя[elektropikи: 10xbил，在,20xbил，在aб030xbил，在. Натинitsь,а поим - ,шоб наалштуваши ввтOMATИЧЕ ВIMКHEнHA.
M L X	10xb
L X	20xb
L X	30xb
АВТOMATИCHЕ ПOMPИВанHA		Ви мочete наалштуваши пашад за ввтOMATИCHО рompИВанHA Кожног рау псileя ввмкненя.3a замочуваши ся руфнця ввмкнеша.Натинitsь,а notim - ,шоб увIMКHyтп ввтOMATИCHЕ рompИВанHA.
M L X	АктунBE
L X	HeakTuBHe

IooB BmTn 3 MeHIO HanaHTyBaHb:

HATINCHITb KHONIKU,IO6B BNIIT3 MEHNO.
vMaunHa BmKHeTbcn 36epexe HanaTuBaHHa.

BIIDIOBIDI HA 3AINTAHH

EKCPIIYATAUIA

1)уpo6oti maunHn CTaBc 36i, npoPamHe 3a6e3neueHHa 3abCIO A5O MaunHa E hecnpaBHOIO.

BVMKHiTb MaunHy, BtIaRHTb BnIKy 3 pOeTKn, BmIMItb KApTpNk fInbTa, 3aueKaIte ONDy XBUNHy nepe3anyctiMaunHy.ДЯЗIaYcKу MaunHn HATINCHITb I yTpMMyTe KHOKNy BBIMKHeHHr/BIMKHeHHr IpOTaRm PpHaHMMI 3 cekyHd.

2)Пилад He BMKKaetbca nICЯ NaHTuCKaHnHa KONkY BBIMKHeHHa/BMKNHeHHa (npTAYOM npiHaMHi 3cekyHd).

們 IpepebiTe 3aNo6iJHKn Ta eNeKTpNHy po3eTKy.IpekeHOaTEcA,IO Da BOHTAKTN WTeNCbHOI BUNKn HAnEJKHM YHOM BCTabJIeHi B PO3eTKy.

I3JIAKBAHE CLEI IPIIOTBARE HA MJIeHHA HANITKA (30 s), ot pbkoBOcTBOTo 3a 6bp3 cTapt.

ФУHKUЯ „ЛЮБИМУ"

1a.Бbp30 nouCTBaHe Ha Tpb6ata 3a MJIko N KOHEKTopa (30 s)

OT XINHNN Cb6paJENH e Heo6xOIMMO NocCTBaHe cIeBcAIO pnpOTBAH He MlueHa HApNTKa. TOBa BKIOUba BVHMATEHPOyHNO nOuCTBaHe Ha Tp6bTa I HeHNI KOnEaTOC poeua BODa CneBcRA Ka ynoTpe6a. BnKTe rnaBa 5.A,PPNIGOTBAHE MA MLEUYHA HAPNTKA",OT pkoBOQCTB0To 3a 6bp3 CTPT.

1b. ABTomatuHNo n3nlaKbaHe Ha cncTeMaTa 3a MJIko (10 s - 20 ml)

Toba n3nIaKaBaHe Tp6Ba Da ce n3BbPbwa Cnei pInrOToBHeTo Ha BCka MlueHa HAnITKa, KOrato MaunHaTa Bn yBeDOMn iCBTeODIOBCT CTAPT/CTOIMnra. ToBa Bn N03BOJbRa Da noOpNCTte UaIaTa CnCTema 3a MIAKO Ha BaHaTa MauHaHa.

CBEtHe npEdupeDuTeHnAHT 6aJI CBeToDIO, HATINCHETe 6yTOHa CTAPT/CTOIT, 3a da cTAPtnpa n3IJaKBAHeTo Ha

ce noBn npdpunpejdeHneto nAko npdpunpdenHnTcHnAe CHPBEN

Ako He cTaptnpate N3nnkBaHTo BeDnara CneJ KpaJ Ha pecenTa:

Ha KOnTpOlnHnaHnIe Ce nOaBn 4uepeBHO npEynPepJdHeN e N 0ctAte TaM, OkaTo He 3aNoCHTe HnJIaKbAHe Ha MIAKOTO IN pBuHNO NOUcHbAte Ha CNCTeMaTAta 3a MIAKO.
- ABTomatnHOTOn 3nJIaKbaHe 3e 3anOHe, KOraTo MaunHaTa e N3KnUoyeha

OCHOBHO NOUCTBaHe Ha CnCTeMaTa 3a MNoKo

Baxho: OTHxHnIeHNbCb6paKHeNnBnPepOpBcBameEgeJeDHeBNOpHuNONoCTBaHeHaIaNaTcStema3aMJIkoBcIyauHa peOBbHa yNtpe6a NnI KOrato He ce I3NoJ3Ba 3a No-DbIbI nepiOo OT BpeMe (NoBee oT 2 dHI).

TOBA BKIOUBA peoBOH DEMOHTIAPHE u NOOHCTBAE HA POBIXKHN 6NOK ,KanuynHO c eJHO DOKOCBAE" , KAKTO IN Tp6eH INCHPTPMENT 3a NOUCHTBAE 3a Tpb6ata 3a MJIKO. BnKte rna6 , "PbYHO OCHOBHO IOUYCTBAE HA CNTTEMATA 3A MJRAKO-5 MNH , ot pskOBODCTBOTo 3a 6bp3 cTAPr.

Baxho: OXnHneHHN Cb6paJehn H 3a da ce nOlyuaba EaHa n Cb7a Pna H BceKn Tb, Bn npenopbUbaMe da noDMeHr MapKyu 3a MJIko N pIacTMacobata My IIO3a npi6bn3ntelHO Ha BCEKn Tpr Meceua. Te3n akcecoapn Ce npedlarat ha ye6caia KRUPS.fr.

ДPyгИЗАДАЧИЗПОДРБЖKA

Повдравка	Кога?	Оьскане	Изwickану дійства
Пробухваце на кафeto 45 s - 30 ml	Пробухчелно e сисемата за кафеда се излakва exедnevно лим_Kогато не се излал�ва за по-dылг петюдоть врeme (nobechу ot 2 ди).	Проблары Ви за излakнete воригата за кафе на машинатa.Toэп поочescиллбагсамо рорець вossa.Toba rapантupa abteHTNCHNYBк ус на Bavшeto кафе и чмашината Ви поima дылг ekcпллоатационен жиBOT.	Пробраве сьд по діюзата за кафe•Вкlioчete машинатa, с proced koetOnHATINCHETe•Изберete Функшията за излалквае•HATINCHETe 3a насано на Излалкванeto.
Почиствае на машината 13 мин. - 600 ml	Korato машината Ви полита.	Зд за зра当然是 apomata на кафето и о transitneнни сьобрахени, Ви п enrolpopчваме д рочистITE и д obeshmaclite машината.Toba по Ви rapантupa ontmално заразаване на apomatITE на Bavшente нанлтук.	Heobxodim akcecoap: 1 tabletka 3a nochuctbahe KRUPS (16p.) и контейнорс кацaitETOT onai-manko 600 ml.Korato машината по Изисka, белитп们черевно-белитпождупсплелен CBETODIOД N CBETODIOДТ Hа Иnterpсeиca N le CBETHAT.BvЖte rlaba 10,,ПьлHO ABTOMATUHOOПОчNTBAHE HA MAUSIHATA 3x/ГОДИSHO - 13 MInH,"ot рьковоствOTO 3a 6bpr3 стartМожete сьшто тaka за Извршени nochuctbahe, korato пожелаete, кato нахшete nИзберete поррамата за nochuctbahe, обозначения OTCBETODIOД
Остroduвае на котлен камьк 20 мин. - 600 ml	УрedingВи уVEDOMЯь, когато e NeobxodIMо д se илллнл пограма за пешима на котлен камьк.	Пробaxванeto Na KOTLENHЯ кambК Na Bavastamata mashinha rapanlmpa npabivnHOTOnФункшионлране иelenmnhira obpaZbAHeto Na KOTLENH KMын тaptarat.Tаи сылпka e MNoTo BaxHa 3a OCSINrpyBaHeto Na павilnHOTOnФункшионлранe и Дылготай�ост на Bavшя урed.	Heobxodim akcecoap: 1 nachteчесу na徳хьнаме на кOTLENH KRUPS (36p.) и Контейнорс кацaitETOT onai-manko 600 ml.Korato e NeobxodIMо д с相对较пате пограма за пешиман KaOTlen KaMbK, урedingВи уVEDOMЯь. Korato машината сбreltrpale, сokhenпурдпсплелату п徴урдпетен CBETODIOД N CBETODIOД T Ha INTEPpeica N le CBETHAT. С导读 Това Вижп经 rlaba 11, „ПьлHO ABTOMATUHOO ПОчNTBAHE HA MAUSIHATA 3x/ГОДИSHO - 13 MInH,"ot рьковostвOTO 3a 6bpr3 стart.C导读 Като Функшияда e aktivbna, можeteSBуdo Д azanuchete п徴мхванeto на кOTлEN KAMьК OT машината при поСКВанeЧerednatka Na 36bip3 Na 36bip3 Na 36bip3

BaxHo: He e 3aIbIaKeTeHIO da Nyckate npOrpamata 3a noIdpbJka BcHnara 7om ypeBt r noncKa, Ho Tpr6Ba da r nycHeTe DoCTaTbUHO cKOp o CneToBa. Ako nouNCTbaHeto e OTNoJKeHo, npedynpeXeHneto 7e octaHe Ha DInCnIe, DOKato Oepaunra He ce I3nblHn.

Baxho: Ako n3kIIOUHTe MaunHATA O NTOKTA Kno BpeMe Na NOIDpBXKa NIN B CnyaHn EneKTPuuecka NOBpeA, nporpaMaTa 3a nouchTbAbeJe Ce CB3O6HOBNOTcAMTO NaHao. Hma Da e B3MOXHO Ta3n ONepaUNa Da c OTJxN: 3aDbJIxNtELHo e da Ce I3Pknake CnCTemata 3a BOda. B To3n CnyauM MoKe Da e Heo6XODIMa HOBA Ta6Netka 3a nouchTbAbe.

DPyTN ΦYHKUIN

KAK DA NOJUYNTE DOCTbI DO HACTPOIKTE HA MAUNHATA BN

TbK KaTo Ta3n MaSiHa HMa ekPaH, HAcTePoiKKeTc a NHTeRtpaHn KaTo BToPA oHKzHn Ha HJAKoN 6yToHn.

3a doctbn Do MeHIOTo C hAcTpoKn:

• UpebT Tp86Ba Da e BKNIOueH B KOHTaTa, Ho He N ot 6yToHa

HaTnchHeTe 3a3cekyHm
Korato cBeToiOnIOte npIbPBrTe TpIpeeTn IpmEnHnat UyeTe 3ByKOB CnHaN, Bue Ce TcB HacTroKnTe. CneTobamokTe da HabrInpate C nOMoUta Ha 6yToHnTe 3a PnCTpeO, eCnpco Nblro Kafe.

CnncbKaHaHactpoKnte:

Temпература на kaфeto		Натиcheapе та с点点头 Кама, за ща有很大 посокуtemпега typа на Kaфeto. Има 3 пова За有很大 посокуtemпега typа на Kaфeto.
T1: M L X	Hиcka	Можete наизберете поюда от врeme, с点点头 Кама посоку有很大 посоку авTomатчно, за ща有很大 посоку有很大 посоку Натиcheapе та с点点头 Кама посоку有很大 посоку За有很大 посоку有很大 посоку Вл: 3a за有很大 посоку有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有多大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大的 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа只要有 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа里面有 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа是有 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有关部门 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоко 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посокo 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посокo 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посоку 30 поа有很大 посоку 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посок氧 30 поа有很大 посоку 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посок氧 30 поа有很大 посоко 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокь 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокХ 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокX 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокx 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокx 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посоко 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посоко 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посоко 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокx 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 поа有很大 посокх 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokх 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa有很大 nocokx 30 noa有很大 nocikx 30 noa有很大 nocikx 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 30 noa很大 yekm. 287	167

3a n3XoD OT MeHIOTo CHaCTPOJKn:

=

• Hatnchete 6ytoHa, 3a da n3ne3eOT MeHIOTo.
  MaunHata ue ce n3KluOuN u 3aanaHn HactpoKnTe.

OTROBOPN HA BAUIN BbIIPOCSN

PABOTA

1) MaunHaTn oka3Ba nobpea, cofoepbTe 6Jokpan INIIM B MaunHaTn mHa HeH3npabHOCT.

U3KJIIOUeTe MaUNHATA u IN3BaTeIe IeCenca OT KOHTaTc,OTCTpaHEte FInITbPHaTa KAcEtA, IN3aKaaiTe 1 MmHyTa n pectapTnpaiMeMaunHata. HATNCHeTe Iz3aDpbXte 6yToHa BKJ./M3KJI. nohe 3 cekyni, 3a da CTAPtnpate.

2) YepeBt He Ce BKNIOUcBa CneI HaTnCKaHe Ha 6yToHa BKN./M3KJI. (HaI-MaNko 3a 3 cekynHn).

巧 Повете прдпаителп e lektprueckma kOTaK T b eletktpuyeckaT a Bn nHctalaцЯ. Поветe дani dbata 3axpaHbauи uencena ca noctabehn npabINHO B KOHTaKTA.

3) Bb3HnKhana e eJekTpuecka HEn3npaBHOCT NO BpeMe Ha Znkbl.

YCTPOINCTBOTO CE HYNIPA aBTOMATNUHO, KORAto CE BKJIUOu OTHOBO.

4) KaΦeMaŋkaTa pa60Tn npa3Ha.

TOBa e HopmaJIHo, aKo Ce cIyUba O T BpeMe Ha BpeMe n aKO HMa 3bPHa Kafe uN CaMo MaJIko KOJIuYeCTBO.
B KOHTeHepa BCE OSe IMa MaIko 3bPHa KaΦe:

O Kafo Moke da e npkealeho Ma3no n cneobateHn He ce ynaBra npabunHO ot ypea. MoKeTe da onntate da hakapate 3bpHata da cna3at dony u da Bnnte da nn TOBa ue 3aedeCTBA OTHOB. PnpopbHTenHO e o6aue da cmehnte Kafo (BX.fyHKUra 3a TnHa 3bpHata).

o Toba e MoeTo o6nuaHNo Kafo, KoToDocera ce e o6pa6oTBano Do6pe: cBbpxte ce c Baunia cIeInpOdoJxBeH cepBn3.

YNOTPE6A

1) KaΦeMaŋKaTа n3dAbe Heo6nuaeH yM. B KaΦeMaŋKaTа c6c cnrgpHoc Tma yKJn Tea.

OnetaTe cda nouctnte c npaxocmykauka, B npotnbeH cnyaie Ce Cbpxte C Baia ngopez Tne ooh 3a cnepnoa jkbo 06cnybahe.

2) KaΦeTo e npeKaJIeHO CBETNo IIN He e DOCTaTbUHo HAcNTeHO.

Поберете даль в контейнера за зврна за счеса правлино.
U368raBaiTe I3I0JI3BaHeTO Ha Ma3Hn, KaPAMEIN3IpaHn IJIa apOMaTIN3IpaHn KaFeTa, KOITMO MoKe Da He ce yIyABaTdo6pe.
HamaTe KOJIueCTBOTo HA 3aTOOBkTaI yBEnuYeTe CnlaTaN, Kato n3NoJ3BaTe fHyKcNtAra 3a Cnla H KaFeTo. 3aBbPteTe 6yToHa ,fHIOCT Ha CMInaHeTo" 3a Da NOnUyIne No-fHNO MInHO KaFe. PnirOTrBete HAnITKaTa B Daa ZIKbNa, Kato n3NoJ3BaTe fHyKcNtAra 3a 2 aAsi.

3) Ecnpecoto nii KafoTo He e doctaTbUHO ropeuo.

YBENHETe TEMNepaTypata Ha KafoTe B HAcTPOKHTe Ha MaunHATA. 3arpeite Chaata, KATO IINJIaKHete C ropeua BODa, npedn da 3anOHETe da nprirotBte HanNTkata.
們 PnpEn Da npnroTbnte KafoTo CN, n3BbpSeTe n3PnAkaBaHe Ha Beprata 3a Kafoe. FyHKunraTa 3a n3PnAkaBaHe Ha Kafo npn BkIIOUBAHe Ha yCTpoNCTBOTo MOKe Da Ce AKTNBnpa OT HAcTPOKn/ABTomATNUHO n3PnAkaBaHe

4) OIIO3NtTe 3a KaFe IpeDn BCaKo KaFe Teue YIcTa BOda.
Korato cTAPtPate peuenta, ce n3BbPwBa npEeBapntEnHO 3anapBaHe I TOBA Moxe da DoBeJe DO n3TuHaHe MaJIKO KOLIcHcTBo BOda OT dIO3HTe 3a KaFe.

Ako nKoI OT oNcAHnTe No-rope npOBeMn He e OCTpaHEn, CbpxeTe Ce c OTeJena 3a O6CnykBaHe Ha KIneHTn Ha KRUPS.

Baxho:Пюивордел: SAS GSM - Rue Saint-Lemonard F-53104 Mayenne - Фразця.

1. VAZNE INFORMACIJE O PROIZVODU 366-368
   1.1 UPUTE ZARAD:SIMBOLI 366
   1.2 PROIZVODI ISPORUCENI S UREDAJEM 366
   1.3 TEHNICKI PODACI 366
   1.4 OPIS UREDAJA 367
   1.5 PREGLED 367
   1.6 SUCELJE 368
2. PRIPREMA I UGRADNJA UREDAJA 369-370
   2.1 UGRADNJA FILTERA 369
   2.2 MLINAC: NAMJESTANJE FINOÇE MLJEVENJA 370
3. PRIPREMA NAPITAKA 371-373
   3.1 MLJEcNI NAPITCI 376
   3.2 FUNKCIJA FAVOURITE (OMILJENO) 373
4. OPÇENITO ODRŽAVANJE 373-376
   4.1 UPOZORENJA O ODRZAVANJU 373
   4.2 ODRZAVANJE SPREMIKA KAVE U ZRNU I POSUDA ZA KAPLJEVINU 374
   4.3 ODRZAVANJE SPREMIKA ZA VODU I SPREMIKA KAVE U ZRNU 374
   4.4 ODRZAVANJE SUSTAVA ZA MLJEKO 375
   4.5 DRUGI ZADACI ODRZAVANJA 376
5. DRUGE FUNKCIJE 377
6. ODGOVORI NA VAŠA PITANJA 378-379

Poštovani kupće,
