USER MANUAL POWERFUEL BLENDER PB2B-P1200 WILFA

IMPORTANT SAFETY INSTRUCTIONS

USING YOUR TAMPER INCL. PB2B-P1200

HOW TO USE

CLEANING AND STORAGE

OPERATING NOTES VEGETABLE SOUP GUARANTEE PRODUCT SPECIFICATIONS

SUPPORT AND SPARE PARTS

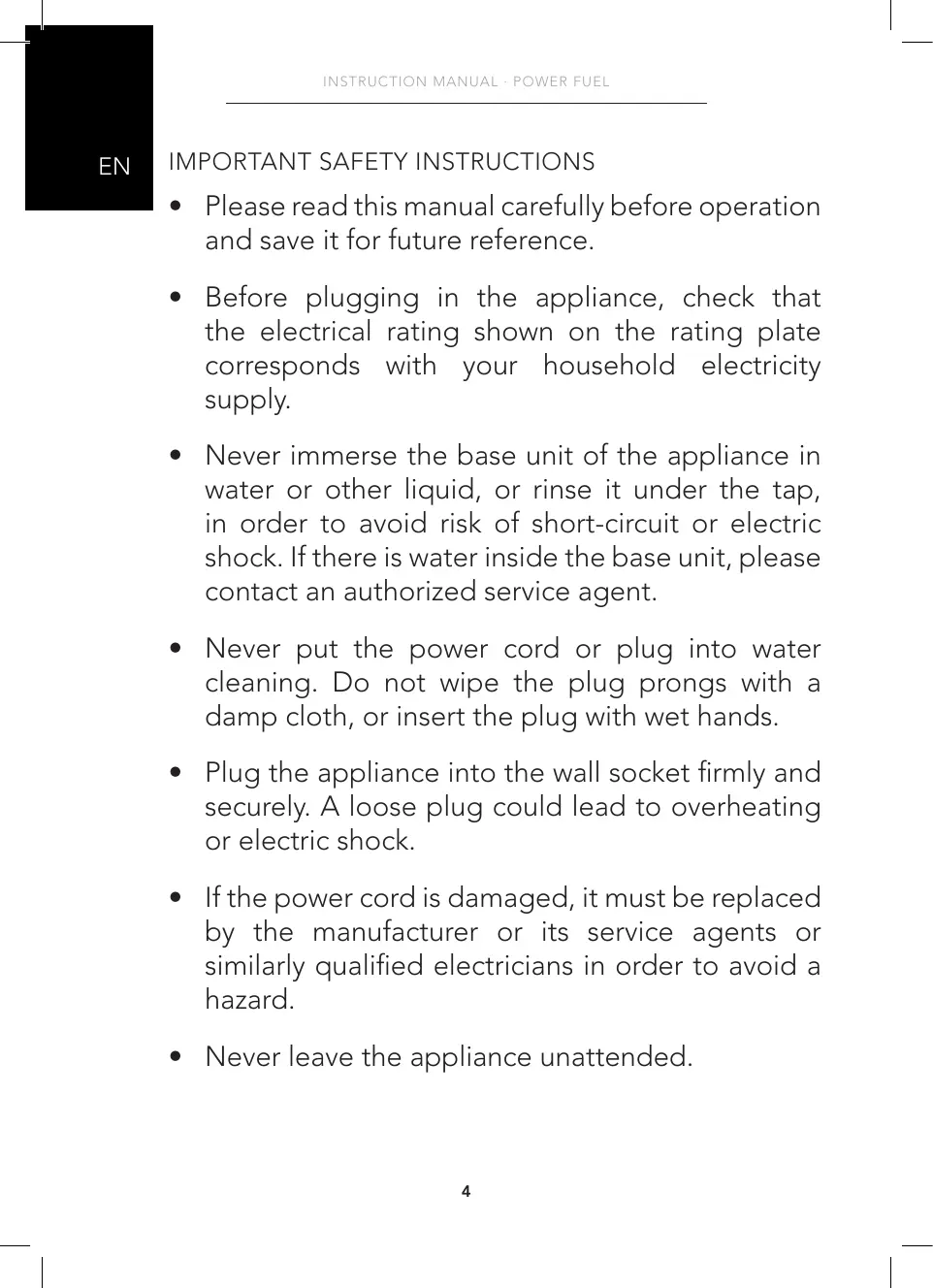

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Before plugging in the appliance, check that the electrical rating shown on the rating plate corresponds with your household electricity supply.
• Never immerse the base unit of the appliance in water or other liquid, or rinse it under the tap, in order to avoid risk of short-circuit or electric shock. If there is water inside the base unit, please contact an authorized service agent.
• Never put the power cord or plug into water cleaning. Do not wipe the plug prongs with a damp cloth, or insert the plug with wet hands.
• Plug the appliance into the wall socket firmly and securely. A loose plug could lead to overheating or electric shock.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified electricians in order to avoid a hazard.
• Never leave the appliance unattended.

BLENDER · PB2B-P1200

• Keep hands and utensils out of the container while the motor is running to prevent the possibility of severe injury and/or damage.
• Do not run the appliance without loading the blender jug.
• To prevent spillage, do not fill liquid in the blender jug above the MAX line.
• Do not expose the appliance to heat sources such as a radiator or sun shining through a window.
• To ensure good ventilation, do not place a cloth underneath the appliance.
• For indoor use only. Do not use outdoors or for commercial purposes.
• Always operate with the lid in place. When processing hot beverages, properly secure the lid and measuring cup to avoid scalding due to spraying of hot liquids.
• Appliances may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance must not be used by children. Keep the appliance and its cord out of reach of children.
• Switch off the appliance and disconnect from the power supply before changing accessories or working near parts that move in use.
• Unplug the power cord from the wall socket when appliance is not in use, before assembling or removing parts, and before cleaning.
• If the motor has overheated, the temperature monitoring system will trigger and the motor will stop. Switch off and unplug the appliance and let the motor cool down. The motor temperature monitoring system will reset after the blender has been unplugged from the wall socket for 45 minutes. After this time, the blender can be used again.
• The blade is very sharp, so use caution when handling the blade. Do not attempt to disassemble the blade assembly or touch any rotating parts.
• Any servicing should be performed by an authorized service representative. Do not attempt to disassemble, repair or modify the appliance.

BLENDER · PB2B-P1200

• Always disconnect the appliance from the power supply if it is to be left unattended and before assembling, disassembling or cleaning.

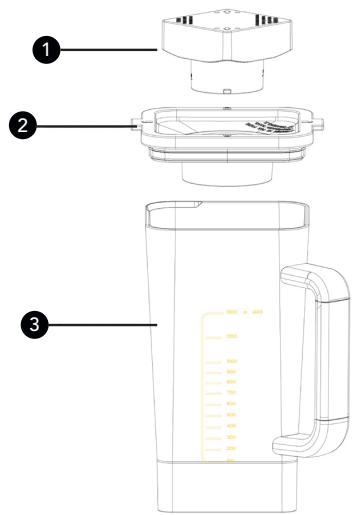

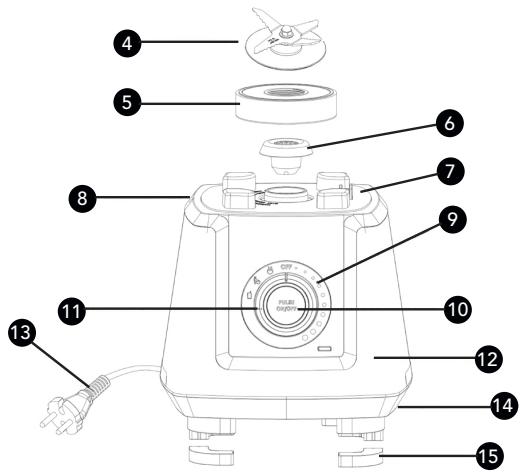

Measuring cup Lid Blender jug Blade assembly Blade Mount Drive Gear Blender Jug Seat Top Cover Circular trim Pulse/start/stop button Speed Dial Motor unit Power cord Bottom cover Anti-skid rubber foot Tamper incl. PB2B-P1200

BLENDER · PB2B-P1200

The tamper is to be used for stirring food and reading the food temperature in the blender jar. Never use the tamper without the lid in place. Remove the filler cap from the lid and slide tamper into the Blender Jar. The tamper has a splash guard located near the top that prevents the tamper from coming in contact with the blade assembly. The maximum temperature for the tamper is 212ºF. To take a temperature reading simply press the temperature button located on top of the tamper. The temperature is read by a sensor located at the bottom of the tamper. You can turn the temperature sensor off by pressing the temperature button; otherwise it will automatically shut off after 2 minuttes. To change between Celsius and Fahrenheit press the button on the top of the tamper for more than 3 seconds.

1. Open the Top Cover by turning

3. Locate the battery on the underside of the

PCB Assembly. Slide out the battery from under the bracket. Slide a new battery into the bracket and replace the PCB Assembly and Top Cover. Use only battery type CR2032.

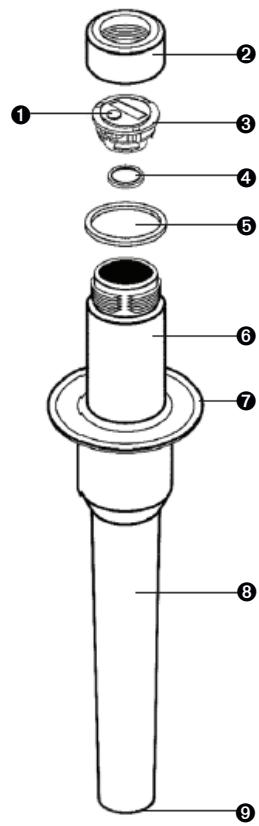

Temperature Button Top Cover PCB Assembly Battery Decorative Ring Handle Splash Guard Tamper Stem Temperature Sensor (located underneath)

2. Remove the PCB Assembly from the Tamper

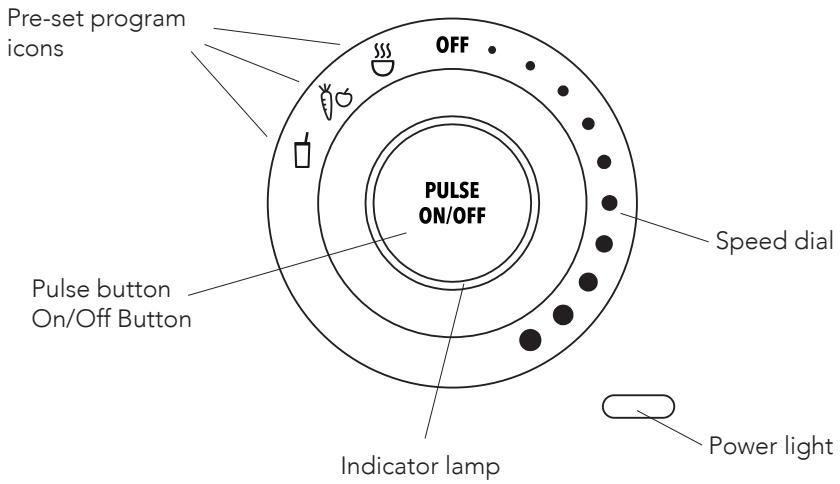

being careful not to pull the wire connector. CONTROL PANEL Pre-set program icons Speed dial Pulse button On/Off Button Indicator lamp Power light

HOW TO USE

Check that the electrical rating shown on the rating plate corresponds with your household electricity supply.

• Stand-by mode and energy saving mode: Plug in the blender and set the blender jug on the base unit. The power light and indicator lamp will light up in red; the blender is now in stand-by mode. If the blender is left idle for 3 minutes the blender will go into energy saving mode; the power light will remain lit with a red light, while the indicator lamp will go out. (From energy saving mode, the unit will go into stand-by mode when any key is pressed)
• ON/OFF button: This button is the ON/OFF key for the pre-set programs. A selected pre-set program function will only be activated by pressing the ON/ OFF button. Pressing the ON/OFF button again will stop the unit.
• PULSE button: This is the manual button for PULSE operation. In stand-by mode, with the speed dial pointing to the OFF position, hold the PULSE button down and the motor will increase to full speed in PULSE mode, and the indicator lamp will show a white light. When you release the PULSE button, the blender will return to Stand-by Mode.
• Speed Settings: This blender has 10 continuously variable speed settings. In stand-by mode, turn the speed dial clockwise from the OFF position, and the blender will operate at the corresponding speed. By continuing to turn the speed dial clockwise, the speed will gradually increase, finally achieving maximum speed. During operation, the work indicator lamp will turn white.

BLENDER · PB2B-P1200

The blender will automatically turn off after 10 minutes. To reset the blender for the next operation, turn the speed dial back to the OFF position.

• Preset Program Key: To use the preset programs, the blender should first be in Stand-By Mode, then select and rotate the Speed Dial from the OFF position to the desired preset program setting and when finished press the ON/OFF button. To stop the blender during operation of one of the programs, press the ON/ OFF button to stop the blender. After operation of the preset program, the blender reverts to stand-by mode. Icon Function Operation cycle Soup Increases to Speed 7 in 7 sec, then increases to Speed H in 3 sec, and keeps at this speed until finish. Total duration is 8 minutes. Every start-up is soft-start. Vegetables Speed H 30s, stop 2s; Speed 6 10s, stop 2s; Speed H 60s, stop 2s; Speed 6 10s, finish. Total operation is 1m 56s. Every start-up is soft-start. Smoothie Soft start to Speed H for 8s, and stop for 2s. Repeats the cycle until the total operation time is 30s. Every start-up is soft-start.

LID, MEASURING CUP

• Insert the measuring cup in the lid by aligning the two tabs in the slots on the lid and twisting to lock. Then push the lid onto the blender jug to close it. To open the lid, pull the flap up.

CLEANING AND STORAGE

• Unplug the appliance from the wall socket.
• Do not immerse the base unit or power cord in water or other liquids.
• Clean surface of the blender jug with a soft cloth or sponge. The measuring cup can be disassembled for cleaning.
• The blender jug can be rinsed with water. It can also be cleaned by pouring 2 cups of water into the blender jug, closing the lid and then operating the blender in Pulse Mode. Then pour out the water and dry with soft cloth.
• After cleaning, place the blender jug on its side or upside down (Note 1) to dry. Do not immerse the whole jug in water.
• Clean the base unit with a soft cloth. NEVER immerse it in water or other liquid. Note: Tamper and blender jug shall not be washed in a dishwasher. Note: If you place the blender jug in upside down position, please remove residual water with a dry cloth. Do not leave it close to the sink or basin in order to avoid water spraying onto the bottom part of the jug. This may cause the bearing to rust, thus affecting the performance of the blender OPERATING NOTES
• The blender cannot be operated if: – The jug is not firmly positioned on the base. – The speed dial is turned to variable speed before the jug is positioned firmly on the base. – The jug is removed during operation and put back again.
• You need to turn the speed dial back to the “OFF” (OFF) position and make sure the jug is positioned firmly on the base. This will reset the blender.
• If the motor is forced to slow down because of food that is too big in size or if there is not enough liquid in the jug, and if it operates for a long period, the temperature monitoring system will trigger and stop the operation of the motor. The red LED will blink at a rate of 2 Hz. In this case, unplug the blender and leave it in a place with good ventilation to cool down the motor temperature for 45 minutes. The system will reset and the blender can be used again.
• During operation, close the lid tightly to avoid scalding due to spraying of hot liquids.
• Keep hands and utensils out of the container while the motor is running to

BLENDER · PB2B-P1200

prevent the possibility of severe injury and/or damage.

• When making hot beverages such as soybean milk, or making hot soup, please check that the lid is secured tightly to the jug to prevent it from falling off. It is advisable to start operation at a low speed setting and then increase the speed gradually, or use the PULSE mode.
• When making sauces (e.g. almond sauce, jam and sesame sauce) or stuffings or processing nuts, put in between 2 and 3 cups of ingredients. The amount should neither be too large or too small. Keep the blending time below 2 minutes to prevent any burnt smell due to overheating. Too large a quantity of ingredients may lead to overloading and overheating of the motor. In this case, wait until the motor temperature falls before operating again.
• Add liquids and soft foods before putting in hard food or ice cubes.
• When the operation finishes, wait until the blade assembly comes to a complete stop before removing the blender jug. Otherwise, the drive gear may be damaged.
• If you notice a scorched smell from the blender, stop the operation immediately. It may be caused by abrasion of the rubber cushion base if this is not properly assembled.
• When blending thick and sticky food at high speed, please start the operation at low speed. If there is still no rotation, disconnect the power and stir the contents of the blender jug using a rubber stirrer to drive out air trapped in the food. Then close the lid and switch on to resume operation.
• Do not operate for more than 10 minutes at a time. VEGETABLE SOUP Serves 3
• 350 ml water with meat stock
• Salt and pepper Boil the water using a kettle or in a saucepan. Dissolve the stock cube in the hot water. Now pour the water into the blender jug. Add all the vegetables and cream and blend on medium speed for 2-3 minutes.

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
• Parts which are normally worn down
• Parts you can expect being replaced regularly (e.g. filter, battery etc.)

BLENDER · PB2B-P1200

PRODUCT SPECIFICATIONS

220V~240V~50Hz, 1200 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge. PRODUKTSPESIFIKASJONER 220 V~240 V~50 Hz, 1200 W
