USER MANUAL COSI OASYS UP CHICCO

• Read these instructions carefully before fitting and installing the product. Prevent anybody from using the product without reading the instructions. • WARNING! According to accident statistics, a vehicle’s rear seat is generally safer than the front seat: therefore, we suggest to install the car seat on the rear seat of the vehicle. In particular, the central rear seat is the safest one when fitted with a 3-point safety belt. • WARNING! SERIOUS DANGER! Never use this car seat fitted on front vehicle’s seats that feature airbags. It is possible to fit the childs car seat into a front seat only if the frontal airbag has been deactivated: check with the car manufacturer or in the owner’s manual for instructions on how to disable the airbag. It is always recommended to slide the vehicle seat for back as possible depending on whether passengers are travelling on the back seat or not. • Make sure that all passengers within the vehicle know how to release the child from the child car seat in case of emergency. • Pay attention when fitting the child car seat into the car to avoid a vehicle’s car seat or car door may interfere with it. • Always check that the child car seat is secured correctly to the vehicle’s seat in the event of an accident, but the use of this product reduces the risk of serious injuries or death. • The risk of serious injuries to the child increases, not only in the case of accidents, but also in other circumstances (i.e.: sudden braking, etc.) if these instructions are not followed carefully. Always check that the child car seat is secured correctly to the vehicle’s seat. • If the child car seat is damaged, deformed or worn out, it must be replaced: it may no longer meet the original safety standards. Even if not visible with eyes, after an accident (even minor ones) the car seat will suffer permanent damages. It must therefore be replaced. • Do not use second-hand child car seats: they may have suffered structural damage not visible to the naked eye but liable of compromising the safety of the product. • This product must not be modified in any way unless the modification has been ap-

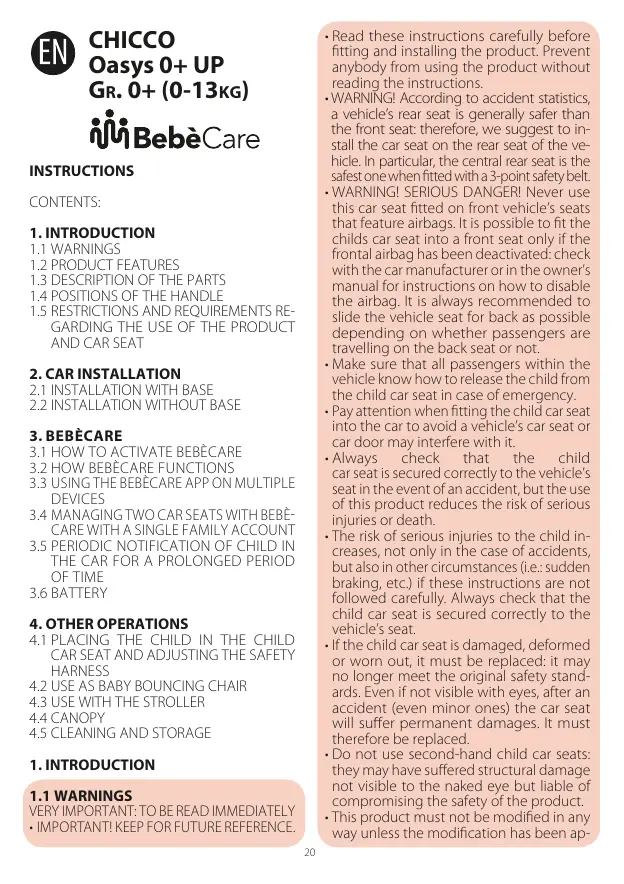

INSTRUCTIONS CONTENTS:

1. INTRODUCTION 1.1 WARNINGS 1.2 PRODUCT FEATURES 1.3 DESCRIPTION OF THE PARTS 1.4 POSITIONS OF THE HANDLE 1.5 RESTRICTIONS AND REQUIREMENTS REGARDING THE USE OF THE PRODUCT AND CAR SEAT 2. CAR INSTALLATION 2.1 INSTALLATION WITH BASE 2.2 INSTALLATION WITHOUT BASE 3. BEBÈCARE 3.1 HOW TO ACTIVATE BEBÈCARE 3.2 HOW BEBÈCARE FUNCTIONS 3.3 USING THE BEBÈCARE APP ON MULTIPLE DEVICES 3.4 MANAGING TWO CAR SEATS WITH BEBÈ CARE WITH A SINGLE FAMILY ACCOUNT 3.5 PERIODIC NOTIFICATION OF CHILD IN THE CAR FOR A PROLONGED PERIOD OF TIME 3.6 BATTERY 4. OTHER OPERATIONS 4.1 PLACING THE CHILD IN THE CHILD CAR SEAT AND ADJUSTING THE SAFETY HARNESS 4.2 USE AS BABY BOUNCING CHAIR 4.3 USE WITH THE STROLLER 4.4 CANOPY 4.5 CLEANING AND STORAGE 1. INTRODUCTION 1.1 WARNINGS VERY IMPORTANT: TO BE READ IMMEDIATELY • IMPORTANT! KEEP FOR FUTURE REFERENCE. 20

proved by the manufacturer.

• Do not fit any accessories, spare parts or components not supplied or approved by the manufacturer. • Never leave the child unattended in the child car seat for any reason. • Never leave the child car seat unsecured in the car seat, it may hurt or harm passengers. • Never place anything except an approved accessory between the vehicle seat and the child car seat or between the child car seat and the child: in case of accident, the car seat may not work properly. • It is recommended to cover the child car seat if the vehicle is left exposed to direct sunlight. The seat fabric must only be replaced by the manufacturer as it forms an integral part of the child car seat. To ensure child car seat’s safety, never use it without its fabric cover. • Check that the safety harness strap is not twisted to avoid the strap or any parts of the child car seat remaing trapped between the car doors, or rub against sharp edges. If the safety harness is cut or frayed, it must be replaced. • Do not transport loose or unsecured objects or baggage on the back shelf of the vehicle. They may injure passengers in case an accident or sudden braking. • Make sure that all car passengers fasten their seat belts, for their own safety, during the journey on they may harm the child during an accident or sudden braking of the car. • On long journeys make frequent stops. Children get tired easily. Never, for any reason, remove your child from the child car seat whilst the car is moving. If your child needs attention, find a safe place and stop. • Premature babies born before the 37th week of pregnancy can be at risk if placed in a child car seat. These babies might incur in breathing problems when sat in a child car seat. We therefore recommend you to contact your doctor or the hospital staff, before leaving the hospital. They can recommend the most suitable type of child car seat based on your child’s situation. • Artsana declines all responsibility for any inappropriate use of the product.

1.2 PRODUCT FEATURES

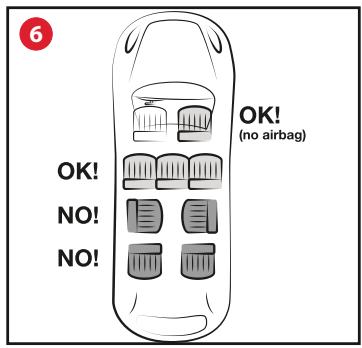

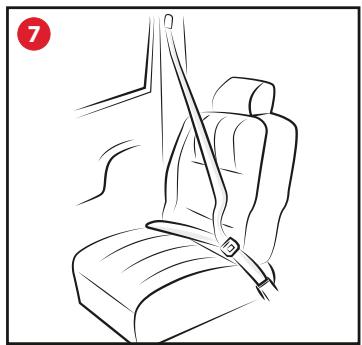

• This child car seat is approved for “Group 0+”, for the safe transportation of babies from birth up to 13 Kg in weight (from 0 to 10/12 months approximately), in accordance with European Standard ECE R 44/04. WARNING 1. This is a “Universal” child restraint system. It is approved according to Regulation No. 44/04 for general use in vehicles, and it will fit most, but not all car seats. 2. A correct fit is likely if the vehicle manufacturer has declared that the vehicle is capable of fitting a “Universal” child restraint for this age group. 3. This child restraint device has been classified as “Universal” under more stringent conditions than those that were applied to earlier designs that do not display this notice. 4. It is only suitable for vehicles which feature a 3-point static or 3-point retractable seat belts approved according to UN/ ECE Regulation No.16, or other equivalent standards. 5. In case of doubts, contact the manufacturer of the restraint device or reseller. 1.3 DESCRIPTION OF THE PARTS Fig. 1 (3/4) A. Carry Handle B. Canopy C. Fabric lining D. Booster cushion E. Base Fig. 2 (Front) F. Child car seat restraint harness G. Shoulder straps H. Buckle I. Harness adjustment button J. Adjustable headrest Fig. 3 (Profile) K. Abdominal car safety belt slot on the child car seat L. Abdominal car safety belt slot on the base M. Buttons to rotate the carry handle N. Slot for coupling to the stroller or base

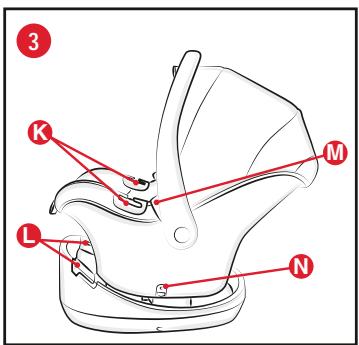

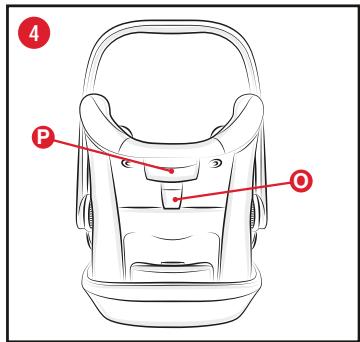

O. Diagonal car safety belt slot

P. Release handle (from the base and stroller)

wise, try to install the car seat on another vehicle’s seat.

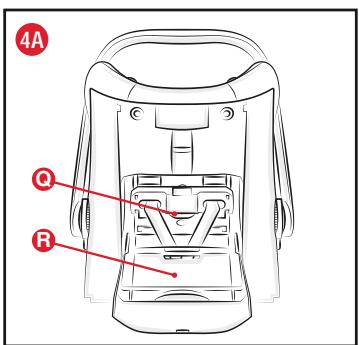

Q. Headrest and belt adjustment button R. Compartment for storing the instruction manual

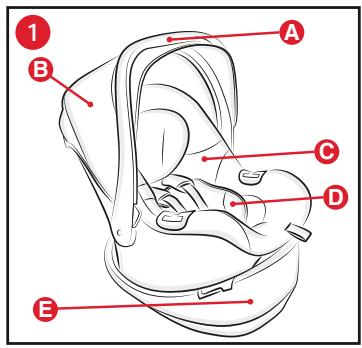

2. CAR INSTALLATION The child car seat can be installed with or without base (E). In either case, the child car seat must always be installed rear facing.

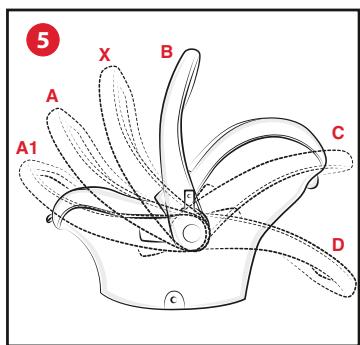

1.4 POSITIONS OF THE HANDLE The child car seat carry handle can be adjusted in 6 different positions (Fig. 5).

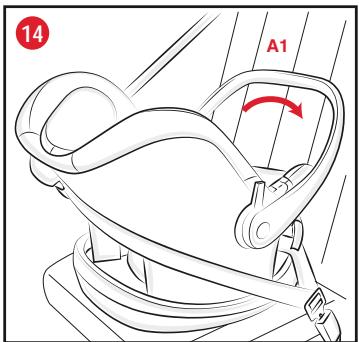

A. Position in car without base. A1. Position in car with base (WARNING: positions A and A1 are the only positions allowed during use in the car). X. NEVER use. B. Position when carried by hand. C. Rocker chair mode position or when you need to fasten it to an appropriate Chicco stroller. D. Fixed rocker chair position. To adjust the position, press both buttons (M) on the handle bar together and rotate it to the desired position until you hear it click into place. 1.5 RESTRICTIONS AND REQUIREMENTS REGARDING THE USE OF THE PRODUCT AND CAR SEAT WARNING! Strictly complies with the following restrictions and requirements for use concerning the product and vehicle’s seat: safety will not be guaranteed otherwise. • The child car seat can be fitted on the front passenger seat or any other back seat. In any case the vehicle seat must be used forward facing. Never use this Car seat rear facing on any vehicle’s seat (Fig. 6). The vehicle’s seat must be equipped with 3-point seat belts whether static or retractable, approved according to UN/ECE Regulation No. 16 or other equivalent standards (Fig. 7). • WARNING! In case of use in vehicles equipped with rear seat belts with integrated airbags (inflatable belts), the interaction of the inflatable portion of the vehicle’s belt with this child restraint can result in serious injury or death! Do not install this child restraint using an inflatable seat belt. • WARNING! Never fit the child car seat to a vehicle seat that is only equipped with a 2-point safety belt (Fig.. 8) • Never use the booster cushion if the child weighs more than 6 kg. • Make sure that the car’s 3-point seat belt buckle is not too high (Fig. 11- 15). Other-

2.1 INSTALLATION WITH BASE To install the child car seat with base on the vehicle seat, proceed as follows:

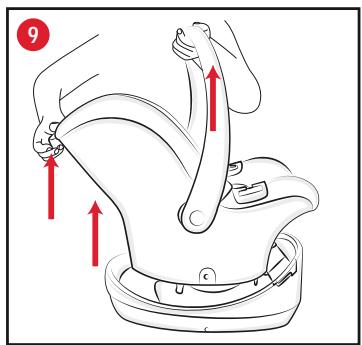

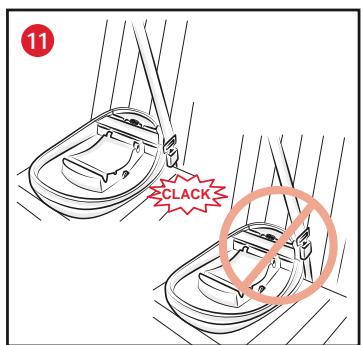

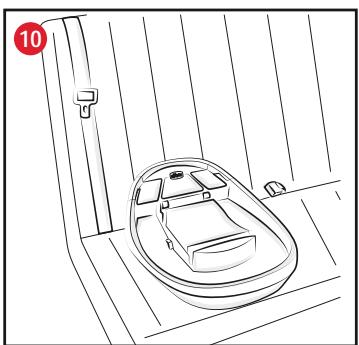

1. Remove the child car seat from the base (E) by pulling the release lever behind the backrest and then lift it up using the carry handle (Fig. 9). 2. Position the base on the chosen vehicle’s seat. Position it as seen in Fig. 10 in order to touch the vehicle seat’s backrest. 3. Pull the vehicle safety belt and fasten it to the relevant buckle, inserting the horizontal (waist) part of the belt through the two blue slots (L) and pull it as tightly as possible (Fig. 11). 4. Attach the child car seat on the base (rear facing) and push it down until you hear it click into place (Fig. 12). 5. Check that the child car seat is correctly fitted on the base by lifting the front and rear sections. 6. Pull the diagonal car safety belt and thread it through the relevant slot (O) on the back of the child car seat’s backrest (Fig. 13) WARNING! When travelling by car, this diagonal safety belt must ALWAYS be threaded through this slot. 7. Pull the belt as tightly as possible, without leaving any slack and making sure it is not twisted. 8. Turn the carry handle to position A1 (Fig.. 14). WARNING! After installing the child car seat, ALWAYS check that the vehicle safety belt is tightened properly along the entire length of the belt and that no parts are twisted. NEVER fit the car safety belt in any other way not mentioned in these instructions. To remove the child car seat leaving the base on the vehicle seat: 1. Unthread the diagonal belt through the slots in the backrest without removing it from the buckle. 2. Bring the handle bar to vertical position B (Fig. 5). 3. Remove the child car seat as illustrated

above by pressing button P.

2.2 INSTALLATION WITHOUT BASE To install the child car seat without the base, proceed as follows:

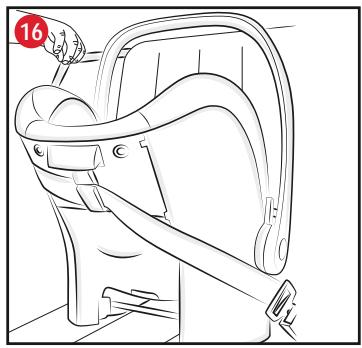

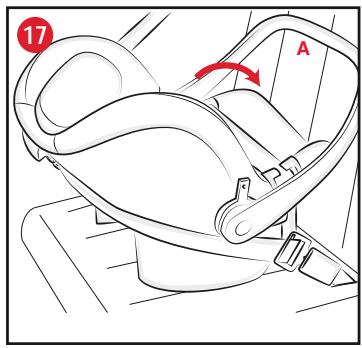

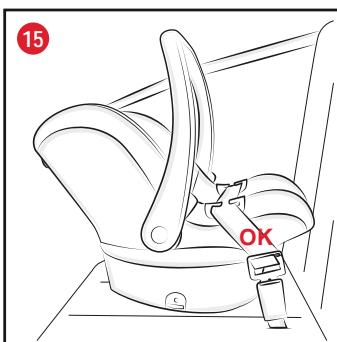

1. Position the child car seat on the selected car seat (Fig. 15) rear facing. 2. Pull the vehicle safety belt and fasten it to the relevant buckle, inserting the horizontal (waist) part of the belt through the child car seat’s two blue slots (K) (Fig. 15). 3. Take the diagonal car safety belt and thread it through the relevant blue slot (O) on the back of the child car seat’s backrest (Fig. 16) WARNING! When travelling by car, this diagonal safety belt must ALWAYS be threaded through this slot. 4. Pull the belt as tightly as possible, without leaving any slack and making sure it is not twisted. 5. Turn the carry handle to position A (Fig. 17). To remove the child car seat: 1. Release the car safety belt by pressing the buckle. 2. Bring the carry handle into the position B (vertical). 3. Unthread the belt through the diagonal and horizontal slots.

• The use of this equipment does not replace in any manner the responsibility and/or supervision of the vehicle driver (and/or its occupants). BebèCare represents only a support tool: Never leave the child unattended in the car. • Artsana cannot be held liable in any manner in the case of damaging events and/or consequences (also related to the incorrect operation of the electronic equipment) of any type, as BebèCare is solely intended to be an aid and alarm to prevent events and/ or consequences caused by forgetfulness. • BebèCare does not prevent the risk of serious injuries or death. The use of the equipment does not in any way replace the supervision and responsibility of the driver/caregiver/supervisor/tutor or anyone who is taking care of the baby.

3. BEBÈCARE BebèCare was designed and developed to signal the presence of the baby in the car seat and to notify the user when accidentally moving away from the car without the baby, thanks to the presence of sensors integrated in the car seat.

BebèCare was designed and developed for use only with minors with a total weight between 4 and 13 kg. THIS PRODUCT COMPLIES WITH THE DIRECTIVE 2012/19/EU. The equipment works together with the Bluetooth® Low-Energy standard. • Frequency ranges: 2.402 GHz – 2.480 GHz ISM band; • Channels: 40 channels, each with a band with equal to 2 MHz; • Transmission power: - 4 dBm (transmitted to the antenna); • Maximum power; 0.398 mW;

• For the correct use of the car seat, please refer to the instructions included in this manual. • BebèCare functions only if the fabric lining of the car seat adheres perfectly to the body of the car seat. • After cleaning the fabric lining (CLEANING THE FABRIC LINING), check that BebèCare is functioning correctly. • When cleaning/servicing the car seat, do not disassemble the BebèCare components. The equipment may only be replaced if the battery is low and according to the instructions that will be provided by Customer Service. • Make sure that the car seat does not come into contact with any type of liquid. If liquid comes into contact with the sensor positioned on the seat and the wetting is limited, dry it carefully and delicately clean the surface of the sensor using a dry cloth. Wait and check again that BebèCare functions correctly. If it does not work or in the case of doubt, contact Customer Service. • If the car seat comes into contact with any type of liquid, BebèCare may stop to work temporarily until the car seat has dried completely.

have the BebèCare APP installed, it is necessary to identify which one is effectively connected to the car seat and therefore must never be abandoned.

• The correct storage of the car seat (apart of daily use in the car) is important to maintain the operation of BebèCare without any changes and must respect the limits regarding temperature (between -20°C and

+60° C) and humidity (< 95%). • The use of any unapproved accessory does not guarantee the correct operation of BebèCare. • The smartphone must be turned on and have a sufficient battery charge for the period of use when paired with BebèCare. • During the first installation and each time the family account is entered, an internet connection must be available (mobile data or WiFi network).

3.1 HOW TO ACTIVATE BEBÈCARE a) Download the BebèCare APP The BebèCare APP must be downloaded.

When accessing for the first time, the APP will provide all the instructions to follow to register the account and use BebèCare. b) Create the family account A “family account” must be created with a single password. This account will be the only one that can be used by those who use that specific car seat with BebèCare. The password is shared with all users who interact with the car seat on which BebèCare is installed. IMPORTANT: When creating the family account, an internet connection must be available (mobile data or WiFi network). IMPORTANT: If the family password is changed, the new password must be shared with all the users who use the same family account.

• BebèCare only works together with a smartphone that has the BebèCare APP installed. • If the smartphone is turned off, the BebèCare system will not work. • If the Bluetooth® is damaged, the BebèCare system will not work. • If airplane mode is activated, the BebèCare system will not work. • The BebèCare APP may only be downloaded from official stores. • If there is no signal, BebèCare will correctly activate the first level alarm, however it is not able to send the SMS to the emergency numbers (second level alarm). • BebèCare does not interfere with the normal operation of the Bluetooth® system that may be present in the car. WARNING: • Check to perform each time BebèCare is used: • Check that is functioning correctly as described in paragraph 3.1 How to activate BebèCare point d). • The smartphone must be turned on and have a sufficient battery charge for the period of use when paired with BebèCare. • Bluetooth® must be active. • “Airplane” mode must be deactivated. • The smartphone SIM must have enough credit. • GPS must always be active. • If two or more smartphones are used that

c) Enter the emergency numbers

When accessing for the first time, it is necessary to enter the emergency numbers to which an alarm SMS will be sent (second level - see paragraph 3.2 How BebèCare functions) containing the data needed to geolocate the area where the baby is located. A minimum of 1 to a maximum of 5 emergency numbers must be entered. The emergency numbers must be selected from the contacts in your smartphone and can be added, deleted and/or replaced in the future. IMPORTANT: During this operation, an internet connection must be available (mobile data or WiFi network). IMPORTANT: The emergency numbers must be mobile phone numbers and not landline or national emergency numbers. IMPORTANT: Always check that the emergency numbers are correct and are functioning after entering them. 24

that the smartphone that is connected to the car seat moves away from the car in which the car seat is installed with the baby in the car.

BebèCare has two alarm levels: 1. First level alarm: if the smartphone moves away from the car in which the car seat is installed with the baby in the car, an acoustic and visual alarm will appear on the smartphone that can be silenced within 40 seconds. If the smartphone moves towards close to the car seat, this will not stop the alarm, and it will be necessary to interact with the APP by pressing the “STOP” button. 2. Second level alarm: this is activated the moment in which the first level alarm was not silenced within the time window provided for the first level alarm, and sends an SMS to all the predefined emergency numbers with the information needed for geolocating the area where the baby is located. If there is no signal, BebèCare will correctly activate the first level alarm, however it is not able to send the SMS to the emergency numbers (second level alarm). The cost of the SMS is always charged to the user according to your phone rate plan.

d) Associate the car seat with the family account

To associate the car seat with BebèCare to the family account , proceed with scanning the QR code on the car seat. The QR code is printed on the type approval label and can only be seen after removing the silver film. By scanning the QRCode, the application recognises the car seat model, then simply turn on Bluetooth®, apply pressure on the car seat and move the smartphone near the car seat to be associated and connect the car seat with the family account. Up to a maximum of 3 car seats with BebèCare can be associated with the same family account. The specific car seat can be associated with ONLY one family account. IMPORTANT: If the QR code is already visible or partially visible, contact Customer Service. IMPORTANT: When scanning the QR code, an internet connection must be available (mobile data or WiFi network). e) Check the correct operation of the sensors Periodically perform pressure tests on the car seat (safety, during the journey on they may harm) to check that BebèCare is functioning. f) Enter the information about the baby After associating the car seat with the family account, enter the name and date of birth of the child. You can also enter a photograph. Artsana does not guarantee equipment operation in conditions other than those indicated above, or in the case of improper use (including, but not limited to, use with minors who are not correctly secured to the car seat, if used with animals, etc.). 3.2 HOW BEBÈCARE FUNCTIONS The system is activated/connected after a few seconds from the moment the baby is placed in the car seat and signals the presence of the baby in the car seat via the APP. The activation/connection time varies based on the specific characteristics of the smartphone; in some cases, a few dozen seconds may be necessary. The alarm system is activated the moment

3.3 USING THE BEBÈCARE APP ON MULTIPLE DEVICES After registering the family account and associating the car seat with BebèCare using the smartphone by scanning the QR code, it is possible to use BebèCare also with other smartphones that have the BebèCare

APP installed. It is possible to use the same family account with an unlimited number of devices that have previously installed the BebèCare APP. The settings predefined using the first smartphone (emergency numbers, association of the car seat and the child’s data) will be automatically available also on the other smartphones with the BebèCare APP and that are using the same family account. IMPORTANT: if the family password is changed, the new password must be shared with all the users who use the same family account. IMPORTANT: if there are two smartphones in the same car that were previously as-

sociated with the car seat and both have the BebèCare APP active, the car seat will connect with ONLY one of the two based on the reactivity of the Bluetooth® system of the individual smartphones and this condition cannot be changed until the baby is removed from the car seat or until the

Bluetooth® signal is lost. If the person with the smartphone that is connected with the car seat at that moment moves away from the car with the baby in the car seat: • the first level alarm will activate on the smartphone, which can be silenced by interacting with the APP and pressing the “STOP” button. This prevents the SMS from being sent to the emergency numbers; • after a few seconds, the second smartphone that is still in the car will automatically connect with the car seat. WARNING: if two or more smartphones are used that have the BebèCare APP installed, it is necessary to identify which one is effectively connected to the car seat and therefore must never be abandoned.

THIS PRODUCT COMPLIES WITH THE DIRECTIVE 2012/19/EU.

The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product’s materials. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the appliance. CONFORMITY WITH EU DIRECTIVE 2006/66/EC as amended. The crossed bin symbol on the battery or its packaging, means that the batteries, at the end of their life, should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities, or otherwise returned to the dealer when purchasing new equivalent rechargeable or non-rechargeable batteries. Chemical symbols (Hg for mercury, Cd for cadmium, Pb for lead) printed beneath the crossed-out wheeled bin symbol indicate the type of substance contained in the battery. The user is responsible for taking the batteries to special waste disposal sites at the end of their life so they can be processed and recycled. The correct disposal of spent batteries by means of separate waste collection and subsequent recycling, treatment and environmentally sound disposal will help prevent potential negative consequences for the environment and human health and favour the recycling of the materials of which the batteries are made. Improper disposal of the product by the user may harm the envi-

3.4 MANAGING TWO CAR SEATS WITH BEBÈCARE WITH A SINGLE FAMILY ACCOUNT It is possible to associate a maximum of

3 car seats with BebèCare with the same family account, by repeating the operations in paragraph 3.1 How to activate BebèCare points d) and e). The BebèCare APP will monitor the status of each car seat at the same time. 3.5 PERIODIC NOTIFICATION OF CHILD IN THE CAR FOR A PROLONGED PERIOD OF TIME If the child remains in the car seat for more than 30 minutes, a push notification will appear on the smartphone, accompanied by a brief acoustic signal. The user can disable only the acoustic signal on the “settings/ notifications” screen. 3.6 BATTERY The level of the battery in the BebèCare device can be monitored via the APP. If the level is low, contact Customer Service to receive instructions on its replacement.

ronment and human health. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you purchased the product.

Place the child car seat only on stable horizontal surfaces.

WARNING! Before carrying the child car seat, always move the carry handle to position B (vertical). WARNING! Never leave your child unattended. WARNING! Always use the restraint system. WARNING! Using the child car seat on raised surfaces such as tables, chairs etc. can be very dangerous. WARNING! This child car seat is not designed for long periods of sleep. WARNING! Do not use the seat when the child is able to sit up independently. This child car seat is not a replacement for a bed or cot. If children needs to sleep, they should be moved to a bed or a cot. Do not use the child seat if any of its parts are broken or missing.

The BebèCare “Safety system for children in the car” was developed based on the invention made by the engineer Stefano Fontana.

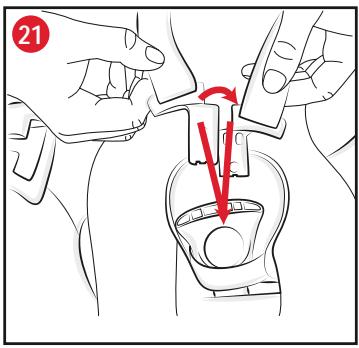

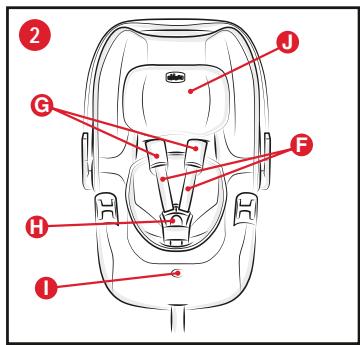

4. OTHER OPERATIONS 4.1 PLACING THE CHILD IN THE CHILD CAR SEAT AND ADJUSTING THE SAFETY HARNESS To adjust the harness straps, proceed as follows: 1. Pressing the adjustment button (Fig. 2 - I) and pull the child car seat harness straps to loosen them (Fig. 18). 2. Press the red button (Fig. 19A) to open the buckle and keep the harness straps spread apart (Fig. 19B). 3. Place the baby on the seat. WARNING! The harness straps must always be adjusted to adapt to the child’s growth phase. Before installing the child car seat inside the vehicle, adjust the harness straps to the right height. To adjust them correctly, the harness straps must come out from the backrest at the height of the child’s shoulders (Fig. 20). The headrest and straps can be adjusted simultaneously in height to 6 different positions using button Q (Fig. 4-A) to follow your child’s growth. 4. Overlap the two ends of the harness straps, insert them together inside the buckle until you hear them clicking (Fig. 21) WARNING! Never insert just one end of the harness into the buckle and do not insert them one at a time. Press button Q to adjust the straps. 5. Tighten the child car seat’s safety harness by pulling the adjustment strap (Fig. 22). WARNING! The booster cushion guarantees the correct support and the ideal position for the neck and back of babies from when they are born until they weigh about 6 kg. 4.2 USE AS BABY BOUNCING CHAIR When the child car seat is not used in a car, it can be used as a baby bouncing chair.

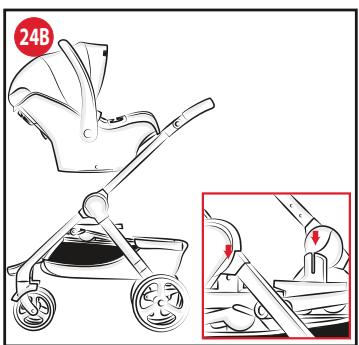

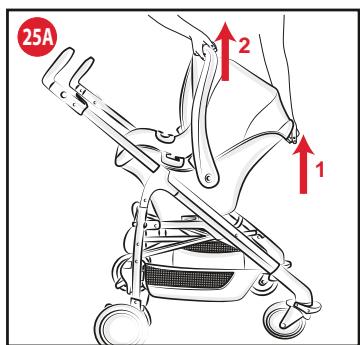

4.3 USE WITH THE STROLLER The Oasys 0+ UP car chair seat can be used with the LOVE, LOVEmotion, LOVE UP – StyleGo, StyleGo UP.

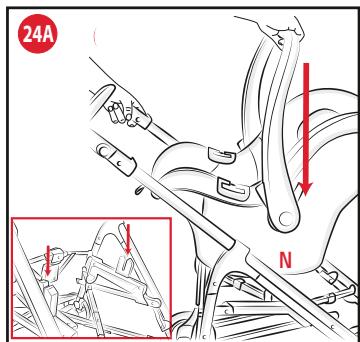

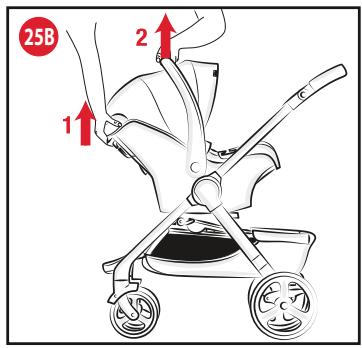

WARNING! Please read the Stroller instruction manual when using the child car seat on the stroller. Before fastening the child car seat, remove the stroller seat. To install the child car seat on the stroller, proceed as follows: - Hold the child car seat by moving the carry handle in vertical position (Fig. 5 B) (Fig. 23). - Fit inside the slots N the relevant devices on the stroller (Fig. 24A - LOVEmotion UP, Fig. 24B - StyleGo UP) making sure the seat is engaged on both sides. You will hear a CLICK when it is fastened correctly. WARNING: Before use, make sure that all the child car seat fastening devices are correctly engaged. To remove the child car seat from the stroller: 1. Put the carry handle into vertical position (Fig. 5 - B). 2. Pull first the rear release handle (Fig. 4 – P) and then lift the child car seat by the carry handle (Fig. 25A - LOVEmotion UP, Fig. 25B - StyleGo UP). 3. Remove and place the child seat on a flat, stable surface.

WARNING! The child car seat can be fastened and unfastened with the baby inside; these procedures could be more difficult due to the weight of the baby. Be very careful when performing the steps described above.

HOW TO CLEAN THE PLASTIC OR METAL PARTS Clean the plastic and coated metal parts with a damp cloth only. Never use abrasive detergents or solvents.

The moving parts of the child Car seat must not be lubricated.

4.4 CANOPY The child car seat features a protective canopy in a number of positions.

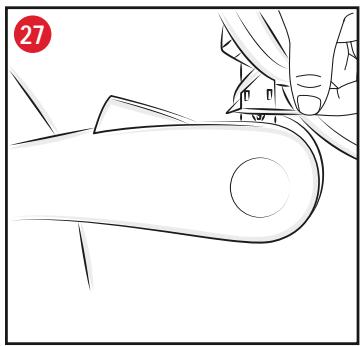

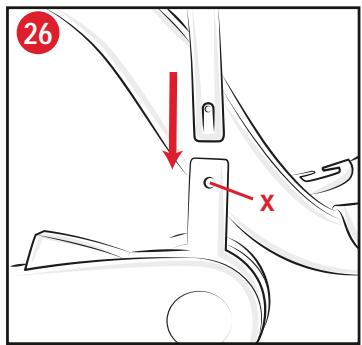

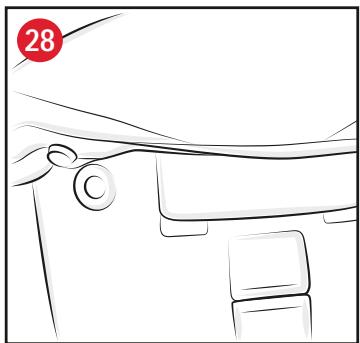

To fit it, insert the ends of the canopy in the relevant fastening devices (Fig. 26) and then fit the elastic strap through the relevant hooks (Fig. 27). Fasten the buttons on the back of the canopy to complete fitting (Fig. 28). To remove the hood, press button X (Fig. 26) and pull the ends up.

CHECKING THE CONDITION OF THE COMPONENTS It is recommended to regularly check the condition of the following components to make sure they are not damaged or worn:

• Fabric cover: check that the padding does not come out from the seams. Check the condition of the seams: they must always be intact and undamaged. • Harness straps: check that the fabric lining is not frayed or the harness strap worn out in the parts corresponding to the adjustment strap, crotch, shoulders and harness adjustment plate. • Plastic parts: check that the plastic parts are not worn out, damaged or faded. WARNING! If the child car seat is damaged, deformed or worn out, it must be replaced, as its original safety features may have been compromised.

4.5 CLEANING AND STORAGE CLEANING THE FABRIC LINING The child seat’s fabric lining can be removed and washed by hand or in a washing machine at 30°C.

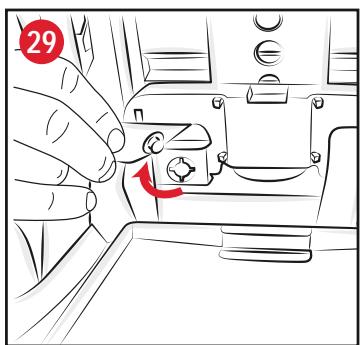

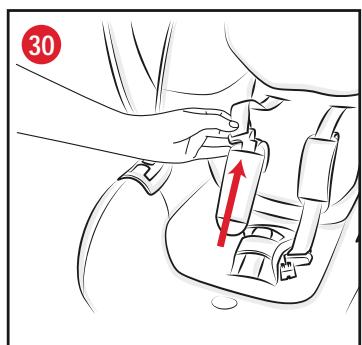

To wash it, unfasten the straps, remove the shoulder straps by opening the snap-buttons located inside the compartment for storing the instruction manual (Fig. 29) and pull off from the straps (Fig. 30). Then remove the straps from the slots and the lining from the headrest (Fig. 31). Remove the fabric lining from the seat starting from the feet position (Fig. 32), then from the area near the strap guides (Fig. 33) and finally removing it completely (Fig. 34). Follow the steps above in reverse order to fit the lining again. WARNING! Fit the straps again correctly and avoid twisting. Please refer to the cleaning instructions on the fabric label, which illustrates the following washing symbols:

30° C STORING THE PRODUCT When it is not fitted in the car, it is recommended to store the child car seat in a dry place, away from sources of heat and to protect it from dust, humidity and direct sunlight.

DISPOSING OF THE PRODUCT When the child Car seat no longer complies with the original safety standards, stop using it and dispose of it to an appropriate collection point. Dispose of it always following environmental rules and regulations adopted within the country of use.

Machine washable at 30°C.

Do not bleach Do not tumble dry Do not iron Do not dry clean

Never use abrasive detergents or solvents. Do not dry the fabric cover within a dryer, let it dry without squeezing it.

WARRANTY The product is guaranteed against any conformity defect in normal conditions of use as provided by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events. For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided.
