Brand	BEKO
Model	VRT 71025 VW
Appliance type	Cordless stick vacuum cleaner with mopping function
Rated input power	350 W
Battery type	Li-ion 25.2 V, 2000 mAh
Power adapter	Input: 100-240 V ~ 50-60 Hz 0.5 A; Output: 25-29.5 V
Charging time	4 to 6 hours
Runtime at maximum power	9 minutes
Runtime at medium power	25 minutes
Runtime at minimum power	45 minutes
Dustbin capacity	700 ml
Main brush	Turbo electric brush
Included accessories	Long crevice tool, 2-in-1 accessory, water tank, mop pads x2, charging station, bracket
Mopping function	Yes (via manual water pump and mop pad)
Electric protection class	Complies with international standards
Intended use	Domestic
Filter maintenance	Clean the dustbin and filter regularly; do not use solvents
Main spare parts	Adapter, brushes, filters, water tank
Safety	Unplug before cleaning; do not vacuum liquids; use the supplied adapter

Frequently Asked Questions - VRT 71025 VW BEKO

How to charge the VRT 71025 VW vacuum cleaner?

Plug the supplied adapter into a mains socket and connect it to the charging station. Place the vacuum cleaner on the station. The charging time is 4 to 6 hours. Before first use, charge for 12 hours.

What is the battery life of the vacuum cleaner?

The battery life varies by mode: 9 minutes at maximum power, 25 minutes at medium power, and 45 minutes at minimum power.

How to use the mopping function?

Fill the water tank with clean or distilled water without exceeding the max line. Attach the mop pad under the tank. Place the tank on the floor and connect the brush. Press the water pump with your foot 6 to 10 times to moisten the mop pad. Vacuum the floor at minimum speed.

What to do if suction power decreases?

Check if the dustbin or filter are clogged and clean them. Make sure the roller brush is not obstructed by hair or other debris. Also unclog the metal tube if necessary.

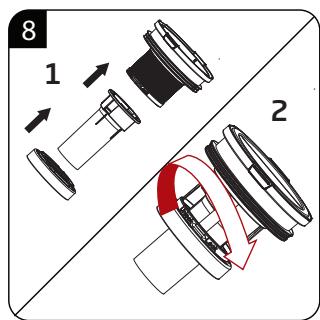

How to clean the filter?

Turn off and unplug the appliance. Open the dustbin, remove the filter and tap it gently to remove dust. Do not wash the filter with water. Do not clean with metal objects or solvents.

Can I vacuum water with this vacuum cleaner?

No, never vacuum water or other liquids. The vacuum cleaner is designed for dry cleaning only. The mopping function uses a separate water tank to moisten the mop pad, but the suction must remain dry.

What to do if the vacuum cleaner does not charge?

Check that the adapter is properly plugged into the socket and charging station. Ensure the charging station is in good contact with the vacuum cleaner. If the problem persists, contact customer service.

How to use the 2-in-1 accessory?

Push the brush head backward to get a narrow nozzle, or forward for a brush. Insert it into the metal tube to reach high places. Ideal for crevices, corners, furniture and curtains.

Can I use the mop pad on a carpet?

No, the mop pad is designed for hard surfaces that are not sensitive to moisture (tile, parquet). Do not use it on carpets or rugs.

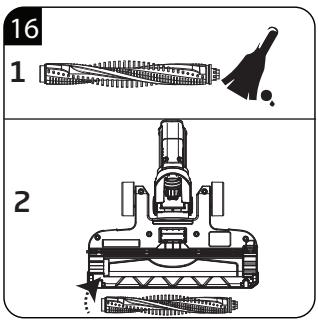

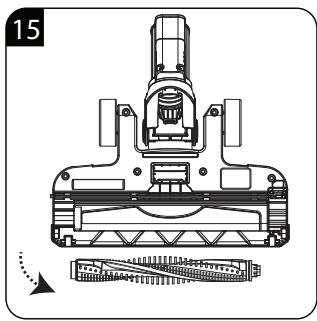

How to maintain the turbo electric brush?

Unplug the appliance. Remove entangled hair and fibers around the brush. Clean it with a soft cloth. Do not immerse the brush in water.

USER MANUAL VRT 71025 VW BEKO

3in1 Rechargeable Stick Vacuum Cleaner

User Manual

Exterior view of a modern white and silver vacuum cleaner (no text or symbols visible)

VRT 71025 VW

EN | DE | FR | ES | RO | IT

PL | NL | SR | MK | SQ

01M-8814533200-1320-01

beko

CONTENTS

ENGLISH	07-15
DEUTSCH	16-24
FRANÇAIS	25-32
ESPAÑOL	33-42
ROMANIAN	43-52
ITALIANO	53-61
POLSKI	62-71
NEDERLANDS	72-79
SRPSKI	80-87
MAKEDОНСКИ	88-95
SHQIP	96-103

EN	OPERATION	CLEANING AND CARE
DE	BETRIEB	REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT	NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO	LIMPIEZA Y CUIDADOS
RO	UTILIZARE	CURĂȚAREA ȘI ÎNGRIJIREA
IT	UTILIZZO	PULIZIA E CURA
PL	OBSŁUGA	CZYSZCZENIE I KONSERWACJA
NL	BEDIENING	REINIGING EN ONDERHOUD
SRB	RUKOVANJE	ČIŠĆENJE I ODRŽAVANJE
MK	РАБОТА	ЧИСТЕЊЕ И ОДРЖУВАЊЕ
ALBANIA (SQ)	FUNKSIONIMI	PASTRIMI DHE KUJDESI

Diagram showing various types of industrial vacuum cleaner components including a lift, switch, and box with an arrow indicating rotation or assembly.

2

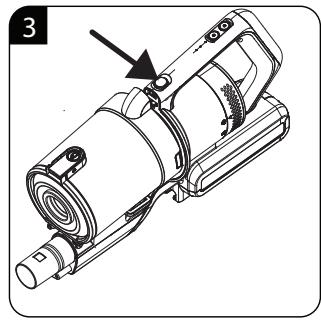

3

Technical line drawing of a vertical vacuum cleaner with a diamond-shaped component and three horizontal lines below (no text or symbols)

5

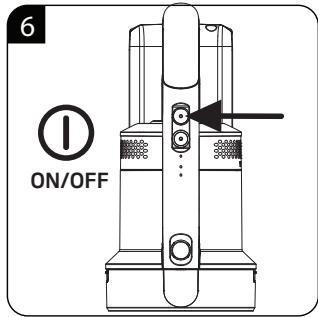

6 ON/OFF

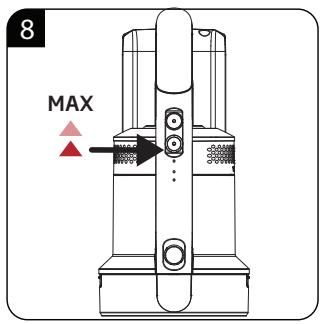

8 MAX

9 MIN

Technical illustration of a mechanical device with an arrow indicating assembly or transformation (no text or symbols present)

11 COP

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

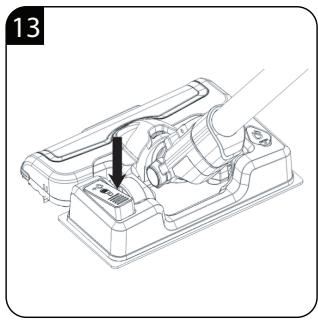

13 P13

Line drawing of a hand cleaning a mechanical device with a cloth (no text or symbols)

2

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

5 1 2 -24h-

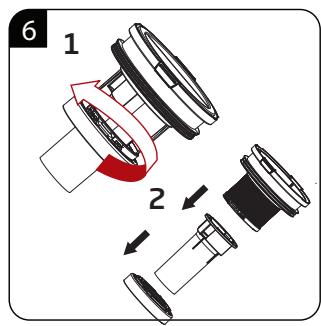

6 1 2

7 1 2 -24h

8 1 2

Exploded view diagram of a mechanical assembly showing internal components and directional arrows (no text or labels)

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols present)

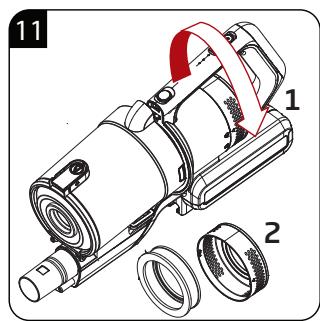

11 1 2

12 1 2 -24h-

Technical line drawing of a mechanical device with no visible text or symbols

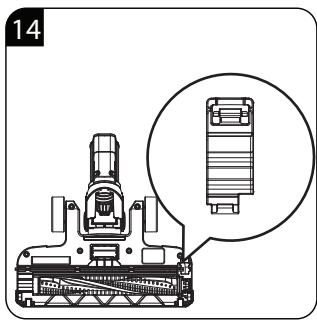

Technical line drawing of a mechanical device with an inset close-up view of a component (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

16 1 2

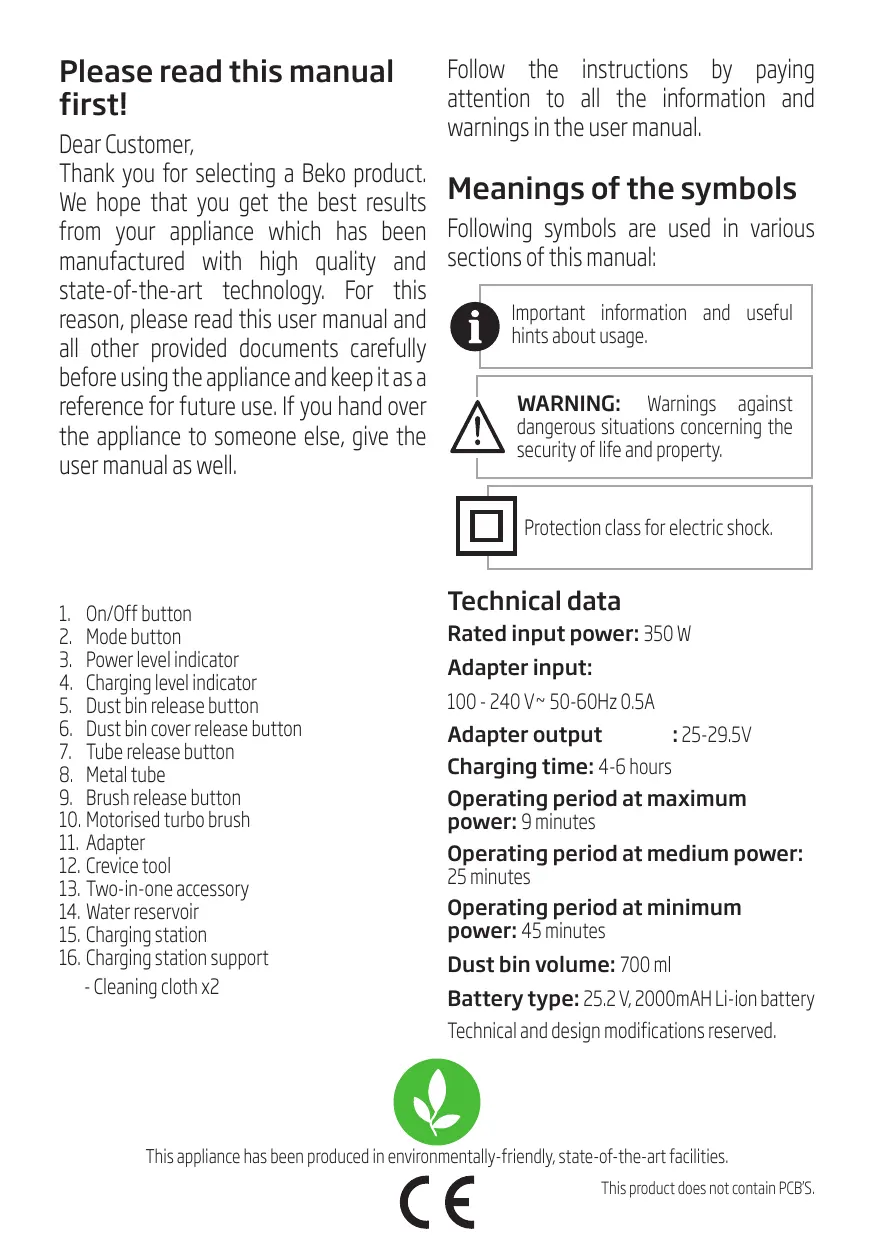

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well.

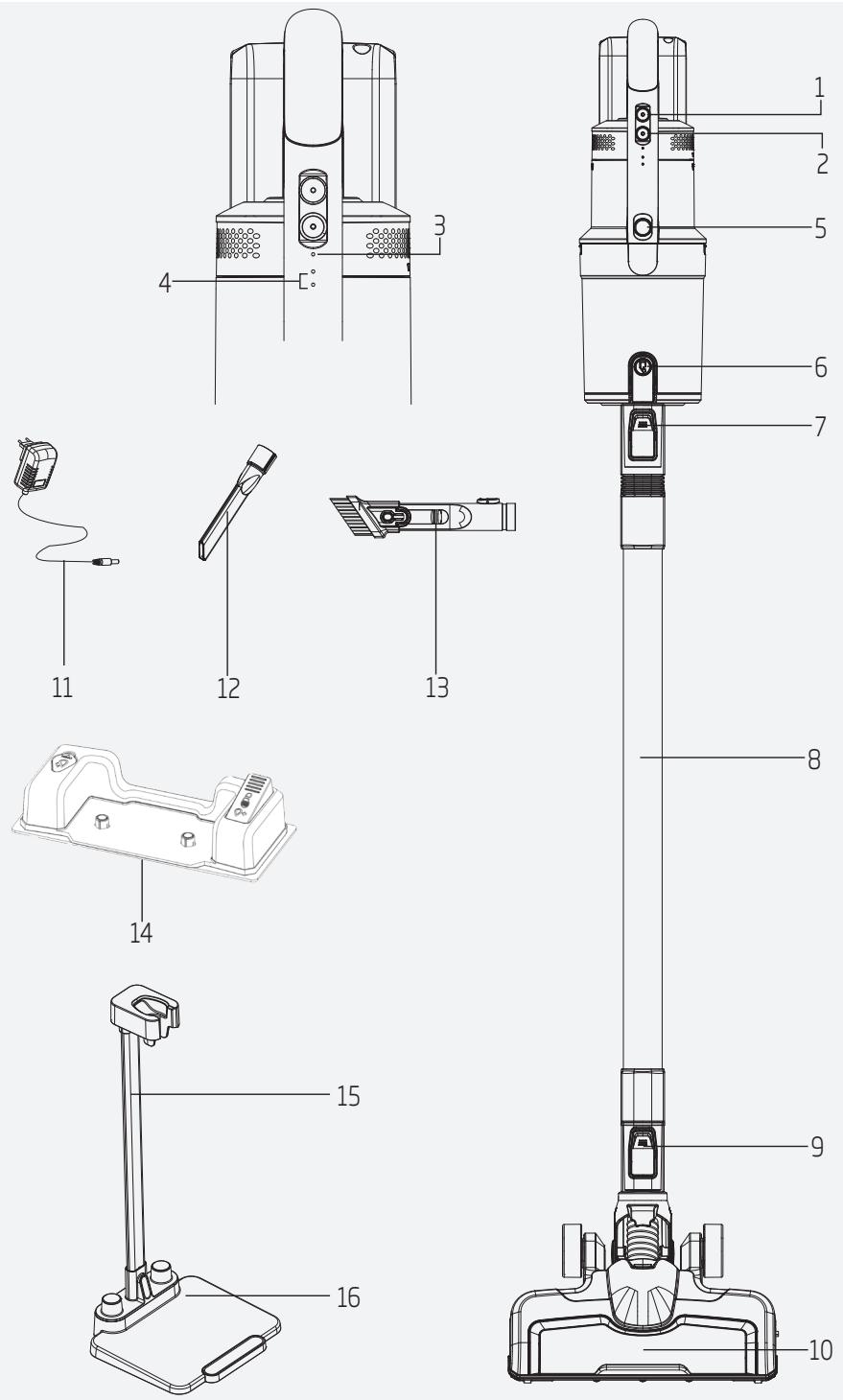

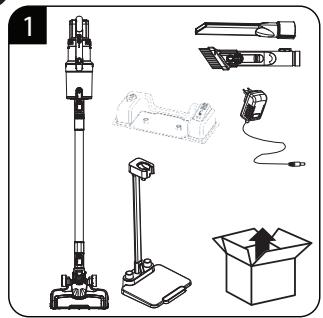

1. On/Off button
2. Mode button
3. Power level indicator
4. Charging level indicator
5. Dust bin release button
6. Dust bin cover release button
7. Tube release button
8. Metal tube
9. Brush release button
10. Motorised turbo brush
11. Adapter
12. Crevice tool
13. Two-in-one accessory
14. Water reservoir
15. Charging station
16. Charging station support
17. Cleaning cloth x2

Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

Technical data

Rated input power: 350 W

Adapter input:

100 - 240 V\~ 50-60Hz 0.5A

Adapter output : 25-29.5V

Charging time: 4-6 hours

Operating period at maximum

power: 9 minutes

Operating period at medium power:

25 minutes

Operating period at minimum

power: 45 minutes

Dust bin volume: 700 ml

Battery type: 25.2 V, 2000mAh Li-ion battery

Technical and design modifications reserved.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the power cord or the appliance itself is damaged, do not use it. Contact an authorised service.

- Your mains power rating shall comply with the information provided on the identification plate of the appliance.

- Do not use the appliance with an

extension cable.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.
• Do not touch the plug if your hands are wet or damp when the appliance is plugged in.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water and other liquids.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.
• Do not attempt to dismantle the appliance.
• Use the original parts or parts recommended by the manufacturer only.

1 Important safety and environmental instructions

• Do not clean the particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.
• Use the appliance only with the supplied adapter.
• Do not use the appliance without filters, otherwise it may get damaged.
• If you keep the packaging materials, store them out of the reach of children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The adapter must be removed from the socket-outlet and the battery pack must be removed from the appliance before cleaning or maintaining the appliance.

• Do not fill the water reservoir over the maximum line.

• Do not add any other fluid than water to the water reservoir.

• Clean the water reservoir as per cleaning instructions. Do not put in dishwasher.
• Do not use wiping tool on a carpet.
• Use the wiping tool on surfaces that shall not be damaged by water.
• Surfaces where the wiping tool is used may be wet and slippery for some time.
• To avoid any risk of hazard, a damaged adapter shall be replaced by the manufacturer, the authorized representative of the manufacturer or a likewise qualified technician.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
• The battery must be removed from the appliance before it is scrapped;
• Disconnect the appliance from power source while removing the battery.
• Please dispose the used batteries as per local laws and regulations.

1 Important safety and environmental instructions

• This appliance is not intended for commercial use. This appliance is not intended for commercial use, it is designed to be used in households or for applications as specified below:
• In the staff kitchens of the stores, offices and other working environments;
• In farm houses;
• In the units of hotels, motels or other resting facilities that are used by the customers,
• In hostels, or similar places.
• WARNING: For the purposes of recharging the battery, only use the detachable supply unit MC2805A-V provided with this appliance.
• Exhausted batteries are to be removed from the appliance and safely disposed of.
• The supply terminals are not to be short-circuited.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Information on waste batteries

This symbol on the packaging of the packaging related with rechargeable batteries indicates that the rechargeable battery shall not be disposed of with domestic waste. A chemical symbol may accompany this symbol on some rechargeable batteries.

And mercury (Hg) and lead (Pb) symbols may also be added if the rechargeable batteries contain

1 Important safety and environmental instructions

more than \%0.0005 mercury and more than \%0.004 lead content.

Rechargeable batteries shall not be disposed of with household waste even if they do not contain heavy metals. Always discard the used batteries as per local environmental legislation. Investigate the waste disposal regulations in effect in your area of residence.

2.1 Intended Use

This appliance is intended for household use, it is not suitable for industrial use.

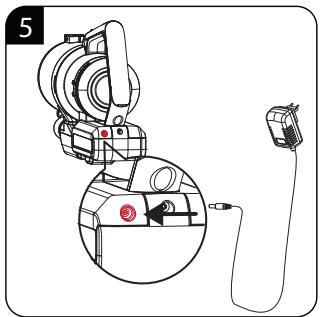

2.2 Recharging of the appliance

WARNING: Charge for 12 hours before first operation.

It takes 4-6 hours to charge the appliance in full. The appliance shall not be operated while charging.

2.3 Accessories

WARNING: For the first operation, wet the cloth under water jet and wring it until it doesn't drip.

WARNING: Please add clean water or distilled water to the water reservoir (14). Use of water mixed with solvents or water including solid particles would clog the water pump and cause it to break down. Please ensure that adequate amount of water is present in the reservoir during operation, pressing on empty water pump for a long time may cause breaking of the pump.

WARNING: Do not vacuum water.

WARNING: Use the appliance at minimum speed after using wiping tool.

Place the cleaning cloth on its housing under the wiping tool.

Put the wiping tool on the ground and connect the brush and the tool from their magnetized parts.

Press on the water pump with your feet. Cleaning cloth becomes wet with the water coming out of the base.

After using the wiping tool, remove the cloth, drain the water in the water reservoir and dry the cloth.

WARNING: Ground may get excessively wet when the water pump is pressed too much. Adjust the frequency of pressing on the pump by the wetness level of the ground. Do not suck water puddles with the vacuum cleaner.

2.4 Crevice tool

Suitable for cleaning surfaces which are difficult to clean, such as areas under sofas and furniture.

2.5 Two-in-one accessory

Push the brush head of the two-in-one accessory backwards, until "click" locking sound is heard. It is suitable for cleaning narrow slits, dead corners of doors and windows and other various small gaps. It is ready for vacuuming the gaps of wall corner, ladders and keyboard, etc. Push the brush head of two-in-one accessory forwards, until "click" locking sound is heard. It is suitable for cleaning furniture, bookshelf and curtains, etc.

Insert the two-in-one accessory to the metal tube to operate on higher places such as ceiling, etc.

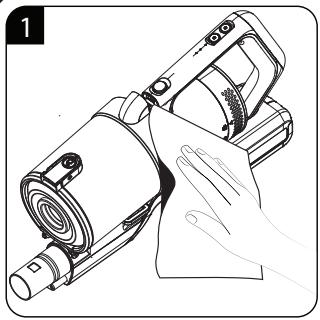

3.1 Cleaning and care

Switch off and unplug the appliance, before cleaning it.

WARNING: Do not use gasoline, solvents, abrasive detergents, metal objects or hard brushes to clean the appliance.

3.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance away from children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• The appliance may not operate or permanent damage may occur when the appliance is dropped.

4 Troubleshooting

Common fault	Possible cause	Remedy
The vacuum doesn't work	No power supply to the appliance or the battery is not charged	Please charge the product before use
	Product suction port is blocked	Cleaning product suction mouth
Suction power too low	Dust barrel & filter assembly is dusty	Clean the dustbin and filter material
	Hair and other materials are stuck around the roller brush	Clean roller brush
	Situation still remains	Please contact with our after sales team
A different operating sound is heard from the motor	The aluminum tube is blocked	Remove the clogging
	Situation still remains	Please contact with our after sales team
Vacuum cleaner operates with strain	Too many obstacles in the cleaning area	Manually remove obstacles
	Product suction port is blocked	Cleaning product suction mouth
	Situation still remains	Please contact with our after sales team
The appliance is not charging	The charger is connected properly	Please check and correct it
	The charger or the plug is connected properly or it is loosely connected	Check and correct it
	Situation still remains	Please contact with us.

2.5 Twee-in-een-accessoire
