VCO 32802 AD - Vacuum Cleaner BEKO - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Beko
Model	VCO 32802 AD
Supply voltage	220-240 V~
Frequency	50-60 Hz
Rated power	800 W
Operating radius	7.5 m
Energy class	A
Annual consumption	28 kWh/year
Suction efficiency (carpet/rug)	C
Suction efficiency (hard floor)	A
Filtration quality	A
Sound level	76 dB(A)
Main filter	Washable HEPA
Motor protection filter	Washable sponge
Exhaust filter	Washable
Dust container	Bagless, button emptying
Included accessories	Double-position brush, hard floor brush, crevice tool, upholstery brush, dusting brush
Automatic cord rewind	Yes
Telescopic tube	Yes, adjustable
Suction power adjustment	Yes, by latch
Storage	Horizontal and vertical

Frequently Asked Questions - VCO 32802 AD BEKO

How to empty the dust container?

Press the dust container release button (7) to remove it, then open the lid by pressing the inner latch and empty the dust. Close the lid until it clicks and reinsert the container.

How to clean the HEPA filter?

Remove the HEPA filter located at the back of the dust container. Shake it to remove dust, then wash it under cold running water holding the clean side. Let it air dry for at least 24 hours before reinstalling.

How to rewind the power cord?

After turning off and unplugging the appliance, press the cord rewind button (2) on the vacuum cleaner. The cord rewinds automatically. Be careful not to pull beyond the yellow mark.

Can I vacuum water or liquids?

No, the vacuum cleaner is designed only for dry cleaning. Never vacuum water or other liquids, as this could damage the appliance and pose an electrical risk.

Which brush to use for hardwood floors?

Use the brush for parquet/hard floors (VC032802AD) provided with the model VCO 32802 AD. It is specially designed with fibers that prevent scratches on delicate surfaces like parquet, tile or ceramic.

How to adjust the telescopic tube?

To extend or reduce the length of the tube, slide the telescopic tube adjustment latch (11) backward or forward as needed.

What to do if the vacuum loses power?

First check if the dust container is full or if the filters (HEPA, motor protection, exhaust) are clogged. Clean or replace the filters if necessary. Also ensure that the hose and brush are not blocked.

Is the vacuum suitable for allergies?

Yes, the appliance is equipped with a washable HEPA filter and an exhaust filter, offering class A filtration quality, which helps trap fine particles and allergens.

How to store the vacuum after use?

For horizontal storage, slide the brush hook into the groove at the bottom of the appliance. For vertical storage, use the groove at the back. You can also hang accessories on the provided holder.

Can I use dust bags?

No, this vacuum cleaner is equipped with a bagless dust container. Simply empty it regularly and clean the filters to maintain optimal performance.

USER MANUAL VCO 32802 AD BEKO

Two identical black and red vacuum cleaner units with black handles and black plastic blades, shown against a white background (no text or symbols visible)

VC032801AR

VC032802AD

EN DE FR ES RO IT

PL \$L CS BG HU

01M-8837413200-3018-01

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH	4-12
DEUTSCH	12-23
FRANÇAIS	24-33
ESPAÑOL	34-45
ROMANIAN	46-57
ITALIANO	58-68
POLSKI	69-82
SLOVENŠČINA	83-92
ČESKY	93-102
BULGARIAN	103-112
MAGYAR	113-122

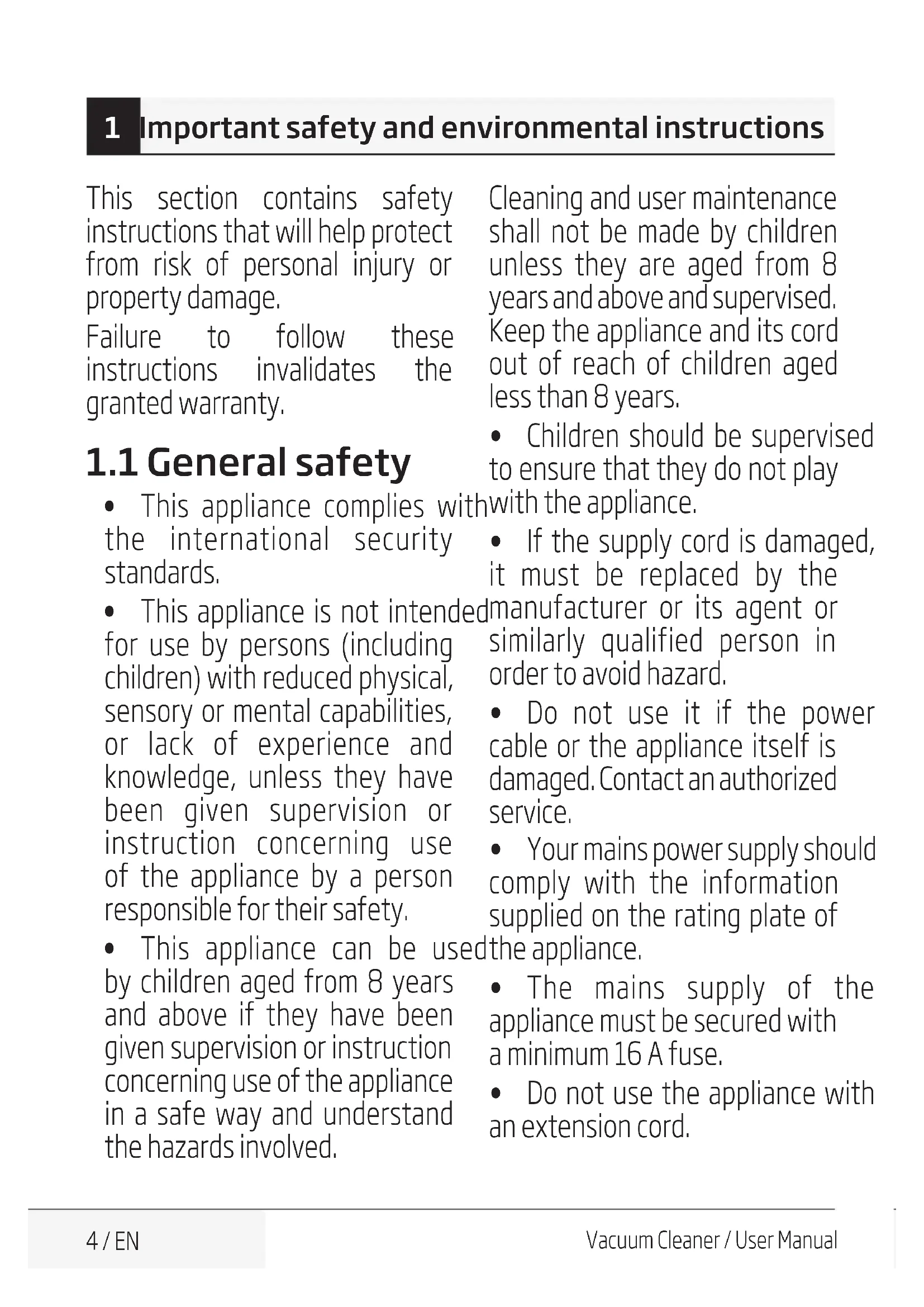

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies withwith the appliance.

the international security standards.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance can be used the appliance.

by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children should be supervised to ensure that they do not play

with the appliance.

- If the supply cord is damaged, it must be replaced by the

manufacturer or its agent or similarly qualified person in order to avoid hazard.

- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

- Your mains power supply should comply with the information supplied on the rating plate of

lthe appliance.

- The mains supply of the appliance must be secured with a minimum 16 A fuse.

- Do not use the appliance with an extension cord.

1 Important safety and environmental instructions

- In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.

- Do not touch the appliance or its appliance.

plug when it is plugged if your hands are damp or wet.

- Do not pull the power cablemanufacturer. when unplugging the appliance. - The plug

- Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

- Do not vacuum water or other liquid materials.

- Protect the appliance from rain, humidity and heat sources.

- Never use the appliance in or near to combustible or inflammable places and materials.

- Unplug the appliance before cleaning and maintenance.

- Do not dip the appliance or its cable in water to clean it.

- Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the

appliance.

- Only use the original parts or parts recommended by the

manufacturer.

- The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

- If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

- Do not use the appliance without filters; otherwise it can get damaged.

- Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.

- When vacuuming the stairs, the appliance should be located below the user.

1 Important safety and environmental instructions

- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

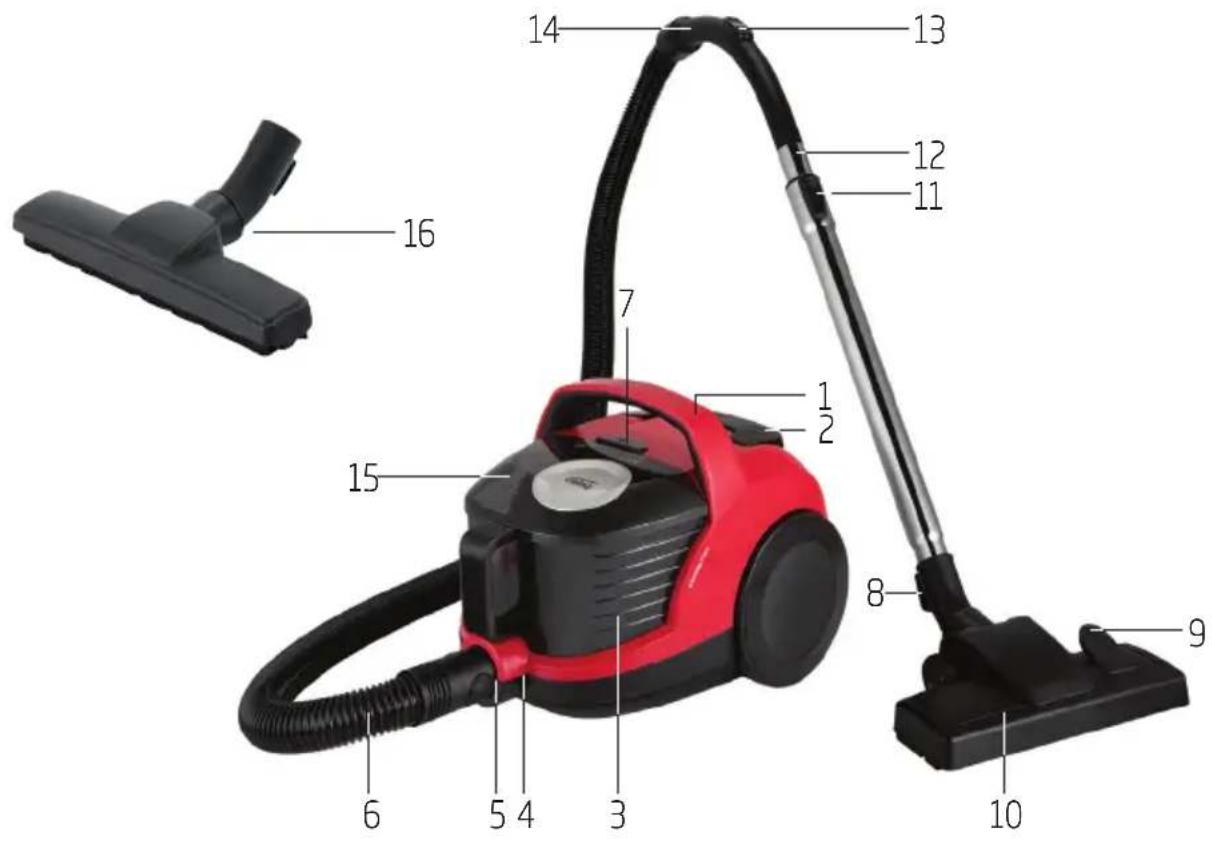

2.1 Overview

Labeled diagram of a red vacuum cleaner with numbered parts for identification

1. On/Off button
2. Power cable winding button
3. Dust container
4. Suction nozzle
5. Hose cap
6. Hose
7. Dust container removal button
8. Parquet/carpet brush parking hook
9. Brush adjustment latch
10. High performance parquet/carpet brush
11. Telescopic tube adjustment latch
12. Telescopic tube
13. Vacuum control
14. Handle
15. Top lid
16. Parquet/hard floor brush (VC032802AD)

2.2 Technical data

Supply voltage : 220-240 V\~, 50-60 Hz

Power :800 W

Operating radius : 7.5 m

Energy class : A

Annual consumption : 28 kwh/year

Dust collecting on

carpet : C

Dust collecting on

hard surface : A

Dust ejection : A

Sound : 76 dB(A)

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

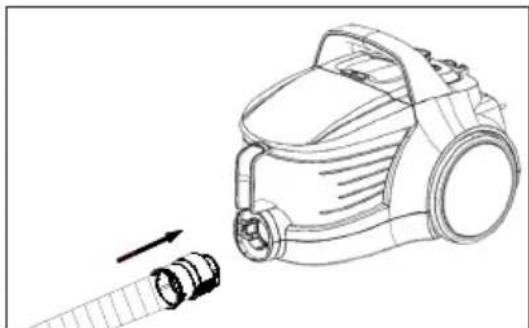

3.2 Attaching/removing the hose

1. To attach the hose (6), push the hose cap (5) in the direction of arrow until it is aligned with the housing (you will hear a click).

Line drawing of a vacuum cleaner with a hose and pipe assembly (no text or symbols)

- Projecting parts on the hose cap should aligned correspondingly.

1. To remove the hose (6), press the unlocking buttons on the sides of the hose cap (5) and pull the hose.

3.3 Attaching/removing the telescopic tube

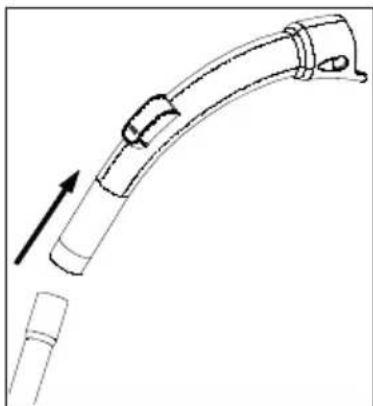

1. Attach the telescopic tube (12) to the handle (14).

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Pull the telescopic tube (12) from the handle (14) to remove it.

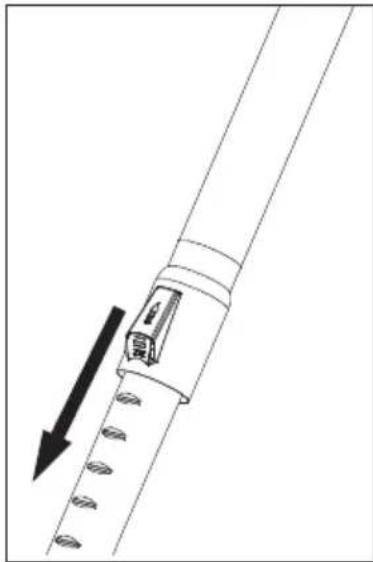

2. You can extend or shorten the telescopic tube (12) by sliding the telescopic tube adjustment latch (11) back and forth.

Diagram of a mechanical device with a directional arrow indicating motion or force (no text or symbols present)

3.4 Attaching/removing the parquet/carpet brush

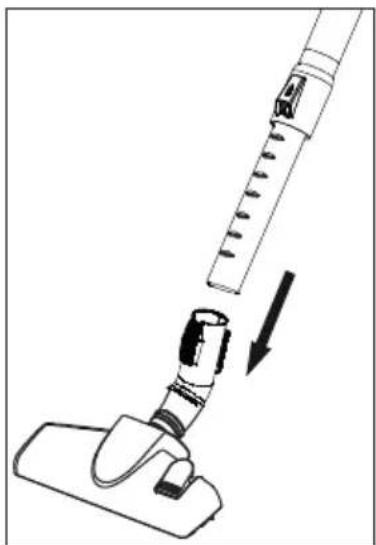

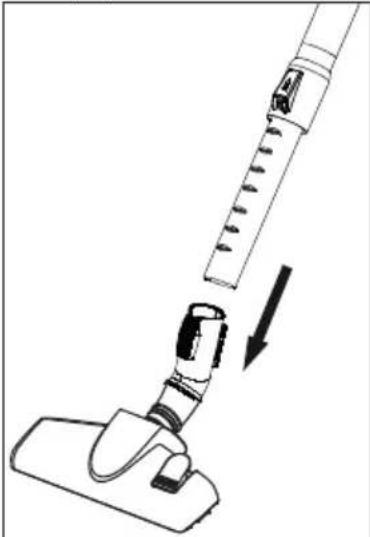

1. Attach the telescopic tube (12) to the parquet/ carpet brush (10) in the arrow direction.

Line drawing of a cleaning or cleaning tool with a downward arrow indicating motion (no text or symbols)

1. You can remove the telescopic tube (12) from the parquet/carpet brush (10) by pulling it.

3 Usage

3.5 Adjusting the parquet/ carpet brush

Press the adjustment latch (9) located on the parquet/carpet brush (10) and;

• Vacuum on firm ground and parquet; extend the brush before vacuuming.

• Vacuum on carpets and rugs; retract the brush before vacuuming.

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.

WARNING: Stop pulling the appliance cable when it comes to the yellow mark located on it. After the yellow mark, the red mark will come. Do not pull any more after reaching the red mark.

1. Press the on/off button (1) to switch on your appliance.

3.7 Accessories

Accessories have been designed in one piece to save space and provide practical use.

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Dust brush

Simple line drawing of a mechanical component with no text or symbols

Suitable for cleaning the curtains, and sensitive and fragile objects.

Crevice tool

Simple line drawing of a rectangular object with a curved top and bottom edge (no text or symbols)

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

WARNING: The crevice tool must be adjusted to remain outside.

- Pull the accessory to remove it when the process is complete.

WARNING: Do not make cleaning by using the handle's (14) end part.

3 Usage

3.8 Additional brushes

3.8.1 Parquet/Hard floor brush (VC032802AD)

The hard floor brush (16) was developed for use on hard floors such as tile, ceramic, parquet, wooden floors etc.

It prevents potential scratches while cleaning hard floors thanks to its specially-developed soft hair.

3.9 Switching off the vacuum cleaner and parking feature

1. Switch off the appliance with the on/off button (1) and unplug it.
2. Press the cable winding button (2) to wind the cable inside the appliance.

Vertical parking feature

Attach the hook of the parquet/carpet brush (8) to the parking groove located at the bottom part of the appliance.

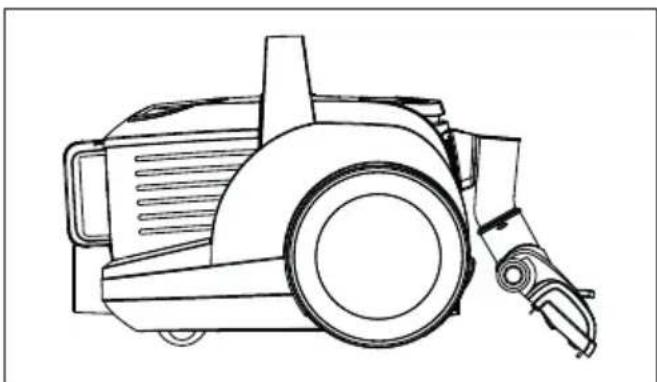

Horizontal parking feature

Attach the hook of the parquet/carpet brush (8) to the parking groove located at the rear side of the appliance.

Line drawing of a mechanical device with a handle and wheels (no text or symbols)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

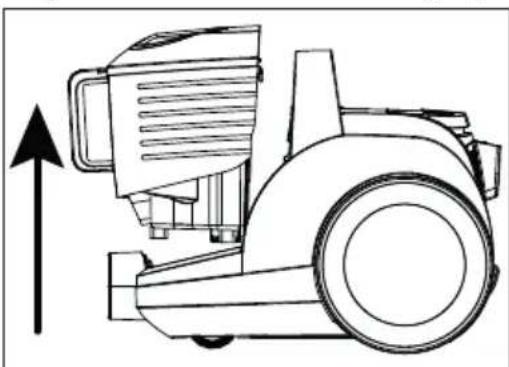

4.1 Emptying the dust container

1. Press the dust container removal button (7) to remove the dust container (3) and remove the dust container in the direction of the arrow by holding from the dust container carrying handle.

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

1. Open the lid of the dust container (3) by pressing the inner latch and empty the container.
2. When you have emptied the dust, close the dust container lid (3).
3. A click will be heard.
4. Insert the dust container (3) into its place by holding it from the handle.

4.2 Cleaning the filters

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

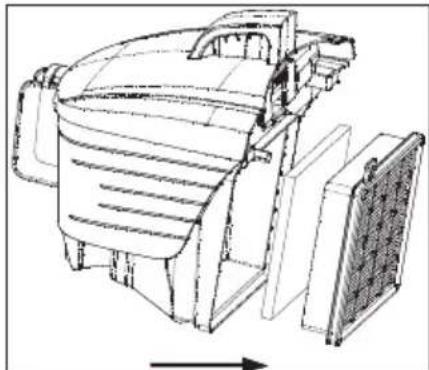

4.2.1 Motor protection filter and HEPA filter

These filters are located on the rear side of the dust container (3).

1. Press the dust container removal button (7) and remove the dust container (3).
2. Remove the HEPA filter and motor protection filter found at the back of the dust container (3).

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

1. After washing the sponge protection filter under running water, wring it out slightly and leave it to dry (for 24 hours minimum).
2. Shake off the HEPA inlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4 Cleaning and care

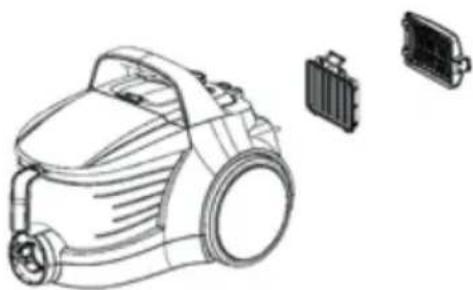

4.2.2 HEPA filter and outlet filter

HEPA outlet filter is located on the rear side of the appliance.

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

1. Remove the HEPA filter by pulling it from its handle.
2. Shake off the HEPA outlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.
3. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.
4. Remove the outlet filter that is found at the back of the cover.
5. After washing the outlet filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a rectangular object with a curved top and side gap (no text or symbols)

Line drawing of a mechanical device with a cylindrical body and attached lever (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Labeled diagram of a red vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved pipe or duct with a directional arrow indicating upward motion (no text or symbols present)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component (no text or symbols)

Simple line drawing of a rectangular object with a curved top and base (no text or symbols)

Line drawing of a portable air purifier with handle and wheels (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Labeled diagram of a red vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with a pipe fitting and directional arrow (no text or symbols)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and base (no text or symbols)

Line drawing of a mechanical device with a handle and wheels (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe connection (no text or symbols)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a mechanical device with a cylindrical body and attached cable (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe connection (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a directional arrow indicating motion or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure geometric line drawing of a 3D rectangular prism with curved cutout (no text or symbols)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

Labeled diagram of a red vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a cylindrical component being inserted (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

1. Teleskopsko cev (12) povlecite z ročaja (14) in jo odstranite.

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and side gap (no text or symbols)

Line drawing of a mechanical device with a handle and wheels (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

1. Gobasti zaščitni filter umijte pod tekočo vodo, ga nežno ožemite in pustite, da se posuši (najmanj 24 ur).

2. Stresite vhodni filter HEPA, da z njega odstranite prah. Nato ga lahko umijete, tako da njegovo čisto stran držite pod mrzlo tekočo vodo.

3. Če filter HEPA umijete, ga pustite, da se posuši na sobni temperaturi (najmanj 24 ur). Počakajte, da se popolnoma posuši, in ga šele nato ponovno uporabite.

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe connection (no text or symbols)

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and bottom edge (no text or symbols)

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

4 Čištění a péče

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a vacuum cleaner with three additional components (no text or symbols)

Labeled diagram of a red vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with a cylindrical component inserted, showing no text or symbols.

Technical line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a mechanical tool with a black arrow indicating direction, showing internal components and teeth (no text or symbols)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and bottom edge (no text or symbols)

Line drawing of a portable air purifier with handle and spout (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Line drawing of a vacuum cleaner with a hose and pipe assembly (no text or symbols)

Diagram of a curved pipe or duct with directional arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical tool with a directional arrow indicating movement or force (no text or symbols present)

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a bent rectangular object with a curved top edge (no text or symbols)

Line drawing of a portable air purifier with handle and spout (no text or symbols)

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrow (no text or symbols)

Line drawing of a vacuum cleaner with three additional components shown in separate views (no text or symbols)

Abstract geometric design with blue triangular shapes and gradient shading (no text or symbols)
