SUZULI RAS-B18N3KV2-E + RAS-18N3AV2-E - SUZUMI RAS-B22N3KV2-E + RAS-22N3AV2-E - RAS-B10UFV-E1 - RAS-B13UFV-E1 - RAS-B18UFV-E1 - Air-conditioner TOSHIBA - Free user manual and instructions

Product type	Reversible split air conditioner (heating and cooling)
Models concerned	RAS-B18N3KV2-E + RAS-18N3AV2-E, RAS-B22N3KV2-E + RAS-22N3AV2-E, RAS-B10UFV-E1, RAS-B13UFV-E1, RAS-B18UFV-E1
Power supply	230 V / 50 Hz (standard estimate)
Capacity (estimated)	Approx. 3.5 kW (12,000 BTU/h) for B10, 4.5 kW (15,000 BTU/h) for B13, 5.3 kW (18,000 BTU/h) for B18, 6.4 kW (22,000 BTU/h) for B22
Operating modes	Automatic, Cooling, Heating, Fan only, Dehumidification
Special functions	Hi-Power, Eco, Timer (on/off), Auto clean, Auto restart, 3-minute protection function, Pre-heating, Auto defrost
Airflow direction control	Vertical (FIX and SWING) and manual lateral
Remote control	Infrared, LCD display, brightness setting (4 levels: d0 to d3), code A/B selection
Outdoor operating conditions	Heating: -15°C to 24°C; Cooling/Dehumidification: -15°C to 46°C
Indoor operating conditions	Heating: <28°C; Cooling: 21°C to 32°C; Dehumidification: 17°C to 32°C
Regular maintenance	Clean air filters every 2 weeks; clean indoor unit with a damp cloth (no solvents)
Safety function	3-minute protection (prevents immediate restart), built-in circuit breaker

Frequently Asked Questions - SUZULI RAS-B18N3KV2-E + RAS-18N3AV2-E - SUZUMI RAS-B22N3KV2-E + RAS-22N3AV2-E - RAS-B10UFV-E1 - RAS-B13UFV-E1 - RAS-B18UFV-E1 TOSHIBA

How to clean the air conditioner filters?

Open the air intake grille, remove the filters, vacuum them or wash them in warm soapy water, let them dry completely then reinstall them. Do not use benzene, thinner or abrasive products.

How to adjust the brightness of the remote control display?

Press and hold the FAN button for 3 seconds until the display shows 'd0', 'd1', 'd2' or 'd3'. Press the temperature buttons to increase or decrease the brightness levels: d3 = 100%, d2 = 50%, d1 = 50% without operation light, d0 = all lights off.

What to do if the remote control does not work?

First check the battery status (AAA type). If they are flat, you can use the temporary operation by pressing the RESET button on the indoor unit. Make sure the remote control is pointed at the receiver and there are no obstacles.

How to use the timer to turn off the unit?

When the air conditioner is running, press OFF to access the shutdown setting. Use the temperature buttons (or TRIE) to select a duration from 0.5 to 12 hours. Press OFF again to activate the timer. To cancel it, press OFF once more.

The air conditioner does not cool enough, what to check?

Check that the filters are not clogged, that the set temperature is lower than the room temperature (minimum 17°C in cooling), that windows and doors are closed, that the outdoor unit is not obstructed, and that the mode is not set to FAN or DEHUMIDIFICATION.

Can I use the heating in very cold weather?

Yes, the unit operates in heating mode down to -15°C outdoors. If the outdoor temperature is lower, it is recommended to use an auxiliary heater. The heating capacity decreases as temperatures drop.

How to change the batteries of the remote control?

Remove the battery compartment cover at the back of the remote control. Insert two new AAA batteries following the polarities (+ and -). Replace the cover. If necessary, reset the remote control by removing and reinserting the batteries.

How to reset the remote control (code A/B)?

Press the RESET button on the indoor unit to start the air conditioner. Point the remote control, hold CHECK with a pen until '00' appears, then without releasing CHECK, press MODE until 'B' appears. Release to memorize the remote control B. To return to A, repeat the operation.

What is the auto clean function?

This function prevents bad odors by drying residual moisture. In COOL or DEHUMIDIFICATION mode, press the dedicated button: the fan continues to run for 30 minutes after the compressor stops. To stop immediately, press twice more within 30 seconds.

Why are there cracking noises during operation?

These noises are normal and come from the expansion or contraction of the plastic materials of the indoor unit due to temperature changes. No intervention is necessary.

USER MANUAL SUZULI RAS-B18N3KV2-E + RAS-18N3AV2-E - SUZUMI RAS-B22N3KV2-E + RAS-22N3AV2-E - RAS-B10UFV-E1 - RAS-B13UFV-E1 - RAS-B18UFV-E1 TOSHIBA

For general public use

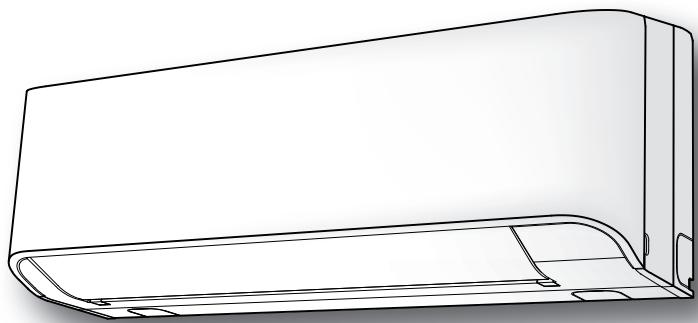

Indoor unit

RAS-07, 10, 13BKV-E

Outdoor unit

RAS-07, 10, 13BAV-E

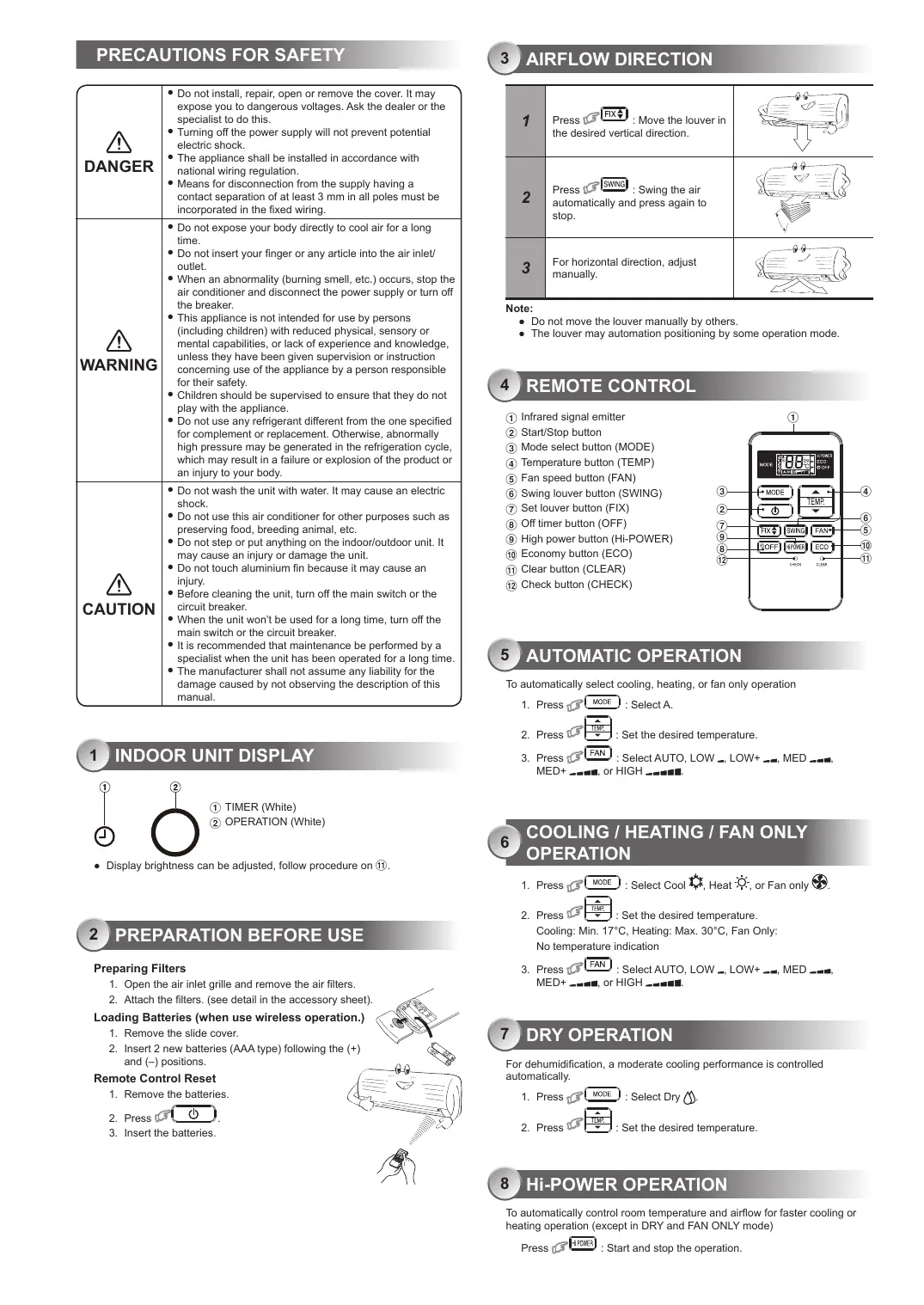

PRECAUTIONS FOR SAFETY

DANGER	·Do not install, repair, open or remove the cover. It may expose you to dangerous voltages. Ask the dealer or the specialist to do this. ·Turning off the power supply will not prevent potential electric shock. ·The appliance shall be installed in accordance with national wiring regulation. ·Means for disconnection from the supply having a contact separation of at least 3 mm in all poles must be incorporated in the fixed wiring.
WARNING	·Do not expose your body directly to cool air for a long time. ·Do not insert your finger or any article into the air inlet/outlet. ·When an abnormality (burning smell, etc.) occurs, stop the air conditioner and disconnect the power supply or turn off the breaker. ·This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ·Children should be supervised to ensure that they do not play with the appliance. ·Do not use any refrigerant different from the one specified for complement or replacement. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
CAUTION	·Do not wash the unit with water. It may cause an electric shock. ·Do not use this air conditioner for other purposes such as preserving food, breeding animal, etc. ·Do not step or put anything on the indoor/outdoor unit. It may cause an injury or damage the unit. ·Do not touch aluminium fin because it may cause an injury. ·Before cleaning the unit, turn off the main switch or the circuit breaker. ·When the unit won't be used for a long time, turn off the main switch or the circuit breaker. ·It is recommended that maintenance be performed by a specialist when the unit has been operated for a long time. ·The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual.

1 INDOOR UNIT DISPLAY

① TIMER (White)
② OPERATION (White)

• Display brightness can be adjusted, follow procedure on ⑪.

2 PREPARATION BEFORE USE

Preparing Filters

1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the accessory sheet)

Loading Batteries (when use wireless operation.)

1. Remove the slide cover.
2. Insert 2 new batteries (AAA type) following the (+) and (-) positions.

Remote Control Reset

1. Remove the batteries.

1. Insert the batteries.

3

AIRFLOW DIRECTION

1	Press FIX: Move the louver in the desired vertical direction.
2	Press SWING: Swing the air automatically and press again to stop.
3	For horizontal direction, adjust manually.

Note:

• Do not move the louver manually by others.
• The louver may automation positioning by some operation mode.

4

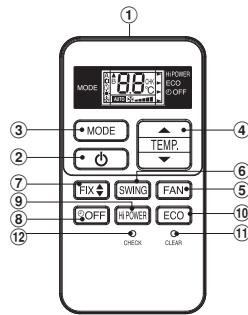

REMOTE CONTROL

① Infrared signal emitter
(2) Start/Stop button
③ Mode select button (MODE)
(4) Temperature button (TEMP)
(5) Fan speed button (FAN)
⑥ Swing louver button (SWING)
⑦ Set louver button (FIX)
⑧ Off timer button (OFF)
9 High power button (Hi-POWER)
Economy button (ECO)
11 Clear button (CLEAR)
12 Check button (CHECK)

5

AUTOMATIC OPERATION

To automatically select cooling, heating, or fan only operation

1. Press MODE : Select A.

: Set the desired temperature.

: Select AUTO, LOW, LOW+, MED, HIGH

6

For dehumidification, a moderate cooling performance is controlled automatically.

1. Press MODE : Select Dry

: Set the desired temperature.

8

Hi-POWER OPERATION

To automatically control room temperature and airflow for faster cooling or heating operation (except in DRY and FAN ONLY mode)

Press HPOWER : Start and stop the operation.

To automatically control room to save energy (except in DRY and FAN ONLY mode)

: Start and stop the operation.

Note: Cooling operation; the set temperature will increase automatically 1 degree/hour for 2 hours (maximum 2 degrees increase). For heating operation the set temperature will decrease.

10 TIMER OPERATION

Set the timer when the air conditioner is operating.

Setting the OFF timer
1	Press ON/OFF for enter OFF timer setting.
2	Press TEMP for select desired OFF timer. (0.5 - 12 hrs)
3	Press OFF for set OFF timer.
4	Press OFF again for cancel OFF timer.

11 DISPLAY LAMP BRIGHTNESS ADJUSTMENT

To decrease the display lamp brightness or turn it off.

1. Press and hold FAN for 3 seconds until brightness level (d0, d1, d2 or d3) is shown on remote control LCD then release the button.
2. Press ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑

Remote control LCD	Operation display	Brightness
d3	Lamp illuminates full brightness.	100%
d2	Lamp illuminates 50% brightness.	50%
d1	Lamp illuminates 50% brightness and the operation lamp is turned off.	50%
d0	All lamps are turned off.	All turned off

• In the examples of d and d , the lamp illuminates for 5 seconds before going off.

12 TEMPORARY OPERATION

In case of the misplaced or discharged remote control

• Pressing the RESET button, the unit can start or stop without using the remote control.
  Operation mode is set on AUTOMATIC operation, preset temperature is 24^ and fan operation is automatic speed.

To automatically restart the air conditioner after the power failure (Power of the unit must be on.)

Setting

1. Press and hold the RESET button on the indoor unit for 3 seconds to set the operation. (3 beep sound and OPERATION lamp blink 5 time/sec for 5 seconds)
2. Press and hold the RESET button on the indoor unit for 3 seconds to cancel the operation. (3 beep sound but OPERATION lamp does not blink)
3. In case of ON timer or OFF timer are set, AUTO START OPERATION does not activate.

To protect bad smell caused by the humidity in the indoor unit.

1. If the button is pressed once during "Cool" or "Dry" mode, the fan will continue to run for other 30 minutes, then it will turn off automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within 30 seconds.

Firstly, turn off the circuit breaker.

Indoor Unit and Remote Control

• Clean the indoor unit and the remote control with a wet cloth when needed.
• No benzine, thinner, polishing powder or chemically-treated duster.

Air filters

Clean every 2 weeks.

1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.

1. Three-minute protection feature: To prevent the unit from being activated for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating operation starts.
3. Warm air control: When the room temperature reaches the set temperature, the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into the room. When the outdoor temperature is too low, use another recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit where it will not be subjected to snow drifts, accumulation of leaves or other seasonal debris.
7. Some minor cracking sound may occur when unit operating. This is normal because the cracking sound may be caused by expansion/ contraction of plastic. Note: Item 2 to 6 for Heating model

Air conditioner operating conditions

Temp. Operation	Outdoor Temperature	Room Temperature
Heating	-15°C ~ 24°C	Less than 28°C
Cooling	-15°C ~ 46°C	21°C ~ 32°C
Dry	-15°C ~ 46°C	17°C ~ 32°C

17 TROUBLESHOOTING (CHECK POINT)

The unit does not operate.	Cooling or Heating is abnormally low.
· The power main switch is turned off. · The circuit breaker is activated to cut off the power supply. · Stoppage of electric current · ON timer is set.	· The filters are blocked with dust. · The temperature has been set improperly. · The windows or doors are opened. · The air inlet or outlet of the outdoor unit is blocked. · The fan speed is too low. · The operation mode is FAN or DRY.

18 REMOTE CONTROL A-B SELECTION

To separate using of remote control for each indoor unit in case of 2 air conditioner are installed nearly.

Remote Control B Setup.

1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.

3. Push and hold check button on the Remote Control by the tip of the pencil. "00" will be shown on the display. (Picture ①)

4. Press MODE during pushing CHECK. "B" will show on the display and "00" will disappear and the air conditioner will turn OFF. The Remote Control B is memorized. (Picture ②)

Note: 1. Repeat above step to reset Remote Control to be A.

1. Remote Control A has not "A" display.
2. Default setting of Remote Control from factory is A.

①
