USER MANUAL MUM58MG60 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

MCM3...

BOSCH

Congratulations on the purchase of your new BOSCH appliance.

You can find further information about our products on our web page.

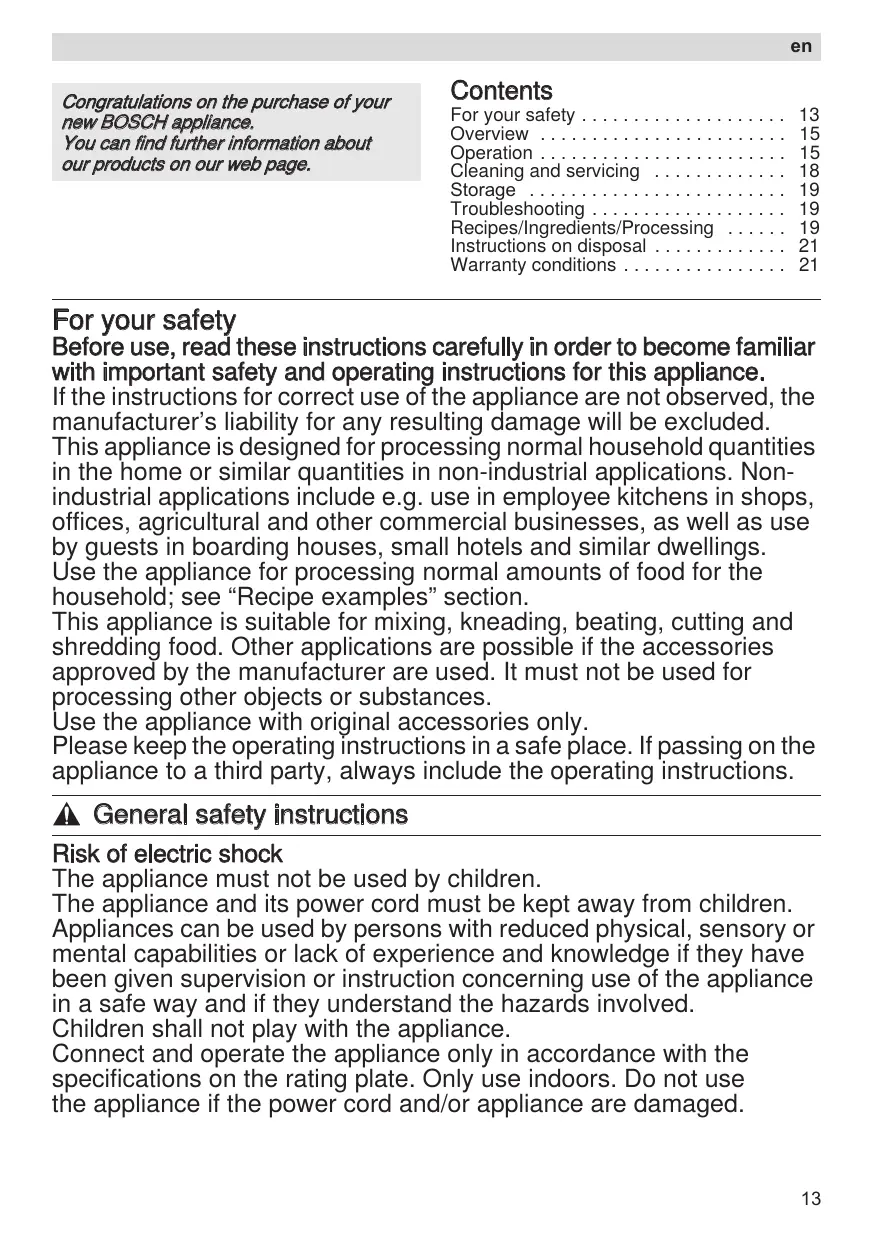

Contents

For your safety 13

Overview 15

Operation 15

Cleaning and servicing 18

Storage 19

Troubleshooting 19

Recipes/Ingredients/Processing 19

Instructions on disposal 21

Warranty conditions 21

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Nonindustrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal amounts of food for the household; see "Recipe examples" section.

This appliance is suitable for mixing, kneading, beating, cutting and shredding food. Other applications are possible if the accessories approved by the manufacturer are used. It must not be used for processing other objects or substances.

Use the appliance with original accessories only.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

A General safety instructions

Risk of electric shock

The appliance must not be used by children.

The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Do not place the power cord over sharp edges or hot surfaces. To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

Never immerse the base unit in liquids or place under running water and do not clean in the dishwasher.

Before rectifying a fault, pull out the mains plug.

Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients.

After switching off, the drive continues running for a short time.

Change tools only when the drive is at a standstill.

Risk of injury from sharp blades/rotating drive!

Never reach into the attached blender jug!

Do not remove/attach the blender jug until the drive has stopped.

Do not remove/attach the universal cutter jug until the drive has stopped.

Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush.

Do not grip the sharp blades or edges of the cutting discs.

Grip the discs by the plastic part in the centre only!

Do not place fingers in the feed tube. Only use the pusher when adding more ingredients.

Do not touch blades of the blade insert with bare hands.

Clean them with a brush.

Risk of scalding!

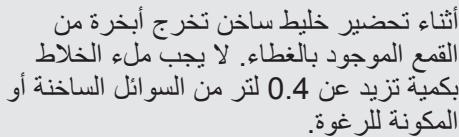

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0,4 litres of hot or frothing liquid.

Risk of injury!

Never assemble accessories on the base unit.

Explanation of the symbols on the appliance or accessory

Caution! Rotating tools.

Do not place fingers in the feed tube.

Lock blade insert in the blender or universal cutter jug.

Remove blade insert from the blender or universal cutter jug.

Blade insert with blender/cutting blade

Blade insert with grinding blade

Overview

The instructions describe different features of the appliance. Figure 1 shows an overview of the model.

Please fold out the illustrated pages.

Fig. A

Base unit

1 Rotary switch
0/off = Stop
M = Instantaneous switching at maximum speed, hold switch for required blending duration.
Settings 1-2, Operating speed:
1 = low speed - slow,
2 = high speed - fast.
2 Drive
3 Cord store
4 Bowl
5 Tool holder
6 Tools *

a Universal blade with blade guard
b Kneading hook
c Chopping disc

7 Cutting discs *

a Slicing reversible disc - thick/thin
b Shredding reversible disc - coarse/fine
c Reversible slicing/shredding disc

8 Lid

a Filler opening
b Pusher

Accessories *

9 Blade insert with blender/cutting blade and seal
10 Blade insert with grinding blade and seal
11 Universal cutter jug

12 Blender jug
13 Lid for blender

a Filler opening
b Funnel-shaped stopper

• for some models:

With the universal cutter use the appliance at full power (according to the recipe). You can find the recipe on the illustrated pages (Fig. F).

If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 12005833).

Operation

Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

Preparation

• Place the base unit on a smooth, clean surface.
• Pull cable out of the base unit to the required length.

i Important information

Use only the rotary switch to switch the appliance on or off.
- Never switch the appliance off by rotating the bowl, the blender or a tool.
- Do not switch the appliance on unless tools or accessories have been completely attached.

Bowl with accessories/tools

Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients. After switching off, the drive continues running for a short time. Change tools only when the drive is at a standstill.

Warning!

When working with the bowl, the appliance cannot be switched on until the bowl has been attached and the lid has been attached and screwed on tight.

Universal blade

for cutting, mincing, mixing.

Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Grip the universal blade by the edge of the plastic handle only.

Kneading hook

for kneading dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips).

Chopping disc

for cream, egg white and mayonnaise.

Fig. B

• Attach the bowl (arrow on bowl on dot on the appliance) and rotate as far as possible in a clockwise direction.
• Insert tool holder into the bowl.
• Insert universal blade, whisking disc or kneading hook into the tool holder and release.

Note position of the tools when inserting them! Press tools all the way down.

Warning!

Do not add ingredients until the tools have been inserted.

• Add ingredients.
• Attach lid with pusher (match arrow on lid on dot on bowl) and rotate in a clockwise direction. Lid lug must be located fully in the slot in the bowl handle.
• Insert the mains plug.

• Set the rotary switch to the desired setting.

• To add more ingredients, set the rotary switch to 0/off.

• Remove the pusher and add ingredients through the feed tube. Pusher can be used as a measuring cup.

Cutting discs

Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs. Take hold of discs by the edge only! Do not place fingers in the feed tube. Only use the pusher when adding more ingredients.

Slicing reversible disc - thick/thin

for slicing fruit and vegetables.

Process at setting 1.

Identification on the reversible slicing disc: "coarse" for the thick cutting side, "fine" for the thin cutting side

Warning!

The reversible slicing disc is not suitable for slicing hard cheese, bread, rolls or chocolate. Slice boiled, waxy potatoes only when they are cold.

Shredding reversible disc - coarse/fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan).

Process at setting 1.

Designation on the reversible shredding disc: "2" for the coarse shredding side "4" for the fine shredding side

Warning!

The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 2.

Reversible slicing/shredding disc

for slicing and shredding fruit, vegetables and cheese.

Process at setting 2.

Fig. 6

• Attach the bowl (arrow on bowl on dot on the appliance) and rotate as far as possible in a clockwise direction.
• Insert tool holder into the bowl.

Depending on the required use:

• Place cutting disc on tool holder. Turn required slicing/shredding side face up. Place disc on the disc holder so that the drivers on the tool holder grip the opening in the discs.

• Attach lid with pusher (match arrow on lid to arrow on bowl) and rotate in a clockwise direction. Lid lug must be located fully in the slot in the bowl handle.

• Insert the mains plug.
• Set the rotary switch to the desired setting.
• Fill with contents which are to be sliced or shredded.
• When adding contents which are to be sliced or shredded, apply only light pressure to the pusher. Remove the pusher and add ingredients through the feed tube.

Warning!

Empty the bowl before it becomes so full that the cutting or grating contents reach the carrier disc.

After using the appliance

• Set the rotary switch to 0/off.
• Remove mains plug.

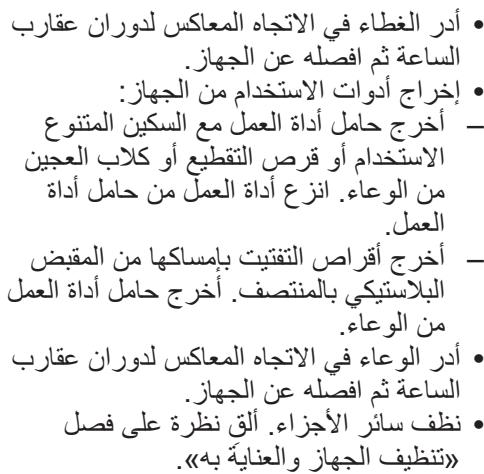

• Rotate the lid in an anti-clockwise direction and remove.
• Remove tool:

Take tool holder together with universal blade, whisking disc or kneading hook out of the bowl. Remove the tools from the tool holder.
Take out the cutting discs by the plastic stud in the centre. Take tool holder out of the bowl.

• Rotate bowl anti-clockwise and remove.
• Clean all parts, see "Cleaning and servicing".

Blender

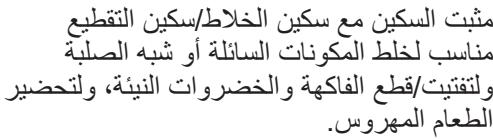

Blade insert with blender/cutting blade for mixing liquid or semi-solid food, for cutting/ chopping raw fruit and vegetables, for puréeing food.

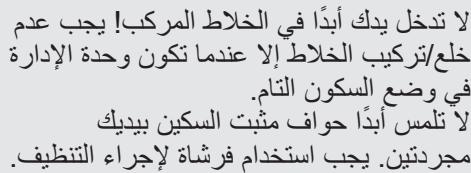

Risk of injury from sharp blades/ rotating drive!

Never place fingers in the attached blender!

Do not remove/attach the blender until the drive is at a standstill.

Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,4 litres of hot or frothing liquid.

Warning!

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty.

Fig. D

• Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

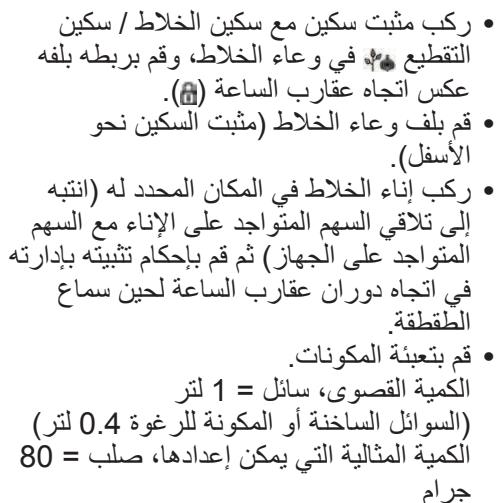

• Insert blade insert with blender/cutting blade into the blender jug and lock anti-clockwise (1).
• Turn blender jug over (blade insert face down).
• Attach the blender jug (match arrow on the jug to the arrow on the appliance) and rotate as far as possible in a clockwise direction.
• Add ingredients. Maximum capacity, liquid = 1.0 litres (frothing or hot liquids max. 0.4 litres). Optimal processing capacity - solids = 80 g.

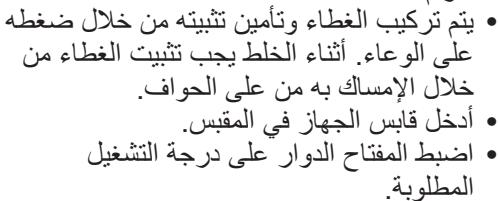

• Attach lid and press firmly. Hold lid while working.
• Insert the mains plug.
• Set the rotary switch to the desired setting.

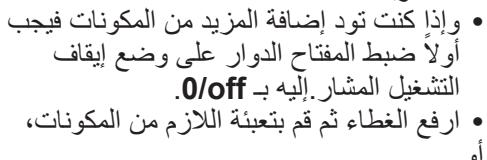

• To add more ingredients, set the rotary switch to 0/off.
• Remove the lid and add ingredients or

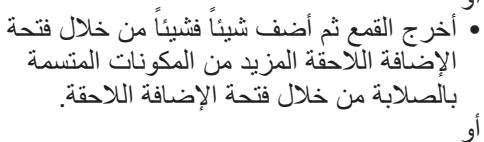

• remove the funnel and gradually add solid ingredients through the refill opening or
• pour liquid ingredients through the funnel.

After using the appliance

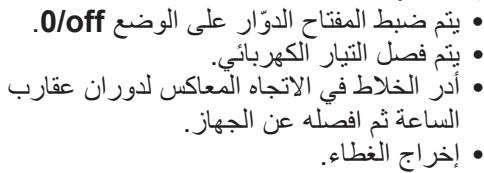

• Set the rotary switch to 0/off.
• Remove mains plug.
• Rotate the blender in an anti-clockwise direction and remove.

• Remove lid.

• Loosen blade insert clockwise ( t) and remove from the blender jug.

• Clean all parts, see "Cleaning and servicing".

Universal cutter

Use (depending on model):

• With the blade insert with blender/cutting blade for cutting and chopping meat, hard cheese, onions, herbs, garlic, fruit, vegetables.
• With the blade insert with grinding blade for grinding and cutting fairly small quantities of spices (e.g. pepper, cumin, juniper, cinnamon, dried anise, saffron), grain (e.g. wheat, millet, linseeds), coffee and sugar.

Risk of injury from sharp blades/ rotating drive!

Do not remove/attach the universal cutter until the drive has stopped. Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Fig. F shows guide values for the maximum quantities and processing times when working with the universal cutter.

Fig. 1

• Put down universal cutter jug with the opening face up.
• Add food, which is to be cut, in the jug.Note MAX mark on the jug!
• Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

• Insert blade insert (空) into the universal cutter jug and lock anticlockwise (山) .
• Turn universal cutter over (blade insert face down).
• Attach the universal cutter (arrow on jug on dot on the appliance) and rotate all the way clockwise.
• Insert the mains plug.
• Set the rotary switch to the desired setting.

Note: The longer the appliance remains switched on, the finer the ingredients are cut. Recommendations on using the accessories can be found in the section "Recipes/Ingredients/Processing".

After using the appliance

• Set the rotary switch to 0/off.
• Remove mains plug.
• Rotate universal cutter anti-clockwise and remove.
• Turn universal cutter over (blade insert face up).
• Loosen blade insert clockwise (B) and remove from the universal cutter jug.
• Empty jug.
• Clean all parts, see "Cleaning and servicing".

Cleaning and servicing

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional. An overview of cleaning the individual parts can be found in Fig. 6.

Risk of electric shock!

Never immerse the base unit in water or place under running water.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents.

Note: If processing e.g. carrots and red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Cleaning the base unit

• Remove mains plug.
• Wipe the base unit with a damp cloth. If required, use a little detergent.
• Then dry the base unit.

Cleaning the bowl and accessories

Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. Clean them with a brush. Do not grip the sharp blades or edges of the cutting discs. Take hold of discs by the edge only!

All parts are dishwasher-proof.

Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender/universal cutter

Risk of injury from sharp blades!

Do not touch blades of the blade insert with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush.

The blender jug (without blade insert), lid and funnel are dishwasher-proof.

Do not clean the blade insert in the dishwasher, but under running water (do not soak in water). Remove seal for cleaning.

Troubleshooting

Risk of injury!

Before rectifying a fault, pull out the mains plug.

Fault:

Appliance does not start or appliance switches off during operation.

Possible cause:

Bowl or lid or the accessory has not been attached correctly or has become detached.

Remedial action:

• Set the rotary switch to 0/off.
• Correctly attach bowl/lid or accessory and screw on all the way.
• Switch the appliance on again.

Important information

If the fault cannot be eliminated, please contact customer service (see customer service addresses at the end of this booklet).

Storage

Fig. H

The tools can be stored in the bowl to save space.

Recipes/Ingredients/Processing

Tool	Speed	Time	Recipes/Ingredients/Processing
or	low	approx. 1–2 min	Yeast dough Max. 500 g flour 25 g yeast or 1 packet of dried yeast 220 ml milk 1 egg 1 pinch of salt 80 g sugar 60 g butter Graded rind of half a lemon • Add all ingredients (except the milk) to the bowl. • Set rotary switch to a low speed for 10 seconds. • Add milk and stir at low speed for about 1½ minutes. Ingredients should be at the same temperature. When the dough has a smooth appearance, place in a warm location.
	M		Onions, garlic Amount: from 1 onion, quartered, up to 300 g from 1 clove of garlic up to 300 g • Process the onion/garlic until it has been chopped to the required size.
	high		Parsley Amount: from 0 g up to 50 g • Process the onion/garlic until it has been chopped to the required size.
	high		Meat, liver (for mince, steak tartare, etc.) Quantity: 50 g to 500 g • Remove bones, gristle and sinews. Dice the meat. Making sausage meat, stuffing and pâté: • Put meat (beef, pork, veal, poultry, or even fish, etc.) together with other ingredients and spices into the bowl and mix into a dough.
	high	approx. 1.5 min-2 min	Strawberry sorbet 250 g frozen strawberries 100 g icing sugar 180 ml cream • Put all ingredients in the bowl. Switch on immediately, otherwise the mixture will go lumpy. Mix until a creamy sorbet forms.
	high		Beaten egg white Amount: 2 to 6 egg whites • Whisk at high speed.
	high		Whipped cream Quantity: 200 g to 400 g • Whisk at high speed.
	low/high		Mayonnaise 1 egg 1 tsp. mustard 150–200 ml oil 1 tbs. lemon juice or vinegar 1 pinch of salt 1 pinch of sugar Ingredients should be at the same temperature. • Mix all ingredients (except oil) for several seconds at setting 1. • Switch appliance to setting 2, slowly pour oil through the feed tube and mix until the mixture emulsifies. Eat the mayonnaise immediately, do not store.
	high/M		Nuts, almonds Amount: 50g to 200 g • Remove shells completely, otherwise the blender blade will be blunted. • Process the onion/garlic until it has been chopped to the required size.
	high/M		Puréeing fruit or vegetables (Apple sauce, spinach, carrot and tomato purée; raw or cooked) • Put ingredients and spices into the blender and purée.
	high		Chocolate-milk 80 g-100 g cooled chocolate approx. 400 ml hot milk ● Chop up the chocolate in the blender, add the hot milk and mix briefly.
	M		Honey and hazel nut spread 15 g hazelnuts 110 g blossom honey (room temperature) ● Put the nuts in the universal cutter jug and cut with the blender/cutting blade for 20 seconds on setting M. ● Remove the universal cutter jug, turn it over and take out the blade insert. ● Add the honey. Close the universal cutter jug again with the blade and put on the base unit. ● Wait until all the honey has run down over the blade. Then mix everything for 5 seconds on setting M.
	Fig. 1 shows guide values for the maximum quantities and processing times when working with the universal cutter jug and the blade inserts.

Instructions on disposal

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment - WEEE.

The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Recept/ingredienser/bearbetning 77

Anvisningar for avfallschantering 79

Konsumentbestammelser 79

För din sakerhet

Recept/ingredient/bearbeting

Ppooxh! PEPiOToPεΦoεvα εpyλεια.

Hpokλειo-Tηλ.:2810-321.573

Kunpoc: Apx. MaKaapiou Γ' 39, 'EyKωμη -

Aeukwaia - AnykUnpiO tnλ.: 77778007

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Hikoln He 3aHypbatoN OCHOBHn 6bok y pIDHH, HIKoJI N He TpMaTH nI nd npOTouHO BOIO Ta He MNTn B NOcydOMnHi MaunHi.

BnHrTn 7TeNceIbHy BnIky 3 po3eTK npeed Tm Jk npHcTynpaTn Do yCyHeHHr HEnoJaKn.

He6e3neKa npaHeHHy 6eepTOBmH hacaKamn!

Hikon He BCTpOMnTn pyK Do BCTaHOBHeHOro KeJnxa 6JeHepa! KeJnx 6JeHepa MoXHa 3HiMaTH/BCTaHOBJIbOBatn TiIbKn NiCnA 3yNnHKn PnpBOdy.

KeiHx yHibepcaIbHoro noDiobaHa MoXHa 3HiMaTn/ BCTaHOBIOBaTn TiIbKn NiCn 3yPnHKn npNBOy.

Hebe3neka npaheHHra roctpmm HOXaMn!

He TopkaTncaJe3 yHiBepcaIbHoro HOXKa rOJIIMn pyKamn.

He TopkaTnca roctpnx HOKIB i KaHTiB DnCKiB Ira noDipi6HeHHa.

Дискк 6рати тьк 3a пл actmacobи eIeMeNT nOcepeDnHi!

He BCTpOMJIaTN pyK Do 3aBaHTaXyBaJbHOrO OTBOpY.

ДяпдштOBxВаHHЯ KОриctуВaTиСЯ TЛькИ StTOBxaЧem.

He TopkaTncsJe3 HOKa-BCTaBKn rOJIIMn pyKaMn.

He BCTpOMnIaTn pyK Do 3aBaHTaXyBaJbHOro OTbOpY.

Hix-KBCTaBky 3aΦikCyBaTn y KeiNx y 6IeHepa cn yHiBepcaJIbHOro nOdpioHIOBaHa.

Hix-KBCTaBky BnHnTn 3 KeInxa 6JeHepa cn yHiBepcaIbHoro nOpri6HOBaaya.

Hix-BCTaBka 3 HOxem 6IeHepa/HoxkEM IJI pOdpi6HeHHA

Hix-KBCTaBka 3 HOXEMДЯпepeMeJIIOBaHHA

Kopotkni orla

Ihctpykciia onncye pi3he ochaueHH npnaNy. Ha maJIIOHky Bn 3haJdeTe orJaMoJeNei.

Будлackа,po3ropHITbCTopiHKn 3MaHON-Kamn.

ManIOHOK A

OCHOBHN6nK

1 IobopoTHn nepemHKau

0 / off = CTON

«M» = MOMeHTaJIbHe BKJIHQUEHHA

3 HauBnIIM YncIOM O6OpOITiB,

NepemnkauytmyBaTIN npotaROM

acy notpiboro dna nepepo6kn.

Ctyneni 1-2,po6oayuBvNdkictb:

《1》=Hn3bKe YnCNo O6oPoTiB - NOBiJIbHO,

«2» = BINGOKe YINCSNo O6OpOTiB - WBNIko.

2 PnVBiD
3 Bičík dnia kašéniho
4 Yawa
5 YtpnmyBaH hacaDOK

6 HacaKn*

a YHIBePcaJIbHn HIX i3axINCHM KOxyXOM
b TaOK dJa 3aMiUyBaHHA
C NICK DnA 36nBaHHA

7ДиСКДЯ NOДРi6HHeH*

aДвOCTOPOHHIДИСКДЯHAPI3aHHa -Ha TOBCTI/TOHKI CKN6KN
bДBOCTOPOHHa WataKIBHnca-KpynHO/ DiPi6Ho
CIOBCTOPOHHI pi3aJIbHNI DnCK- WATKIBHNU

Kpnska

a 3aBaHTaKaYBaIbHn OTBip
b ToBxau

Ppnaadn

9 Hix-KCTaBka HOXeM 6JIeHepa / HOXeM DnI NOpi6HeHHi yUciJIbHIOBaem
10 Hix-BCTaBka 3 HOxEM dI npemEJIIOBAHn i yuJIbHIOBaayem
11 KeiNx yHibepcaIbHoro noDi6HIOBaHa

12 KeiNx 6IeHepa

13 Kpnika dIa 6JeHepa

a 3abaHaTaKaYBaIbHn OTBip
b BopoHka

B 3aJIeXHNoCTi BiD MoJeJI

YHIBePcAJIbHnI NOpri6HIOBau 3a6e3Neueyec Bam BnKOpNCTaHHMaKcHMaJIbHOI nOTyHKHOCTi npHaLy (3a yMOBn D0TPMaHHB bKa3iBOK, npBeDeHNx B peuENT). PeeENT Bn 3aHaeTe Ha cTOpIHkax 3 MaJIHOHkAMn (MaJIHOHOK F).

Ykuo yHIBepcaIbHn noPi6HOBaH He BXOINb Do KOmPLeKTo, TOni Bi MoKeTe 3aMOBInu Ioro uepe3 cnyx6y cepBicy (Homep dJa 3aMOBHeHHr: 12005833).

YnpabnHH

Ipeed nepwnm BnKOpncTaNHm npnlaTa npnaDra cnid peTeNbHO nouNCTHT, INB. «OunueHHr i DORJAD>.

Iirotobka

BctaHOBNtO OCHOBHn 6NoK Ha pIBHi, ctaibhHi Ta YnCTi NOBepxHi.
Kabelb BNTaRHTn 3 OCHOBHO 6IOKy Ha Heo6XiHy DOBxHNY.

Baxnbi Bka3iBkn

-Прилад ВИКаТи ТА ВИМКаТи ВИКЛЮЧNO NOBOPOTHM ПЕмИКачEM.
Hi BЯkomy pa3i He BVMnKaTH npHnAid, NOBepTaOuN caUy, 6JIeHdEep HacaIky.
- PpNJaJd MoKHa TIlbKn BMNkaTn, RkUO HacaJKN YI PpNJaJd JIOBHiCTHO BCTaHOBJIeHI.

Usha 3 npnlaandm/hacaKaM

Hebe3neKa npaHennn o6epTOBmHn Hacaikamn!

Пд уас роботи hikоли He BCTpOMnTnyкн до чаш.Дпя пдштOBxuBaHнIHrpeDiEHTIB KOpNCTyBaTnC 3aBkDInIITOBxauem.

Nicra BmKHeHH npVBid ue deekn yac npoobkye pxyatnc. HacaKn MoKha MInrtn TInbKn Nicra 3ylnHKn npBody.

ybaral

Плд уас роботи в чашлpenад можнавВВIMKHTN TILBKN 3 yCTaHOBNeHOU qaWeIO,аТAKOK 3 yCTaHOBNeHOU Ta MlHo3aKpyeHOU KpIShKOIO.

YHibercalbHHiX

ДлnoДрioHeHHcIeHHa, nepemuBaHHi 3amuBaHHa.

Hebe3neKa npaehnra roctpmm HOXAMH!

He TopkaTncaJe3 YHIBepCaIbHoro HOKa roIIMn pykamn. Pnp HeBnKOpNCTaHHi yHIBepCaIbHi HIX CIId 3aBxKn 36epiraTu B 3axnCHomy KOxyci. YHIBepCaIbHi HIX MOxHa TpImaTu TiNbK 3a PnactMacOBn Kpa!.

Tayok dna 3amiluybaHHA

ДлгЗamiyBaHHnTicTa Tдп niDmIyBaHHI INrpeiEHTIB,Як He NOBInHi noDiPio6HOBaTnCn (HaNP.:po3nHOK, WOKOJaDNHX nlaCTiBcIB).

ДИСКДЛЗИВАнHA

ДЯ ВершКIB, 36иТnx 6iNkIB Ta MaNoHe3y.

MaJIHOHOK

BcTaHOBHTuAuy（ctpiKaHa Chaasi HABnPoTn KpaIKNa Ha npilaDi）Ta NOBepHyTu 3a roDHHNKOBIO CTpiKIO Do ynpOy.
BctabnttpmaHacaIOKbauy.
BCTaHOBtynyHBePcAIBnHnIX,INCKI36nBaHHn a6o rauOK nJ4 3amUyBaHHHa TpMauch Hacadok i BiDnyCTHTN.3BepHyTN yBarhy Ha po3TaUyBaHHnHacadok npu ycTahOBui! HacadknHaTHCKaTN BHN3 Do ynopy.

Ybaral

PpOdykTN nIa nepepo6Kn 3aBaHTaKyBaTn 3aBKnDn NIIe nICnYcTaHOBKn HacaIOK.

3aBaHtAjkntn iHrpeiEHTN.
BcTaHOBHTN KpnuKy 3 uTOBXaUeM (ctpiKa Ha KpuuHaNBpOTn KpaKN Ha yA) Ta NOBepHyTu 3a rOINHHKOBOO cTPIKOIO.HocNK KpuuKn NobHeh BBiTN Do ynpOy B npopi3 pyuKn awi.
Bctabntu tTeNcIbHy BnKy Bpo3ETky.
BctaHOBNI NOBOPOTNIpePMKau Ha 6aKaHn CTyniNb.
- Пеши.TIM, Рд OkладаTN INHpeDiEHTN, BCTaHOBHTN NOBOPOTNIN NepemNKaHa «0/off».

BnHrTn 1TOBxAu Ta 3aBaHTaJxHITn iHrpTeiEHTn Upe3 3aBaHTaKyBaIbHn OTBip. LTOBxAu MoKHa BnKOpNCToByBaTN Jk MIPHN CtakaHUnK.

Dnckn dna nopdipheHHA

He6e3neKa npaehnra roctpmm HOKAMN!

He TopkaTnca roctpnx Hoxib i KaHTiB nCKiB IJIIOpiOHeHHa.

ДиckeбатипькзаКраii!

He BCTpOMnIpyKdo 3aBaHTaKyBaJIb-Horo OTBOpy.IJIa NIIiUTOBxYaBaHHa KOpHCTyBaTHCA TINbKNI UTOBXaUeM.

ДвoctopoHHIДИСКДЛHapi3aHH-HaTOBCTI/TOHKiCKn6Kn

Y pa3i noIskoJxHHeHH a60 He npaBnIbHorO pO3MiUeHH yIbHOBaHa MoKe BNTiKaTn piDInHa.

BCTaBHTn HIX-BCTaBky 3 HOXeM 6JIeHepa/HoXeM dIy IIOpi6HeHHy KJIINx 6JIeHepa i 3aOikCyBaTHn IpOTn rOHNHKOBoi cTpiIKN (B).
- KeiNx 6JIeHepa nepeBepHyTu (HOKeM-BCTaBKOIO DOHN3y).
BcTaHOBHTN KeJIHX 6JIeHdepy (ctpiJka Ha KeJIHXOBI HABnPoTn KpaIKN Ha npIaDi) Ta NOBePHyTN 3a RoDNHHIKOBIO CTpiJIKOIO Do yNopy.

3aBaHtAaxNtIn iHrpeiEHTN.

MaKcMmaIbHa KJIbKicTb,piINHa = 1,0IITp (PiHcTnx a6o rapYnx piINH MaKcMymO,4IITpa).

OnTImaJIbHa KIIbKICtB dIy nepepo6Kn TBePdIX npOdyKTIB = 80 rpaM.

BcTaHOBnTKnpuuKyipnHTnCHytnii
Пд ус роботи Кршку пнтpresBaTN.
BctabnTuTencelbHy BnIky Bpo3eKy.
BCTaHOBHTN NOBOPOTHNI NEpeMnKaU Ha 6aKaHn CTyniHb.
Длдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�н�n
3HrTn KpNkky i 3aNoBHTn iHrpeDiEHTn a6o
BnHrTH BOpOHky i 3aNoBHIOBaTH TBepDi iHrpeiEHTN NOCTyNOBO uepe3 3aBaHTaJxBaJIbHn OTBip

a6o

3aIbONHTPiDKiIHrpeJeHTNupepeBOPOHky.

Pio80n

BCTaHOBHTI NOBOPOTNI NEPEMNKAU Ha «0/off».
BnHATn 1TEnceJIbHy BUNKy 3 pO3eTKN.
- Повернтубленьдер поти roDNHHNKOBoi CTpiJKN Ta 3HRTN.
3HATN KPNWKy.
Hix-BCTaBky BiDkpyTNTn 3a roINHHNKOBIO CTpiIKOIO (B) Ta 3HRTN 3 KeINxha 6JIeHdepa.
- Почисти Bci DeTaJI,ДИВ.«Очшени i DoTЯД»

YHIBePcAJIbHI NOJpi6HIOBaU

BukopncTaHHn (B 3aJIeXHOcti BiD MoJeJI):

3 HOJKeM-BCTaBKOIO 3 HOJKe M6JIeHdepa/ HOJKe I JI NODpi6HeHHa DJIa NODpi6HeHH i CieHHa M'ra, TBepDoro Cnpy, u6yIi, TpaB, YacNHky, φpyKtIB, OBOUIB.

3 HOJKeM-BCTaBKOIO 3 HOJeM dIJI npemeHOBaHHN OIJI npemeHOBaHHI I NOpiBIOHEHNH HeBENIKOII KINbKoCTI npraHOUIB (HaNP.: nepuO, 3pNi, NJIbUO, KopuOI, cyueHoro 6aIaNHy, wAΦpaHy), 3epHOBrX (HaNP.: nIseHNI, NiUHa, HacIHNa IIbOHy), KaBn aO zuKypy.

He6e3neKa IopaHEnHH RoCTpMM HOKAMW/O6epTOBMM IpiHBODOM!

YHbepcaIbHHNIOpiHOBaMHKa3HIMATN/BCTaHOBIOBaT NIIbKNPiCnA 3yINHKnPnBOy. He TopKaTNCJIe3 HOKa-BCTaBKn TOnHMnykAMN.DJIa OuHcEHHK KopncTyBaTNCsIitKOIO.

Ha MaJIIOHky I npIBeHei opieHTOBHI daHI dIy MaKcIMaJIbHOI KInbKOCTI i yacy nepepo6Kn dIy po6OTo 3 yHiBepcaJIbHNm noDi6HOBaYem.

MaJIIOHOK E

Keiux yHibercalbHoro noDiPi6HOBaHa nOCTaBHTn OTBOPOM dOrOpn.
3aBaHTaXHTn npOdykTn, npn3Hauehi dna nOpdi6HeHHa KeInxy.3BepTaTH yBaIy Ha nO3NaChy «MAX» Ha KeInxOBI!
- P03MiCTn yuilbHOBaHa HoXiBCTaBci. IpoCTeKHTn 3a npaBnIbHmP03MiueHHa yuiIbHOBaay.

BaxJINBI BkA3iBKn

Y pa3i noIskoJxehn a6o He npaBnIbHoro pO3MiUeHHy uIbHIOBaHa MoKe BNTiKaTpiDInHa.

Hix-BCTaBky (@/OD) BCTaBHTn y KeiNx yHIBePcAJIbHOr NOpi6HIOBaVa i 3aΦIKCyBaTn npOTn rOINHHKOBoI cTpiIKN ()
- YhivBepcaJIbHnI nOpi6HIOBaU nepeBepHyTu (HOxKem-BCTaBKOIO DOHN3y).
- YhIbePcAJIbHn IIOpi6HIOBau BCTaHOBHTN (CTpIInKa Ha KeINXoBi HABnPoTn KpaIKn Ha npIIaDi) i NOBepHyTn 3a RoDHHNKOBOO CTpIInKO IO yNOPY.
BCTaBHTn 1TeNcIbHy BnIKy Bpo3ETKy.
BCTaHOBHTN NOBOPOTHNI nepeMnKaH a6kaHn cTyniHb.

Bka3ibKa: YIM IOBWe npnlaJ 3aJIuHaεTbcB CBiIMKHeHIM, TmI dpi6HlIe NpOpi6HIOHTbcra npOyKTn. PeKOMeHdaIaII DnI BVKOpNCtAHn npnlaIpnBVeIeHI B po3dIi «PeUENTn/ iHrpeiEHTn/pepepo6Ka».

Pio8o

BCTaHOBHTI NOBOPOTHNI NepeMnKaU Ha «0/off».
BnHrTn 1eTncIbHy BnKy 3 pO3eKn.

• Повернту уиеврcaльни подюновачпосту рогинниковс стейки та 3нати.
• YhIbePcAJIbHn IIOpi6HIOBaNpeBepHyTn (HOKeM-BCTaBKOIO DoROPn).
  Hix-KCTaBky BiKpyTnTn 3a roDHHNHOBOO CTpiIKHO (Ta 3HrTn 3 KeINxayHIBepcaIbHOro nOpi6HOBa4a.
  CnyctoOnTuKeJInx.
• Поунстити Bci Deеталi, ДИВ. «Очшиеня i DoŋlaД».

OuHcHnHa iDorgla

PpnilaHne noTpe6ye TexhiHoro dorgnHy.
PetelbHe ouuIeHHn nonepeJkae
noWKoDxKeHHn npnilaNy ta 3a6e3NeyuE
36epexHHn Ioro npaue3dathocTi.
OrJaI dIy uISeHHN OKpeMnx DeTaJei
npBVeDeHn Ha MaIHOHKy G.

He6e3neKa BpaXeHHa eNeKtpnHm TOKOM!

OchOBHn 6nok Hi B JAKOMy pa3i He 3aHypIOBaTH B BOy i HIKOJI N He TpIMaTH NiI npOTouHO BOdoIO.

Ybaral

Ha nobepxHx MOKytb BHNKHyTu NoWKoDxKeHHy. He 3actocobyBatn HiaKnx abpa3uBHX 3ac06iB dny uNueHHy.

Bka3iBka:Пид уac nepepo6kn，Hanp.:MOPKBn Ta chePBOHOI Kanyctn，Ha ПлactMacOBnx DeTALX yTBOPHOITbC8 3a6apBLeHHra，Як MOЖHa yCyHyTN 3a DOnOMOrOIODeKInbKOx Kpanelb CTOnoBOI onii.

OuHcHnO OCHOBnO 6JOky

BnHrTn 1eNcJIbHy BnKy 3 po3eKn.
- PnOteptN OCHOBHn 6Iok BONoroIO raHupKOIO. 3a Notpe6n CKOpNCyBaTncr HeBeJIHKoIO KIIbKicTH MNoUOrO 3acO6y.
- Picna zbo npoteptn npnaad hacyxo.

OuHcHHaWJ3 npJaIaIaM

He6e3neKa npaehnra roctpmm HOxamn!

He TopkaTnca ne3 yHibepcaIbHoro HoKa roIIMn pykam. IJI OUYIeHHa KOpNCTyBaTnca LITKOJ. He TopkaTnca roCtpnx HOKIB I KaHTIB dNCKIB IJI NOpIioHeHHa. IINCKN 6paTH TInbKn 3a KpaII!

Bci deTani MoXHa MHTN B NocydomnHi MaunHi.

He 3aTnckatn nlaactMacobI deTani B NocydomnHi MaunHi, TaK JaK BOHMOkjTyb DeOpMyBaTncr.

OuHcENHa 6JIeHepa/ yHbepcaIbHoro noDiPi6HOBaHa

Hebe3neKa npaehnra roctpmm HOXAMH!

He TopkaTnca JIe3 HOKa-BCTaBKn TOLIMN pykam. PnH HeBnKOpNCtAHnHyIbepCaJIbHm HIX CnID 3aBKnD36epirATn B 3axnCHOMy KOxci. IOn OUnSeHHa KOpNCtYBaTncs Uitkoio.

KeJnx 6IeHepa (6e3 HOJa-BCTaBKn), KpUHKy Ta BOPOHKу MOJHa MNTu B NocydomnHi MaunHi.

HIX-BCTaBky He MNTu B NocyDomnHiMaunHi, aPiN pOToUHO BOHO (He 3aIIuataN leXaTu B BoDi).

UyijbHOBaJnYuHHeH3HATN.

Дономога пи Ненидкай.

Hebe3neka npaehnHa!

BnHrtn WTeNcEbnHy BnKy 3 po3eTkn nepeTd TmM Jk PnCTyPaN To yCyHeHHa HneNoJaKn.

Helenjada:

Прилад He Вмкаetbca abo пилад Вмнkaetbcaпд ус робтн.

MoxlinBa pnuHa:

Ya7a a6o KpuiuKa qI npilaJn HnnpaBnIbHO BCTaHOBJIeHi a6o BnIJI3 KpIJIeHNJ.

UcynHHeHHeNoJaKn:

BctaHOBHTIIOBOPOTNIpeMnKaHa 0 / off "
-Чашу/Кршу КИ Ппладд ВстановиnpаВиьно Та Шьно 3aKpyТИТи Doунору.
- IpoDobKHTn po6Oty 3 npuJaIOM.

BaxklnBa Bka3iBka

KuBn He MoKeTe UcyHyTn HecnpaBnHcIb TaKm YHOM,ToDi 3BepHITcB,6yDb NaCkA,do CnyK6n cepBicy (DnBtbc aApceN cny6 cepBicy HanpkiHci ciie6bpoUpyn).

36epiraHH

MAJIHOK

He Tporatb octpbie HOxN BByCTyNbI DnCKOB-N3MeJbUHTeJIeN.

Дискп браль толъко за пл actMaCCOBую DeТаь посердинe!

He onyckaTb pyKn B 3aIrpy3OuHoe OTBepCTne.ДЯ NOJaTaNKBaHnA NcNoJb3OBaTb TOnbKO TOnKaTeNb. He Kacatbcra TOnbIMn pyKaMn Je3Bn HOKa-BCTaBKn. ДЯ ChIcTKN NcNoJb3OBaTb UeTky.

Onachoctb ownapnBaHna!

Ipn nepepa6oTke B 6bHepepe ropaynx npOdyKTOB uepe3 BOpOHky B KpbIuKe BbIXoHnT nap. 3aONHnTb MaKcHmym 0,4 IInTp a ropaye nnCINbHOneHnIeSca XnIDKOCTN.

Onachoctb TpaBMnpoBaHn!

HnKoIa He co6npaTb npHaIeJXHOCTn Ha OCHOBHOM 6JIOKe.

Pa3bYcHHeNcMBOJOB Ha npI6ope nII npHaJdJIeXHOCTaX

OcToPoJxHo! BpaUaIounecr HacaIKN.

He onyckaTb pykn B 3aarpy30uHoe OTBepCTne.

HoxBCTaBky 3aФнксpoBaTb B cTaKaHe 6JIeHdepa nIyHnBepcaIbHO r3MeIbYuTeJIa.

HoxK-BCTaBky n3BLeueb n3 ctaKaHa 6JeHepa nn yHnBepcaIbHOro n3MeJIbUHTeJIa.

HOK-BCTaBka c HOXOM 6JIeHdepa/HOxOM dIy I3MeJIbYeHnA

HoxK-BCTaBka c HOXOM IJIpepeMaIbBaHnA

KOMnJIeKTbIy 063Op

HnctpykunonncbIbaetpa3nHbIeBnDbl OcnaueHH np6opa.Ha pncyHke Bb HauTe 063Op moJeJ.

Ioxaanyicta,otkpoite ctpaHnCbic pncyHKamn.

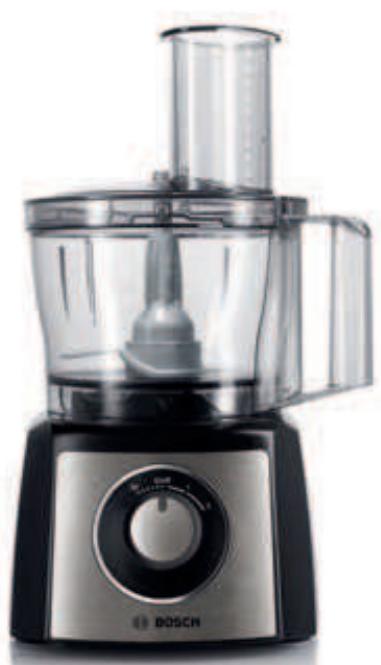

PcyHOK A

OCHOBHOH 6JOK

1 NobopoTHbI nepeKJIIOUaTeIb

«O/off» = OCTaHOBka

«M» = MГHOBENHoe BKNIOUeHne HaMaKcImaJIbHoe YncIIO O6OpOTOB, yJepKINBaTb IpeKeIIOuATeIb B TeUHeO6XoDnMOrO BpEmEHn IpepeA6

Ctyni 1-2,pa6oay cokopocb:

《1》=Hn3Koe YnCNo OoOpOTOB-MeDJIeHNO,

«2» = Высокoe УнсIo OБорOTВ - 6bIcTpo.

2 PnBOD

3 OtceK dIa Ka6eIa

4 CmeCteJIbHaHaaHa

5 DepeKaTeB hacaIOK

6 HacaKn*

a YHnBepcaJIbHbI HOX C 3aUHTbIM YexlOM

b MecnIbHaJ HacaJaKa

C NUC JIY B36NBaHNA

7 NsCKH-N3MeJIbUHTeJIIN

aДByCTOpOHHmДИСК-Pe3Ka -TOJIcTbIe/ TOHKnE JOMTNKn

b DByCTOpOHHm IINCK-WHNKOBKa - KpynHO/MeJIKO

CДBycSTOPOHmДиСК-pe3Ka/-IINHKOBA

Kpbuoka

a 3arpy3oHoe OTBepCTne
b TonkaTeIb

PpHaJdJIeKHOCTN\*

9 HOK-BCaKa C HOKOM 6JIeHepa/HOKOM IINI3MeJIbYeHnIyIIOHTHeIeM
10 HoK-BCTaBc C HOKOM IINIpeMaJIbBaHnI yNlOTHTeJeM
11 CtakaH yHnBepcaIbHoro n3MeIbUHTeIa
12 CtaKaH 6JIeHepa
13 KpbuKa dJa 6JeHepa

a 3arpy3oHoe OTBepCTne
b BopoHka

• B 3aBnCmOCTn OT MoDJIH

YHnBepcaIbHbI N3MeJIbUHTeIb O6ecneuBaET Bam nCNoIb3OBAHne PONHO MOU-HocTH npIbOpa (pnp Co6NIODeHN yKa3aHn, npINBeENHbIX B peceNTe). PeCNT Bbl HaJeTe Ha cTpaHnIax C pncyHKamn (pnc. I).

EcIn yHnBepcaIbHbI n3MeJIbUHTeJIb He BXOJNT B KOMNJIeKT NocTaBKN,TO eRO MOxHO 3aKa3aTbYepe3 cepBnCHyO cnYK6y (Homep dIra 3aKa3a:12005833).

3Kcnnyaatauia

IpeepnepBbIM nCpOJIb3OBaHHeM TuaTeJIbHO pOuHCTHTb npNoOp I npHaJdJeKHOCTN, CM. «UncTka uYxOJ>.

IoproTOBka

• IocTaBnTb OCHOBHOn 6NoK Ha rJaDkyU, CTaBnJIbHyU NcIcTyU NOBepXHOCTb.
  Ka6eJIb BbITaHyTb 3OCHOBHOrO 6I0ka Ha Heo6XoDmMyo DnHiY.

Baxkhhe npimmeaHn

• BkIIOUaTb N BbIKIIOUaTb npI6Op MOKHO NCKIIIOUHTeJIbHO C NOMOUIBO NOBOPOTHO pepeKIIIOUaTeJIa.
• Hn B Koem cIyuae He BbIKIOuatab npnbop nocpeDCTBOM NOBOPota CmecntelbHOJ qaun, 6JIeHepa nn HaCaJKN.
  -Прибор можно Вкночаь Только посл плно установки насанок пи пшидангхостел.

CmecntelbHa YaSha cPnHaIeXHoCTaMn/HacaIkaMn

Onachoctb TpaBMPOBaHnBbpaaIOUHMNCA HacaKaMn!

Bo Bpem 3Kcnnyataunn HNKoRda He onyckaTb pykN B CMeCNTbHyu YaShy. IJIa NOtaKNBaHnHnHrpeDneHTOB BCEra NcNoB3ObaTb TOLKaTeNb.

Pocne BbIKIOueHn npVBOD eue HeKOTOpoe BpemI pOdoJkae paOtaTb. HacaKn MoXHO 3aMeHrToTb TOnkO Pocne OCTaHOBKn PpVBoDa.

BHMaHHe!

Pn paobax B cmecntelbHO uae npbo pMOKeT bblt BKIOueh TOJIbKO C yCTaHOBJIeHHo CMecTeIbHOu aUWe, a TaKHe C yCTaHOBNeHHo I NlOTHO pNkpyeHHo KpbIshKo.

YHNBepcaJIbHbI HOK

He Tporatb octpblbe HOKIN BBICTyIbnI DnCKOB-N3MeNbUHTeNeI.

Пл actMaCCOBbIe DeTaJIH He 3aJIMaTbB NocyDOMOeHNoMaShInHe, TaK KaKBO3MOxHaNX DeΦOpMaZnI.

Ucntka 6JIeHdepa/yHbEpcalbHorO n3MeJIbYHTeJIa

Onachoctb TpaBMPOBaHnO6 octphe Hoxn!

He kacaTbca rOJIbIMn pyKaMn Ie3BnHOJka-BCTaBKn. YHNBepcAIBhI HOK npHEnCNoJIb3OBAHH BcerDa XpaHHTB 3aUHTHom yExNe.ДЯ qNCTKN HcNoJIb3OBAt bIeTKy.

CtakaH 6IeHepa (6e3 HOXa-BCTaBKn), KpbIuKy I BOPOHky MOxHO Mblb B NocydomoeyHoi MaunHe.

Hok-BCTaBkyMbITbHe BV NOCyDOMoeuHO MaunHe,aNODnPOTOUHO BDOJ (He OCTaJIaTbJeKaTbBBOJe). ⅡIaYnCTKNCHrTbYnloTHnTeJIb.

PeCNTbI/INHrpeDneHTb/pepepa60Ta

KHEECK, OMO=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

KIAA008, OMO=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

KIAA008, OMO=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

MKYKTCS, OMO=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

KAKA3Hb, OMO=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

KAKA3Hb, OMO=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

KAKA3Hb, OMO=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoAyn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran [phone], dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-100, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-101, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-102, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-103, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-104, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-105, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-106, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-107, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-108, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-109, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-110, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-111, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-112, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-113, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-114, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-115, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-116, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-117, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-118, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-119, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-120, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-121, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-122, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-123, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-124, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-125, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-126, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-127, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-128, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-129, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-130, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-131, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-132, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-133, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-134, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-135, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-136, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-137, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-138, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-139, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-140, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-141, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-142, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-143, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-144, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-145, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-146, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-147, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-148, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-149, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-150, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-151, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-152, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-153, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-154, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-155, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-156, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-157, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-158, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-159, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-160, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-161, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-162, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-163, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-164, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-165, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-166, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-167, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-168, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-169, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-170, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-171, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-172, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-173, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-174, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-175, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-176, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-177, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-178, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-180, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-181, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-182, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-183, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-184, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-185, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-186, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-187, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-188, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-189, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-190, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-191, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-192, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-193, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-194, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-195, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-196, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-197, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-200, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-201, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-202, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-203, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-204, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-205, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-206, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-207, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-208, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-209, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-210, dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-209; dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-210; dacs. [phone]

MUKIAPK, ILOU=37ydu, 426057, B. CnKBoByn, d.152, ran (3417) 77-10-209; dacs. (3411)

PCCN

BAEAKH, IJ Koubunhouni POMah CepBeeBhu, 655010, Topocbayn, n.15, ren.[phone], dacq. [phone]

AEBAH, IJ Koubunhouni POMah CepBeeBhu, 655010, Topocbayn, n.15, ren.[phone], dacq. [phone]

AEBAH, IJ Koubunhouni POMah CepBeeBhu, 655009, Topocbayn, n.15, ren.[phone], dacq. [phone]

AEBAH, IJ Koubunhouni POMah CepBeeBhu, 655009, Topocbayn, n.15, ren.[phone], dacq. [phone], dacq. [phone]

AEBAH, IJ Koubunhouni POMah CepBeeBhu, 655009, Topocbayn, n.15, ren.[phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dac q. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22- 65-64, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq.[phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22-65 -64, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (387)[phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (387)26-65 73, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dac q. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22- 65-73, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq.[phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22-65 73, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dac q. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dac q. (390)22- 65-73, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22 -65-73, dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. [phone], dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390）22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq.(390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64,dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)22-64, dacq. (390)2

IpoDyKU npEHaaHaueKa IcNoJIb3OBAHnIO BycIOBmX TemNepaTpyb BiIe 0°C N OTHOCITeHbHO BlaXHoCTn, He npeBbIaHooJe 93%.

Pepa h aonm 0k n pnoDyKn, dnttnbHoe Bpemr HauoBwueRc np Bo3dEeBtBuM OtpuatelhON TMepaTpy, Heo6xmo HbpeKbAee y bynox McoTHAHN TMepaTpybHeckOnlO YaacOH.

Ppabnla peanl3aun npdykun onpeJeHOTc npepnpnTmPo3HmHnTOptroBn B COOTBTCTBN C Tpe6oBaHmM DeIctByuOero 3aKHOdaTeNbctBa.

Yka3aHnno yTnnnaa m npOyKm coepkcatc B nHCTpyKm no 3Kcnnyatau m Moryt bby MyHnuaIbIbx opraHOB nONHTeHbHO BnactM.

I npDyuknHpeAINB0AHNOHTOBTENEM B THeNcE cPOK dECTBnB CEPTDKATC OOTBCTBNN, 3T0T cETDmKAT dECTBNTENe nPi e neontabke, npoDAKe H nOIOJIb3OBaHn (npImeHemn) B THeNcE cPOK cnykBo, yctAOBtBNHO BO CTOBCTBNN co CTaBte 18 3AkOna PH o 3zauHne pnaB nTope6bHne. CpOK cyjXbHa npDyuknIOY kyaahnnpO3BDMHN B NtOCTOBK E YHOFMAUIN A NTOTBOTENE r oapAHNTHM O cepBcHMOB cOEBiHOM cbKYNBAHN).

PpOyduKIMoKETbIbIeHTNHOHMOO603aHHeHNO (noe kE-Nr.) anpo6aHIOHMOH TnHy (noe TpeY) nTOBAPHOH HnBa Hn pOyoDtuK, yAIOKOBV u (HIN) cOepkAouXhC BcOPoBDtneBhoJ DOKMeHTAAU.

B Coctab 3KcnjpataunmHbNk DOKemHTO, npeyCMOTPBHeN bI30TROEN ENI PNOJkyMn, MORY T BXODHT hAcrTOUAR IHOPOMAUH, IHCTPCKU (pyKOBOCTBO) NO 3Kcnjpataunm, IHOPOMAUH o6 cYOBINX RAPHTHIHO N e CEBPNCHORO OCBNLYKBAHNA.

MapKroBhAne npoDycknU oCieBCTTcR 3IOTROBENTEN h TNIIOBTO TaNIOB-NePnObopa, h NtAOBOHO-ETIKETe, HnOPOCTBENH O h YAIOKOBKe pN6oBa, a TAKEO MOKET nPNOB3DQYbCS RnHMMn CNOcMOBn, O6eBNCVAHOMM DcTOnHyE no HnADHObne nPdrcTeBAHNE IHOPOMaunu o NpOBoBe m B MeCTon PPODa.

PdOyuknK, KOpora PpOJNA pOoJeDpy NOpTeBpeKEnaOCBTOCTBNrCOnAHO TpeBOaHmN TeXnHeckxN PerAmteHOB TaMOxEHORO Co03a, MapKHyETcR EHNHIM OBaOpEHHN pOPOyKINu HpaNBKeROcYAPCR- YNEHOB TAMOxEHORO CO03a.

IpoDyuknki, KOTOPA 6bIa BlyPunEHa YNIOHOMOENHBMIM TAMOXEHBMIM OPRAMAH M CBO6DHOe ObpaueHHe H TePPHTOPM TAMOXEHORO COO3a Do 15.03.2015 N COOTBETCTBNE KOTOPO 6bIa BmK TPOEBAHm NOIeTeBPKeHDo pOCsIKCKATAMM B CNTTEM ETOF P, NIO6 EDHBMN DOKYMETAMN TAMOXEHORO COO3A, MOKET BoTb MankpOBAHb ZHAKOOM COOTBETCTBN.

3KcnnyatauOHbIe DOyMeHbI Ha npDyUHIO BblNOHNHOCTa HpyCCKOM 3bIke.3KnnyatauOHbIe DOyMeHbTI Ha roCydAPcTBHeBix 3kIXA KTOcYdAPCTB -YNEHOB TAMOEXHOH Oo3O3,OTNHxN To PcyCKO, pni HnHmHcooTcBTcTBouHX TpeBOBaHIN B aKaHOATaeNTbCTBE MOKOHO 6eB03Me3DIO NOIyUHT b TOprOyuOH oprAnH3a- mEzDENTHa COOTBETCYBOUFO rOEOvDCaSTb -ueHNA TAMOEXHOH Coo3O3

INHOPMAI O KOMNIEKTAUIN PNOYUKIN pneCTABNEH A TROBPOX 3anax,MOKET 6bty 3anpoeHa NO TEPEOHO B6CNPTAHN [phone], a TAKOE OCTYNHA H INTEPHTHE Na CATE PnoEBOIDHTEN htp://www.bosch-bt.ru.

• 09.02.2015 BCX Bovu Nd CmMecx Xaycrepete Tm6X, Kapn-Bepn-Itp. 34, 81739 MioHxen, TepMaHnA, nepeMeMoBaHa B KcMnAHHo BCX Xaycrepete Tm6X, Kapn-Bepn-Itp. 34, 81739 MioHxen, TepMaHnA.

Мо德尔	АлгорбатоньийTNи	Сергейникат COOTВЕТБИЗ			Сtrпан- Изrogenытèle
		Релострацоньий homор	Дата вiocуни	Дeйстуев对接
Соковский
MCP3000	CNZP3	C-DE.AЯ46.B.01025	12.11.12	11.11.17	Словеня
MES25A0	CNC.J03	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
MES25C0	CNC.J03	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
MES25G0	CNC.J03	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
MES3500	CNC.J03	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
MES4000	CNC.J04	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
MES4010	CNC.J05	C-DE.Aя46.B.62431	27.02.14	26.02.19	Китай
Рози
MAS4201N	CNAS11ST1	C-DE.Aя46.B.63040	31.03.14	30.03.19	Турши
MAS4601N	CNAS11EV1	C-DE.Aя46.B.63040	31.03.14	30.03.19	Турши
MAS6200N	CNAS12	C-DE.Aя46.B.63040	31.03.14	30.03.19	Турши
MAS9101N	AS9ST	C-DE.Aя46.B.63040	31.03.14	30.03.19	Турши
Минерсы, блидеры, Искльный
MFQ3010	CNHR19	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ3020	CNHR19	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ3520	CNHR17	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ3030	CNHR19	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ3555	CNHR18	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ4070	CNHR22	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
MFQ4020	CNHR22	C-DE.Aя46.B.63982	11.06.14	10.06.19	Словеня
Мо德尔	Албашаонь Тип	Сергшкоат сооветсь			Сtrал- нз�отовпь
		Релострацонь homор	Дата вдочи	Демстуевatro
Мійсөрь, бүнөдөрь, Илмөдүлөн
MFQ4080	CNHR22	C-DE.AR46.B.63982	11.06.14	10.06.19	Слобеня
MFQ36480	CNHR27	C-DE.AR46.B.63982	11.06.14	10.06.19	Слобеня
MFQ36440	CNHR27	C-DE.AR46.B.63982	11.06.14	10.06.19	Слобеня
MFQ36460	CNHR27	C-DE.AR46.B.63982	11.06.14	10.06.19	Слобеня
MFQ36GOLD	CNHR27	C-DE.AR46.B.63982	11.06.14	10.06.19	Слобеня
MMB1001	CNSM03ST	C-DE.AR46.B.66627	21.11.14	20.11.19	Туся
MMB2001	CNSM03EV	C-DE.AR46.B.66627	21.11.14	20.11.19	Туся
MMR1501	CNCM13ST2	C-DE.AR46.B.61496	17.01.14	16.01.19	Слобеня
MMR08A1	CNCM13ST1	C-DE.AR46.B.61496	17.01.14	16.01.19	Слобеня
MMR15A1	CNCM13ST2	C-DE.AR46.B.61496	17.01.14	16.01.19	Слобеня
MSM6B100	CNHR11	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM6B150	CNHR11	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM6B300	CNHR12	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM6B700	CNHR12	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67PE	CNHR13	C-DE.AR46.B.65723	18.09.14	17.09.19	Слобеня
MSM6700	CNHR9EV	C-DE.AR46.B.65723	18.09.14	17.09.19	Слобеня
MSM6B500	CNHR12	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM6B250	CNHR11	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66050RU	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66150RU	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67140RU	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67160RU	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66130	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67170	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67SPORT	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66155	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67160	CNHR28	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM67165	CNHR28	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM67180	CNHR28	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM68190	CNHR29	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM64035	CNHR24	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66020	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM66110	CNHR25	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67130	CNHR28	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM67140	CNHR28	C-DE.AR46.B.62888	20.08.13	19.08.18	Слобеня
MSM64155RU	CNHR24	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67165RU	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM67190	CNHR26FP	C-DE.AR46.B.65723	18.09.14	17.09.19	Слобеня
MSM67150RU	CNHR26	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM671XO	CNHR24	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM671XO	CNHR26FP	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM671X1	CNHR26FP	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
MSM681X1	CNHR29	C-DE.AR46.B.59536	20.08.13	19.08.18	Слобеня
MSM681X2	CNHR29	C-DE.AR46.B.59536	20.08.13	19.08.18	Слобеня
MSM68400	CNHR12	C-DE.AR46.B.62888	21.03.14	20.03.19	Слобеня
Кухонны комбайы
MCM2050	CNCM11ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM2150	CNCM11ST1	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM4000	CNCM20	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM4100	CNCM20	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM4200	CNCM21	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM4250	CNCM21	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM62020	CNCM30	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM64051	CNCM30	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM64085	CNCM30	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM68840	CNCM30	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MCM68885	CNCM30	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4406	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4427	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4657	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4855	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4856EU	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM4880	CNUM5ST	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM52131	CNUM50	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM54240	CNUM51	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM54251	CNUM51	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM56S40	CNUM51	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM57830	CNUM51	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUM57860	CNUM51	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUMXL20C	CNUM70	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
MUMXL40G	CNUM70	C-DE.AR46.B.60779	26.11.13	25.11.18	Слобеня
Кофемолik
MKM6003	KM13	C-DE.AR46.B.62081	14.02.14	13.02.19	Слобеня
MKM6000	KM13	C-DE.AR46.B.62081	14.02.14	13.02.19	Слобеня
Мэсубуши
MFW1501	SFW1	C-DE.AR46.B.61421	13.01.14	12.01.19	Слобеня
MFW1545	CNFW2	C-DE.AR46.B.61421	13.01.14	12.01.19	Слобеня
MFW1550	CNFW5	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW45020	CNFW5	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW45120	CNFW5	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW66020	CNFW6	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW67440	CNFW7	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW67600	CNFW7	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW68640	CNFW8	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW68660	CNFW8	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей
MFW68680	CNFW8	C-DE.AR46.B.59504	16.08.13	15.08.18	Ктей

Lilao jia jie all jiaaiall b

jlll l

Joo 0000000000000000000000000000000000000000000

jlll jlll jlll jlll jlll jlll

aal gall glba jglall lla aill

a/19/2012

a. 与 y ≤ 1 y ≥ 2 y ≤ 3 y ≥ 4

(waste electrical and electronic equipment - WEEE).

gall jll 1

（）

oale!

Jgjoojuiuoy

aill lll aieiil aiei iiae

Cldla jzall cgl gl bjjj 1

4.15

a

jssll jzg jzjj

1

aiee 1 aegaae eae

y j 1

a_1 = 2^1 - 99

aal algall jlllai

a

1a

j 1

i 1

1. giiue 2.

a gaiil aelbail / blyi

1

Jusll Jaa: 2g jauu Jb

1

1

.

a

aill 1jy olw j p

gill 111

i 1

cLg（/）JsS

aBb

olal uSc aolusll ac gull ll boll

1. 1. 1. 1. 1. 1. 1. 1. 1.

Jz 20 p1sii 1 a gill ll l

BAC = = 3

iLi1sLaBaiJallalgalAiaaia

gall MAX 1

ai a ai 分母最小值为 k .

cuii iuiuie 1

K

pala 1

i

iR jRjRjRjRjRjRjRjRj

Jilu wui jiu

by

J 1

Jzlll jll l Jiluill jj

！

D

1

i 1

.

1. 和 且 | | = | |

C

g^ ( x) = - 1x + 2x + 1 = - 1x + 1( 1 - x) x + 1 = - 1x + ( 1 - x) x + 1 = 1x + ( 1 - x) x

a1 = 2,an + 1 = n1 + n2

i 1

a

.

jollolololglc ciill jg

Jd 1

aia 1 aaii

原不等式成立

（）

2gall gail gell

aalal alalal g jslkll jai

a

1a

iiisallalil

olai pliaiui iay aaiy o yu ciLi sall

| x^ | = 1| x| · | r1^2 + r2^2 + r_3^2| ≤ 34| x| ^2

1

Jaaill gnnnllg aell

1.1⏜2n⏜3n 1.1⏜2n⏜3n

joo jie 2jgall jao jolcjo

:

山

1

！

1

oall jai jj jai jai jai jai jai jai jai jai

aaslll (uabll) ubll. aylg

yll (wblb) wblb,

ooj u jki loic yie lao iie

i

pLi/

1

JUJIALLIJI (e) JLIALLIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJI

(1)

1. a > 0 且 b^2 - 4ac > 0 无解

jglgall jolclj

1,2,3 1,3 2,3 3,4 4,5

12

a1 ≤ b1 ≤ c_1

1

J 1

aBwJg jll Jjll

2.4 231 all leb

J 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

j4z11

jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll

1

y jglall jlae gll auiuie algo slac! iic 1gll uusl oiae y! auuui uauull uuuu

a1sai 4gai jssai
iiai g bai i jai jn

！Lal

JJIJIJIJIJIJIJIJIJIJIJIJIJI

A

1aJ 1 aJ 1 J aJ 1 J aJ 1 J aJ 1

1

1

boll / bly

J 1

* 4

1a

191

a1/1-1+

1/1

4

Jgall aieiae e

* ( 1,2,·s ,n)

7

( x,y) = ( x) y

8

9

10

11

algal alilaiis a

cell b

jIbIi Gc

15iS 15iS i 15i0

jilliiie) jlll loll

Claaogj.

F

1234567890

a 13

(12005833 1111)

四边形 BJ

i j 1

joll pale jzr jy 10 yall jll

alil

A

yj jzjj

1. 1,2,3,4

1

0/off

1 1

G

aalall bll sdd

1-2

1 1

1 2

2

yj 3

4

Joell 5

* 6

Ssw 8g a 100000000000000000000000000000000000000000000

b

aJ 1

gag lijia jia jia cai gao all jia jia jia jia

L

G

ar-1 .
ar-3 aole
ar-4 jieill
ar-7 4yj
ar-8 Jube jilj 0e Lua cai
ar-8 jieeieieieieieieieieieieieieieieieieieieieieieieieieieieie
ar-9. 1
ar-11 jaii joi ulill
ar-11

sio J 1

g j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jglzlll 1g 1 1

Jai pie aie ci jy jie all ciai y iaiil laiill jbi pi jil

1 1

iolai iil 1 jiall alil 1 jilal l

Jjiall agulall calll Jaiu g. yilil alisiWu w jiall alisiWu agulall

lll lllllllllllllllllllllllllllll

jollll jil lill lal w y gaiy

a

a /c/150/150g>> gao jil cilll olizall ci jialll jiaol

《

1 1

jlll 121111111111111111111111

(5) = | | , = | | , = | |

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13,

Plot Nr MO-0532A

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

newsletter:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BH Bahrain,

Khalaifat Est.

P.O.Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

BY Belarus, Benaapycb

OOO "BCX Бытовая Тхиka"

TeJ.: 495 737 2961

mailto:[e-mail]

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

+7snt/min (alv 24%

To arrange an engineer visit, to

order spare parts and accessories

or for product advice please visit

www.bosch-home.co.uk

or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Eλλας

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kučni urežaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uiel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bharat,

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

Andheri East

Mumbai 400 093

www.bosch-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Ka3akCTah

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.It

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatte 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

yn. LycceBa 98

2012 KuniHneB

TeJ./paKc: 022 23 81 80

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI.Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069324812

mailto:ekobosch.servis@

t-com.me

MK Macedonia, MaKeDoHnJa

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Oxford House Ltd.

Notabile Road

Mriehel BKR 14

Tel.: [phone]

Fax: [phone]

www.oxfordhouse.com.mt

MV Raajeyge Jumhooriyyaa, Maledives

Lintel Investments

Ma. Maadheli, Majeedhee Magu Malé

Tel.: [phone]

mailto:mohamed.zuhuree@

lintel.com.mv

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

ai + 1 = 12 · ai · p^i

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljazeera.com.sa

SE Sverige, Sweden

BSH Hushàllsapparater AB

Landsvagen 32

169 29 Solna

Tel.: [phone] local rate

mailto:Bosch-Service-SE@

bshg.com

www.bosch-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

TECHPLACE I and

Mo Kio Avenue 10

Block 4012 #01-01

569628 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, YkpaHa

TOB "ECX Побутoba Тхиka"

Ten.:044 490 2095

mailto:[e-mail]

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovica 11^a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand - Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/zai

MCM3100W
MCM3110W
MCM3200W
MCM3201B
MCM3401M
MCM3501M

MCM3100W
MCM3110W
MCM3200W	✓	✓
MCM3201B	✓	✓
MCM3401M		✓		✓
MCM3501M	✓	✓	✓	✓
