Product Type	Reversible air conditioner (heating and cooling)
Brand	TOSHIBA
Model	MIRAI RAS-13BKVG-E
Operating Modes	Automatic, Cooling, Heating, Fan Only, Dehumidification
Fan Speed	AUTO, LOW-, LOW+, MED-, MED+, HIGH
Set Temperature Range (Cooling)	17°C – 32°C
Set Temperature Range (Heating)	Max. 30°C
Outdoor Temperature Range (Operation)	Heating: -15°C to 24°C; Cooling/Dehumidification: -15°C to 46°C
Special Functions	Hi-POWER (quick heating/cooling), ECO (energy saving), Auto Clean (after Cool/Dry modes), Auto Restart after power failure
Remote Control	Wireless with LCD display, AAA batteries (brightness adjustment: d0 to d3)
Air Flow Direction Adjustment	Vertical: manual (FIX) or automatic (SWING); Horizontal: manual
Timer	OFF timer adjustable from 0.5 to 12 hours
Air Filters	Washable, cleaning recommended every 2 weeks
Protection Function	3-minute protection against immediate restart
Auto Defrost	Yes (fans stop during defrosting)
Preheating	5 minutes before blowing hot air
Heating Power	Via heat pump (absorbs outdoor heat)
Dimensions (Indoor Unit)	Not specified in the manual
Installation Tips	Avoid snow and debris accumulation on the outdoor unit

Frequently Asked Questions - MIRAI RAS-13BKVG-E TOSHIBA

How to adjust the brightness of the remote control display?

Hold the FAN button for 3 seconds. The LCD shows the level (d0 to d3). Press FAN to cycle through 4 levels: d3 (100%), d2 (50%), d1 (50% without operation lamp), d0 (all off).

How to clean the air filters?

Open the air intake grille, remove the filters, vacuum or wash them with clean water, let dry completely, then reinstall. Clean every 2 weeks.

What to do if the remote control does not work?

Use the RESET button on the indoor unit for temporary operation. The mode automatically sets to AUTOMATIC at 24°C. Replace batteries or check they are inserted correctly.

How to use the auto clean function?

In Cool or Dry mode, press the button once: the fan runs for 30 additional minutes then stops. To stop immediately, press twice more within 30 seconds.

How to set the OFF timer?

Press OFF, then use the adjustment buttons (TEMP or TRIE) to select the time (0.5 to 12 hours). Press OFF again to activate. To cancel, press OFF again.

What does the flashing TIMER indicator mean?

The TIMER indicator (white) shows the timer is active. Refer to the manual to confirm settings.

Why won't the air conditioner start?

Check that the power is connected, the circuit breaker is not tripped, the timer is not set, and the remote control batteries are good. The 3-minute protection may also be active.

How to reset the remote control after battery change?

Remove the battery, press a button (e.g., RESET), insert a new battery. The remote should reset automatically.

Is Hi-POWER mode available in dehumidification?

No, Hi-POWER mode is not available in DRY (dehumidification) and FAN ONLY modes. It is intended for quick cooling and heating.

How to set the temperature in cooling mode?

Press the MODE button to select Cool mode, then use the TEMP buttons to set the temperature between 17°C and 32°C. The chosen temperature is displayed on the remote control.

USER MANUAL MIRAI RAS-13BKVG-E TOSHIBA

For general public use

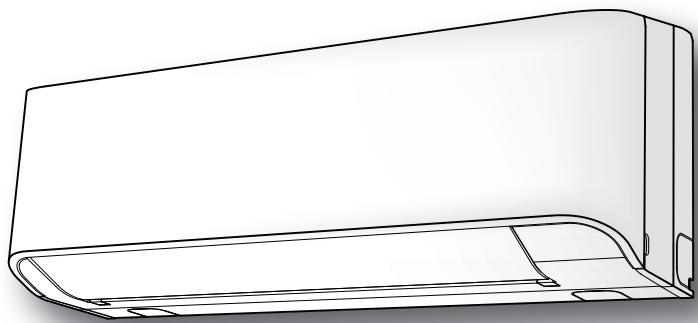

Indoor unit

RAS-07, 10, 13BKV-E

Outdoor unit

RAS-07, 10, 13BAV-E

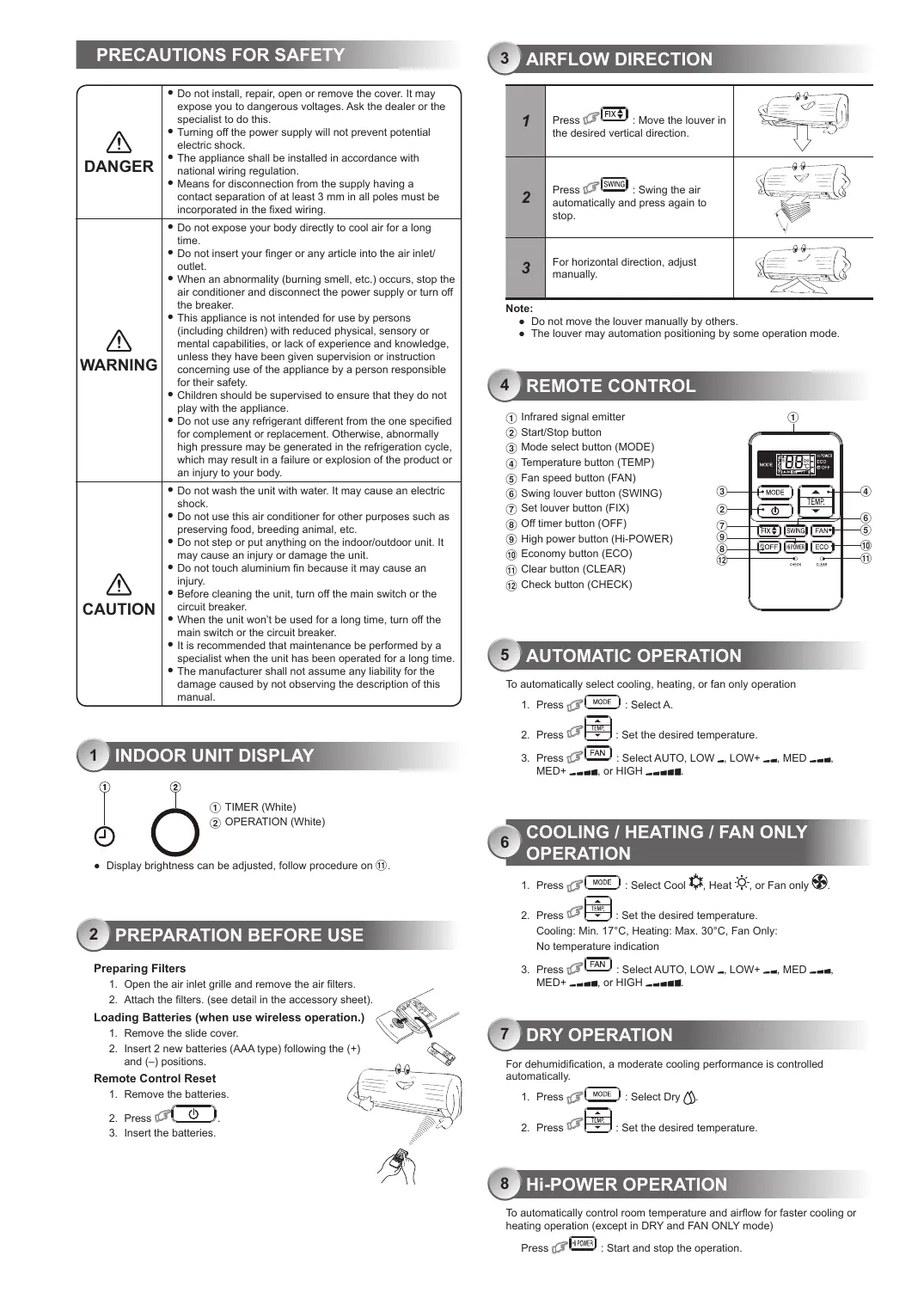

PRECAUTIONS FOR SAFETY

DANGER	• Do not install, repair, open or remove the cover. It may expose you to dangerous voltages. Ask the dealer or the specialist to do this. • Turning off the power supply will not prevent potential electric shock. • The appliance shall be installed in accordance with national wiring regulation. • Means for disconnection from the supply having a contact separation of at least 3 mm in all poles must be incorporated in the fixed wiring.
WARNING	• Do not expose your body directly to cool air for a long time. • Do not insert your finger or any article into the air inlet/outlet. • When an abnormality (burning smell, etc.) occurs, stop the air conditioner and disconnect the power supply or turn off the breaker. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance. • Do not use any refrigerant different from the one specified for complement or replacement. Otherwise, abnormally high pressure may be generated in the refrigeration cycle, which may result in a failure or explosion of the product or an injury to your body.
CAUTION	• Do not wash the unit with water. It may cause an electric shock. • Do not use this air conditioner for other purposes such as preserving food, breeding animal, etc. • Do not step or put anything on the indoor/outdoor unit. It may cause an injury or damage the unit. • Do not touch aluminium fin because it may cause an injury. • Before cleaning the unit, turn off the main switch or the circuit breaker. • When the unit won't be used for a long time, turn off the main switch or the circuit breaker. • It is recommended that maintenance be performed by a specialist when the unit has been operated for a long time. • The manufacturer shall not assume any liability for the damage caused by not observing the description of this manual.

1 INDOOR UNIT DISPLAY

① TIMER (White)
② OPERATION (White)

• Display brightness can be adjusted, follow procedure on ⑪.

2 PREPARATION BEFORE USE

Preparing Filters

1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the accessory sheet).

Loading Batteries (when use wireless operation.)

1. Remove the slide cover.
2. Insert 2 new batteries (AAA type) following the (+) and (-) positions.

Remote Control Reset

1. Remove the batteries.

1. Insert the batteries.

3

AIRFLOW DIRECTION

1	Press FIX: Move the louver in the desired vertical direction.
2	Press SWING: Swing the air automatically and press again to stop.
3	For horizontal direction, adjust manually.

Note:

• Do not move the louver manually by others.
• The louver may automation positioning by some operation mode.

4

REMOTE CONTROL

① Infrared signal emitter
② Start/Stop button
③ Mode select button (MODE)
(4) Temperature button (TEMP)
(5) Fan speed button (FAN)
⑥ Swing louver button (SWING)
⑦ Set louver button (FIX)
⑧ Off timer button (OFF)
9 High power button (Hi-POWER)
Economy button (ECO)
11 Clear button (CLEAR)
12 Check button (CHECK)

5

AUTOMATIC OPERATION

To automatically select cooling, heating, or fan only operation

1. Press MODE : Select A.

: Set the desired temperature.

: Select AUTO. LOWLOW+ MED

MED+ , or HIGH

6

: Set the desired temperature.

Cooling: Min. 17^ , Heating: Max. 30^ , Fan Only:

No temperature indication

1. Press FAN : Select AUTO, LOW-, LOW+, MED-, MED+ , or HIGH

7

DRY OPERATION

For dehumidification, a moderate cooling performance is controlled automatically.

1. Press MODE : Select Dry

: Set the desired temperature.

8

Hi-POWER OPERATION

To automatically control room temperature and airflow for faster cooling or heating operation (except in DRY and FAN ONLY mode)

Press HPOWER : Start and stop the operation.

To automatically control room to save energy (except in DRY and FAN ONLY mode)

: Start and stop the operation.

Note: Cooling operation; the set temperature will increase automatically 1 degree/hour for 2 hours (maximum 2 degrees increase). For heating operation the set temperature will decrease.

10 TIMER OPERATION

Set the timer when the air conditioner is operating.

Setting the OFF timer
1	Press ON/OFF for enter OFF timer setting.
2	Press TEMP for select desired OFF timer. (0.5 - 12 hrs)
3	Press OFF for set OFF timer.
4	Press OFF again for cancel OFF timer.

11 DISPLAY LAMP BRIGHTNESS ADJUSTMENT

To decrease the display lamp brightness or turn it off.

1. Press and hold FAN for 3 seconds until brightness level (d0, d1, d2 or d3) is shown on remote control LCD then release the button.
2. Press ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑↑

Remote control LCD	Operation display	Brightness
d3	Lamp illuminates full brightness.	100%
d2	Lamp illuminates 50% brightness.	50%
d1	Lamp illuminates 50% brightness and the operation lamp is turned off.	50%
d0	All lamps are turned off.	All turned off

• In the examples of d and d , the lamp illuminates for 5 seconds before going off.

12 TEMPORARY OPERATION

In case of the misplaced or discharged remote control

• Pressing the RESET button, the unit can start or stop without using the remote control.
  Operation mode is set on AUTOMATIC operation, preset temperature is 24^ and fan operation is automatic speed.

To automatically restart the air conditioner after the power failure (Power of the unit must be on.)

Setting

1. Press and hold the RESET button on the indoor unit for 3 seconds to set the operation. (3 beep sound and OPERATION lamp blink 5 time/sec for 5 seconds)
2. Press and hold the RESET button on the indoor unit for 3 seconds to cancel the operation. (3 beep sound but OPERATION lamp does not blink)
3. In case of ON timer or OFF timer are set, AUTO START OPERATION does not activate.

To protect bad smell caused by the humidity in the indoor unit.

1. If the button is pressed once during "Cool" or "Dry" mode, the fan will continue to run for other 30 minutes, then it will turn off automatically. This will reduce the moisture in the indoor unit.
2. To stop the unit immediately, press the more 2 times within 30 seconds.

Firstly, turn off the circuit breaker.

Indoor Unit and Remote Control

• Clean the indoor unit and the remote control with a wet cloth when needed.
• No benzine, thinner, polishing powder or chemically-treated duster.

Air filters

Clean every 2 weeks.

1. Open the air inlet grille.
2. Remove the air filters.
3. Vacuum or wash and then dry them.
4. Reinstall the air filters and close the air inlet grille.

1. Three-minute protection feature: To prevent the unit from being activated for 3 minutes when suddenly restarted or switched to ON.
2. Preheating operation: Warm up the unit for 5 minutes before the heating operation starts.
3. Warm air control: When the room temperature reaches the set temperature, the fan speed is automatically reduced and the outdoor unit will stop.
4. Automatic defrosting: Fans will stop during defrost operation.
5. Heating capacity: Heat is absorbed from outdoors and released into the room. When the outdoor temperature is too low, use another recommended heating apparatus in combination with the air conditioner.
6. Consideration for accumulated snow: Select the position for outdoor unit where it will not be subjected to snow drifts, accumulation of leaves or other seasonal debris.
7. Some minor cracking sound may occur when unit operating. This is normal because the cracking sound may be caused by expansion/ contraction of plastic. Note: Item 2 to 6 for Heating model

Air conditioner operating conditions

Temp. Operation	Outdoor Temperature	Room Temperature
Heating	-15°C ~ 24°C	Less than 28°C
Cooling	-15°C ~ 46°C	21°C ~ 32°C
Dry	-15°C ~ 46°C	17°C ~ 32°C

17 TROUBLESHOOTING (CHECK POINT)

The unit does not operate.	Cooling or Heating is abnormally low.
· The power main switch is turned off. · The circuit breaker is activated to cut off the power supply. · Stoppage of electric current · ON timer is set.	· The filters are blocked with dust. · The temperature has been set improperly. · The windows or doors are opened. · The air inlet or outlet of the outdoor unit is blocked. · The fan speed is too low. · The operation mode is FAN or DRY.

18 REMOTE CONTROL A-B SELECTION

To separate using of remote control for each indoor unit in case of 2 air conditioner are installed nearly.

Remote Control B Setup.

1. Press RESET button on the indoor unit to turn the air conditioner ON.
2. Point the remote control at the indoor unit.

3. Push and hold check button on the Remote Control by the tip of the pencil. "00" will be shown on the display. (Picture ①)

4. Press MODE during pushing CHECK. "B" will show on the display and "00" will disappear and the air conditioner will turn OFF. The Remote Control B is memorized. (Picture ②)

Note: 1. Repeat above step to reset Remote Control to be A.

1. Remote Control A has not "A" display.
2. Default setting of Remote Control from factory is A.

①

2

Information according to EMC Directive 2004/108/EC
(Name of the manufacturer)	TOSHIBA CARRIER (THAILAND) CO., LTD.
(Address, city, country)	144/9 MOO 5, BANGKADI INDUSTRIAL PARK, TIVANON ROAD, TAMBOL BANGKADI, AMPHUR MUANG, PATHUMTHANI 12000, THAILAND.
(Name of the Importer/Distributor in EU)	TOSHIBA CARRIER UK LTD.
(Address, city, country)	Porsham Close, Belliver Industrial Estate, PLYMOUTH, Devon, PL6 7DB. United Kingdom
