TE70 TE56 TELIOS PLUS - Vacuum Cleaner HOOVER - Free user manual and instructions

Type of vacuum cleaner	Canister with bag
Motor power	700 W
Bag capacity	3.5 L
Bag fill indicator	Yes
Noise level	76 dB(A)
Operating radius	9 m
Energy efficiency class	A
Average annual consumption	27 kWh/year
Hard floor cleaning efficiency	Class A
Carpet cleaning efficiency	Class B
Filtration quality	Class A
Type of filtration	HEPA filter
Flexible joint rotation	360 degrees
Power control	Yes
Included accessories	Hard floor brush, carpet brush, parquet brush, mini turbo brush
Brand	Hoover
Reference	TE70_TE56

Frequently Asked Questions - TE70 TE56 TELIOS PLUS HOOVER

What type of bag should be used with the HOOVER TELIOS PLUS TE70 TE56?

The TELIOS PLUS TE70_TE56 uses compatible HOOVER series H58 bags. They are available in packs of 5 or 10 on spare parts sites (Spareka, Aspireflex). It is recommended to use original or certified compatible bags to maintain filtration performance.

When should the vacuum cleaner bag be changed?

The vacuum cleaner is equipped with a fill indicator. When the control window turns red, replace the bag without waiting for it to be completely full. An overfull bag significantly reduces suction power and can damage the motor.

How to use the mini turbo brush?

The mini turbo brush connects directly to the hose in place of the main brush. It is ideal for vacuuming pet hair from sofas, seats, and stairs. It is operated by suction power, without electric motorization.

Why has the vacuum cleaner lost power?

Three common causes: full bag (check the red indicator), clogged filter, or obstruction in the hose or brush. Start by replacing the bag, then clean the filter. If the problem persists, check that no foreign objects are blocking the air circuit.

How to clean the filter of the TELIOS PLUS TE70 TE56?

The exhaust filter can be rinsed with cold water. Let it dry completely for at least 24 hours before putting it back in place. Never put a damp filter back: it could damage the motor. Replace it after one year of normal use.

Which brush to choose according to the type of floor?

Use the hard floor brush for tiles and vinyl, the parquet brush for wooden floors, and the carpet/rug brush for textile coverings. The power adjustment located on the body allows you to adapt the suction to each surface.

How to adjust the suction power?

The power adjuster is located on the vacuum cleaner body. Reduce power for curtains, light carpets, or delicate textiles. Push to the maximum for thick carpets. The 9-meter action radius allows you to change settings without moving close to the outlet.

What to do if the hose or tube no longer holds properly?

Check that the connectors are firmly inserted and that the locking clips are in position. If the hose is cracked or split, it needs to be replaced. Replacement hoses and tubes for the TELIOS range are available on specialized spare parts sites.

Can the vacuum cleaner operate without a bag?

No. The TE70 TE56 is exclusively a bagged vacuum cleaner. Using the device without a bag in place would draw dust directly into the motor and irreversibly damage it. Always check the presence and correct positioning of the bag before starting.

What is the annual electricity consumption of this vacuum cleaner?

The average annual consumption is 27 kWh/year, calculated based on one hour of use per week on 87 m². Its energy efficiency class A makes it an economical vacuum cleaner, well below older models of 2,000 W or more.

Is the dust container washable?

The TE70 TE56 is a bagged vacuum cleaner: there is no washable dust container. Only the exhaust filter and brush should be cleaned regularly. Replace the bag as soon as the fill indicator signals it to maintain performance.

Where to find replacement bags and filters for the TELIOS PLUS TE70_TE56?

Compatible bags and filters are available on specialized sites like Spareka or Aspireflex, as well as in major appliance stores. Prefer references explicitly indicating compatibility with the TELIOS PLUS TE70 range.

USER MANUAL TE70 TE56 TELIOS PLUS HOOVER

INSTRUCTION MANUAL (SE) P 36

USER GUIDE (FI) P 40

INSTRUCTION MANUAL (GR) P 44

USER MANUAL (RU) P 48

INSTRUCTION MANUAL (PL) P 52

USER GUIDE (CZ) P 56

INSTRUCTIONS FOR USE (SI) P 60

USER MANUAL (TR) P 64

USER MANUAL (HU) P 68

PRINTED IN P.R.C

48011174/01

GENERATION FUTURE

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, UK

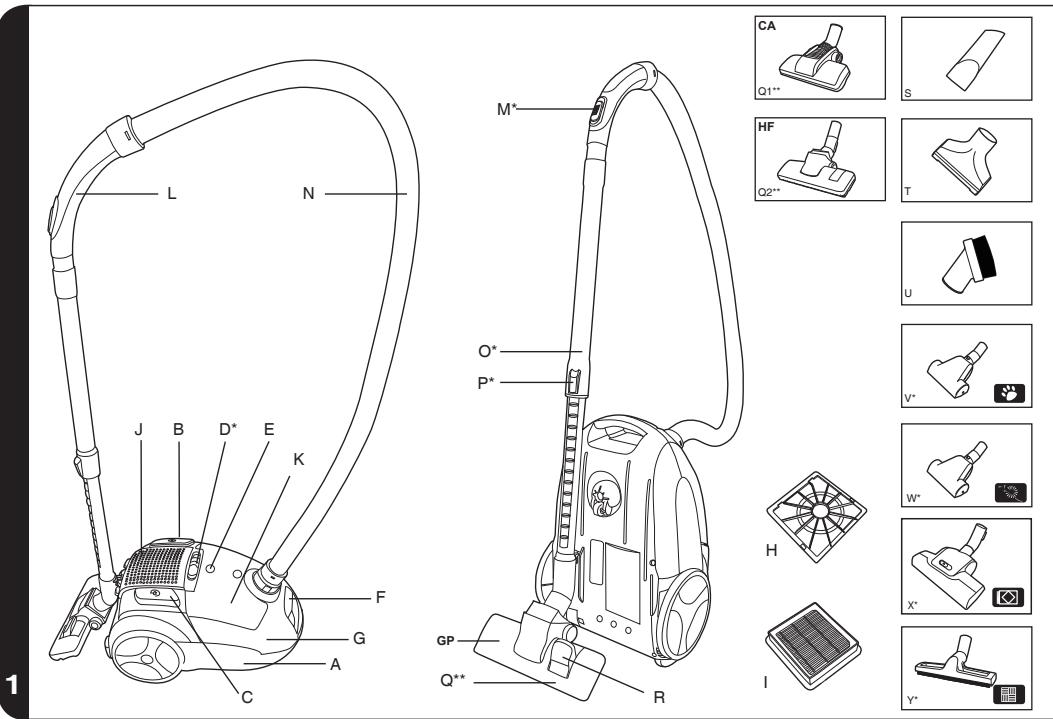

GETTING TO KNOW YOUR CLEANER

A. Cleaner main body B. On/Off Button C. Cord Rewind Button D. Variable Power Control E. Bag Check Indicator F. Bag Door Release Latch G. Bag Door H. Pre-motor Filter I. Exhaust Filter J. Exhaust Filter Cover K. Accessories door L. Hose Handle M. Suction Regulator N. Hose O. Telescopic Tube P. Telescopic Tube Adjuster Q. Carpet and Floor nozzle(GP)**

Q1. Carpet Nozzle (CA)**

Q2. Hard Floor Nozzle (HF)**

R. Floor type selector S. Crevice Tool T. Furniture Nozzle U. Dusting Brush V. Pet Hair Remover Mini Turbo Nozzle W. Allergy Remover Mini Turbo Nozzle X. Grand Turbo Nozzle Y. Parquet Nozzle

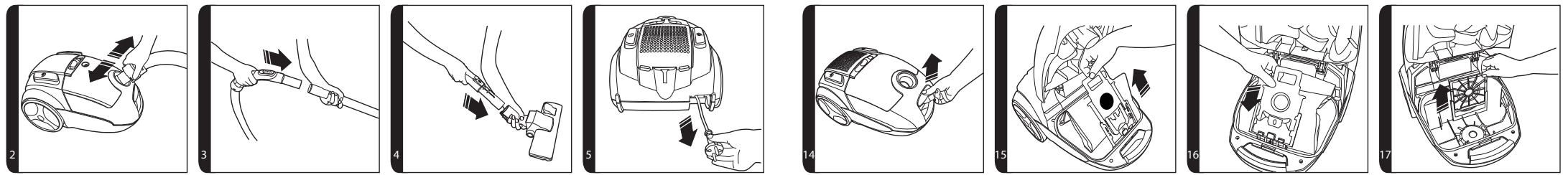

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To release the hose: simply press the two latches on the hose end and pull. [2]
2. Connect the handle to the upper tube end. [3]
3. Connect the tube lower end to the carpet and floor nozzle**. [4]

USING YOUR CLEANER

1. Extract Power Cord and plug it into the power supply. Do not pull the cord beyond the red marker. [5]
2. Adjust the Telescopic Tube to the desired height by moving the Telescopic Tube Adjusters up and raise or lower the handle to the most comfortable cleaning position. [6]
3. Carpet and Floor Nozzle**: Press the floor type selector pedal on the nozzle [7] to select the ideal cleaning mode for the floor type.

Hard Floor - Brushes are lowered to protect the floor.

Carpet - Brushes are raised for the deepest clean.

1. Switch the cleaner on by pressing the On/Off button on the cleaner main body. [8]
2. Slide the Variable Power Control* to increase or decrease the suction. [9]

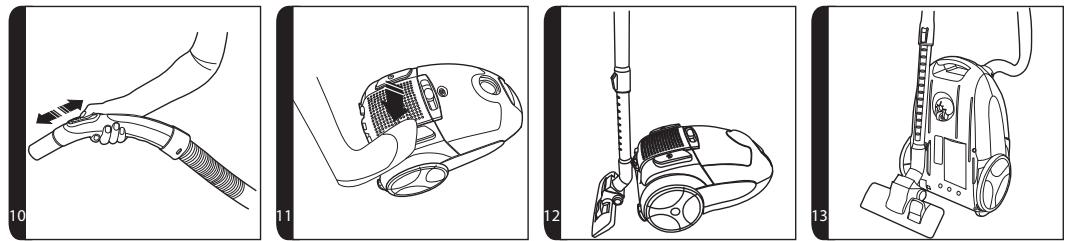

3. Adjust the suction regulator* to the desired level. [10]
4. Switch off at the end of use by pressing the On/Off button. Unplug and press the Cord Rewind Button to wind the power cord back into the cleaner. [11]
5. Parking and Storage - The tube can be parked for temporary storage [12] while in use, or in the storage position when not in use. [13]

CLEANER MAINTENANCE

Replacing the Dust Bag

If the Bag Check Indicator is illuminated please check and if necessary, replace the dust bag.

1. Lift the bag door release latch [14] to open the bag door, close the bag to avoid dust escaping by pulling the tongue and remove the bag. [15]. The full dust bag should be disposed of correctly and carefully.
2. Fold a new bag as shown on the bag and fit by inserting the collar into the bag holder [16].
3. Close the bag door.

Remember: The bag check indicator may be red if an obstruction has occurred. In this case, refer to 'Removing a Blockage From the System'.

Cleaning the Filter

To maintain optimum performance of your cleaner, please wash the pre-motor filter and exhaust filter after each 5 bag changes.

Cleaning the pre-motor filter:

1. Lift the Bag Door Release latch [14] to open the bag door and remove the bag. [15]
2. To remove the pre-motor filter slide the pre-motor filter frame from the cleaner. [17]
3. Remove the filter from the holder. [18]
4. Wash it in hand warm water, [19] and allow it to dry thoroughly before replacing it in the cleaner.

Cleaning the exhaust filter:

1. To remove the exhaust filter, unclip the exhaust filter cover [20] and remove the exhaust filter pack. [21]
2. Wash the filter in hand warm water [19] and allow it to dry thoroughly before replacing in the cleaner.

REMEMBER: Do not use hot water or detergents. In the unlikely event of the filters becoming damaged, fit a genuine Hoover replacement. Do not try and use the product without a dust bag or filter fitted.

Cleaning the permanent cloth dust bag*:

To maintain optimum performance we recommend that you wash the permanent cloth dust bag under hand warm water after every 5 full bags. Remove excess water and leave to dry fully before replacing.

Removing a Blockage From The System

If the Bag Check Indicator is red:

1. Check if the bag is full. If so, refer to 'Replacing The Dust Bag'.
2. If it is not full, then:

A. Do the filters need cleaning? If so, refer to 'Cleaning the Filter'. B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from the Telescopic Tube or flexible hose.

Warning*: The bag check indicator will remain illuminated if the cleaner is used when the bag is full, if there is a blockage, or if the filters are dirty. If used for a period over ten minutes with the bag check indicator illuminated, an electronic cut out will switch the cleaner off to prevent any risk of overheating. If this should happen, switch the cleaner off, unplug, and correct the fault (see 'Removing a blockage'). The cut out will automatically reset upon switching the cleaner back on.

ACCESSORIES AND NOZZLES

To obtain the best performance and energy efficiency ^#1 it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF, or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

It is important to note that this vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013.

If the label shows a red prohibition circle on the left covering the carpet symbol, then this indicates that the vacuum cleaner is not suitable for use on carpets.

If the label shows a red prohibition circle on the right covering the hard floor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard floors.

^{# 1} NOTE: Dust pick up ability carpet, dust pick up ability hard floor, and energy efficiency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013.

The Crevice tool, Furniture nozzle and Dusting brush are stored on board under the accessories door. [22]

All accessories can be fitted to the end of the handle or the end of the Telescopic* Tube.

Crevice Tool – For corners and hard to reach areas. [23]

Furniture Nozzle - For soft furniture and fabrics. [24]

Dusting Brush - For bookshelves, frames, keyboards, etc. [25]

Pet Hair Remover Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hair removal. [1V]

Allergen Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal. [1W]

Grand Turbo Nozzle* - Use the Grand Turbo Nozzle for deep cleaning on carpets. [1X]

Parquet Nozzle* - For parquet floors and other delicate floors. [1Y]

IMPORTANT: Do not use the Grand Turbo Nozzle on rugs with long fringes, animal hides and carpet pile deeper than 15 mm. Do not keep the nozzle stationary while the brush is rotating.

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the dust bag over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'.
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 45 minutes for the cut out to automatically reset.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Microfiber Bag H60 35600392

Pre-Motor Filter S114 35601288

Exhaust Filter T108 35601289

Complete Flexible Hose D136 35601290

Carpet & Floor Extra Nozzle G201EE 35601594

Carpet & Floor Smart Nozzle	G223SE	35601637
Hard Floor Extra Nozzle	G208EE	35601601
Hard Floor Smart Nozzle	G203SE	35601596
Carpet Extra Nozzle	G211EE	35601604
Parquet Extra Nozzle	G89PC	35600659
Mini Turbo Nozzle	J51	35601163
Turbo Nozzle	J53	35601165

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

SAFETY INSTRUCTIONS FOR USE

MAINTENANCE OF THE VACUUM CLEANER

Replacing the dust bag

INSTRUCTIONS FOR TECHNICAL SAFETY

This appliance is intended for domestic use only and in accordance with the description given in this user manual. Before using this household electrical appliance, make sure you understand this manual.

Do not leave the appliance plugged into the socket. After use, before cleaning or servicing, always unplug the appliance from the socket.

Children aged 8 years and above, as well as persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, may use the appliance under supervision or if they have been given adequate instruction concerning safe use of the appliance and understand the risks involved. Children must not play with the appliance. Do not allow children to clean or maintain the appliance without supervision.

If the power cord is damaged, immediately unplug the appliance. To avoid a safety hazard, the power cord must be replaced by an authorized engineer from the HOOVER service department.

Do not bring the rotating brush near hands, feet, loose clothing, or hair.

Use only the nozzles, consumable materials, or spare parts recommended or supplied by HOOVER.

Static electricity: Some types of carpet can accumulate a small static charge. A static discharge is not dangerous to health.

Do not use the appliance outdoors, on wet surfaces, or to collect liquids.

Do not use the appliance to collect sharp objects, matches, hot ash, cigarette butts, or similar objects.

Do not vacuum or collect flammable liquids, cleaning agents, aerosols, or their vapors.

Do not carry the appliance by the power cord and do not pull the cord to unplug it from the socket.

If the appliance is faulty, do not continue to use it.

HOOVER service: For safe and reliable operation of this appliance, we recommend that you call in authorized HOOVER service engineers for servicing and repairs.

Do not stand on the cord and do not wrap it around your hand or foot while using the appliance.

Do not use the appliance to clean animals or people.

Do not place the appliance over your head during stair cleaning.

Environment:

The symbol on this appliance indicates that it cannot be disposed of with household waste. It must be handed in at an appropriate collection point for further recycling of electrical and electronic

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more

Detailed information on handling this appliance, its recycling and disposal, contact your local authorities, the waste disposal service, or the shop where you purchased the appliance.

This appliance complies with European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, UK

GET TO KNOW THE VACUUM CLEANER

A. Main body of the vacuum cleaner B. On/Off button C. Cord rewind button D. Adjustable power* E. Dust bag full indicator F. Lock of the dust bag compartment door G. Door of the dust bag compartment H. Hose I. Exhaust filter J. Cover of the exhaust filter K. Accessories cover L. Handle M. Suction regulator N. Tube O. Telescopic tube P. Telescopic tube regulator Q. Nozzle for hard floors and carpets (GP)*

Q1. Nozzle for carpets (CA)** Q2. Nozzle for hard floors (HF)**

R. Crevice nozzle S. Upholstery nozzle T. Furniture nozzle U. Dusting brush V. Mini turbo brush for pet hair* W. Mini turbo nozzle for upholstery X. Grand turbo nozzle Y. Parquet nozzle

C6OPKA IIbJIeCOCA

I3BLeKeTe BCE COCTaBHeI yAcTn I3 yNaKOBKn.

TEXHnueCKOE OBCJYXNBAHNE NblJECOCA

3aMeHa MeuKa dIy c6opa nbIiN

Ecnn HndkaTOp nepenolHeHnIy bIine6OpHnKa CBeNTcR, npOBepbTe COCTOHNe MeuKa, IN B clyuae Heo6xOaMooCTn 3aMeHnte erO.

1. Побимпе зашелу дерць Meшka Дя сбора nbiln [14] Дя OTkpbltnядеврсь Meшka 3akpoite Mewok BO n36exhaHne BbIXOa nbi, 3aTHyB a3bIyOK, И Вьбрптeme wok. [15].УtinuzaIGNONHOro MeuKa Дя nbiNdoJxHa npOn3BOdntbcg akypatno n npabunbHO.
2. 3a npabBte HOBBI MeWOK, KaK 3TO yKa3aHO Ha HeM, N 3aKpeNITe erO nyTeM nOmeueHn peTNI B dePkaTeJIb MeIka [16].
3. 3aKpoTe DBepu OTeKa NbIeSc6OpHOro MeuKa.

Pomnhte! INndkaTOp 3aONHeHn MaShKa MoKeT rOpTeB KpaChbIM TaKxe, ecN 3a6uIcra ShaHr nnn Tpy6Ka. Cm. pa3dEn «UcTaPaHHe 3acopOB B cInCTeme»

OuicTka fJbTp a

Для подержань ONТIMалььх pa6очи пapametpoB nbilecoca, CTnpaTe NOCTOHHbI MewoK nocle kaxdix pTn HanoJIHeHn.

Ouuctka funltpa 3neKtpoDburatae:

1. Побимпге зашелку дерць Meшka сбора nbл [14] Дя OTkpытneyдерць Meшka и Вьберпге Meшok. [15]

2.Дя удаленя Фильста залкювигаелЯ Вьнты рамку Фильста ИЗ пьлесoca. [17] 3. BbInbTe ΦnIbTp n3 ČepKαTeJ. [18] 4. BbIMoTe erO bpyHyIO b TeIIOI BOe [19] n daIte emy TuaTeIbHO npocoxHyTb do IOBTOpHOrO INcNoJIb3OBaHNr erO B nbJIeCOce.

OuNTKa BblnyckHoro 0nNbTp:a:

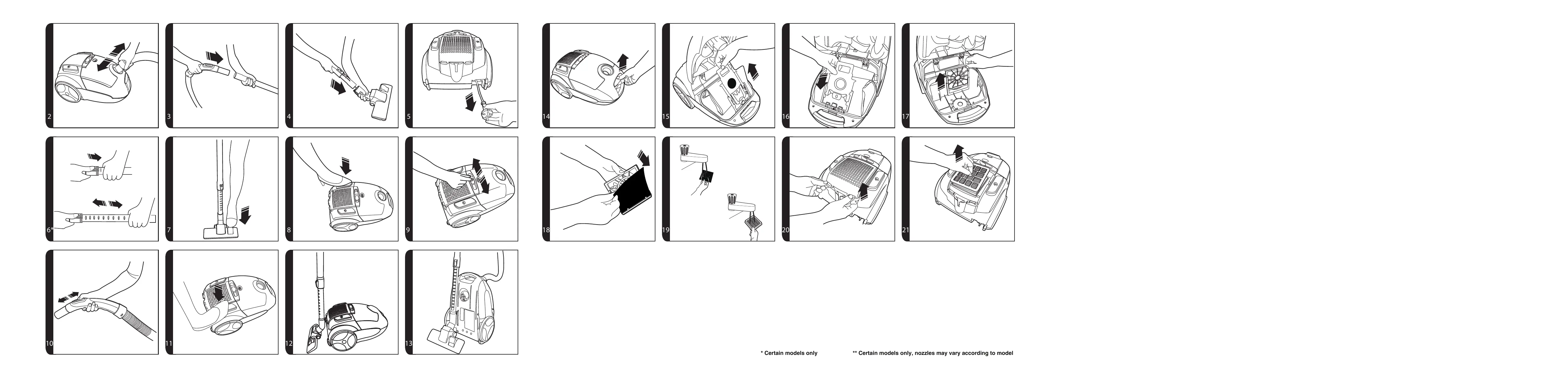

1. Remove the filter from the housing [20] and take out the filter [21].
2. Wash the filter in warm water [19] and let it dry completely before reinstalling the vacuum cleaner.

Remember! It is forbidden to wash the filter in the dishwasher or with cleaning agents. Damage to the filter is unlikely. If this does happen, replace the damaged filter with a new filter from the manufacturer. It is forbidden to use the vacuum cleaner without a filter for collecting dust or with a damaged filter.

Cleaning the permanent washable dust bag*:

To maintain optimal working parameters of the vacuum cleaner, wash the permanent bag in warm water after every five fillings of the bag. Remove excess water from the bag and let it dry completely before reinstalling the vacuum cleaner.

Removing blockages from the system

If the bag blockage indicator lights up red:
