USER MANUAL 2300 W ATIKA

Original instructions – Safety instructions – Spare parts

Broyeur de vegétaux

Keep the instructions in a safe place for future use.

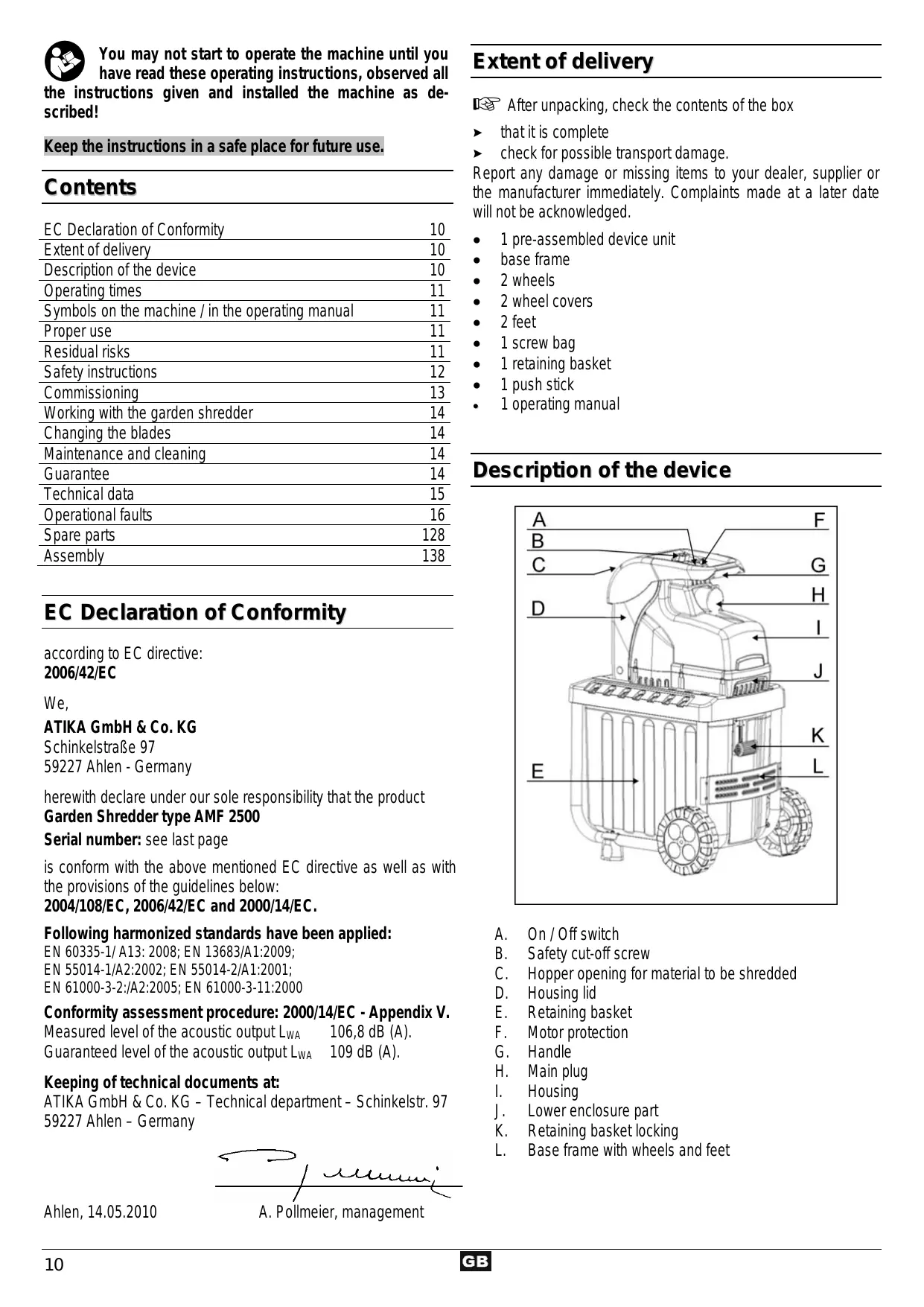

Contents

EC Declaration of Conformity	10
Extent of delivery	10
Description of the device	10
Operating times	11
Symbols on the machine / in the operating manual	11
Proper use	11
Residual risks	11
Safety instructions	12
Commissioning	13
Working with the garden shredder	14
Changing the blades	14
Maintenance and cleaning	14
Guarantee	14
Technical data	15
Operational faults	16
Spare parts	128
Assembly	138

EC Declaration of Conformity

according to EC directive: 2006/42/EC

We,

ATIKA GmbH & Co. KG

Schinkelstraße 97

59227 Ahlen - Germany

herewith declare under our sole responsibility that the product Garden Shredder type AMF 2500

Serial number: see last page

is conform with the above mentioned EC directive as well as with the provisions of the guidelines below: 2004/108/EC, 2006/42/EC and 2000/14/EC.

Following harmonized standards have been applied:

EN 60335-1/A13:2008; EN 13683/A1:2009

EN 55014-1/A2:2002; EN 55014-2/A1:2001;

EN 61000-3-2:/A2:2005; EN 61000-3-11:2000

Conformity assessment procedure: 2000/14/EC - Appendix V.

Measured level of the acoustic output L_WA 106,8 dB (A).

Guaranteed level of the acoustic output L_WA 109 dB (A).

Keeping of technical documents at:

ATIKA GmbH & Co. KG - Technical department - Schinkelstr. 97 59227 Ahlen - Germany

Ahlen, 14.05.2010

A. Pollmeier, management

Extent of delivery

After unpacking, check the contents of the box

that it is complete
check for possible transport damage.

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

1 pre-assembled device unit
- base frame
2 wheels
2 wheel covers
2 feet
1 screw bag
1 retaining basket
1 push stick
1 operating manual

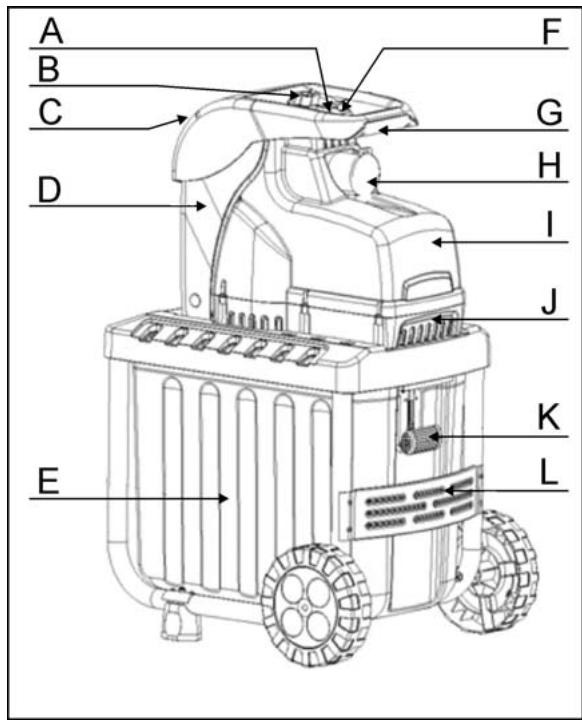

Description of the device

A. On / Off switch
B. Safety cut-off screw
C. Hopper opening for material to be shredded
D. Housing lid
E. Retaining basket
F. Motor protection
G. Handle
H. Main plug
I. Housing
J. Lower enclosure part
K. Retaining basket locking
L. Base frame with wheels and feet

Operating times

Please observe as well the regional regulations for noise protection.

Symbols on the machine

Carefully read the operating manual and the safety instructions be

fore starting the machine and observe the in- structions when operating.

Switch off the motor and disconnect the mains plug before performing cleaning, maintenance or repair work.

Danger - objects may be thrown out at high speed when motor is running. Keep bystanders, pets and domestic

animals out of the danger area.

Danger - rotating blades. Keep hands and feet out of openings while machine is running.

Fangkorb verriegelt

Fangkorb entriegelt

Wear eye and ear protection.

Wear protective gloves.

Protect against humidity.

Electrical devices do not go into the domestic rubbish. Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2002/96/EC on

electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

All plastic parts have been marked to facilitate sorting and recycling. To have your used appliances recycled, contact the manufacturer.

Symbols Operating instructions

Potential hazard or hazardous situation. Failure to observe this instruction may lead to injuries or cause damage to property.

Important information on proper handling. Failure to observe this instruction may lead to faults.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Proper use

The proper use includes the shredding of

• all types of branches up to a max. diameter (depending on wood species and freshness)
• wilted, moist garden refuse that has already been stored for several days, alternating with branches

Shredding of glass, metal, plastic parts, plastic bags, stones, fabric cut-offs, roots with soil, waste without solid consistency (e.g. kitchen scraps) is explicitly excluded.

The garden shredders are suitable for private use in gardens and allotments.

As garden shredders for private gardens and allotments are considered such devices that are not applied in public facilities, parks, and sports facilities as well as in agriculture and forestry on a commercial basis.

The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.

Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.

Unauthorised modifications on the garden shredder exclude a liability of the manufacturer for damages of any kind resulting from it.

Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety information" and the "Intended usage" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Risk of injury to the fingers and hands, if your hand grasps through an opening and reaches the blade unit.
• Risk of injury to the fingers and hands, when carrying out assembly work and cleaning on the blade unit.
• Injury by the chopped material spinning away near the hopper.
• Risk from electricity when using improper electrical connections.
• Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine.
① Keep these safety instructions in a safe place.
Repair works on the shredder must be carried out by the manufacturer or by companies appointed by the manufacturer respectively.

• Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
• Do not use the machine for unsuitable purposes (see 'Normal intended use' and 'Working with the garden shredder').
• Provide a safe standing position and keep at any time the balance. Do not lean forward. When placing material into the shredder, always stand on the same level as the machine. When placing material into the shredder, always stand on the same level as the machine.
• Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.
• Wear protective goggles, gloves and noise protection while working with the machine.
• Wear suitable work clothes:
• do not wear loose-fitting clothes
• slip-proof shoes
• Within his area of work the operator is responsible for third parties.
• The machine must not be operated by children or young people under 16 years of age.
• Physically, sensorially or mentally handicapped persons or persons who have no relevant experience and/or knowledge are not allowed to operate the device, unless a person responsible for their safety supervises them or instruct them on how to use the device.
• Children must be supervised to make sure that they do not play with the device.
• Keep children away from machine.
• Never operate the machine if other persons are in the immediate vicinity.
• Never leave the device unattended.
• Keep your workplace in an orderly condition! Untidiness can result in accidents.
• Choose a working position alongside the equipment.
• Never reach into the filling or ejection opening.
• Keep your face and body away from the filling opening.
• Do not overload the machine! You work better and safer in the given performance range.

• Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.

• Do not alter the revolution speed of the motor, since this controls the safe maximum operating speed, and protects the motor and all rotating parts against damage due to excess speed.

• Do not operate without the funnel.
• Do not modify the device or parts of the device respectively.
• Close machine properly before enabling motor.

• Do not hose down the device with water. (Origin of danger electric current).
  Take into consideration environmental influences:

• Do not use the device in moist or wet ambience.

• Do not leave the machine standing in the rain or use when raining.

• Provide for good illumination.

• To prevent danger of injury to fingers during assembly or cleaning operations wear protecting gloves.

• Switch the machine off and remove the mains plug from the socket when

Performing maintenance and cleaning work.
- Eliminating faults.
- Checking connecting lines, whether these are knotted or damaged.
- Transporting.
- Carrying out repair work.
Leaving unattended (even during short interruptions).

• If the machine's filling funnel or ejection slot is blocked switch off the motor and disconnect the mains plug before removing material from the filling funnel or ejection slot.

• Check the machine for possible damage:

• Before further use of the machine the safety devices must be checked carefully for their proper and intended function.

• Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the machine.
• Damaged safety devices and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.

Damaged or illegible safety labels have to be replaced.

• Store unused equipment in a dry, locked place out of the reach of children.

Electrical safety

• Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-section of at least

1.5 mm² for cable lengths up to 25 m
2.5 mm² for cable lengths over 25 m

• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
• Plugs and coupler outlets on connection cables must be made of rubber, plasticised PVC or other thermoplastic material of same mechanical stability or be covered with this material.
• The connector of the connection cable must be splash-proof.
• When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
• Wind off completely the cable when using a cable drum.

• Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
• Regularly check the extension cables and replace them if they are damaged.
• Do not use any defective connection cables.
• When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
• Do not set up any provisional electrical connections.
• Never bypass protective devices or deactivate them.
• Only hook up the machine by means of a fault-current circuit breaker (30 mA).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed.
Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.
Use only original spare. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Commissioning

• Check that the machine is completely and correctly assembled.
• To avoid toppling, place the shredder on a firm horizontal surface.

• The machine should only be operated in the open. Always maintain a safe distance (at least 2m ) from walls or other fixed objects.
  Before each use, check

• Connection cables for defects (cracks, cuts, etc.).
  Do not use any defective cables.
  There are no damage at the machine (see safety instructions).

• All screws are tight.

(1) Mains connection

• Compare the voltage given on the machine model plate e.g. 230 ~V with the mains voltage and connect the machine to the relevant and properly earthed plug.
• Only use extension cables with sufficient core cross-section.
• In case of disadvantageous power system conditions short-term voltage reductions can occur during the starting process of the device which can influence other devices (e.g. jittering of a lamp). No failures are expected when the house service connection has a continuous current-carrying capacity greater than 100 A per phase.

Mains fuse

		Switzerland	UK
2300 W	16 A time-lag	10 A time-lag	13 A time-lag
2500 W	16 A time-lag		13 A time-lag
2800 W	16 A time-lag		13 A time-lag

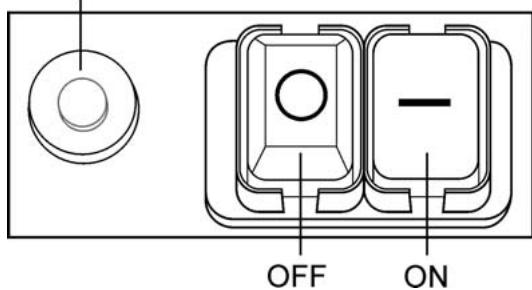

On / Off switch

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Reset button (motor protection)

Switch on

Press the green button(1).

Switch off

Press the red button ①

l Restart protection in case of power failure

In case of a power failure, the device switches off automatically (zero-voltage initiator). To restart, press the green button again.

Motor protection

The motor is equipped with a safety switch and switches off automatically when overloaded. After a cooling-down break (approx. 5 min), the motor may be restarted. Press the

1. reset button (motor protection)

2. green button①to restart.

3. Use a tamper or hook to remove jammed objects from the hopper or ejection slot.

Retaining basket

The integrated retaining basket is equipped with a locking lever and a safety cut-out device.

① Power off the device before attaching or removing the retaining basket.

Retaining basket locked and fixed connected to the device.

Retaining basket unlocked and disconnected from the device. The device cannot be powered up.
When the retaining basket is unlocked while the device is operating the device is automatically cut out.

Always wait until the shredder has come to a complete stand still before restarting it.

Working with the garden shredder

• Choose a working position alongside the equipment.
• Longer material that is protruding from the device could spring back when it is drawn in by the blades! Observe safety distance!
• Use the supplied stuffer to restuff material to be shredded.
• Never reach into the filling or ejection opening.
• Keep your face and body away from the filling opening.
• Never place hands, other parts of the body or clothing into the filler funnel, ejection channel or in the vicinity of other moving parts.
• Check that no chopped residues are in the filling hopper before switching on the equipment.
• Do not tip or tilt the machine when the motor is running.
• When filling, be careful that no pieces of metal, stones, bottles or other objects unintended for processing, enter the filling hopper.
• Immediately switch off the equipment and allow it to come to a stop, if foreign objects enter the filling hopper or if the equipment starts to make unusual noises or vibrates. Remove the mains plug and carry out the following checks:

inspect for damage,
- replace or repair damaged parts,
- check the equipment and tighten loose parts.

You must not repair the equipment yourself if you are unauthorized to do so.

What can I shred?

Yes:

organic household and garden waste e. g. hedge and tree cuttings, dead flowers and vegetable kitchen waste.

No:

• glass, metal, plastic, plastic bags, stones, cloth, roots with soil, food left-overs, fish or meat.

Special tips on shredding:

Branches, twigs and wood should be broken down immediately after they have been cut.

• Material of this kinds gets very hard when it is dry, and the maximum allowed branch diameter to be processed has to be reduced.

Remove any side shoots from branches with a large number of twigs.

How to shred garden and kitchen waste with hight water content and a tendency to clog
- to prevent the machine from clogging, alternate waste with wood containing material.
Do not allow the shredded material to pile up too high in the area of the ejection opening. This can lead to shredded material blocking the ejection channel, and backing up to the filler opening.
Clean out the filler opening and ejection channel thoroughly if the machine becomes blocked. Before doing this, switch the motor off and disconnect the machine from the mains power supply.
Please do not exceed the maximum branch diameter specified (cutting fresh wood) for your appliance ( see p. 15). Depending on the wood's nature and freshness the maximum branch diameter the machine can process may be smaller.
The blades largely pull the material into the machine by themselves.
Strong branches may cause overloading. This can be avoided by pulling them back from time to time.
If the machine is overloaded, a protective motor switch ensures that the machine turns itself off automatically.

• Turn the shredder on again after about 5 minutes.
• If you cannot turn on the machine after this waiting time refer to „Operational faults".

Changing the blades

Remove the mains plug before changing the blades.

Risk of injury to the fingers and hands when carrying out work on the blade unit. Wear protective gloves.

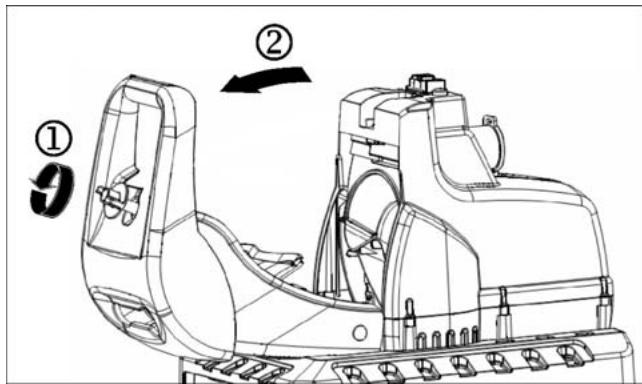

Open the machine.

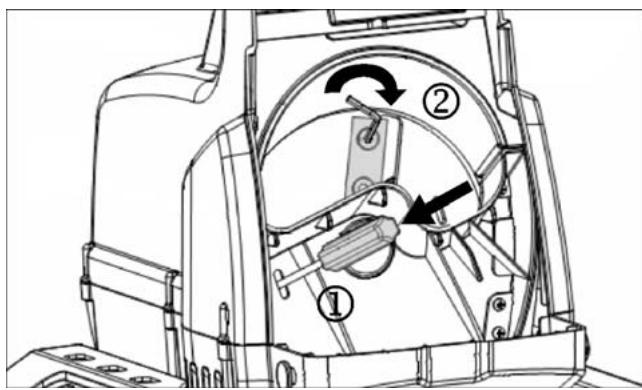

Fix the blade.

Reduced output

One edge of the knife has become blunt:
Turn knife so that you can use the other edge.

All knife edges have become blunt:

Replace with new set of knives (order-no. 382425).

Maintenance and cleaning

Each time before starting maintenance work:

• Switch off the motor and pull out the mains plug.
• Wear protective gloves to prevent injury.

The cutters will not come to a standstill immediately after cut-off. Before starting any service work wait until all parts are stationary.

Be sure to have removed any tools from the machine after completion of service work.

• Generally garden shredders require little maintenance. To maintain their efficiency and a long life, observe the following:

• Keep vent slits clean and free from obstructions.

• Check the locking screws (tighten where necessary).

Clean the device after shredding.

To clean your product only use a warm moist cloth and a soft brush.

Never use cleaning agents or solvents. Otherwise the device may be damaged irreversibly. Plastic parts may be corroded by chemicals.

• Do not clean the machine with running water or high-pressure cleaners.

After each operation treat bare metal parts with an environment-compatible biodegradable spray oil to protect them against corrosion.

Guarantee

Please observe the enclosed terms of guarantee.

Operational faults

Before each fault elimination:

• Switch off device.
• Wait for standstill of the garden shredder.
• Pull out mains plug.

Fault	Possible cause	Removal
Motor does not start.	- No power supply. - Mains cable defective. - Upper part of the enclosure not properly closed (safety shut-off is activated). Retaining basket unlocked - (safety cut-out device of the retaining basket has tripped)	- Check fuses. - Have these checked (electrician). - Close and bolt down upper part of the enclosure correctly, remove any dirt present. - Lock the retaining basket
Motor hums, but does not start.	- Cutters blocked. - Capacitor faulty.	- Switch machine off, disconnect mains plug, and clean interior of machine. - Have machine repaired by manufacturer or approved company.
Reduced cutting performance.	Knife edges became blunt.	Turn the knife or replace it with a new set of knives.
Device starts but blocks under slight load and cuts off via protective motor switch.	Extension cable too long, or cross-section too small. Socket too far from mains supply and cross-section of mains cable too small.	Extension cable at least 1.5 mm², maximum 25 m long. If a longer cable is used, minimum cross-section 2.5 mm².

Technical data

Model	2300	2500	2800
Typ	AMF
Motor	AC-Motor 230 V~, 50 Hz, 2800 rpm, including automatic motor brake
Power P1 S6 - 40 %	2300 W	2500 W	2800 W
Power P1 S1	2000 W	2000 W	2300 W
On/off switch with	overload protection; cutting and reverse function, zero-voltage initiator
Weight	23,0 kg	23,0 kg	24,0 kg
Sound pressure level at work LPA (mesured to 2000/14/EG)	96,6 dB (A)	96,6 dB (A)	93,7 dB (A)
	K = 3 dB (A)	K = 3 dB (A)	K = 3 dB (A)
Measured level of the acoustic output LWA (mesured to 2000/14/EG)	106,8 dB (A)	106,8 dB (A)	102,5 dB (A)
Guaranteed level of the acoustic output LWA (mesured to 2000/14/EG)	109 dB (A)	109 dB (A)	105 dB (A)
max. branch diameter (only for freshly cut wood)	∅ max. 40 mm	∅ max. 40 mm	∅ max. 45 mm
Safety class	I
Protection class	IP X4
Mains fuse	16 A time-lag	16 A time-lag	16 A time-lag
Switzerland	10 A time-lag	--	--
UK	13 A time-lag	13 A time-lag	13 A time-lag

Proceded evaluation of the conformity: 2000/14 CE - Annexe V

2004/108/CE, 2006/95/CE e 2000/14/CE.

2004/108/WE, 2006/95/WE i 2000/14/WE.

conform directivei 2006/42/UE

Prin prezenta, noi

ATIKA GmbH & Co. KG

Schinkelstraße 97

59227 Ahlen - Germany

declarçampepropriereaspundereca produsul

Tocatoarepentrugradina tipAMF2500

2004/108/UE, 2006/95/UE §i 2000/14/UE.

Conformity assessment procedure 2000/14/UE – Appendix V

2004/108/EC, 2006/95/EC n 2000/14/EC.

CeteBoe npedoxpahene

		Шевскиепines	UK
2300 W	16 A*	10 A*	13 A*
2500 W	16 A*		13 A*
2800 W	16 A*		13 A*

*=IInepzioHHO-ⅡnabKne npedeoxpanHTeJI

3aPepaaetcNcNoB30BaTb yCTpoiCTBO, BbIKIIOaTeIb KOTOPo He BKIOuaeTcN He BbIKIOaTeC. NOBpeXdeHHbIe BbIKIOaTeJI NOpJExKaT HEmEJIeHHOMy peMOHTy IJI 3aMeHe cepBnCHO cnjxboi.

KnaBnBa Bo3BpTa (3aunTa DnRaTeIa)

BkIIOUeHne

Haxmnte 3eneHyIO KnaBnuy ①

BbIKJIouyehne

Hajmte KpacHyo KlaBnSy 0

Пре dioхсань NOBtopHOrO nyckaInyae nepe6oJ 3JeKtpoCha6xehnJia

B cnyae nepe6o3neKtpocHa6xKeHn np60p aBTOMaTueckn BblKnIOyaeTc (HyJeBOu aBTOMaT). IINr IOBTOPO R BkIOUeHn HEO6XOIMO Haxatb 3eIeHyo KlaBnUy.

3aunTa 3JIeKtpoDbnrgateTJ

3JIeKtpoDBnIaTeJIb OCHASeH 3aUHTbIM aBTOMaTOM, 3a Cuet KOTOPOROBcIyae neperpuy3Kn IPONCXODIT aBTOMaTHueCKoe BbIKIIOHeHne. PocIe ONpeJeIeHHOrO BpemeHn OxJaXeHn (OKoI0 5 MInHyT) 3JIeKtpoDBnIaTeJIb MOxHO ChOBA BKJIOHTb. JIpy 3TOI HAXMITE

1. Knabiny Bo3Bpata (3aunTa DnBaTeJIA)
2. 3eJIeHyo KIaBnUy（1）ДЯ NOBTOpHOro BKJIIOueHna.

Ipeed NOBTOHPbIM BKNIOUeHnEM NIOOJNTe, NOKa He 13oIeT OCTaHOB N3MeJIbYHTeJIa.

Лобильна Коризна

HTERpnpoBaHHa IOBnIbHa KOp3nHa OChaSeHaФнСсруошу рчКои 3auntHbIM OTKlOyeHMe.

Ipn yctaHOBe n ydaJIeHnIOBnIbHOJ KOp3nHbI Heo6XODIMO OTKJIIOuATb YCTpOJCTBO.

3aMeHnTb 3aTyNnBWeecr Je3Bne Ha Je3Bne, He nCNoJb3OBaBWeecr Do CnX NOp, NOMeHrB IVX MeCTaMn.

3aTynnncBCEJe3BnHOKeJ.

BCTaBt b HOBbI KOMPJIeKT HOKei (No IJIA 3aKa3a 382425).

Texnueckoe obcnykBaHne n yxoid

2004/108/ES, 2006/95/ES, 2000/14/ES.

Uporabljeni so bili naslednjih harmonizirani standardi:

EN 60335-1/A13:2008; EN 13683/A1:2009

EN 55014-1/A2:2002; EN 55014-2/A1:2001;

EN 61000-3-2:/A2:2005; EN 61000-3-11:2000

Postopek za ugotavljanje skladnosti: 2000/14/ES - Dodatek V.

Izmerjen nivo hrupa LwA 106,8 dB (A).

Garantirani nivo hrupa LwA 109 dB (A).

Shranjevanje tehnne dokumentacije:

ATIKA GmbH & Co. KG - Tehnična pisarna - Schinkelstr. 97 -
