Product type	Digital controller
Brand	HEIDENHAIN
Model	ND 1300
Supply voltage	100 V~ to 240 V~ (-15% / +10%)
Mains frequency	43 Hz to 63 Hz
Fuse	T1600 mA, 250 V, 5 x 20 mm
Screen type	Color touchscreen LCD
Interfaces	RS-232-C, RJ45 (foot switch trigger), USB type A, encoder inputs X, Y, Z, Q
Video options	Coaxial video input/output NTSC/PAL, Y/C output, light/zoom input/output
Optical edge option	Edge detector and light source
Audio output	3.5 mm jack, monaural, 8 Ω
Memory	Internal battery backup
Interface languages	English, German, French, Italian, Czech, Spanish, Simplified/Traditional Chinese, Japanese, Polish, Russian
Measurement functions	Point, line, circle, arc, groove, angle, distance, magic measurement
Probing	Manual and automatic, video and edge detection
Tolerance	Control by tolerance ranges with visual indicator (green/red square)
Programming	Recording and execution of measurement sequences
Report	Send to USB printer, USB stick or PC
Calibration	Touchscreen, encoders, camera, magnifications, alignment, squareness
Safety	Do not open the housing; disconnect before any connection; replacement of power cable reserved for an electrician

Frequently Asked Questions - ND 1300 HEIDENHAIN

How to power on the ND 1300?

Press the power switch located on the back of the housing. The startup screen appears, then the DRO screen appears after initialization.

How to change the interface language?

In the SETUP menu, touch the LANGUAGE item then select the desired language. Note that the ND 1300 must be turned off and then back on to apply the change.

How to calibrate the touchscreen?

Go to the SETUP menu, touch MISC then the CAL button. Follow the on-screen instructions to complete the calibration.

How to measure a circle?

Touch the CIRCLE icon in the MEASURE tab, then probe at least 3 points on the circumference in any order. Press FINISH to validate.

How to record a program?

Touch the RECORDING icon (red), give the program a name, then perform the desired measurements. To finish, press the PROGRAM tab then the STOP icon.

How to apply tolerances to a feature?

Select a feature in the list, touch the TOL button, choose the tolerance type, then enter the NOMINAL and TOLERANCE values. The result is displayed by a green square (OK) or red (out of tolerance).

How to use automatic probing?

Touch the AUTO-ENTER function in the video screen. Position the probe on the point to be measured; after a short delay, the point is validated automatically. For multiple probes, a green arrow appears; place it in the circle and press ENTER.

How to save programs to a USB stick?

Connect a blank USB stick to the side port. In the PROGRAM tab, select the program, then touch the COPY PROGRAM icon. The program is copied to the stick.

How to configure encoders?

In the SETUP menu, touch ENCODERS, select the axis, then enter all required parameters. For analog encoders, run a calibration with the CAL button. TTL encoders do not require calibration.

What to do if the touchscreen does not respond correctly?

Perform a touchscreen calibration via the SETUP menu (MISC > CAL). Follow the instructions to adapt the sensitivity to your finger.

USER MANUAL ND 1300 HEIDENHAIN

Quick Reference Guide

Kurzanleitung

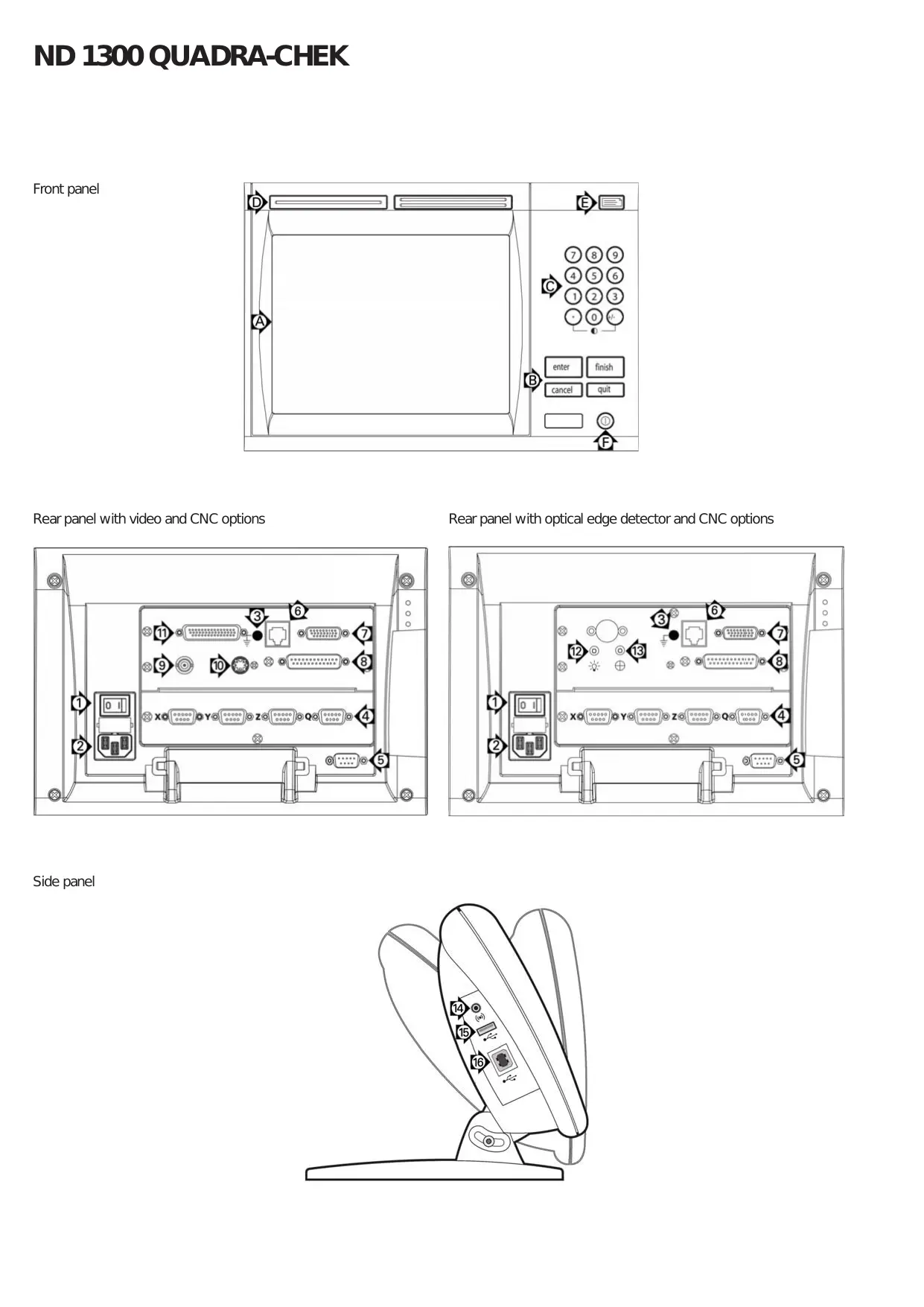

Rear panel with video and CNC options

Rear panel with optical edge detector and CNC options

Side panel

For detailed description and latest document version, see www.heidenhain.de

Before Power up

Electrical connection

Line voltage: 100V to 240V

(-15% to +10%)

Line frequency: 43 Hz to 63 Hz

Line fuse: T1600 mA, 250 V

5 × 20 ~mm

Power connector wiring

L: Line voltage (brown)

N: Neutral (blue)

Earth ground (yellow/green)

Danger of electrical shock!

• Do not open the enclosure.
• Never use 3-wire to 2-wire adapters or allow the ground connection to the ND 1300 to be interrupted or disconnected.

Caution

Changes to the power cable may be made only by an electrical technician.

Caution

Do not connect encoders or other equipment to the ND 1300 when the power is on.

Safety Considerations

General accepted safety precautions must be followed when operating the ND 1300. Failure to observe these precautions could result in damage to the equipment, or injury to personnel. It is understood that safety rules within individual companies vary. If a conflict exists between the material contained in this guide and the rules of a company using this system, the more stringent rules should take precedence.

Controls and Displays

A	LCD screen
B	Command keys: Control measurement
C	Numeric keypad: Enter numeric data
D	Fast track keys: Programmable for frequently used functions
E	Send key: Transmit measurement data to PC, USB printer or USB drive
F	LCD on/off key: Turn LCD on or off or delete features from the feature list.

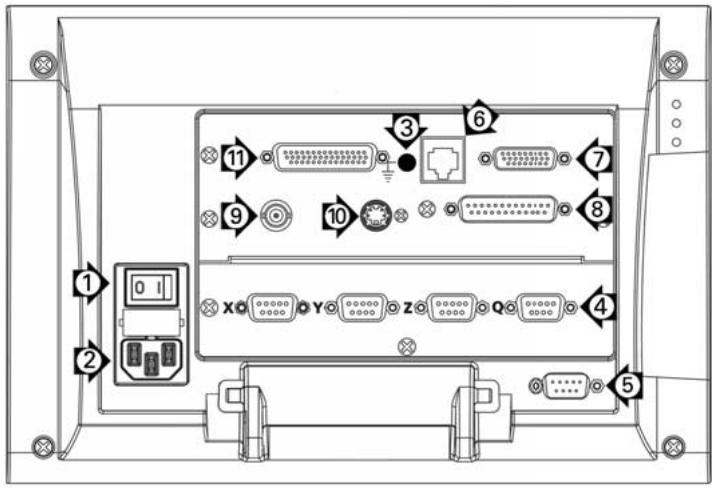

Connections rear side

1	Power switch
2	Power connection with fuse
3	Ground (protective ground)
4	Encoder inputs, X, Y, Z axis for linear encoders Q axis for rotary encoder. Interface specified at the time of purchase.
5	RS-232-C interface for PC connection. RS-232 cable must not include crossovers.
6	Remote accessory interface RJ-45 for optional foot switch accessory.
7	CNC control outputs for CNC motor amplifier.
8	Unused

Connections for video option

9	Coaxial video input from NTSC or PAL cameras.
10	Y/C video input from NTSC or PAL cameras.
11	Lighting and zoom input/output connector.

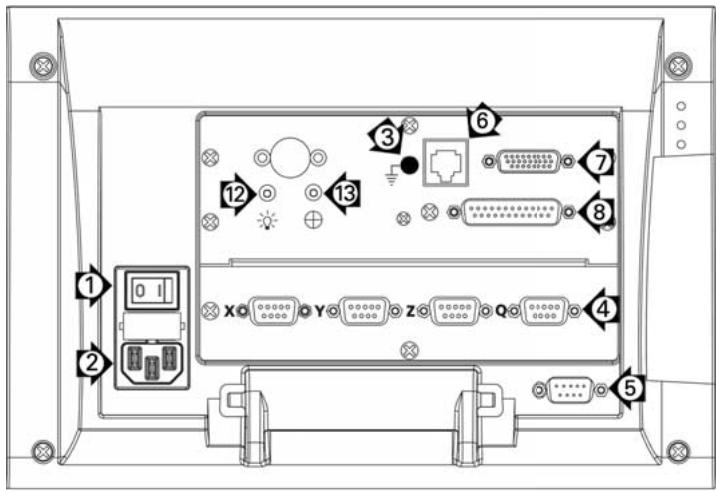

Connections for optical edge option

12	Optical cable connector for Comparator reference light source
13	Optical cable connector for comparator screen sensor

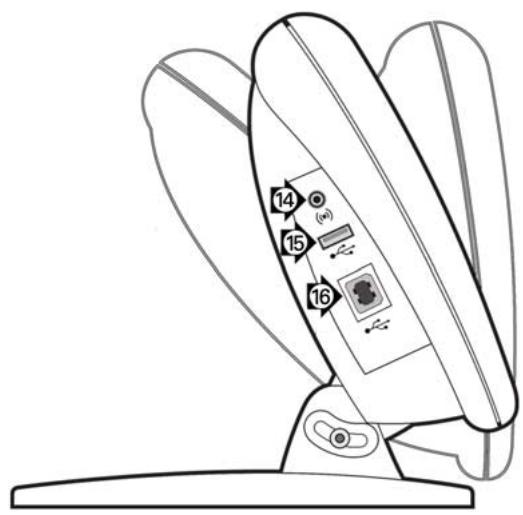

Connections side view

14	Audio out for 3,5 mm headphone /speaker jack, monaural, 8 Ohm
15	USB type A interface for printer or data storage
16	Unused

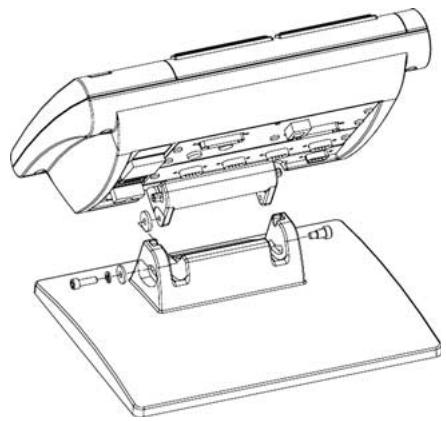

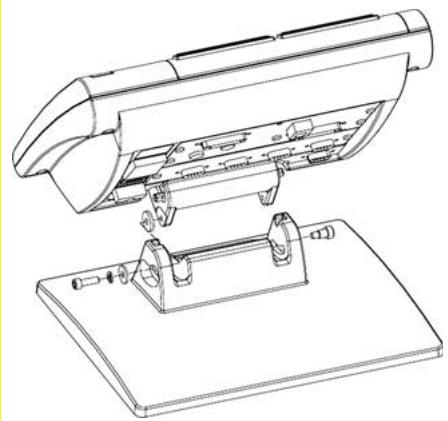

Mounting

The ND 1300 is secured to the swivel slots of the mounting stand or arm mount by a shoulder screw, a cap screw mount is shown with associated washers.

Very important
Please note
For your information

HEIDENHAIN

• Press the POWER SWITCH to power the ND 1300. The startup screen is displayed.

ND 1300

• Press the FINISH key to display the current axis positions on the DRO screen.

Software setup

The operating parameters of the ND 1300 must be configured prior to using it for the first time, and any time part measurement, reporting or communication requirements change.

Settings will be retained until:

• The data-backup battery is changed
• The data and settings are cleared
• Software upgrades are performed

Caution

Setup parameters control the operation of the ND 1300 and are password-protected. Only qualified personnel should be given password access to setup screens.

Setup is divided into sections that are:

• Initial setup for video and edge options
• Setup for video option only
• Setup for edge option only
• Final setup for video and edge options

Setup steps should be performed in the order presented.

Initial setup for video and edge options

1. Display the setup menu

• Touch the QUESTION icon once, and then touch the SETUP button twice to display the SETUP MENU.

• Touch menu items to select them. Scroll the setup menu using the ARROW buttons.

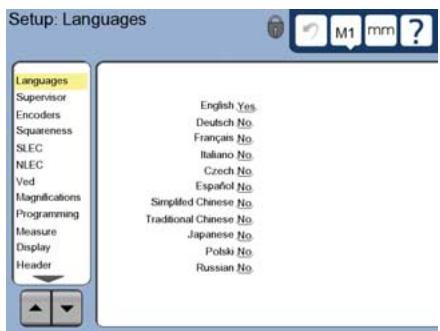

2. Select the language

Touch the LANGUAGES setup menu item and then touch the desired language.

Note:

When the language is changed, power to the ND 1300 must be cycled off and then back on.

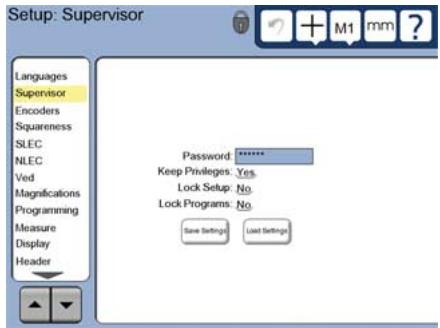

3. Enter the Supervisor Password

• Touch the SUPERVISOR setup menu item and then touch the PASSWORD field.
• Enter the supervisor password.

4. Calibrate the touch screen

The touch screen should be calibrated to respond correctly to each operator's finger tip size and pressure.

• Touch the MISCELLANEOUS setup menu item and then touch the CAL button.
• Follow the instructions shown on the LCD screen.

5. Select the point entry type

Backward or forward annotation can be used to collect data points. Backward annotation allows the user to probe any number of data points to measure a feature. Forward annotation limits the number of points to a required minimum.

• Touch the MEASURE setup menu item and then touch the ANNOTATION field to select BACKWARD or FORWARD annotation.

6. Configure encoders

• Touch the ENCODERS setup menu item and then touch the AXIS field to select the desired encoder axis.
• Enter all the required encoder parameters.
• Calibrate analog encoders by touching the CAL button. TTL encoders do not require calibration.
• Repeat setup for all axes.

7. Configure display formats

• Touch the DISPLAY setup menu item.
• Enter the desired display resolutions and other parameters.

Setup for the video option

1. Select a video camera type

Touch the VED setup menu item and then touch the CAMERA TYPE field to select the desired camera output format.

2. Adjust light level

• Press the FINISH key to return to the DRO screen.
• Touch the LIGHT tab to display the light controls.

• Touch the light level slider or enter a light level number to optimize the video light level.

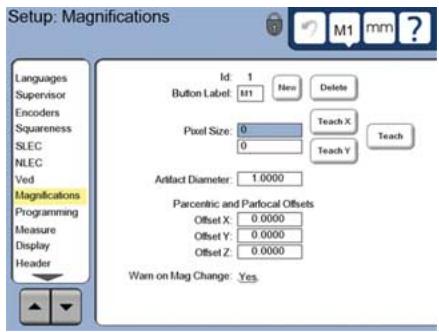

3.Add camera magnifications

When video systems include more than one magnification, additional magnification positions must be added and calibrated.

• Return to the setup menu and touch the MAGNIFICATIONS menu item to display the MAGNIFICATIONS SCREEN.

• Touch the NEW button to add a new magnification. A new BUTTON LABEL number will be added. This label will be available on the DRO screen during measurements.
• The BUTTON LABEL can be changed to any 3 character string. Touch the BUTTON LABEL field and enter a new label if desired.

4. Calibrate magnifications

Use a circle calibration artifact to calibrate magnifications.

• Touch the ID number in the MAGNIFICATIONS setup screen to show the desired magnification BUTTON LABEL.
• Touch the ARTIFACT DIAMETER field and enter the artifact diameter.
• Touch the TEACH button and follow the instructions shown on the screen.
• Repeat this process for all magnifications.

5. Calibrate camera skew

• Touch the VED setup menu item and then touch the CAL button.
• Follow the instructions shown on the screen.

6.Calibrate parcentric and parfocal alignment

This calibration eliminates X and Y axis offset errors that can occur when changing video magnifications. Use a circle calibration artifact for this calibration.
- Touch the MAGNIFICATIONS setup menu item.

• Touch the MAGNIFICATION icon to display the magnification choices, then select the highest level of magnification.
• Enter zeros for the PARCENTRIC and PARFOCAL OFFSETS.

Parcentric and Parfocal Offsets
Offset X:	0.0000
Offset Y:	0.0000
Offset Z:	0.0000

• Repeat to zero the offsets of all magnifications.
• Select the highest level of magnification again.
• Measure the circle artifact and create a zero datum on the circle center point. Refer to the descriptions of circle measurement and zero datum creation later in this document if necessary.
• Select the next lower level of magnification and measure the same circle artifact. Make a note of the X, Y and Z positions shown in the measurement results for this magnification.
• Enter the X, Y and Z positions into the OFFSET fields for this magnification.
• Repeat this process to enter OFFSET values for all levels of magnification.

Setup for the optical edge option

1. Add comparator magnifications When coparator systems include more than one magnification, additional magnification positions must be added

2. Touch the MAGNIFICATIONS menu item to display the MAGNIFICATIONS SCREEN.

• Touch the NEW button to add a new magnification. A new BUTTON LABEL number will be added. This label will be available on the DRO screen during measurements.
• The BUTTON LABEL can be changed to any 3 character string. Touch the BUTTON LABEL field and enter a new label if desired.

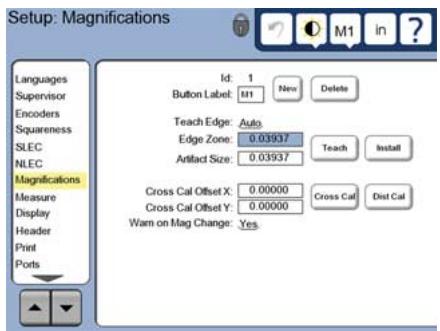

2. Calibrate optical edge detection

Teaching the edge detector calibrates it to correctly recognize dark to light transitions. Perform a TEACH calibration after each startup, when lighting changes, when the part changes and when the magnification level changes.

• Touch the TEACH button.
• Follow the instructions shown on the screen to complete the calibration.

3. Calibrate crosshair offset

Crosshair offset calibration compensates for the location differences between the center of the crosshairs and the edge detector. Crosshair offset calibration is only necessary when crosshairs and edge detection will be used to probe points on the same part.

• Touch the CROSS CAL button.
• Follow the instructions shown on the screen to complete the calibration.

Final setup for video and edge options

1. Calibrate error correction

Linear (LEC), segmented linear (SLEC) and nonlinear (NLEC) error correction methods can be used to compensate for encoder and machine errors. Refer to the ND 1300 User Guide for instructions.

2. Calibrate stage squareness

This calibration is not necessary when NLEC error correction is used.

• Align the squareness calibration artifact to the reference axis.
• Measure the artifact angle. Refer to the angle measurement instructions later in this document if necessary.
• Display the SETUP MENU and then touch the SQUARENESS menu item.
• Enter the measured angle into the OBSERVED ANGLE field and then enter the certified artifact angle into the STANDARD ANGLE field.
• Press the FINISH key to complete the calibration.

Note:

Many more setup functions are available beyond the minimum parameters discussed here. Refer to the ND 1300 User Guide for detailed instructions.

Setup

Operation

Setup for the CNC option

Motor direction and PID loop

parameters must be configured prior to

using the CNC option for the first time,

and anytime changes are made to the

motors or encoders.

Caution:

CNC parameters must be configured

carefully by qualified personnel.

Run away motors resulting from

configuration errors can cause serious

equipment damage and severe personal

injury.

Refer to the ND 1300 User Guide for

detailed instructions.

Preparing to measure

1. Power up the ND 1300

• Check connections to the ND 1300.
• Press the POWER SWITCH to power
  the ND 1300 . The DRO screen will be
  displayed after system initialization

2. Find machine zero (optional)

Move the stage to cross reference

marks or find hard stops if your system

was set up to establish machine zero at

startup.

Note:

A repeatable machine zero is required

when SLEC or NLEC error correction

is used. Refer to the User's Guide for

detailed information.

3. Select a unit of measure

Touch the UNIT OF MEASURE

icon to toggle between inches

and mm.

Video probe option

Part features can be probed using

crosshair, offset crosshair, single edge

and multiple edge video probes. Touch

the crosshairs on the video screen to

select a probe.

Crosshair:

Single points can be probed

manually or automatically.

Offset crosshair:

Crosshair lines include

3 pixel offsets for impre

visibility on certain part

features. Single points

be probed manually or

automatically.

Single edge:

Crosshair with small circle

at the center for edge

detection. Single points

can be probed manually or

automatically.

Multiple edge:

Crosshair with two small

concentric circles at the

center for edge detection.

Multiple points can be

probed automatically.

Using the multiple edge probe, once the

points required to determine the feature

type are probed , a circle and arrow will

be displayed. Move the stage to position

the arrow in the circle and press the

ENTER key to complete probing.

Note:

Touching the crosshairs on the screen

also displays probe configuration tools.

Refer to the ND 1300 User Guide for

details.

Probing with video

Feature points can be probed manually

or automatically:

1. Manual probing

• Position the feature point under the
  probe and press the ENTER key.
• When all points have been probed,
  press the FINISH key.

2. Automatic probing

• Touch the AUTO-ENTER function on

the video screen to toggle automatic

probing on.

Off

• Position the feature point under the

probe. After a brief delay, the point

will be entered automatically.

Crosshair and single edge probes:

When all points have been probed

press the FINISH key.

• Multiple edge probe: Probe until a

green arrow and circle appear . Move

the green arrow into the circle and

press the ENTER key.

Edge detection probe option

Part features can be probed

using manual crosshairs,

automatic crosshairs, manual

edge detection or automatic

edge detection. Touch the

PROBE ICON to display the

probe choices shown below.

Probing with edge detection

Feature points can be probed manually

or automatically:

Crosshair:

Position the crosshairs over the

desired location and press the

ENTER key.

Automatic crosshair:

Move the stage to position the

crosshairs over the desired

location . After a short delay , the

point will be entered.

Manual edge detection:

Move the stage to move the

edge detector across the

desired dark to light transition

and then press the ENTER key.

Automatic edge detection:

Move the stage to move the

edge detector across the

desired dark to light transition.

The point will be entered.

Leveling and aligning the part

Perform level and skew alignments to

eliminate measurement errors resulting

from misaligned parts.

1. Align the part on the stage

Align the reference edge of the part to a

measurement axis.

2. Level the part

• Touch the MEASURE tab to display the measure icons, and then touch the blue SKEW/LEVEL icon to display the SKEW and LEVEL icons.

• Touch the LEVEL icon, probe a minimum of 3 points on the desired part reference-plane surface and then press the FINISH key.

3. Perform a skew alignment

• Touch the MEASURE tab to display the measure icons, and then touch the SKEW/LEVEL icon
• Touch the SKEW icon, probe a minimum of 2 points on the reference edge and then press the FINISH key.

Creating a zero datum

• Probe, construct or create a reference point.
• Press the DRO button to display the DRO screen.
• Press the ZERO buttons for each axis on the DRO screen.

Presetting a datum

• Probe, construct or create a reference point.
• Display the DRO screen, touch the axis values shown and enter preset values using the numeric keypad.

Measuring features

Features are measured by touching a feature icon or the MEASURE MAGIC icon in the MEASURE tab, probing points and then pressing the ENTER and FINISH keys.

1. Measure a point

Touch the POINT icon and probe a point.

2. Measure a line

Touch the LINE icon and probe a minimum of 2 points.

3.Measure a circle

Touch the CIRCLE icon and probe a minimum of 3 points in any order around the circumference.

4.Measure an arc

Touch the CIRCLE icon once to display the ARC icon, then touch the ARC icon and probe a minimum of 3 points in sequence from beginning to end of the arc.

5.Measure a slot

Touch the SLOT icon and probe 5 points in the following sequence:

• Two points on a long side
  One point in the closest end
• One point in the center of the second long side
• Last point on the remaining end

Points can be probed in sequence in either direction.

6.Measure an angle

Touch the ANGLE icon and probe a minimum of 2 points on each of the two legs. Press the FINISH key after each leg.

7.Measure a distance

Touch the DISTANCE icon and probe 1 point on each end of the distance.

8. Use Measure Magic

Touch the MEASURE MAGIC icon and probe points on a feature. The feature type will be determined based on the pattern and sequence of point probing.

Creating Features

Features are created by selecting the feature type to be created, entering the required feature data and then pressing the FINISH key.

1. Specify the feature type

Touch the MEASURE tab and then touch a measure icon to specify the type of feature to be created.

2. Enter the feature data

Touch the ENTER DATA icon and then enter data into fields shown on the screen.

3.Complete the creation

Press the FINISH key to complete the feature creation. The new created feature will be shown in the feature list.

Constructing Features

Features are constructed by selecting the feature type to be constructed, selecting the parent features and then pressing the FINISH key.

1. Specify the feature type

Touch the MEASURE tab and then touch a measure icon to specify the type of feature to be constructed.

2. Select the parent features

Touch the desired parent features in the feature list. Check marks will be shown near the parent features.

3. Complete the construction

Press the FINISH key to complete the construction. The new constructed feature will be shown in the feature list.

Viewing measurement data

Probed data points with form errors are viewed by selecting a feature in the feature list and touching the VIEW button.

1. Select a feature

Touch the desired feature in the feature list.

2. Press the VIEW button

Form errors are displayed as lines extending from data points to the feature. The two greatest form errors are shown in red.

VIEW

Applying Tolerances

Tolerances are applied by selecting a feature, touching the TOL button, selecting a tolerance type and entering tolerance data.

1. Select a feature

Touch the desired feature in the feature list.

2. Press the TOL button

Tolerance types are displayed at the bottom of the screen as tolerance icons.

3. Select a tolerance

Touch a tolerance icon to select the desired tolerance type and then touch the word TOLERANCE at the top left corner of the screen to select a specific tolerance.

4. Enter tolerance data

Enter NOMINAL and TOLERANCE data into data fields provided in the tolerance screen.

5.View the result

Green squares near features in the feature list indicate passed tolerances. Red squares and outlined characters on the DRO screen indicate failed tolerances.

Programming

Programs are recorded sequences of measurement and other operator activities stored by the ND 1300 to be played back later when inspecting identical parts. This guide discusses recording, running, saving, loading and deleting programs.

Note:

Programs can also be copied and edited. Refer to the User's Guide for detailed information.

1. Recording a program

• Touch the PROGRAM tab.

• Touch the round red RECORD icon.
• Enter a program name and press the FINISH key to begin recording.
• Perform part alignment, measurement and other steps as usual. Program recording is indicated by a red program tab.
• To end recording, press the PROGRAM tab and then press the square black STOP icon. The new program will be stored.

• Press the FINISH key to end the programming session and return to the DRO.

2. Running a program

• Touch the PROGRAM tab.
• Touch a program name.
• Press the black triangular RUN icon. The feature type and points probed will be displayed as points are probed.
  After establishing a datum, press the VIEW button to see point targeting while points are probed.
• The program will stop automatically when all program steps have been played. A message box will be displayed.
• Touch the message box to end the programming session and return to the DRO.

Saving programs

Programs can be saved to a USB drive.

• Plug an empty USB drive into the USB port on the side of the ND 1300.
• Touch the PROGRAM tab and touch the program name.
• Touch the COPY PROGRAM icon.
• Press the FINISH key to return to the DRO.

Loading programs

Programs can be loaded from a USB drive.

• Plug the USB drive into the USB port on the side of the ND 1300.
• Touch the C: DRIVE icon to change drives. The A: (USB) DRIVE icon and list of programs stored on the USB drive will be shown.
• Touch the desired program name in the list and then touch the LOAD PROGRAM icon. The highlighted program will be loaded to the local (C:) drive.
• Touch the A: DRIVE icon. The C: DRIVE will be shown with the loaded program in the C: DRIVE program list.

The loaded program can now be selected and run.

3. Deleting a program

• Touch the PROGRAM tab.
• Touch a program name.
• Press the CANCEL key. The program will be deleted.

Note:

Use caution when deleting programs, and store a backup of the program first. Deleted programs cannot be restored.

• Press the FINISH key to end the programming session and return to the DRO.

Reporting Results

Reports of results can be sent to a USB printer, USB flash drive or a PC. The report type and destination are specified in the PRINT setup screen.

Note:

Refer to the ND 1300 user guide on our web site at: www.heidenhain.de for details.

• Press the SEND key to report results.

Setup fur Option CNC

• Toucher I'onglet PROGRAMME.

Parcentric and Parfocal Offsets

Offset X:	0.0000
Offset Y:	0.0000
Offset Z:	0.0000

Parcentric and Parfocal Offsets

Offset X:	0.0000
Offset Y:	0.0000
Offset Z:	0.0000

IoproTOBka K n3MepeHnMa

Parcentric and Parfocal Offsets

Offset X:	0.0000
Offset Y:	0.0000
Offset Z:	0.0000

3. Olusturmayi tamamlayin

A	LCD
B
C
D
E	USB		PC
F	LCD	/	LCD

1
2
3
4	X Y Z Q
5	RS-232-C PC RS-232
6	RJ-45
7	CNC CNC
8

9	PAL	NTSC
10	Y/C	NTSC
	PAL
11		/

12
13

14	3.5 / 8 Ohm
15	USB A
16

ND 1300

HEIDENHAIN

For complete and further addresses see www.heidenhain.de

B1653AOX Villa Ballester, Argentina

www.heidenhain.com.ar

AU FCR MotionTechnology Pty. Ltd

Laverton North 3026, Australia

E-mail: [e-mail]

BA Bosnia and Herzegovina SL

BE HEIDENHAIN NV/SA

1760 Roosdaal, Belgium

www.heidenhain.be

BG ESD Bulgaria

Sofia 1172, Bulgaria

www.esd.bg

BR DIADUR Industria e Comercio Ltda.

04763-070 - São Paulo - SP, Brazil

www.heidenhain.com.br

BY Belarus

50354 Huerth, Germany

www.gertner.biz

CA HEIDENHAIN CORPORATION

Mississauga, OntarioL5T2N2, Canada

www.heidenhain.com

Beijing 101312, China

102 00 Praha 10, Czech Republic

www.heidenhain.cz

DK TPTEKNIKA/S

2670 Greve, Denmark

www.tp-gruppen.dk

ES FARRESA ELECTRONICA S.A.

08028 Barcelona, Spain

www.farresa.es

FI HEIDENHAIN Scandinavia AB

02770 Espoo, Finland

www.heidenhain.fi

FR HEIDENHAIN FRANCE sarl

92310 Sèvres, France

www.heidenhain.fr

GB HEIDENHAIN (G.B.) Limited

Burgess Hill RH15 9RD, United Kingdom

www.heidenhain.co.uk

GR MB Millionis Vassilis

17341 Athens, Greece

www.heidenhain.gr

HK HEIDENHAIN LTD

Kowloon, Hong Kong

E-mail: [e-mail]

HR Croatia SL

HU HEIDENHAIN Kereskedelmi Kepviselet

1239 Budapest, Hungary

www.heidenhain.hu

ID PT Servitama Era Toolsindo

Jakarta 13930, Indonesia

E-mail: [e-mail]

IL NEUMO VARGUS MARKETING LTD.

Tel Aviv 61570, Israel

E-mail: [e-mail]

IN HEIDENHAIN Optics & Electronics

India Private Limited

Chennai-600 031,India

www.heidenhain.in

IT HEIDENHAIN ITALIANA S.r.l.

20128 Milano, Italy

www.heidenhain.it

JP HEIDENHAIN K.K.

Tokyo 194-0215, Japan

www.heidenhain.co.jp

KR HEIDENHAIN Korea LTD.

Gasan-Dong, Seoul, Korea 153-782

www.heidenhain.co.kr

ME Montenegro SL

MK Macedonia BG

MX HEIDENHAIN CORPORATION MEXICO

20235 Aguascalientes, Ags., Mexico

E-mail: [e-mail]

MY ISOSERVE Sdn. Bhd

56100 Kuala Lumpur, Malaysia

E-mail: [e-mail]

7300 Orkanger, Norway

www.heidenhain.no

PH Machinebanks Corporation

Quezon City, Philippines 1113

E-mail: [e-mail]

PL APS

02-489 Warszawa, Poland

www.apserwis.com.pl

PT FARRESA ELECTRONICA, LDA.

4470 - 177 Maia, Portugal

www.farresa.pt

RO HEIDENHAIN Repezenta Romania

Braşov, 500338, Romania

www.heidenhain.ro

RS Serbia BG

RU OOO HEIDENHAIN

125315 Moscow, Russia

www.heidenhain.ru

SE HEIDENHAIN Scandinavia AB

12739 Skärholmen, Sweden

www.heidenhain.se

SG HEIDENHAIN PACIFIC PTE LTD.

Singapore 408593

www.heidenhain.com.sg

SK KOPRETINATN s.r.o.

91101 Trencin, Slovakia

www.kopretina.sk

Bangkok 10250, Thailand

www.heidenhain.co.th

TR T&M Muhendislik San. ve Tic. LTD. STI.

34728 Umraniye-Istanbul, Turkey

www.heidenhain.com.tr

TW HEIDENHAIN Co., Ltd.

Taichung 40768, Taiwan R.O.C.

Midrand 1685, South Africa

www.heidenhain.co.za
