TS-IGL-R5 RACKMOUNT - Computer Server BUFFALO - Free user manual and instructions

Product Type	Rackmountable iSCSI server (Rackmount)
Brand	Buffalo
Model	TS-IGL-R5 RACKMOUNT
Category	Computer server
Dimensions (W x H x D)	430 x 86 x 350 mm
Weight	9.8 kg
Power supply	100-240 V AC, 50-60 Hz
Power consumption	17-56 W (depending on size)
Network interface	1 Gigabit Ethernet port (RJ-45)
Network standards	IEEE 802.3u (100BASE-TX), IEEE 802.3 (10BASE-T), 1000BASE-T
USB ports	2 USB 2.0 ports (Type A)
Operating temperature	0 to 45 °C
Operating humidity	20 to 80% (non-condensing)
Package contents	Unit, Ethernet cable, power cable, installation CD-ROM, quick installation guide, warranty card
Main functions	iSCSI server, network storage (NAS), centralized backup, file sharing
iSCSI support	Yes, built-in iSCSI initiator connection
Emission class	Class B (residential use, possible radio interference)
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use solvents or liquids. Disconnect before cleaning.
Safety	Do not expose to moisture or heat sources. Use in a ventilated environment. Follow voltage instructions.
Spare parts and repairability	Contact Buffalo support for compatible parts. Repair by a professional recommended.
General information	Multi-language manual downloadable from the Buffalo website. Technical support in multiple languages (English, German, French, Italian, Spanish). Email: [e-mail]

Frequently Asked Questions - TS-IGL-R5 RACKMOUNT BUFFALO

How to install the Buffalo TS-IGL-R5 server?

Insert the TeraNavigator CD into your computer. The setup starts automatically. If not, run TSnavi.exe (Start > Run, type d:\TSnavi.exe). Click 'Begin Installation'. Follow the wizard to physically connect the TeraStation and install the software. After installation, the iSCSI tool guides you to register the disk and create a volume.

How to configure the iSCSI connection under Windows?

After installing the iSCSI connection tool (via the CD), launch it and click 'Register the iSCSI Hard Disk'. Check 'Resume connection at start up' then click 'Connect'. Then open Disk Management, initialize the disk and create a volume using the wizard.

What to do if the server is not detected by TeraNavigator?

Check that the TeraStation is properly connected to the network and powered on. Make sure your computer is on the same subnet. Try restarting the TeraStation. If the problem persists, consult the troubleshooting guide or contact Buffalo support.

How to add a new volume on the server?

In Disk Management (accessible via 'Launch Disk Management'), the TeraStation appears as a disk. Double-click on the black bar above. The 'New Volume' wizard guides you: choose the volume type, add dynamic disks, select the drive letter and format, then finalize.

How to reset the administrator password?

The manual does not detail the reset. Generally, use the Reset button on the back of the unit (hold for 5-10 seconds) to restore factory settings. Refer to the full manual for more details.

What type of hard drives are compatible with the TS-IGL-R5?

The manual does not specify compatible drives. Buffalo recommends using Buffalo series hard drives or standard 3.5-inch SATA/SAS drives. Check compatibility on the official website.

How to access the server remotely?

The server is accessible via the local network using the iSCSI protocol. For remote access, you need to set up a VPN or use file sharing solutions. The manual does not cover remote configuration.

How to update the firmware?

The manual does not provide a procedure. Generally, log in to the server's web interface (via TeraNavigator) and look for updates in the system settings. Download the firmware from the Buffalo website and follow the instructions.

What to do in case of a power outage?

Make sure the TeraStation is plugged into a surge-protected outlet. If a power outage occurs, the device protects itself automatically. On restart, check the integrity of the volumes via the management tool.

How to back up server data?

You can use the built-in backup function (if available) or copy files over the network. For regular backups, configure a backup software compatible with iSCSI volumes.

USER MANUAL TS-IGL-R5 RACKMOUNT BUFFALO

Thank you for purchasing a Buffalo iSCSI Rackmount TeraStation Pro.

Package contents include:

iSCSI Rackmount TeraStation Pro
- Ethernet Cable
- Power Cable
- TeraStation Installation CD
- Quick Setup Guide
Warranty Statement

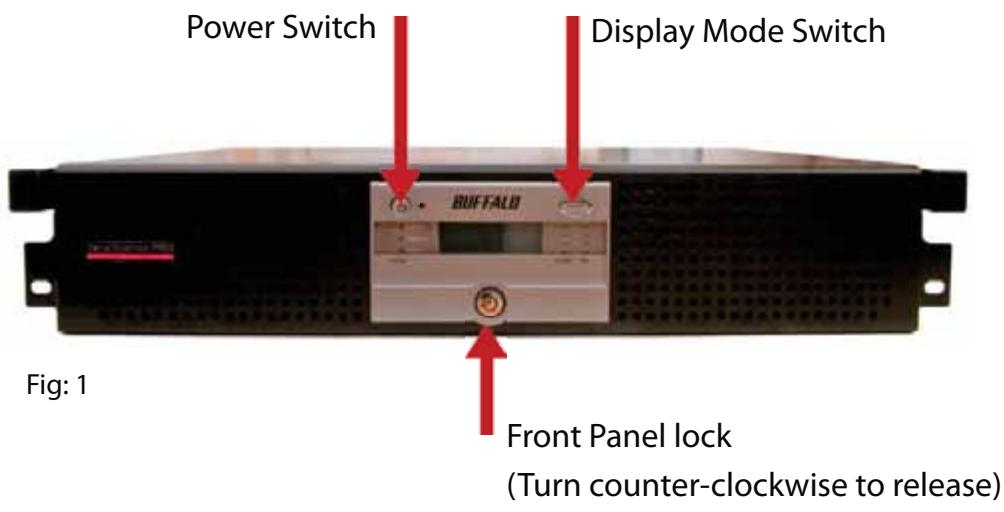

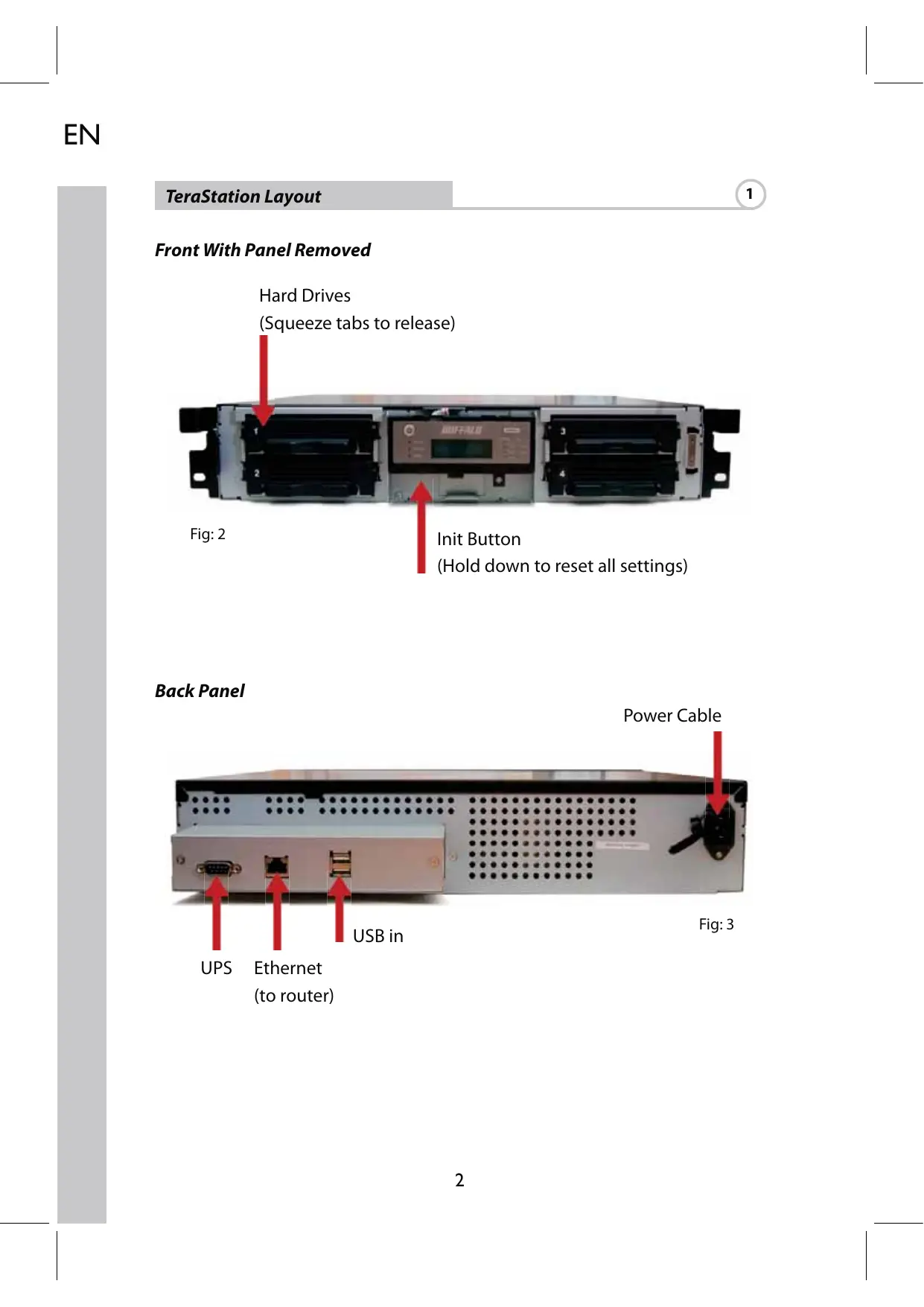

TeraStation Layout

1

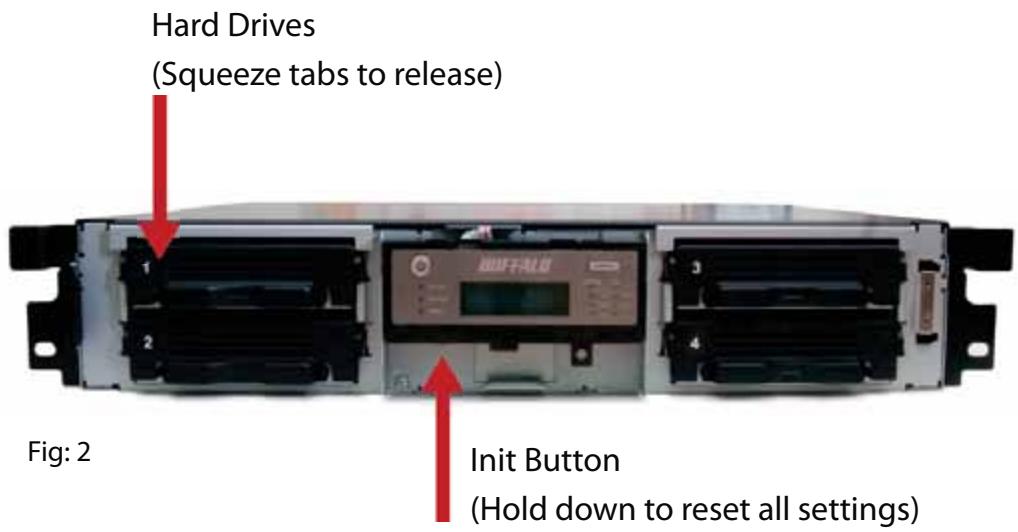

Front With Panel Removed

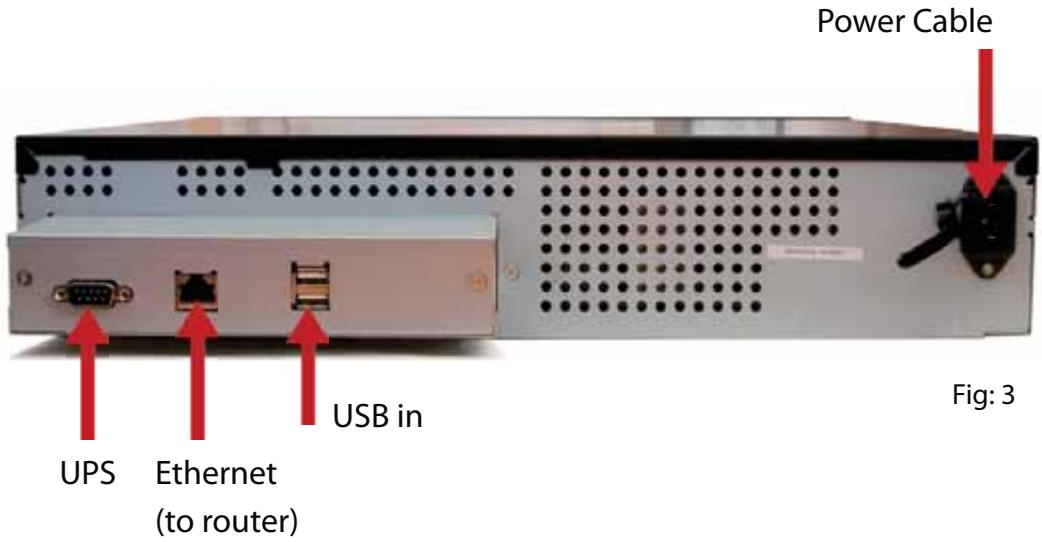

Back Panel

Insert the TeraNavigator CD into your computer's CD-ROM drive.

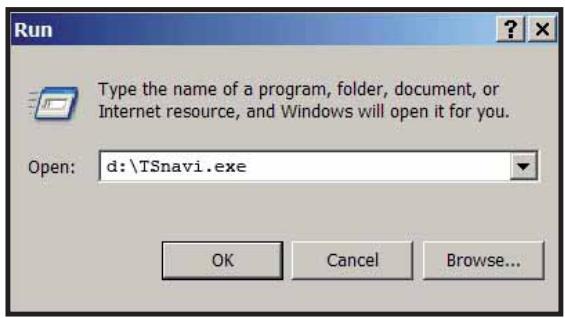

On a PC, setup should launch automatically. If it does not, manually launch TSnavi.exe by pressing Start and selecting the Run... option. When the Run dialog opens, type d:\TSnavi.exe (where d is the drive letter of your CD-ROM drive). Press OK to continue. (Fig: 4)

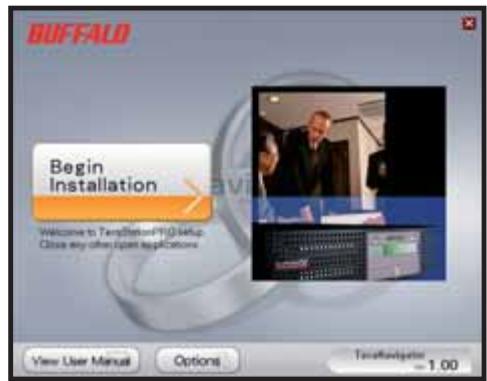

Then press the Begin Installation button to start. (Fig: 5)

Fig: 4

Fig: 5

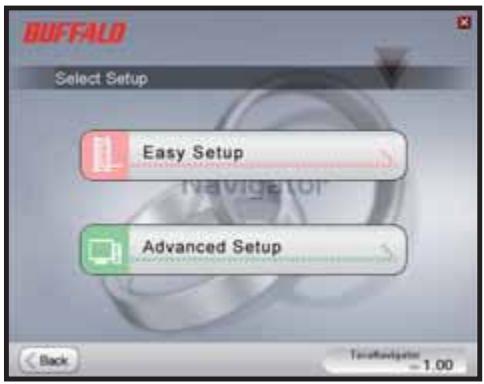

Easy Setup will step you through physically connecting your TeraStation. It will then install software.

Advanced Setup skips the connection tutorial and goes directly to installing software. (Fig: 6)

Fig: 6

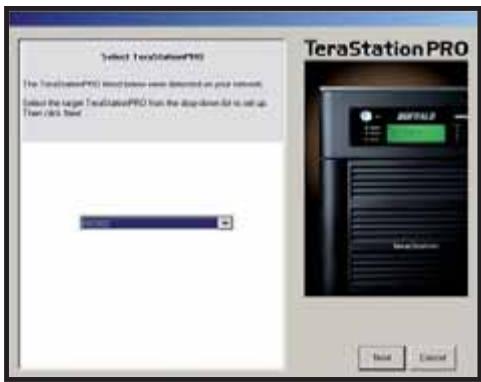

If your TeraStation is connected correctly, it will be highlighted in the dropdown list. If you have multiple units to set up, select the correct TeraStation from the list. (Fig: 7)

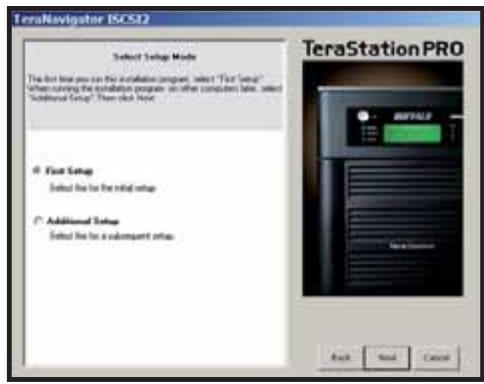

Select First Setup for the initial installation.

To install the software on additional computers, chose Additional Setup. (Fig: 8)

Fig: 7

Fig: 8

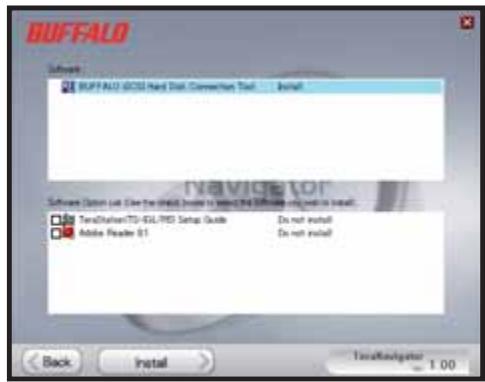

Once the TeraStation is installed, you'll need to install the iSCSI connection tool. Click Next, and step through the wizard until the iSCSI connection tool is installed. (Fig: 9)

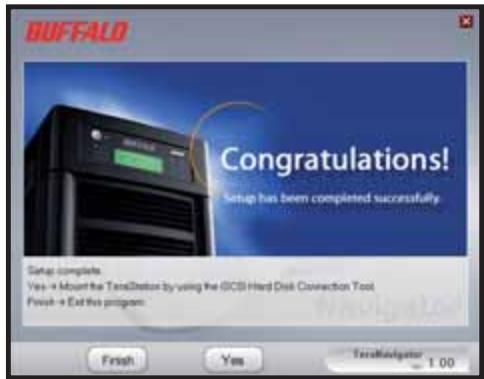

Click Yes to launch the iSCSI connection tool. (Fig: 10)

Fig: 9

Fig:10

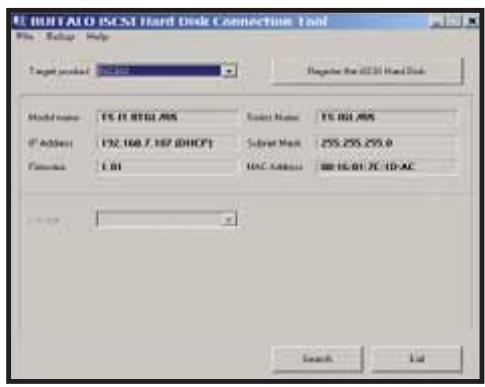

Click Register the iSCSI Hard Disk, and then OK. (Fig: 11)

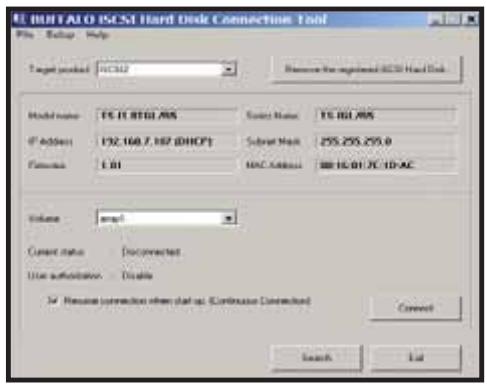

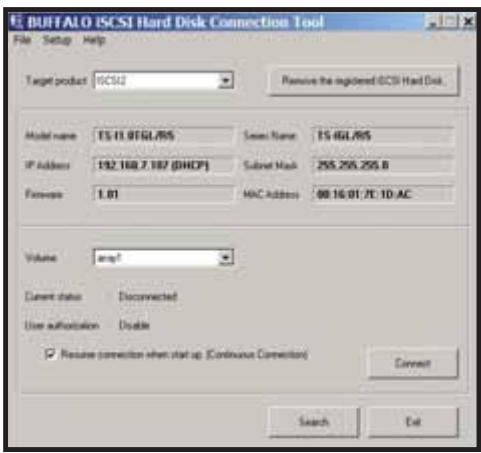

Check Resume connection at start up and then click Connect.(Fig: 12)

Fig: 11

Fig: 12

If Disk Management does not open automatically, you may launch it manually. From the Setup menu at the top of the window, choose Launch Disk Management. (Fig: 13)

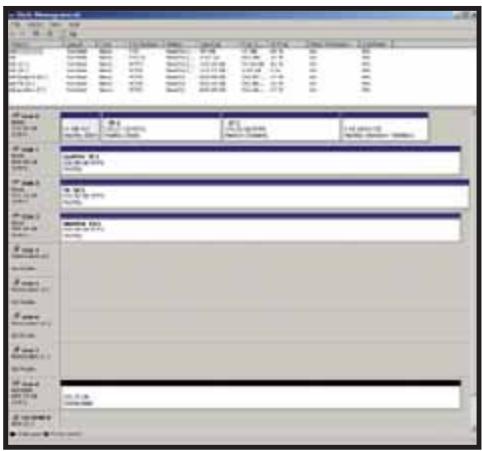

Your iSCSI TeraStation now appears as a hard drive in Disk Management. Double-click on the black bar above it. (Fig: 14)

Fig: 13

Fig: 14

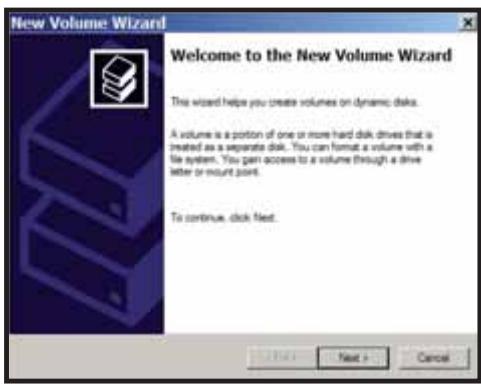

The New Volume Wizard will open. Click Next. (Fig: 15)

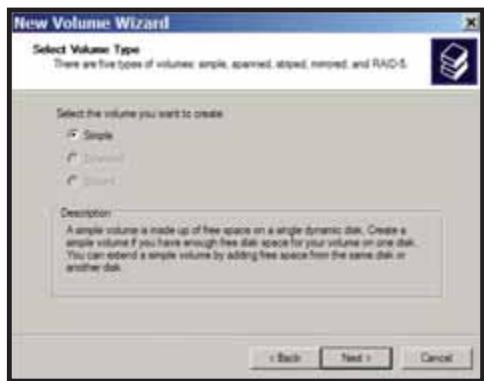

Choose your desired volume type. Click Next. (Fig: 16)

Fig: 15

Fig:16

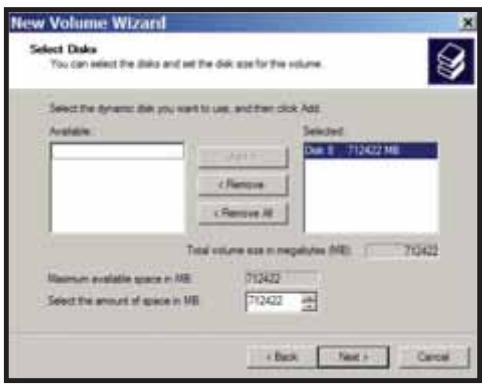

Add all dynamic disks that will be included in the volume to the Selected column. (Fig: 17)

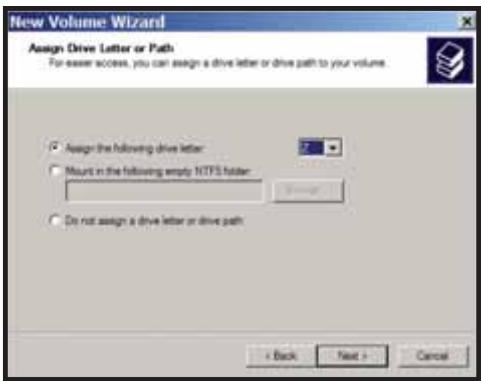

Choose your desired drive letter. Click Next. (Fig: 18)

Fig: 17

Fig: 18

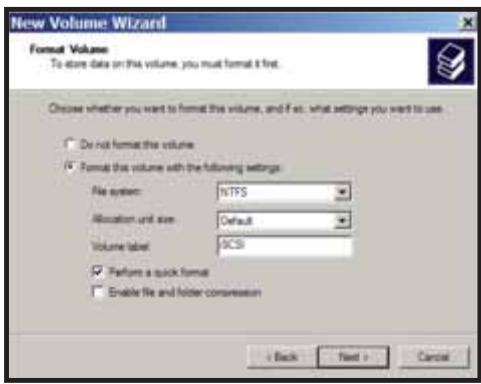

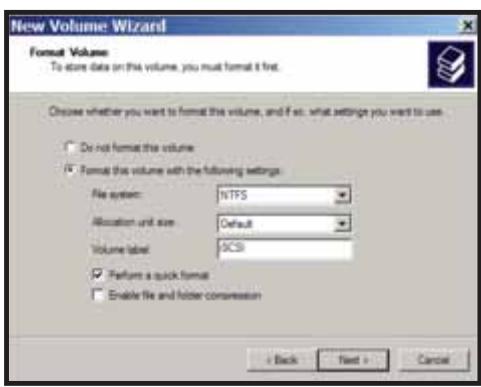

Choose your desired format and volume label. Click Next. (Fig: 19)

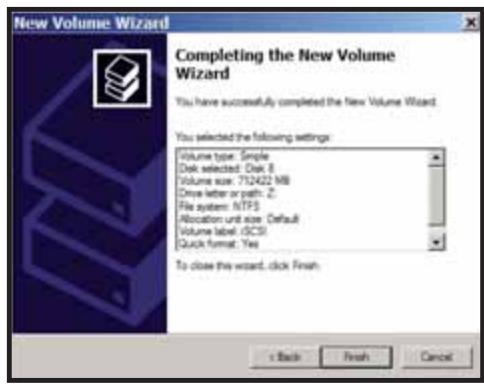

Your new volume is installed and ready to use. (Fig: 20)

Fig: 19

Fig:20

EN

Technical Specifications

LAN Standards:	IEEE 802.3u 100BASE-TX; IEEE 802.3 10BASE-T
Transmission:	1000/100Mbps/10 Mbps, 1000BASE-T: 8B1Q4, X 4B/5B, MLT-3; 10BASE-T Manchester Coding
Access Media:	CSMA/CD
Media Interface:	RJ-45
USB Standard:	USB 2.0Hi-Speed (HS)Full-Speed (FS)Low-Speed (LS)
USB Connector:	USB A Connector (2)
Data Transmission Speed:	Max: 480 Mbps (HS Mode)Max: 12 Mbps (FS Mode)
Electric Current:	100-240V A/C
Power Consumption:	~17-56W (Varies with size)
Dimensions:	430 x 86 x 350 mm
Weight:	9.8 Kg (Weight varies with size)
Operating Temperature:	0-45°C; 20-80% non-condensing

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Environmental Information

• The equipment that you have purchased has required the extraction and use of natural resources for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.

• If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration.

Contact Details

Address:

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

United Kingdom

General Inquiries:

Email

[e-mail]

Technical Support:

Buffalo Technology provide technical support in English, German, French, Italian and Spanish.

For opening hours and relevant telephone numbers, please go to:

http://www.buffalo-technology.com/contact

EN

Buffalo iSCSI Rackmount TeraStation Pro (TS-RIGL/R5)

Lieferumfang

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG127BW

Großbritannien

Allgemeine Fragen:

E-Mail

[e-mail]

Specifications techniques

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

Royaume-Uni

Assistance technique :

A Anything's done, it's been done.
A thing's done, it's been done.

Fig. 19

Fig. 20

Specifiche tecniche

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

Regno Unito

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

Reino Unido

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG127BW

United Kingdom

Consultas Gerais:

Correio electrónico

[e-mail]

Suporte Técnico:

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

Verenigd Koninkrijk

Buffalo Technology UK Ltd

2 Bracknell Beeches

Old Bracknell Lane

Bracknell

Berkshire

RG12 7BW

Storbritannien

Allmännarfagor:

E-post

[e-mail]

Teknisk support:

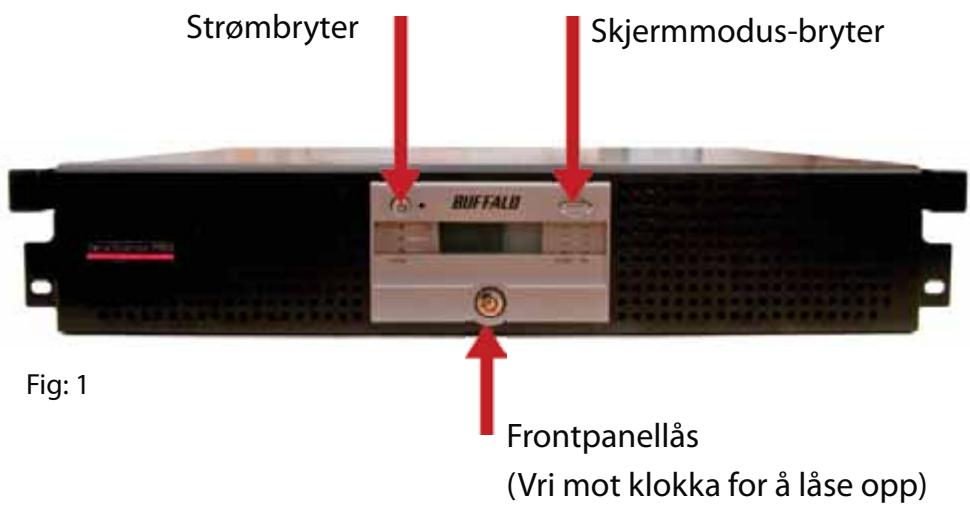

Oversikt over TeraStation
