You have chosen a DEWALT power tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DC980	DC981	DC984	DC987	DC988
Voltage	V	12	12	14.4	18	18
No load speed
1st gear	min-1	0-450	0-450	0-450	0-450	0-450
2nd gear	min-1	0-1,400	0-1,400	0-1,400	0-1,450	0-1,450
3rd gear	min-1	0-1,800	0-1,800	0-1,800	0-2,000	0-2,000
Impact
1st gear	min-1	-	0-7,650	0-7,650	-	0-7,650
2nd gear	min-1	-	0-23,800	0-23,800	-	0-24,650
3rd gear	min-1	-	0-30,600	0-30,600	-	0-34,000
Max. torque	Nm	45	45	47	52	52
Chuck capacity	mm	13	13	13	13	13
Maximum drilling capacity in steel/wood/masonry	mm	13/38/-	13/38/10	13/45/14	13/50/-	13/50/16
Weight (without battery pack)	kg	1.6	1.7	1.7	1.6	1.7

Battery pack	DE9075	DE9092	DE9096	DE9501	DE9502	DE9503
Battery type	NiCd	NiCd	NiCd	NiMH	NiMH	NiMH
Voltage	VDC	12	14.4	18	12	14.4
Capacity	Ah	2.4	2.4	2.4	2.6	2.6
Weight	kg	0.65	0.7	0.97	0.68	0.7

Battery pack	DE9071	DE9091	DE9095	DE9140	DE9180
Battery type	NiCd	NiCd	NiCd	Li-Ion	Li-Ion
Voltage	V 12	14.4	18	14.4	18
Capacity	Ah 2.0	2.0	2.0	2.0	2.0
Weight	kg 0.65	0.70	0.97	0.58	0.68

Charger		DE9116	DE9135
Battery type		NiCd/NiMH	NiCd/NiMH/Li-Ion
Mains voltage	\(V_{AC}\)	230	230
Approx. charging time	min	40 (2,0 Ah battery packs)	40 (2,0 Ah battery packs)
Weight	kg	0.4	0.52

ENGLISH

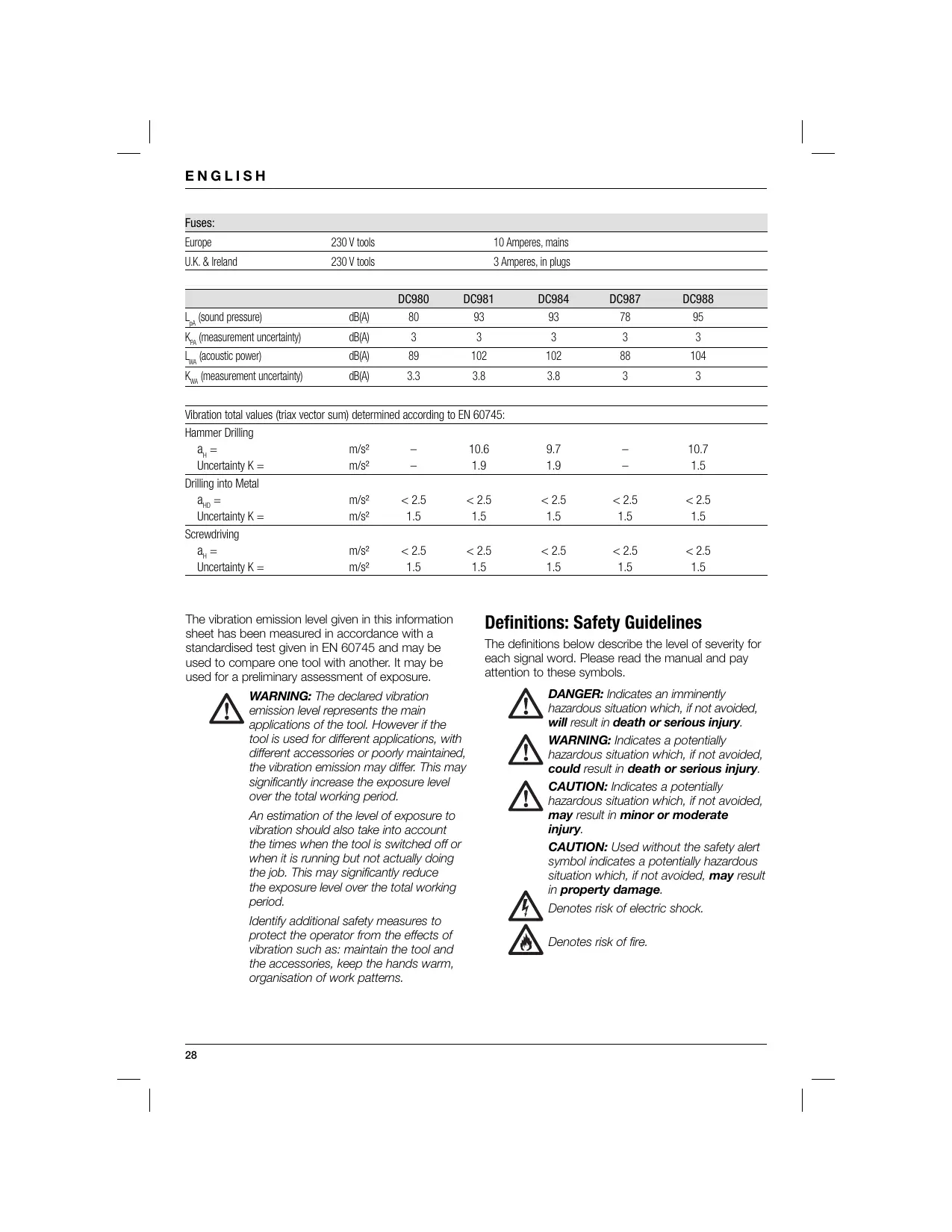

Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	3 Amperes, in plugs

		DC980	DC981	DC984	DC987	DC988
LpA (sound pressure)	dB(A)	80	93	93	78	95
KpA (measurement uncertainty)	dB(A)	3	3	3	3	3
LwA (acoustic power)	dB(A)	89	102	102	88	104
KwA (measurement uncertainty)	dB(A)	3.3	3.8	3.8	3	3

Vibration total values (triax vector sum) determined according to EN 60745:
Hammer Drilling
aH=	m/s2	-	10.6	9.7	-	10.7
Uncertainty K =	m/s2	-	1.9	1.9	-	1.5
Drilling into Metal
aHD=	m/s2	< 2.5	< 2.5	< 2.5	< 2.5	< 2.5
Uncertainty K =	m/s2	1.5	1.5	1.5	1.5	1.5
Screwdriving
aH=	m/s2	< 2.5	< 2.5	< 2.5	< 2.5	< 2.5
Uncertainty K =	m/s2	1.5	1.5	1.5	1.5	1.5

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

EC-Declaration of Conformity C

DC980/DC981/DC984/DC987/DC988

DeWALT declares that these products described under "technical data" have been designed in compliance with:

98/37/EEC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009), 2004/108/EC, 2006/95/EC, EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-1, EN 60745-2-2.

For more information, please contact DEWALT at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

Horst Grossmann
Vice President Engineering and Product Development
DEWALT, Richard-Klinger-Straße 11,
D-65510, Idstein, Germany
12.03.2008

WARNING: To reduce the risk of injury, read the instruction manual.

General Power Tool SafetyWarnings

WARNING! Read all safety warnings and instructions Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables

ENGLISH

better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is

suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Safety Instructions for Drills

• Wear ear protectors. Exposure to noise can cause hearing loss.
• Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.

Markings on Tool

Read instruction manual before use.

DATE CODE POSITION

Date Code, which also includes the year of manufacture, is printed into the housing surface that forms the mounting joint between tool and battery!

Example:

2009 XX XX

Year of Manufacture

Residual Risks

The following risks are inherent to the use of rotary hammers:

• injuries caused by touching the rotating parts or hot parts of the tool

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
- Risk of squeezing fingers when changing the accessory.
- Health hazards caused by breathing dust developed when working in concrete and/or masonry.

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for the DE9116/DE9135 battery chargers.

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

DANGER: Electrocution hazard. 230 volts are present at charging terminals. Do not probe with conductive objects. Electric shock or electrocution may result.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Electric shock may result.

CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable batteries. Other types of batteries may burst causing personal injury and damage.

CAUTION: Under certain conditions, with the charger plugged in to the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

DO NOT attempt to charge the battery pack with any chargers other than the ones in

this manual. The charger and battery pack are specifically designed to work together.

• These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
• Do not expose charger to rain or snow.
  Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate charger with damaged cord or plug - have them replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
• NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

SAVE THESE INSTRUCTIONS

Chargers

Your DE9116 charger accepts DEWALT NiCd and NiMH battery packs ranging from 7.2 V to 18 V.

The DE9135 charger accepts 7.2 - 18 V NiCd, NiMH or Li-ion batteries.

These chargers require no adjustment and are designed to be as easy as possible to operate.

Charging Procedure

DANGER: Electrocution hazard.
230 volts present at charging terminals.
Do not probe with conductive objects.
Danger of electric shock or electrocution.

1. Plug the charger (12) into an appropriate outlet before inserting battery pack.
2. Insert the battery pack into the charger. The red (charging) light will blink continuously indicating that the charging process has started.
3. The completion of charge will be indicated by the red light remaining ON continuously. The pack is fully charged and may be used at this time or left in the charger.

Charging Process

Refer the table below for the state of charge of the battery pack.

State of charge
charging	- - - - - -
fully charged	- - - - - -
hot/cold pack delay	- - - - - -
replace battery pack	·········································································································································································································
problem	····································································································································································································. -

Automatic Refresh

The automatic refresh mode will equalise or balance the individual cells in the battery pack at its peak capacity. Battery packs should be refreshed weekly or whenever the pack no longer delivers the same amount of work.

To refresh your battery pack, place the battery in the charger as usual. Leave the battery pack for at least 8 hours in the charger.

Hot/Cold Pack Delay

When the charger detects a battery that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery life.

DEEP DISCHARGE PROTECTION

The battery pack is protected against deep discharging when it is used in the tool.

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include catalog number and voltage. Consult the chart at the end of this manual for compatibility of chargers and battery packs.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
• Charge the battery packs only in DEWALT chargers.
  DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ ( 105^ ) (such as outside sheds or metal buildings in summer).

DANGER:Electrocution hazard.Never attempt to open the battery pack for any reason.If battery pack case is cracked or damaged,do not insert into charger. Electric shock or electrocution may result.Damaged battery packs should be returned to service center for recycling.

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to service center for recycling.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

SPECIFIC SAFETY INSTRUCTIONS FOR NICKEL CADMIUM (NiCd) OR NICKEL METAL HYDRIDE (NIMH)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire.
• A small leakage of liquid from the battery pack cells may occur under extreme usage or temperature conditions. This does not indicate a failure.

However, if the outer seal is broken:

a. and the battery liquid gets on your skin, immediately wash with soap and water for several minutes.
b. and the battery liquid gets into your eyes, flush them with clean water for a minimum of 10 minutes and seek immediate medical attention. (Medical note: The liquid is 25 - 35% solution of potassium hydroxide.)

SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION (LI ION)

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium ion battery packs are burned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

Battery Cap (fig. B)

A protective battery cap is supplied to cover the contacts of a detached battery pack. Without the protective cap in place, loose metal objects could short circuit the contacts, causing a fire hazard and damaging the battery pack.

1. Take off the protective battery cap before placing the battery pack in the charger or tool.
2. Place the protective cap over the contacts immediately after removing the battery pack from the charger or tool.

WARNING: Make sure the protective battery cap is in place before storing or carrying a detached battery pack.

Battery Pack (fig. A)

BATTERY TYPE

The DC987 and DC988 operate on 18 volt battery packs.
The DC984 operates on 14.4 volt battery packs.
The DC980 and DC981 operate on 12 volt battery packs.

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
2. Long storage will not harm the battery pack or charger. Under proper conditions, they can be stored for 5 years or more.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

Read instruction manual before use.

Battery charging

Battery charged

Battery defective

Hot\cold pack delay

Do not probe with conductive objects.

Do not charge damaged battery packs

Use only with DEWALT battery packs, others may burst, causing personal injury and damage.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4^ and 40^ .

Discard the battery pack with due care for the environment.

Do not incinerate the battery pack NiMH, NiCd+ and Li- ion.

NiMH Charges NiMH and NiCd NiCd battery packs.

Li Ion Charges Li-ion battery packs.

See technical data for charging time.

Package contents

The package contains:

1 Cordless midhandle driver/(percussion) drill
1 Charger
1 Battery pack (K and A1, B1, L1 models)
2 Battery packs (KA, KB, KL and K2 models)
1 Side handle (DC987KL/DC988KL)
1 Kitbox
1 Instruction manual
1 Exploded drawing
- Check for damage to the tool, parts or accessories which may have occurred during transport.
- Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

INTENDED USE

Your cordless driver/(percussion) drill has been designed for professional drilling and screwdriving applications.

DO NOT use under humid conditions or in presence of flammable liquids or gases.

These drills are professional power tools. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

1 Variable speed switch
2 Forward/reverse slider
3 Keyless chuck/auto spindle lock
4 Mode selector/torque adjustment collar
5 Collar settings
6 Three-gear selector
7 Bit holder

8 Grip
9 Side handle (DC987/DC988)
10 Battery pack
11 Release buttons
12 Charger
13 Charging indicator (red)

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 60335; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organization.

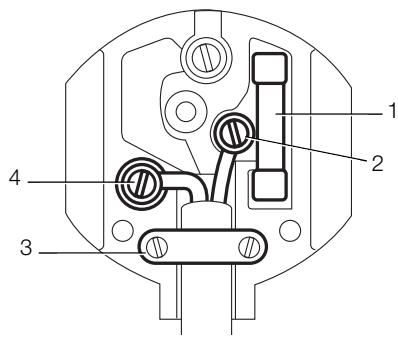

Mains Plug Replacement (U.K. & Ireland Only)

DANGER:

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminals crews.

WARNING: NEVER use a light socket.

NEVER connect the live (L) or neutral (N) wires to the earth pin marked E or 1一

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 1mm^2 ; the maximum length is 30m .

When using a cable reel, always unwind the cable completely.

Auto-spindle Lock

The auto-spindle lock is engaged when the transmission is stationary. The chuck sleeve can easily be turned with one hand while the other supports the unit.

Assembly and Adjustment

WARNING: Prior to assembly and adjustment, always remove the battery pack. Always switch off the tool before inserting or removing the battery pack.

WARNING: Use only DEWALT battery packs and chargers.

Inserting and Removing Bits (fig. A & C)

• Open the chuck by turning the sleeve (15) counterclockwise and insert the bit shank.
• Place the bit in the chuck as far as it will go and lift slightly before tightening.
• Tighten firmly by turning the sleeve clockwise.
• To remove the bit, proceed in reverse order.

Selecting the Operating Mode or Adjusting the Torque (fig. D)

The collar of this tool has a wide range of positions for the adjustment of the torque to suit the size of the screw and the workpiece material. For torque adjustment, refer to the section "Screwdriving".

• Select the drilling mode or torque by aligning the symbol or number on the collar (5) with the indicator (16) on the housing.

DC981/DC984/DC988

The percussion drills can be used in the following operating modes:

Rotary drilling: for steel, wood and plastics

Percussion drilling: for masonry

Forward/reverse Slider (fig. E)

• To select forward or reverse rotation, use the forward/reverse slider (2) as shown (see arrows on tool).

WARNING: Always wait until the motor has come to a complete standstill before changing the direction of rotation.

Three-gear Selector (fig. F)

Your tool is fitted with a three-gear selector (6) to vary the speed/torque ratio.

1 low speed/high torque
2 medium speed/medium torque
3 high speed/low torque

For speed rates, refer to the technical data.

WARNING: Do not change gears at full speed or during use.

Instructions for Use

WARNING:

• Always observe the safety instructions and applicable regulations.
• Be aware of the location of pipework and wiring.
• Apply only a gentle pressure to the tool.

ENGLISH

Switching On and Off (fig. A & E)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• To stop the tool, release the switch.
• To lock the tool in the off position, move the forward/reverse slider (2) to the central position.

Screwdriving (fig. A)

• Select forward or reverse rotation using the slider (2).
• Set the collar (4) to position 1 and begin screwdriving (low torque).
• If the clutch ratchets too soon, adjust the collar to increase the torque as required.

Drilling (fig. A)

• Select the drilling mode using the collar (4).
• Select forward rotation.

Drilling in Metal

• Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry.

Drilling in Wood

• Use the appropriate type of drill bit.

Consult your dealer for further information on the appropriate accessories.

MAINTENANCE

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• The charger is not serviceable. There are no serviceable parts inside the charger.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the nonmetallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

CHARGER CLEANING INSTRUCTIONS

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Rechargeable Battery Pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• Li-Ion, NiCd and NiMH cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

GUARANTEE

30 DAY NO RISK

SATISFACTION GUARANTEE

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

- ONE YEAR FULL WARRANTY

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

The product has not been misused.
- Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DeWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

ESPANOL

TALADRO ATORNILLADOR/PERCUTOR SIN CABLE DC980/DC981/DC984/DC987/ DC988

Enhorabuena!

Charges NiMH and NiCd battery packs.

Li Ion

Charge les blocs-piles Li-Ion.

L'emballage contient:

Bloc-piles rechargeable

30 JOURS D'ENGAGEMENT SATISFACTION GARANTIE

Stadium van opladen
bezig met opladen	- - - - - -
volledig opgeladen	- - - - - -
hete/koude accuvertraging	- - - - - -
accuset verrangen	·········································································································································································································
probleem	····································································································································································································. -

1) SIKKERHET PÅ ARBEIDSPLASSEN

Vice President Engineering and Product Development
DEWALT, Richard-Klinger-Strase 11,
D-65510, Idstein, Saksa

12.03.2008

Şarj durumu
şarj oluyor	-- -- -- --
tamamen Şarj oldu	——
sıçak/soguk pilGPCikmesi	-- -- --
pil takimi degiştirin	·········································································································································································································
sorum	····································································································································································································. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * /

Otomatik yenileme

NIKEL KADMIYUM (NiCd) VEYA NIKEL METAL HIDRIT (NiMH) IÇIN ÖZEL GÜVENLIK TALIMATLARI

Suya maruz brakmayin.

Hasarli kabolari derhal yenisyle degistirin.

Sadece 4^ ve 40^ arasinda sarj edin.

Pil takimini cevreye gerekli ozeni gostererek imha edin.

NiMH, NiCd+ ve Li-Iyon pil takimini atse atmayin.

NIMH Sarj cihazi, NiMH ve NiCd pil NiCd takimlarimi sarj eder.

Li Ion Sarj cihazi, Li-Iyon pil takimlarim sarj eder.

Sarj suresi icin teknik veriler bolumune bakin.

Ambalajin icindekiler

Ambalajin iciaagidakiler vardir:

1 Sarjli (darbeli) matkap/tornavida takimi
1 Sarj adaptor
1 Pil takimi (K ve A1, B1, L1 modelleri
2 Pil takımlan (KA, KB, KL ve K2 modelleri)
1 Yan tutamak (DC987KL/DC988KL)
1Kutu
1 Kullamm klavuzu
1 Aclimc izim

Ogiouoi: Odyiεs αoαλεια

Oi qaxatow oiooipieqyagovv to
eianedeoojagotntas yia xae IeIeN evdeIeNs.
Piagaxalovue diaaboTe oeyxigidio xai
nooee Te au ta ouipoia.

KINAYNOs: KaogicEimu a EaeieuevN eivovn xatao n oioia, ev devoeVxO a oynoei o Oavato o

IIPOEIAOIOIHsH:Ka0o0iεImu aevδeouéwosεπxivdvynxatασaon η oioia, εav δev aioΦeVxθei, 0a μoogovoe va odnyoεI σ θavato n oβαoταvμaúo.

1 Xaunn tauxntTa/Yynn porm otpeync
2 Méon taxa/Ta/Méon poinσρεηns
3 YnIy taYUtnTa/xaun ypn oipn OtpEys

Tα Tov npoobioipoiou twv tauxnttwv ouβouaevteite Ta texvika δeδouéva.

IIPOELIIOIH: Nov aalacetaxutmaotav to dpantavo aeitoupyei otmyiotaxuteta nepiotpnpnckotav eTLEe npy.

Odyiecxnoews

IIPOEIAOIOIHsH:

TnpieTe navToTe Tc odnyieac aopalaiac KaToucIOXuovTeKavovioouc.
ΦovTiOTe va ενημερωθεITE οετικα με η θεοη σλλήνων και καλωδιων.
Mny aokite nieon oTo epyalzio.
