c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts.

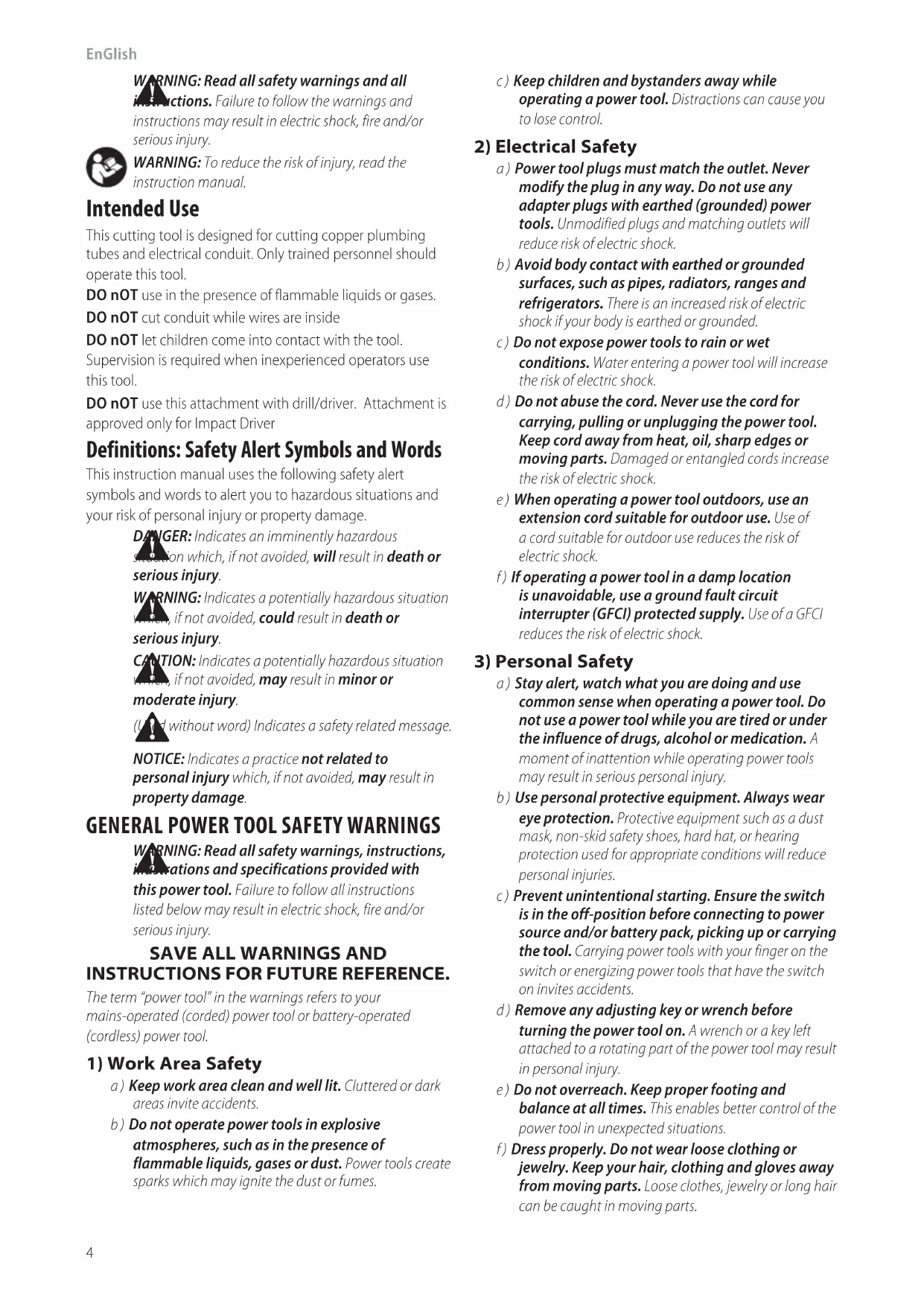

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool” in the warnings refers to your mains‑operated (corded) power tool or battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This cutting tool is designed for cutting copper plumbing tubes and electrical conduit. Only trained personnel should operate this tool. DO nOT use in the presence of flammable liquids or gases. DO nOT cut conduit while wires are inside DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool. DO nOT use this attachment with drill/driver. Attachment is approved only for Impact Driver English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

instructionmanual.5 English Additional Safety Rules for Copper Cutter Attachment

WARNING: Read and understand these instructions

for the attached power tool. Before use, ensure the attachment is properly attached to the tool.

WARNING: Use the copper cutter attachment only

with DEWALT or DEWALT‑approved accessories. Other uses or modifying the attachment for other applications may damage the attachment, damage the accessories and/or can result in a faulty installation. Faulty installations can result in catastrophic failures, injury to installers and damage to property. ‑ DWACPR12 – ½” Copper Cutter ‑ DWACPR34 – ¾” Copper Cutter ‑ DWACPR10 – 1” Copper Cutter

WARNING: When using this DEWALT cutting

attachment for cutting copper for fittings, the preparation of the cut should follow recommendations from the fitting manufacturer for proper installation procedures. Proper preparation and installation is the responsibility of the installing contractor. a. Keep all body parts away from the attachments during operation and any time the power is ON. A moment of inattention while operating power tools may result in serious personal injury. Fingers or hands can keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust‑relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,ENGLISH

Install and Remove Cutter (Fig.H)

CAUTION: The cutter will fall if thelock lever is moved while the jaw is aimeddownward. To remove

1. Remove battery from Impact Driver. Do not reinstall

battery until AFTER the Brace Bracket is installed.

until the Brace Bracket

can open wide enough to slip the Impact Driver through (as shown in Fig. B).

3. Slide the Impact Driver into the Brace Bracket from the top

(as shown in Fig. C).

4. Place the Impact Driver and Brace Bracket on a FLAT surface.

5. Compress the front end together until the Brace Bracket

is snug around the Impact Driver foot, then tighten the back knob. Both sides should remain parallel during tightening (as shown in Fig. D). Attach the Brace Arm and Impact Connect Attachment (Fig. E - G)

one turn and insert the attachment shank

into the impact driver chuck

(as shown in Fig. E).

2. Rotate the arm joint

clicks into the bar channel

. There will be an audible clicking as you rotate. The yellow slide lock

should secure the bar in place (as shown in Fig. F).

3. Ensure the shank is parallel to the ground and finger

tighten all knobs (as shown in Fig. G).

4. Reinstall battery AFTER installation and prior to use.

ASSEMBLY AND ADJUSTMENTS

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury.

WARNING: Never modify this device or any part of

it. Damage or personal injury could result. ..................... wear hearing protection ..................... r ead all documentation

.......................no load speed n .........................rated speed PSI....................... pounds per square inch ......................earthing terminal .....................safety alert symbol ..................... visible radiation do not stare into the light ..................... wear respiratory protection ..................... wear eye protection Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. be crushed, fractured or amputated if they become caught in the attachments. b. Inspect tool and attachments before use for any loose or missing parts. Never attempt to repair or use a damaged copper cutter, brace or other attachment. Replace with a new cutter or brace. c. Before operating, inspect job site for hazards including chemicals or waste that could remain in pipes. d. Before operating, read and understand all safety and operating instructions including the fitting manufacturer’s installation instructions and the instructions for any other equipment used with this tool. Failure to follow all instructions and warnings may result in property damage and/or serious personal injury. e. Keep the cutting area of the attachment free from hands and other objects while the tool is in use. Fingers could be crushed. f. For best results, always clamp or anchor the material to be cut. g. Cutting operations may cause material pieces to fly. Flying particles can cause permanent eye damage. ALWAYS wear eye protection. h. Always wear gloves when operating tool and handling materials. The ends of the materials can be sharp and cause serious personal injury. Do not hold end of tubing. Cutter will rotate tubing when trigger is pulled creating a laceration hazard.

i. To reduce the risk of explosion, electric shock and

property damage, never cut gas lines, electrical lines, or full water lines. Shut off water and drain lines before making a cut.7 ENGLISH Register Online Thank you for your purchase. Register your product nowfor:

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.dewalt.com. Repairs The cutter, charger, and batteries are notserviceable. There are no serviceable parts inside the cutter, charger, or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a DeWALT factory service center or a DeWALT authorized service center. Always use identical replacementparts. Accessories

Since accessories, other than those offered by DeWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DeWALT recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DeWALT call 1-800-4-DeWALT (1-800-433-9258) or visit our website: www.dewalt.com Cleaning

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your DeWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Cutting Copper Tubing (Fig. J) This tool can cut 1/2", 3/4", and 1" copper tubing with the approved accessories.

1. Mark the cutting point on the tubing.

2. Secure tubing to prevent it from moving while cutting.

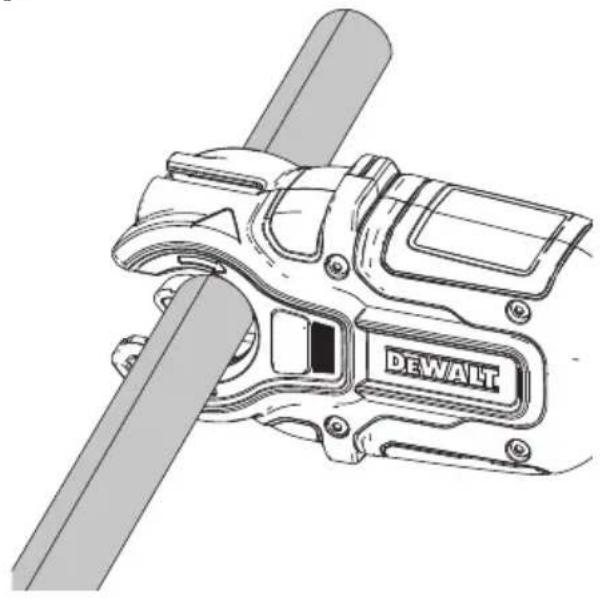

3. Insert the tubing into the cutter

between the cutter blade

4. Align the blade with mark.

5. Set the impact driver to forward (clockwise).

6. Depress the trigger of the impact driver.

7. After the tubing is fully cut, release the trigger .

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the main handle of the impact driver. Introduction The DWACPRIR Impact Connect Copper Tubing Cutter uses a compatible impact driver to rotate copper cutters around pipe. Copper Cutters can be driven by the attachment or used manually.

• Forward setting: Squeezing the trigger with the impact driver set to forward (clockwise) rotates the copper cutters clockwise.

WARNING: CRUSH HAZARD: Keep fingers away from

cutting area. Failer to do so can cause injury.

WARNING: Proper material preparation and installation is

the responsibility of the installing contractor.

WARNING: Do not cut short pieces of material that

requires hands to be within 6" from the blade. Blade is sharp.

CAUTION: Do not cut off pieces of tubing less than ½” long. Small pieces can be pulled into moving carriage and damage tool. OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury.

2. Pull the lock lever

away from the tool to loosen the cutter housing

out of the housing. To Install

1. Slide the new cutter into the housing, ensuring the cutter

fits properly in the housing

2. Push the house together and close the lock lever until it

clicks securely into place (as shown in Fig. H). NOTE: The gear teeth should be meshed and the door should not be forced close. If heavy resistance is experienced, please check for proper alignment and retry.FRAnçAis
