Product type	Chafing dish (food warmer)
Brand	Royal Catering
Model	RCCD-1/1-100-KS-E
Nominal voltage	230 V~
Frequency	50 Hz
Nominal power	900 W
Pan type	1 GN 1/1 pan, 100 mm deep, with GN 1/1 lid
Temperature range	30 to 90 °C
Thermostat setting	6 positions: 0 (off) to 5 (maximum heat)
Control light	Yes, it lights up during heating and switches off when the set temperature is reached
Intended use	Heating and keeping dishes warm
Main components	On/off button, indicator light, thermostat, GN container
Operating safety	Automatic heating cut-off as soon as the set temperature is reached
Minimum installation distance	10 cm between each side of the appliance and any obstacle
Installation surface	Flat, stable, clean, fireproof and dry
Cleaning and maintenance	Clean with a soft, slightly damp cloth after cooling; do not immerse
Moisture protection	Do not use in humid environments or near water
Disposal	Recycle via a collection point for electrical and electronic waste

Frequently Asked Questions - RCCD-1/1-100-KS-E Royal Catering

What is the power of this appliance?

The nominal power is 900 W with a voltage of 230 V~ and a frequency of 50 Hz.

Can this appliance cook food?

No, this appliance is designed to heat and keep dishes warm, not to cook or reheat cold or frozen products.

How do I set the temperature?

Turn the thermostat from position 0 (off) to 5 (maximum heat). The temperature increases gradually and the indicator light switches off when the set temperature is reached.

How do I use the appliance safely?

Read the manual, place the appliance on a flat, stable and fireproof surface, at least 10 cm away from walls, and never immerse it in water. Supervise the appliance during operation.

What should I do if the appliance does not heat up?

Check that the plug is properly connected, the thermostat is not set to 0 and the indicator light is on. If the problem persists, contact customer service.

How do I clean the chafing dish?

After complete cooling, unplug the appliance and clean the surfaces with a soft, slightly damp cloth. Never use metal objects and never immerse the appliance in water.

Does the appliance stop automatically?

The thermostat automatically cuts off heating when the set temperature is reached and restarts it when it drops. For a complete stop, set the thermostat back to 0 and unplug the appliance.

What is the capacity of the pan?

The container is a GN 1/1 pan of 100 mm depth, accompanied by a GN 1/1 lid.

Can I use the appliance outdoors?

Yes, provided the environment is dry. Avoid humidity, use a suitable extension cord and preferably install a residual current device (RCD).

What should I do if the cable is damaged?

Do not use the appliance. Have the cable replaced by a qualified electrician or the manufacturer's customer service.

USER MANUAL RCCD-1/1-100-KS-E Royal Catering

DE	Produktname	Speisewärmer
EN	Product name	Chafing dish
PL	Nazwa produktu	Naczynie do pieczenia
CZ	Název výrobku	Chafing Dish
FR	Nom du produit	Chafing Dish
IT	Nome del prodotto	Chafing Dish
ES	Nombre del producto	Chafing Dish
HU	Termék neve	Chafing edény
DA	Produktnavn	Chafing dish
FI	Tuotteen nimi	Sähkökäyttöinen lämpöhaude
NL	Productnaam	Chafing Dish
NO	Produktnavn	Varmefat
SE	Produktnamn	Chafing Dish
PT	Nome do produto	Rechaud elétrico
SK	Názov produktu	Elektrický chafing dish
BG	Име на продукта	Съд за топла храна
EL	Όνομα προϊόντος	Епітрапέζιο μπεν μαρί
HR	Naziv proizvoda	Posuda za trljanje
LT	Produkto pavadinimas	Kepimo indas
RO	Numele produsului	Chafing dish
SL	Ime izdelka	Odrgljiva posoda
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtéλo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCCD-1/1-65-KS-ERCCD-1/1-100-KS-ERCCD-1/1-100-ES-E
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Катаσκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

1. Technical data

Table 1: Technical data of the product

Parameter description	Parameter value
Product name	Chafing Dish
Model	RCCD-1/1-65-KS-E	RCCD-1/1-100-KS-E	RCCD-1/1-100-ES-E
Rated voltage [V~] / frequency [Hz]	230 V~ / 50 Hz
Rated power [W]	900 W	900 W	1600 W
GN Container	1 pcs 1/1 GN65 mmwith 1/1 GNCover	1 pcs 1/1 GN100 mmwith 1/1 GNCover	1 pcs. 1/1 GN100 mmwith 1/1 GNCover
Temperature range	30 – 90 °C

2. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up-to-date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

2.1. Legend

Icon	Description
CE	The product satisfies the relevant safety standards.
	Read instructions before use.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Hot surface, risk of burns!
	The product is intended to come into contact with food.

PLEASE NOTE! DRAWINGS IN THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY AND IN SOME DETAILS MAY DIFFER FROM THE ACTUAL PRODUCT.

3. Usage safety

ATTENTION! READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY OR EVEN DEATH.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Chafing Dish

3.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

e) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
f) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
g) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
h) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
i) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
j) Do not use in very humid environments or in the direct vicinity of water tanks.
k) Prevent the device from getting wet. Risk of electric shock!

3.2. Safety in the workplace

I) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
m) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
n) If you are unsure about whether the device is operating correctly or if you find damage, please contact the manufacturer's service centre.
o) Only the manufacturer's service centre may make repairs to the device. Do not attempt to make repairs yourself!
p) Use the device in a well-ventilated space.
q) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
r) Keep packaging elements and small assembly parts in a place not available to children.
s) Keep the device away from children and animals.
t) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

REMEMBER! WHEN USING THE DEVICE, PROTECT CHILDREN AND OTHER BYSTANDERS.

3.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
g) Do not put your hands or other items inside the device while it is in use!

3.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the “ON/OFF” switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the “ON/OFF” switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
d) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
e) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
f) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) Do not leave this appliance unattended while it is in use.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Make sure the hot air can circulate well and place the device more than 10cm away from walls and other electrical devices. Aerate well the working area.
n) Keep the device away from sources of fire and heat.
o) Do not place the device close to combustible materials.
p) Some parts of the device can get extremely hot. To avoid any injuries, be careful by every contact with the device.

ATTENTION! DESPITE THE SAFE DESIGN OF THE DEVICE AND ITS PROTECTIVE FEATURES, AND DESPITE THE USE OF ADDITIONAL ELEMENTS PROTECTING THE OPERATOR, THERE IS STILL A SLIGHT RISK OF ACCIDENT OR INJURY WHEN USING THE DEVICE. STAY ALERT AND USE COMMON SENSE WHEN USING THE DEVICE.

4. Use guidelines

This Chafing Dish is designed for heating and keeping dishes warm. This Chafing Dish is not designed to cook

dishes, soups or sauces, nor is it designed to re-warm cold or frozen products.

The user is liable for any damage resulting from unintended use of the device.

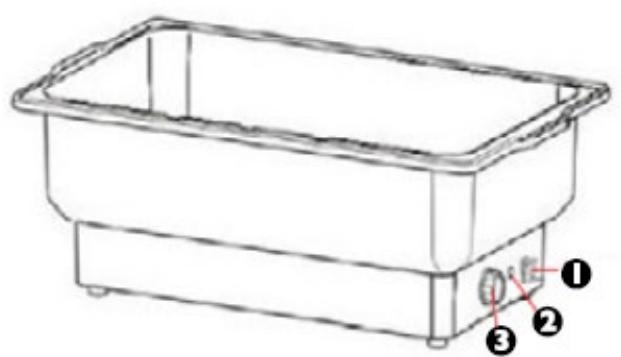

4.1. Assembling the device

The device is composed of:

1. main on / off switch
2. control light
3. thermostat
4. GN container for dishes

4.2. Preparing for use

4.2.1. Appliance location

The temperature of environment must not be higher than 40° C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

4.3. Device use

• Add water to the outer container before placing the inner container into the warmer. Never over-fill with water. Under no circumstances should the inner container float, even when empty. Remove any excess water immediately. Water level should be between “min” and “max” marked on the container.
• Put the plug into the power socket.
• Set the thermostat to "0" and turn on the device using main switch.
• Thermostat can be set within 0 and 5: 0 – thermostat is off; 5 – heating set to the max.
• Regulate the thermostat on the chosen value.

• The control light turns on, the device starts to heat and the temperature raises gradually.

• As soon as the set temperature is reached, the control light turns off and the device stops to heat.

• As soon as the temperature decreases, the thermostat reacts to it: the control light turns on again and the device restarts to heat.
  • After use, reset the thermostat on zero.
• Generally speaking, it is advisable to unplug the device while not used.
• When the device cooled down, clean it. This should be done after each use to keep the device in perfect hygienic condition. To clean the rest of the device, watch up to protect the electric parts from humidity and from direct water contact to avoid electric shocks and short-circuits. An impregnated cloth is easily enough if you regularly clean the device.
• If you don't use the device for a longer time or stock it, check the humidity and temperature conditions: The air has to be dry and the device should be covered to be protected from dust deposits.

4.4. Cleaning and maintenance

4.4.1. General instructions

q) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
r) Use only non-corrosive cleaners to clean the surface.
s) After cleaning the device, all parts should be dried completely before using it again.
t) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
u) The device must be regularly inspected to check its technical efficiency and spot any damage.
v) Use a soft cloth for cleaning.
w) Use a soft, damp cloth for cleaning.
x) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.

4.4.2. Disposing of used devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

4.2. Подготовка за употреба

4.2.1. Местоположение на уреда

4.2. Priprema za upotrebu

For the disposal of the device please consider and act according to the national and local rules and regulations.
