Safety instructions 11

1. Parts and components 106

2. Before use 106

3. Installation 106

4. Operation 110

5. Cleaning and maintenance 118

6. Troubleshooting 120

7. Recycling of electrical and

electronic equipment 123

1. Copyright 123

2. Simplified EU Declaration of Conformity 124

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• The installation and connection of the appliance must be carried out by authorised specialists. The manufacturer is not liable for damage caused by installation or connection errors.
• The appliance must be properly fitted and installed in a suitable and approved kitchen unit and worktop.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• WARNING: if the surface is cracked, unplug the appliance to avoid electric shock.
• The appliance heats up during use. Avoid touching the heating elements inside.
• WARNING: the appliance and its accessible parts may heat up during use. Be careful with the heating elements. Children under 8 years of age should be kept away from the appliance unless continuously supervised.
• Do not steam-clean the appliance.

• Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the hob, as they could become hot.

• After every use, switch off the hob using the control panel. Do not wait until the hob turns off automatically as there are no longer any pots and pans placed on it.

• The appliance is not intended to operate by means of an external timer or a separate remote-control system.
• WARNING: unattended cooking on a greasy or oily hob can be dangerous and may result in a fire. NEVER attempt to extinguish a fire with water. Switch off the appliance and cover the flames, e.g., with a fireproof lid or blanket.
• CAUTION: always supervise the cooking process. Continuously monitor the cooking during operation.
• WARNING: fire hazard. Do not place objects on the cooking surfaces.
• WARNING: only use hob protectors designed by the kitchen-appliance manufacturer or found to be suitable by the latter in the instructions for use, or corresponding built-in hob protectors. The use of unsuitable protectors can cause accidents.
• Do not install the appliance behind a decorative panel to avoid overheating.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Remove all labels and stickers from the ceramic glass.
• Do not modify the appliance in any way.

• The induction hob cannot be used as a support or work surface.

• The appliance must be earthed in accordance with local regulations.

• Do not place the appliance on top of a dishwasher or tumble dryer to avoid steam damage.
• Turn off the cooking zones after use.
• Monitor the cooking of very fatty or oily foods to avoid fire.
• Risk of fire: Do not place any objects on the cooking surface.
• There is a risk of fire if cleaning is not carried out according to the instructions.
• Be careful not to burn yourself while or after using the appliance.
• Make sure that no cords of any fixed or mobile appliance touch the glass or hot cookware.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by a similarly qualified person to prevent hazards.
• Magnetic objects (credit cards, calculators, etc.) must not be placed near the appliance when plugged in.
• Never cover the appliance with a cloth or protective film to prevent overheating and fire.
• Cookware with worn or damaged bottoms can damage the ceramic glass.
• Sand or other abrasive materials may damage the ceramic glass.
• Prevent objects of any size from falling onto the ceramic-glass panel.
• Avoid hitting the edges of the hob with cookware.
• Make sure the appliance is sufficiently ventilated according to these instructions.
• Do not place or leave empty cookware on the induction hob.
• Sugar, synthetic materials, or aluminium foil must not come into contact with the cooking zones. These may cause

breakage or other damage to the ceramic-glass panel due to cooling: switch on the appliance and remove them from the cooking area immediately (being careful not to burn yourself).

• Never place hot containers on the control panel.
• If there is a drawer under the built-in appliance, make sure there is enough space between the contents of the drawer and the bottom of the appliance (at least 2 cm). This is essential to ensure proper ventilation.
• Never store flammable objects (e.g., aerosols) in the drawer under the induction hob. Drawers and their contents must be heat resistant.
• Precautions in the event of a fault: if you notice a fault, switch off and unplug the appliance.
• The appliance must be repaired by qualified professionals. Do not try to fix the appliance yourself.
• Always make sure that cookware is well centred on the cooking area. The bottom of the cookware should cover as much of the cooking area as possible.
• The magnetic field of the induction hob may influence the operation of cardiac pacemakers. For further information, please contact the purchase store or refer to a doctor. These devices must comply with EU Council Directive 90/385/EEC of 20 June 1990 and with EN 45502-2-1, EN 45502-2-2.
• Do not use aluminium or synthetic containers to prevent them from melting due to the residual heat of the cooking zones.
• Never try to put out the fire with water, switch off the appliance and cover the flame, for example, with a lid or a fireproof blanket.

• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.

• CAUTION: Accessible parts can become hot when used with cooking appliances.
• Air from the extractor hood must not be discharged into a flue that is used to exhaust fumes from appliances burning gas or other fuels.
• The air discharge regulations must be complied with.
• The kitchen hood is intended for installation only over a hob with four cooking zones.
• Accumulation of grease in the kitchen hood can cause a fire hazard. Clean the appliance according to the instructions in this manual.
• Exercise extreme caution when cleaning the appliance. Risk of burns and/or cuts. We recommend the use of gloves.
• If the kitchen hood is damaged, do not attempt to use it.
• When the kitchen hood and other non-electrically powered appliances are in simultaneous operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• The kitchen hood must be installed in accordance with the installation instructions and in compliance with all measurements.
• All installation work must be carried out by a qualified person or electrician.
• Dispose of the packaging material carefully. Children are vulnerable to it.
• Pay attention to sharp edges inside the kitchen hood, especially during installation and cleaning.

• Make sure that the duct does not have bends sharper than 90 degrees, as this will reduce the efficiency of the kitchen hood.

• Warning: Failure to install the screws or fastening device in accordance with these instructions may result in electrical hazards.

• Warning: Before accessing the electrical terminals, all power supply circuits must be disconnected.
• There must be adequate ventilation of the room when the kitchen hood is used at the same time as gas or other fuel burning appliances.
• Caution: The appliance and its accessible parts may become hot during operation. Be careful not to touch any accessible parts. Children under 8 years old must stay away, unless they are supervised.
• Local air discharge regulations must be complied with.
• For safety reasons, only use the supplied fixing or mounting screws (if applicable, depending on the model) or screws of the same size as those recommended in this instruction manual.
• Do not use a steam cleaner.
• Never use extension leads, multiple socket connections or external timer connection elements.
• USING POOR QUALITY COOKWARE OR ANY INDUCTION ADAPTER FOR NON-MAGNETIC COOKWARE IS A BREACH OF WARRANTY. CECOTEC IS NOT LIABLE FOR ANY DAMAGE CAUSEDTOTHEINDUCTIONHOBAND/ORITSSURROUNDINGS.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Induction hob with extractor hood
• Assembly kit
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Note:

• Both electrical and mechanical installation must be carried out by qualified professionals.
• This appliance is designed to be installed on a countertop with a thickness between 2 and 6 cm for a top-mounted installation, or 2.5 to 6 cm for a recessed installation.
• When installing the hob, maintain a minimum distance of 5 cm at the front, 4 cm at the sides and 50 cm from the upper wall units.

Note: The recommended distances are provided as examples only. When planning your kitchen, follow the guidelines provided by the kitchen manufacturer.

Connection to power supply

To connect the hob to the power supply, proceed as follows:

1. Remove the hob from its packaging and place it on a flat surface.
2. Connect the power cord to the hob.
3. Connect the other end of the power cord to the power supply.

Note: Ensure that the electrical connection is safe and complies with local electrical regulations.

• The manufacturer assumes no responsibility for people, animals or property if the guidelines provided are not followed.
• The power cord must be long enough to allow the hob to be removed from the countertop.
• Do not use extension cords.
• The ground wire should be 2 cm longer than the other wires.
• If the appliance does not come with a power cord, use one with a minimum conductor diameter of 2.5 mm² for power ratings up to 7,00 W; for higher power levels, the diameter must be 4 mm² .
• The temperature must not reach 50° C above ambient temperature at any point along the cable.
• The device is intended for permanent connection to the power supply.
• Before reconnecting the circuit to the main power supply, make sure that it is working properly, always verify that the power cord is installed correctly.
• The interconnecting cable should be replaced by the authorized service technician or similarly qualified person.

Note: the product is equipped with a Power Laminator function, which allows setting a maximum power limit. The limit must be set when the product is connected to the mains or when the mains itself is reconnected (within 2 minutes).

Assembly

Before beginning the installation:

• After unpacking the product, check that it has not been damaged in transit and, in case of a problem, contact the seller or customer service before installation.
• Verify that the product is properly sized for the installation area.
• Check the accessories inside the packaging. Remove and store them safely, if present.
• Also verify that there is an electrical outlet near the installation area.

Preparing the cabinet for installation

- The product must not be installed on refrigeration appliances, dishwashers, heaters, ovens, washing machines and dryers.

ENGLISH

• Make cuts in the furniture before inserting the hob and carefully remove any shavings or sawdust.
• To optimize the installation of the filter, it is recommended to cut a slot in the base to insert a grid (commercially available).

IMPORTANT: use a single component adhesive sealant (S) that withstands temperatures up to 250°C; before installation, thoroughly clean the surfaces to be bonded and remove any substance that may compromise adhesion; the adhesive must be spread evenly around the exterior of the frame; after bonding, allow the adhesive to dry for approximately 24 hours.

⚠ Warning: Failure to install screws and fixings according to these instructions may result in electrical hazards.

Note: to ensure correct installation of the product, it is recommended to tape the tubes with an adhesive having the following characteristics:

• Soft elastic PVC film with an acrylic based adhesive.
• Complies with DIN EN 60454.
• Flame retardant.
• Excellent wear resistance.
• Resistant to temperature fluctuations.
• Can be used at low temperatures.

List of accessories required for installation

Name	Diagram	Quantity
Screw ST 4x5		2 units
Screw ST 4x14		4 units
Installation bracket		2 units
Sponge bar		1 pc.
Square tube (Not included)		2 units
90° right angle bent tube (Not included)		1 pc.
Aluminium adhesive (not included)		7 units
Bent tube (not included)		2 pc.
Air outlet with pre-installed charcoal filter (Not included)		1 pc.

Prerequisite for installation: for the correct and complete installation and operation of the hob with hood (Bolero Squad IH 2200), it is essential to purchase the Evacuation Kit separately. (A01_EU01_112196 Extraction kit for Bolero Squad IH 2200)

Figure 2 shows the dimensions of the induction hob to be taken into account during installation:

Model	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)	C (mm)	D (mm)	F (mm)	G (mm)
Bolero Squad IH 2200 FullFlex	400	520	245	350	490	≥ 50	≥ 70	≥ 40	15-25
Bolero Squad IH 2200 Fullflex ShieldGlass	400	520	245	350	490	≥ 50	≥ 70	≥ 40	15-25

Figure 3 shows the dimensions of the cabinet size and the exhaust pipe of the induction hob. Measurements are in mm.

ENGLISH

Then follow the steps below to install the product:

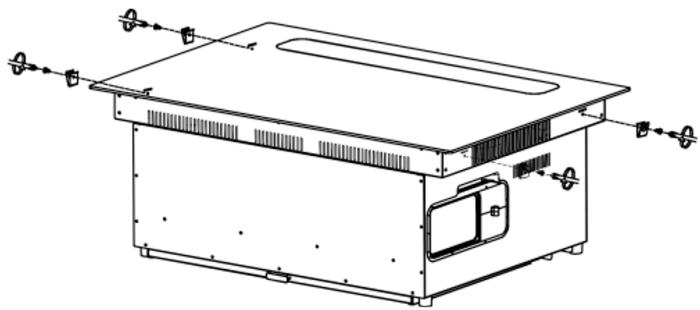

1. Screw the installation brackets to the lower housing. Fig. 4
2. Glue the sponge bar around the ceramic glass. Fig. 5.
3. Attach the bent tube or the Naber adapter. Fig. 6.
4. Install the product in the cabinet. Fig. 7
5. Install the conduit tube (*purchased separately) and glue it with the sealing strip. Fig. 8
6. Cut conduit pipe (*purchased separately) if length is not adequate. Fig. 9
7. Install the air outlet on the bottom of the cabinet and fasten the screws. Fig. 10
8. Install the charcoal filter in the air outlet (*purchased separately, not required for all models). Fig. 11

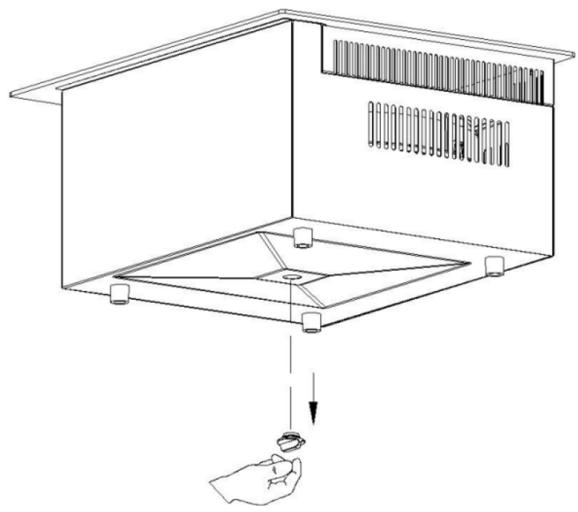

9. Remove and mount the oil collection tray. Fig. 12

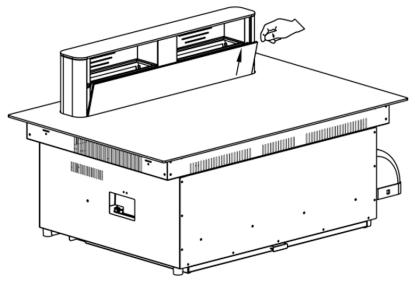

10. Remove the front glass panel. Fig. 13

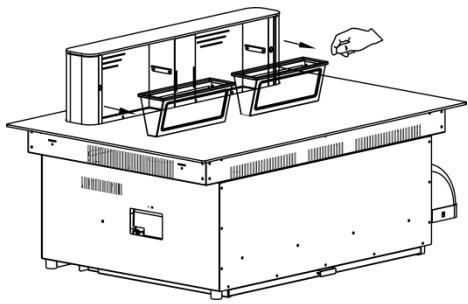

11. Remove the filter from the water collection box. Fig. 14

4. OPERATION

The induction cooking system uses the physical principle of magnetic induction to directly transfer energy from the generator to the pot.

Advantages:

Compared to electric hotplates, your induction hob is:

• Safer: lower temperature on the glass surface.
• Faster: shorter food heating times.
• More precise: the hob reacts immediately to your commands.
• More efficient: 90% of the energy absorbed is converted into heat. In addition, once the pan is removed from the hob, heat transfer is immediately interrupted, avoiding unnecessary heat loss.

Cookware

Only use pots marked with the symbol

To avoid scratches, do not use:

• Containers with bottoms that are not perfectly flat.
• Metal containers with enamelled bottoms.
• Containers with a rough base to avoid scratching the surface of the hob.
• Do not place hot pots and pans on the control panel surface.

Suitable cooking pots

Induction cooking generates heat through the use of magnetism. Therefore, cookware must be made of a magnetic material, such as iron. To determine if a pot is suitable, test its material with a magnet. If a pan does not respond to a magnet, it is not suitable for induction cooking.

Recommended diameters for the bottom of pans

IMPORTANT: If the pot size is incorrect, the cooking zones will not activate.

For details on the minimum pot bottom diameter to be used in each zone, refer to the illustrated portion of this manual.

Power saving

Recommendations to achieve the best results:

• Use pots and pans with a bottom diameter equal to that of the cooking zone.
• Use only pots and pans with flat bottoms.
• Keep the lid on the pot whenever possible during cooking.
• Cook vegetables, potatoes, etc., with a minimum amount of water to reduce cooking time.
• Use a pressure cooker, as it further reduces energy consumption and cooking time.
• Centre the pan within the cooking zone indicated on the hob.

Extractor usage

The extractor ventilation system can be used in two ways: as an external extraction and evacuation system or as a filter with internal recirculation. The external extraction and exhaust version removes smoke, steam and cooking odors to the outside, while the internal recirculation version filters these elements and recirculates clean air back into the room.

Extraction version

The fumes are expelled to the outside through a series of tubes (sold separately Ref. A01_EU01_112196) connected to the connection flange included.

The diameter of the exhaust pipes must match the diameter of the connection ring:

- For rectangular outlets, 222 x 89 mm

- For circular outlets, ∅ 150 mm (*).

Notes:

• When connecting the product to wall-mounted exhaust pipes and orifices, make sure that the diameter matches the air outlet (connection flange).
• Using smaller diameter tubes and orifices can reduce the efficiency of the exhaust fan and increase noise levels.
• For best results, keep the duct as short as possible with as few bends as possible (maximum angle: 90°) and avoid abrupt changes in duct diameter.

Choosing the right container

Containers for induction hobs

• Containers for induction cooking zones must be made of metal and have magnetic properties. The base must be large enough.
• Use only cookware with a base suitable for induction.

ENGLISH

This is how the suitability of a pot is determined:

Suitable containers	Unsuitable containers
Enameled steel pots with thick base.	Pots made of copper, stainless steel, aluminium, oven-resistant glass, wood, ceramic and terracotta.
Cast iron pots with enameled base.
Pots made of multilayer stainless steel, rust-resistant ferritic steel or aluminum with special base.

• Perform the magnet test described above or make sure that the cooker has the induction cooking suitability symbol.
• Never use pans with a deformed base. A hollow or rounded base may interfere with the operation of the overheat protection, causing the appliance to overheat. This can lead to cracking of the top glass and melting of the pan base. Damage resulting from the use of unsuitable pans or dry boiling is excluded from the warranty.
• If the base of the cookware is only partially ferromagnetic, only the area that is ferromagnetic will be heated. This may mean that the heat will not be evenly distributed. The non-ferromagnetic area may not be heated to a temperature sufficient for cooking.
• The ferromagnetic area will also be reduced if the material of which the base of the cookware is made contains aluminium, for example. This may mean that the cookware will not get hot enough or even that it will not be detected.
• The material the base of the pan is made of may affect the cooking result. Using pots and pans made of materials that distribute heat evenly, such as stainless-steel pans with a three-layer base, saves time and energy. Use cookware with a flat base; if the cookware base is uneven, this may affect heat distribution.

Magnet test

Bring a magnet close to the base of your container. If attracted, you can use the pan on the induction hob.

Note: When using induction-safe pans from certain manufacturers, noises attributable to the design of these pans may occur. Be careful when using frying pans on low heat, as water may evaporate unnoticed, causing damage to the pan and hob, for which no liability will be assumed.

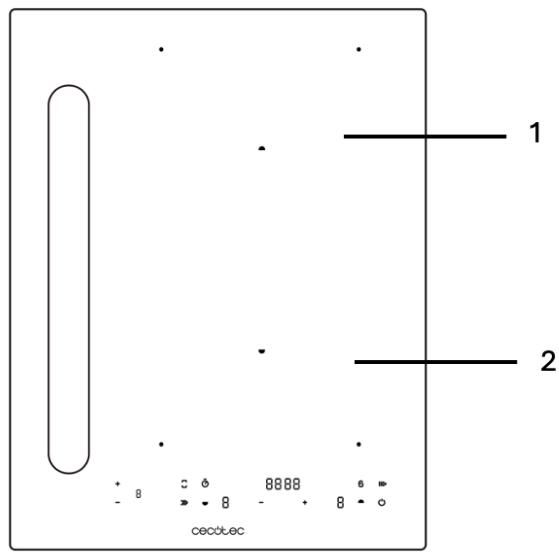

Container dimensions

• To achieve a good cooking result, the ferromagnetic area at the base of the pan should match the size of the cooking zone.
• If a cooking zone does not detect cookware, try placing it on another cooking zone with a smaller diameter.

Cooking zone	Minimum cookware diameter
160mm	120mm
180mm	140mm

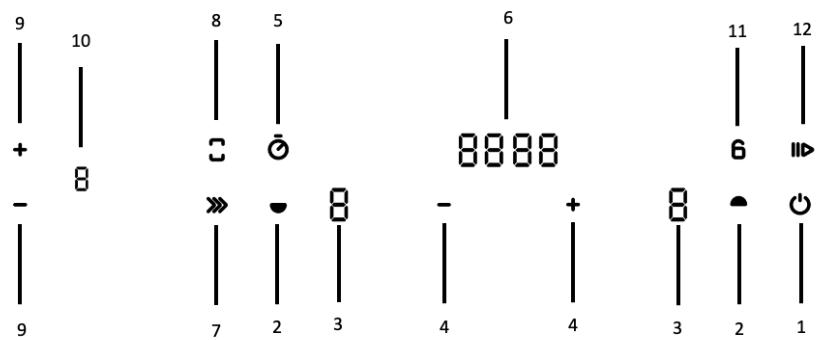

Control panel

Figure 15

1. Power on/off touch icon
2. Cooking zone selection touch icon
3. Power level display for the hob
4. Power level selection touch icon
5. Timer touch icon
6. Timer display
7. Boost touch icon
8. Flex Zone touch icon
9. Power selection touch icon for the hood
10. Power display for the hood
11. Child Lock touch icon
12. Pause touch icon

Using the hood

1. Standby mode

After the hob is turned on, the buzzer sounds once, and the hood goes into standby mode.

If there is no operation within 60 seconds, the entire display will turn off completely, and the hood will turn off automatically. You can reactivate the hood at any time by touching the on/off touch icon.

2. Setting the power level

Press and hold the power level selection touch icon for the hood for 1 second to activate the hood.

You can select the power level by pressing the increase + or decrease - touch icon.

3. Boost

Press and hold the Boost + touch icon for one second after adjusting the power level, the hood will go directly into Boost mode.

Note that Boost Mode can only last for 10 minutes, after which it will automatically switch to level 4.

4. Shutdown and Delayed Shutdown

Press the decrease touch icon - to switch off the hood: (P→4→3→2→1→d→off).

ENGLISH

You can press and hold the decrease touch icon - for one second to enter directly into the delayed power off mode (d).

The delayed shutdown mode can only last for 5 minutes. The hood will automatically switch off after 5 minutes.

During the delayed shutdown mode, you can press the decrease touch icon - to switch the hood off or press the increase touch icon + to set the hood to level 1.

5. Hob to hood linkage

There is a link switch function between the cooker hood and the induction hob.

When the hood is off or in delayed off mode, if the induction hob is operating, the hood will automatically turn on at level 1.

Then, when the induction hob is turned off, the hood will automatically enter delayed shutdown mode.

Using the induction hob

When the hob is switched on, an acoustic signal sounds. All indicators light up for one second and then turn off, indicating that the hob is in standby mode.

To begin cooking

1. Press the power touch icon. The indicators will show “-”.
2. Place suitable cookware in the desired cooking zone. Make sure both the base of the utensil and the cooking zone surface are clean and dry.
3. Press the cooking zone selection touch icon and the indicator next to the icon will flash.
4. Select a heat setting by touching the power level control.

Notes:

• If you do not select a power setting within 1 minute, the induction hob will switch off automatically.
• You will have to start again from step 1.
• The power level can be adjusted at any time during the cooking process.

When you have finished cooking

1. Press the cooking zone selection touch icon for the zone you wish to switch off.
2. Turn off the cooking zone by pressing the power level touch icon. Make sure the display shows "0".
3. Turn off the entire hob by pressing the power touch icon.

Note: Use caution with hot surfaces.

1. H" will be displayed, which means that the cooking zone is too hot to touch. This will disappear when the surface has cooled down to a safe temperature. It can also be used

as an energy-saving function: if you wish to heat more cookware, use hob zone that is still hot.

Using the Boost function

1. First select the desired zone with the Boost function.
2. Touch the Boost touch icon. The power level display will show "P".

Cancellation of the Boost function

1. Select the cooking zone with the Boost function activated.
2. Touch the Boost touch icon or adjust the power level to cancel the Boost function and select the desired level.

Notice: The Boost function can only operate for 5 minutes; afterwards, the zone will automatically switch to level 9.

Use of the flex zone function

1. Press the Flex Zone touch icon. The indicator will start flashing and display "=". Use the power selector icon to adjust the level.
2. To cancel the flex zone function, press and hold the flex zone touch icon for 3 seconds.

Using the Stop function

1. Select the pause function touch icon, all cooking zones will stop operating. All zone indicators will display ||.

2. Touch the pause function touch icon again, all cooking zones will return to their original settings.

3. The function is available if one or more cooking zones are operating.

4. If you do not cancel the pause mode within 30 minutes, the induction hob will automatically switch off.

Controls lock

• You can lock the controls to prevent unintended use (for example, children accidentally turning on cooking zones).

• When the controls are locked, all controls except the On/Off are disabled.

• To lock the controls, touch the child lock touch icon.

• The timer indicator will show "Lo".
• To unlock the controls, make sure the hob is turned on.
• Press and hold the Child Lock touch icon for 3 seconds.
• Now you can start using your badge.

ENGLISH

When the hob is in lockout mode, all controls are disabled except the power control. You can always turn the hob off with the On/Off control in case of emergency, but you must unlock the hob before the next operation.

Residual heat warning

When the hob has been in operation for some time, there will be residual heat. The letter "H" appears to warn you to stay away.

Automatic shut-off

The hob has an automatic safety shut-off function. This occurs when you forget to turn off a cooking zone.

The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hours)	8	8	8	4	4	4	2	2	2

Using the timer

- The timer can be used in two different ways:

1. You can use it as a minute reminder. In this case, the timer will not switch off any cooking zones when the set time has elapsed.
2. You can set it to turn off one or more cooking zones when the time is up. You can set the timer up to 99 minutes.

Using the timer with timer warning

1. Ensure the hob is switched on and the cooking zone selection touch icon is not activated (the zone indicator “does not flash).

Note: You can set the minutes reminder before or after the end of the cooking zone power setting.

1. Press the timer touch icon. The timer display will show "30" and flash. The default setting is 30 minutes.
2. Adjust the time by pressing the "+" or "-" touch icon. A short touch sets 1 minute, and a long touch sets 10 minutes.
3. Once the time is set, the countdown will start automatically. The display will show the remaining time.
4. The buzzer will sound for 30 seconds, and the timer indicator will display “--” when the set time is up.

Using the timer to switch off one or more cooking zones:

1. Press the cooking zone selection touch icon for the zone you wish to set the timer for.
2. Press the timer touch icon. The timer display will show "30" and flash. The default setting is 30 minutes.
3. Adjust the time by pressing the "+" or "-" touch icon. A short touch sets 1 minute, and a long touch sets 10 minutes.
4. Once the time is set, the countdown will start automatically. The display will show the remaining time.

NOTE: There will be a white dot in the bottom right corner of the power level indication, indicating that zone is selected.

1. When the cooking timer expires, the corresponding cooking zone is automatically switched off.

NOTE: Other cooking zones will continue operating if they were previously switched on.

If the timer is set to more than one zone

1. When you set the timer for several cooking zones, white dots are indicated on the corresponding zones. The timer display shows the minimum timer. The dot for the corresponding zone flashes.
2. Once the countdown timer expires, the corresponding zone will be turned off. It will then show the new minimum timer and the dot for the corresponding zone will flash.

Note: Press the cooking zone selection touch icon, and the corresponding timer will be displayed on the timer indicator.

Cancelling the timer

1. Press the cooking zone selection touch icon for the zone you wish to cancel the timer.
2. Press the timer touch icon; the indicator will flash.
3. Press the “-” touch icon to adjust the timer to "00"; the timer will be cancelled.

Power settings

The power of the cooking zones can be adjusted to various levels. In the table you will find examples of how to use each setting.

Heat setting	Recommended uses
1-2	- Gentle heating for small quantities of food- Melting chocolate, butter and food that burn quickly- Soft boiling- Slow heating

ENGLISH

3-4	- Reheat- Fast boiling- Cooking rice
5-6	- Pancakes
7-8	- Stir-frying- Cooking pasta
9	- Quick sauté- Sealing- Boiling soup- Boiling water

5. CLEANING AND MAINTENANCE

• Before cleaning, switch off the hob and allow it to cool down.
• Do not use steam or high-pressure cleaners to clean the hob, as this may cause an electric shock.
• When cleaning, be sure to gently wipe over the On/Off sensor. Otherwise, the hob could accidentally ignite!

Induction hob

⚠️ Important! Never use aggressive cleaning agents such as abrasive agents, pot cleaners, rust and stain removers, etc.

Cleaning after use

Always clean the entire hob when it becomes dirty. It is recommended to do this every time you use the hob.

Use a damp cloth and a little detergent to clean. Then dry the hob with a clean, dry cloth to ensure that no detergent remains on the surface.

Weekly cleaning

Clean the entire hob thoroughly once a week with commercial glass ceramic cleaners. Follow the manufacturer's instructions carefully. When applied, the cleaning agent will cover the plaque with a protective film that is resistant to water and dirt. All dirt remains on the film and can be easily removed. Then dry the hob with a clean cloth.

Make sure that no cleaning agent is left on the surface of the hob, as this will react aggressively when heated and change the surface.

Specific dirt

- Heavy dirt and stains (such as lime scale and pearlescent stains) are best removed when the hob is still slightly warm. Use commercial cleaning agents to clean debris.

• First soak the boiled food residues with a damp cloth and then remove the remaining dirt with a special scraper for glass-ceramic hobs. Then clean the hob again.
• Burnt sugar and melted plastic should be removed immediately, while still hot, with a glass scraper. Then clean the hob again.
• Grains of sand that may fall on the hob when peeling potatoes or cleaning lettuce can scratch the surface when moving the pots. Make sure that no grains of sand are left on the hob.
• Changes in the colour of the hob will not affect the function or stability of the glass ceramic material. These colour changes are not changes in the material, but food residues that were not removed and burned on the surface. Shiny spots occur when the base of the cookware rubs against the surface of the hob, especially when aluminium-based utensils or inappropriate cleaning agents are used. They are difficult to remove with standard cleaners, and it may be necessary to repeat the cleaning process several times. Over time, the decoration will wear, and dark stains will appear as a result of the use of aggressive cleaning agents and defective pot bottoms.
• If a large amount of liquid is accidentally poured into the machine, remove the silicone plug at the bottom to release the liquid. Fig. 16

Electric connection

This induction hob should be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains, check that:

1. The domestic wiring system is suitable for the power consumed by the hob.
2. The voltage corresponds to the value indicated on the nameplate.
3. The cross-sections of the power supply cable can withstand the load specified on the nameplate.

Do not use adapters, reducers or branching devices to connect the hob to the mains, as they may cause overheating or fire.

The power supply cable must not touch hot parts and must be positioned so that its temperature does not exceed 75° C at any time.

⚠️ Consult with an electrician if the domestic wiring system is suitable without alterations. Any modifications must only be carried out by a qualified electrician.

The power supply must be connected in accordance with the relevant standard. The connection method is shown in Figure 17.

• If the cable is damaged or needs to be replaced, the operation must be performed by an after-sales agent with specialized tools to avoid accidents.
• If the appliance is connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum opening of 3 mm between contacts.
• The installer must ensure that the correct electrical connection has been made and complies with safety standards.

ENGLISH

• The cord must not be bent or compressed.
• The cable should be checked regularly and replaced only by authorized technicians.

6. TROUBLESHOOTING

In case of errors during operation, refer to the following table before calling for service. The following are some common errors and the checks to be performed.

Problem	Possible causes	Solution
The appliance does not turn on.	No power.	Ensure the hob is connected to the power supply and switched on. Check to see if there is a power outage in your home or area. If you have checked everything and the problem persists, call a qualified technician.
The touch icons do not work.	The controls are locked.	Unlock the controls. Refer to the section 'OPERATING THE DISPLAY WITH THE SENSOR BUTTONS' for instructions.
Touch controls are difficult to operate.	There may be a thin film of water on the controls, or you may be using your fingertip when touching the controls.	Make sure the touch control area is dry and use your fingertip when touching the controls.
The glass is scratching.	Utensils with rough edges. Abrasive or unsuitable cleaning products are being used.	Use utensils with flat, smooth bases. See 'Choosing the right utensils'. See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals integrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low hum when used on a high heat setting.	This is caused by induction cooking technology.	This is normal, but the noise should diminish or disappear completely when the heat setting is reduced.
Fan noise is heard coming from the induction hob.	A cooling fan built into your induction hob has activated to prevent overheating of the electronic components. It may continue running even after you have switched off the induction hob.	This is normal and does not require action. Do not turn off the power to the induction hob from the wall while the fan is running.
Cookware does not heat up and appears on the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking. The induction hob cannot detect the pan because it is too small for the cooking zone or is not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right utensils'. Centre the pan and ensure its base matches the size of the cooking zone.
The induction hob or a cooking zone has switched off unexpectedly, a tone sounds and an error code is displayed (normally alternating with one or two digits on the cooking timer display).	Technical fault.	Write down the letters and numbers of the error, turn off the induction hob from the wall and contact a qualified technician.
After connecting the power and pressing the "on" button, there is no response from the device.	Is there a fault in the electrical supply?	Wait for the power supply to be restored.
	Has the fuse blown or has the circuit breaker tripped?	Carefully check root causes. If the problem persists, contact Cecotec's Official Technical Support Service.
	Is the plug firmly connected?	Check the mains connection.
The heating is interrupted during normal use, and a “beep” is heard.	Have incompatible cookware been used or not used?	Replace cooking utensils
	Is the container not placed in the centre of the heating zone?	Place the container in the centre of the indicated heating zone.
	Is the cookware heated but continuously withdrawn?	Place the container inside the heating zone.
Does not work during warm-up.	Is the cookware empty or is the temperature too high?	Check if the unit is being used incorrectly.
	Is the air inlet/outlet clogged or has dirt accumulated in the air inlet/outlet?	Unclog the air inlet/outlet. Wait for the appliance to cool down and switch it on again.
	Has the kitchen been running for more than 2 hours without any interaction?	Reset the cooking modes or use the timer function.

If the above solutions/control measures do not solve the problem, unplug the appliance immediately and contact Cecotec's Official Technical Support Service for inspection and repair. Note the error code and report it to the service centre.

To avoid any danger and damage to the device, do not disassemble or repair it yourself.

Fault and inspection screen

Error code	Possible cause	Solution
U	No pot	Place a suitable pan on the cooking zone. If it still does not work, contact Cecotec's Official Technical Support Service.
E1	Abnormal supply voltage (less than 170V)	Check whether the electrical supply is normal. Turn on after the supply is normal.
E2	Abnormal supply voltage (greater than 270V)	Check whether the electrical supply is normal. Turn on after the supply is normal.
E3/E5/E7	Induction-coil temperature sensor fault	Contact Cecotec's Official Technical Support Service.
E4/E6	IGBT temperature sensor failure	Contact Cecotec's Official Technical Support Service.
Er	Communication failure between PCB and display	Contact Cecotec's Official Technical Support Service.
Et	Overflow protection	Clean the water in the control panel and turn the hob back on.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

ENGLISH

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

Escollir el recipient adequat

Dimensions del recipient

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./ Rys. 14

Fig./Img./Abb./Afb./Rys. 15

Fig./Img./Abb./Afb./Rys. 16

Fig./Img./Abb./Afb./ Rys. 17

www.cecotec.es
