USER MANUAL ME 545 V VIKING

ME545.1 ME545.0C ME545.0V

ME 545 V

ME 545 C

ME 545

2	1	2	3	4	5	6
7	8	9	10

3

4

ME 545 C, ME 545 V

5

ME 545 C
ME 545 V

ME 545

6

7

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

Thank you for choosing a VIKING quality product.

This product has been produced using state-of-the-art production methods and extensive quality assurance procedures, because our goal is only achieved if you, the customer, are satisfied with your appliance.

If you have any questions concerning your appliance, please contact your dealer or our sales department directly.

I hope that your VIKING appliance will give you great enjoyment.

Dr. Peter Pretzsch

Manager

VIKING is continually striving to further develop its range of products; we therefore reserve the right to make alterations to the form, technical specifications and equipment level of our standard equipment.

The information and illustrations in this manual are therefore subject to alterations.

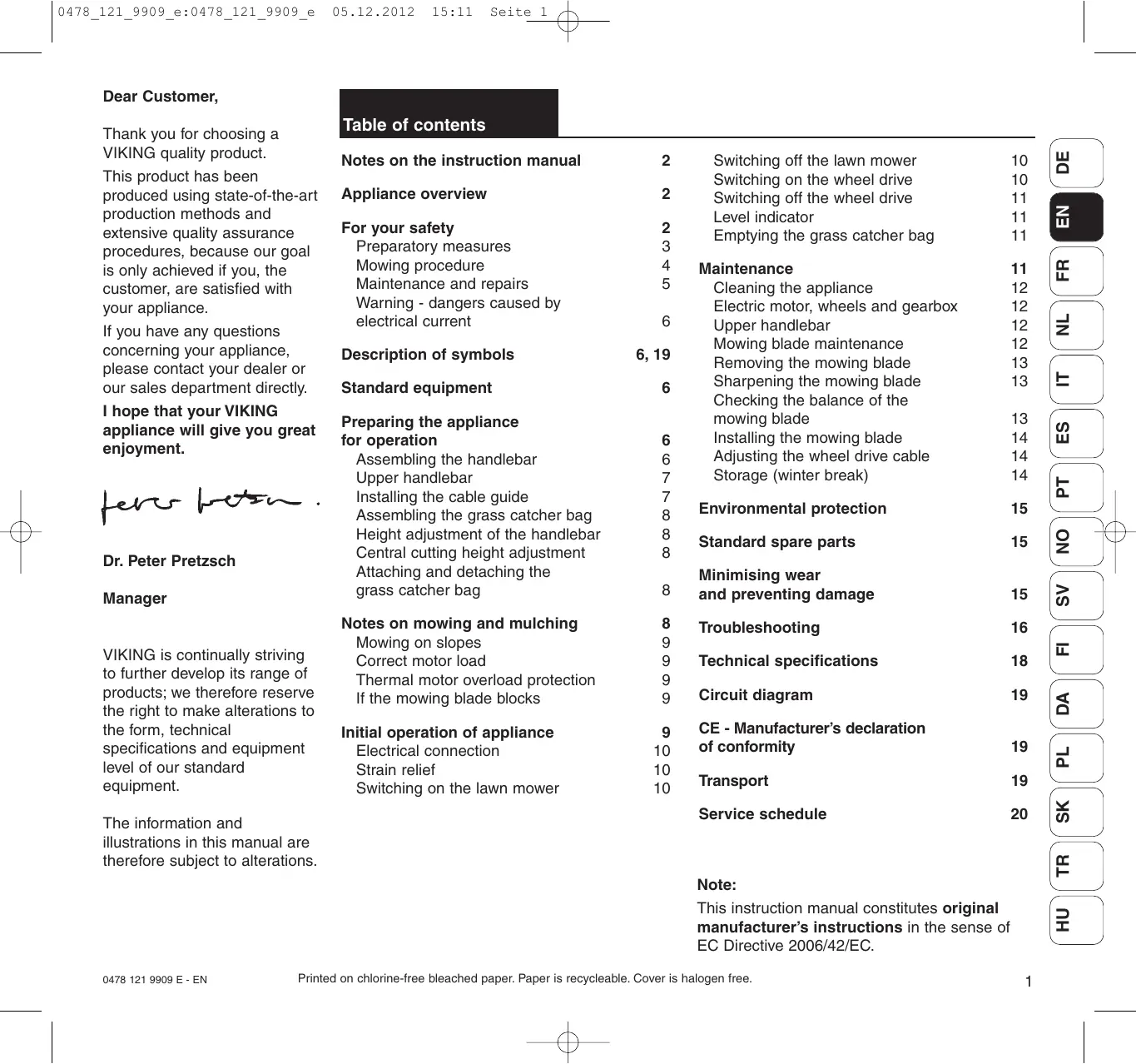

Table of contents

Notes on the instruction manual 2

Appliance overview 2

For your safety 2
Preparatory measures 3

Mowing procedure 4
Maintenance and repairs 5

Warning - dangers caused by electrical current 6

Description of symbols 6, 19

Standard equipment 6

Preparing the appliance for operation 6

Assembling the handlebar 6

Upper handlebar 7

7

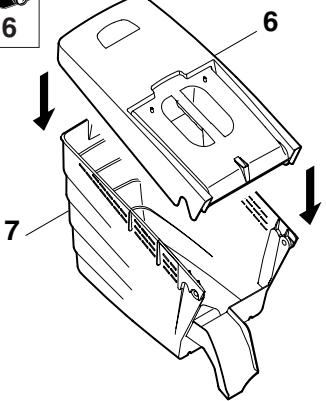

Assembling the grass catcher bag 8

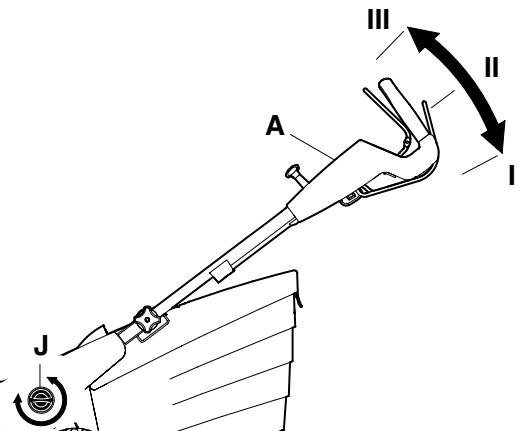

Height adjustment of the handlebar 8

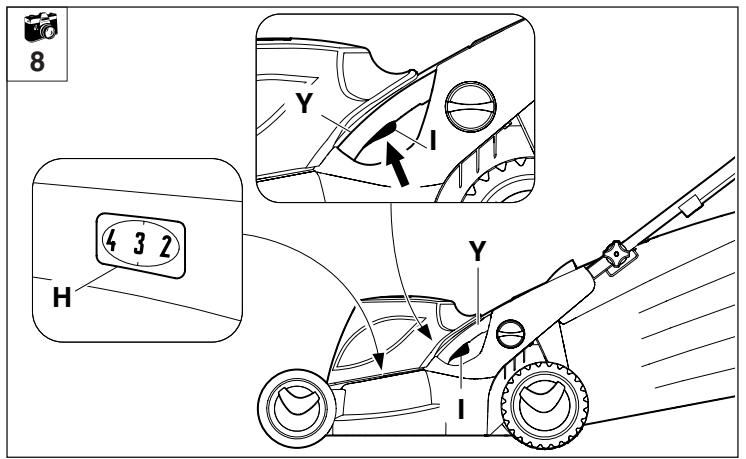

Central cutting height adjustment 8

Attaching and detaching the grass catcher bag 8

Notes on mowing and mulching 8

Mowing on slopes 9

Correct motor load 9

Thermal motor overload protection 9

If the mowing blade blocks 9

Initial operation of appliance 9

Electrical connection 10

Strain relief 10

Switching on the lawn mower 10

Switching off the lawn mower 10

Switching on the wheel drive 10

Switching off the wheel drive 11

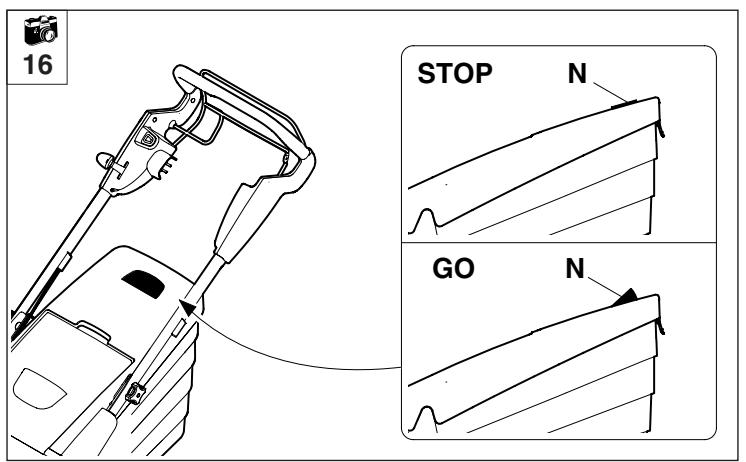

Level indicator 11

Emptying the grass catcher bag 11

Maintenance 11

Cleaning the appliance 12

Electric motor, wheels and gearbox 12

Upper handlebar 12

Mowing blade maintenance 12

Removing the mowing blade 13

Sharpening the mowing blade 13

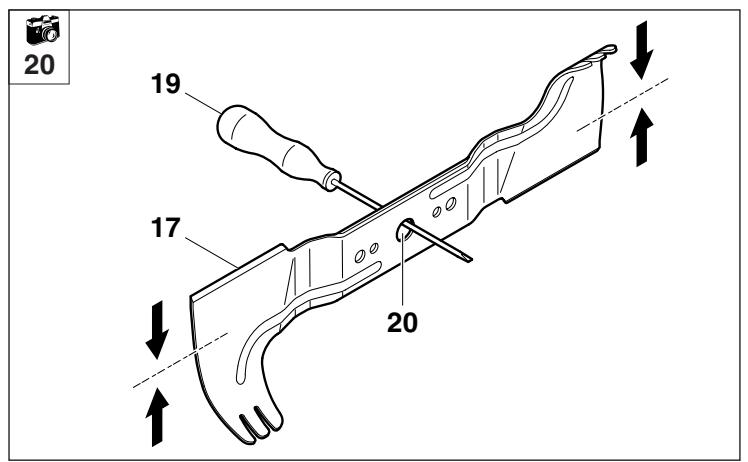

Checking the balance of the mowing blade 13

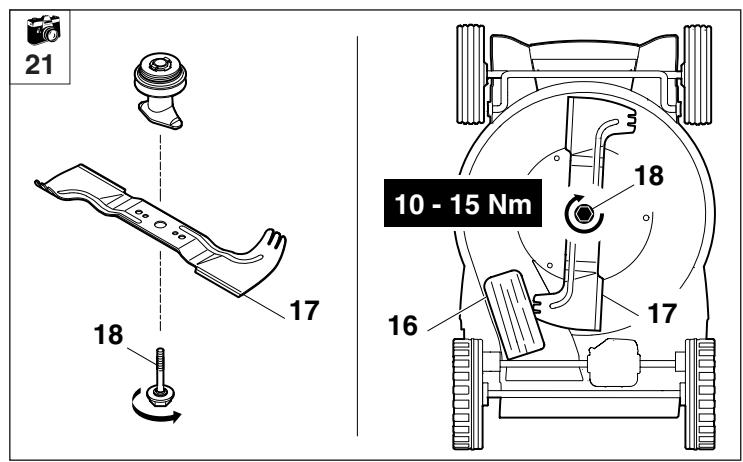

Installing the mowing blade 14

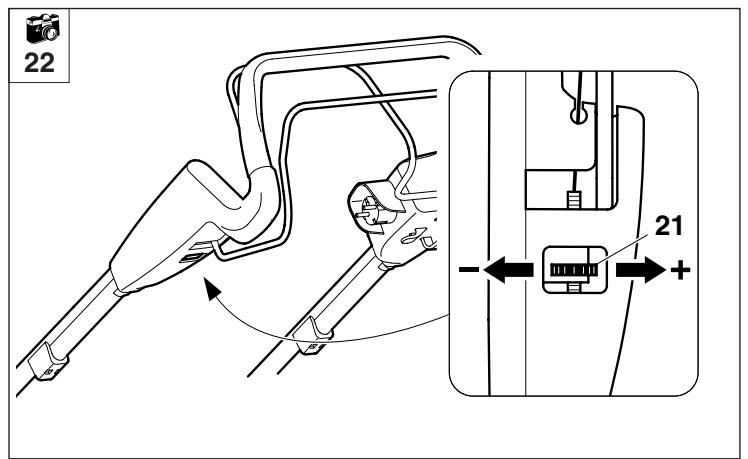

Adjusting the wheel drive cable 14

Storage (winter break) 14

Environmental protection 15

Standard spare parts 15

Minimising wear and preventing damage 15

Troubleshooting 16

Technical specifications 18

Circuit diagram 19

CE - Manufacturer's declaration of conformity 19

Transport 19

Service schedule 20

Note:

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

Notes on the instruction manual

Illustration symbols

This symbol serves to link the Figs. on the illustration pages with the corresponding text passages in the instruction manual.

The illustrations can be found at the front of the instruction manual

Designation of text passages

The operating steps described may be designated in different ways.

Operating step without direct reference to a figure.

Example:

• Sharpen blades evenly to prevent vibration due to imbalance.

Operating step with direct reference to the relevant figure to be found in the illustration pages (at the front of the instruction manual), with a corresponding reference to the item number in the figure.

Example:

Loosen

1= bolt
2= lever ...

General lists, which do not refer to the illustrations.

Example:

• use of the product for sporting or competitive events

In addition to descriptions of operating steps, this instruction manual includes text passages containing important additional information. Such passages are identified using the symbols described below in order to especially emphasise them in the instruction manual:

Danger of accident and risk of injury to persons and serious damage to property.

Information for better use of the appliance and in order to avoid possible operating errors, which may result in damage to the appliance or to the individual components.

Viewing direction when "left" and "right" is used in the instruction manual: the user is standing behind the appliance (working position) and is looking forwards in the direction of travel.

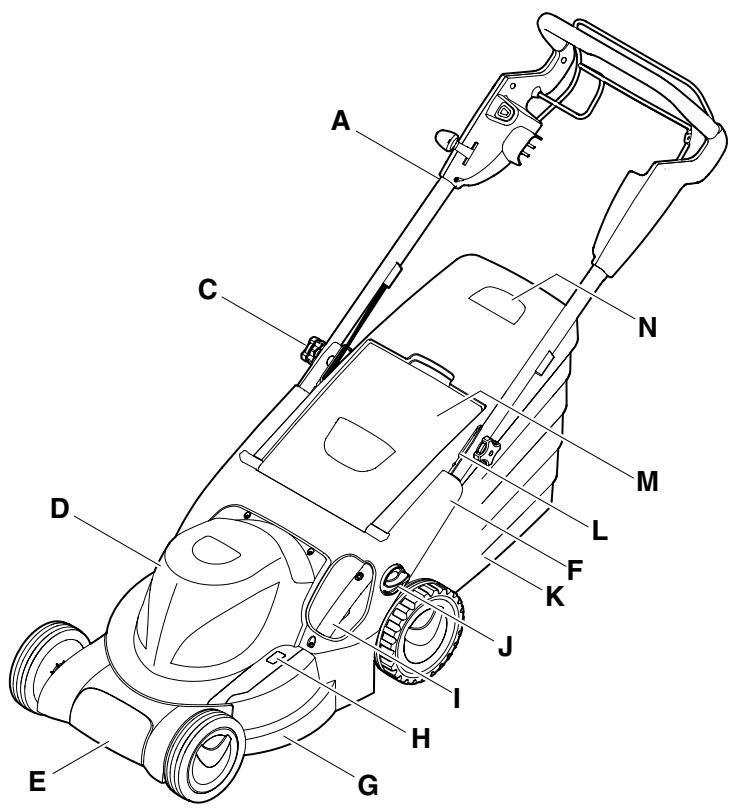

Appliance overview

For your safety

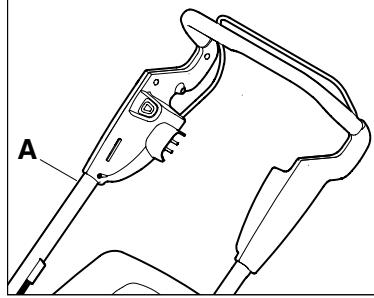

A Upper handlebar with controls
C Rotary handle
D Motor cover
E Carrying handle
F Upper housing
G Protection bumper
H Cutting height display
Central cutting height adjustment
J Rotary handle for handlebar height adjustment
K Grass catcher bag
L Cable anti-kink protection
M Ejection flap
N Level indicator

These safety regulations must be observed when working with the lawn mower.

Read the whole instruction manual before using the appliance for the first

time and keep in a safe place for future reference.

Ensure that you are familiar with the controls and use of the appliance. Never allow children or other persons who are not familiar with the instruction manual to use the lawn mower. The lawn mower must not be used by children under the age of 16. Local regulations may specify a minimum age for using the mower.

Never mow in the vicinity of other persons, particularly children, or animals.

Be aware that the person operating the appliance or the user is responsible for accidents involving third parties or their property.

• This appliance is not suitable for use by persons (including children) with impaired physical, sensory or mental faculties or those lacking the appropriate experience and/or knowledge, unless supervised by a person responsible for their safety or having received instructions on use of the appliance from such person. Children must be supervised, in order to ensure that they do not play with the appliance.

The lawn mower should not be operated after the consumption of alcohol, medications which impair reactions, or drugs.

Before initial use, advice should be obtained from the vendor or another expert.

Caution!

The lawn mower is only intended for mowing lawns; its use for other purposes is not permitted and may be dangerous or result in damage to the appliance.

Risk of accident!

Due to the physical danger to the user, the lawn mower must not be used, for example, for the following applications (incomplete list): for trimming bushes, hedges and shrubs, for cutting creepers, for care of lawn roofs and of balcony boxes, for clearing paths (vacuuming, blowing, clearing snow),

for shredding and chopping tree and hedge cuttings, for levelling earth mounds, e.g. mole hills or for transporting cuttings (except in the grass catcher bag provided).

Preparatory measures

Always wear robust shoes and long

trousers when mowing. Never mow barefoot or in sandals.

• Carefully inspect the complete area on which the appliance is to be used and remove any stones, sticks, wires, bones and other foreign objects which could be thrown up by the appliance.
  Before using the appliance, always ensure that the cutting tool, the fastening bolts and the entire cutting unit are in good condition.

• Caution!
  Danger of electric shock!

Particularly important for electrical safety are the mains cable, plug, on/off switch and connection cord. Damaged cables, connectors and plugs, or connection cords that do not conform to regulations must not be used, to prevent any risk of electric shocks. Therefore, check the connection cord regularly for signs of damage or ageing (brittleness).

• Never use the mower with damaged safety devices or safety guards, without functioning blade brake or attached safety devices, e.g. without the ejection flap or the grass-catching unit.

• For safety reasons, always use an undamaged grass catcher bag.

• The switch mechanisms installed in the appliance must not be removed or bypassed, e.g. by fixing a control lever to the handlebar.

• Only give (or lend) the appliance to persons who are familiar with this model and how to operate it. Always provide them with the instruction manual.
• Please observe the local regulations regarding permitted operation times for motor-driven gardening tools.

Mowing procedure

• Keep other persons away from the danger area.

• Place the appliance on an even surface for start-up. The appliance must not be tilted when starting the motor.

• Follow the instructions for switching on the motor and only switch on when your feet are a safe distance away from the cutting tools.

• Do not mow wet grass or mow in the rain. The risk of accidents is higher if the grass is wet (Danger of slipping).
  Only mow during the day or when there is enough light.

• Only mow at walking speed. Working quickly with the appliance increases the risk of injury due to stumbling, slipping etc.
• Always ensure good stability on slopes. Avoid mowing on excessively steep slopes in order to prevent loss of control of the appliance.
• Only mow at right-angles to the slope and never up or down the slope, in order to avoid being run over by the running lawn mower in the case of loss of control of the appliance or of falling.

• Be particularly careful when changing direction on a slope in order to prevent loss of control.

• For safety reasons, the appliance must not be used on slopes with an incline of more than 25^ (46.6%).

Risk of injury!

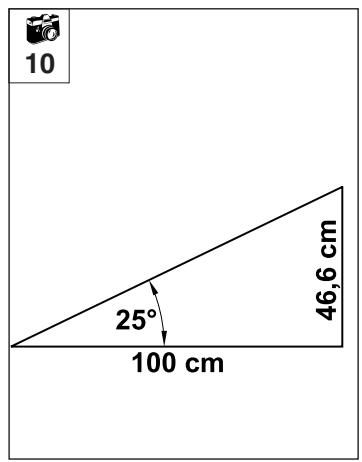

A slope inclination of 25^ corresponds to a vertical height increase of 46.6 cm for a 100 cm horizontal distance.

- Caution!

Be particularly careful when moving backwards and when pulling the lawn mower.

Risk of stumbling!

• Be particularly careful when turning the mower around or pulling it towards you.
• Switch off the motor if tilting of the mower is necessary when transporting over surfaces other than grass, and when pushing the mower to and from mowing areas.

Never open the grass ejection flap and/or the grass catcher the mowing gunning. Rotating can cause injury.

• Avoid switching the appliance on repeatedly within a short period of time; particularly avoid "playing" with the on/off switch. Risk of motor overheating.
• Owing to the voltage fluctuations caused by this appliance during the run-up period, other devices connected to the same circuit may be subject to interference in the case of unfavourable power supply conditions. In this case, appropriate steps should be taken (e.g. connection to a different circuit than the one used by the affected device, or operation of the appliance using a circuit with a lower impedance).
• Never attach any objects to the handlebar (e.g. work clothing). Extension cables must never be wrapped around the handlebar.

- Caution!

Never put your hands or feet on or underneath

rotating parts. Never touch the rotating blade. Always keep away from the ejection aperture. Always observe the safety distance indicated by the handlebar.

Risk of injury!

• Never lift or carry a mower with the motor running or the mains lead connected.

• Switch off the motor and disconnect the plug:

• Before remedying blockages, including those in the ejection chute;

• If the cutting tool has hit a foreign object. The cutting tool needs to be checked for possible damage;

• Before checking, cleaning or working on the mower;

• If the mower begins to vibrate excessively. The cutting tool must be checked immediately;
  Before leaving the appliance unattended;
  Before lifting, or carrying the appliance;
• Before transporting the appliance.

• Beware of the cutting tool running on for several seconds

before coming to a standstill.

Maintenance and repairs

Before performing any work on the appliance, before

adjusting or cleaning the mower, or before checking whether the connection cord is entwined or damaged, switch off the mower and disconnect the plug.

Only carry out maintenance work that is described in this instruction manual.

All other procedures should be carried out by a specialist dealer.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

Only use high-quality tools, accessories and spare parts. Otherwise, there may be a risk of accidents resulting in personal injury or damage to the appliance.

VIKING recommends the use of original VKING tools, accessories and spare parts. Their properties are optimally adapted to the appliance and the user's requirements.

VIKING original spare parts can be recognised by means of the VIKING spare parts number, the VIKING lettering and where applicable the VIKING spare parts symbol. The symbol alone may also feature on small parts.

• Ensure that all nuts, pins and bolts are securely tightened, so that the appliance is in a safe operating condition.
• If the cutting tool or the lawn mower hits an obstacle or a foreign object, the motor must be switched off, the plug disconnected, and an inspection performed by a specialist.
• The lawn mower must not be operated with a damaged or bent crankshaft.

Risk of injury through defective parts!

• Check the grass-catching unit regularly for wear, damage or for loss of functionality.
  In the interests of safety, replace all worn or damaged parts.
• Replace danger signs and warnings on the appliance which have become illegible. Your VIKING dealer has a stock of replacement stickers.

Warning - Dangers caused by electrical current

• The cord must be kept away from the blade when mowing.
  Only use extension cables that are insulated against moisture for outdoor use (see section: Initial operation).

• Although the drive motor is splashproof,

do not use the lawn mower when it is raining or in wet environments.

• Do not leave the appliance unprotected in the rain.
• Detach connection cords at the plug and socket and not by pulling on the connection cord.
• When operating the appliance, the socket must be fitted with a residual current operated device (max. trigger current: 30 mA), or such a device must be inserted when connecting the appliance. Your electrician can provide further information.

Description of symbols (1)

Caution!

Read the instruction manual before initial use.

Risk of injury!

Keep other persons away from the danger area.

Risk of injury!

Beware of the sharp mowing blade. The mowing blade runs on for several seconds after switching off (motor / blade brake). Before performing any work on the cutting tool, before carrying out maintenance and cleaning work, before checking whether the connection cord is entwined or damaged, or before leaving the mower unattended, switch off the motor and disconnect the plug.

Danger of electric shock!

Keep the connection cord away from the cutting tool.

Standard equipment

Item Designation

1 Basic unit 1
2 Cable anti-kink protection ME 545,ME 545 C 1 ME 545 V 2

3 Flat head bolt 2
4 Rotary handle 2
5 Cable guide 1 (ME 545 C, ME 545 V)
6 Upper part of grass catcher bag 1
7 Lower part of grass catcher bag 1
8 Pin 2
9 Cable clip 2 (ME 545)
10 Washer 2 (ME 545)
Instruction manual 1

Preparing the appliance for operation

NOTE

Place the appliance on level and firm ground to perform this work.

Assembling the handlebar

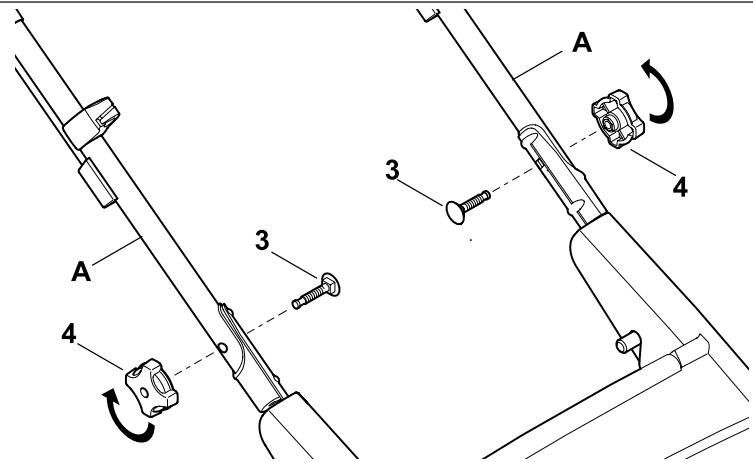

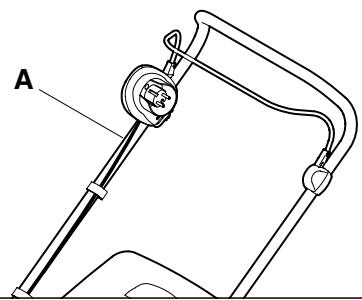

Assemble the handlebar: Attach

A= handlebar to both parts of lower handlebar. Insert
3= flat head bolts through bore from the inside to the outside and tighten securely with
4= rotary knobs.

NOTE

The machined grooves in the threads prevent the rotary handles from becoming completely detached from the bolts (safeguard against loss).

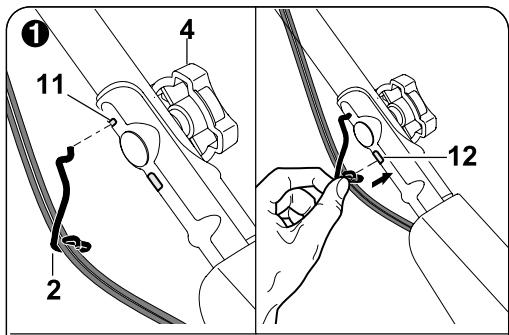

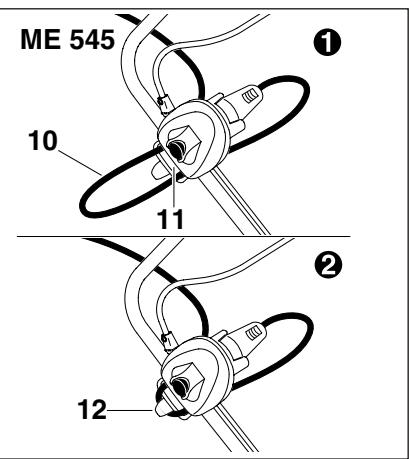

1 Installing left anti-kink cable protection:

NOTE

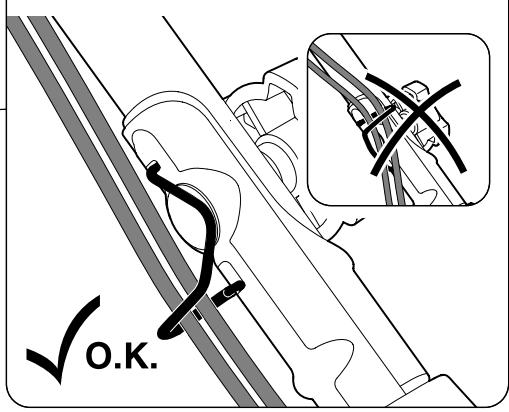

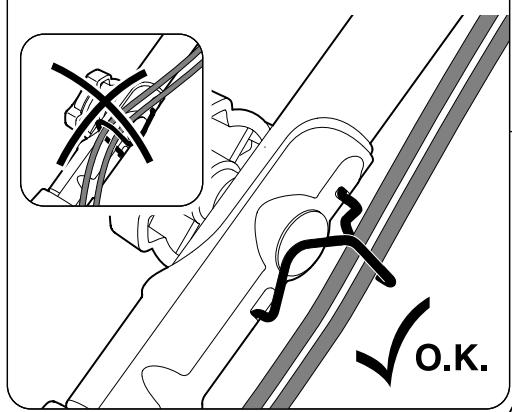

Attach anti-kink cable protection (2) only as shown. Cables must be routed under the handlebar. Loosen the rotary handle (4) prior to assembly.

Insert all cables in

2= anti-kink ca
protection.
First insert the anti-kink cable protection into
11= upper bore of lower handlebar. Then engage anti-kink cable protection in
12= lower slot of lower handlebar.

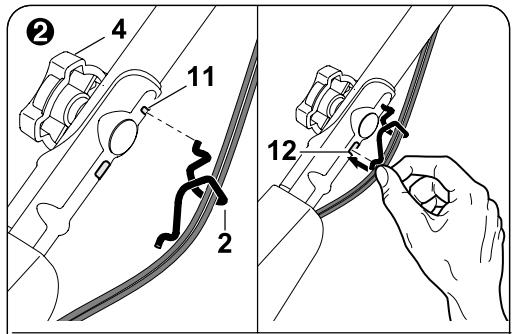

2 Installing right anti-kink cable protection:

NOTE

On model ME 545, there are no cables on the right-hand side of the handlebar. Only the left anti-kink cable protection (2) must therefore be installed on this lawn mower.

Assembly of the
2= right anti-kink cable protection is performed in the same way as on the left side.

Fold down the handlebar:

CAUTION

Risk of injury:

Before folding down the handlebar, switch off the machine and disconnect the power cable. No loads must be placed on the upper handlebar (e.g. hanging work clothing over the handlebar).

Danger of pinching!

The handlebar can be folded down by releasing the rotary knobs. For this reason, always hold the upper handlebar (A) with one hand at its highest point when you unscrew the rotary knobs.

Fold down the handlebar for cleaning, for space-saving transport and for storage of the appliance:

Loosen the

4= rotary handles until they move easily backwards and forwards in the machined grooves.
- Fold down the upper handlebar and rest it on the lower housing.

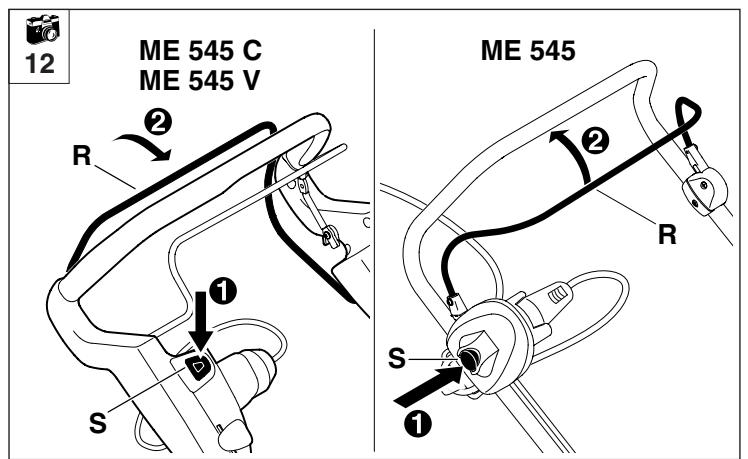

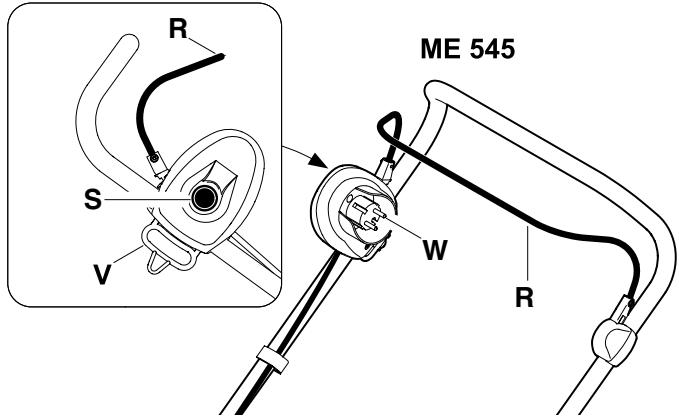

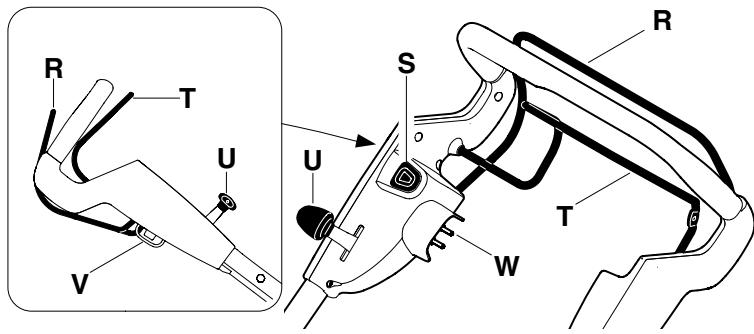

Upper handlebar

R= Motorstop lever
S= Start button

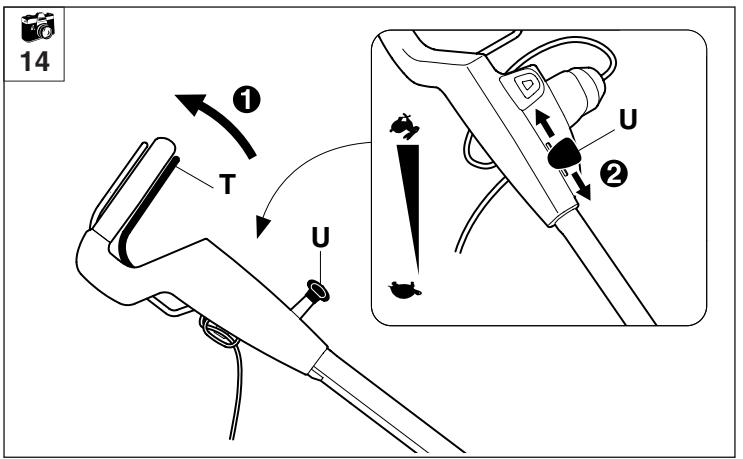

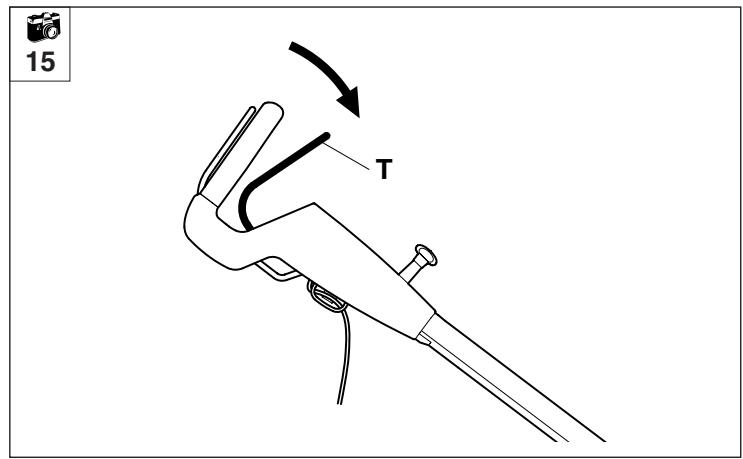

T= Wheel drive lever ME 545 V
U= Vario drive lever ME 545 V
V= Strain relief for connection cord
W= mains connection

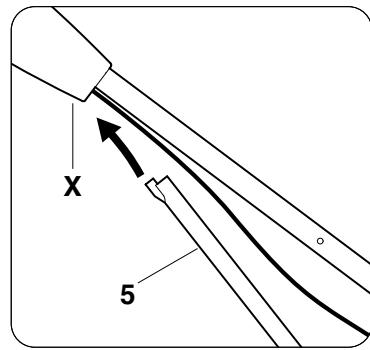

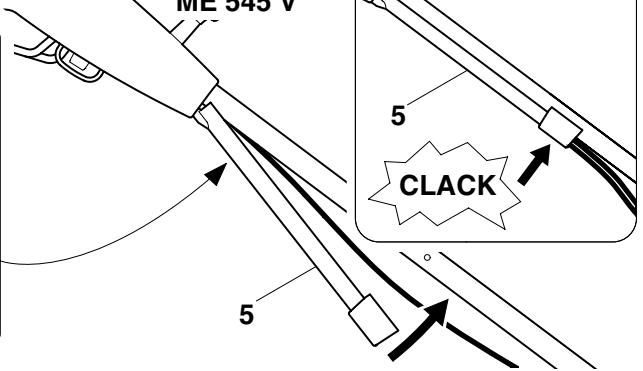

Installing the cable guide

ME 545 C, ME 545 V:

Insert

5= cable guide into the recess in the
X= housing and turn towards the upper handlebar. Make sure that all cables are in the cable guide. Allow the cable guide to engage in the two bores provided using slight pressure.

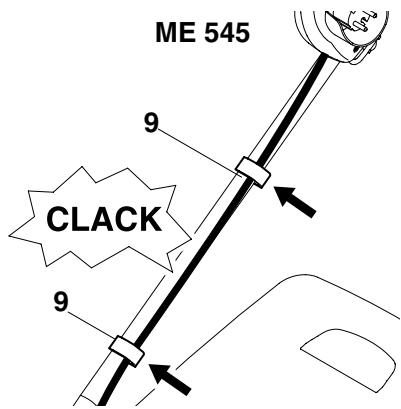

ME 545:

Fasten cable to the upper handlebar using
9= cable clips.

Assembling the grass catcher bag

6

Fit

6= upper part of grass catcher bag onto
7= lower part of grass catcher bag.

Press

8= pins through the apertures provided from the inside.

Allow the grass catcher bag upper part to engage in the lower part using slight pressure.

Height adjustment of the handlebar

7

The working height of the handlebar can be set to the following positions

I (low),

II (medium) and

III (high):

Loosen the

J= rotary handle for handlebar height adjustment by turning anti-clockwise (approx. five turns).

Hold the

A= upper handlebar with both hands and bring to the desired position by moving up or down.

NOTE

Ensure that handlebar adjustment is the same on the left and right sides.

Tightenthe J= rotary handle again by turning clockwise.

Central cutting height adjustment

8

CAUTION

Risk of injury!

The motor must be switched off before adjusting the cutting height.

Ensure that you keep your feet far enough away from the cutting tool.

There are seven cutting height adjustment settings ranging from 25mm to 80mm .

Level 1 = lowest

cutting height

Level 7 = highest

cutting height

The

I= adjustment lever for the central height adjustment is located on the left side of the appliance (see illustration).
Hold the appliance at the
Y = handle and pull the
I= adjustment lever upwards and hold, in order to release the detent mechanism.
- Set the required cutting height by moving the appliance upwards or downwards.

This can be read off the

H= cutting height indicator.

Release the
I= adjustment lever again and allow the height adjustment to engage.

9

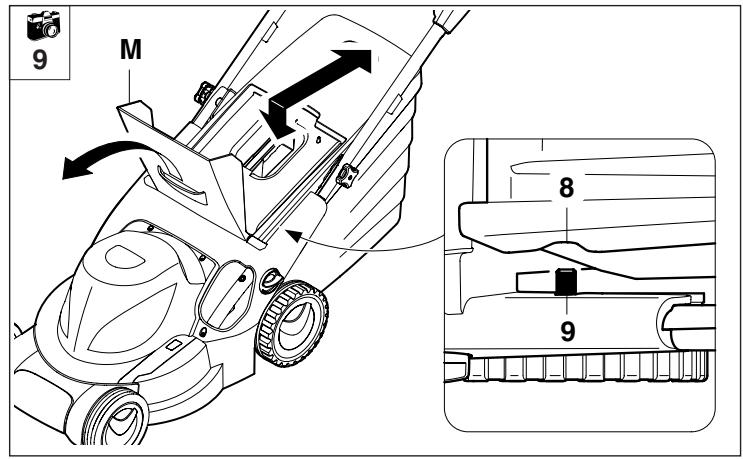

Attaching and detaching the grass catcher bag

CAUTION

Risk of injury!

The motor must be switched off before attaching and detaching the grass catcher bag.

Attaching:

Open the

M= ejection flap and hold it open.

The grass catcher bag is attached by engaging the

8= recesses in the grass catcher bag to the
9= mounting on the appliance.

Close the

M= ejection flap again manually.

Detaching:

Open the

M= ejection flap and hold it open.
Lift the grass catcher bag upwards, detach from the
9 = mounting and remove.
Close the
M= ejection flap again manually.

NOTE

To ensure a perfect, thick lawn, mow regularly and keep the grass short.

Do not cut too short in hot, dry conditions as the lawn will dry out or burn in the sun and become unsightly.

The cutting pattern will be better with a sharp blade than with a blunt one. The blade must therefore be sharpened regularly (VIKING dealer).

CAUTION

Risk of injury!

Untangle any knots in the cord immediately.

If using a cable drum, the connection cord must be unwound completely, otherwise electrical resistance may cause loss of power and overheating.

Guide the connection cord behind you when mowing. Connection cords can be inadvertently cut when mowing and therefore involve a high accident risk. For this reason, mow so that the connection cord is always visible in the area of grass that has already been cut.

Mowing on slopes

For safety reasons, the lawn mower must not be used on inclines of more than 25^ . A slope inclination of 25^ (46.6%) corresponds to a vertical height increase of 46.6 cm for a 100 cm horizontal distance.

Correct motor load

Do not switch on the mower in tall grass or at the lowest cutting height.

The lawn mower load must never cause the motor speed to drop significantly. If the speed drops, select a higher cutting height setting and/or reduce the rate of feed.

Thermal motor overload protection

If an overload of the motor occurs during operation, the built-in thermal overload protection device automatically deactivates the motor.

Causes for an overload:

• mowing excessively high grass or with cutting height adjusted too low
  excessive rate of feed
• unsuitable or excessively long connection cord (voltage loss) (see section "Electrical connection")
• inadequate cleaning of the cooling air guide (inlet slots)

To recommence operation:

Resume normal operation of the appliance following a cooling period of approx. 10 min (depending on the ambient temperature) (see section "Initial operation")

If the mowing blade blocks

Switch off the motor immediately and disconnect the plug. Then eliminate the cause of the fault.

Initial operation of appliance

CAUTION

• Carefully inspect the complete area on which the appliance is to be used and remove any stones, sticks, wires, bones and other foreign objects.
• Start the motor in accordance with the instructions.
• Be particularly careful when turning the mower around or pulling it towards you.
• Risk of injury! Never put hands or feet on or underneath rotating parts.
  Always wear robust shoes and long trousers when mowing. Never mow barefoot or in sandals.
• Never mow in the vicinity of other persons, particularly children, or animals.

Electrical connection

Power supply and operating voltage must correspond (see identification plate).

The mains supply voltage must correspond to the specified rated voltage of the appliance.

The power supply cord must be adequately protected by fuse (see section "Technical specifications").

Only connection cords which are no lighter than rubber sheathed cables H07 RN-F DIN/VDE 0282 and have a minimum cross section of 3 × 1.5 mm^2 for cable lengths up to 25 m and 3 × 2.5 mm^2 for cable lengths up to 50 m must be used.

The connectors of the connection cord must be made of rubber or have a rubber cover and conform to the standard DIN/VDE 0620.

This machine is intended for operation with a power supply having a system impedance of Z_max at the transfer point (house connection) of maximum 0.47 ohms (at 50Hz).

The user must ensure that the machine is only operated with a power supply which meets this requirement. If necessary, this information can be obtained from the local electric power company.

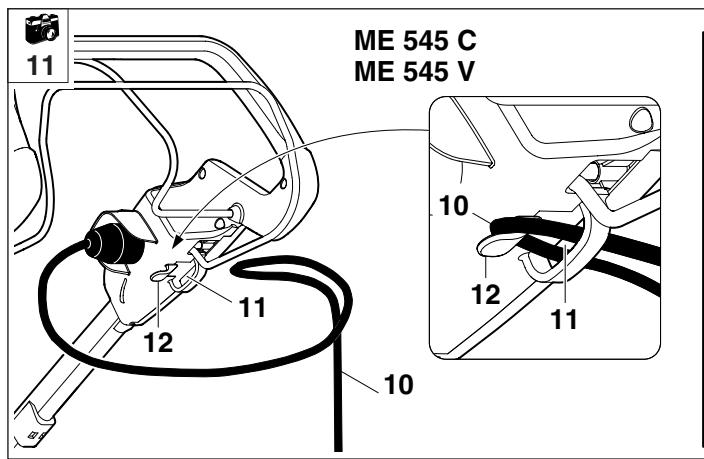

Strain relief

During mowing work, the strain relief prevents any unintentional disconnection of the connection cord and resulting possible damage to the mains connection on the appliance.

For this reason, the connection cord must be fed through the strain relief.

Form a loop with the

10= connection cord and guide it through the

11= opening.

Pass the loop over the

12= hook and tighten.

Switching on the lawn mower

NOTE

Do not start the motor in high grass or when the mower is set to the lowest cutting height, as this makes starting difficult.

Step ① :

Press

S= start button and hold it down.

Step 2:

Press

R= Motorstop lever to the handlebar and hold.

The start button can be released again after moving the motorstop lever.

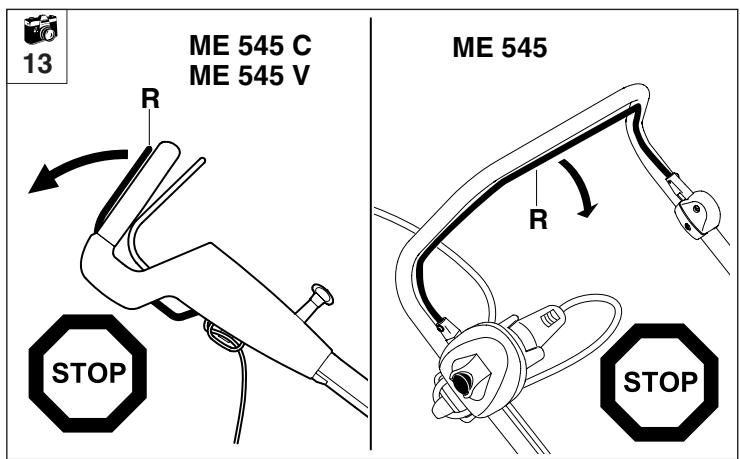

Switching off the lawn mower

Release the

R = motorstop lever.

The motor and blade come to a standstill following a brief rundown time.

CAUTION

Risk of injury!

Always disconnect the mains plug when leaving the lawn mower unattended.

Switching on the wheel drive ME 545 V

NOTE

The wheel drive functions only when the motor is running.

The vario drive lever (U) must not be operated when the motor is stopped as this may result in damage to the drive mechanism (lever is blocked).

Step 1:

Pull the

T= wheel drive lever to the handlebar and hold. The wheel drive engages.

Step 2:

For continuously variable speed increase, pull back the

U= vario drive lever; to reduce the speed, push the lever forwards.

Drive speed:

Continuously variable, from

2.4 km/h to 4.0 km/h

NOTE

The speed of the vario drive can be freely adjusted during drive operation, without switching the wheel drive off.

Switching off the wheel drive

To switch off the wheel drive, release the

T = wheel drive lever.

Level indicator

The grass catcher bag is equipped with a

N= level indicator on the upper part of the grass catcher bag.

The flow of air that is created by the rotary movement of the mowing blade and is responsible for filling the grass catcher bag raises the level indicator:

The grass catcher bag is filled with cuttings.

When the grass catcher bag is full, this flow of air is reduced and the level indicator drops:

The grass catcher bag is full and must be emptied (see section "Emptying the grass catcher bag").

Emptying the grass catcher bag

CAUTION

Risk of injury!

The motor must always be switched off prior to emptying the grass catcher bag.

NOTE

A completely filled grass catcher bag can weigh up to 16 kg.

• Detach the grass catcher bag from the appliance (see section "Attaching and detaching the grass catcher bag").

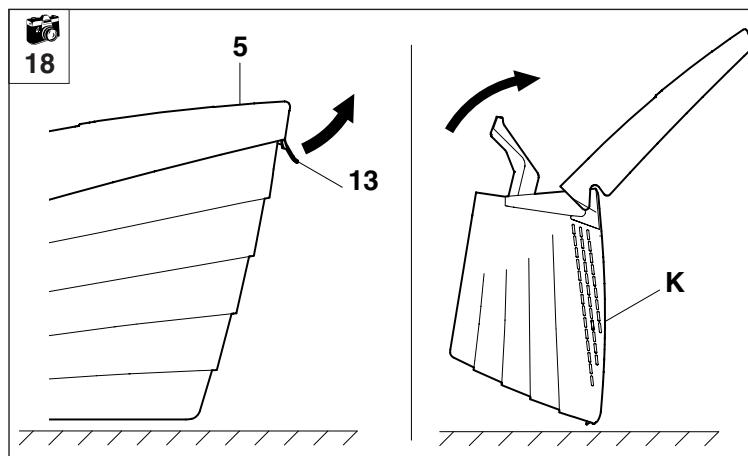

Open the grass catcher bag at the

13= tab and open the

5= upper part of the grass catcher bag upwards.

Fold back the full

K = grass catcher bag.

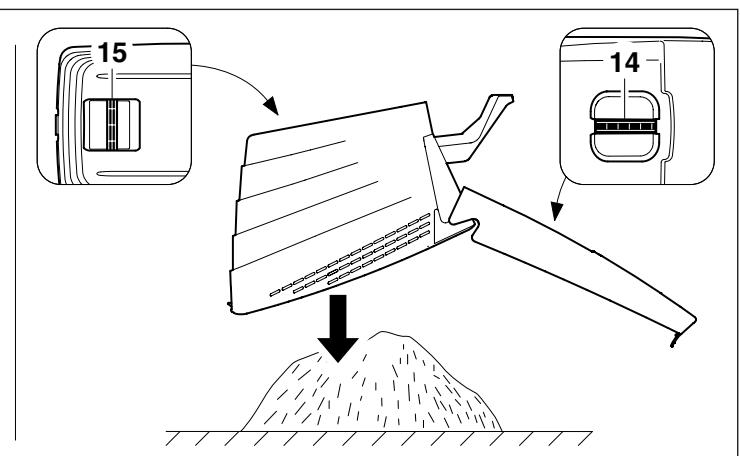

The grass catcher bag can be held securely and emptied easily using the

14= handle (upper part of grass catcher bag) and the

15= handle (lower part of grass catcher bag).

Maintenance

CAUTION

Risk of injury!

In order to prevent inadvertent

starting of the motor, always disconnect the power cord prior to all maintenance and cleaning work, and prior to work on the mowing blade.

Risk of injury! Always wear gloves.

Do not touch the mowing blade until it has come to a standstill.

If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING recommends the use of original VKING tools, accessories and spare parts.

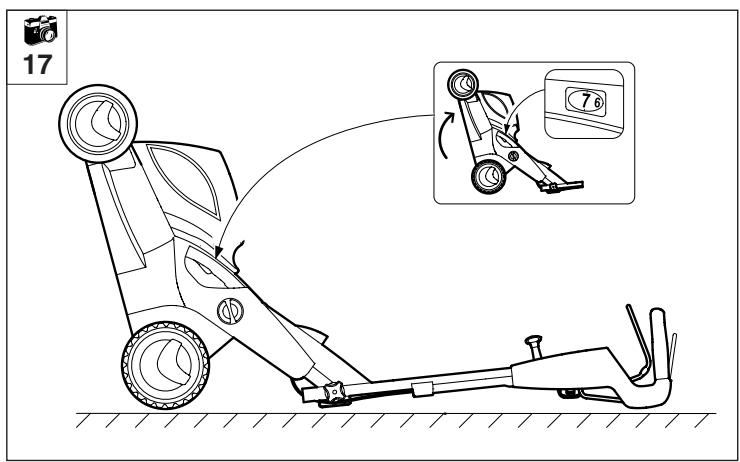

Cleaning the appliance

17

Maintenance interval: Each time the appliance is used

Clean the appliance thoroughly each time it has been used. Care of the appliance will protect it against damage and extend its service life.

Remove dirt from the cooling air guide (inlet slots) between the motor cover and the lower housing to ensure that the motor is adequately cooled.

Clean the mowing blade.

Clean the underside of the mower with water and a brush. Detach accumulated cutting deposits in the housing and in the ejection chute beforehand using a stick.

Never spray water onto motor components, seals, bearing points or electrical parts such as switches. This would result in expensive repairs.

Do not use aggressive cleaning agents. These cleaners can damage plastics and metals, impairing safe operation of your VKING mower.

If you are unable to remove the dirt with water, using a brush or a cloth, VIKING recommends the use of a special cleaner (e.g. STIHL special cleaner).

CAUTION

Risk of injury!

Before tilting upwards, place the mower on firm, horizontal and level ground and adjust it to the highest cutting level (level 7), otherwise the mower might tilt forwards again.

NOTE

Tilt up the front of the mower when carrying out cleaning or maintenance work. Before tilting, detach the grass catcher bag, fold down the upper handlebar (see section "Assembling the handlebar") and lift the ejection flap.

Electric motor, wheels and gearbox

The electric motor is maintenance-free.

The ball bearings of the wheels are maintenance-free.

The vario gearbox (ME 545 V) is maintenance-free.

Upper handlebar

Maintenance interval: Before each use

The upper handlebar is covered with a coating of insulation. Should this insulating coating become damaged, the upper handlebar must be replaced.

Risk of injury from an electric shock!

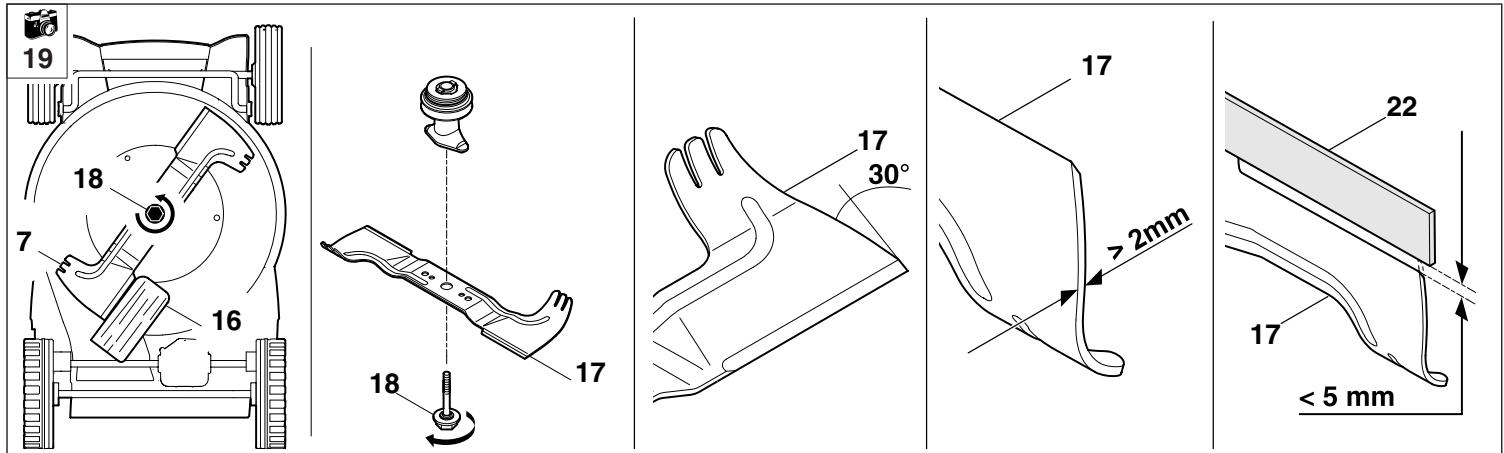

Mowing blade maintenance

19

CAUTION

Risk of injury!

If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer. (VIKING recommends VKING specialist dealers).
VIKING recommends the use of original VKING spare parts.

Maintenance interval: Before each use

Tilt the mower upwards into the cleaning position.

• Clean the mowing blade and check it for damage (notches or cracks) and wear; replace if necessary.

Wear limits:

The blade thickness must be at least 2 mm at any point. (Check using slide calliper).

The blades may not be ground back by more than 5 mm during sharpening.

When inspecting, place a 22= ruler against the front blade edge and check for wear.

CAUTION

If the supplied standard blade is not installed in the lawn mower, but e.g. the mulching blade, which is available as a special accessory, different wear limits apply.

CAUTION

Risk of injury!

A worn blade may break off and cause serious injuries. The instructions for blade maintenance must therefore always be observed.

Blades are subjected to differing degrees of wear depending on the location and duration of use. If you use the mower on sandy ground or use it frequently under dry conditions, the blade will be subjected to greater loads and will wear more quickly than the average.

Always replace the blade fastening screw (18) when replacing the mowing blade.

Removing the mowing blade

Risk of injury! Always wear gloves.

For removal, use a

16= wooden block (approx.

60 × 60 ~mm to counterclockwise

17= mowing blade.

Unscrew the

18=blade fastening screw using an A/F 24 spanner.

Remove the

17= mowing blade.

Sharpening the mowing blade

The following points must be observed when re-sharpening the mowing blade:

Cool the mowing blade when sharpening, e.g. with water. The blade must not be allowed to display blue colouring, as this would reduce its cutting quality.
- Sharpen blades evenly to prevent vibration due to imbalance.

CAUTION

Risk of injury!

Check blade for damage before installing.

The blade must be replaced if notches or cracks are identified, if the blades are worn back by 5mm or if the blade is thinner than 2mm at any point (wear limits).

The sharpening angle of the blade is 30^ .

Checking the balance of the mowing blade

Guide the

19= screwdriver through the
20= central bore of the
17= mowing blade and align the blade horizontally.

If the mowing blade is properly balanced it will remain in this horizontal position.

If the blade leans to one side, re-sharpen this side until the blade is evenly balanced.

Installing the mowing blade

Risk of injury! Always wear gloves.

Install the

17= mowing blade with the curved wings pointing upwards.
For installation, use a
16= wooden block (approx. 60 × 60 mm ) to counterclock the mowing blade.
Tighten the
18= blade fastening screw to a torque of 10 - 15 Nm.

CAUTION

Risk of injury!

Observe the specified torque of 10 - 15 Nm when tightening the blade fastening screws, as the secure attachment of the cutting tool depends on this.

Additionally secure the blade fastening screw (18) with Loctite 243.

Adjusting the wheel drive cable

Maintenance interval: As required (wheel drive does not engage when the wheel drive lever is actuated)

The tension of the cable is adjusted correctly at the factory. However, the cable may have to be adjusted again following an extended period of use.

The adjustment is made via an

21= adjustment screw located on the left of the upper handlebar.

Correct adjustment:

Actuate the drive lever while pulling the lawn mower backwards.

The driving wheels must lock after approx. one third of the lever travel.

The cable tension is increased by turning the 21= adjustment screw in the ^ 十 + ^ 一 direction, turning it in the - direction reduces the tension.

CAUTION

Risk of injury!

If, when pulling back, the driving wheels are locked when the drive lever is not actuated, the cable is adjusted incorrectly and the mower drive is permanently activated.

As a result, the mower may start to move unintentionally immediately when started and this may result in injury or damage to the appliance.

The adjustment must be repeated (if necessary, contact a specialist dealer; VIKING recommends VIKING specialist dealers).

Storage (winter break)

The storage room should be dry and free of dust. The mower should also be stored out of reach of children.

Any appliance faults must be remedied prior to storage in order to maintain a safe operating condition.

Note the following points when storing the mower for long periods (winter break):

• Carefully clean all external parts of the appliance.
  Thoroughly lubricate/grease all moving parts.

Environmental protection

Lawn cuttings should be composted and not disposed of in household waste.

The appliance, its packaging and accessories are all produced from recyclable materials and must be disposed of accordingly.

By disposing of materials separately, and in an environmentally-friendly manner, valuable resources can be re-used. For this reason, the appliance should be disposed of for recycling after completion of its useful life.

Standard spare parts

Mowing blade

6340 702 0100

NOTE

The fastening elements of the mowing blade (e.g. blade fastening screw, lock washer) must be replaced when replacing the blade or when installing the blade. Spare parts are available from a VKING specialist dealer.

Minimising wear and preventing damage

Important information on maintenance and care of the product group

Electric lawn mowers

Please always observe the following important information for the prevention of damage or excessive wear to your VIKING appliance:

1. Wearing parts

Some parts of the VIKING appliance are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use.

These include:

• Blade
• Grass catcher bag
  Protection bumpers
  V-belt (ME 545 V)

2. Observance of the information in this instruction manual

The VIKING appliance must be used, maintained and stored with the care described in this instruction manual. Any damage caused by non-observance of the safety, operating and maintenance instructions is the sole responsibility of the user.

This applies in particular to:

• inadequately dimensioned power cords (cross section)
• incorrect electrical connection (voltage)
• product modifications not approved by VIKING
• the use of tools or accessories which are not approved or suitable for the appliance, or are of inferior quality.
• improper use of the product
• use of the product for sporting or competitive events
  resultant damage due to continued use of the product with defective components

3. Maintenance operations

All work listed in the section "Maintenance" must be performed regularly. If these maintenance operations cannot be carried out by the user himself, a specialist dealer must be commissioned to do it.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

If these operations are neglected, faults may arise which are the responsibility of the user.

These include:

• damage to the drive motor as a result of inadequate cleaning of the cooling air guide (inlet slots)
  corrosive and other resultant damage caused by incorrect storage
  damage to the appliance through the use of inferior-quality spare parts.
• damage due to untimely or inadequate maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.

Troubleshooting

Fault	Possible cause	Remedy	Page	Illustration
- Motor will not start	- No mains voltage - Connection cable/plug or plug connector or switch defective - Start button not pressed - Thermal motor overload protection has been triggered - Mower housing is blocked	- Check fuse - Check, replace if necessary	9 × 10 8, 9, × 11	11 16
- Frequently tripped mains fuse	- Unsuitable connection cord - Power overload - Appliance is overloaded due to mowing grass which is too long or too wet	- Use suitable connection cord - Connect the appliance to another circuit - Work at appropriate cutting height and mowing speed for mowing conditions	9 9 7, 9	7
- Excessive vibration during operation	- Blade fastening screw is loose - Motor mounting is loose - Blade imbalance due to incorrect re-sharpening or fracture	- Tighten blade fastening screw - Tighten motor fastening bolts - Re-sharpen (balance) or replace blade	12, × × 12, ×	19 18, 19
- No response when wheel drive lever is actuated (on ME 545 V)	- Wheel drive cable incorrectly adjusted - V-belt worn - Wheel drive cable damaged (e.g. kinked) - Gearbox is defective	- Re-adjust wheel drive cable - Replace V-belt - Replace wheel drive cable - Replace gearbox	13 × × ×	20
- Vario drive speed control not functioning (on ME 545 V)	- Lever moved in wrong direction - Vario drive cable disengaged or damaged	- Move lever in right direction - Attach or replace vario drive cable	10 ×	13
- Poor cut, lawn turning yellow	- Mowing blade is blunt or worn - The rate of feed is too high in relation to the cutting height	- Re-sharpen or replace mowing blade - Reduce rate of feed and/or select correct cutting height	12, × 7	19 7
- Starting problems or deteriorating motor performance	- Mowing grass which is too long or too wet - Mower housing is blocked	- Work at appropriate cutting height and mowing speed for mowing conditions - Clean mower housing (disconnect mains plug before cleaning)	7 11	7 16
- Ejection chute blocked	- Mowing blade is worn - Mowing grass that is too long or too wet	- Replace the mowing blade - Work at appropriate cutting height and mowing speed for mowing conditions	12, × 7	19 7

see motor instruction manual
If necessary, contact a specialist dealer; VIKING recommends VIKING specialist dealers.

	Unit	ME 545.1 ME 545.0 C	ME 545.0 V
Serial number		6340	6340
Motor, design		Electric motor	Electric motor
Manufacturer		ATB	ATB
Type		BSRBF 0,75/2-C74	BSRBF 0,75/2-C74
Voltage	Volt [V~]	230	230
Power input	Watt [W]	1600	1600
Fuse	Ampere [A]	10	10
Frequency	Hertz [Hz]	50	50
Protection class		II	II
Type of protection		IPX 4	IPX 4
Cutting utilities		Cutter bar	Cutter bar
Cutting width	cm	43	43
Speed of cutting utilities	rpm	2800	2800
Cutter bar drive:		permanent	permanent
In accordance with Guideline 2000/14/EC:
Guaranteed sound power level LwAd	dB(A)	94	94
In accordance with Guideline 2006/42/EC:
Sound pressure level at workplace LpA	dB(A)	78	78
Uncertainty KpA	dB(A)	1	1
Specified vibration characteristic in accordance with EN 12096:
measured value ahw	m/sec²	5,20	5,20
Uncertainty Khw	m/sec²	2,08	2,08
Measurement in accordance with EN 20 643
Tightening torque for blade fastening screw	Nm	10 - 15	10 - 15
Wheel drive, rear wheel		-	Vario
Wheel diameter (front)	mm	180	180
Wheel diameter (rear)	mm	200	200
Cutting height	mm	25 - 80	25 - 80
Grass catcher bag	l	60	60
L/W/H	cm	147x48x102	147x48x102
Weight	kg	26 / 30	32

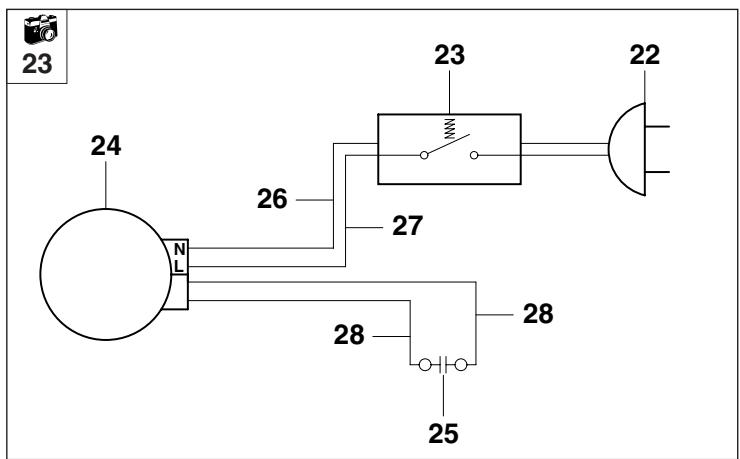

Circuit diagram

23

22 Mains connection
23 On/off switch
24 Motor
25 Capacitor
26 blue
27 brown
28 black

CE - Manufacturer's declaration of conformity

We,

VIKING GmbH

declare, that the machine,

Lawn mower, manually-operated and mains-powered

Name and address of relevant, named location:

TÜV Rheinland LGA Products GmbH

Tillystraße 2

D-90431 Nurnberg

Compilation and storage of technical documentation:

Johann Weiglhofer

VIKING GmbH

Description of symbols (2)

Manufacturer's

brand: VIKING

Type: ME 545.1

ME 545.0 C

ME 545.0 V

Serial number: 6340

Measured sound power level: 92 dB(A)

Guaranteed sound power

level:

94 dB(A)

Start the engine

Stop the engine

ME 545 V

Switch on the wheel drive

conforms to the following EU guidelines:

2000/14/EC, 2002/95/EC,

2002/96/EC, 2004/108/EC

2006/95/EC, 2006/42/EC

The product has been developed in conformance with the following standards:

EN 60335-1,

EN 60335-2-77

Applicable conformity assessment

procedure:

Appendix VIII (2000/14/EC)

The year of manufacture and serial number appear on the identification plate of the machine.

Langkampfen,

02.01.2013

VIKING GmbH

Weiglhofer

Research and Product

Development Manager

Transport

Always wear gloves in order to prevent injuries

due to sharp-edged and hot components.

• Switch off the mower prior to transport, disconnect power cable and allow the blade to come to a stop.
• Only transport the appliance once the motor has cooled down.
• The mower must always be carried by two persons.
• Use suitable loading aids (loading ramps, lifters).
• Secure the appliance on the load floor using adequately-dimensioned fastening material (belts, ropes etc.).
• When transporting the machine, always observe regional legislation, especially regarding load security and the transport of objects on load floors.

Please give this instruction manual to your VIKING specialist dealer when you have maintenance work performed on your VIKING product. Your VIKING specialist will confirm the correct performance of the required service operations in the "Service schedule" section.

Model: ME

Serial number:

Handed over

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Date:

VIKING dealer stamp

Next service

Date:

Chere cliente, cher client,

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

Het product is in

TÜV Rheinland LGA Products

GmbH

Tillystraße 2

D-90431 Nurnberg

Samenstelling en klassement

van de Technische

Documentatie:

Johann Weiglhofer

VIKING GmbH

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

2002/96/EC, 2004/108/EC.

2006/95/EC, 2006/42/EC

Oppbevaring over tid (winter) 14

Miljøvern 15

Vanlige reservedeler 15

Koble inn fremdriften

er i overensstemmelse med falgende EU-retningslinjer:

2000/14/EC, 2002/95/EC, 2002/96/EC, 2004/108/EC 2006/95/EC, 2006/42/EC

2002/96/EC, 2004/108/EC

2006/95/EC, 2006/42/EC

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

TÜV Rheinland LGA Products

GmbH

Tillystraße 2

D-90431 Nurnberg

• Slib kniven ensartet for at undgå vibrationer pga. ubalance.

Risiko for at snuble!

Opbevaring (winterpause)

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

ME 545 V

Start fremdrift

Produktet er uvdiklet i

TÜV Rheinland LGA Products

GmbH

Tillystraße 2

D-90431 Nurnberg

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

Vyvoj a konstrukcia tohtovyrobku prebiehala v sulade speoladju'ici imi pormori

Haselobjun EN 60335-1,

EN 60335-2-77

Použitá metodika hodnotenia zhodnosti vyroby:

Dodatok VIII (2000/14/EC)

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

ME 545 V

TÜV Rheinland LGA Products

GmbH

Tillystraße 2

D-90431 Nurnberg

2002/96/EC, 2004/108/EC,

2006/95/EC, 2006/42/EC

TÜV Rheinland LGA Products

GmbH

Tillystraße 2

D-90431 Nurnberg

Tpoxia Touaiaipoiou koinc 13

EeYxoc yyoOaθμiOg mAipoiou kon13

ToTioTeiOn muaiaipou 14

Pouon viciac ouotmuatoa autokivnong 14

IoproTOBka yctpoiCTBa K pa6ote 6

MoHTaxBeyuueyUKN 6

BepxHnY qacTb BeDyuee pyuKn 7

MoHTax KepeKaTeJI Ka6eJI 7

MoHTaX TpaBoc6OpHnKa 8

PerynipOBKa BbICOTb BeDyue pyuKn 8

LcHTpaIN3OBaHHa peYIpOVBKa BbICOTbI cpe3aHn 8

Подевшваиме И сгтп Травocборнka 8

Yka3aHnno Kocb6e m MylbNpObaHnIO 8

Kocb6a Ha cknlohax 9

IpaBnJIbHaN Harpy3Ka DBrIaTeIa 9

TePMo3aunTa dBVaTeTn OT nepepy3kn 9

Ppi6IokpOBepeKuJeroHoxa 9

IoproTOBka yctpoicTba K pa6oTe 9

IoiDcoeHHeHne K3JIeKtpnueckoCetu 10

OrpanuTeIb dInHb Ka6eIa 10

BkJIIOUeHHe ra3oHOKOcNlKn 10

BbIKIOUeHne ra3oHOKocNIkN 10

BkJIIOHHeI npIBOda 10

BbIKJIIOUeHHe npINBOda 11

INndkaTop 3aOpJHHeHH 11

OnycToWeHne TpaBoc6bOpnka 11

Texobcnykubahne 11

OuNTka yctpoCTBa 12

3JIeKToDvBraTeIb, KOJeca N Kopo6Ka nepeDaU 12

Bepxna YacTb BeDyuee pyuKn 12

m = 311

3TOT CnMBON Cnyknt DnB CBn nPncyHKOB Ha CTpaHnCax CnCyHKamn C COOTBETCTBYIOe YacTbTO TEKCTa B INHCTpyKcnn N0 3KcNpIyatau.

PncyHKn HaxoDTcB CaMOM NaaJIe INHCTpyKcIN N0 3KcNpIyatauIN

1= BnHT OTBnHTNb
2= pyKoIrKa ...

Obuee nepeuncnene, dna KToTopoRo HET pucyHka.

Ppimep:

UcTaHOBKa 6ByeJrIa3auNTbI OT nepeRn6aCJIeBa:

YKA3AHNE

UcTaHOBtB 6yTeJIb dIa3aunTbI OT nepeRn6a (2) B COOTBeTCTBmC pucyHKOM. Tpocbl N Ka6eN IOJXHb 6bIT ppOLOKeHb IoD BeDuSei pyKoI Ppi Heo6xOdMocTn pePeYcTaHOBKO Ocna6tB NOBOPOTHyIO pyKy (4).

BcTaBnTb BCE TpOcbI n Ka6eJI N
2= 6yreIb IJIa3aIITbIOT nepern6a. BhaJane BCTaBtB 6yreIb IJIa3aIITbIOT nepern6aB
11= BepxHHe OTBepCTne HnXHeJ Yactn BeDyuee pyuKn. 3aTeM 3aSeJIKNHyTb 6yTreIb DnA 3aUHTbO T nepeRn6aB
12= HNKHem PPOJOLbHOM OTBepCTnHNXHNei Yactn BeDyuee pyuKn.

UyctaHObKa 6yreIaIa3aunTbI OT nepern6a cnpaBa:

YKA3AHNE

Y MoJeN ME 545 Ha npaBoi CTopoHe BeDyuei pyKn He NmEeTc TpOCOB. IToTMoY y3Toi ra3OHOKOncIKn CneDyET yCTaHaBnBaTb 6ByeIb dIra 3aunTbI OT nepen6a (2) TOJbKO CJeBa.

MOHTaX

2=6yTJIaI3aIITbIOT nepeRn6a cnpaba BblIOJIHReTcTaKIM Xe nyTeM,KaIK CJeBOI CTOpOHbl.

OTKnDbIbAHne BeDyue pyu:

BHIMAHHE!

Onachoctb noJyHeHn TpaBM!

Ipeed TEM KaK CLOXnTb pykCy cJeDyET BbIKIOuHTb KocnKy I OTcoEINHTb ceBoi KaBeIb. 3aIpeaaeTcHarpyKaTb BepxHIOU qACTb BeJyuSei pyKn (Ha npImep, NOBecNB Ha Hee pa6Ouyo Odekjy).

Puck 3aueemlennra!

OTKNHyTb npBNOHO
pbUar MOxHOb,pa3o6uINB
NoBOPOTbIe pyKn. Ppi
HaKpyUNBaHmN NOBOPOTbIX
pyeK npDepXNBaTb
BepXHIOU qAcTb
npBODHO rO pbUra (A)
pyKoB B BepXHe TOnKe.

peympckBn BcCOTB BceynepyKu

OTBHTNTb, NOBOPaYBaAee npOTNB YacOBoI

CTpeIkn (npn6I. nIaTb 06opOTOB).

A= BepxHIOU yacTb BeDyuee pyuKN depKaTb oBeMN

pykamn npnbceTne ee

H= INHДИКаTOpe BbICOTbl Cpe3aHnI.

I= IpepeboDHO npbUar cHOBa OTnycTntbN

OTpeYnilpoBaHHyIO

cneJeTyPacnyTbIBaTb6e3

PnPomeIeHna.

Ppi npimenehenn

ka6eJbHoro 6apa6aHa

coeHnHTeNbHbKabelb

DONXEN 6bITb NIOHOCbK

paKpyeH, nHaue n3-3a

3JIeKtpuYeCKoTO

CONPOTNBLEHIN MORYT

BO3HNIKHyTb NOTepN

MOUHOCTN INpeperpeB.

IpoIroTOBka yctpoiCTBa K pa6Ote

Bo Bpem Kocb6bl CneiHtB 3a pacnoJoxKeHnEM coeHNHTbHoro Ka6eJI. CoeHNHTbHbIe Ka6eNI MoXHO npu Koc6be CnyauHaHO nOpE3aTb N B CBraN C 3TNM ImeETc 6OJIbwo pNCK TpaBMaTHMa. BcJeDCTBne BblweyKa3aHHORO cKaUWBAHne Ipon3BOiNTb TOJbKO B TaKnx ycNoBnX, YTO6bl COeHNHTbHbI Ka6eJIb BCerda JexKaIbnIMbIM Ha yXe CKoUHeHHOM yAcTke.

Kocb6a Ha ckNohax

10

S= NycKObyo KhoNky HaxKaTb u ydePKNBaTb.

War 2:

R= ByreIb ocTaHOBKn DnBraTeIaHaKaTb K BeNyuei pyuKe n ydepxkBaTb.

Ipeed TEM KAK OCTaBnTb ra3OHOKOcNkY, BCErda CLeNyET BbIHMaTb BnKy n3 CETn!

BkIIOUeHne npuBoDA ME 545 V

YKA3AHNE

PnBODfynKUOnHpyET TOIbKO npn paOtaUcEM DBrTaTeNe.

PnOCTaHOBJIeHHOM
DnIraTeIe pyKoRTKy
perynipyemoro npNBOda (U)
He pa3pe7aetcnaHaxmMaTb,
Tak KaK 3TO MOKeT pnpBeCTn
K NOBpeKJeHIO npNBOJHO
MexAHIm3Ma (pyKoRTKa
6JokuropBaHa).

War 0:

T= PnBODHyO pyKoTky NOTAHyTB K BeDyuee pyuKe N yDePxNBaTb. BKnHouaETc npBDo KocNJKn.

War 2:

INHdNKatOp 3aONJIHeHn

TpaBoc6opHnK cha6keH N= HnDnKaTOPOM 3aOpJHeHH TpaBbHa BepxHneJcAeTn TpaBoc6opHnKa.

Bo3duhblnnotok, Bo3HnKaHOu3a Cuet BpaueHnpejUeRO HOka n cNoC06CTByUoUs 3aOpHHeHIO TpaBOc6OpHnKa TpaBOi, npnpOHNMaet INDnKaTOp 3aOpHHeHn:

TpaBOc6OpHNK 3aNoHnReTcR cpe3aHHo TpaBOi.

EcIn TpaBoc6bOpHk 3aONHeH TpaBO,TO BO3dUshHbI NOTOK yMeHbShaeTcN INHdNKaTOP 3aONHeHn ONyCKaETc:

TpaBoc6opHnK 3aOpHHeN Do OTka3a n erO Heo6xOdImo ONyCToWntb (cM. rIaBy "OnyctoWeHne TpaBoc6opHnKa").

OnyctocheNe TpaBoc6opHnka

BHIMAHHE!

Onachoctb TpaBMaTn3Ma!

PnPiOBBeINBaHmN n CHaTm TpaBoc6OpHnKa DBrIaTeJIb DoJXeH 6blb 06a3aTeJIbHO OTKIOUey

YKA3AHNE

3aONHeHHbI Do OTKa3a TpaBOc6OpHk MOKeT IMeTb MaKcMaJIbHbI BEc 16 Kr.

TpaBoc6OpHKn CHaTB C yCTpoiCTBa (CM. rIaNBy "PiDBeWnBaHne n ChrTne TpaBoc6OpHnKa"). OTKpbITb TpaBoc6OpHnK, NotAHyB 3a

13=ФИКСИРУОЛЧИО ППАнКУ, NOTKINHyTb HABePx

5= BepxHIOU qactb TpaBoc60pHnka.

3aNoJIHeHbIe

K= TpaBoc6bOpHnK OnpOKuHyTb Ha3a.Д. Pn nOMOUs

14=pyuKN(BepxHnYaCTb TpaBoc6OpHNka) n
15=pyuKN（HnXHHaYacTb TpaBoc6opHNka) TpaBoc6opHNK MOxHO yOboHo yDePknBaTb NOnyCToWsaTb.

TexobcnyxmbHne

BHIMAHNE!

Onachoctb TpaBmatn3Ma!

YtO6bI NCKJIIOUHTb

HeppeHaMepeHHoe
BkIIOUeHne DBnraTeJI,pepe
BCEMnpa6oTaMn IO
TexO6cJnyKmbAHIO N OCHCTKe, a TaKke pepe npa6oTaMn C
HOJKOM KOCUNKI, CJeDyET
063aTeJbHO OTCoEINHTb
CteBOJ Ka6JIb.

Onachoctb TpaBmatn3ma! Pa60taTb TOnbko B nepaatkax.

3aIpeSeHNO pNkacatbCn KHOkyKocuIK,POKa HOK NOHOCtBIO He OCTaHOBITc. ⅡIaONUyeHnraHeo6XoIMbIX CBeDeHn nn NOMOUsn 06paauTecb Bcerda K COTpydNHky cepBnCHOH cnJx6bl. VIKING peKOMeHNyET BblONHHTb pa60Tb ITO TexO6cnyXnBaHHIO n PemOHrToNko B CneuaJIIN3nPOBaHHOM cepBnCHOM cENTpe VIKING. VIKING peKOMeHNyET POJIb3OBaTbcOpINHaJIbHbIMn 3aInuactmVIKING.

OuHCTKa yCtpoiCTBa

17

InTePbAn Texo6cnyxmbaHn: nocJe KaXdOrO npImeHeHH

UcTPOIcTB Heo6xOIMMO OuHuaTb NocLe KaKJdOro npImeHEnn. IpaBnJIbHbI yXoJ 3a yCTPOIcTBOM 3aunuaet erO t NOBpeKJeHn n yBeJIuHNaET cPOK cnjx6bl.

YTo6bI o6ceueHTb
IOCTaTOUHoe OXnJaXeHne
DBnIraTeJI, CNeJyET OChuTaTb
OT 3aRpa3HeHNI KaHaI
OxJaXdaIOUeRO BO3DyXa
(KaHaI BCacbIBaHnI) MeKdY
KOxyOM DBnIraTeJI n HIXKeH
YacTBIO KOpnyca.

OuHCTNTb HOK KOCUNKn. OUHsTaTb qeTKoN I BOoH NHHHOIO NOBepxHocTb KOCUNK.N DaJIaTb CO6paBUnHeC oCTaTKn TpaBbI B Kopnyce n KaHaJe Bbl6poca depeBraHHo nanoUckoN.

HnKOrda He HnPaBnTb
CTpyn BOdbHa y3JIbI
DBrTaTeJy, yNlOTHeHnI N
ONOpHbIe MeCtA, a TaKxHe Ha
DeTaN 3JeKtpOo6OpdyOBaHnI,
KaK, HApPmEep, BbIKJIOuOaTeJN.
Ppi HecO6JIouDeHnI
BbIseyKa3aHHOrO CNeEdCTBnEM
MOKeT CTaTB DpOroCToUnni peMOHT.

HeIb3Я nCNoJIb3OBAtB arpeCCNBHbIe YnCTaIuIe cpeIcTbA. TaKHe OUnCTntTeI MOrTy NOBpeIITb IJaCTMaCCy I MeTaII, YTO MoXeT BbI3BaTb HApUSeHne 6e3OnaCHOkCNpIyaTaUIN yCtpoiCTBa VIKING.

Ecni 3aqr3HeHn He ydaetcYdAJIInb C NMOUbO BOdbI, UETKN INIIN TPRKNI, TO VIKING peKOMeHNyET npImeHnTb CneuaJIbHbI OuNCTntelb (HaNPmep, CneuaJIbHbI ONUCTNTelb STIHL).

BHIMAHHE!

Onachoctb TpaBMaTH3Ma!

IpepeoPOKiDbIBaHHeM KocnIKNoCTaBtBeeHa TBepdyIO,Topn3OHTaJIbHyIO n POBHyIO NOBepxHOCTb, yCTaHOBtB HAnBblCUsNI yPOBeHb Cpe3aHnA (ypOBeHb 7),Tak KaK B INHom CInyae KocnIKa MOKeT CHOBA OIpOKnHyTbCra Bpepe.

YKA3AHNE

Ipi pa6oTax no Ounchke n TexO6cnyxKINBaHIO KocnIKy ONpOKnDbIBaTB nepeDnHMn KOlecamn Bbepx. Ipeep ONpOKnDbIBaHNEM CHrTb TpaBOc6OpHNK, CLOXnTb BEPxHIOU qAcTb BeDyuee pyuKn (cm. rnaBy "MoNTax BeDyuee pyuKn") n POnHrTb OTKnIDHyO KpbIshKy.

3NeKtpoBvIraTeIb, Koneca n Kopob6ka nepea

3JIeKtpoDnBiratelbHe Tpe6yETexHnueckoro 06cIyXuBaHaHa.

UapNKoONDiuINHnKu Konec Htepe6yIOT Texo6cyxuBaHna.

Perynipyemar kopo6ka nepea (ME 545 V) He Tpe6yeT texo6cnyxmbaan.

Bepxha yactb Beyuue pyuKn

IHTepBaI texo6cnyxuBaHnra: nepeK KaXdbIM npImeHeHnem

BepxHra qactb pyknynpaBneHn o6THyta n3oJnuei. EcIn OHa nOBpexJaetc,TO BepXHOIO qactb pyKnypaBneHn He06XoDmO 3aMeHnTb.

Onachoctb TpaBMaTn3Ma n3-3a BO3MOXHOrO NopaxKeHnA 3JIeKTPnueckm TOKOM!

Texo6cIyXnBaHne HOKA KOCNJK

BHIMAHHE!

Onachoctb TpaBMaTn3Ma!

Pn3aTOUKe JIe3BnMOryT CTaYBaTBcRA MaKcIMMyH Ha 5 MM.

Дя npOBepkn npINOJKNtBJ NHeKy

22= K IpeHEmy KpaIHOxHa N IPOKOHtPoJINpOBAtB CTeNEHb N3HOca.

BHIMAHHE!

EcnHa ra3oHOKOuKy UCTaHOBJeH He npIlaRaembI HOK, a HOK dIpa3MeJIbYeHnT TpaBbI KaK pINHaJNeXHoCTb, NOCTaJIeHHaN 03aKa3y, TO COOTBeTCTBeHNO 3TOMy DeIcTBYIO TpyrIe HOpMbI IpeJeIbHOrO n3HOca.

BHIMAHHE!

Onachoctb noJyueHn TpaBM!

6aJIaHcNpOBKn HOXa KOCNJK

19=OTBepTKy BBecTN B
20= cpeDHee OTBepCTne
17= HOXa KOCINIKN BbICTaBnTB HOX KOCINIKN rOpN3OHTaJIbHO. EcNI HOX KOCINIKN OTbAJaHCnPOBaH npaBnJIbHO,TO OH OCTaETCB rOpN3OHTaJIbHOM NOJIOKeHN.
Ecn HOK Kocniln HAKLOHReTcB CTOpOHy, TO 3Ty CTOpOHy HOka 3aTOUHTb, DO NOJHOBOCCTaHOBJIeHn6aJaHca.

MOHTaX HOxA KOCHJIKN

Onachoctb TpaBmatn3Ma! Pa60taTb TOnbko B nepuATkax.

17= Hox KocNIKcIeIyET MOHTnPOBaTb I3OgHyTbIMN 3aKpbIKNaMn BBepx. JnMa MoHTaxKa npImHeHtB
16= DepeBraHHbIb6pycOK (pnp6n.60x60MM)JnA yDePknBaHna HOka KocNIk.
18= BnHT HOka 3aTAYHyTb Do OTKa3a KpyTAAUM MOMeHTOM 10-15 Hm.

BHIMAHNE!

Onachoctb TpaBMaTn3Ma!

Yka3aHHbIe 3HaueHnI
MOMeHTOB 3aTAAKKN BnHTOB
HOKa 10-15 Hm ToUHO
BbIePxNBaTb, TaK KaK OT
3TOrO 3aBNCIT HaEJXHoe
KpeJIeHne peKyuIero
INHCTpyMeNTa.

IOnOHnTeNbHO 3aΦnKcnpoBaTb BnHTbl HOxa (18) KJeeem Loctite 243.

YcTaHOBKa npNbOdHOro Tpoca

HHTepBaI
Texo6cnyxmbaHnA:
No Heo6xOAnMoCTn (PpNBOD
He BKIOUcaETc npN
3aTHyToI pNBODHO
pykoATke)

HaTaeKeHne Tpoca
yCTaHOBHeNo IpaBnIbHo Ha
3aBOe-ntroTOBHTeNe.Ho
MOKeT CnyuHTbc, YTO nocJe
dINTeJIbHOrO BpeMeHi
IOJb3OBaHn Tpoc
NOTpe6yeTcA OtperyIpopoBaTb
CHOBa.

PerynpoBky BbINONHrTb HaxoJzIMcCneBaHa BeDyue pyKe

21=peryIINIOBOOHBIMBHTOM.

IpaBnJIbHa npeyInpoBka:

HaKaTb npINBOHHyO pyKoRTKy I OJHOBpeMeHHO NOTAHyTb ra3OHOKOcNIky Ha3a.i.

Haunna, npnbni3ntelbno c Ondn TpeTn XoDa pykoRTkn npBODHbIe Koneca DOnJXHbI 6loKnpoBaTcR.

Bpe3yIbTaTe BpaUeHnA
21= peRyIuPBOOCHOro BNHTa B HAnpBaJIeHn " ^+ HaTJXeHne Tpoca
YBeJIuNBAeTC,
BpaUeHne B HApPaBJIeHn
"-" yMeHbJuaeT
HaTJXeHnE.

BHIMAHNE!

Onachoctb TpaBMaTn3Ma!

Ecni npi DvIXeHn Ha3aI npINBOIDhIE KOneCa 6JIOKuPyUOTcYxke npi HENPUBEDeHHoB DeCTBnE pINBOHOH pyKoRTKe,TO pINBOHOH TPOC HeNPaBUNbHO OTpeRyInpOBaH IN pINBOD KOCNkN IocToaHHO BKJIOueH. B pezyltaTe KocNlka MOXeT pNiDTN B DvIXeHne yXe npi 3aNyScKe, CJIeCTBnEM MOXeT 6blr TpaBMAtn3M JIoDei Nm MaTePnaJIbHbI yUep6.

Heo6xoDIMO npOn3BecTn NOBtOpypeRyInpOBky (pnp Heo6xoDIMOcTn 6paTaTbcra B cepBnchHyO cnjx6by, VIKING peKoMeHdyeT CneuaJIIN3IpOBaHHbI cepBnchbI ceHTp VIKING).

XpaHeHne B3MHHn nepNoD

IomeeHne IJxpaHeHHaDJIIXHO 6bITb cyXmI HeIbIbHbIM.KpOme TORO, KocNIky CJeIDyET XpaHHTB B HeIOCTYINOM IJr DeTei MecTe.

Bo3MOxHbIe HeNCnpaBHOCTn Ha yCTpOiCTBe CNeDyET yCTpaHrTb, B npHcUInpe, nepeJ yCTaHOBKO MaunHbI Ha xpaHeHne, YTO6bl OHa HaxoDiNlAcb BCerda B COCTOARNI rOTOBHOCTN K 3KcNJyatauIN.

Ppi dIInTeBbHom npocToe KocnKn (B nepno3mHero xpanenna) co6JIOaTb CJeNyUOuNe nyHKtbl:

• Bce HapxHbIe YacTn yCTpOJCTBa TuaTeJIbHO OuNCTNTb.
• Bce DnBxKyUeNcEaTeaN cnEduyET XopoOo Cma3aTb maclom nnn Cma3KoI.

Oxpana okpykaioi cpebl

Скошени Трава НЕ OТHCNTСК ОТXDам,е спдуET ИСПЛьЗВАТь ДЛЯ ПИГOTOBЛЕнHA КOMПОCTA.

YnakOBKn,ycTpoNCTBO n OChactKa n3rTOBnHbI n3 MaTePnaJIOB,IPnFOJNbIX dJI BTOpUHOrO nCnONb3OBAHN, INX MOxHO COOTBeTCTBeHHO yCTpaHtB.

Pa3dJIbHoe yCTpaHeHne
OCTaTKOB MaTePnaJIOB,
yIOBnIeTBOpRIOoee
3KONOrUHeCKNt Tpe6OBAHNAM,
CNOOC6CTByET BO3MOXHOCTNI
MHOROkPaTHORIO pIMMeHENIA
MaTePnaJIOB. ITO3ToI pInuHHe
IocNe IcTeUeHnO O6bUHoro
CpOKA Cnyx6bl OTnpaBNbTb
yCTpOINCTBO Ha CBAnKy.

CTaHdapThbIe 3aNpaTn

Hoxkocnilkn63407020100

YKA3AHNE

KpeEnxHbIe 3JeMeHTbI KOcNIOUChO HOXa (HaPnIMep, BnHT HOXa, cTOnOpHyo 7aMy6y) HE06XoDmO 3aMeHrTb IIPI 3aMeHe IIN MOtTaKe HOXa. 3aPuaCTn IMeIoTcB B CpeuAIn3NuPoBaHHOM cepBnCHom ceHTpe VIKING.

CBeJeHne K MInHMMy N3HOca N ppeDoTbpaueHne IOBpeXdeHn

BaxkhbIe yka3aHnI no Texo6cnyKuBaHNIO u yxOdy dIy cIeNyUOxN rpynn n3dJIiN

K HIM OTHOCATC Cpei Dpynx:

HOK
- TpaBoc6opHnK
HaKJa,dKn
- KJIINHOBOI pemeHb (ME 545 V)

2. Co6IIODeHHe npednncAHn daHHo IHcTpyKcNn NO 3KcJIpyatauN

IcnoIb3OBAHne,Texo6Cny
KINBaHne I xpaHHeHne yCTpoCTBa
VIKING DOJXHBi
OcyueCTBIAITbC TOTHO,KaK
OINCAHO B3ToI INCTpyKUHNIO
3KcnPnYatauN.IoJIb3OBATeJIb
CAM HeCET OTBeTCTBeHHOCt 3a
BCE NOpeXDeHNI Uyep6,
BbI3BaHnHbIe HecO6JIIODeHnEM
yKa3AHNI PO TEXHIke
6e3OpacHOCTNI,yKa3AHNI PO
TEXHnueCKOMy O6ClyXnBaHNI.
3TO,B nepByIO OuepeDb,
pacnpocTaPAHETCA Ha:

HeBepHO OnpedeJeHnHbIe npaMeTpby UyInHITeJIa (nonepueHoe cehenHe)
HePpABINbHOe PIOKJIIOUeHne K3JIeKTPnueckoCetn (HaNPaJKeHne)
TEXHnueckne N3MeHeHnN 13JeIIN, HecOrJIacOBaHHbIe C npMoi VIKING
-ПгименецнСТуМЕТОВ ИЛКOMПЛКТУОПИX, KOTOPБЕ He ДОПУЧЕБИ ПЛИН приюнБД ДЯ YСТРОМСТВА, ИЛПЯ YВЛЯЮТСА HIN3KOKaЧЕCTBEHNHBIMN.
IICNOJb3OBAHHe I3JeJIHnHE B COOTBETCTBmC Ha3HaueHnEM
IpIMeHHeNmDJIbI BO BpeM CnOpTnBhblX MepoPnrti nn KOHKypcoB
KOCBeHHbIe y6bITKN Bpe3yIbTaTe NocJeDyUOeRONCIOJIb3OBAHnIA3DeJIINACHeNCpPaBbIMN DeTALAMN

3. Pa60tblno texo6cnyxmbaHHIO

Bce pa60tbl, npBBeHbIe Bpa3dJeE"Tex6cnyxuBaHnne, D0JXhbl pOu3BODITbcr peryIaRho.EcIn 3tn pa60tbl no Tex6cnyxuBaHnIO NOb3OBaTeIb HE MOKeT pOn3BODITb CAMOC7OraTeIbHO, TO Heo6xOIMo 6bpaITbcr B cepBnCHyU cNyXbY.

VIKING peKomeHdyET BbIOnHArTb
paOToBIO TEOxO6CnyXnBaHIO
npeMOHTbTOJbKO
B CNEUAnI3NpOBaHOM
cepBnCHOM CEHTpe VIKING.

ДлгСоТPydнIKOBсрВИСьIx цentroвVIKINGperyIapHOn пядостаиLOTcI npOrpamMbI обчEHNlIxTExHnuecka Инфорmaци.

B cnyae yuepe6a n3-3a NOBpexkdeHn BcIeDCTBne HeBbIOnHHeHbIX pa6OT NO TexOcLnyKunBaHNo, OTBeTCT- BeHHoCTb HeCET NJIb3ObaTeNb. K TAKIM NOBpexkdeHnM, KpOME npOeRo, OTHOCATC:

• NOBpeKdEHNA 3JIeKTpOdBnIaTeJIa BCJIeCTBnE HeKaIcTeBHeHHoU OCHCTK KaHJAn OXJIaXkDeEHNA (KaHJI BCaCbIBaHHa)
  Koppo3nHbIe IOBpeXdEHnI IN DpyrIe NocJIeCTBnI HnPaBnIbHO rO xpaHeHnI
  IOBpeKdEHHyUCTpoIcTBa Bpe3yIbTaTe pImMeHHeHH HeKaueCTBeHHbIX 3aIpaCTe.
  IOBpeKdEHHB CJIeCTBHe HECBOeBPemEHOCn IIN HeIOCTaTOHOCn Texo6cJyKbAHnI,IIIN paob0 IO TEXo6cJyKbAHnIO IN peMOHTy,KOTOpbl EPOIN3BODINCS HeYIOJHOMOChEHHbIMC CNEUmaNCTAmI cepBnCHOH CUYKbI He B CNEUaJIIN3IpOBaHHbIX MaCTepCKNX.

BkJIOUHTb npBOD DnIXKeHnI

ДeКларачи n3rotobteЯ O COOTBETCTBIM dupeKtubam EC

Mbl,

VIKING GmbH

Hans Peter Stihl-Strasse 5

A-6336 Langkampfen / Kufstein

3aBJIaEM,HTOMaUNHa

Ta3OHOKOCNIka, IpeMeIaemar BpyHyIO n pa6oTAoIaIaOT cTeN

3aBOcka

mapka: VIKING

Tin: ME 545.1

ME 545.0 C

ME 545.0 V

CepriiHbI

HOMep: 6340

COOTBETCTByET CLENyIOUIMM DInpeKTeNbAM EbponeiCKoro Coo6uectBa (EC):

2000/14/EC, 2002/95/EC, 2002/96/EC, 2004/108/EC, 2006/95/EC, 2006/42/EC

I3dJIe 6bIpo pa3pa6oTaHO B COOTBETCTBUN CO

CNeDyUOUMN HOpMaMn:

EN 60335-1,

EN 60335-2-77

PpIMMeHHeHHb MeToD OceHKn

COOTBETCTBNA

ДиректИВам:

ПрилJOхенье VIII (2000/14/EC)

Ha3BaHne n aDpec

PnINHmAbWeyactne

INHCTaHcIM:

TÜV Rheinland LGA Products GmbH

Tillystraße 2

D-90431 Nurnberg

CocTabJeHne HxpaHeHne

TEXHnueckoI DOKyMeHTaUIN:

Johann Weiglhofer

VIKING GmbH

IzhmepeHHbI ypoBeHb IyMa:

92 έB(A)

TapaHTnPOBaHHbI yPObEh bUma:

94 έB(A)

Iog BbInycka n cepinHbH HOpem yKa3aHbHa 3aBOdCKo TabnUcKe yCtpoiCTBa.

Langkampfen,

02.01.2013.

VIKING GmbH

Weighlofer

PykoOIOnteIb OTeIa

Hayhblix NCCJeObaHn I

pa3pa60Tkn npoDyKcnn

TpaHcnpToPbKa

A

npedotbpaueHNA

TpaBM OCTpbIMN

TOPAUM YACTHM

yctpoiCTBa pa6oTaB B

nepchaTkax.

OCTbIBWEM DBNrTaTeJe.

He nepeHocntb

yCTpOINCTBOBODINHOUKy.

• IcnoJb30BaTb

NoDxOJaIe NoIpy3OuHbI cpeIcTBA (nOpy3OuHbI paMnbl, NOIbEMHbI yCTpOiCTBa).

3aKpePnTb yCTpOInCTBO Ha nOrpy3oHNo

Pnatafopme Kpenekom

DOCTaTOUHON

rpy30pOIObEmHOCTN

(pemHn, TpocbI np.).

• Пи Транспортукове

YCTPOINCTBA Heo6xOdHMO

Co6JIOdaTb MeCTHbIe

3aKHOdaTeIbHbIe

PpeDncaHnB

OCO6eHHoCTn NO

6e3oNaChOCTn Norpy3kn

TpaHcNtOpOBKe

PpeDMeTOB Ha

NOrpy3OuHbIX NlaTΦopMax.

IpepaTe 3Tu INHCTpyKcHIO NO 3KcPnyatauIN B cneuaJIn3nPoBaHHbI cepBnCHbI ueHTp VIKING,ecnBbI o6paaTeCeTb TuJa dJIr npOBeJeHn paBoT IO Texo6cJyXkBaHN BoAweO yctpoiCTBa VIKING.

IpeDCTaBnteJIb cepBnCHOrO ueHTpaVIKING 3aHeCET noTBePjDeHne BrnaBe "IpaФИК cepBnCHOrOobcIyXnBaHnI OHaIeXaUeMBbIOnJHHeNm IpeDyCMToPeHHbIX pa6OTno cepBnCHOMy ObcIyXnBaHnIO.

Moelb:ME

CepinHbI Homep:

PepedaHa

Data:

Peeatb cepBvncHoro zentra VIKING

CneyuouzhiTexocMToTp

Data:

Дараз:

CleyuouzhiTexocMToTp

Дараз:

Data:

Пechаь сервс Horo ZeHTpa VIKING

CleyuouzhiTexocMOTp

Data:

Дараз:

CleyuouzhiTexocMToTp

Дараз:

Data:

Пechаь сервс Horo ZeHTpa VIKING

CleyuouzhiTexocMOTp

Data:

0478 121 9909 E
