USER MANUAL PET23 VARIO PARKSIDE

Operation and Safety Notes

HU ELEKTROMOS TÜZÖGÉP

Proper use . Page 6
Features and equipment.. Page 6
Included items.. Page 6
Technical information.. 7

General safety advice for electrical power tools

1.Workplace safety.. Page 7
2. Electrical safety.. 8
3. Personal safety.. Page 8
4. Careful handling and use of electrical power tools.. Page 9

Safety advice for electric tackers.. Page 9

Commissioning

Staples/nails.. 9
Loading the magazine.. Page 10
Switching ON and OFF.. Page 10
Setting the impact force. Page 11
Stapling. Page 11

Rectifying faults.. Page 11

Maintenance and cleaning

Disposal

Information

Service centre. Page 12
Declaration of Conformity/Manufacturer. Page 13

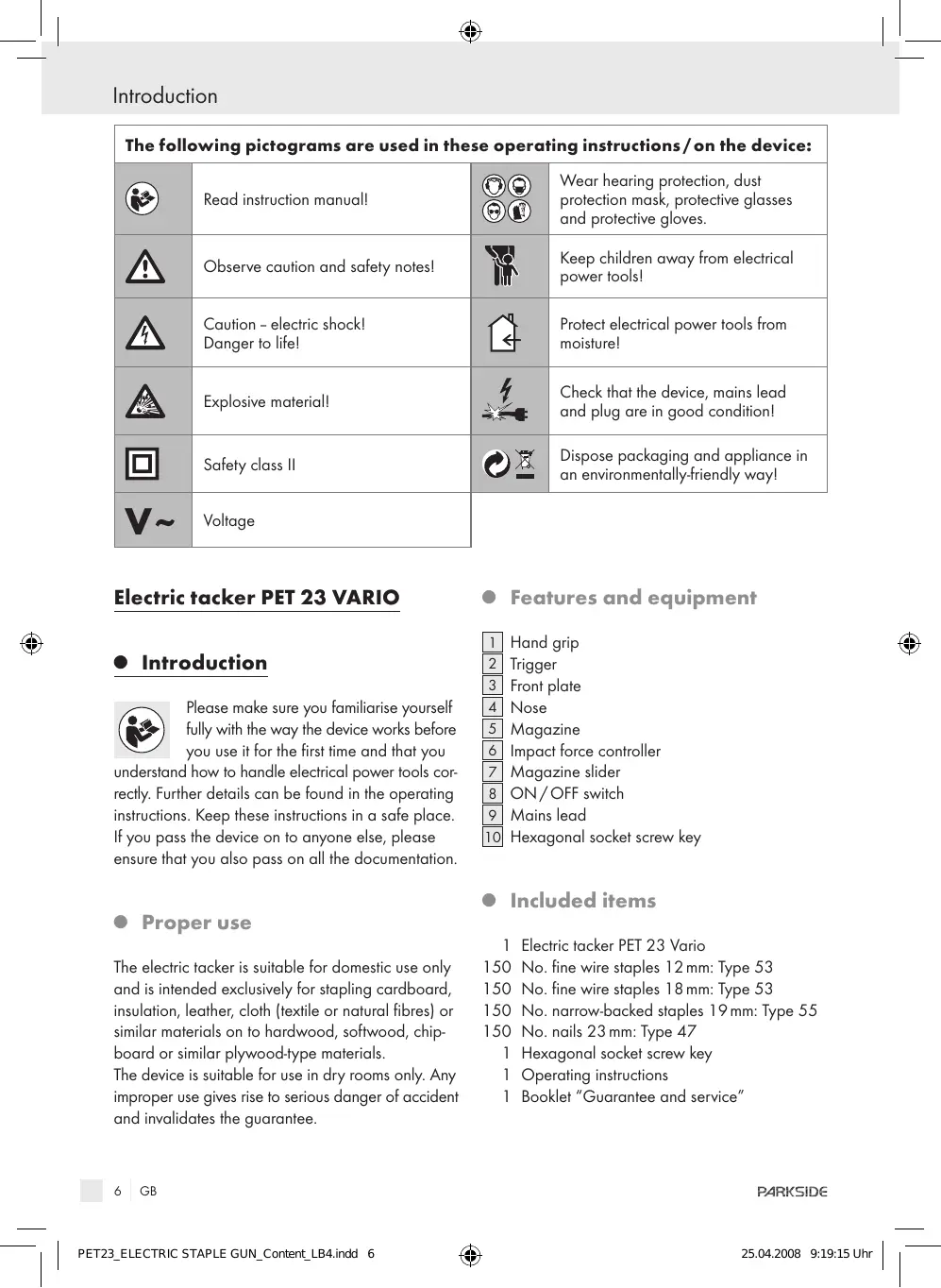

The following pictograms are used in these operating instructions/ on the device:
	Read instruction manual!		Wear hearing protection, dust protection mask, protective glasses and protective gloves.
	Observe caution and safety notes!		Keep children away from electrical power tools!
	Caution - electric shock!Danger to life!		Protect electrical power tools from moisture!
	Explosive material!		Check that the device, mains lead and plug are in good condition!
	Safety class II		Dispose packaging and appliance in an environmentally-friendly way!
V~	Voltage

Electric tacker PET 23 VARIO

Introduction

Please make sure you familiarise yourself fully with the way the device works before you use it for the first time and that you

understand how to handle electrical power tools correctly. Further details can be found in the operating instructions. Keep these instructions in a safe place. If you pass the device on to anyone else, please ensure that you also pass on all the documentation.

- Proper use

The electric tacker is suitable for domestic use only and is intended exclusively for stapling cardboard, insulation, leather, cloth (textile or natural fibres) or similar materials on to hardwood, softwood, chipboard or similar plywood-type materials.

The device is suitable for use in dry rooms only. Any improper use gives rise to serious danger of accident and invalidates the guarantee.

- Features and equipment

Hand grip
2 Trigger
3 Front plate
4 Nose
5 Magazine
6 Impact force controller
7 Magazine slider
ON/OFF switch
9 Mains lead
10 Hexagonal socket screw key

- Included items

1 Electric tacker PET 23 Vario
150 No. fine wire staples 12mm :Type 53
150 No. fine wire staples 18 mm: Type 53
150 No. narrow-backed staples 19 mm: Type 55
150 No. nails 23mm :Type 47

1 Hexagonal socket screw key
1 Operating instructions
1 Booklet "Guarantee and service"

Technical information

Nominal voltage:

230V 50Hz

Impact cycles:

30/min

Short-term

operation time (KB):

Protection class:

max. 15 min

Noise and vibration data:

The sound pressure level (A-weighted) of the device is typically 95,0 dB(A). The sound level while working can exceed 108,0 dB(A).

Wear ear protection!

Evaluated acceleration, typical:

Hand/arm vibration a_h = 5,54m / s^2

WARNING! The vibration level given in these instructions has been measured in accordance with a standardised measurement procedure and can be used to compare devices.

Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. In some circumstances it is easy to underestimate the vibration load if the electrical power tool is used regularly.

Note: If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

PET 23 VARIO

KH 3145

230V-50Hz

30/min

KB

max.

15 min

Type 53

12-18mm

Type 55

12-19mm

Type 47

23mm

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

General safety advice for electrical power tools

WARNING! Read all the safety advice and instructions!

Failure to observe the safety advice and instructions may result in electric shock, fire and/or serious injury.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.

b)

Do not work with the device in potentially explosive environments in which there are

inflammable liquids, gases or dusts.

Electrical power tools create sparks, which can ignite dusts or fumes.

c)

Keep children and other people away while you are operating the electrical tool.

Distractions can cause you to lose control of the device.

2. Electrical safety

To avoid danger to life from electric shock:

a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.

c)

Keep the device away from rain or moisture. Water entering an electrical device increases the electric shock.

d)

Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the bus hang up the device or to pull its plug out of the mains socket. The mains lead away from heat, no edges or moving parts of the Damaged or tangled mains leads the risk of electric shock.

e)

When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.

f)

Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment

is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.

b)

Wear personal protective equipment and always wears safety glasses. The wearing of

personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.

c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it.
Accidents can happen if you carry the device with your finger on the ON/OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in

hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

Safety advice for electric tackers

Ensure that staples and nails cannot strike people or animals.
Protect your eyes. Wear protective glasses. This also applies to people who may be helping with the work by supporting or holding the workpiece.
Make sure the tool is switched off before you load the magazine [5]. To do this set the ON/OFF switch [8] to position "0".
- Do not use the tool to fix electrical cabling in place.
- Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
Always work with the mains lead leading away from the rear of the device.

Commissioning

The mains voltage at the mains socket must match that shown on the rating plate on the device. Devices marked with 230V can also be operated at 220V

Staples/nails

Note: The device is designed to use the following standard, widely available staples and nails:

Type	mm
55	12, 14, 16, 18, 19
53	12, 14, 18
47	23

Note: Suitable accessories can also be obtained from the Service Centre for your country.

The following information shall be considered as recommendatory only. Determine for yourself by practical tests the best staple or nail type and the optimum impact force setting for your substrate.

Staple/nail type	Length(mm)	Recommended impact force setting for:
		Hardwood(e.g. oak or beech)	Softwood(e.g. spruce or pine)	Chipboard/MDF board	Plywood(e.g. wood core plywood)
→|11,4mm←	12	5-6	1-4	4-6	5-6
	14	6	2-5	5-6	6
	18	6-7	4-6	6-7	6-7
Type 53
→|6mm←	12	5-6	3-5	2-5	2-5
	14	5-6	3-5	3-5	3-5
	16	6-7	5	4-5	4-5
	18	7	5	4-6	4-6
	19	7	6	5-7	5-7
Type 55
→|L←	23	7	6	6-7	6-7
Type 47

- Loading the magazine

Use only fine wire staples (type 53), narrow-backed staples (type 55) or nails (type 47)!

Press the magazine slider 7 in the direction of the magazine 5 and guide it upwards.
Pull the magazine slider 7 completely out of the magazine [5].
□ If necessary remove any staples or nails of the wrong type from the magazine 5.
- Slide the correct staples or nails into the magazine.
Look at the depiction on the magazine slider for how to insert the staples or nails correctly.
Push the magazine slider into the magazine 5 until it meets the stop.

Then press the magazine slider 7 downwards until it has definitely engaged.

- Switching ON and OFF

CAUTION! Connect the tool to the mains only when it is switched off. To do this set the ON/OFF switch 8 to position "0".

To switch ON:

Set the ON/OFF switch to position "1" (see Fig. A).

To switch OFF:

Set the ON/OFF switch 8 to position "0".

Blow count:

The Electric Tacker PET 23 VARIO is designed for 30 blows per minute.

Continuous Operating Time:

The Electric Tacker PET 23 VARIO is designed for 15 minutes of continuous operation at the maximum blow count. Allow the appliance to cool down sufficiently after such a tasking.

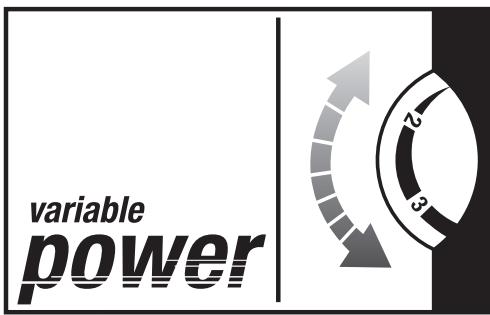

• Setting the impact force

① A tip!

• Select the lowest impact force required for stapling.
  You can set the impact force at any value between "1" (lowest impact force) and "7" (highest impact force) using the impact force controller 6.

Stapling

Switch on the tool.
Press the nose 4 on the spot where you wish to staple.
Press the trigger 2
Adjust the impact force to suit the materials, staples or nails.

Redriving:

Note: Use this function if you discover that some already-driven staples or nails have not ended up

flush in the material. Redriving must be carried out directly at each staple or nail. If you do not lift the nose 4 when doing this then no further staple or nail will be loaded into the driving position.

Drive the required staple or nail and press the nose piece once more on to the next rediving position.
Press the trigger 2 as often as necessary until the staple or nail is flush with the substrate.

Examples of use:

Fastening a covering to the seat of a chair (see Fig. B).
Fixing a skirting at the joint between the wall and floor covering (see Fig. C).
Stretching and stapling a canvas to a frame (see Fig. D).
□ Attaching a protective film to insulation material when installing thermal insulation (see Fig. E).
□ Attaching fixings for components in a wall cladding system (see Fig. F).

• Rectifying faults

WARNING! Before you clean or maintain the device always pull the mains plug out of the mains socket.

= Fault

⑨ = Cause

The tool does not work properly.

A staple or nail is blocking the tool.

Open the magazine slider 7. This should release the pretension. Take off the front plate 3 with the hexagonal socket screw key 10. Remove the staple or nail.
A staple or nail has been incorrectly driven into the material.
Remove the incorrectly driven staple or nail with pincers or pointed pliers.
O Select suitable staples or nails.
- Set the required impact force that will correctly drive the staples or nails.

- Maintenance and cleaning

CAUTION! Always pull the plug out of the mains socket before cleaning or maintaining the device.

The electric tacker is designed to be maintenance-free.

Always keep the device clean, dry and free of oil or grease.
Clean the device frequently. This should be done immediately after you have finished using it.
Do not allow any liquids to enter the device. Use a cloth to clean the housing. Never use petrol, solvents or cleaning agents that might attack plastic.

Disposal

The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical power tools with the household rubbish!

In accordance with European Directive 2002/96/EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Information

Service centre

The service centre for your country is shown in the warranty documentation.

WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

WARNING! If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

Note: Through poor conditions of the electrical mains, shortly voltage drops can appear when starting the equipment. This can influence other equipment (eg. Blinking of a lamp). If the mains-impedance z < 0.381 OHM, such disturbances are not expected. (In case of need, you may contact you local supply authority for further information.)

Declaration of Conformity/ Manufacturer CE

We, Komperna GmbH, Burgstr. 21, 44867 Bochum, Germany, declare that this product complies with the following EU directives:

Machinery Directive (98/37/EG)

EU Low Voltage Directive (2006/95/EG)

Electromagnetic Compatibility (2004/108/EG)

Applicable harmonized standards

EN 50144-1:1998 + A1 + A2

EN50144-2-16:2003

EN55014-1:2000+A1+A2

EN 55014-2:1997 + A1

EN61000-3-2:2000+A2

EN61000-3-11:2000

ROHS Directive (2002/95/EEC)

Description of the product:

Parkside Electric tacker PET 23

Bochum, 30.04.2008

Hans Kompernaβ

• Managing Director -

We reserve the right to make technical modifications in the course of product development.

Wprowadzenie

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompermass.com

Type	mm
55	12, 14, 16, 18, 19
53	12, 14, 18
47	23

ROHS Directive (2002/95/EEC)

Okreslenie produktu:

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

C

m = 311 ;

ROHS Directive (2002/95/EEC)

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

Splośna varnostna navodila za elektrńo orodje

A OPOZORILO! Preberite varnostna opozorila in navodila!

ROHS Directive (2002/95/EEC)

Oznaka izdelka:

Parkside Elektrčni spenjalnik PET 23 VARIO

Bochum, 30.04.2008

Hans Kompernaβ -direktor -

Pridrzujemo si pravico do tehnicih spremb.

Uvod

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

ROHS Directive (2002/95/EEC)

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

ROHS Directive (2002/95/EEC)

Názov výrobku:

Parkside Elektricky spinkovač PET 23 VARIO

Bochume, 30.04.2008

Hans Kompernaβ -konateI

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

Opé sigurnosne upte za elektrčni alat

A

UPOZORENJE! Pročitajte sigurnosne

uple kao i sve ostale upute!

ROHS Directive (2002/95/EEC)

Naziv proizvoda:

Parkside Elektrica spajalica PET 23 VARIO

Bochum, 30.04.2008

Date of manufacture: 04-2008

KompernaB GmbH · 44867 Bochum (Germany)

www.kompernass.com

Allgemeine

Sicherheitshinweise

ROHS Directive (2002/95/EEC)
