USER MANUAL Gartengrillkamine BUSCHBECK

GB Explanations/symbols

FR Explications/symboles

NL Uitleg/symbolen

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

Do not throw these instructions away. They contain hazard information, warnings, safety precautions and product information.

Français

GB You will need these tools:

DE	Achtung!	Information	Mit Holzkohle befeuerbar	Mit Holz befeuerbar	Muß nicht verputzt oder gestrichen werden
GB	Caution!	Information	Can be heated with charcoal	Can be heated with wood	Does not have to be plastered or painted
FR	Attention !	Information	Allumage au charbon de bois	Allumage au bois	N'a pas besoin d'être enduit ou peint
NL	Let op!	Informatie	Kan met houtskool worden gestookt	Kan met hout worden gestookt	Hoeft niet gemetseld of geverfd te worden
IT	Attenzione!	Informazione	Utilizzabile con carbonella	Utilizzabile con legna	Non necessita intonacatura o verniciatura
ES	¡Atención!	Información	Puede encenderse con carbón vegetal	Puede encenderse con madera	No tiene que revocarse ni pintarse
DK	Obs!	Information	Kan fyres med trækul	Kan fyres med træ	Må ikke pudses eller males
SE	Obs!	Information	Kan eldas med träkol	Kan eldas med ved	Måste inte behandlas eller målas
NO	Obs!	Informasjon	Kan fyres med trekull	Kan fyres med ved	Må ikke behandles eller males
FI	Huomio!	Tiedot	Puuhiilellä syttyvä	Puulla syttyvä	Ei tarvitse rapata tai maalata
PL	Uwaga!	Informacja	Użytkowanie z wykorzystaniem węgla drzewnego	Użytkowanie z wykorzystaniem drewna	Zaszpachlowanie i malowanie nie jest konieczne. Wstępne konserwowanie i malowanie nie jest konieczne.
CZ	Pozor!	Informace	Možnost zatápění dřevěným uhlím	Možnost zatápění dřevem	Není nutné omítat nebo natírat
SK	Pozor!	Informácia	Možnosť podkurovania dreveným uhlím	Možnosť podkurovania drevom	Nie je potrebné omietanie ani opatrenie povrchovým náterom
SI	Nevarnost!	Informacije	Vnetljiv z ogljem	Vnetljiv z lesom	Ne sme biti ometano in pobarvano
HR	Pozor!	Informacije	Može se zažariti ugljem	Može se zažariti drvima	Ne smije se žbukati niti bojiti
LT	Dèmesio!	Informacija	Kürenamas medžio anglimis	Kürenamas mediena	Nereikia tinkuoti ar dažyti
LV	Uzmanibu!	Informácija	Kurinăšanai atlauts izmantot kokogles	Kurinăšanai atlauts izmantot malku	Nav jäapmet vai jänokräso
EE	Tähelepanu!	Informatsioon	Võimalik põletada sütt	Võimalik põletada puitu	Ei ole vaja krohvida ega võõbata
IS	Viðvörun!	Upplysingar	Má kveikja í með viðarkolum	Má kveikja í með viði	Má ekki setja á múr eða gifš né mála
RU	Внимание!	Информация	Для растопки используется древесный уголь	Для растопки используются дрова	Запрещается покрывать защитным слоем или краской

GK 1

Carmen Lugano

Toscana Milano

St. Moritz Valenzia

Alicante Ambiente

Baltrum Keitum

Bali Stockholm

Ancona Neapel

Bergen Porto

Helsinki

Kentucky

GK 2

Meran Verona

Bologna San Remo

Venezia Jupiter

Kreta Athen

Davos Nizza

Norderney Rhodos

Elba Florenz

GK 3

Venedig Edelstahl

Zürich Edelstahl

Kampen Edelstahl

GK 4

Rondo

Wellington

GK 5

Kalmar

Cortina Las Palmas

Capri Monaco

Borkum Siena

Korsika

1

2

3

5

6

6

6

6

8

8

4

9

10

BAUTYPEN | TYPES

Tino

Zamora

Salina

GB 1

Venedig weiß

Venedig Edelstahl

Bologna

Ambiente

Luzern

Stockholm

Wellington

Kopenhagen

GB 2

Montana

Kingston

Oregon

Kansas

Orlando

Texas

GB 3

Rica

GKT 1

GKT 2

Bozen

1+2

3

5

6

6

6

6

8

8

4

9

9

10

STEP-BY-STEP

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

IF THE HAZARD INFORMATION, WARNINGS AND SAFETY INSTRUCTIONS ARE IGNORED, THERE IS A RISK OF UNJURIES OR MATERIAL DAMAGE DUE TO A FIRE OR EXPLOSION.

Do not use in enclosed spaces. This barbecue may only be used outdoors. Toxic vapours may otherwise accumulate that can lead to serious or even fatal injuries. Do not use the barbecue in a garage, building, in connecting passages between buildings or under flammable roofs, shelters etc.
! BEWARE! Do not use ethyl alcohol or petrol to light or re-light the barbecue!
! Use only firelighters in accordance with EN 1860-3!
Pay attention to your clothing when grilling – easily flammable fabrics are unsuitable for work at or near the barbecue! You should always wear a barbecue apron to protect your clothing from the heat and any grease splashes.
An incorrect assembly may present a risk. Observe the assembly instructions at all times.
! Only use this barbecue when all of the parts have been correctly assembled and stuck together.
Do not place any lighting fluid or charcoal soaked in lighting fluid on hot or worm charcoal.
Close the lighting fluid after use and place at a safe distance from the barbecue.

Take corresponding care when using the barbecue.
The barbecue gets hot during use. Do not touch any metal parts or the grill without gloves. Do not leave the barbecue unattended during use.
! CAUTION! Keep children and pets away from the barbecue. Never leave infants, children or pets unattended near a hot barbecue.
This barbecue should only ever be used at a distance of at least 1.5 m from flammable materials. Flammable materials include (not only) wood, treated wooden floors, wooden patios and wooden porches.
Never throw hot ashes or smouldering briquettes away. There is a risk of fire. Only dispose of the ash and charcoal residue when these have gone out completely and have cooled down.
Keep the surface of the barbecue free from inflammable gases and liquids (e.g. fuel, alcohol etc.) as well as other flammable materials.
This barbecue is not a heater and may not be used as a heater.
CAUTION! Use only charcoal in accordance with EN 1860-2!

BEFORE SETTING UP YOUR GARDEN BARBECUE FIREPLACE, MAKE SURE THAT THE BASE OF CONCRETE, TERRACE TILES OR CONCRETE PAVING IS LEVEL AND FIRM. THE BASE SHOULD BE AT LEAST 10 CM THICK. MAKE SURE THE BARBECUE IS PLACED AT A SUFFICIENT DISTANCE FROM FLAMMABLE OR COMBUSTIBLE OBJECTS.

Assembly

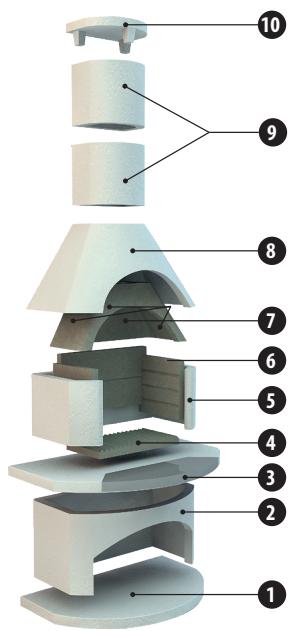

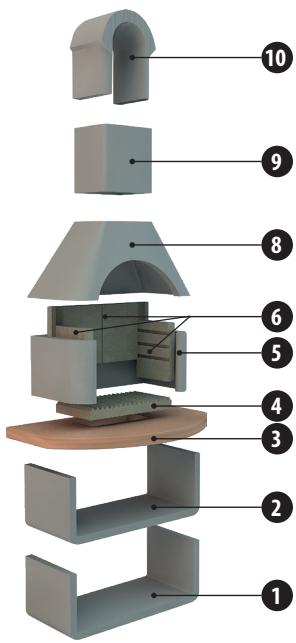

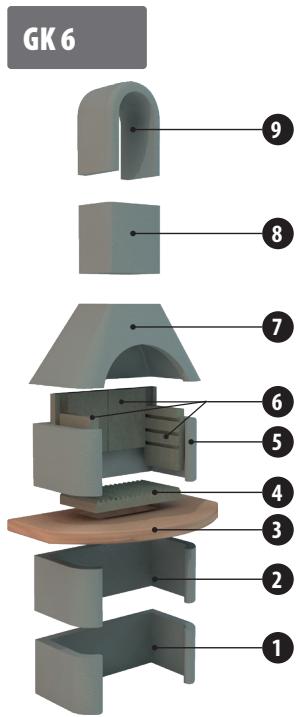

All of the parts of the chimney, except for the refractory concrete base plate 4, the three-part fireproof insert 6 and the refractory concrete hood 7, should be stuck together – at least at points – with the special adhesive enclosed.
All parts above and including the concrete hood 8 are to be stuck together all-over with the adhesive.
The adhesive take around 24 hours to set completely.
Make sure that there is an approx. 2 cm gap between the three-part fireproof insert 6 and the fireplace 4 all round.
The rear wall of the three-part fireproof insert 6 is fixed to the rear wall of the fireplace 5 with two spots of adhesive.
The hood 8 is mounted with an overhang at the rear of approx. 1.5 cm.

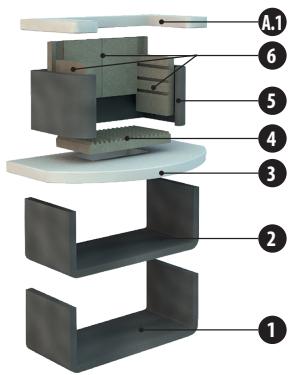

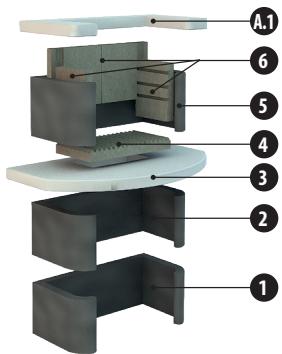

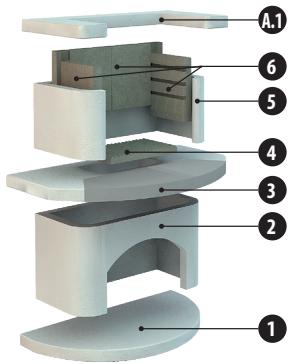

The cover plate A.1 is mounted so that the front is flush with the three-part fireproof insert 6 and with an overhang at the rear resulting from this.
All of the parts of the side table T.1 - T.3 must be stuck together all over with the enclosed adhesive.
The garden barbecue fireplace can be heated with charcoal or firewood – depending on the model! Please pay special attention to which model is yours.
! Heat up your garden barbecue fireplace carefully (small flames) so that no cracks appear at high temperatures. This is particularly important during damp weather (wet concrete).
? Please use normal charcoal or similar combustible ma-

Operation

terials to heat up your garden barbecue fireplace (max. 5 kg charcoal or firewood) along with the intended solid firelighters. Large cracks may appear if the maximum amount of fuel is ignored.

If small cracks appear there is no cause for alarm and these will not have any negative effects on the safety and function of the barbecue since all parts of the chimney are reinforced with steel. The formation of hairline cracks is completely normal and these do not constitute any grounds for complaints about the product.

The surface of the garden barbecue fireplace can be cleaned of algae, for example, with a high-pressure cleaner.

Product features

Copper is a natural material and can of course tarnish under the influence of the weather. We recommend customary polishing pastes for cleaning.
The granite cornice plate should be stuck in place well with the enclosed adhesive. Since granite is a natural product, hairline cracks may appear when it is heated; these will not affect the function of the barbecue fireplace. Hairline cracks in the granite cornice pate are not product defects.
Since concrete is a natural product, slight deviations in the dimensions may appear when the parts dry. These are within the tolerances and can be compensated with the enclosed adhesive. They do not constitute grounds for complaint.
Efflorescence in parts of coloured concrete does not constitute a ground for complaint but are the result of a natural process of lime evaporation. The lime is slowly dissolved through rain and other atmospheric influences. The efflorescence disappears in time by itself.

FR CONSIGNES DE SÉCURITÉ

UN NON RESPECT DES MISES EN GARDES ET DES AVERTISSEMENTS PEUT ENTRAÎNER DES BLESSURES OU DES DÉGÂTS MATÉRIELS CAUSÉS PAR UN INCENDIE OU UNE EXPLOSION.
