Product Type	Cordless Chainsaw
Brand	Bosch
Model	EasyChain 18V-15-7
Power Supply	18 V lithium-ion battery (PowerForAll system)
Battery Type	Lithium-ion, 2.0 Ah (standard), compatible 1.5–6.0 Ah
Guide Bar Length	15 cm (6 inches)
Chain Pitch	3/8 inch
Chain Thickness	0.050 inch (1.3 mm)
Maximum Cutting Capacity	Approx. 12 cm (branch diameter)
Chain Speed at No Load	Approx. 4.5 m/s
Sound Level (Sound Pressure)	83 dB(A) (typical value)
Sound Level (Sound Power)	95 dB(A) (typical value)
Weight (without battery)	Approx. 2.2 kg
Weight (with 2.0 Ah battery)	Approx. 2.8 kg
Dimensions (L × W × H)	Approx. 60 × 18 × 20 cm
Chain Tension System	Tool-free (adjustment wheel)
Chain Oil Tank	Integrated, visible level
Main Functions	Wood cutting, pruning, hedge trimming (with optional attachment)
Maintenance and Cleaning	Clean bar and chain after use; lubricate chain; check tension
Safety	Instant chain brake, kickback protection, dual safety switch
Spare Parts and Repairability	Chain, bar, sprocket, cover available; battery and charger sold separately
General Information	Domestic use; gardening; compatible with all PowerForAll tools

Frequently Asked Questions - EasyChain 18V-15-7 BOSCH

How to tension the chain saw?

Chain tension is adjusted tool-free: turn the adjustment wheel on the side of the saw until the chain is properly tensioned (it should be able to be lifted 2 to 3 mm at the middle of the bar).

Which battery to use with the Bosch EasyChain 18V-15-7?

Use a Bosch PowerForAll 18V battery from 1.5 Ah to 6.0 Ah. The 2.0 Ah battery is standard and provides about 30 minutes of light cutting.

Why does the saw not start?

Check that the battery is charged and inserted correctly. Make sure the chain brake is not activated (pull the lever back). Both safety switches must be pressed simultaneously.

How to lubricate the chain?

Fill the oil tank with biodegradable chain oil. The saw lubricates the chain automatically during operation. Check the level before each use.

What is the maximum cutting capacity?

With a 15 cm bar, the maximum cutting capacity is approximately 12 cm diameter for a branch. For larger diameters, use a more powerful saw.

Can I use the saw to cut hardwood?

Yes, but the saw is designed for pruning and garden maintenance. For large diameter hardwood, cutting will be slower. Use a sharp and lubricated chain.

How to clean the saw after use?

Remove the battery. Clean the bar, chain, and cover with a soft brush and damp cloth. Avoid solvents. Check that the oil channel is not blocked.

What safety precautions should I take?

Always wear gloves, safety glasses, and ear protection. Do not wear loose clothing. Hold the saw with both hands and keep people and animals away from the cutting area.

Where can I buy spare parts?

Spare parts (chain, bar, sprocket) are available from authorized Bosch dealers or online. Use only genuine parts for safety.

How to store the saw long-term?

Remove the battery, clean it, lubricate the chain, and store in a dry place protected from frost. If the battery is not used for a long time, charge it to about 40% capacity.

USER MANUAL EasyChain 18V-15-7 BOSCH

6

B7

C

D

8

G

H

10

M

2 607 000 181

18 V LI 2.5 Ah

18 V LI 4.0 Ah

15 cm F016 800 624

18 V LI 6.0 Ah

AL 18V-20 CV

AL 1830 CV

12 | English

English

Safety Instructions

www.bosch-pt.com/serviceaddresses

Transport

Explanation of symbols

Read instruction manual.

General hazard safety alert.

Do not expose to rain.

Always hold the pruner saw with both hands.

Pay attention to the kickback of the pruner saw and avoid sawing with the tip of the chain bar.

Keep hands away from moving chain.

Wear eye and ear protection.

Wear hand protection.

WARNING: Disconnect battery before maintenance.

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications.

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

Personal safety

ors. There is an increased risk of electric shock if your body is earthed or grounded.

▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. ▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. ▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. ▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. ▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. ▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Pruner saw safety warnings

▶ Keep all parts of the body away from the saw chain when the pruner saw is operating. Before you start the pruner saw, make sure the saw chain is not contacting anything. A moment of inattention while operating pruner saws may cause entanglement of your clothing or body with the saw chain. ▶ Tool is intended for ambidextrous use. Always hold the pruner saw with one hand on the rear handle and the other hand on the auxiliary handle. (see fig. F) Hold the pruner saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the pruner saw "live" and could give the operator an electric shock. ▶ Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain. ▶ Do not operate a pruner saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a pruner saw in this manner could result in serious personal injury. ▶ Always keep proper footing and operate the pruner saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the pruner saw. When cutting a branch that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded branch may strike the operator and/or throw the pruner saw out of control. ▶ Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

Carry the pruner saw by the rear handle with the pruner saw switched off and away from your body. When transporting or storing the pruner saw, always fit the chain cover. Proper handling of the pruner saw will reduce the likelihood of accidental contact with the moving saw chain. Follow instructions for lubricating, chain tensioning and changing the bar and chain. Improperly tensioned or lubricated chain may either break or increase the chance for kickback. Cut wood only. Do not use pruner saw for purposes not intended. For example: do not use pruner saw for cutting metal, plastic, masonry or non-wood building materials. Use of the pruner saw for operations different than intended could result in a hazardous situation. This pruner saw is not intended for tree felling. Use of the pruner saw for operations different than intended could result in serious injury to the operator or bystanders. Follow all instructions when clearing jammed material, storing or servicing the pruner saw. Make sure the switch is off and the battery pack is removed. Causes and operator prevention of kickback:

- Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

• Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
• Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

- Either of these reactions may cause you to lose control of the pruner saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a pruner saw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of pruner saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

Maintain a firm grip, with thumbs and fingers encircling the pruner saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the pruner saw. Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the pruner saw in unexpected situations. Only use replacement guide bars and saw chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.

Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

Additional safety warnings

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. ▶ Always ensure all handles and guards are fitted when using the machine. Never attempt to use an incomplete machine or one fitted with an unauthorized modification. ▶ Always make sure that the chain is in the correct position. An incorrectly positioned chain can result in chain breakage, kickback and/or injury. ▶ Always wear robust full length trousers when operating the pruner saw. This pruner saw is not suitable for cuts that are made from the bottom up. Use of the pruner saw for operations different than intended could result in a hazardous situation.

Safety Instructions and Recommendations for Optimal Handling of the Battery

▶ Ensure the product is switched off before inserting the battery. Inserting the battery into a product that has the switch on can cause accidents. ▶ Use only Bosch batteries intended specifically for this product. Use of any other batteries may create a risk of injury and fire. ▶ Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.

▶ When not using the machine, detach the battery from paper clips, coins, keys, nails, screws, or other small metal objects that could cause bridging of the terminals. Shorting the battery terminals together may cause burns or a fire. In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. ▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.

▶ Do not short-circuit the battery. There is a risk of explosion. ▶ Protect the battery against moisture and water. ▶ Store the product and battery only within a temperature range between -20°C and 50°C. As an example, do not leave the battery in the car in summer. ▶ Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning

Carefully check the area where the tool is to be used for wildlife and pets. Wild animals and pets can be injured by the machine during operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects.

CLICK

Wear head protection if there is a risk that falling branches could cause injuries.

Keep children and bystanders away while operating the machine. Distractions can cause you to lose control over the machine.

Movement direction

Reaction direction

Weight

Switching on

Switching off

Permitted action

Prohibited action

Audible noise

Accessories/Spare parts

Product description and specifications

Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The product is intended for domestic use, for sawing wood such as branches, planks, wooden beams etc., at ground level.

Cuts can be sawed with or across the grain.

This power tool is not suitable for sawing mineral materials and plasterboard.

This power tool is not intended for undercut pruning, plunge cuts and felling trees.

This power tool must be operated with two hands whilst in use.

Delivery Scope

Carefully remove the machine from its packaging and check if the following parts are complete:

- Pruner saw

- Cover

- Saw chain

- Chain bar

- Chain cover

- Chain saw oil (50 ml)

- Chain tension aid

- Operating instructions

Battery and charger are included in certain versions.

When parts are missing or damaged, please contact your dealer.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Chain guard

(2) Tensioning wheel

(3) Auxiliary handle

(4) Lock-off button for On/Off switch

(5) On/Off switch

(6) Rear handle

(7) Battery receptacle

(8) Battery status indicator

(9) Hand guard

(10) Chip ejector

(11) Cover

(12) Clamping knob

(13) Chain cover

(14) Saw chain

(15) Chain bar

(16) Battery a)

(17) Charger a)

(18) Serial number

(19) Symbol for rotation and cutting direction

(20) Magnet

(21) Fastening bolt

(22) Guide fin for chain bar

(23) Bolt for chain tension

(24) Drive sprocket

(25) Battery release button

(26) Chain tension aid

a) The accessories illustrated or described are not included as standard delivery.

Technical Data

Pruner saw EasyChain 18V-15-7
Article number	3 600 HB8 9..
Chain speed (no-load) m/s 6.95
Chain bar length mm 150
Cutting capacity mm 130
Toolless chain tensioning (SDS) ●
Saw chain type 325”– 80BX
Drive link thickness mm 1.1 (0.043")
Weight according to EPTA-Procedure 01:2014 A)
– without battery kg 1.3
– with battery kg 1.7 (1.5 Ah) – 2.0 (6.0 Ah)
Serial number See serial number (type plate) on the machine

28 | English

Pruner saw EasyChain 18V-15-7

Recommended ambient temperature during charging °C 0... +35
Permitted ambient temperature during storage °C -20... +50
Permitted ambient temperature during operation B)	°C 0... +40
Battery type PBA 18V...W-.	1.5 Ah, 2.0 Ah, 2.5 Ah, 4.0 Ah, 6.0 Ah

A) Depends on battery in use

B) Limited performance at temperatures < 0 °C

Noise/Vibration Information

EasyChain 18V-15-7 Noise emission values determined according to EN 62841-4-1. Typically the A-weighted noise levels of the product are:

– Sound pressure level dB(A)		80
– Sound power level dB(A)		88
– Sound pressure level uncertainty K dB		3.0
Wear hearing protection!
Vibrational values (vector sum of three directions) determined according to EN 62841-4-1
– Vibration emission value ah	m/s2	4.0
– Uncertainty K m/s	2	1.5

The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one machine with another.

The declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.

The vibration and noise emissions during actual use of the machine can differ from the declared total value depending on the ways in which the machine is used; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the machine is switched off and when it is running idle in addition to the trigger time).

Assembly

Inserting/removing the battery (see figure D)

Note: Using unsuitable batteries can lead to malfunctions or damage the machine.

Insert the charged battery (16). Make sure that the battery is fully fitted.

To remove the battery (16) from the machine, press the battery unlocking button (25) and pull the battery out.

Charging the Battery

▶ Observe the correct mains voltage! The voltage of the power supply must correspond with the data given on

the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 35 °C. In this manner, a high battery service life is achieved.

Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not cause damage to the battery.

The "Electronic Cell Protection (ECP)" protects the lithium-ion battery against deep discharging. When the battery is empty, the product is switched off by means of a protective circuit: The product no longer operates.

Do not continue to press the On/Off switch after an automatic shut-off of the product. The battery could become damaged.

Observe the notes for disposal of the battery.

Charging Procedure

The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery (16) is inserted into the charger.

Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage.

This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.

Mounting and Tensioning the Saw Chain (see figures B1 - B7)

▶ Wear PPE before maintaining or changing the saw chain. ▶ Do not use any tools for assembly. ▶ Using the pruner saw with misaligned or incorrectly tensioned chain can result in chain breakage, kick-back and/or injury. A correctly aligned and tensioned chain optimises product performance and extends its lifetime. Tension the chain using the Bosch approved tensioning aid (26). Upon initial operation, new chains can lengthen considerably. ▶ Avoid tensioning the chain if it is hot, as this will cause the chain to become overtensioned and fit too tightly against the chain bar when it cools down. ▶ Use only chains with a drive link thickness of 1.1 mm. - Place the pruner saw on any suitable flat surface. - Make sure that the tensioning wheel (2) has been turned fully in anticlockwise direction. - Slot in the saw chain (14) in the gap of the chain bar (15). Ensure the saw chain is in the correct running direction by comparing the saw chain with the symbol for rotation and cutting direction (19). - Place the chain bar (15) on the fastening bolt (21) and place the chain links around the drive sprocket (24). - Check if all parts are positioned properly and hold the chain bar and the chain in this position. Use the magnet (20) for added support when aligning the chain bar into position. - Rotate the tensioning wheel (2) clockwise until the chain is partially tensioned. - Attach the cover (11) and rotate the SDS lock (12) clockwise until the cover is partially secured. - Turn the tensioning wheel (2) clockwise (+) until the correct chain tension is reached. The saw chain (14) is correctly tensioned when it can be raised approx. 2–3 mm from the chain bar. - Once the correct tension is reached, rotate the clamping knob (12) clockwise until it is firmly secured and fold down the bracket on the clamping knob (12). The chain bar is fixed in the set position. Do not continue to turn the tensioning wheel (2) - If the chain is tensioned too tightly, fold up the bracket on the clamping knob (12) and turn partly anti-clockwise. Turn the tensioning wheel (-) and repeat the tensioning steps.

Chain Tension Aid

When setting the saw chain (14) tension with the chain tension aid (26) complete the following steps:

- Wearing protective gloves, pull the saw chain (14) away from the chain bar (15) and insert the tension aid (26) between the chain bar (15) and saw chain (14).

Note: Locate the tension aid in the middle of the chain bar (15).

- Gradually increase the chain tension by rotating the tensioning wheel (2) clockwise until the tension aid hook aligns with the loop (see figure B5).

- Remove the chain tension aid (26) before operating the tool.

- If you can not fit the chain tension aid between the saw chain (14) and chain bar (15), the saw chain is over tensioned. Release chain tension by rotating the tensioning wheel (2) counter-clockwise. Lock the tensioning wheel (2) by rotating the clamping knob (12).

Note: If using the chain tension aid (26), only use the tool supplied in the box.

Saw chain Lubrication (see figure C)

The saw chain is not automatically lubricated with chain oil during operation.

Check the saw chain before each use and apply oil manually.

Operating the pruner saw without chain oil will damage the pruner saw.

The service life of the saw chain and the cutting performance depend on optimum lubrication.

Note: It is important to use only readily biodegradable chain lubricants (according to RAL-UZ 48) to avoid damage to the chain saw. Never use recycled/old oil. Use of non approved oil will invalidate the warranty.

Applying oil to the saw chain:

• Remove the battery before oiling the chain.
• Always wear gloves when applying oil to the saw chain.
• Put the pruner saw on a suitable surface, with the cover (11) facing up.
• Apply oil in the area between the chain bar and the saw chain.
• Reinsert the battery. Briefly switch the pruner saw on to distribute the oil evenly over the guide bar and saw chain.

Operation

Switching On and Off (see figure E)

Switching On

Remove the chain cover (13) and insert the charged battery. Hold the pruner saw with both hands, one hand on the rear handle (6) and one hand on the auxiliary handle (3).

Press the power lock-off button (4) and afterwards the On/Off switch (5).

As soon as the saw chain (14) moves, release the lock-off button for the On/Off switch (4) again.

After changing the battery, check that the pruner saw starts up before you start cutting.

Switching Off

Release the On/Off switch (5); the saw chain (14) comes to a standstill.

If the saw chain (14) does not stop after you release the On/Off switch (5), contact your Bosch Service Centre.

Remove the battery and mount the chain cover (13).

Working with the pruner saw

▶ Always read the operating and safety information before use. ▶ Never operate the machine with defective guards or shields, or without safety devices, for example protection from the running saw chain in place. ▶ Always check the condition of the pruner saw and the chain. Is the saw chain lubricated with oil? See Section "Saw chain lubrication". Only use the pruner saw if it is in perfect condition. Do not make any modifications to the pruner saw. ▶ Always check that the pruner saw is correctly assembled, see Section "Mounting and Tensioning the Saw Chain". ▶ Check that the chain guard is positioned correctly. If the chain guard is faulty and does not return to its normal position, contact your Bosch Service Centre. ▶ Always wear suitable clothing and personal protective equipment. ▶ Wear safety glasses, hearing protection and protective gloves. Suitable clothing reduces the risk of injury from thrown about cuttings and accidental contact with the saw chain. ▶ Always make sure that the environment is free from obstacles and persons not involved. ▶ Always use the pruner saw on a stable, level surface. Always use the pruner saw in good light conditions. ▶ Never use the pruner saw on a ladder or above shoulder height. ▶ Never over-reach or work with arms fully extended. ▶ Always hold the pruner saw with both hands. ▶ Be careful with oil on the grip surfaces and use the gloves. ▶ Use a protective mask when cutting treated wood. ▶ Check if there is no power cable in the cutting area.

General Behaviour (see figure G)

• First-time users should practice cutting logs on a saw horse.
• Hold the pruning saw at the side of your body, with your preferred hand.
• The movable chain guard (1) is in place to protect the auxiliary handle. This guard will move up as the tool cuts through the wood. After cutting, the chain guard (1) will return to its starting position.
• The chain must be running at full speed before it makes contact with the wood.
• Do not force the saw chain while cutting; let the chain do the work.
• Remove the pruner saw with the saw chain running from an unfinished cut.
• Beware when reaching the end of the cut. The weight of the pruner saw changes unexpectedly as it cuts free from the wood. Danger of injury to the legs and feet.

Kickback (see figure H)

Never remove or alter the chain guard! The saw is

equipped with protection from the running saw chain to prevent kickback if the tip of the saw is accidentally pressed against the wood.

Kickback is the sudden backward/upward motion of the pruner saw, occurring when the chain (at the tip of the chain bar) comes in contact with a log or wood, or when the chain becomes jammed.

When kickback occurs, the pruner saw reacts unpredictably and can cause heavy injuries to the operator or bystanders. Particular attention must be given when sawing sidewards, slanted, or during length cuts; release the On/Off switch (5) in dangerous situations to prevent injuries.

To avoid kickback:

– Saw with the chain bar at a flat angle. - Never work with a widely stretched or heavily worn out saw chain. - Remove the blunt saw chain. – Never saw above shoulder height. - Never work with the tip of the chain. - Always hold the pruner saw firmly with both hands. – Always use a Bosch approved low-kickback saw chain. - Ensure correct chain tension.

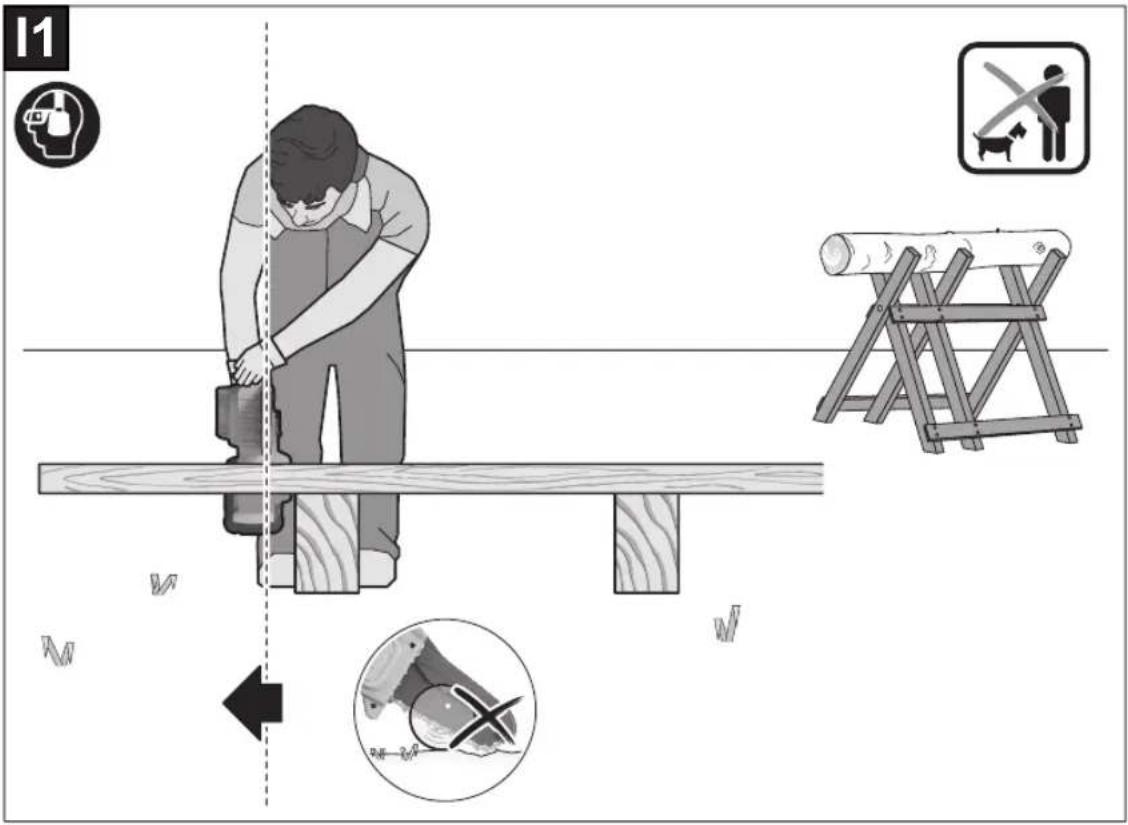

Cutting Logs/firewood (see figures I1 and I2)

• To cut logs, use a saw horse standing on a level and firm surface.
• Saw only wood or wooden objects. When sawing, always take care to avoid hitting stones, nails, etc., as these could be thrown up, could cause damage to the chain, or could result in serious injury to the operator or bystanders. – Always secure the logs before cutting.
• Always cut the logs beyond the secured points to prevent the log from closing in and causing the chain to get jammed.
• Never allow the saw chain to make contact with the ground or items of workplace equipment.
• Be careful not to trip over tree stumps, branches, roots, etc.
• It is not recommended to cut wood larger than the cutting capacity (130 mm) specified in the technical data.

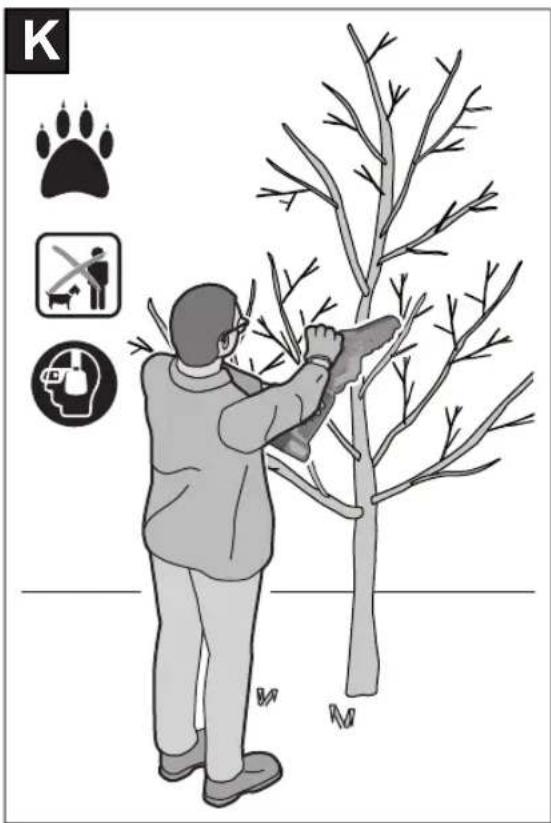

Limbing a Branch or Tree (see figure J)

• Limbing is removing the small branches from a fallen tree or large branch.
• Leave larger lower limbs to support the log off the ground.
• Remove the smaller limbs in one cut.
• Be careful when cutting branches/twigs, as these can spring or bounce back.

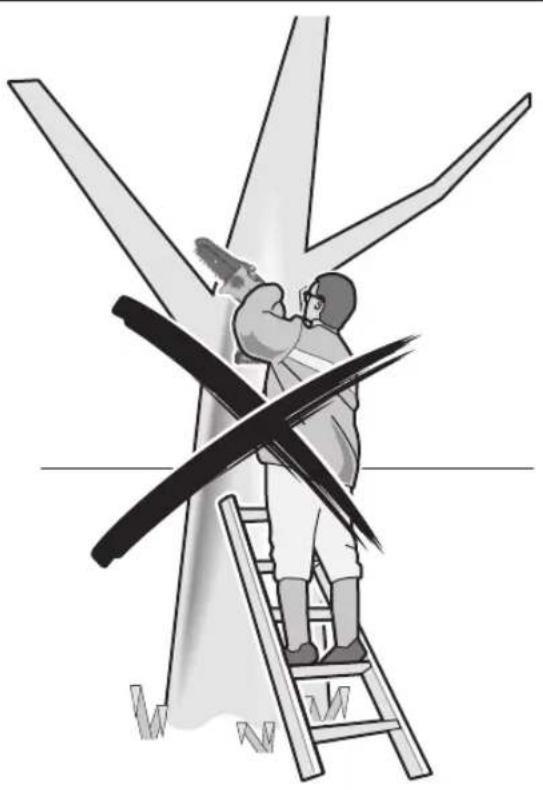

• Never use the pruner saw on a ladder or above shoulder height.
• Sawing is optimized when the chain speed remains steady during cutting.

Troubleshooting

The following chart lists problem symptoms, possible causes and corrective action, if your power tool does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch off and remove the battery prior to any troubleshooting.

Problem Possible Cause Corrective Measure

Pruner saw fails to operate	Battery discharged Recharge battery; also see "Battery Charging"
	Battery not fully connected Ensure both locking levels are engaged
	Motor protector has activated Allow motor to cool
	Battery too hot/cold Allow to cool/warm
	Chain tension too high Retension the saw chain, see also (see "Mounting and Tensioning the Saw Chain (see figures B1 - B7)", page 29). Use tension aid (26).
Saw chain will not move	Battery discharged Recharge battery; also see "Battery Charging"
	Power tool defective Contact your Bosch Service Centre
	Area under SDS cover clogged See "Maintenance and Cleaning"
	No oil on saw chain Retension the saw chain, see also (see "Mounting and Tensioning the Saw Chain (see figures B1 - B7)", page 29) and oil saw chain; also see (see "Saw chain Lubrication (see figure C)", page 29). Use tension aid (26).
Pruner saw operates intermittently	Internal loose contact Contact your Bosch Service Centre
	On/Off switch (5) defective	Contact your Bosch Service Centre
Saw chain dry No oil on saw chain Oil saw chain; also see(see "Saw chain Lubrication (see figure C)", page 29).
Saw chain/guide bar hot	No oil on saw chain Oil saw chain; also see(see "Saw chain Lubrication (see figure C)", page 29).
	Chain tension too high Retension the saw chain, see also(see "Mounting and Tensioning the Saw Chain (see figures B1 - B7)", page 29). Use tension aid (26).
	Dull saw chain Replace saw chain
Pruner saw rips, vibrates or does not saw properly	Saw chain tension too loose Retension the saw chain, see also(see "Mounting and Tensioning the Saw Chain (see figures B1 - B7)", page 29). Use tension aid (26).
	Dull saw chain Replace saw chain
	Saw chain worn out Replace saw chain
	Saw chain teeth are facing in the wrong direction Reassemble with saw chain in correct direction
Excessive vibrations/noise	Power tool defective Contact your Bosch Service Centre
Sawing time per battery charge too low	Too much friction, due to lack of lubricant	Oil saw chain; also see (see "Saw chain Lubrication (see figure C)", page 29).
	Saw chain dirty	Clean saw chain
	Poor sawing technique	(see "Working with the pruner saw", page 30)

32 | English

Problem Possible Cause Corrective Measure

	Battery not fully charged Recharge battery; also see “Battery Charging”
	Battery out of the allowable temperature range	Allow battery to warm naturally to room temperature (within battery operating temperature 0–45 °C)
The saw chain is running slow	Battery discharged Recharge battery; also see “Battery Charging”
	Battery out of the allowable temperature range	Allow battery to warm naturally to room temperature (within battery operating temperature 0–45 °C)

Maintenance and Service

Maintenance and Cleaning

Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

For safe and proper working, always keep the power tool and its ventilation slots clean. Regulatory check the pruner saw for obvious defects such as loose or damaged saw chain and chain bar and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

After Use/Storage

Place the chain cover (13) on the chain bar (15) when not using the pruner saw, in order to prevent injury. The saw chain (14) can become blunt because of unwanted hits/scratches.

Clean the chain and chain bar before storing the product for an extended period of time to prevent the parts from seizing. Clean the moulded plastic housing of the pruner saw using a soft brush and clean cloth. Do not use water, solvents or polishes. Remove all debris, especially from the motor cooling vents. Do not use a high-pressure cleaner to clean the pruner saw.

Remove the cover (11), the chain bar (15) and the saw chain (14) and clean them using a brush to remove residue. Clean the area under the cover (11), the drive sprocket (24) and the chain bar assembly from adherent debris using a brush.

If the pruner saw is to be stored for a longer period of time, clean the saw chain (14) and the chain bar (15). Always store the chain saw with the chain cover (13) in a secure, dry place, out of the reach of children.

Do not place any other objects on the pruner saw.

During storage and use, keep the pruner saw away from large heat sources.

Store the pruner saw in a secure, dry place, out of the reach of children.

Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.

Replacing and Sharpening the Saw Chain

• The saw chain can become blunt through prolonged use or when coming into contact with objects other than wood. – A sharp saw chain is required for optimum performance and safety.
• Never sharpen the saw chain yourself unless you have experience with it.
• Replace the saw chain with the Bosch saw chain accessory or have the saw chain professionally resharpened.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Products, rechargeable batteries, accessories and packaging are to be recycled in an environmentally friendly manner.

Do not dispose of rechargeable batteries/batteries into household waste!

Only for EU countries:

According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. According to European Directive 2006/66/EG, rechargeable batteries that are defective or no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed of incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Rechargeable batteries/batteries:

Li-Ion:

Please refer to the notice in section Transport (see "Transport", page 32).

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

1.5 Ah, 2.0 Ah, 2.5 Ah, 4.0 Ah, 6.0 Ah

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

At www.bosch-pt.dk, spare parts can be ordered online or a repair order can be created.

Service Center phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (within Sweden)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Transport

1.5 Ah, 2.0 Ah, 2.5 Ah, 4.0 Ah, 6.0 Ah

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

Transport

Transport

(25) Battery unlock button

Power tool service

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucharest

Transport

Power tool service

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucharest, Romania

Transport

Transport

Transport

The recommended lithium-ion batteries are subject to the requirements of the regulations on dangerous goods. The user can transport the batteries by road without additional conditions.

When shipping via third parties (for example, air transport or freight forwarding), special requirements regarding packaging and labeling must be observed. In that case,

a dangerous goods expert must be consulted when preparing the package for shipment.

Only send batteries if the housing is not damaged. Tape off open contacts and pack the battery so that it does not move in the package. Please also observe any further national regulations.

Disposal

Products, batteries, accessories, and packaging should be taken for environmentally friendly recycling.

Do not dispose of products and batteries/accumulators in household waste!

Only for EU countries:

In accordance with European Directive 2012/19/EU, products that are no longer usable, and in accordance with European Directive 2006/66/EC, accumulators/batteries that are defective or exhausted must be collected separately and subjected to environmentally sound recycling. If electronic and electrical devices are disposed of improperly, hazardous substances may have a detrimental effect on the environment and human health.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transportešana
